1. Specifications
-1-
1.1 Main Specifications
1. Car Compatibility
Volvo S60, XC60 2015 year
2. Components
Interface* 1EA
3. MULTIMEDIA INTERFACE input specification
3 * A/V input (video external input)
1 * CVBS(Rear Camera) input
2 * Analog RGB input (Navigation system, HDMI)
1 * LCD input (Car system input)
4. MULTIMEDIA INTERFACE output specification
1 * LCD output
5. Power specification
Input power : 8VDC ~ 18VDC
Consumed power : 5WATT

1. Dynamic PAS(Parking assistance system)+3D PDC(Parking
distance control)
- moving parking line according movement of steering
wheel
- Front / Rear car distance sensor display in external mode
2. Support PIP display –showing sources at the same time
(Picture in Picture)
1. Specifications
1.2 Functions
-2-

1. Specifications
-3-
1.3 System Diagram
DISPLAY
A/V 1
NAVIGATION Input
(Analog RGB)
CVBS
(Rear camera)
Car Screen Input
(CAR MAIN BOARD)
A/V 2
A/V 3
VIDEO
CIRCUIT
VIDEO MUX
MCU
Power Input
(+8VDC ~ +18VDC)
POWER
CIRCUIT
Dip S/W
A/V OUT HEADREST
MONITOR
Remote control Switch for source toggle
OEM Button (Can Signal)
Car Installation
OEM LCD
Rear Camera Power
(+12 VDC)
HDMI Input
(Analog RGB-2)

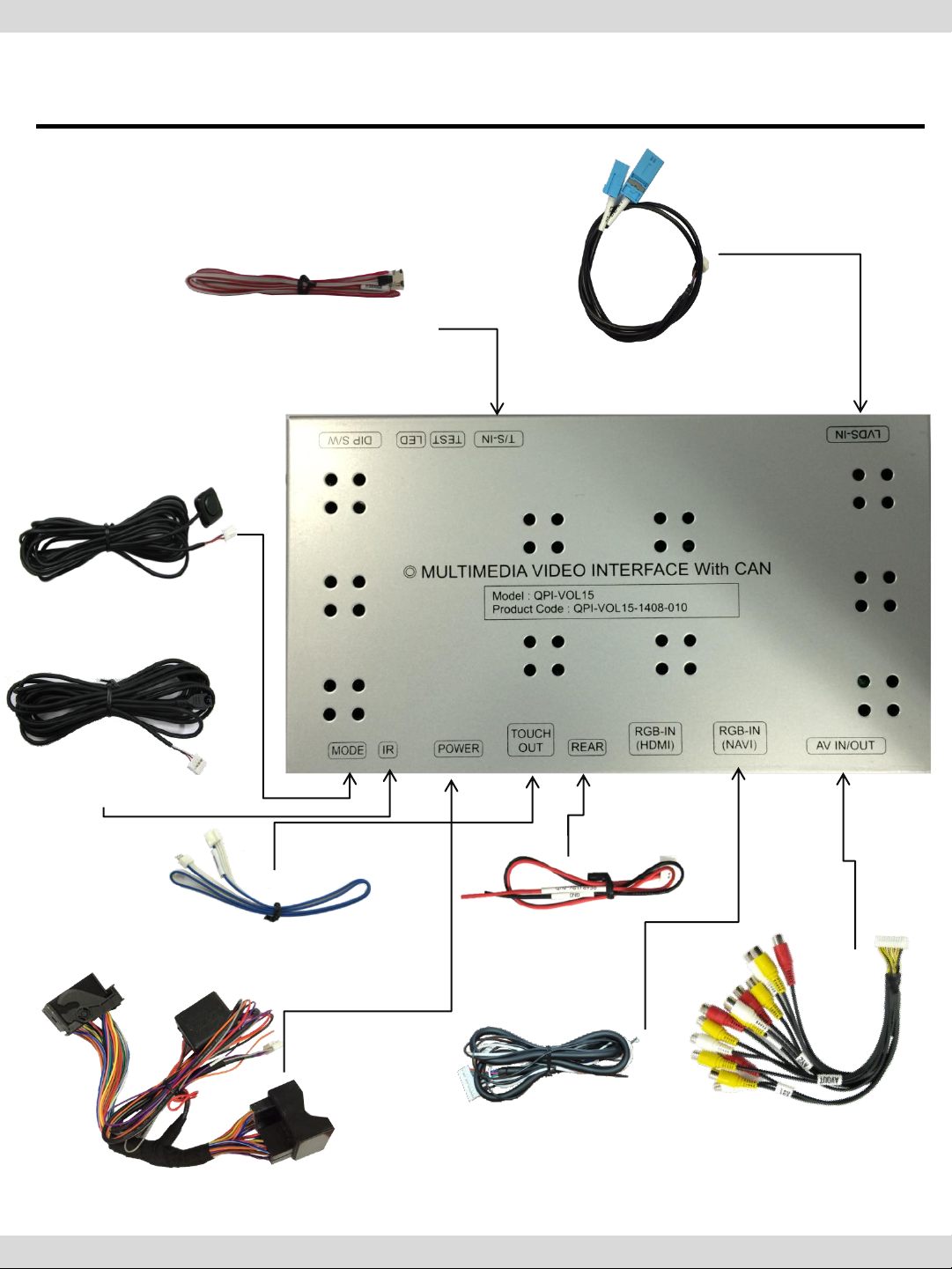

1.4 Components
1. Specifications
-4-
AV cable * 1ea
TOUCH OUT cable * 1ea REAR CAMERA
POWER cable * 1ea
(HARETC0002)
(HAVCAB0002)
MODE cable * 1ea
(HARETC0001)
RGB_IN cable(9P) * 1ea
(HRGBCA0013)
IR cable * 1ea
(HIRCAB0002)
(HTOUCH0004)
7P POWER cable * 1ea
(HTOUCH0068)
LVDS IN/OUT cable * 1ea
(HLCDCA0003)
TOUCH IN cable * 1ea
(HTOUCH0009)

①⑥⑦
⑨
⑩⑪
②③④⑤
⑫
-5-
Dimension
Width 164mm
Length 91mm
Height 19mm
①MODE
②IR
③POWER
④TOUCH OUT
⑤REAR
⑥RGB-IN(HDMI)
⑦RGB-IN(NAVI)
⑧AV/INOUT
⑨LVDS IN
⑪TEST
⑩T/S-IN
⑫LED
1. Specifications
1.5 Exterior
⑧
⑬
⑬DIP S/W

2. Installation
-6-
2.1 Installation Diagram
※ Please connect ACC cable to B+ cable
REAR (9V OUT)
GND
AV1 AV2 AV3
REAR C
Audio L
Audio R
AV/OUT Video
REAR-C
N.C
N.C
ACC
CAN-L
CAN-H
GND
COMMAND
MONITOR
Supplied LCD IN
Supplied LCD OUT
OEM LCD Cable

3. Settings
-9-
3.1 DIP Switch
PIN Function Dip S/W Selection
1 Displaying RGB input ON : RGB mode skip
OFF : RGB mode display
2 Displaying A/V 1 ON : A/V 1 mode skip
OFF : A/V1 mode display
3 Displaying A/V 2 ON : A/V 2 mode skip
OFF : A/V2 mode display
4 Displaying A/V 3 ON : A/V 3 mode skip
OFF : A/V3 mode display
5,6 Select Car model 5-ON, 6-OFF : V40
5,6-OFF : S60, XC60
7 Setup of rear camera use ON : CVBS4
OFF : MAIN
8 no use
※Example DIP S/W usage
- Use input mode : A/V2, A/V3
- Use original navigation
- External rear camera
▷DIP S/W : 1 ON (hide INPUT MODE)
▷DIP S/W : 2,3 OFF (A/V1,2 display)
▷DIP S/W : 4 OFF (A/V3 display)
▷DIP S/W : 5 ON/OFF
▷DIP S/W : 6 ON/OFF
▷DIP S/W : 7 ON (display external rear cam)
▷DIP S/W : 8 OFF
※ON : DOWN / OFF : UP
Default: #8 OFF

3. Settings
-10-
3.2 Remote Control
Key Function
POWER Unavailable
PIP A/V 1~2 Mode : Remote control UI Display
HDMI, A/V 3 Mode : Mode switching UI Display
MENU Activating OSD menu
OK Making a selection, changing image display
▲Moving upward
▼Moving downward
◀
Moving leftward
(If you press this button 2 seconds long, you can access the factory
mode.)
▶
Moving rightward
(If you press this button 2 seconds long, you can reset all the
data about user environment.)

3. Settings
-11-
3.3.1 Rear parking guidelines
< Rear camera full screen >
< PIP screen >
☞Mode switches :
NAV button :
- Long Press
(Switch to external mode)
- Short Press
(Switch to OEM mode)
☞Change the size of image : Press CAM button in Rear mode.

3. Settings
-12-
3.3.2 PIP(Picture in Picture)
< Before Approaching objects>
< After Approaching objects>
- PIP image will be shown as above.
(Car without Front sensor : Not applicable)

3. Settings
-13-
3. Settings

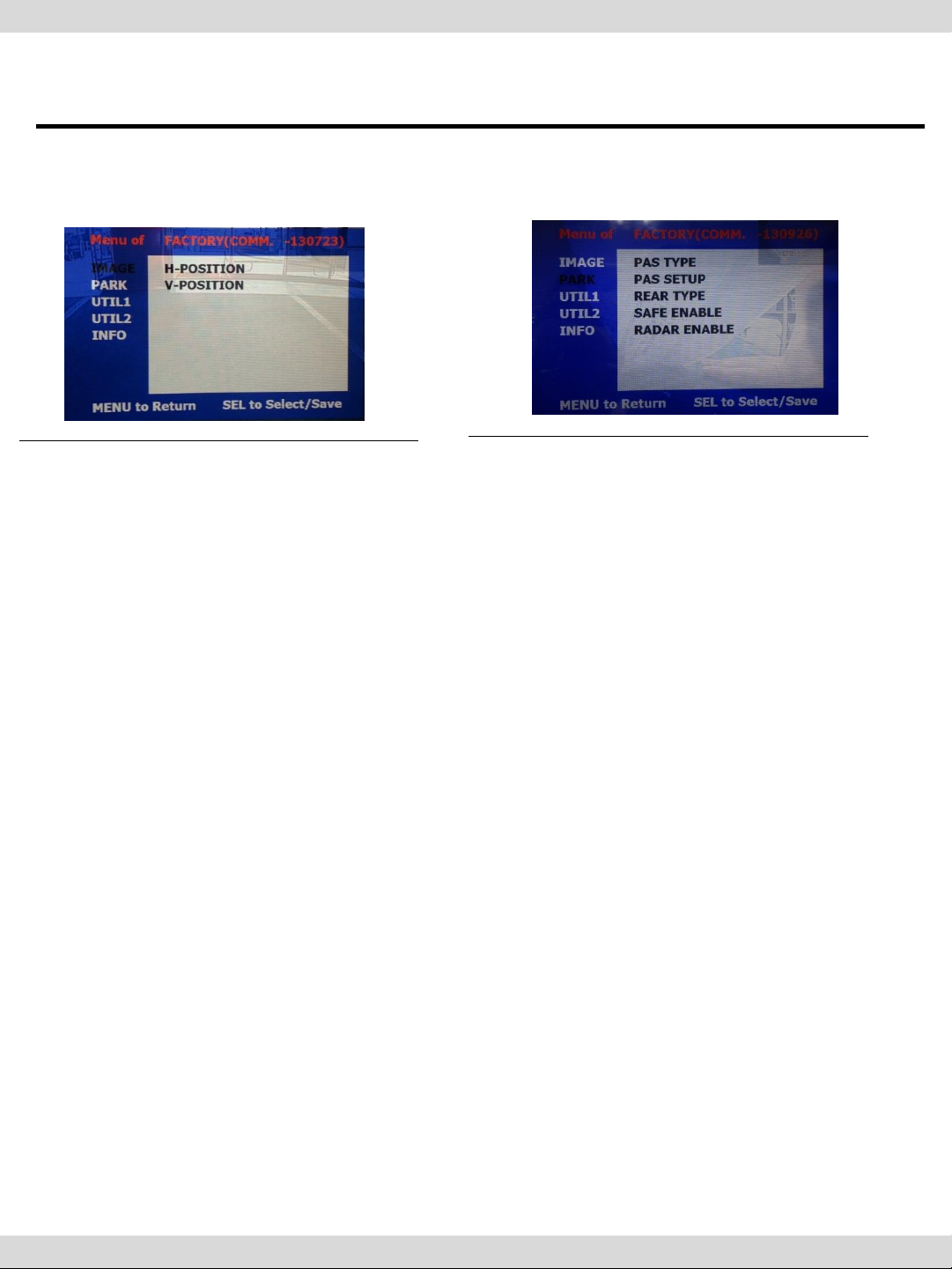

3.3.3 FACTORY MODE-IMAGE, PARK
IMAGE
Adjust navigation position and size
H-POSITION : Move display horizontally
V-POSITION : Move display vertically
FACTORY mode –Press ◀button 2 seconds long on the remote control.
PARK
PAS TYPE : Selecting Type of parking guide line
- NOT USED : Not use Parking guide line
- PAS ON : Selecting Dynamic Parking guide
line
- PAS OFF : Selecting fixed Parking guide line
PAS SETUP : Adjusting the position of the parking
guide line
REAR TYPE : Choose rear camera recognition
* LAMP - Detecting the rear view camera
via rear lamp (Installer must connect “Rear-C”
cable of the power cable to the rear lamp of
the car.)
*CAN - Detecting the rear view camera by
CAN signal (Installer must connect “CAN” cable
of the power cable to the “CAN” cable of the
car.)
SAFE ENABLE : If your car is connected with CAN
cable and it is in ”ON” state, you can NOT
watch DVD or A/V except original image or
navigation while driving. At that time the screen
get back to the main (default : OFF)
RADAR ENABLE : When set the gear to “R”,
Display PDC

3. Settings
-14-
3.3.4 FACTORY MODE-UTIL1
FACTORY mode –Press ◀button 2 seconds long on the remote control.

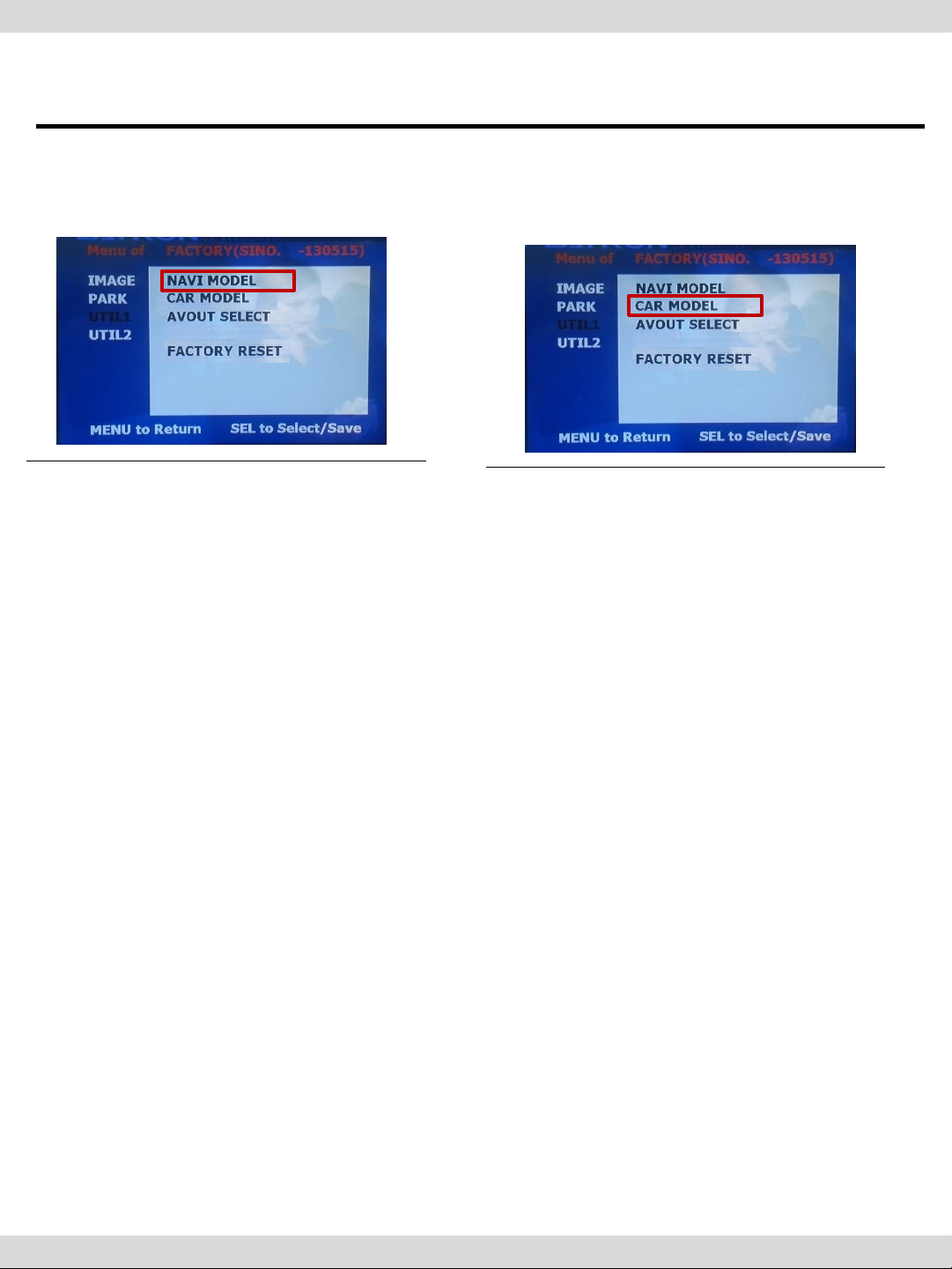

UTIL1 –NAVI MODEL
Definition of the navigation
resolution
DEAFULT
NAV-506TP
MYVI
WP9200
HDMI
GI-8000N 3D
GI-5000A
I-ONE
KD-900
PAPAGO
LS-901
* Go into FACTORY/ IMAGE (as
shown right) and adjust the
position and the size of the
navigation after setting the
definition of the navigation
Setup for navigation
UTIL1 - CAR MODEL
Selecting model of the car
Volvo
Setup for car model
HDMI SKIP
HDMI SKIP
HDMI SKIP
HDMI SKIP

3. Settings
-15-
3.3.4 FACTORY MODE-UTIL1
FACTORY mode –Press ◀button 2 seconds long on the remote control.

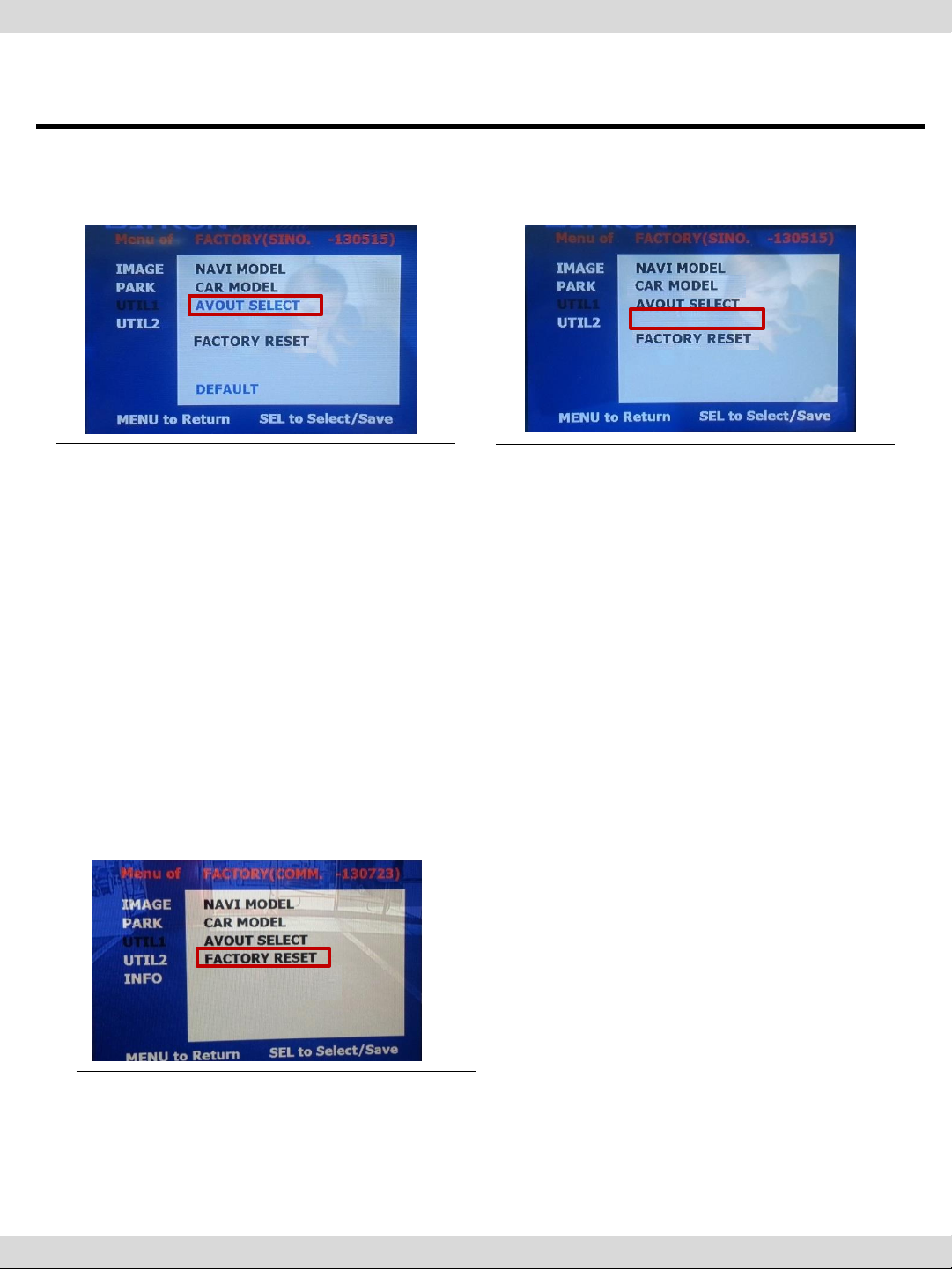

UTIL1 –AVOUT SELECT
Selecting background sound
After
returning navigation or original
mode
DEFAULT : Selecting AV sound
just before changing
navigation or original mode
from the AV mode
AV 1~3 : Sound of the selected
AV source 1~3
UTIL1 - FACTORY RESET
FACTORY MODE RESET
UTIL1 –HDMI SKIP
Selecting whether to use
HDMI function or not
ON(Not use) / OFF(use)
HDMI SKIP
HDMI SKIP
HDMI SKIP

UTIL2 –IR MEMORY
To register DVD, DTV remote control, the
remote control value must be registered
and can be control with Jog shuttle
DVD(A/V1), DTV(A/V2)
※To use this function, in UTIL2-I_DRV
REMOTE select USER mode
DVD / DTV
3. Settings
-16-
3.3.5 FACTORY MODE-UTIL2
FACTORY mode –Press ◀button 2 seconds long on the remote control.

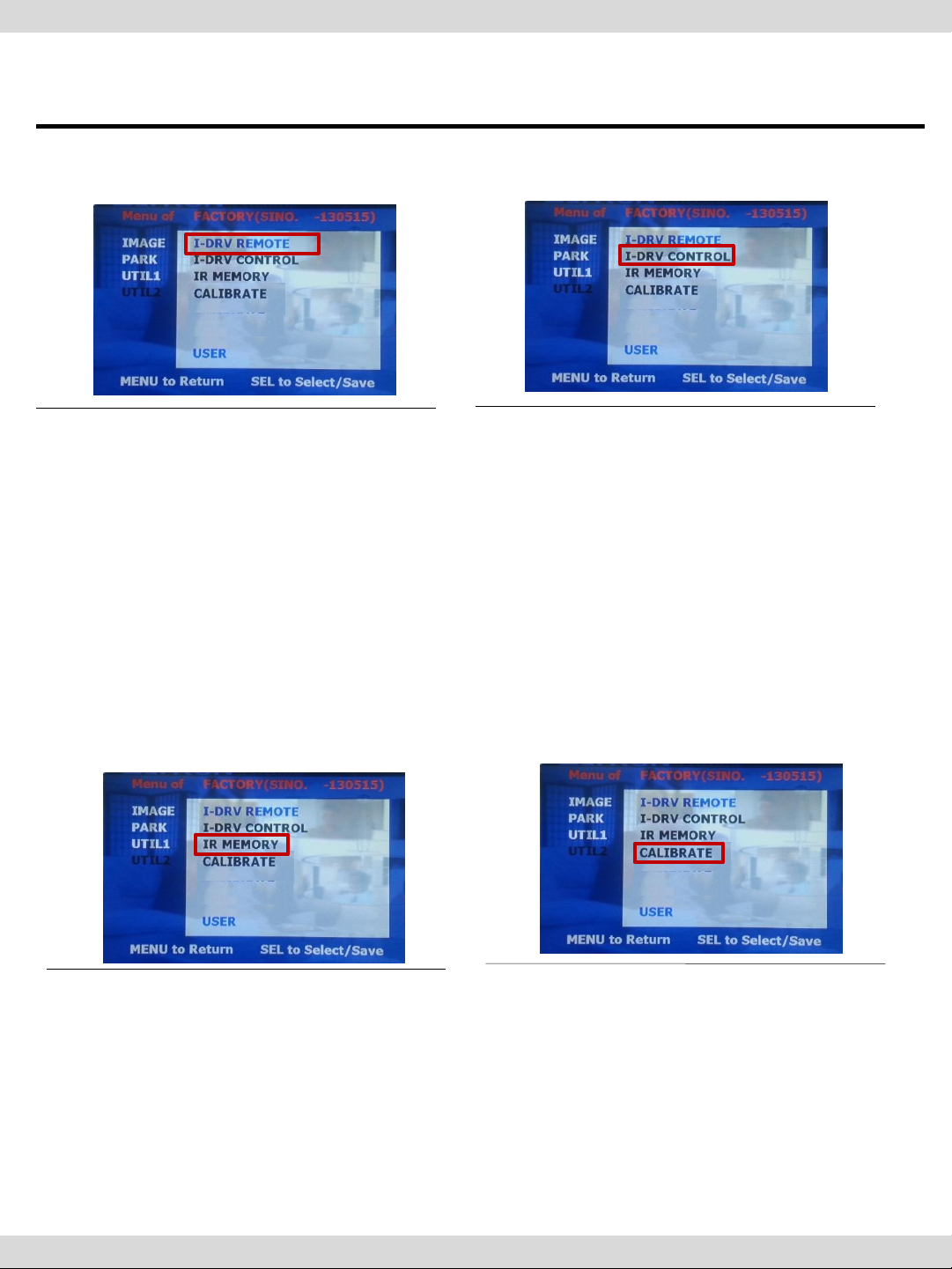

UTIL2 - I_DRV CONTROL
Selecting whether to use I_DRV
function or not
ON / OFF
A/V1 : Control DVD Remote control UI
A/V2 : Control DTV Remote control UI
UTIL2 - I_DRV REMOTE
Choose DTV and DVD model
to be control I_DRV function
LI-1DISC
NEC-6DISC
USER(when using IR MEMORY)
•Select DVD model: Setting on
AV1 Mode
•Select DTV model : Setting on
A/V2 mode
UTIL2 –CALIBRATE
Touch Calibration
YES / NO

3. Settings
-17-
3.3.5 FACTORY MODE-UTIL2
①First of all, press ◀button on
remote controller 2 seconds
long or press
UP→DOWN→UP→MENU button
in order to access Factory
mode. Choose IR MEMORY on
UTIL2.
In IR MEMORY, you can choose
AV source of DTV and DVD you
want to use.
②Picture above shows DVD
remote control button value
input, select menu you want
to save. (To register DVD
remote control button value,
select IR MEMORY –DTV and
follow below instructions.
Example)
a. After select OK button on
OSD menu, press intended I-
Drive button
b. Indicated part above will
flicker, and press POWER on
DVD remote control.
(continue to next page)
FACTORY mode –Press ◀button 2 seconds long on the remote control.
What is IR-MEMORY Mode?
Is to allow Jog shuttle and touch screen to control other DVD or DTV
(besides the existing,; for example : SANYO, NECVOX) by register
remote control value.
UTIL2 –IR MEMORY

3. Settings
-18-
3.3.5 FACTORY MODE-UTIL2
③After register, select “SRC” button
in OSD menu. Then you can see
confirmation window as shown
above. At the moment,
(If data is saved, DVD TYPE and
DTV TYPE will be changed to “USER”
automatically.)
If you see “SUCCESS” on screen, the
data is saved clearly and you can
control DVD via touch screen. BUT,
you MUST change the option in
FACTORY-UTIL2-I_DRV REMOTE to
“USER”.
※ When touch the screen or Select PIP button in remote controller, you can
control DVD, DTV using remote control UI via touch screen or Jog shuttle
※ DVD(A/V1), DTV(A/V2) mode, Can see remote control UI
HDMI, A/V3 mode, Can see mode switching UI
- If you want to see mode switching UI in DVD, DTV mode, Select “SRC” button
FACTORY mode –Press ◀button 2 seconds long on the remote control.
UTIL2 –IR MEMORY
Instruction> continued…
c. The values that you
registered will appear as green
text in the marked area on
pressing the button. And the
values will be saved
automatically.
d. Register remain buttons’
value in OSD menu like the
above-mentioned.

3. Settings
-19-
3.3.6 FACTORY MODE-INFO
FACTORY mode –Press ◀button 2 seconds long on the remote control.
INFO
Check main version and Trip version

3. Settings
-20-
3.3.7 OSD (On Screen Display) / Analog RGB Mode
OSD
*LANGUAGE : Set OSD language
(only support English and Chinese)
* TRANS : Adjust OSD transparency
*H-POSITION : Move OSD horizontally
* V-POSITION : Move OSD vertically
IMAGE
* BRIGHTNESS
* CONTRAST
* SHARPNESS
UTIL
* FACTORY RESET
: Factory reset only for OSD function
(unable reset video position)
