Carlton 7500 Tow Behind User manual

Machine Serial # _____________
Engine Model & Spec # _____________
Engine Serial # _____________
Purchase Date _____________
Dealer _____________
REVISION: 211208-22
J.P.Carlton Company
Div. D.A.F. Inc.
121 John Dodd Road
Spartanburg, SC 29303
Ph. [phone]
Fax [phone]
www.stumpcutters.com

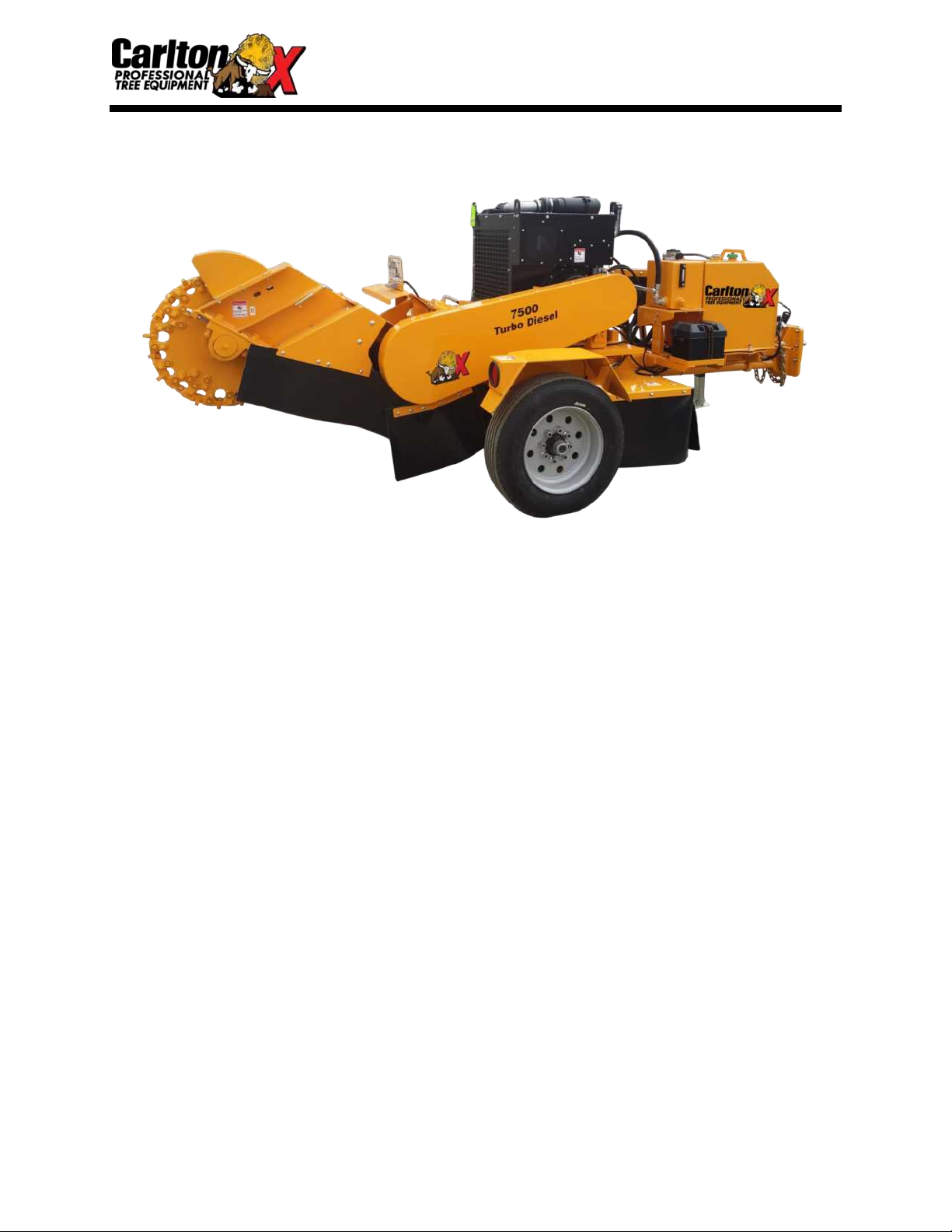

7500 Tow Behind
Owner’s Manual

BLANK SHEET

ENGINE EXHAUST WARNING
WARNING
This product and the fuels used to operate this product
(Gasoline or Diesel), and the products of combustion of
such fuels, can expose you to chemicals including
benzene, which is known to the State of California to
cause cancer, birth defects, or other reproductive harm.
For more information go to www.p65Warnings.ca.gov
!

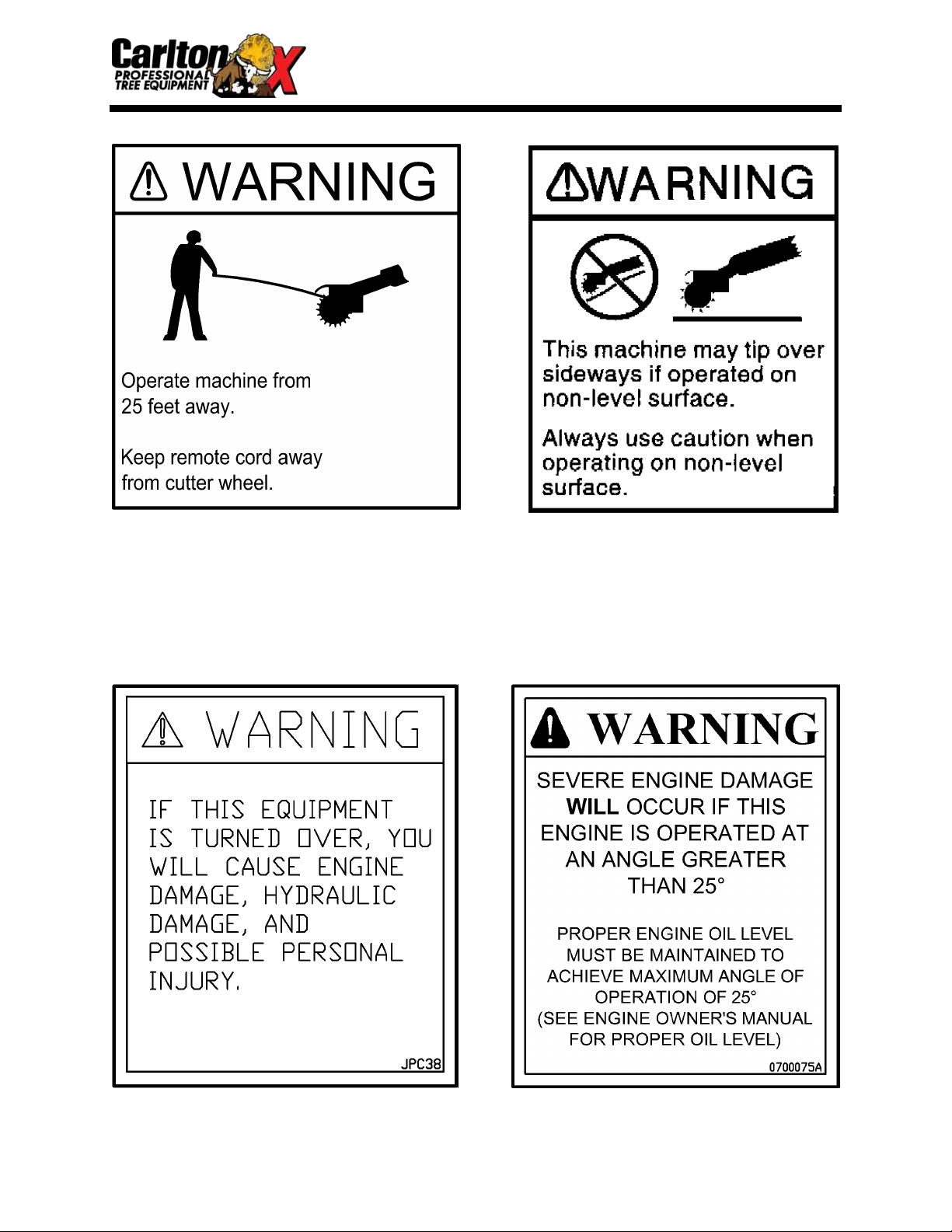

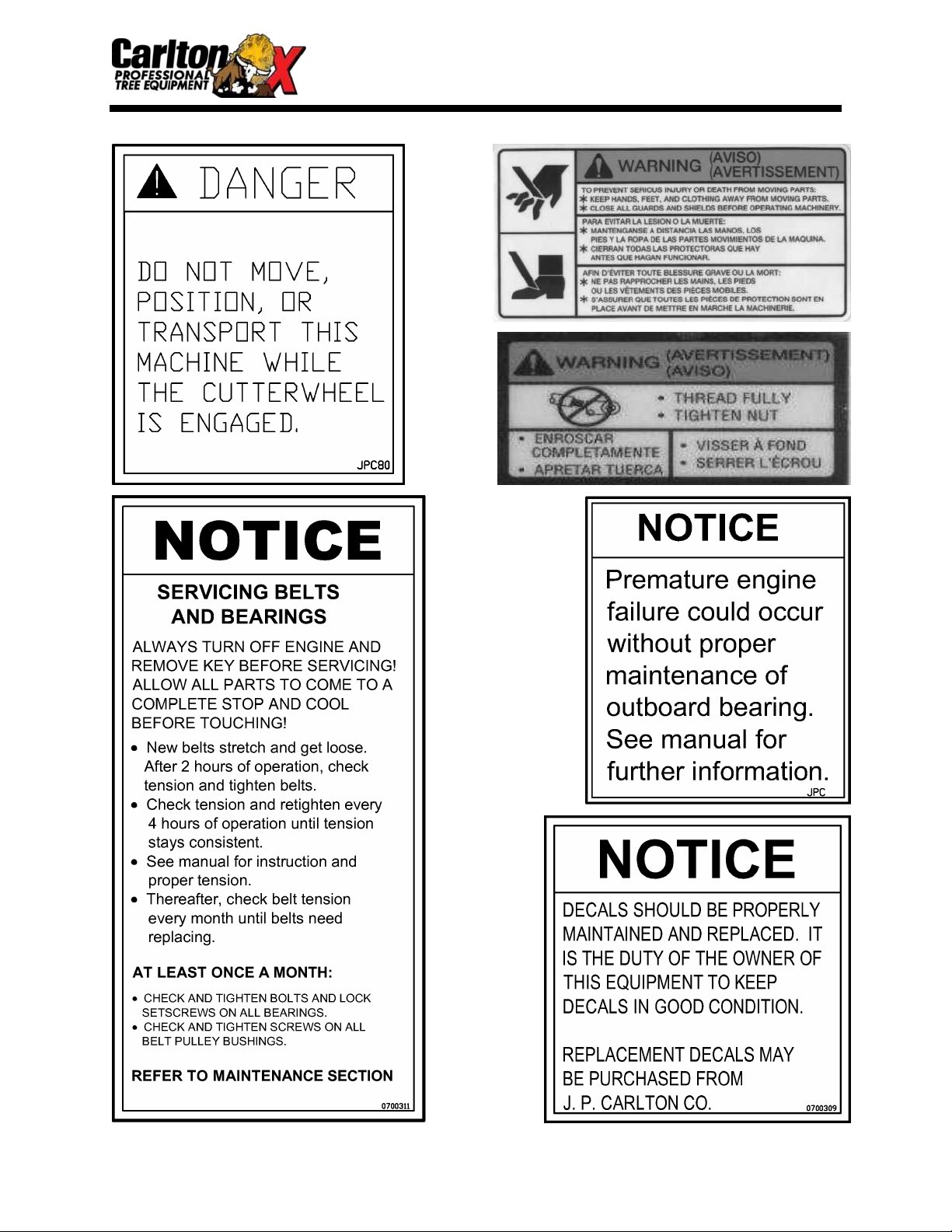

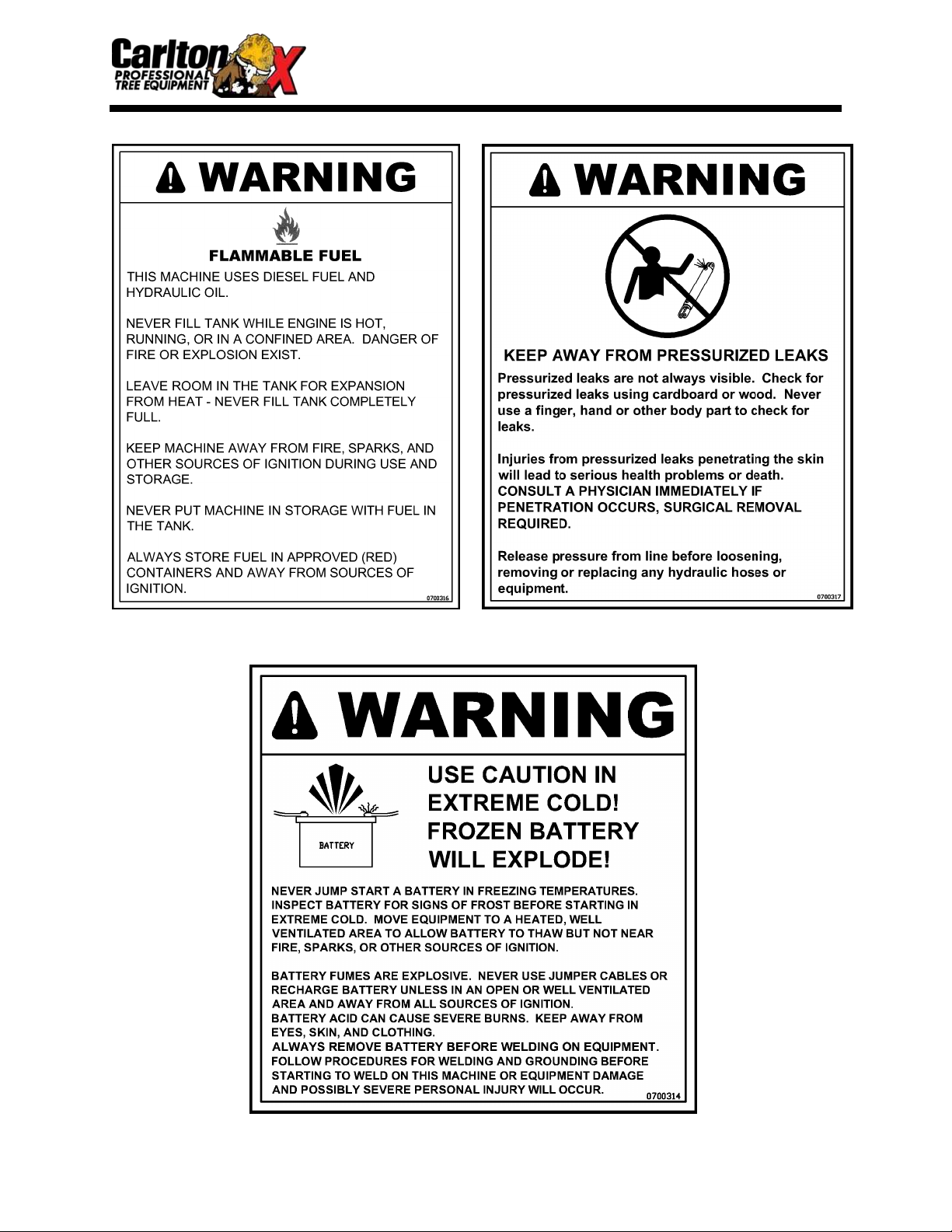

7500 SAFETY ALERT

7500 SAFETY ALERT

7500 SAFETY ALERT

7500 SAFETY ALERT

STUMP GRINDER LIMITED WARRANTY
J.P. Carlton Co. Inc., hereafter referred to as the “Manufacturer”, warrants each new Carlton Grinder to be free of
defects in workmanship and material for a period of one year.
This warranty takes effect upon delivery to the original retail purchaser. The manufacturer, at its option, will replace
or repair, at a point designated by the manufacturer, any parts which appear to have been defective in material or
workmanship. The manufacturer is not responsible for consequential damages.
This warranty will not apply if the grinder is not operated in a manner recommended by the manufacturer. The
following examples would void warranty:
1. The grinder has been abused.
2. The machine is involved in or damaged by an accident.
3. Repairs or attempted repairs were made without prior written authorization.
4. Including but not limited to repairs made due to normal wear.
The owner is responsible for all regular maintenance as explained in the operators’ manual. Neglect in regular
maintenance or failure to replace normal wear items such as teeth, pockets, lubrication oils, filters, belts, bearings,
etc. may void warranty.
This warranty is expressly in lieu of any other warranties, expressed or implied, including any implied warranty or
merchantability of fitness for a particular purpose and of any non-contractual liabilities including product liabilities
based upon negligence or strict liability. J.P. Carlton Co. Inc. will not be liable for consequential damages resulting
from breach of warranty.
IT IS NECESSARY TO RETURN THE WARRANTY VALIDATION FORM AND NOTIFY J.P. CARLTON
CO. INC. IN WRITING WITHIN TEN (10) DAYS FROM DELIVERY DATE TO VALIDATE THIS
WARRANTY.
NOTE: This warranty applies only to new and unused equipment or parts thereof manufactured by J.P. Carlton Co.
Inc. ANY MACHINES USED FOR LEASE OR RENTAL - WARRANTY IS LIMITED TO 90 DAYS FROM
FIRST DAY OF INITIAL SERVICE.
NOTICE: All power units and associated components are NOT warranted by J.P. Carlton Co. Inc. or their
dealers. It is the customers’ responsibility to return machine to the local engine distributor.
INFORMATION PHONE NUMBERS TO FIND YOUR LOCAL ENGINE & PARTS SERVICE CENTERS:
Honda ............................................1-770-497-6400 (GA-Eastern Time Zone)
Kohler Engines.............................. 1-800-544-2444 (Toll Free)
Briggs & Stratton Engines...........1-800-233-3723 (Toll Free)
Deutz Engines................................ 1-800-241-9886 (Toll Free)
John Deere Engines ...................... 1-800-533-6446 (Toll Free)
Caterpillar.....................................1-877-636-7658 (Toll Free)
Kubota........................................... 1-847-955-2500 (IL-Central Time Zone)
Kawasaki Engines.........................1-616-949-6500 (MI-Eastern Time Zone)
Wisconsin Engines........................ 1-800-932-2858 (Toll Free)
Onan Engine..................................1-800-888-6626 (Toll Free)
In order to process any warranty claims, it is the owners’ responsibility to report claims promptly to us or our
authorized dealer from whom the equipment was purchased. It is necessary to include the following information on
any and all request for warranty:
1. Dealer from whom purchased
2. Date of delivery
3. Serial number of unit
4. Model number of unit
5. Engine make and serial number
6. Length of time in use
7. Date of failure
8. Nature of failure

STUMP GRINDER LIMITED WARRANTY
EXPLANATION OF LIMITED WARRANTY
The manufacturer will not reimburse the customer or dealer labor cost incurred for
installing “bolt-on” or “slip-on” items, such as pumps and motors, bearings, belts,
pulleys, etc. The manufacturer will provide replacement parts at no cost to the
customer for defective parts during the warranty period. Defective parts must be
returned to J.P. Carlton Company. It will be the customers’ responsibility to install
the replacement parts unless arrangements are made with the selling dealer.
The manufacturer will not reimburse travel cost to servicing dealer. It is the
customers’ responsibility to deliver machine to dealers facility, unless other
arrangements have been agreed to between the selling dealer and the customer.
The manufacturer may elect, at its discretion, to reimburse reasonable labor cost to
customer or dealer for major defect repairs. Prior approval must be obtained from
J.P. Carlton Company Inc.
IMPORTANT NOTICE
1. AIR FILTER MAINTENANCE IS CRITICAL ON STUMP
GRINDING MACHINES. DIRT INGESTION WILL NOT BE
WARRANTED BY THE ENGINE MANUFACTURER OR
J.P. CARLTON COMPANY.
2. OILAND OILFILTER MAINTENANCE AND STAYING
WITHIN THE LIMITS OFTHE ANGLE OF OPERATION IS
ALSO CRITICAL ON STUMP GRINDING MACHINES.
STARVING THE ENGINE FOR OIL WILL NOT BE
WARRANTED BY THE ENGINE MANUFACTURER OR
J.P. CARLTON COMPANY.
3. FAILURE TO MAINTAIN OUTBOARD BEARING CAN
CAUSE ENGINE FAILURE.

BLANK SHEET

Warranty Validation Form
Congratulations on your purchase of a Carlton Stump Grinder. This product has been designed and manufactured to
provide years of profitable service while minimizing maintenance and downtime. Please take the time now to
complete this warranty validation form. This information is necessary for Carlton to instate your warranty.
Return Form To: J.P. Carlton Company, Div. D.A.F. Inc.
121 John Dodd Road
Spartanburg, SC 29303
Phone: [phone]
Purchaser Information:
Company Name:_______________________ Street Address:_____________________________
City:_________________________ State:__________ Zip Code:__________________________
Telephone:_______________________Contact:________________________________________
Machine Information:
Model Number :_______________________ Engine Model :________________________
Serial Number :________________________ Serial Number :________________________
Dealer Information:
Dealer Name:____________________ Street Address:___________________________
City: _______________________ State:__________ Zip Code:____________________
Contact Name: ____________________
1. ______ Customer has been instructed on operation and safety aspects of operating the equipment.
2. ______ Customer has been advised not to reach into cutter wheel area.
3. ______ Customer has been advised to stop machine and remove key before performing any type of
maintenance.
4. ______ Customer has been warned not to operate the machine without the cutter wheel guard in place.
5. ______ Customer has been furnished with all parts and operators manuals.
6. ______ Customer has been instructed on equipment maintenance schedules and procedures.
7. ______ Customer has been advise that the engine or power unit that is used on this machine is warranted
by the engine manufacturer and NOT J.P. Carlton Company. All engine warranty issues should
be addressed to the local engine dealer.
8. ______ Customer understands the importance of air and oil filter maintenance, and the importance of
staying within the angle of operation of the engine. If either of these is not adhered to, the engine
warranty is VOID.
9. ______ Customer understands to keep locking collars tight and purge bearings with grease.
10. ______ All operation and warning decals are properly displayed on equipment.
11. ______ Customer understands it is his responsibility to train all operators on operator safety.
I have inspected this equipment and find it in good working condition. To the best of my knowledge, the customer
and his personnel are aware of the above procedures.
Date: _______________ Signed: ____________________________________
Dealer Representative
The equipment has been thoroughly checked by the above named dealer representative, and I am
satisfied with his instructions.
Date: ________________ Signed: ___________________________________
Purchaser

BLANK SHEET

7500 TABLE OF CONTENTS
INTRODUCTION
FOREWORD 1
GENERAL INFORMATION 2
MACHINE FEATURES 3
MACHINE SPECIFICATIONS 4
OPERATION
SAFETY PRECAUTIONS 5
DAILY CHECKLIST 8
MACHINE CONTROLS 9
TOWING GUIDE 13
MACHINE OPERATION 14
MAINTENANCE
MACHINE MAINTENANCE 18
TROUBLESHOOTING GUIDE 25
SERVICING CUTTER WHEEL 27
SERVICING HYDRAULICS 32
SERVICING BELTS 34
SERVICING BEARINGS 38
APPENDIX A
CONTACT INFORMATION
BAC
K

7500 FOREWORD
1
Congratulations on your purchase of a new Carlton® Professional Stump Grinder! Carlton®
Stump Grinders have a reputation for superior performance and reliability. A machine is not
profitable if it’s broken-down and we do our absolute best to help you avoid costly downtime.
Each and every machine has been over-designed and built to ensure years and years of trouble-
free operation. In this, we take pride!
Read this manual carefully and TAKE RESPONSIBILITY for thoroughly familiarizing
yourself with the controls and the concepts behind the operation of this machine before
attempting to operate it. Slowly experiment with the controls and gradually work yourself up to
the full capabilities of this machine. The Carlton® Model 7500 is a durable and profitable pro-
fessional stump grinder. Read this manual, the engine manual and the safety and operational
decals on the machine. Use proper safety precautions. Follow the instructions provided and use
common sense and your "OX" will perform like its namesake. If getting more work done in a
day, with less trouble, is your idea of good business, then you will love your new Carlton®
Stump Grinder!
We welcome your suggestions on how we might better build our machines. We solicit any and
all questions concerning the operation or proper servicing of your new stump grinder.
Please feel free to write to us with any comments.
We'll enjoy hearing from you!

7500 GENERAL INFORMATION
2
The J. P. Carlton Company constantly strives to create the best equipment available in the
stump cutting industry. Therefore, the material in this manual is correct at the time of
publication. Carlton®reserves the right to make improvements, modifications and even
discontinue features, as we deem necessary to meet our goal. Carlton®also reserves the right to
discontinue models without any prior notification or obligation.
Inspect your new Carlton®Stump Grinder as soon as you receive it. Any damages
incurred during shipment are not warranted and therefore not covered repairs. You should have
the truck driver verify or acknowledge any damages caused during shipment. If not, contact the
truck lines as soon as possible with your complaint.

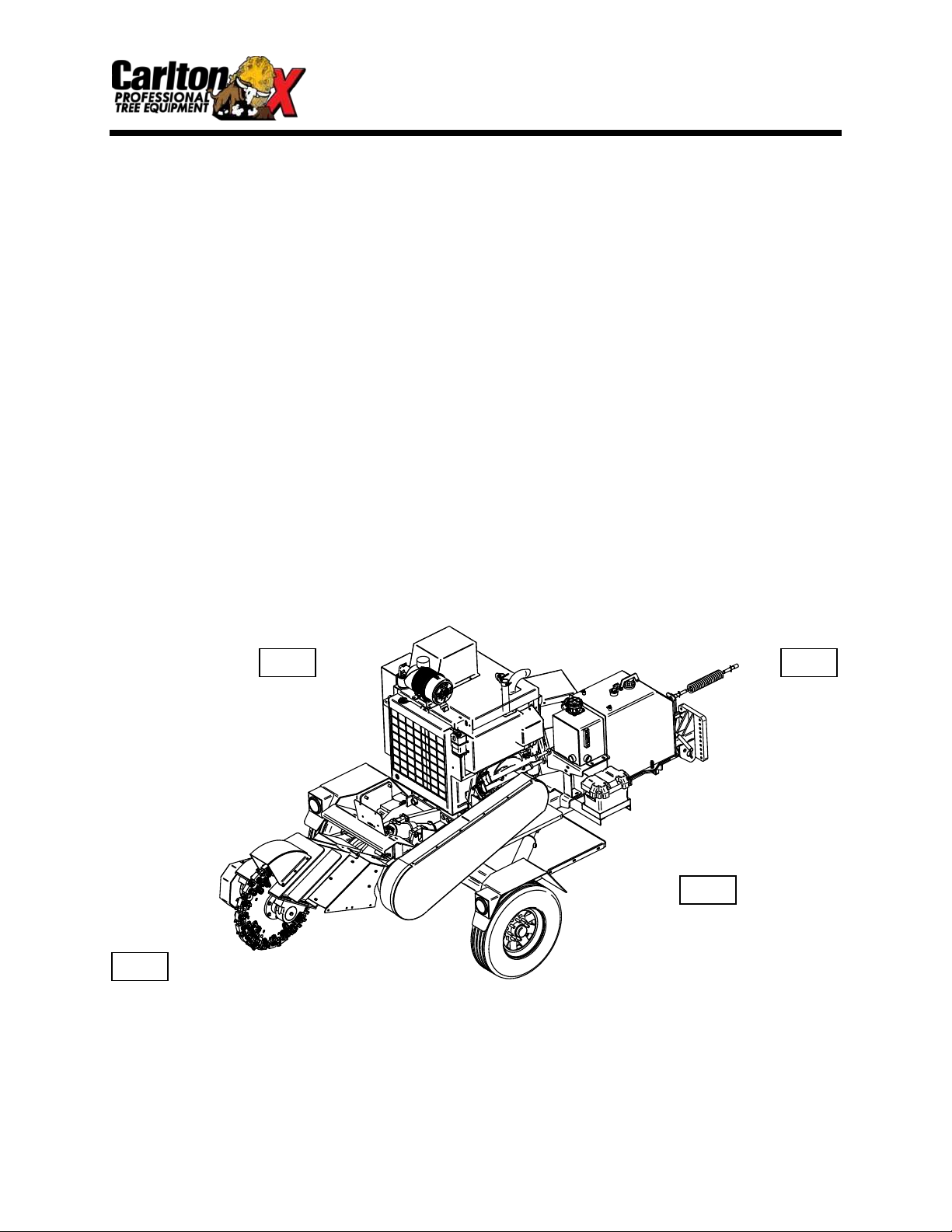

Any reference made to right, left, front or rear in relationship to the stump cutter is
illustrated in the following picture. Please refer to these any time you call your dealer or J. P.
Carlton Company for parts or assistance.
Front
Left
Right
Rear

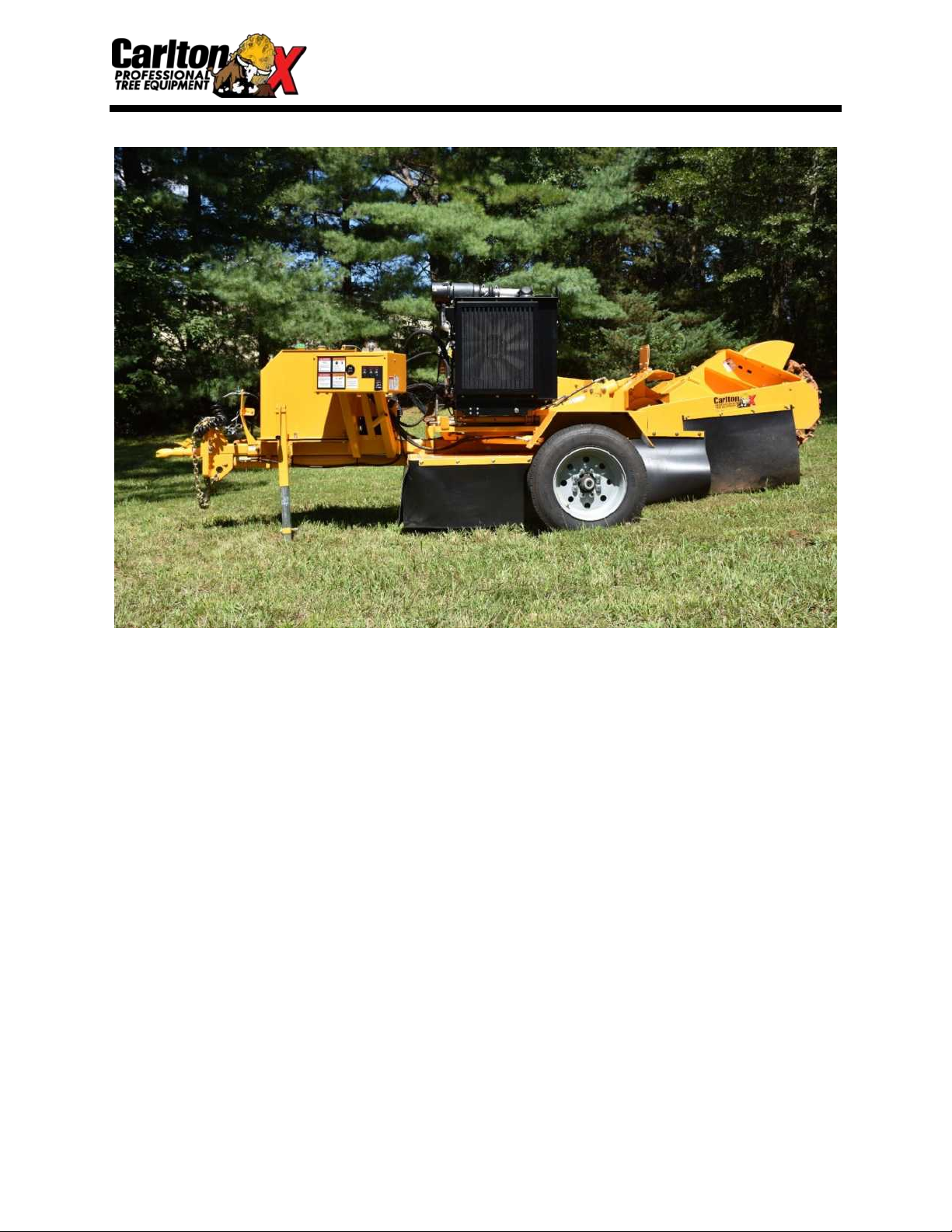

7500 MACHINE FEATURES
3
We Pride Ourselves in the Strength and Quality
of Each and Every Machine.
•Remote control
•Key switch
•Direct hydraulic drive
pump
•Low maintenance
drive belts
•Self-purging roller
bearings
•Counterbalance valves
•Replaceable rod ends
•Hardened bushings
•Blanchard ground
cutter wheel - 1 1/2"
thick
•Carbide tipped teeth
•Center lube spindles
•Belt guards
•Rubber and metal chip
guards
•Control guards
•Optional Hour meter
•High quality epoxy
primer
•PPG finish
•Large fuel tank
•Marine battery box
•Heavy plate fenders
•Swivel jack stand
•Hitch & Safety chains
•Electric brakes

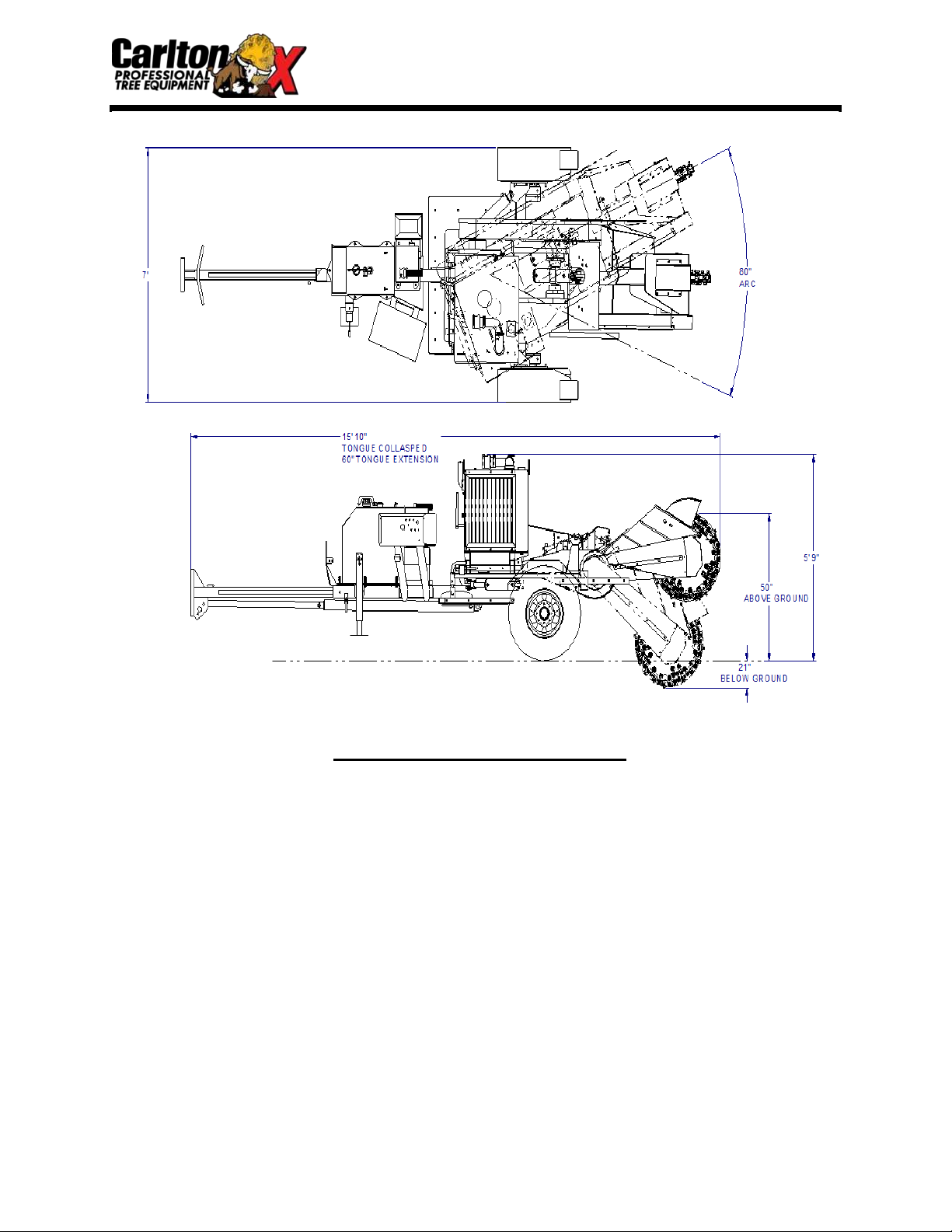

7500 MACHINE SPECIFICATIONS
4
Approximate Dimensions & Weights
(Dimensions & weights will vary depending on optional equipment)
*Approx. Weight:
6430
lbs. (2916 kg)
Overall Dimension:
Lenght:
180” (457.20 cm)
Width:
84” (213.36 cm)
Height:
70” (177.80 cm)
Cutting Depth:
21”
(53.34 cm)
Cutting Height:
50”
(127 cm)
Cutting Swing:
80”
(203.20 cm)
Number of Teeth on
Cutter Wheel:
76
48
Razor Wheel
Standard Wheel
Cutter Wheel Diameter
with Teeth:
31”
(78.74 cm)
Fuel Tank Capacity:
40
Gallons (151 Liters)
Hydraulic Tank Capacity:
4
Gallons (15 Liters)
*Approximate weights depending on engine and optional equipment.

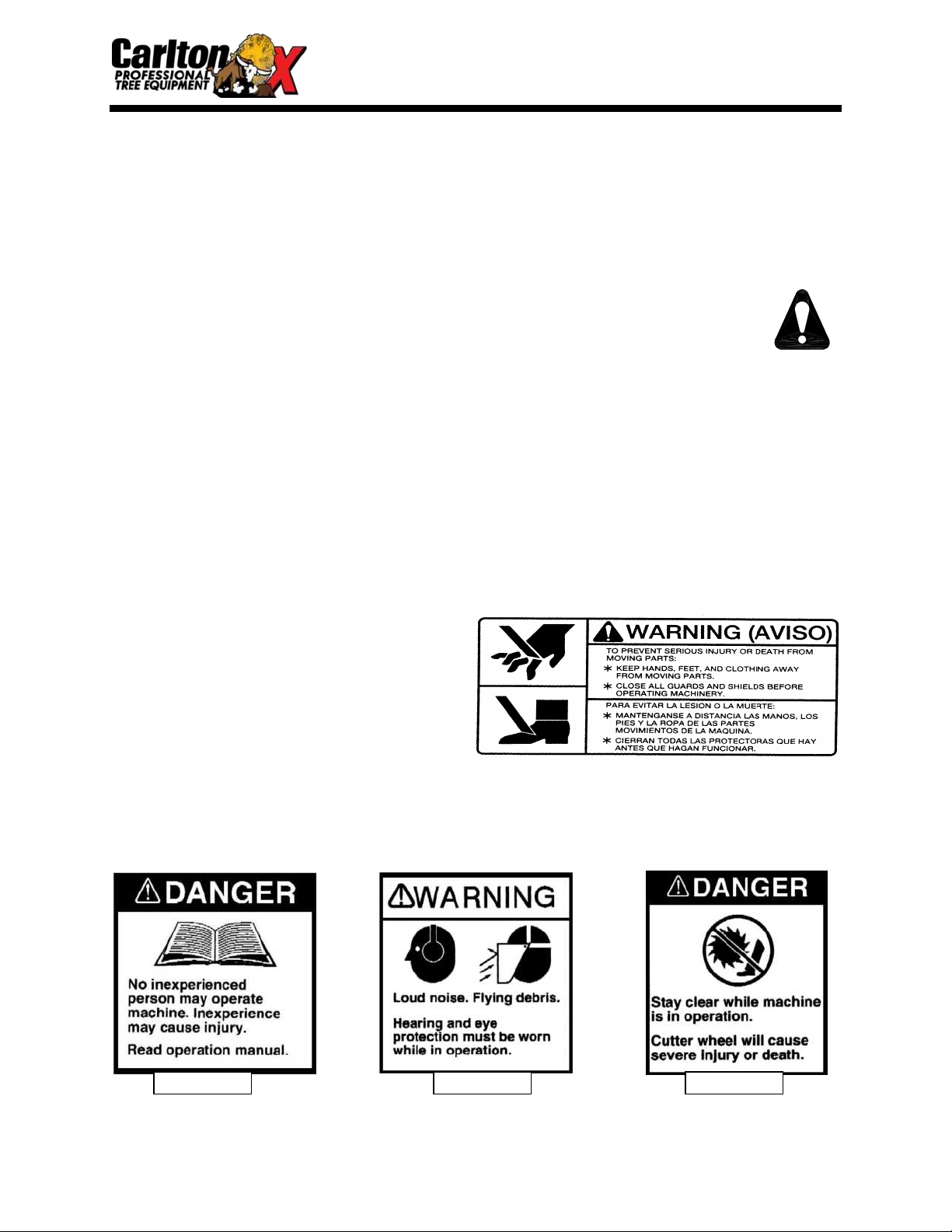

7500 SAFETY PRECAUTIONS
5
Before operating the stump cutter, read this manual, the engine manual, and all the safety
decals on the machine. Know all parts of the machine and their functions, especially the
shut down procedures in case of emergency. No inexperienced person may operate
machine. Inexperience may cause injury.
SAFETY FIRST ALWAYS!
This is the Safety-Alert Symbol. This symbol is placed on the machine and in the
manual to alert the operator to the potential for bodily injury or death. The operator
should pay close attention to the instructions whenever they see this symbol.
The Safety-Alert Symbol will be accompanied by one of the following words:
DANGER, WARNING, or CAUTION
•A DANGER symbol means that if the instructions are not followed the possibility of
serious personal injury or death is probable.
•A WARNING symbol means that if the instructions are not followed there is a
possibility of serious personal injury or death.
•A CAUTION symbol means there is an unsafe condition or practice that may cause
personal injury or property damage.
PERSONAL PROTECTION:
❖Wear face shield and hearing
protection
❖Do not wear loose-fitting
clothing
❖Tie back long hair
❖Do not wear jewelry
❖Keep clear of cutter wheel
❖Keep away from moving parts
❖Only operate in a well-ventilated
area because of carbon monoxide
P/N 0700008
P/N 0700010
P/N 0700027

7500 SAFETY PRECAUTIONS
6
Be Safe and Practice Safe Operation using the following guidelines.
•Any individual operating this machine must first read and
understand this manual, the engine manual, all component
manuals, and all safety decals on machine.
•DO NOT permit children to operate machinery or to play
near machinery during operation.
•Always wear face shield and hearing protection during
operation. Loud noise and flying debris may cause severe
injury.
•Keep hands, feet, legs, clothing, hair and all other body
parts away from cutter wheel and other moving machine
parts to eliminate the possibility of injury.
•Shut down machine completely and remove key before
removing debris from work area (i.e. clearing rocks, wood
chips, etc.).
•DO NOT modify or change any part without written
approval from J. P. Carlton Company.
•DO NOT ride, sit, stand, lay, or climb anywhere on this
machine during operation, while running, or during
transport.
•DO NOT move, position, or transport this machine while
cutter wheel is engaged.
•DO NOT operate any machinery while under the influence
of alcohol or drugs (prescription, over the counter, or
otherwise).
•DO NOT refill fuel tank while engine is hot, running, or
indoors. Danger of fire or explosion exists.
•Fuel and its vapors are highly flammable and explosive.
Handle with care. Only use approved (red) fuel containers
for storage.
•DO NOT store fuel containers near any open flames, sparks,
or other sources of ignition.
•DO NOT store equipment with fuel in the tank.
•Battery fumes are explosive. Recharge battery in an open
area away from fire, sparks, or other sources of ignition.
•Battery acid can cause severe burns. Keep away from eyes,
skin, and clothing.
•Always remove battery before welding on equipment.
•Never check for hydraulic leaks using hand or finger, use
cardboard or wood. Keep away from pressurized leaks.
Pressurized fluid can penetrate the skin and cause injury or
even death. Seek immediate medical attention if penetration
occurs. Always wear eye protection.

7500 SAFETY PRECAUTIONS
7
•DO NOT OPERATE THE ENGINE AT AN ANGLE
GREATER THAN 25° OR SEVERE ENGINE DAMAGE
WILL OCCUR. PROPER ENGINE OIL LEVEL MUST BE
MAINTAINED TO ACHIEVE MAXIMUM ANGLE OF
OPERATION OF 25°. (See Engine Owner’s Manual for proper
oil level.)
•Never allow spectators to stand and watch machine in operation
without proper hearing and eye protection and standing at a safe
distance. Loud noise and flying debris may cause severe injury.
•DO NOT operate around water, gas, power or phone lines.
Check with property owner or call utilities if not sure.
•Avoid fences and clear away other objects (i.e. sticks, stones,
metal, etc.).
•Be aware of the possibility of foreign objects imbedded in or
buried around the stump. Do not cut crosswise of roots above
ground to prevent roots being thrown.
•If unusual vibration occurs, stop engine immediately and correct
problem before continuing operation.
•Keep all guards in place and properly secured during operation.
•Keep all safety devices working properly and all other machine
parts in good working condition.
•Never leave the controls unattended while in operation. Be sure
machine is not capable of operation when left unattended.
•Stop engine and remove key when repairing or adjusting machine
or drive belts.
•Keep engine in good condition, service as instructed in engine
manual.
•DO NOT touch engine while running or hot (serious burns may
result).
•Allow all machine parts to cool completely before servicing or
adjusting. Hot machine parts can cause severe burns.
•DO NOT run the machine without a complete number of teeth in
the cutter wheel tightened to the correct torque.
•DO NOT place machine in free wheel without first placing
tongue stake in the ground.
•Park machine on level surfaces only. Lower cutter head to the
ground and use wheel chocks to prevent unattended movement.
•DO NOT operate stump cutter in dark, dim lit, or concealed
areas.
•Keep machine clean and clear of debris to eliminate fire hazard.
It is especially important to clean any oil or fuel spills to prevent
the danger of fire.
•Keep cutter wheel skirt guards in good condition to help control
chips during grinding.
•Keep safety and instructional decals clean and replace any that
are damaged, difficult to read, or missing. Decals may be
purchased from J.P. Carlton or an authorized dealer.
