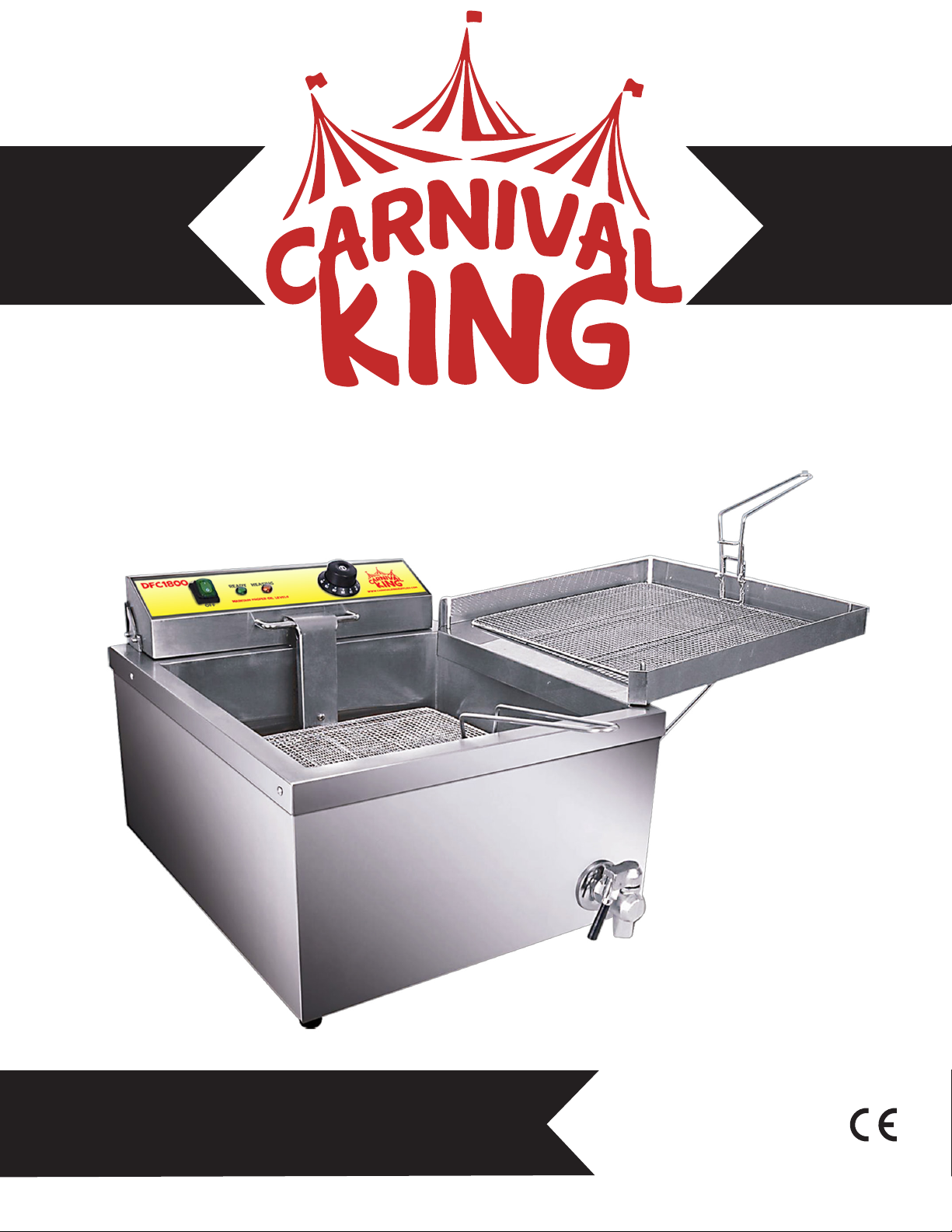

Carnival King 382DFC1800 User manual

FUNNEL CAKE FRYERS
www.CarnivalKingSupplies.com
Item #382DFC1800, #382DFC4400
2/2019
user manual

2
www.CarnivalKingSupplies.com .||||| [e-mail]
FUNNEL CAKE FRYER Manual
General Safety Precautions
To ensure safe operation, read the following statements carefully.
These precautions should be followed at all times. Failure to follow these
precautions could result in injury.
This equipment must be operated by trained cooks or professionals.
• Do not touch any hot surfaces.
• Do not immerse unit, cord or plug in liquid at any time.
• Unplug cord from outlet when not in use and before cleaning.
• It is recommended that the fryer not be moved when it contains hot oil or any other
hot liquid.
• Do not use this unit for other than intended use.
• Do not use outdoors.
• Always cook on a firm, dry and level surface.
• High temperature will cause scalding. Do not stand over fryer when operating and
do not touch any part of machine while in operation, other than handle of basket and
power controls.
• Do not use unit with a damaged cord or plug, in the event the appliance
malfunctions, or has been damaged in any manner.
• Keep children and animals away from fryer.
• Do not modify unit.

3
www.CarnivalKingSupplies.com .||||| [e-mail]
FUNNEL CAKE FRYER Manual
Carnival King Funnel Cake Fryer Features
• Stainless steel construction.
• Adjustable thermostat from 200°-370°F.
• 25lb. oil capacity - Great for frying three 6” or two 8” funnel cakes at once!
• Easy to use oil drain valve.
• (2) wire mesh product trays - Perfect for donuts!
• A lid that doubles as a side draining tray for funnel cakes and donuts!
1800W Funnel Cake Fryer Specs
4400W Funnel Cake Fryer Specs
Item # 382DFC1800
Tank Dimensions 15.75”W x 15.75”D x 6.5”H
Overall Dimensions 18.5”W x 10”H (Front)
13.5”H (Back) x 21.25”D
Weight 27 lbs.
Cooking Oil Capacity 25 lbs.
Volts 120V
Watts 1800W
Plug Type NEMA 5-15P
Temperature Range 200°-370°F
Item # 382DFC4400
Tank Dimensions 15.75”W x 15.75”D x 6.5”H
Overall Dimensions 18.5”W x 10”H (Front)
13.5”H (Back) x 21.25”D
Weight 27 lbs.
Cooking Oil Capacity 25 lbs.
Volts 240V
Watts 4400W
Plug Type NEMA 6-20P
Temperature Range 200°-370°F

4
www.CarnivalKingSupplies.com .||||| [e-mail]
FUNNEL CAKE FRYER Manual
Unpacking Your Funnel Cake Fryer
Carefully remove the fryer from the packaging. Unpack the tank and head of the fryer. Unpack the product
trays and wire mesh guard. Inspect the power cord and plug. Inspect the element and the rest of the unit for
any damage.
If there is any damage do not use the fryer and contact the seller immediately.
Wash the trays and guard prior to using. The trays and guard are dishwasher safe.
Use a towel and sanitizing solution, such as Noble Chemical’s QuikSan Ready to Use Sanitizer and
Disinfectant (#147QUIKSAN) to clean the tank and element.
Be sure the tank is completely dry before adding any oil.
Funnel Cake Fryer Operation
• Place the fryer on a dry, level surface near a power outlet. Ensure the outlet is the correct voltage for
the unit. If unsure of your power supply, consult an electrician before using this fryer.
• Ensure the drain valve is closed. After the tank has been cleaned and is completely dry, add your
desired cooking oil to the tank. Fill to the line marked inside the tank.
• ***It is important to maintain the oil level to this line. Not doing so will result in high fryer oil
temps and burnt product***
• Plug the fryer into the outlet and press the ON button
• Select the desired temperature on the dial. Orange heating light should be on. Wait for the green ready
light before frying.
• Once the fryer is up to temperature, you’re ready to fry! Try the Carnival King Funnel Cake Mix
(#382CAKEFUNNL) along with the Carnival King funnel cake rings. Available in 6” (#3805104) and 8”
(#3805103) sizes!
Daily Check
Before Using
• Make sure machine is on a level surface.
• Check to see if power cord is frayed or damaged.
During Use
• Check control panel for damage.
• Check for any electrical smells.
• Check for any strange sounds coming out of machine.
• Watch for oil spattering.
Cleaning Your Funnel Cake Fryer
• Use a mesh skimmer daily to remove sediment from the fryer as needed. This will prolong oil life.
• To drain fryer oil, use the drain valve and drain into a metal pot. Allow the oil to cool before draining.
• Either discard the oil responsibly or save it to be filtered and reused
• A fine grade steel wool can be used along with a degreaser to clean the tank and other surfaces in
contact with fryer oil.

5
www.CarnivalKingSupplies.com .||||| [e-mail]
FUNNEL CAKE FRYER Manual
Parts Key
Parts Key for DFC1800 & DFC4400 Funnel Cake / Donut Fryer
Part Name Replacement Part Item #
Heating Element; 1800W, 120V (DFC1800) 382DFC18ELMT
Heating Element; 4400W, 240V (DFC4400) 382DFC44ELMT
Thermostat 382DFCTHRM
On/Off Switch 382DFCSWITCH
Thermostat Knob 382DFCKNOB
Mesh Tray 382DFCTRAY
Bottom Grate 382DFCGRATE
Rubber Foot 382DFCFEET
Troubleshooting
Problem Causes Solution
Indicator light will not turn on and
unit will not heat.
Plug not properly inserted. Reinsert plug.
Micro-switch not closed. Adjust the limit distance of mircro-
switch.
Heating indicator is not on, the
temperature is not increasing.
Electric heater tubes is not properly
connected.
Tighten both sides of electric heater.
Heater is defective. Change electric heating tube.
Power indicator is on but the desired
temperature is not reached.
Temperature controller is burned out. Change temperature.
Temperature control is normal but
indicator is not on.
Indicator light is burned out. Change temperature controller.
Temperature indicator is on, but
heater tube is not hot.
Temperature limiter has tripped. Reset overheating protecting button
by hand on bottom of electrical box.
Temperature can not be controlled. Temperature limiter is out of order. Change temperature limiter.
Troubles listed are for reference. If any fault occurs, please discontinue use. Do not attempt to repair
yourself. This will void the warranty.
6 Month Replacement Warranty
(Effective from date of purchase)
This warranty is not effective if damage occurs because of accident, carelessness, improper installation, lack of
proper set-up, supervision when required, or if the equipment is installed or operated in any manner contrary to the
installation and operating instructions. Work performed by unauthorized personnel or unauthorized service agencies
voids this Warranty. This warranty does not apply to any warranty claims made on products sold or used outside of
the United States. Residential use voids this warranty.
