Carnival King 382ICS250 User manual

ICE SHAVER machine
www.CarnivalKingSupplies.com
Item #382ICS250
12/2020
user manual
Ca
rn
iv
al K
in
g
Ice
Sh
av
er

2
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual
General Safety Precautions
To ensure safe operation, read the following statements carefully. This manual will outline safety warnings and
precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot
cover all possible conditions and situations that may occur. Factors such as caution and common sense cannot be
built into this product and it is trusted the operator will follow these measures.
These precautions should be followed at all times. Failure to follow these precautions could result in injury.
IMPORTANT: Do not remove any permanent instruction labels or the data labels on your appliance.
NOTE: The appliance is for indoor use only.
To reduce risk of injury or damage to the unit:
1. Do not operate unattended.
2. Unit must be only used in a flat, level position.
3. No minor should operate this machine unsupervised. Keep hands, foreign objects, long hair, and loose clothing
away from the ice blades while in use. Some areas may become hot while in use.
4. This machine must never be modified and should only be used for its intended purpose.
5. Always check that the ice shaver machine is plugged into a grounded outlet with the appropriate electrical supply.
6. Ensure that the wall outlet being used is properly grounded. If it is not, you must install a grounded outlet.
7. Before disconnecting from the power source, be sure that all switches have been turned OFF. To unplug the
machine, firmly grasp the plug and remove from the outlet – never pull on the cord itself.
8. Ensure that the power outlet, plug and cord being used are in good, working condition. Even with a properly
functioning power cord, keep water away from the cord and avoid letting your power cord run over carpets or
heating devices.
9. Do not operate if unit has been damaged or is malfunctioning in any way.
10. Always use the machine in a clean and dry area.
11. Do not spray controls or outside of unit with liquids or cleaning agents.
12. When not in use, do not leave the machine running for more than 60 minutes.
Items Included
with this Unit
-Foot Pedal
-Circular Ice Block Mold
-Drain Hose

3
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual
Installation and Operation Instructions
1. Place the Ice Shaver machine in a place where it cannot be pushed off the counter.
2. Keep the area at the front of the Ice Shaver clear for unobstructed access during operation.
3. Keep unit and power cord away from open flames, electric burners, or excessive heat.
4. Do not use an extension cord with this equipment.
5. NEVER allow any foreign or metallic objects around the shaver area or inside the hopper. Ice picks, scoops, and debris
that may be in the ice can damage the blade.
6. Connect drain hose to front of unit. Drain hose funnels excess water to floor drain or basin tub.
Ice Shaver Machine Specs
Item # 382ICS250
Overall Dimensions 11.5"W x 13.75"H x 17"D
Hopper Capacity 4 lb.
Frame Material Plastic + Aluminum
Horsepower 1/3 HP
RPM 1440 RPM
7. This unit comes with an optional foot pedal switch for operating the unit. It should be located so it will not be a trip hazard
or in an area of heavy traffic.
a. Do not leave foot switch accessible to inadvertent operation when left unattended or when not being used.
b. Turn Foot Pedal Power Switch OFF (located on the back) when ice shaver is not in use.
c. Do not bypass any machine or equipment safety features to use this foot switch.
d. Replace damaged cord immediately.
Capacity Up to 500 lbs. Per Hour
Wattage 250W
Voltage 120V
Amps 3.5A
Hertz 60Hz
Phase 1
Plug NEMA 5-15P
Function and Purpose
This unit is intended to be used for shaving and crushing ice in commercial foodservice operations only. It is not intended
for household, industrial, or laboratory use.
Before using this equipment, it must be cleaned and dried thoroughly. Clean all surfaces before use. Failure to clean
surfaces before using the unit could cause food contamination.
This ice shaver is intended for shaving ice cubes for use in shaved ice (i.e. Hawaiian Ice), sno-balls, and/or iced beverages;
ice cubes should be a maximum of 2 inches in diameter. Larger pieces should be broken up before processing through the
machine. Your Ice Shaver machine has a 4 lb. hopper and can produce up to 500 lb. of ice per hour.

4
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual
Operation
1. Please ensure that the machine is on a level stable surface, the feet are intact and level.
2. Open the ice shaver lid and wipe the hopper with a dry cloth, check that the blade is firmly installed.
3. If using the foot pedal, install the foot pedal by plugging it into the back of the machine. Turn Foot Pedal Switch ON
(located on the back of the machine).
e. Warning: do not leave foot switch accessible to inadvertent operation when left unattended or when not being used.
4. Lift the cover lid and load ice hopper with up to 4 lbs. of ice cubes, do not overfill. Make sure it is evenly loaded.
a. Allow ice cubes to temper for at least 20 minutes for finer and fluffier texture. We recommend not using ice straight
from the freezer.
5. Close the lid and place a cup, bowl, or tub directly below the ice chute. Turn the Main Power Switch ON or press down on
the Foot Switch. To stop shaving ice, release Foot Switch.
a. Warning: Ensure the front switch is OFF and/or your foot is off the pedal when lowering the lid.
b. Machine WILL NOT OPERATE unless the cover lid is closed (due to safety momentary switch).
6. Once all ice cubes are shaved and the hopper is empty, TURN the front switch to turn OFF or
take your foot off the pedal.
a. Note: When refilling the hopper with ice – opening the hopper lid shuts off power.
Foot pedal and switch will not work.
7. Repeat steps 4-6 for multiple batches
8. To adjust the ice texture, turn the Blade Adjustment Knob CLOCKWISE for a finer ice texture,
COUNTERCLOCKWISE for a coarser ice texture.
9. Top with Carnival King Sno-Cone Syrup, mix with Regal Cocktail Syrups, or marshmallow fluff!
Warning
ELECTRIC SHOCK HAZARD
Keep water and other liquids from entering the inside of the equipment. Liquid inside the equipment could cause an
electrical shock.
Warning
Sharp blades, do not place hands in or near the ice holder
while the motor is running.
COARSE FINE
SHAVING TEXTURE

5
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual
Choice and Carnival King
Dessert Cups
Regal Cocktail Syrups
Cleaning
To maintain the appearance and increase the service life, clean your unit daily.
NOTE: Do not clean the unit with steel wool.
1. Operate the motor for several minutes to remove any water collection in the hopper.
2. Turn off the POWER switch and remove Foot Switch Pedal. Unplug the power cord from the electrical outlet.
3. Allow all remaining ice to melt and drain through hose into floor drain, basin, or bucket.
4. Using a clean cloth, wipe down the following items:
a. The hopper and hopper lid (Caution: Sharp Blades)
b. The ice chute (Caution: Sharp Blades)
c. All interior and exterior surfaces.
5. To clean the drip tray:
a. Remove the drip tray grid and rinse out tray with light soap and water, wiping down clean.
6. The exterior of the unit can be cleaned with a damp cloth, light soap and water.
a. Recommended: Use Sunbright (147SUNBRIGHT) for plastic frame.
7. Do not immerse in or use excessive water when cleaning this unit.
8. Only use food grade cleaners.
Warning
Do not spray water or cleaning products. Liquid could contact the electrical components and cause a short circuit or an
electrical shock. Do not use unit if power cord is damaged or has been modified.

6
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual

7
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual

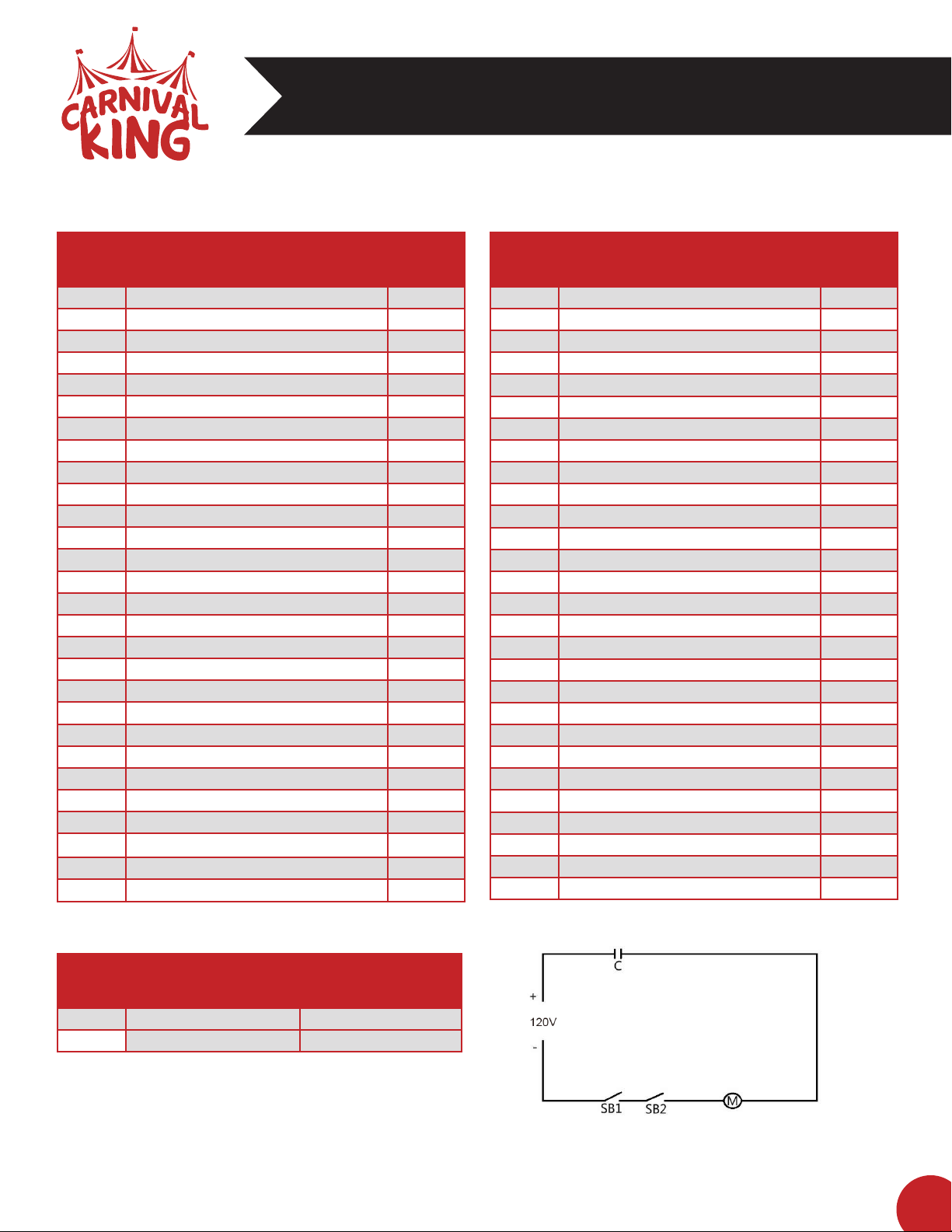

Parts and Accessories Ice Shaver Machine Specs
Parts
Number
Name Quantity
1Little cover 1
2Cover 1
3Magnet 1
4Limit switch 1
5Switch 1
6Ice blocker 1
7Overload switch 1
8Rotating disk 1
9Output shaft 1
10 Bearing 1
11 Support base 1
12 Small hose 1
13 Blade 1
14 5*10mm screw 1
15 Blade base 1
16 8*30mm screw 1
17 Motor base 1
18 6*12mm screw 1
19 Capacitance 1
20 Large hose 1
21 Motor 1
22 M6 nuts 3
23 8*25mm screw 3
24 M5 nuts 3
25 Leather belt/ Gumbelt (Orange) 1
26 6*12mm screw 1
27 Small pulley 1
28 Large pulley 1
Parts
Number
Name
29 Guide screw 4
30 Base 1
31 Backplate handle 2
32 Backplate 1
33 Front plate 1
34 Snow mouth 1
35 Adjustment knob 1
36 Mesh 1
37 Rubber feet 4
38 Rubber feet screw 4
39 Snow mouth screw 3
40 Power cable 1
41 Hinge screw 2
42 Hinge nuts 2
43 Hinge 1
44 Shim 1
45 Hinge Screw 2
46 Limit switch screw 1
47 Cover screw 4
48 Iron sheet 1
49 Iron sheet screw 2
50 M8 nuts 1
51 Shim 1
52 Fixed pin 1
53 Oil seal 1
54 Pulley shim 1
55 Back plate screw 4
56 Ice blocker screw 4
Replacment Parts Wiring Diagram
Parts
Number Name Item #
13 Blade #382RICSBLADE
-- Foot Pedal #382RPEDAL
Blade Maintenance & Replacement Instructions
WARNING: Be sure to switch OFF and unplug the machine for safety.
1. Loosen and remove the mounting screws and remove the ice chute cover from body of unit.
2. Loosen and remove the screws between the blade holder and the blade. Remove the blade.

8
www.CarnivalKingSupplies.com .||||| [e-mail]
Ice Shaver Machine Manual
Equipment Limited Warranty
To Make a Warranty Claim:
For Warranty Inquiries contact the location where you purchased the product:
• WebstaurantStore.com: Contact [email protected]. Please have your order number ready.
• The Restaurant Store: If you purchased this unit from your local store, please contact your store directly.
• TheRestaurantStore.com: Online purchases, call 717-392-7261. Please have your order number ready.
Failure to contact the designated location prior to obtaining equipment service may void your warranty.
Carnival King makes no other warranties, express or implied, statutory or otherwise, and HEREBY DISCLAIMS ALL
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR
A PARTICULAR PURPOSE.
This Limited Warranty does not cover:
• Equipment sold or used outside the Continental United States
• Use of unfiltered water (if applicable)
• Carnival King has the sole discretion on wearable parts not covered under warranty
• Equipment not purchased directly from an authorized dealer
• Equipment used for residential or other non-commercial purposes
• Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency
• Equipment where the serial number plate has been removed or altered.
• Damage or failure due to improper installation, improper utility connection or supply, and issues resulting from
improper ventilation or airflow.
• Defects and damage due to improper maintenance, wear and tear, misuse, abuse, vandalism, or Act of God.
Any action for breach of this warranty must be commenced within 6 months of the date on which the breach
occurred. No modification of this warranty, or waiver of its terms, shall be effective unless approved in a writing
signed by the parties. The laws of the Commonwealth of Pennsylvania shall govern this warranty and the parties’
rights and duties under it. Carnival King shall not under any circumstances be liable for incidental or consequential
damages of any kind, including but not limited to loss of profits.
Carnival King warrants its equipment to be free from defects in material and workmanship for a period of 6 months.
This is the sole and exclusive warranty made by Carnival King covering your Carnival King brand equipment.
A claim under this warranty must be made within 6 months from the date of purchase of the equipment.
Only the equipment’s original purchaser may make a claim under this warranty. Carnival King reserves the right to
approve or deny the repair or replacement of any part or repair request. The warranty is not transferable.
Carnival King Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the
original date of purchase.
