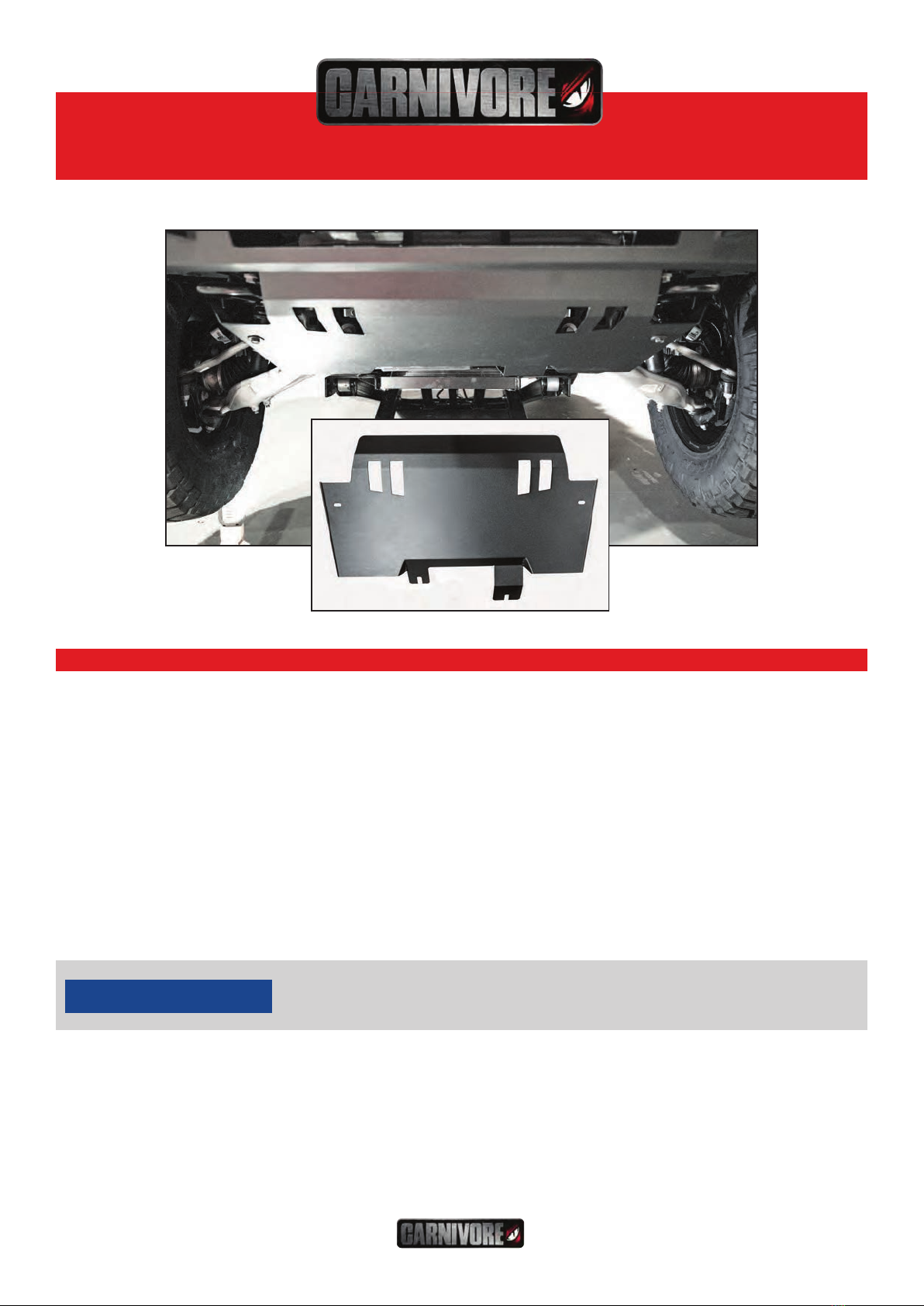

CARNIVORE 12056-1202 User manual

Skid Plate
Installation Manual:
For Ford Bronco '21 - UP
#12056-1202
PARTS & REQUIRED TOOLS
KIT CONTENT LIST:
Re-use Four Factory Bolts
REQUIRED TOOLS:
Safety Glasses
15MM Socket
Ratchet
AN AUXILLARY SKID PLATE ADDS EXTRA PROTECTION ON THE TRAIL, BUT IT CAN
NOT GUARANTEE AGAINST ALL POSSIBLE DAMAGE FROM LARGE OBJECTS YOU
MAY ENCOUNTER. ALWAYS DRIVE WITH RESPECT FOR OBJECTS AND TERRAIN THAT
COULD DAMAGE SENSITIVE PARTS OF THE VEHICLE.
NOTICE

A FEW WORDS ABOUT PRODUCT SAFETY:
Your Carnivore product is intended to enhance the utility and enjoyment of your off road capable vehicle. Follow safety
information and installation recommendations. Throughout these instructions is important safety information that
is generally preceded by one of three signal words indicating the relative risk of injury, property damage or adverse
consequence.
The signal words mean:
A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY. YOU CAN BE KILLED OR SERIOUSLY HURT IF YOU DON'T FOLLOW
INSTRUCTIONS.
CAREFUL ATTENTION IS REQUIRED TO THIS INSTRUCTION OR OPERATION BUT DOES
GENERALLY NOT RELATE TO PERSONAL INJURY. DAMAGE TO YOUR CARNIVORE
PRODUCT OR OTHER PROPERTY MAY RESULT IF YOU DON'T FOLLOW INSTRUCTIONS.
A HAZARDOUS SITUATION WHICH, IF NOT AVOIDED, COULD RESULT IN A MINOR OR
MODERATE INJURY. YOU CAN BE MODERATELY HURT AND ALSO MAY SUFFER PROPERTY
DAMAGE IF YOU DON'T FOLLOW INSTRUCTIONS.
BEFORE YOU BEGIN INSTALLATION:
Congratulations on your purchase of Carnivore product for your Ford Bronco. This custom product has
been designed for protection, long life, and great looks. When unpacking, check to make sure all parts are included
and not damaged due to shipping. If any part is missing or broken, please call Customer Service at 800-745-6037
as soon as possible. Thank you again for your purchase and let’s start the installation process.
READ ALL SAFETY MESSAGES AND ALWAYS WEAR SAFETY GLASSES WHEN WORKING
WITH TOOLS.
THIS PRODUCT IS INSTALLED UNDERNEATH THE VEHICLE AND REQUIRES ACCESS TO
THE UNDERSIDE. WE RECOMMEND USING A VEHICLE LIFT SUCH AS THOSE FOUND IN
MOST REPAIR SHOPS TO ACCESS THIS PART OF THE VEHICLE. ALWAYS USE CAUTION
WHEN WORKING UNDER YOUR VEHICLE.
WE ALSO RECOMMEND THAT YOU HAVE A HELPER NEARBY AS SOME OF THE STEPS
OUTLINED BELOW WILL BE MUCH EASIER WITH THE HELP OF ANOTHER SET OF HANDS.
WHILE INSTALLING SKID PLATES, VISUALLY SCAN FOR ANY INTERFERENCE WITH
DRIVETRAIN COMPONENTS AND/OR EXHAUST COMPONENTS AND THE SKID PLATE.
IF THERE IS ANY INTERFERENCE, ADJUST THE SKID PLATE ACCORDINGLY TO MAKE SURE
ALL COMPONENTS ARE NOT TOUCHING. FAILURE TO DO THIS STEP MAY CAUSE DAMAGE
TO THE VEHICLE.
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE
NOTICES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL TIMES WHILE INSTALLING
OR MAINTAINING THIS PRODUCT. TORQUE AND RECHECK FASTENERS AFTER 250 MILES
AND FREQUENTLY THEREAFTER. DO NOT USE IF DAMAGED.
NOTICE
NOTICE
NOTICE
2

3

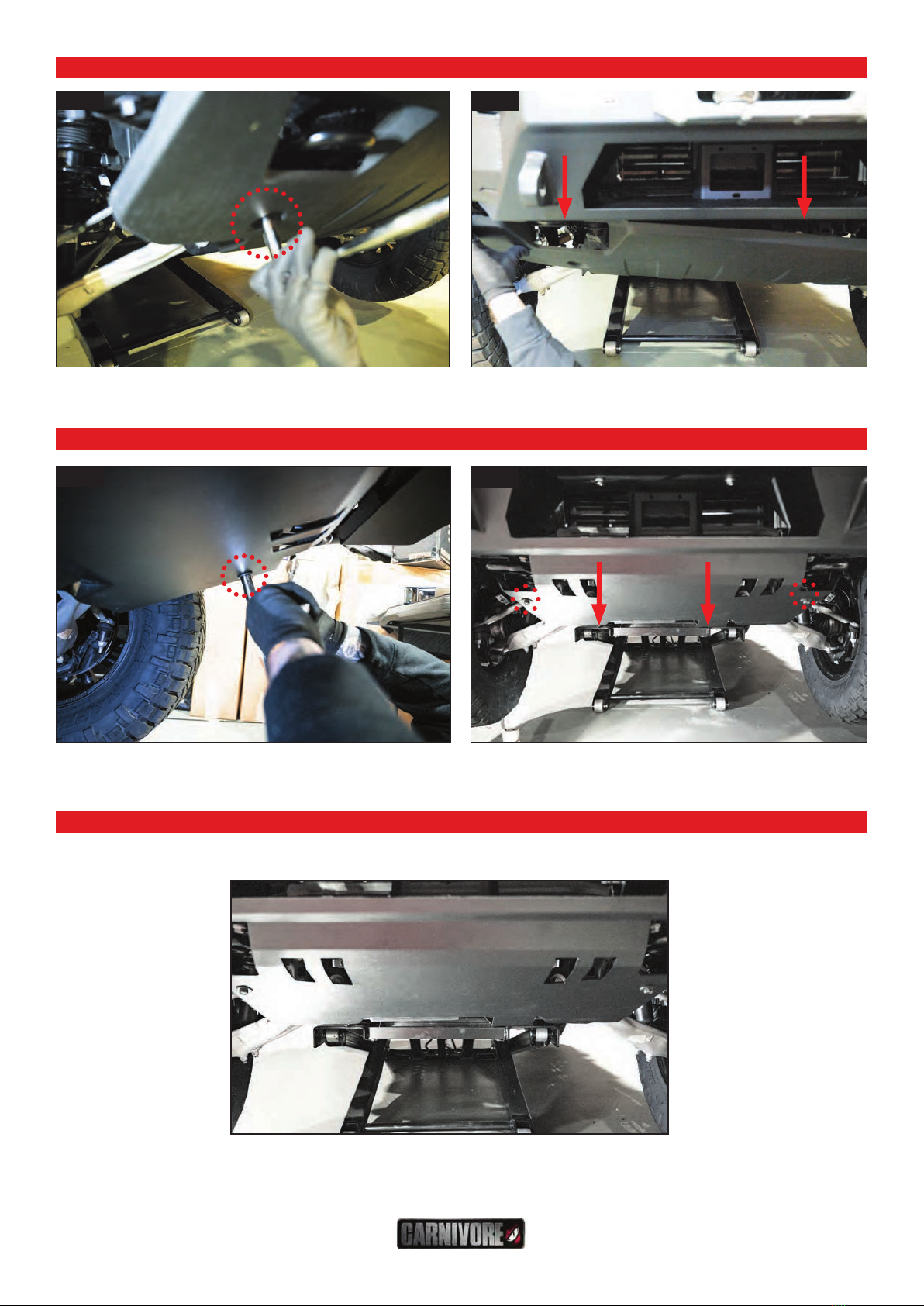

STEP 1 - REMOVING THE FACTORY SKID PLATE
Thread and install four factory M12 bolts with a 15mm socket. (Fig 3 & Fig 4) Note: there will be two factory bolts not
needed during installation.
Put on safety glasses. Remove six factory M12 bolts with a 15mm socket. (Fig 1) Remove the factory skid plate.
(Fig 2)
STEP 2 - SKID PLATE INSTALLATION
FIG 1 FIG 2
FIG 3 FIG 4
COMPLETE
