Carolina Cooker M130760 User manual

140 Qt. Steamer/Boiler Combo Cart
Owner’s Guide
Read and understand this manual to safely operate and maintain this product.
M130760

Failure to follow these hazard instructions when using the Carolina Cooker® 140 Qt. Steamer/Boiler
Combo Cart (appliance) could result in a re or explosion causing property damage, personal injury, or
even death.
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open ame.
If odor continues, keep away from the appliance and immediately call your gas supplier or your re
department.
• Do not store a spare LP cylinder under or near the appliance or other heat sources.
    •  NEVERllanLPcylinderbeyond80percentfull.
Note: Not following these instructions could result in a re, causing death or serious injury.
   •  Donotstoreorusegasolineorotherammableliquidsorvaporsinthevicinityofthisoranyother
appliance.
    •  AnLPcylindernotconnectedforuseshallnotbestoredinthevicinityofthisoranyotherappliance.
    •  Thisinstructionmanualcontainsimportantinformationnecessaryfortheproperassemblyand
      safeuseoftheappliance.
    •  Readandfollowallwarningsandinstructionsbeforeassemblingandusingtheappliance.
    •  Followallwarningsandinstructionswhenusingtheappliance.
    •  Keepthismanualforfuturereference.
Even though all the safety instructions in this Owner’s Guide are important and should be read and understood before us-
ing this appliance, these are some of the more important user instructions. Failure to comply could result in a re, property
damage, or personal injury.
1. This appliance is for outdoor use only and should never be left unattended. Constant supervision is necessary.
2. Never operate this appliance within 10 feet (3m) of any structure, extended awnings, combustible material, or other
LP cylinder. Never operate this appliance within 25 feet (7.5m) of any ammable liquid.
3. Read all the operating instructions before lighting the burner. If ignition does not occur in 5 seconds, turn the burner
control OFF, wait 5 minutes, and repeat the lighting procedure.
4. Do not ll the boiler vat beyond its max ll line.
5. This appliance is only intented for heating water (DO NOT HEAT OIL OR GREASE).
6. Hot water remains at dangerous temperature levels long after the burner is OFF. Never touch the
appliance until liquids have cooled to 115° F (45° C) or less. Do not move or put the appliance into storage
until it is cool to the touch.
7. If a re should occur, immediately move away from the appliance and call your local re department.
8. Disconnect the LP cylinder whenever this appliance is not in use.
DANGER
!
SAFETY INSTRUCTIONS
DANGER
!
WARNING
!

1Carolina Cooker®
844-478-4334
Model M130760
August 2023
Table of Contents
1. General Information . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Welcome to the Carolina Cooker® Family . . . . . . 2
1.2 It’s All AboutSafety....... . . . . . . . . . . . . . . . . . . . . 2
1.3 Unanswered Questions . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 End of Life Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.6 Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Safety Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Safety Alert Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Safety Icon Nomenclature. . . . . . . . . . . . . . . . . . . . . .5
2.3.1 Personal Protection/Important
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.2 Prohibited Actions . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.3 Hazard Avoidance . . . . . . . . . . . . . . . . . . . . . . . 5
3. General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Propane Gas Hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Carbon Monoxide Hazard . . . . . . . . . . . . . . . . . . . . . . 6
3.3 General Operating Safety . . . . . . . . . . . . . . . . . . . . . . 6
3.4 Location Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.5 Personal Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.6 Protection Against Fire . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.7 LP (Propane) Gas and LP Cylinder Safety . . . . . . 8
3.7.1 LP Cylinder Specications . . . . . . . . . . . . . . 8
3.7.2 Transporting and Relling an
LP Cylinder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.7.3 Using an LP Cylinder. . . . . . . . . . . . . . . . . . . . 8
3.7.4 Storing an LP Cylinder . . . . . . . . . . . . . . . . . . 8
4. Terminology and Appliance Nomenclature . . . 9
4.1 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5. Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.1 Contents Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
6. Assembly and Startup Procedure . . . . . . . . . . . 14
6.1 General Assembly Instructions. . . . . . . . . . . . . . . .14
6.2 Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6.3 Connecting the LP Cylinder . . . . . . . . . . . . . . . . . . 17
6.3.1 Safety Instructions . . . . . . . . . . . . . . . . . . . . . 17
6.3.2 Connecting Instructions . . . . . . . . . . . . . . 17
6.4 Soapy Water Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.5 Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7. Cooking Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1 General Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.1 Prior to Cooking . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.2 While Cooking . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.3 After Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.2 Typical Cooking Guidelines. . . . . . . . . . . . . . . . . . . . 21
7.3 How to Boil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
7.4 How to Steam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
8. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9. Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
10. Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
11. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
12. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
12.1 Maintenance Safety . . . . . . . . . . . . . . . . . . . . . . . . 24
13. Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . 25
14. Parts Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . 26
15. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2Carolina Cooker®
844-478-4334
Model M130760
August 2023
1.1 Welcome to the Carolina Cooker®
Family
Congratulations on your choice of a Carolina Cooker® 140
Qt. Steamer/Boiler Combo Cart. This Owner’s Guide covers
the Carolina Cooker® 140 Qt. Steamer/Boiler Combo Cart.
The appliance is equipped with a cast iron burner creating
up to a 176,000 BTU output . The Steamer/Boiler Combo
Cart makes outside cooking simple whether camping,
tailgating, or for large gatherings.
The Carolina Cooker® 140 Qt. Steamer/Boiler Combo Cart
has been engineered for safe and ecient operation. The
appliance is energy-saving, environmentally friendly, and
convenient to operate. When properly maintained, the
appliances will provide a long and trouble-free service life.
1.2 It’s All About Safety
Your safety, and the safety of others, is very important.
The proper and safe use of this appliance is an important
responsibility and should be taken seriously. This
Operator’s Guide contains important safety information.
Keep this Owner’s Guide for future reference.
The information, specications, and illustrations/
photos in this Owner’s Guide are based on the
information that was available at the time this material
was published. We reserve the right to change
specications or design at any time without notice.
No part of this publication may be reproduced without
written permission from Direct Distributors, Inc. which is
a Carolina Cooker® Distributor.
Thisapplianceisnotintendedfor
commercialuse.Itisalsonot
intendedtobeusedasaturkeyfryer.
SAFETY
INSTRUCTIONS
WARNING
!
FOR OUTDOOR
USE ONLY !
!
NOT FOR COMMERCIAL USE
Think SAFETY!
Work SAFETY!
1. General Information
Read and Understand Owner’s Guide
TAKESAFETYSERIOUSLY.Eventhoughthe
safetyinstructionsandinformationaltextin
thisOperator’sGuidemayseemlongandtiresome,
theyareprovidedforyoursafetyandthosenearby
theappliancewhenitisoperating.
Topreventpropertydamage,personalinjury,or
evendeath,carefullyread,understand,andfollow
ALLwarningsandinstructionscontainedwithinthis
Owner’sGuideand/orotherreferencedpublications.
Thisappliance,ifnotusedandmaintainedproperly,
canbedangeroustousersunfamiliarwithits
operation.Donotoperate,maintain,adjust,orclean
thisapplianceuntilyouhavereadthisOwner’sGuide
andhavedevelopedathoroughunderstandingofthe
safetyprecautionsandfunctionsoftheappliance.
Thisapplianceisdesignedforthespecicpurpose
ofpreparingfoodforhumanconsumption.DONOT
modifyorusethisequipmentforanyapplication
otherthanthatforwhichitwasdesigned.
Appliancemaintainedoroperatedimproperly,orby
untrainedusers,canbedangerous;exposingthe
userand/orbystanderstopossibleseriousinjuryor
death.
To help you make informed decisions about safe operation
and maintenance of this appliance, you will nd important
safety information in a variety of forms, including:
• Safety labels on the appliance or LP cylinder.
• The LP gas supply cylinder to be used must be
constructed and marked in accordance with the
specications for LP gas cylinders, U.S. Department
of Transportation (DOT) or the Standard for Cylinders,
Spheres and Tubes for the Transportation of
Dangerous Goods, CAN/CSA-B339;
• The General Safety section in this Owner’s Guide.
• Specic safety instructions in sections, such as
Operation, Maintenance, Cleaning, etc. in this
Owner’s Guide.

3Carolina Cooker®
844-478-4334
Model M130760
August 2023
1.3 Unanswered Questions
If you have any questions not answered in this guide,
require additional copies, or the Owner’s Guide is
damaged, please contact:
Carolina Cooker®
P.O. Box 799
Garner, NC 27529
Orders: 833-926-6537
Inquires: 844-478-4334
Web: www.CarolinaCooker.com

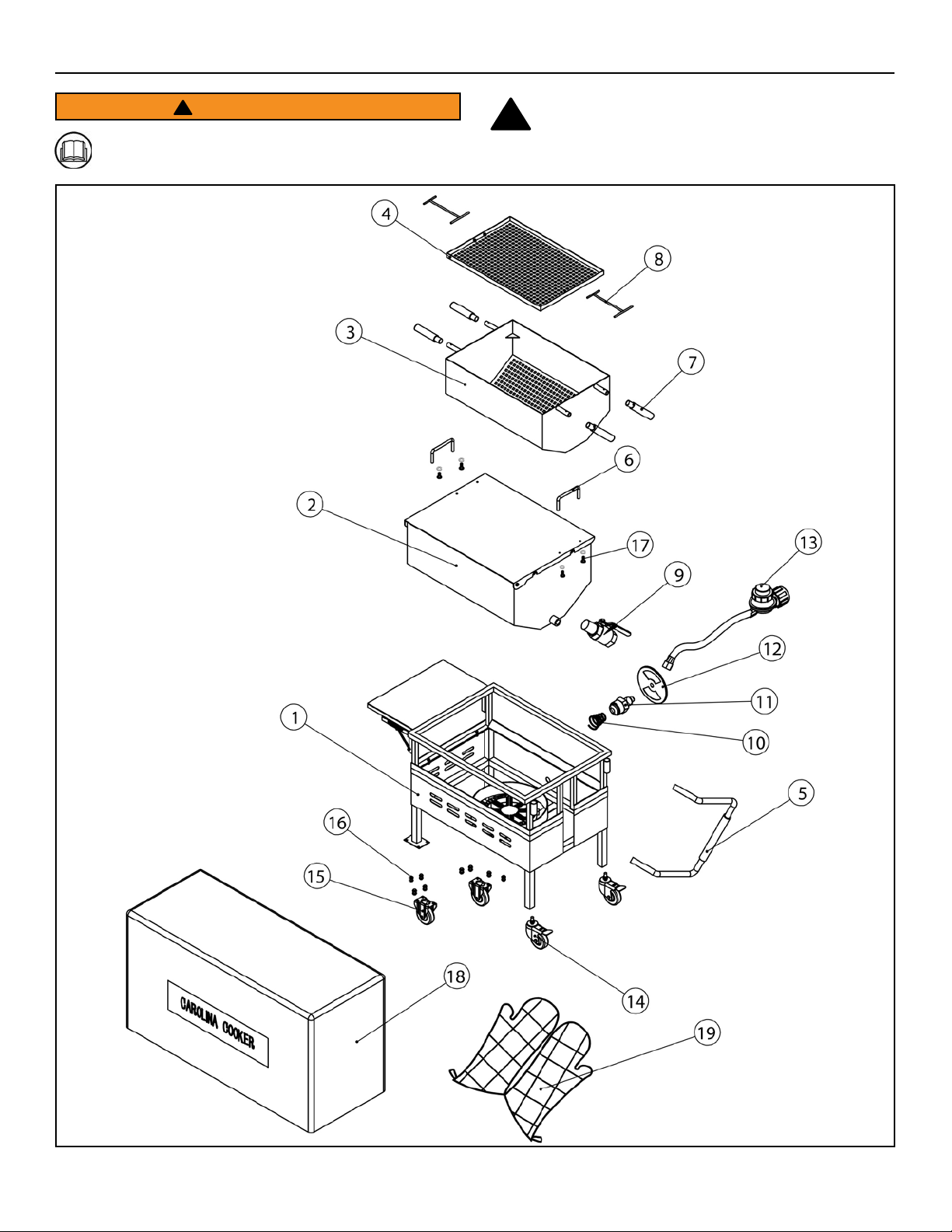

1.4 Contents
The appliance does not include an LP cylinder.
The appliance is supplied with a pressure regulator
and hose assembly designed for an LP cylinder Type 1
connection. Do not use any other type of gas regulator
or LP cylinder. The contents also include the base and
burner.
1.5 End of Life Cycle
This appliance is designed to prepare food for human
consumption. When the appliance is no longer capable
of performing its designed function, destruction of the
appliance should be conducted according to federal
and local environmental regulations. Do not use any
materials or components from the appliance or the LP
cylinder for any other purpose.
1.6 Specications
M130760 Steamer/Boiler Burner Specications
Description Specication
BoilerBasket 140quarts
OverallSize 22”Dx50”Lx32”H
HoseandPressure
Regulator 30PSIRegulator,48”Length
Burner CastIronHighPressure
Burner,10”Diameter
BTUOutput 176,000
FoldableShelfSize 19”Lx12”W
