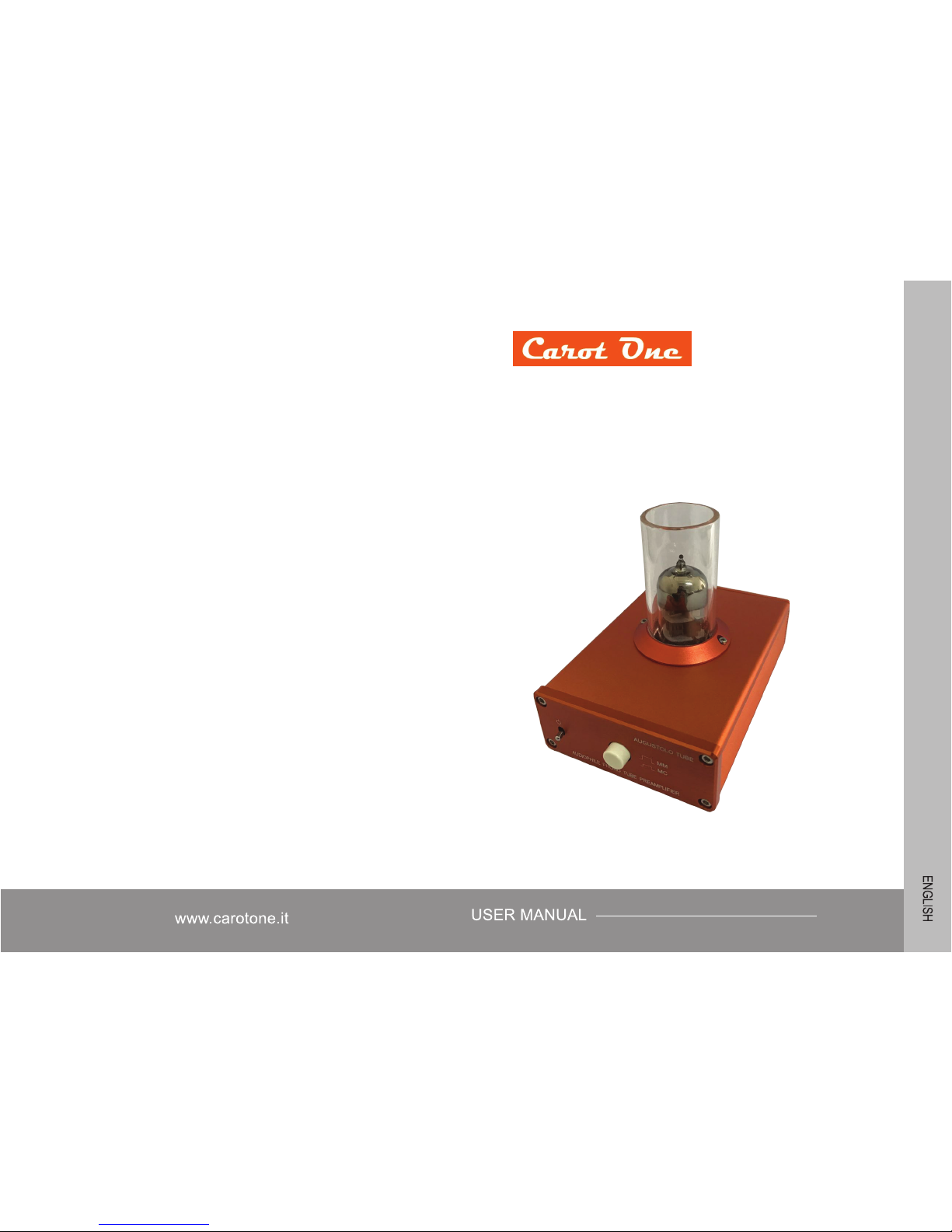

Carot One AUGUSTOLO-TUBE User manual

AUGUSTOLO-TUBE AUDIOPHILE MM / MC
PHONO TUBE PREAMPLIFIER
1 - 11

- 2 -
Table of Contents
1. INTRODUCTION
3
2. FEATURES.
3
3. OVERVIEW.
7
3.1 Connection
3.2 Operation
4. SPECIFICATIONS
10
4.1 MM part Unit
4.2 MC part Unit
4.3 Specification of the AC Adaptor
5. TROUBLESHOOTING
11
6. ACCESSORIES
11

- 3 -
1. Introduction
Thank you for your purchase of Carot One AUGUSTOLO TUBE MM / MC
phono pre-amplifier.
We are not satisfied with the sound of today's LP playback systems; most of
them sound too neat and clean, even tasteless, like distilled water. With
AUGUSTOLO TUBE, our intention is to enhance the richness of LP sound,
and differentiate it even more from the sound of a CD. The sound that
AUGUSTOLO TUBE created was the target when we were developing
progression. With an addition EH6922 vacuum tube to this new model, it
bring you all the benefits of vacuum tube playback even playing on any
transistor amplifier.
2. Features
Unique equalizing circuitry that amplifies all the voltage the cartridge
generates without loss.
Complete dual mono structure.
Rigid and compact aluminum chassis to ensure a quick and smooth
release of vibrations.
Improved RIAA accuracy and even lower noise floor.
Ultra-low noise and low distortion RIAA
Standard audio sockets compatible with most audiophile quality cables.
Audiophile-graded parts and components
Adds a clean retro sound to any Hi-Fi system.
The stylish & specially-plated aluminum case provides not only
good-looking, and also provides outstanding shielding capability.

- 4 -
Safety Guidelines
Important safety instructions
This product is designed and manufactured to meet strict quality and safety
standards. However, you should be aware of the following installation and
operation precautions.
1. Take heed of warnings and instructions
You should read all the safety and operating instructions before operating this
equipment. Retain this handbook for future reference and adhere to all
warnings in the handbook or on the equipment.
2. Water and moisture
The presence of electricity near water can be dangerous.
Do not uses the equipment near water, for example next to a bathtub,
washbowl, kitchen sink, in a wet basement or near a swimming pool, etc.
3. Object or liquid entry
Take care that objects do not fall and liquids are not spilled into the enclosure
through any openings. Liquid filled objects such as vases should not be placed
on the equipment.
4. Placing the equipment
Only use a rack or shelf that is stable and strong enough to support the weight
of this equipment.
5. Ventilation
Do not place the equipment on a bed, sofa, rug or similar soft surface, or in an
enclosed bookcase or cabinet, since ventilation may be impeded. We
recommend a minimum distance of 50mm around the sides and top of the
equipment to provide adequate ventilation.
6 Heat
Locate the equipment away from naked flames or heat producing appliances
such as radiators, stoves or other appliances that produce heat.

- 5 -
7 Climate
The equipment has been designed for use in moderate climates and in
domestic situations.
8. Cleaning
Unplug the unit from the mains supply before cleaning.
The case should normally only require a wipe with a soft, lint-free cloth. Do not
use chemical solvents for cleaning.
We do not advise the use of furniture cleaning sprays or polishes as they can
cause indelible white marks.
9. Power sources
Only connect the equipment to a power supply of the type described in the
operating instructions or as marked on the equipment.
The primary method of isolating AUGUSTOLO TUBE from the mains supply is
to use the switch on the rear of the unit.AUGUSTOLO TUBE must be installed
in a manner that makes disconnection possible.
10. Power-cord protection
Power supply cords should be routed so that they are not likely to be walked
on or pinched by items placed upon or against them. Pay particular attention to
the point where they exit from the equipment.
11. Power lines
Locate any outdoor antenna/aerial away from power lines.
12. Non-use periods
If the equipment is not being used for an extended period, we recommend that
you unplug the power cord of the equipment from the outlet, to save power.
13. Abnormal smell
If an abnormal smell or smoke is detected from the equipment, turn the power
off immediately and unplug the equipment from the wall outlet. Contact your
dealer and do not reconnect the equipment.
14. Servicing
You should not attempt to service the equipment.
Contact your dealer to arrange servicing.

- 6 -
15. Damage requiring service
The equipment should be serviced by qualified service personnel when:
A. the power-supply cord or the plug has been damaged, or
B. objects have fallen, or liquid has spilled into the equipment, or
C. the equipment has been exposed to rain, or
D. the equipment does not appear to operate normally or exhibits a marked
change in performance, or
E. the equipment has been dropped or the enclosure damaged.
Safety compliance
This equipment has been designed to meet the EOCENE 60065 international
electrical safety standards.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
WARNING:
Due to the mains power supply being located on the rear panel, the apparatus
must be located in an open area without anything obstructing access to the
mains switch.
Mains plug/appliance coupler is used to disconnect device and it shall remain
readily operable.
Correct disposal of this product
This marking indicates that this product should not be disposed with other
household waste throughout the EU.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal and to conserve material resources, this product
should be recycled responsibly.
To dispose of your product, please use your local return and collection systems
or contact the retailer where the product was purchased.

- 7 -
3. Overview
1. MM / MC selector
When pressed, MC is selected
When released, MM is selected
2. Power on/off switch
3. EH 6922 vacuum tube

- 8 -
4. Power Supply Socket; Plug the bundled AC Adaptor to this socket to
supply power to this pre-amplifier.
5. Audio input. The audio signal input (LEFT/RIGHT) connects from LP
turn table to the amplifier by the RCA audio cable.;
6. Audio signal line output (3.5mm mini jack cable)
WARNING:
When plug in the supplied mini jack cable between (6) and amplifier,
always plug in a vertical way. NEVER shake the mini jack as this will
permanently damage the internal structure of the socket causing bad
contact of signal.

- 9 -
3.1 Connection
Carot-One AUGUSTOLO TUBE is easy to use product. Simply follow below
steps, you can enjoy the high quality music in a second:
-First, you must confirm the LP cartridge of your turn table is in MM type or
MC type. If it is a MC type, press selector (1). If it is a MM type, make
sure the selector (1) is released.
-Connect your turn table audio output to the “Line In” RCA socket (3) using
normal RCA audio cable (not included)
-Using the provided mini jack cable to RCA cable, connect AUGUSTOLO
TUBE to your amplifier through the “Line Out” mini socket (6)
-Connect the power adaptor to the “Power In” connector (2).
It’s now all set and you are ready to enjoy your music.
3.2 Operation
Please follow the below steps such that you can enjoy the product without any
difficulty:
-Make sure you selected the correct MM/MC type of your cartridge.
-Turn on your turn table and amplifier
-Upon LP play back, you should be able to hear music from you speaker
now.

- 10 -
4. Specifications
4.1 MM part Unit
Sensitivity
0.35mV for 350mV Output at1KHz
Input Impedance
47k Ohm
4.2 MC part Unit
Sensitivity
0.35mV for 350mV Output at1KHz
Input Impedance
0 Ohm
Output Impedance
10k Ohms
Amplification gain
> 60 dB
RIAA Accuracy
+/- 0.25dB 20Hz to 20KHz
4.3 Specification of the AC Adaptor
AC Input Universal AC 100V-240V/50-60Hz
DC Output DC 12V 3.5A (60W)
DC Plug DC 2.1mm
Ripple & Noise <= 25mV
Over-load Protection 105%-150%
Over-voltage Protection 115%-150%

- 11 -
5. Troubleshooting
If your machine is out of order, it may not be very serious. Before you call your
local distributor or us to repair, you are suggested to check the following:
SYMPTOM
POSSIBLE CAUSE
REMEDY
cannot power ON
indicator not bright
power cords not properly
connected
properly connect the
power cords
no sound at all
The audio cable not
properly connected
properly connect the
audio cable
the turn table not started
playing
start playing the audio
source
wrong input is selected
check input selection of
your amplifier
the speaker cables not
properly connected
properly connect the
speaker cables
Hum
audio connector plug not
fully pushed in
Insert plug securely
MM/MC not selected
properly
Check the type of your
cartridge to make sure it is
MM or MC type
sound out(s)
loose connection
check input and output
connections.
6. Accessories
. 3.5MM to 2 x RCA connection cable x 1
. Power cable x 1
. 12V power supply x 1
. User Guide x 1
OPENITEM ITALIA is WORLDWIDE DISTRIBUTOR of Carot One
Website: www.carotone.it
Email: [email protected] - END -
