Carrier KSACN1001AAA User manual

Specifications subject to change without notice. OM-KSACN1001AAA-01
Owner’s Manual
Fig. 1 — Wired Controller
NOTE: Images are for illustration purposes only. Actual models may differ slightly.
Wired Remote Controller
7 Day Programmable Thermostat
Ductless Systems
KSACN1001AAA

2 Specifications subject to change without notice. OM-KSACN1001AAA-01
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS...........................................................................................3
WIRED CONTROLLER FEATURES AND FUNCTIONS...............................................5
WIRED CONTROLLER DISPLAY ...................................................................................6
WIRED CONTROLLER FUNCTIONS .............................................................................7
INITIAL SETUP..................................................................................................................8
WEEK AND DAY SETTINGS FOR WEEK 1 ................................................................15
WEEKLY TIMER OPERATION .....................................................................................17
WEEK AND DAY SETTINGS FOR WEEK 2 ................................................................23
WIRED CONTROLLER ERROR CODES ......................................................................32
QUERIES AND SETTINGS .............................................................................................33
STATIC PRESSURE QUERY FUNCTION.....................................................................34
TECHNICAL INDICATION AND REQUIREMENT .....................................................39
NOTE: In order to properly service the wired controller, read this manual carefully prior to operating the
unit. Keep this manual after reading for future reference.

0M-KSACN1001AAA-01 Specifications subject to change without notice. 3
SAFETY CONSIDERATIONS
Installing, starting up, and servicing air-conditioning equipment can be hazardous due to system
pressures, electrical components, and equipment location (roofs, elevated structures, etc.). Only
trained, qualified installers and service mechanics should install, start-up, and service this equipment.
Untrained personnel can perform basic maintenance functions such as cleaning coils.
When working on the equipment, observe precautions in the literature and on tags, stickers, and labels
attached to the equipment.
Follow all safety codes. Wear safety glasses and work gloves. Keep a quenching cloth and fire
extinguisher nearby when brazing. Use care in handling, rigging, and setting bulky equipment.
Read these instructions thoroughly and follow all warnings or cautions included in the literature and
attached to the unit. Consult the local building codes and National Electrical Code (NEC) for special
requirements. Recognize safety information.
This is the safety-alert symbol . When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury. Understand these signal words: DANGER,
WARNING, and CAUTION. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards which will result in severe personal injury or death.
WARNING signifies hazards which could result in personal injury or death. CAUTION is used to
identify unsafe practices which may result in minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced installation, reliability, or
operation.

4 Specifications subject to change without notice. OM-KSACN1001AAA-01
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death. Before beginning any modification or
installation of this kit, ensure the main electrical disconnect is in the OFF position. Ensure power is
disconnected to the fan coil unit. On some systems both the fan coil and the outdoor unit may be on the
same disconnect. Tag the disconnect switch with a suitable warning label. There may be more than one to
disconnect.
CAUTION
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage or improper operation. Do not install the wired
controller in an area subjected to excessive steam, oil or sulfide gas. Doing so may damage the controller
and/or cause it to fail.
CAUTION

0M-KSACN1001AAA-01 Specifications subject to change without notice. 5
WIRED CONTROLLER FEATURES AND FUNCTIONS
Fig. 2 — Wired Controller
Features:
•LCDdisplay
• Malfunction code display for error code
display
• 4-way wire layout design, smooth rear
surface makes it easier to position the wires
and install the controller
• Room temperature display
• Weekly timer
Functions:
• Mode: select AUTO-LOW-DRY-HEAT-FAN
• Fan Speed: AUTO/LOW/MEDIUM/HIGH
• Timer ON/OFF
• Temperature Setting
• Weekly Timer
• FOLLOW ME
• Turbo
• 24-Hour System
• 12-Hour System
• Freeze Protection
•Sleep
• Auto-restart
• Automatic airflow test
• Child Lock
• LCD display
•Clock

6 Specifications subject to change without notice. OM-KSACN1001AAA-01
WIRED CONTROLLER DISPLAY

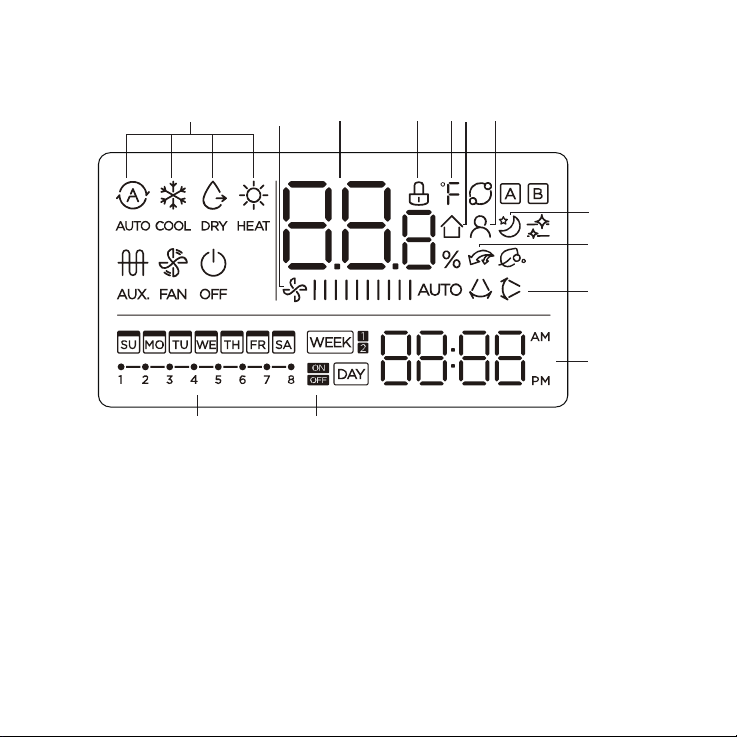

Fig. 3 — Wired Controller Display
1. Operation mode indication
2. Fan speed indication
3. Temperature display
4. Lock indication
5. °F / °C indication
6. Room temperature indication
7. Follow Me function indication
8. Sleep mode indication
9. Electric Auxiliary Heat/Turbo Function
NOTE: AHU models only have Turbo function.
10. Left-Right Swing (not available)
11. Clock display
12. ON/OFF Timer
13. Timer Display
12345
9
76
10
8
11
13 12

0M-KSACN1001AAA-01 Specifications subject to change without notice. 7
WIRED CONTROLLER FUNCTIONS

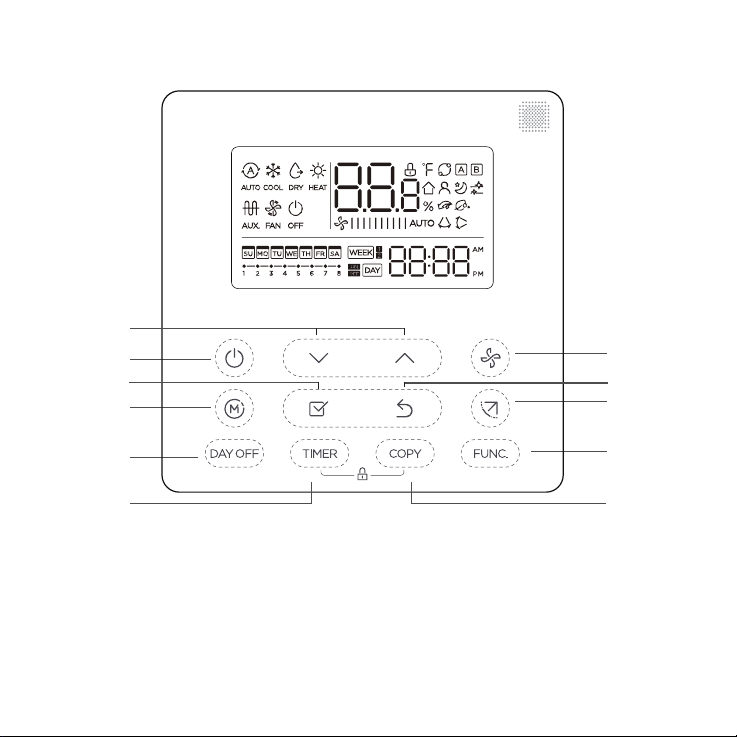

Fig. 4 — Wired Controller Functions
1. Power
2. Mode
3. Day Off/Del
4. Adjust
5. Confirm
6. Timer
7. Fan Speed
8. Back
9. Swing (not available)
10. Function
11. Copy
12. IR (Infrared) Signal Receiver
3
1
2
10
7
9
4
5
611
8

8 Specifications subject to change without notice. OM-KSACN1001AAA-01
INITIAL SETUP
Set the current day and time
NOTE: The Wired Controller can be powered ON or
OFF during this step.
1. Press TIMER for 2 seconds or more to set
the current date and time. The TIMER display
flashes (see Fig 5).
Fig. 5 —Timer
2. Press the UP or DOWN arrow (Fig. 8) to
set the week day; the selected week day
will flash (Fig. 7).
Fig. 6 —Up or Down Arrows
Fig. 7 — Days of the Week
3. Press TIMER to confirm. If there is no
button pressed within 10 seconds, the
displayed week day will be saved.
4. Press the UP or DOWN arrows (Fig. 6) to
set the current time. Press repeatedly to
adjust the current time in 1-minute
increments. Press and hold to adjust the
current time continuously. Press TIMER to
confirm. If there is no button pressed within
10 seconds the displayed time is saved.
Fig. 8 — Week Day and Time
5. Time scale selection: Press TIMER (See
Fig. 5 — on page 8) and DAY OFF (Fig. 9)
for 2 seconds to alternate the clock time
display between the 12 hour and 24 hour
formats.
Fig. 9 — Timer
ex. Monday 11:20

0M-KSACN1001AAA-01 Specifications subject to change without notice. 9
Start and Stop Operation
•PressPOWER to power on the controller.
Fig. 10 — Power
Freeze Protection
Fig. 11 — Freeze Protection
With the unit is in HEAT mode press the down
arrow until the setpoint is 60°F (16°C). Press the
down arrow two times within one seconds to
activate the FREEZE PROTECTION function
(heating set back). The unit will now operate at a
set temperature of 46°F (8°C). The indoor unit
display shows FP. No icon appears on the remote
control.
NOTE: This function is only available in the
HEATING mode.
Under this function, the unit heats at high fan
speed until the space temperature is 46°F (8°C).
This mode can also be deactivated by pressing
POWER, MODE, FAN SPEED, TIMER, or either
ADJUST arrow.
To Set the Operation Mode
•PressMODE (see Fig. 12) to set the
OPERATION MODE (see Fig. 13) (HEAT
function is invalid for a COOL only type unit).
Fig. 12 — Mode
Fig. 13 — Operation Modes
When the mode is selected as emergency
heating (single-on electric auxiliary heating)
mode, the AUX icon appears in the MODE area,
the fan speed displays AUTOMATIC WIND, the
fan speed key no longer responds.
There are no SLEEP, FREEZE PROTECTION,
TURBO functions in the emergency HEATING
mode.
When the mode is selected as HEATING +
ELECTRIC AUXILIARY HEATING mode, the
icons appear in the mode area and the TURBO
function does not respond.
+

10 Specifications subject to change without notice. OM-KSACN1001AAA-01
Room Temperature Setting
1. Press the UP or DOWN arrow (Lower or Raise
(see Fig.14)) to set the room temperature.
NOTE: This function in unavailable in FAN mode.
Fig. 14 — Up or Down Arrows (Lower and
Raise)
Indoor Setting Temperature Range:
62°F~86°F (17°C~30°C)
2. °F and °C Scale Selection - Press and
hold the UP or DOWN arrow for 3 seconds
to alternate the temperature display
between the °F and °C scale.
Fan Speed
•PressFAN SPEED to set the fan speed.
NOTE: This function is unavailable when the unit is
in AUTO or DRY mode.
Fig. 15 — Fan Speed
Keypad Tone
Enable Keypad Tone
•PressSWING and FUNC. together (Fig. 16)
for 3 seconds to enable the keypad tone.
Disable Keypad Tone
•PressSWING and FUNC. together (Fig. 16)
for 3 seconds to disable the keypad tone.
Fig. 16 — Keypad Tone Set
Lower
Raise
HIGHAUTO LOW MED

0M-KSACN1001AAA-01 Specifications subject to change without notice. 11

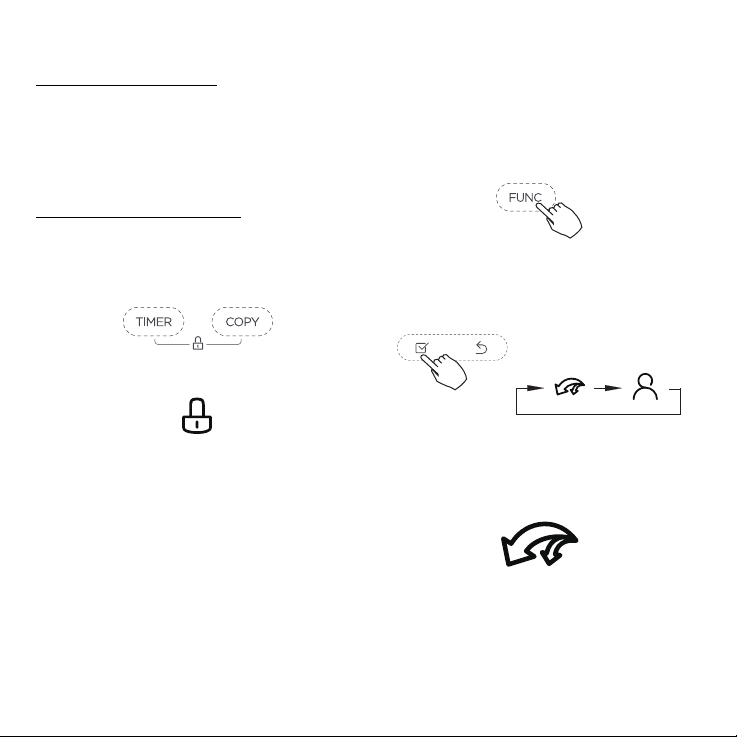

Use the Child Lock Function
Activate the Child Lock
•PressTIMER and COPY (Fig. 17) together
for 3 seconds to activate the CHILD LOCK
function and lock all the buttons on the wired
controller. When the CHILD LOCK function is
activated, the LOCK icon appears (Fig. 17).
De-activate the Child Lock
•PressTIMER and COPY (Fig. 17) together
for 3 seconds to deactivate the CHILD LOCK
function.
Fig. 17 — Timer and Copy
Fig. 18 — Child Lock
Sleep
In the AUTOMATIC, COOLING or HEATING
mode, press FUNC. to select the SLEEP icon,
and then press CONFIRM to turn the SLEEP
function on or off, and set the fan speed to
automatic fan. After the sleep function is turned
on, turning on TURBO, 46-Degree HEATING,
switching modes, or adjusting the fan speed
cancels the SLEEP function.
Turbo (on some models)
Under the COOL or HEAT mode, TURBO and
FOLLOW ME can be activated.
1. Press FUNC. to set the TURBO or FOLLOW
ME function. The select function icon flashes.
Fig. 19 — FUNC.
2. Press CONFIRM to confirm the setting
(see Fig. 20).
Fig. 20 — Confirm the Setting
When TURBO is activated, the TURBO
icon appears (see Fig. 21).
Fig. 21 — Turbo
NOTE: The electric auxiliary heating function of the
AHU model is controlled by the MODE button, and
the FUNC. button is for the TURBO function.

12 Specifications subject to change without notice. OM-KSACN1001AAA-01
FOLLOW ME
Activate FOLLOW ME
1. Press FUNC. to select the FOLLOW ME icon.
2. Press CONFIRM to activate FOLLOW ME.
Deactivate FOLLOW ME
1. Press FUNC. to select the FOLLOW ME icon.
2. Press CONFIRM to deactivate.

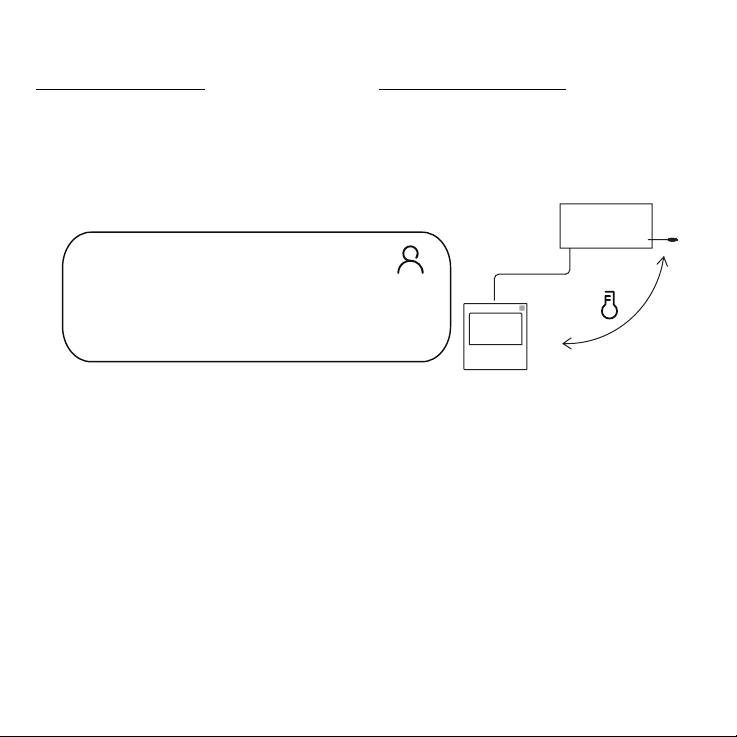

Fig. 22 — FOLLOW Me
Indoor Unit
When the FOLLOW ME function
indication appears, the room
temperature is detected by the sensor
in the wired controller.

0M-KSACN1001AAA-01 Specifications subject to change without notice. 13
Timer Functions
For more information, see “To Set the ON or OFF TIMER” on page 14.
•Weekly: Use the WEEKLY function to set operating times for each day of the week.
Fig. 23 — WEEK
•On:Day: Use the ON:DAY function to start air conditioner operation.
Fig. 24 — ON:DAY
• Off:Day: Use the OFF:DAY function to stop air conditioner operation.
Fig. 25 — OFF:DAY
• On and Off:Day: Use the On and Off: Day function to start and stop air conditioner operation.
Fig. 26 — ON and OFF:DAY

14 Specifications subject to change without notice. OM-KSACN1001AAA-01
To Set the ON or OFF TIMER
1. Press TIMER to select the ON:DAY or OFF:DAY.
Fig. 27 — Select the ON:DAY or OFF:DAY
2. Press CONFIRM and the TIMER display flashes.
Fig. 28 — Confirm
3. Press the UP or DOWN arrow to set the time. After the time is set, the timer starts or stops.
Fig. 29 — Up or Down arrow to set time
4. Press CONFIRM.
Fig. 30 — Confirm
NOTE: The secondary wired controller cannot set the timer.
No display
ex. O timer set at 18:00

0M-KSACN1001AAA-01 Specifications subject to change without notice. 15
WEEK AND DAY SETTINGS FOR WEEK 1
WEEK 1 Timer Setting
1. Press TIMER (several times if needed) to select WEEK 1.
2. Press CONFIRM.
Fig. 31 — Press Timer then Confirm
Day of the WEEK Setting
1. Press the UP or DOWN arrow to select the day of the week.
2. Press CONFIRM.
Fig. 32 — Press Up and Down Arrows - Select Day - Confirm

16 Specifications subject to change without notice. OM-KSACN1001AAA-01
SET the ON Timer for Timer Setting 1
1. Press the UP or DOWN arrow to set the time of the ON timer.
2. Press CONFIRM.
Fig. 33 — Up or Down Arrow - Confirm
Fig. 34 — Select Timer Setting(s)
Set the OFF Timer Setting for Timer Setting 1
1. Press the UP or DOWN arrow to set the OFF timer.
2. Press CONFIRM.
Fig. 35 — UP or DOWN Arrow - Confirm
NOTE: Users can revert to the previous step by pressing BACK. The time of the timer setting can be
deleted by pressing DAY OFF. The current setting is restored and the weekly timer setting is withdrawn
when there is no operation selected in 30 seconds.
ex.Tuesday time scale 1
Up to 4 timer settings can be saved for each day of the week.
ex. Tuesday time scale 1

0M-KSACN1001AAA-01 Specifications subject to change without notice. 17
WEEKLY TIMER OPERATION
To activate the WEEKLY TIMER operation
1. Press and release TIMER until WEEK 1 appears on the display.
Fig. 36 — Press Timer
To deactivate the WEEKLY TIMER operation
1. Press and release TIMER until WEEK 1 no longer appears on the display.
Fig. 37 — Press Timer
ex.
ex.

18 Specifications subject to change without notice. OM-KSACN1001AAA-01
To Turn Off the Air Conditioner with the Week Timer
1. Press POWER and the air conditioner turns OFF temporarily. The air conditioner turns back on
automatically when the ON timer’s set time is reached. For example, press POWER once at 10:00
AM, the air conditioner turns back on at the timer setting 2:00 PM (Fig. 38).

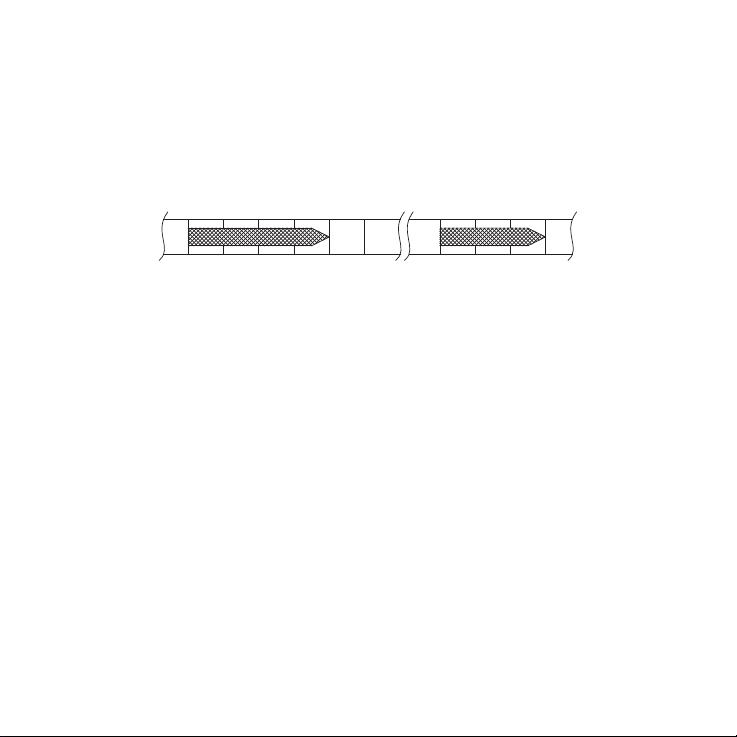

Fig. 38 —Weekly Timer Display
2. Press POWER for 2 seconds, the air conditioner turns off completely and cancels the timing
function.
ON OFF ON OFF
8:00AM 12:00PM 2:00PM 5:00P
M
10:00AM

0M-KSACN1001AAA-01 Specifications subject to change without notice. 19

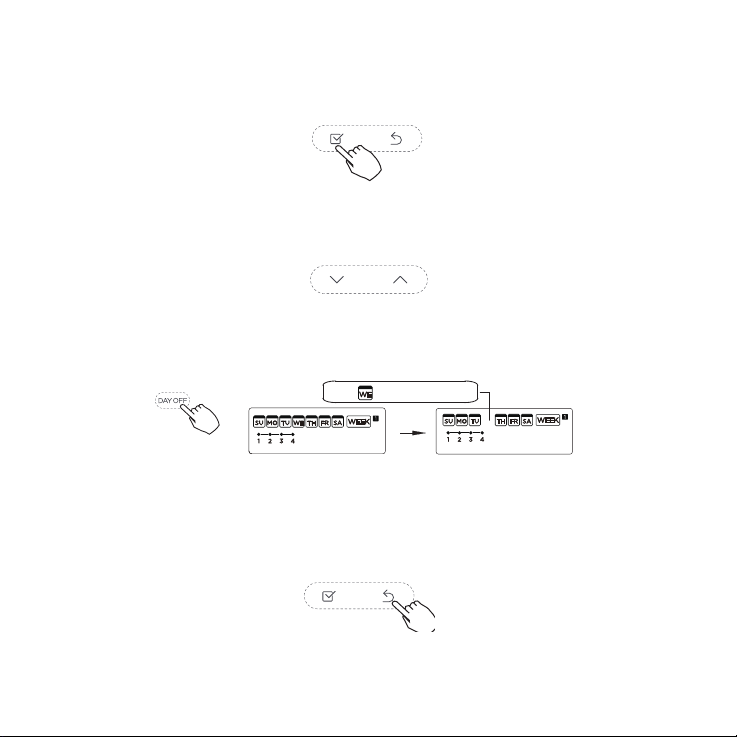

Set the DAY OFF For WEEK 1
1. Select WEEK 1 then press CONFIRM. For more information, see “WEEKLY TIMER
OPERATION” on page 17.
Fig. 39 — Confirm
2. Press the UP or DOWN arrow to select the day of the week.
Fig. 40 — Up or Down Arrows
3. Press DAY OFF to select day(s) off.
Fig. 41 — Select Day(s) off
A DAY OFF can be set for other days by repeating steps 2 through 3.
4. Press BACK to revert to the weekly timer.
Fig. 42 — Back
The DAY OFF setting is canceled at the end of the set day.
ex. The DAY OFF is set for Wednesday
The mark is hidden

20 Specifications subject to change without notice. OM-KSACN1001AAA-01

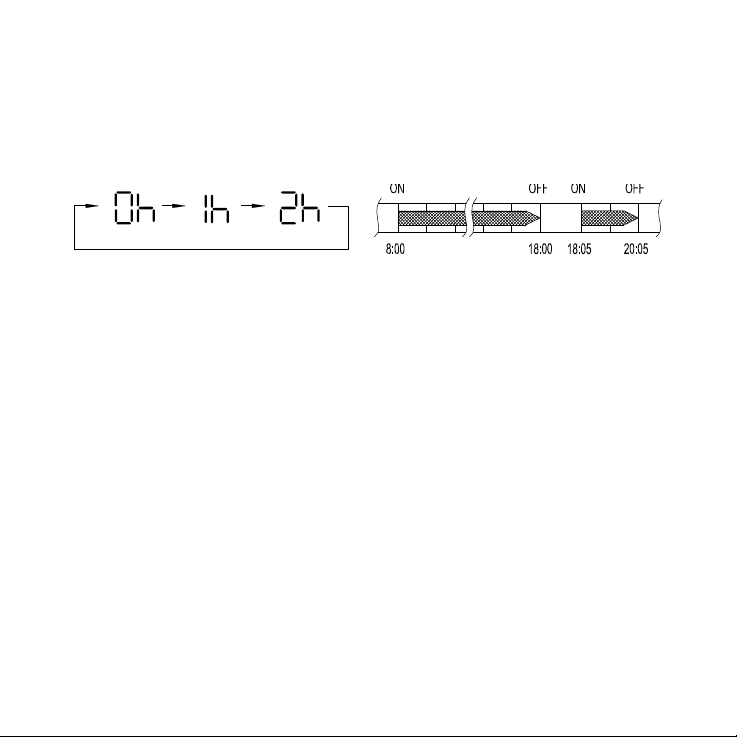

Delay Function
During the weekly timer, pressing Del once, displays Oh. Press Del twice to display Ih and wait 3
seconds to confirm. This step causes the unit to override in 1 hour; Press Del three times, the unit
display 2h.Wait 3 seconds to confirm (the unit will now override 2 hours.
Fig. 43 — Delay Function
