Casa Systems CFW-2182 CBRS User manual

casa
systems User Guide
CFW-2182 CBRS 4G Outdoor UE
Doc No. UG01233

2 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Important notice
This device, like any wireless device, operates using radio signals which cannot guarantee the transmission
and reception of data in all conditions. While the delay or loss of signal is rare, you should not rely solely on
any wireless device for emergency communications or otherwise use the device in situations where the
interruption of data connectivity could lead to death, personal injury, property damage, data loss, or other
loss. Casa Systems accepts no responsibility for any loss or damage resulting from errors or delays in
transmission or reception, or the failure of the Casa Systems CFW-2182 to transmit or receive such data.
Safety and hazards
Warni
ng – Do not connect or disconnect cables or devices to or from the USB port, SIM card tray, or Ethernet port in hazardous
locations such as those in which flammable gases or vapours may be present, but normally are confined within closed
systems; are prevented from accumulating by adequate ventilation; or the location is adjacent to a location from which
ignitable concentrations might occasionally be communicated.
Copyright
Copyright© 2020 Casa Systems. All rights reserved.
The information contained herein is proprietary to Casa Systems. No part of this document may be
translated, transcribed, reproduced, in any form, or by any means without prior written consent of Casa
Systems.
Trademarks and registered trademarks are the property of Casa Systems or their respective owners.
Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
Note
– This document is subject to change without notice.
Document history
This document relates to the following product:
CFW-2182 CBRS 4G Outdoor UE antenna
Ver. Document description Date
v1.0 First release May 14, 2020
v1.1 Change in FCC Statement August 7, 2020
v1.2 Changes in RF Exposure section August 13, 2020
Table i. – Document revision history

3 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Contents
Overview .....................................................................................................................................6
Introduction.......................................................................................................................................................................................................6
Target audience ................................................................................................................................................................................................6
Prerequisites .....................................................................................................................................................................................................6
Notation ......................................................................................................................................................................................................6
Product introduction .......................................................................................................................7
Product overview ..............................................................................................................................................................................................7
Package contents..............................................................................................................................................................................................7
Physical dimensions and interfaces .....................................................................................................8
Physical dimensions .........................................................................................................................................................................................8
Interfaces...........................................................................................................................................................................................................9
Insert SIM card ................................................................................................................................................................................................10
Assemble and attach the mounting bracket................................................................................................................................................13
Overview of completed mounting..........................................................................................................................................................13
Mounting bracket assembly instructions ..............................................................................................................................................14
Power the CFW................................................................................................................................................................................................16
R45 cable weather seal assembly...........................................................................................................................................................16
PoE-03 power supply ...............................................................................................................................................................................20
PoE-03 LED indicators ...................................................................................................................................................................................................................20
Installation ................................................................................................................................. 21
Typical CFW antenna installation ..................................................................................................................................................................21
CFW-2182 configuration interface .................................................................................................... 22
Normal configuration.....................................................................................................................................................................................22
Advanced configuration .................................................................................................................................................................................22
Log in .........................................................................................................................................................................................................22
Confirm successful connection .....................................................................................................................................................................23
Status........................................................................................................................................ 24
Configuration tool menus..............................................................................................................................................................................28
Networking................................................................................................................................. 29
Wireless WAN..................................................................................................................................................................................................30
Data connection .......................................................................................................................................................................................30
Manually configuring a connection profile................................................................................................................................................................................31
Confirming a successful connection...........................................................................................................................................................................................33
Checking data usage......................................................................................................................................................................................................................33
Operator settings .....................................................................................................................................................................................35

4 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Operator settings ...........................................................................................................................................................................................................................35
SIM security settings ................................................................................................................................................................................36
Unlocking a PIN locked SIM..........................................................................................................................................................................................................36
Enabling/Disabling SIM PIN protection ......................................................................................................................................................................................38
Changing the SIM PIN code ..........................................................................................................................................................................................................39
Unlocking a PUK locked SIM.........................................................................................................................................................................................................40
LAN ...................................................................................................................................................................................................................41
LAN configuration ....................................................................................................................................................................................41
DNS masquerading........................................................................................................................................................................................................................41
Services ..................................................................................................................................... 43
Network time (NTP) ........................................................................................................................................................................................44
Timezone settings ..........................................................................................................................................................................................................................44
NTP settings ....................................................................................................................................................................................................................................45
Remote management.....................................................................................................................................................................................45
TR-069........................................................................................................................................................................................................45
TR-069 configuration................................................................................................................................................................................46
SAS....................................................................................................................................................................................................................48
CBRS Registration Status.........................................................................................................................................................................48
Speed Test.................................................................................................................................................................................................48
Run speed test................................................................................................................................................................................................................................48
Speed test settings.........................................................................................................................................................................................................................49
Test results ......................................................................................................................................................................................................................................50
System ...................................................................................................................................... 52
Log....................................................................................................................................................................................................................53
System log.................................................................................................................................................................................................53
Log file .......................................................................................................................................................................................................54
System log settings ..................................................................................................................................................................................54
Log capture level ......................................................................................................................................................................................55
Non-volatile log ........................................................................................................................................................................................55
Remote syslog server...............................................................................................................................................................................55
System Configuration.....................................................................................................................................................................................56
Administration ................................................................................................................................................................................................57
Administration settings ...........................................................................................................................................................................57
Accessing the antenna configuration pages remotely............................................................................................................................................................59
Reboot..............................................................................................................................................................................................................60
Logging out ................................................................................................................................ 60

5 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Appendix A – Default Settings ......................................................................................................... 61
Appendix B – Safety and compliance................................................................................................. 62
RF Exposure.....................................................................................................................................................................................................62
FCC Statement.................................................................................................................................................................................................62
FCC compliance ........................................................................................................................................................................................62
FCC regulations.........................................................................................................................................................................................62
Company details.............................................................................................................................................................................................................................63
Product details................................................................................................................................................................................................................................63

6 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Overview
Introduction
This document provides all the information required to configure and deploy the Casa Systems CFW-2182
antenna.
This User Guide relates to the CFW-2182’s physical components and its web user interface.
Normally only the installing technician would require access to the CFW-2182’s web user interface, if at all.
End users would not normally ever need to access this web user interface and would probably be unaware
of it.
Ordinarily a customer/end user’s connection to the internet would be exclusively governed by the settings of
their Wi-Fi Gateway, see Figure 3. Those settings would depend on the model or brand of gateway, type of
connection, requirements of the service provider, etc. and are beyond the scope of this document.
Target audience
This document is intended for experienced hardware installers who understand telecommunications
terminology and concepts.
Prerequisites
Before continuing with the installation of the CFW-2182 antenna please confirm that you have:
A WiFi-enabled device (laptop, tablet or smartphone) with the Google Chrome™ browser or the
Safari® browser.
read the entire Safety and product care section of this document and RF Exposure information.
You may also require other screws and fasteners depending on your circumstances.
Notation
The following symbols may be used in this document:
Note
– This note contains useful information.
Important
–
This is important information that may require your attention.
Warning
–
This is a warning that may require immediate action in order to avoid damage or injury.

7 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Product introduction
Product overview
Rural and regional homes and businesses, remote commercial sites and metropolitan fringe districts located
beyond the reach of fixed line infrastructure rely on mobile networks to access broadband Internet.
Designed to optimise signal strength in weak signal areas, the CFW-2182 CBRS 4G Outdoor UE is positioned
on the exterior of the premises to overcome distance limitations and geographical obstructions and deliver
high-speed LTE broadband connectivity to wired and wireless clients in the property via an indoor router.
Package contents
The CFW-2182 in-box contents include:
1 x CFW-2182 Casa Fixed Wireless antenna
1 x Mounting bracket
Accessories used in this solution (packaged separately):
1 x Antenna Power Supply (POE-03) – used to power the CFW-2182 during normal operation
If any of these items are missing or damaged, please contact your sales representative immediately.

8 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Physical dimensions and interfaces
Physical dimensions
Below is a list of the physical dimensions of the CFW-2182.
Figure 1 – CFW-2182 Dimensions
CFW-2182 Dimensions
Length 15 ½” (395 mm)
Width 15 ½” (395 mm)
Height 4 ½” (75 mm)
Weight
~
5.7lbs (
~
2.6 kg)
Table 1 - Device Dimensions

9 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Interfaces

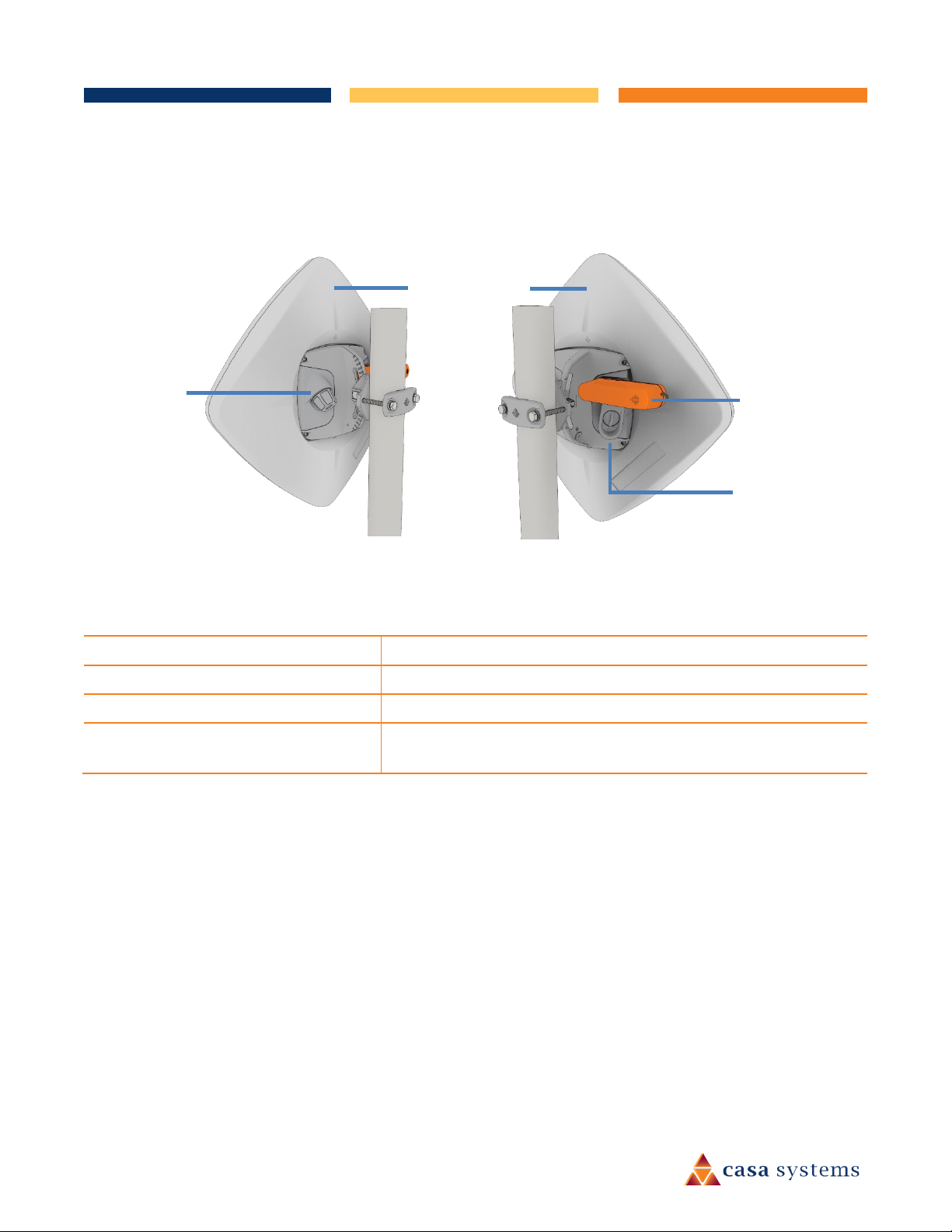

Figure 2 – Interfaces
Item Description
Antenna panel Includes 2 x pairs Cross polarised antennas and GPS antenna
Smart Antenna Tool port Connect the Smart Antenna Tool here
SIM hatch Open the hatch to insert SIM here
Antenna Power Supply port (PoE) Provides power and data connectivity to the CFW-2182 with
Ethernet cable
Table 2 – Interfaces
Antenna panel
Smart Antenna
Tool port with
tool in place
SIM card
access hatch
Antenna Power
Supply port (PoE)

10 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Insert SIM card
The CFW-2182 accepts SIM cards in Mini-SIM (3FF) format. Follow the instructions below to insert a SIM card.
1On the back of the CFW-2182 antenna, locate the SIM hatch. Using a T10 screwdriver, unscrew the two
screws on the SIM hatch then remove the cover to reveal the SIM card slot.

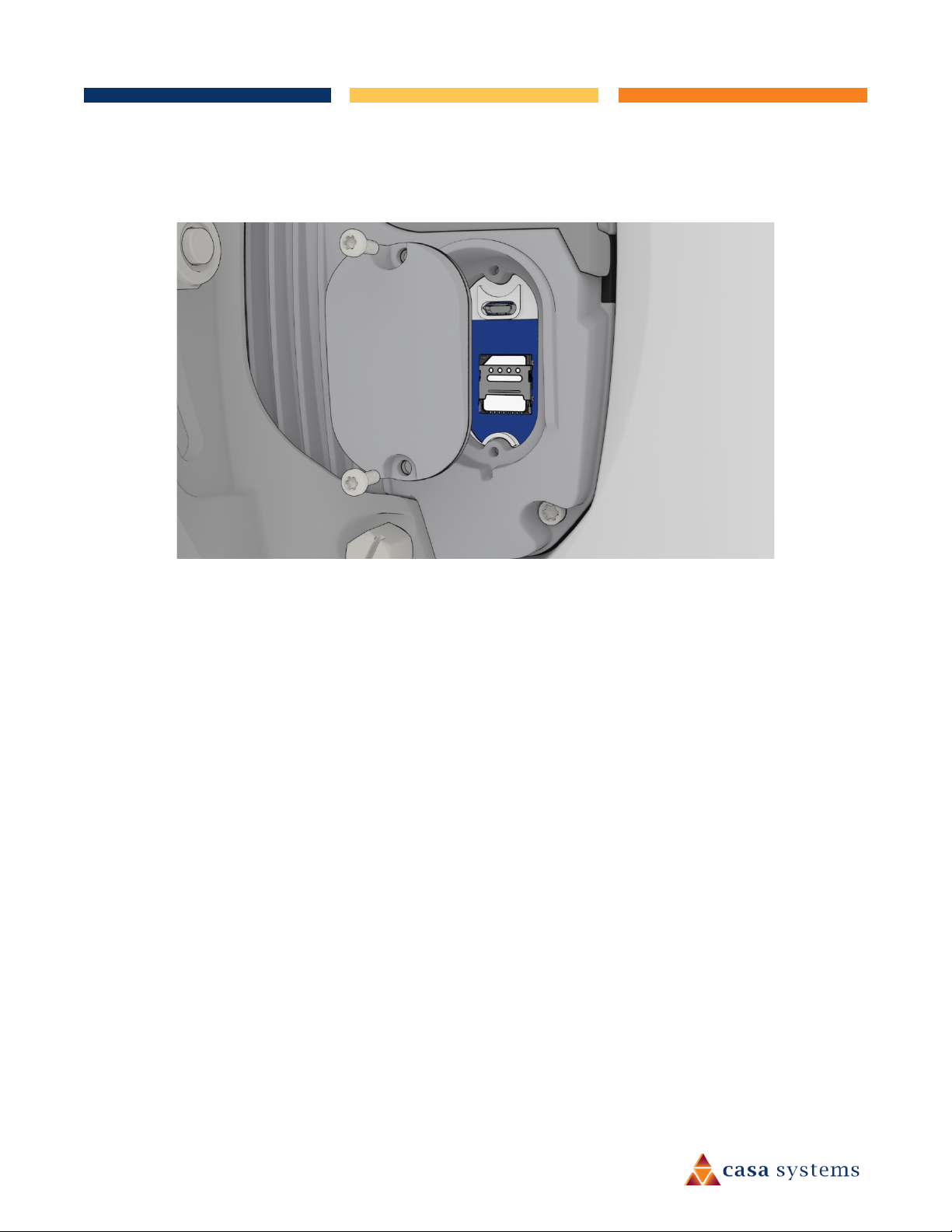

Figure 3 - Removing screws from the SIM hatch
2Swing the SIM card locking mechanism down to allow insertion of the SIM card.
Figure 4 – Opening the SIM locking mechanism

11 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020

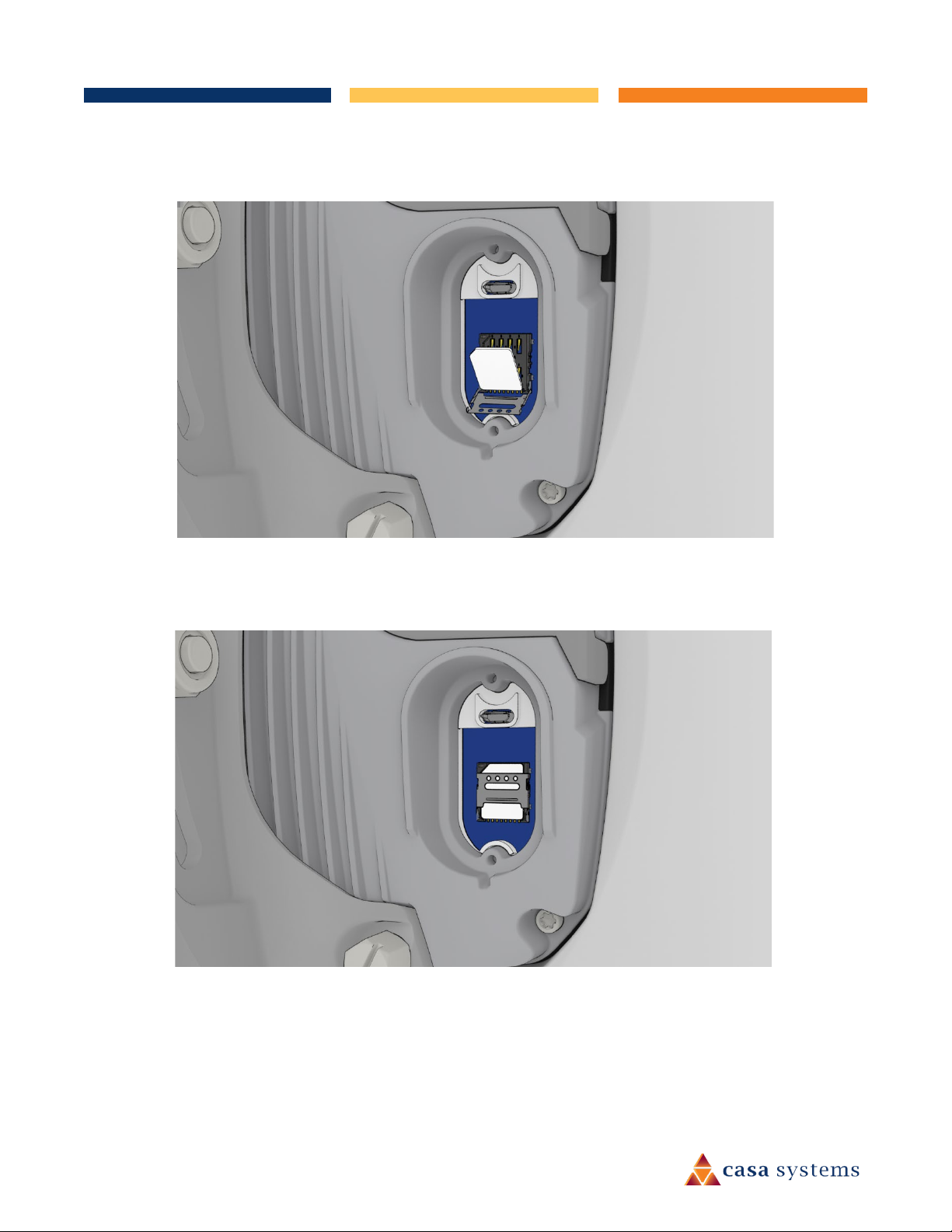

3Place the SIM card onto the SIM card reader as shown in the picture below.
Figure 5 – Placing the SIM card onto the SIM card reader
4While holding the SIM card onto the reader, swing the locking mechanism up and ensure that it clips
into place to secure the SIM card.
.
Figure 6 - SIM card locked in place

12 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
5Replace the SIM hatch and seal, insert the two screws and firmly hand tighten them using a T10
screwdriver.
Figure 7 - Replacing the SIM hatch

13 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Assemble and attach the mounting bracket
Overview of completed mounting

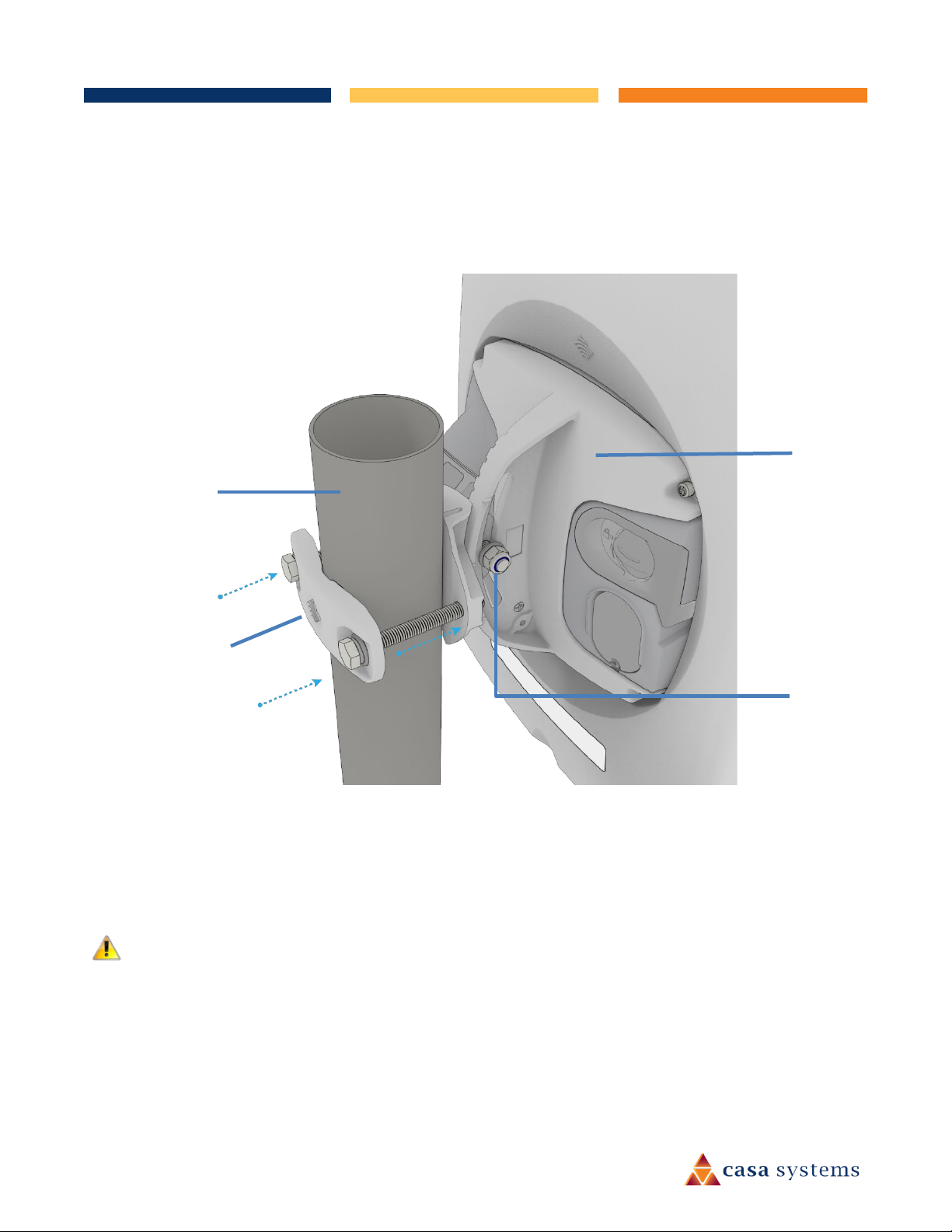

Figure 8 - CFW-2182 mounting bracket and bolts
Notes on mounting:
Use a standard 13m socket wrench for all bolts
Tighten bolts to the following torque settings:
Captive radome mount bolts: 4 Nm / 35 in-lbs
Angle pivot bolt: 7 Nm / 65 in-lbs
Pipe clamp bolt: 7 Nm / 65 in-lbs
Do not over tighten bolts
Mast
Left
bracket
bolt
Bracket plate
Elevation
setting bolt
Right
bracket
bolt
Antenna
housing

14 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Mounting bracket assembly instructions
1Place the pipe bracket onto the radome mount bracket as shown below.

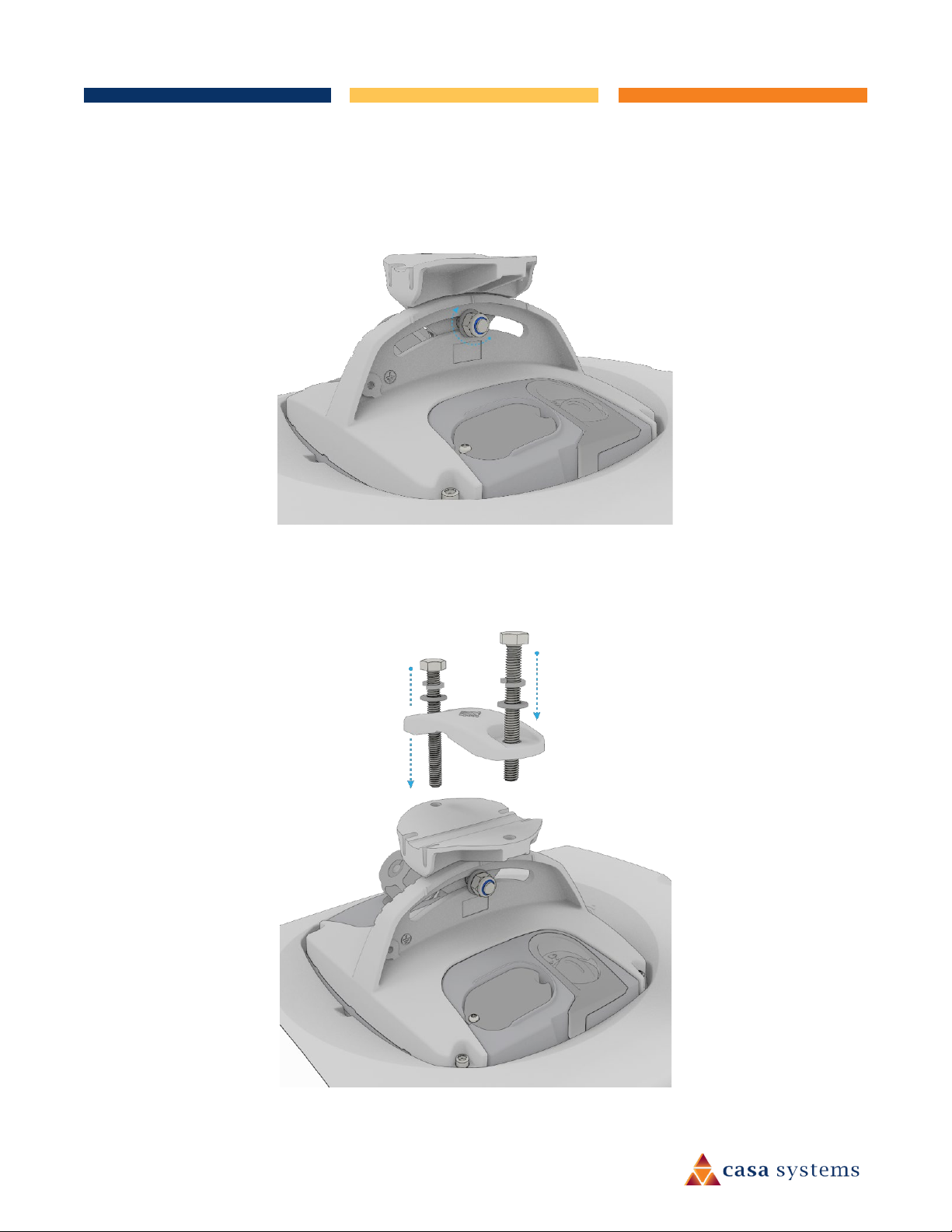

Figure 9 – Elevation control components
2Insert the pivot bolt into the pipe clamp, then place the washer and nut over the pivot bolt as shown
below.

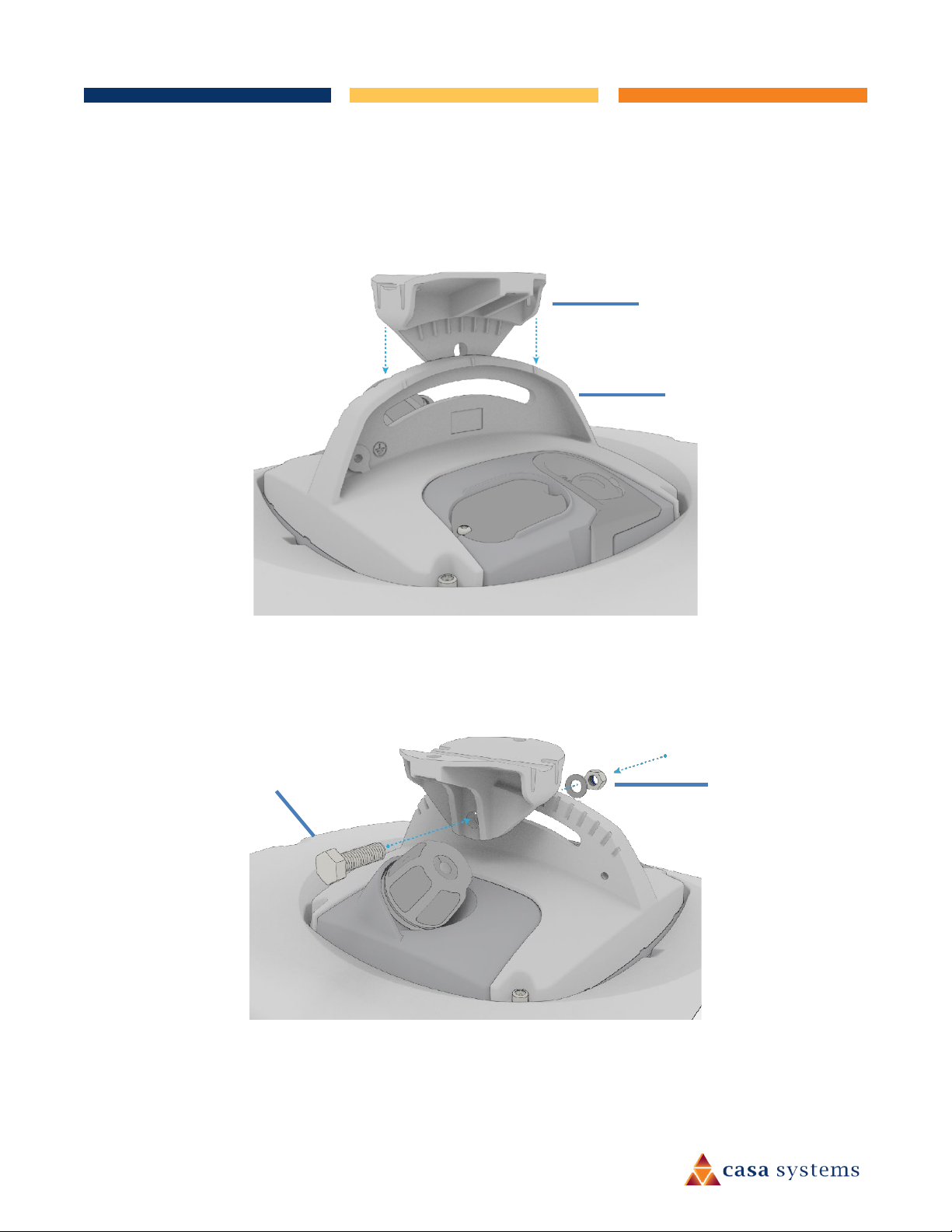

Figure 10 - Attaching the mounting bracket to the CFW-2182 CBRS 4G Outdoor UE
Fixed elevation control
Adjustable elevation control
Elevation setting bolt
Elevation setting bolt
nut and washer

15 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
3Tighten the lock nut so that the pipe bracket and radome mount do not swivel easily. Do not
overtighten the pivot bolt as some adjustment may be required later.
Figure 11 - Assembling pipe bracket to pole
4Alternately tighten the top and bottom pipe clamp bolts to maintain even pressure on the pipe, to 80
in-lb.
Figure 12 - Tightening pipe clamp bolts

16 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
Power the CFW
Power over Ethernet (PoE) is a method of connecting network devices through Ethernet cable where power
and data are passed along a single cable. It is therefore a convenient method of powering the CFW.
Note – The CFW Power supply is packaged and supplied separately.
R45 cable weather seal assembly
The CFW-2182 antenna’s power supply weather seal must be properly attached to prevent dust and water from
entering the CFW-2182’s housing.
To connect Ethernet cable via the power supply weather seal:
1Unscrew the weather cap and remove the rubber gasket.
2Separate the rubber seal and the ferrule.

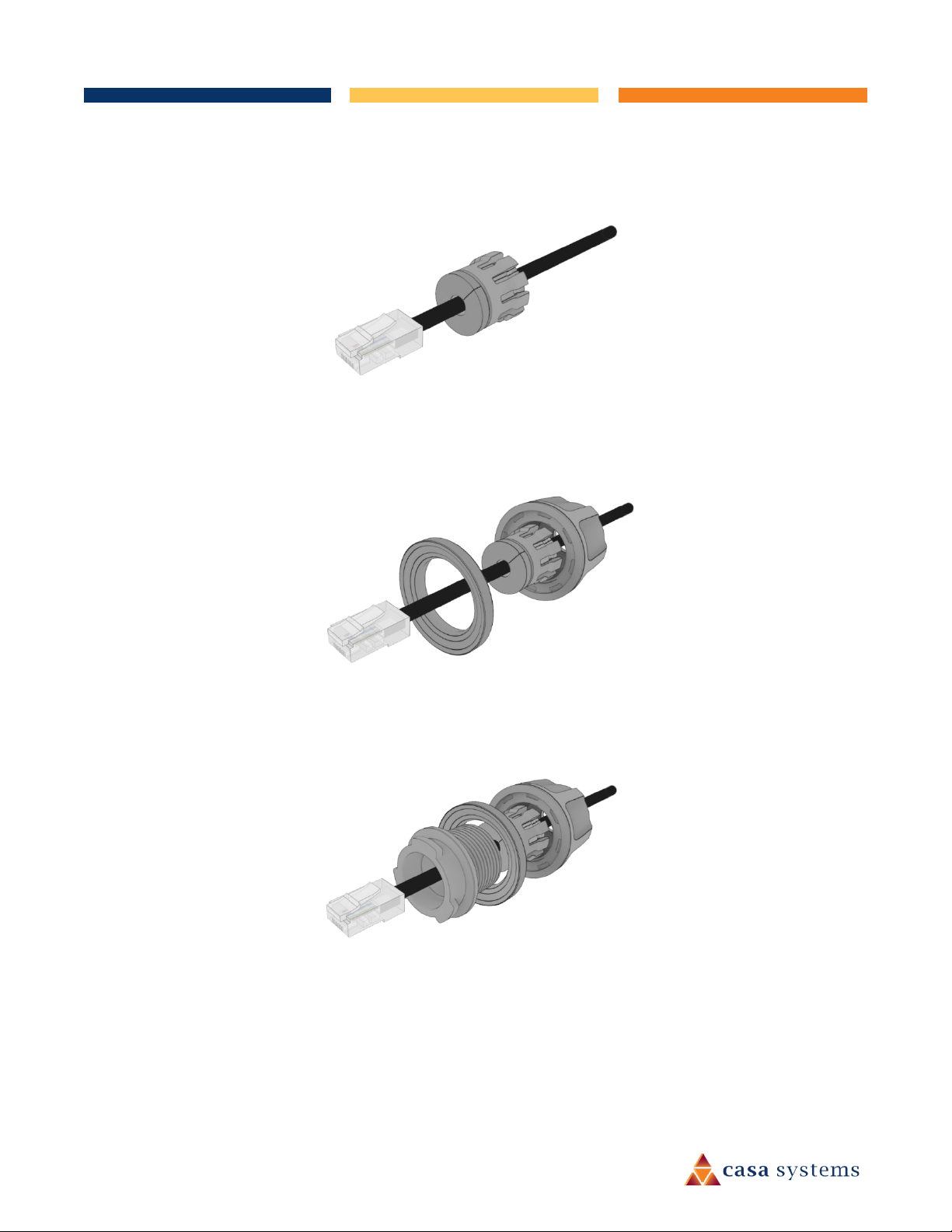

Figure 13 - Rubber seal and ferrule
3Twist the neck for the seal counter-clockwise to remove it from the CFW-2182 housing. You should
now have 5 pieces of the weather seal.
Figure 14 - Weather seal in five parts

17 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020

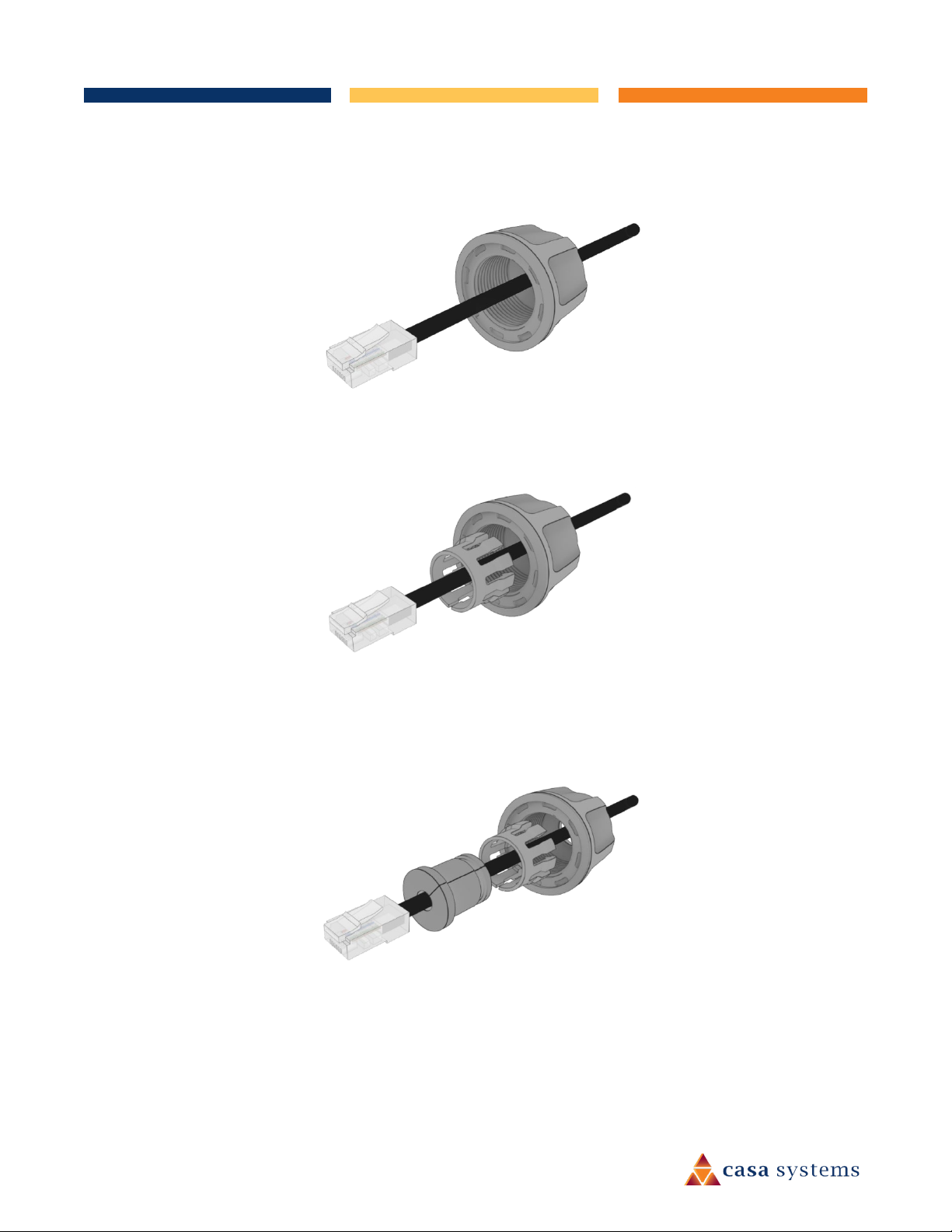

4Place the Ethernet cable through the nut first, as shown below.
Figure 15 - Nut placed over Ethernet cable
5Place the ferrule over the Ethernet cable as shown, making sure that the “teeth” are facing the nut.
Figure 16 - Ferrule placed over Ethernet cable
6Place the rubber seal over the Ethernet cable with the wide end toward the RJ45 plug. See the image
below for the correct orientation.
Figure 17 - Rubber seal placed over Ethernet cable

18 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
7Push the ferrule over the rubber seal to prevent it from coming apart.
Figure 18 - Ferrule placed over rubber seal
8Place the washer seal over the Ethernet cable as shown below. Ensure that the inside protruding lip is
on the opposite side of the Ethernet plug.
Figure 19 - Washer seal placed over Ethernet cable
9Place the neck over the Ethernet cable as shown below.
Figure 20 - Neck placed over Ethernet cable

19 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
10 Plug the Ethernet cable into the Ethernet port.
Figure 21 - Plugging in the Ethernet cable
11 Put the neck into the opening and turn the neck clockwise until it locks in place.
12 Push the rubber seal and ferrule into the neck then screw the nut on to the neck.
Figure 22 - Rubber seal and ferrule inserted into neck
13 Turn the nut clockwise to tighten it the washer seal against the housing. Continue turning the nut until
completely assembled. This will allow the washer seal to grip the cable while also applying enough
pressure to the washer seal to prevent dust and moisture entering the unit.
Figure 23 - Turning the nut clockwise

20 of 63
CFW-2182 – User Guide
UG01233 v1.2 August 13, 2020 © Casa Systems 2020
PoE-03 power supply
Use the PoE-03 power supply to power your CFW-2182:
1Connect the Antenna Power Supply (POE-03) to a dedicated AC power outlet away from running
water, steam and excessive heat.
aSwitch the outlet ON if required.
2Plug the end of the R45 Ethernet cable that does not have the weather-sealed plug into the R45 socket
named WALL on the PoE-03.
3Fasten the end of the R45 Ethernet cable that has the weather-sealed plug into the antenna power
supply port on the back of the antenna as per instructions in steps 11, 12 and 13 in the previous
section.
4The lights on the POE-03 injector housing will indicate whether the power supply is connected using
its LED indicator lights. When the POWER LED is red and ANTENNA LED is green, the CFW is correctly
powered and connected.
PoE-03 LED indicators
The table below describes the status of the POWER and ANTENNA LEDs on the PoE injector.
LED Status Description
POWER Solid red Antenna power supply is connected to AC power.
ANTENNA Solid green Antenna power supply is connected to AC power and the PoE port is
connected to the CFW.
Table 3 - POE-02 LED indicators
