Casablanca Versa-Touch WRF-2 User manual

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.38
RF - REMOTE CONTROL
RF ( Radio Frequency ) Remote control
Receiver shown in switch housing and
handheldTransmitter.
Receiverbottomview showing
wiring for light fixture, antenna
and dip switch location.
Receivertopviewshowing electronics
internal wiring andAmp pin connector.
Antennabase

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.39
CAUTION: Always turn Power off before working on fan
turn off circuit breaker or remove circuit fuse.
Fan electronics are located at bottom of fan located in
switch housing cap.
Removethethreeswitchhousingscrews located at top
side of switch housing cap.
To remove receiver electronics lift receiver and discon-
nect the motor connector and receiver.
WRF-2 - CONTINUED
WRF-2 Remote Control - CONTINUED

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.40
New receiver to be reconnected to motor amp
connector with new receiver amp connector.
receiver can now be placed on receiver mounting
plate.
Dip switchs to be set before switch
housing is reinstalled.
RF - REMOTE CONTROL
( WRF 2 REMOTE CONTROL )
View showing fan motor withAmp connector and wiring
throughcenter shaft afterreceiverhas beenremoved.
Note : Make sure that dip switch settings on
receiverandhandheldtransmitterboth settings
are set the same for fan to operate.
WRF-2 - CONTINUED
WRF-2 - CONTINUED

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.41
RF - REMOTE CONTROL
RF - REMOTE SERIES REPAIR
( WRF 2 REMOTE CONTROL )

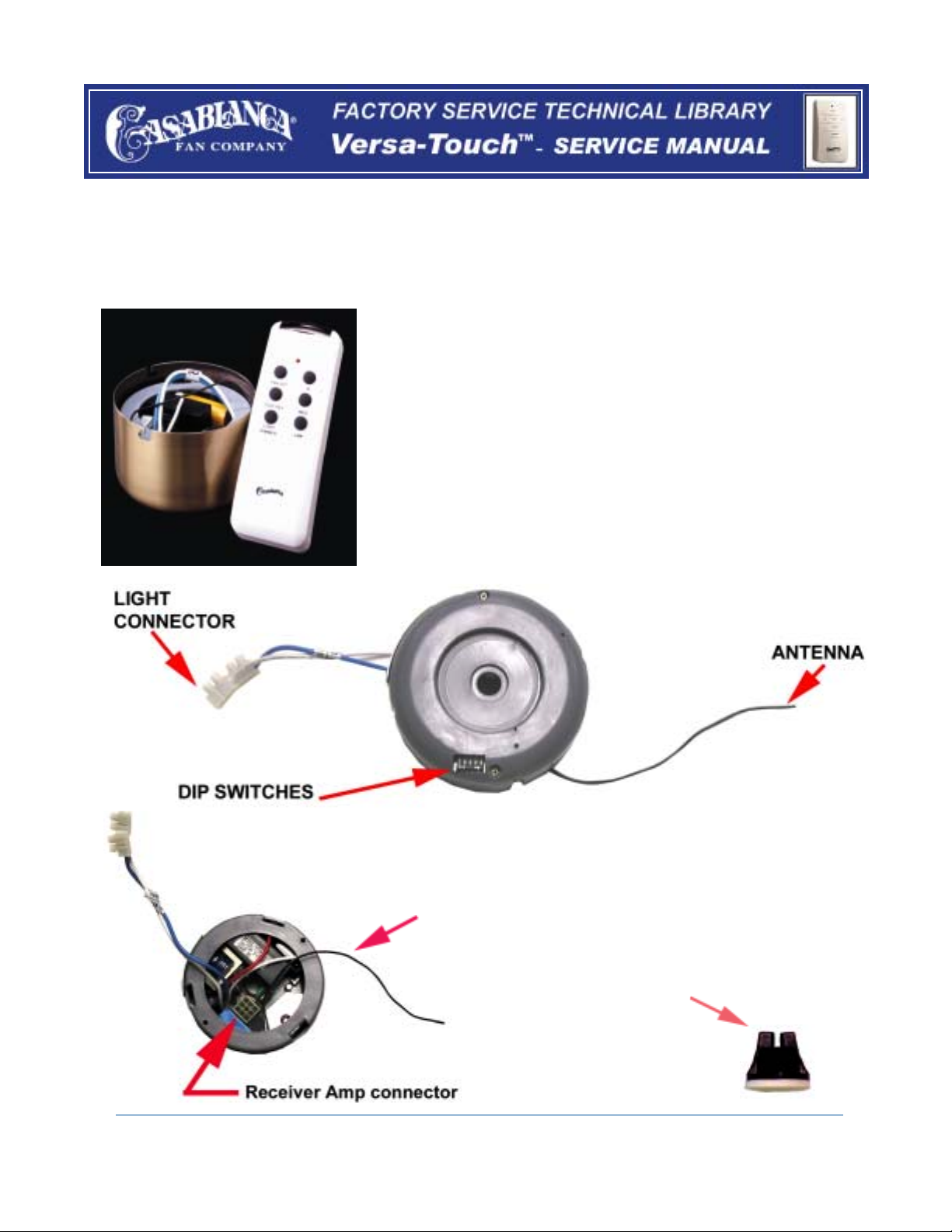

RF ( Radio Frequency ) Remote control
Receiver shown in switch housing and
handheldTransmitter.
Receiverbottomview showing
wiring for light fixture, antenna
and dip switche location.
Receivertopviewshowing electronics
internal wiring andAmp pin connector.
Antennabase

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.42

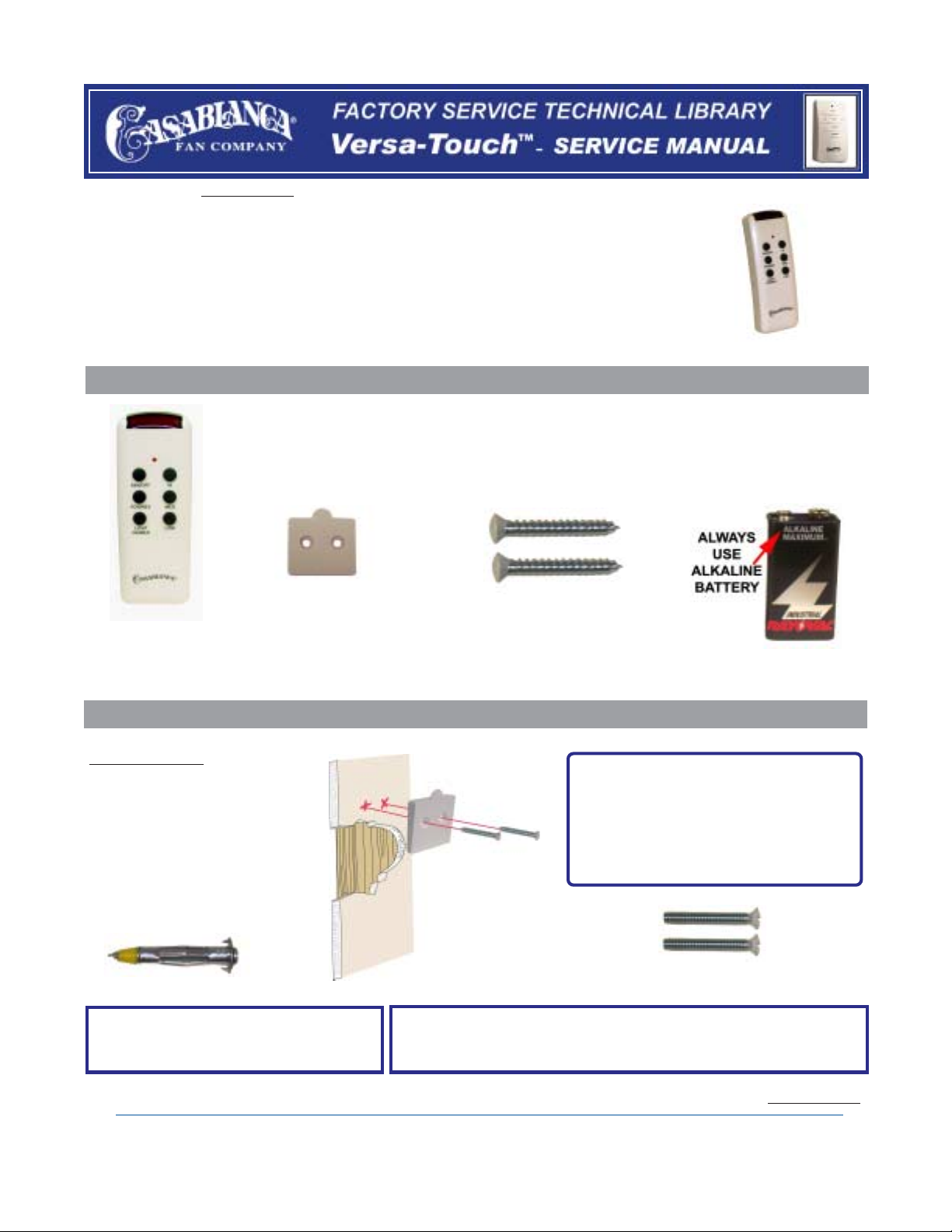

DRYWALL SCREW 1” - (2)
VERSA•TOUCH©WRF INSTALLATION
9V BATTERY
WRF
CONTROL
WRF
CONTROL
HOLDER
Versatile bydesign,this remote systemfeatures a sleek,attractive appearance withaconvenient
wall plate bracket. Operated from the wall or your hand, it provides three fan speeds Forward
and reverse and full-spectrum light dimming. Use one WRF Versa-Touch to control several
fans, or purchase extra controls to operate a fan from different locations. The WRF Versa-touch
control allows separate fan and light control where applicable (see fan section for details).
Versa•Touch™
Wall Controls - CONTINUED
Wall Controls - CONTINUED
WRF hand held or wall mounted remote control unit featurs 3 speeds forward and
reverse. Light control features full light spectrum dimming and memory.
Wall Installation
StepA.Locatea 2x4wallstud
in a convenient location.
Step B. Orient the control
bracketasshownoverthe2x4
stud.
Step C. Use the 1” wood
screws in either the inner or
outer mounting holes. Install
and tighten screws by hand
only.
Note: The wall anchors and 6-32 x 1”
screws may be used in situations where
mountingtoa studisnot possible. Usethe
inner mounting holes. After securing the
anchor, discard the anchor’s pointed
screws and use the 6-32 decor ovalhead
screwssupplied.
Changesormodificationsnotexpresslyapproved
in writing by Casablanca Fan Co. may void the
user’sauthority tooperatethis equipment.
DECOR OVALHEAD SCREWS
VERSA•TOUCH © WRF CONTROL BRACKET INSTALLATION
This device complies with RSS-210 of Industry Canada. Operation is subject
tothefollowing two conditions:(1)thisdevice may notcauseinterference, and
(2) this device must accept any interference, including interference that may
causeundesired operation ofthedevice.
DRYWALLANCHOR

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.43
VERSA•TOUCH© WRFBATTERYINSTALLATION
Install Battery
Press battery into
control aligned as
shown.Observe
proper polarity. Re-
place the battery
door.
RemoveBattery Door
Changesormodificationsnot expressly
approved in writing by Casablanca Fan
Co. may void the user’s authority to op-
erate this equipment.
This device complies with RSS-210 of Industry Canada. Operation is sub-
ject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Wall Controls - CONTINUED
Wall Controls - CONTINUED
Control Storage
Angle control in top first until the
unit can be gently pushed down
and snapped into place.
VERSA•TOUCH © PLACING WRF CONTROL ON TO THE HOLDER
Removing Control
GentlyPullthelower edge of the
control out from the holder.

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.44

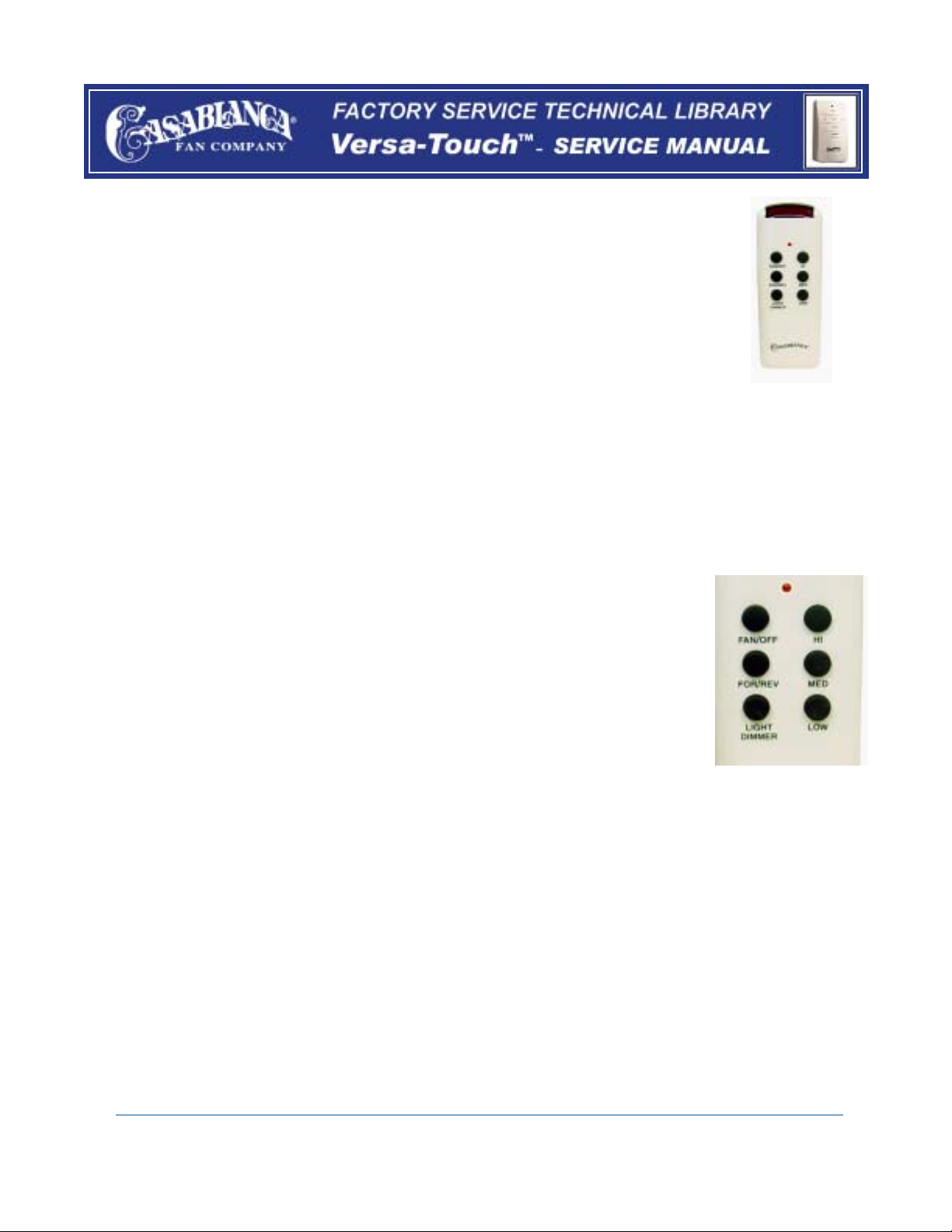

RF ( RADIO FREQUENCY ) REMOTE CONTROL OPERATION
Operates one or sevral fans up to a maximum distance of 35 feet
Three forward and three reverse speeds
Fulllightdimmingwith memory
Includes bracket for convenient wall mounting
Remote and fan can be set to any one of 32 separate channels
The RF Fan and Light Control Consists of a Transmitter and Receiver .
TRANSMITTER - Remote Control
Operates with a 9 volt Alkaline battery
Channel has been preset at factory to match the fan receiver
Remote and fan channel numbers can be changed
One remote can control several fans ( all fan channels must be set the same )
Extra Remotes can be purchased to be able to control fan from other locations
( with - in 35 feet distance ).
FAN OPERATION
Start Fan : Press selected fan speed button - LOW, MEDIUM, HIGH
Turn Fan Off : Press OFF button
Reverse Fan : Press Forward /Reverse button while fan is on or off
LIGHT OPERATION
Turn on : Press LIGHT /DIMMER button
Dimmer: Press LIGHT/DIMMER button in excess of 0.7 seconds,
it becomes a dimmer .
Turn off : Press LIGHT /DIMMER button again
Auto - resume : After turning light off, when turned back on the light
resumes to its previous setting.
RF ( RADIO FREQUENCY ) REMOTE CONTROL OPERATION
Operates one or sevral fans up to a maximum distance of 35 feet
Three forward and three reverse speeds
Fulllightdimmingwith memory
Includes bracket for convenient wall mounting
Remote and fan can be set to any one of 32 separate channels
RECEIVER --Circuit Board In Fan Switch housing
A circuit board installed in the fan ( See manual for location )
Receives the signal transmitted by the remote control
Channel can be changed
( WRF 2 REMOTE CONTROL )
RF - REMOTE CONTROL

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.45
RF REMOTE CONTROL TROUBLESHOOTING
RF ( RADIO FREQUENCT )
PROBLEM POSSIBLE REMEDIES
FAN WILL NOT START
* Check main circuit fuse, circuit breaker, or wall switch position.
* Check all wire connections, making sure the power is off during
this inspection.
* Check the wire pin connections in the switch housing are making
good connection.
* Check the receiver and transmitter dip switches are set at the
same frequency setting.
* Battery weak - install new freshAlkaline battery.
FAN NOISY DURING OPERATION
* Check and tighten all motor housing screws, ( snug not over tight ).
* Check to make sure the screws which attach the fan blade
holders to the motor hub are tight.
* Check to make sure wire nut connectors in switch housing are
not ratteling against each other or against the metal walls of
switch housing or fallen off the wire splices tighten or adjust.
Before Requesting Service : Please follow this troubleshooting guide before
contacting your dealer for assistance.
Never Lubricate This Fan :
The precision motor at the heart of your Casablanca fan features sealed bearings
that are lubricated for life. Do not attempt to oil the motor.
Changing Light Bulbs :
Be sure to turn power to fan Off at the wall switch or circuit breaker before
changing light bulbs. Replace bulbs same type as removed from the fixture.
Each fan is rated for maximum Total wattage of lighting.
Exceeding the rated maximum allowable wattage for the fan will burn out the
fan electronics module and void the warranty.

FILE NAME ( SM_VersaTouch.pmb ras 04-01-03303303)
Casablanca Fan Co. - Factory Service Department - Technical Library
Chapter (5)
V-5.46
RF REMOTE CONTROL TROUBLE SHOOTING
RF ( RADIO FREQUENCY )
PROBLEM POSSIBLE REMEDIES
FAN NOISY DURING OPERATION ( continued )
* Check that wire nuts inside canopy are not rattling against metal
walls of canopy.
* Check and tighten light fixture retaining screws, glass shade
screws and/or light bulb(s) ( if applicable ).
FAN WOBBLES OR SHAKES EXCESSIVELY
* Be sure canopy pin is into the slot on the ball.
* Check the screws holding the blade holders to the direct
drive motor hub are tight. Tighten as necessary.
* Check hanger bracket and /or ceiling outlet box if loosly
attached make sure that the hanger bracket is attached securly.
Make sure that the downrod assembly is secured firmly and
make sure that all down rod base screws are securly tightened.
FAN DOES NOT RUN ON LOW SPEED
* If new, “ break - in “ may be required - run at a higher speed for several days.
BATTERY LIFE SEEMS SHORT
* Not using Alkaline batteries Replace withAlkaline batteries.
