Casals T250EA User manual

250W Grass Trimmer
PLEASE READ ALL INSTRUCTIONS BEFORE USE
Model:
T250EA
COMPLIES WITH
INTERNATIONAL
IEC60335
SAFETY SPECIFICATIONS 250W
WARRANTY
WARRANTY

EXPLANATION FOR SYMBOLS
A Class II or double insulated electrical appli-
ance is one which has been designed in such a
way that it does not require a safety connection
to electrical earth. The basic requirement is that
no single failure can result in dangerous volt-
age becoming exposed so that it might cause
an electric shock and that this is achieved with-
out relying on an earthed metal casing. This is
usually achieved at least in part by having two
layers of insulating material surrounding live
parts or by using reinforced insulation
Read instruction manual before operating or at-
tempting any maintenance work.
Switch off and remove the plug from the mains
before cleaning or maintenance.
DO NOT leave or use this appliance in the rain.
Wear hearing protection
Wear eye protection
Keep Bystanders away
IMPORTANT:
Thank you for purchasing a Casals Electric
Grass Trimmer (hereinafter referred to as
the “Power tool”). This manual will as-
sist you in operating and maintaining your
power tool. This manual is the latest ver-
sion. With the continuous improvement and
upgrading of this product, the manufacturer
reserves the right to modify this manual
without notice. The manufacturer shall
assume no liability for incorrect informa-
tion contained in this manual. This manual
is an integral part of the power tool. When
the power tool is transferred to others, this
manual should be handed over to the new
owner. The users should pay special atten-
tion to these instructions.

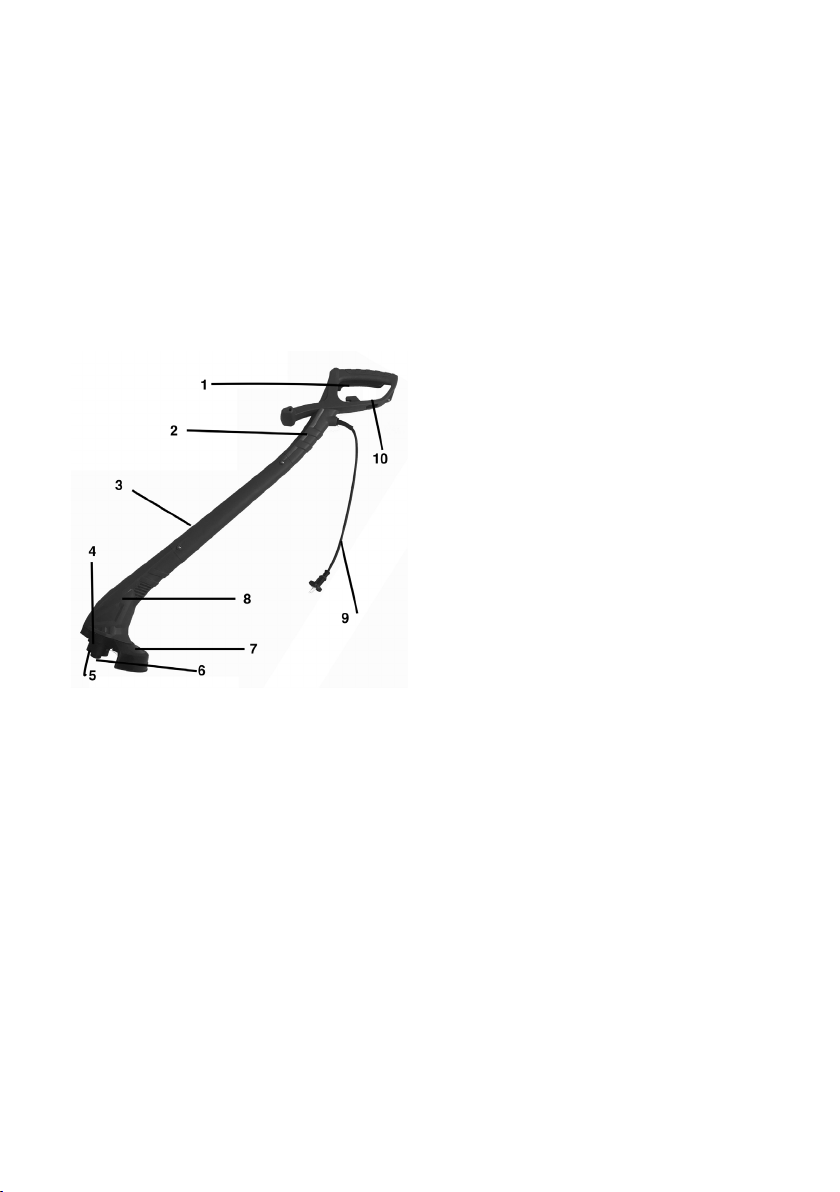

I – Description
1. Switch Trigger
2. Main Handle
3. Middle Tube
4. Bracket
5. Spool Cover
6. Spool
7. Safety Gaurd
8. Motor Housing
9. Power Cord
10. Cord Hole for Hook
IMPORTANT:
The range of CASALS Outdoor Power tools
is safe and reliable, but incorrect use of
these products may cause personal injury
and or damage to your machine. Please
read this manual thoroughly before at-
tempting to operate or assemble as this
product is required to operate strictly in
accordance with this manual.
II – Technical specification
Voltige..............................…230V~ 50Hz
Power input…………….….…250W
No load speed…………….…12,000min-1
Line diameter………….…..…1.2mm
Cutting width… ……..………22cm
Net Weigt……………..............1.4kg
Cable length….………………..35cm
Weighted sound pressure leve ....80.6dB(A)
Weighted sound power level……93,8dB(A)
Guaranteed weight sound power level..96dB(A)
Vibration ……………………4.43m/s²
III-Safety instruction
WARNING! Read all instructions failure
to follow all instructions listed below may
result in electric shock, fire and /or serious
injury. The term “power tool” in all of the
warnings listed below refers to your mains
operated (corded) power tools or battery
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) WORK AREA
a) Keep the work area clean and well lit.
Cluttered and dark areas invite accidents
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks, which may ignite the
dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of
electric shock
b) Avoid body contact with earthed or
grounded surfaces such as pipes, radia-
tors, ranges and refrigerators. There is an
increased risk of electric shock if your body
is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock

d) Do not abuse the line. Never use the
line for carrying, pulling or unplugging the
power tool. Keep the line away from heat,
oil and sharp edges or moving parts. Dam-
aged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors,
use an extension line suitable for outdoor
use. Use of a line suitable for outdoor use
reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert. Watch what you are doing
and use common sense when operating a
power tool. Do not operate tool when you
are tired or under the influence of drugs,
alcohol or medication. A moment of inatten-
tion while operating power tools may result
in serious personal injury.
b) Use safety equipment. Always wear eye
protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Avoid accidental starting. Ensure the
switch is in the off position before plugging
in. Carrying power tools with your finger on
the switch or plugging in power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of
the power tool may result in personal injury
e) Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose cloth-
ing or jewelry; Keep your hair, clothing and
gloves away from moving parts. Loose
clothes, jewelry or long hair can be caught
in moving parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust
related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the tool. Use the correct
power tool for your application, The correct
power tools will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that can not be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source before marking any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures
reduce the risk of starting the power tool
accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamil-
iar with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools, Check for mis-
alignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control
g) Use the power tool, accessories and
tool bits etc. ,in accordance with these
instructions and in the manner intended for
particular type of power tool, taking into ac-
count the working conditions and the work
to be performed. Use of the power tool for
operations different from intended could
result in a hazardous situation.

5) SERVICE
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained
ADDITIONAL SAFETY RULES FOR GRASS
TRIMMER
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience or knowledge, un-
less they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure
that they do not play with the appliance.
• Only use this grass trimmer when a
Residual Current Device (RCD) with a trip-
ping current of not more than 30Ma is in the
circuit.
If an extension cord is used make sure it is
for outdoor use and marked as such. The
recommended size of extension cord is not
lighter than 1.0mm2 and a maximum of 10
meters in length.
Danger! The cutting elements continue to
rotate after the motor is switched off.
• Before use check the supply and exten-
sion cord for signs of damage or ageing.
If the cord becomes damaged during use,
disconnect the cord from the supply imme-
diately. Do not tough it before disconnecting
the supply.
• Do not use the appliance if the cord is
damaged or worn.
• Read the instruction carefully. Be familiar
with the controls and proper use of the
equipment.
• Keep extension cord away from cutting
elements.
• Wear ear, eye and dust protection at all
times.
• Never allow children, people unfamiliar
with these instructions to use the trimmer
• Avoid using the trimmer while people,
especially children, infirm people or pets,
are nearly.
• Use the trimmer only in daylight or good
artificial light.
• Never operate the trimmer with damaged
guards or shields or without guards or
shields in place.
• Switch on the motor only when the hands
and feet are away from the cutting means.
• Never fit metal cutting elements.
• Use only the manufacturer’s recommend-
ed placement parts and accessories.
• Always disconnect the trimmer from the
mains when leaving the trimmer unat-
tended.
• Disconnect the trimmer from the mains
before carrying out maintenance or cleaning
work.
• Inspect and maintain the trimmer regu-
larly. Have the trimmer repaired only by an
authorized repairer.
• If corset is damaged only have it repaired
or replaced by an authorized service center.
• Take care against injury from the blades
fitted for trimmer the filament line length.
After extending new cutter line or replacing
the spool line. Always return the trimmer to
its normal operating position before switch-
ing on.
• Always ensure that the ventilation open-
ings are kept clear of debris.
• When not in use, store the trimmer out of
the reach of children and infirm people.
Warning! In order to reduce the risk, discon-
nect the plug from the supply power, only
use recommended accessories as required,
otherwise personal injury may result.
• Periodically inspect the condition of
the cutting head. If the spool is damaged,

switch off, remove the plug from the power
point and replace the spool.
• Do not use the machine to cut grass,
which is not on the ground. For example, do
not cut grass, which is on walls or rocks.
• Do not switch on the machine in enclosed
or poorly ventilated spaces or in the pres-
ence of inflammable and /or explosive sub-
stances such as liquid, gases and powders.
• Always stop the trimmer and switch off
at the mains when cutting is delayed or
when walking from one cutting location to
another.
• Do not cross roads or gravel paths with
machine still running.
• After use, disconnect the machine from
the power supply and check for damage. If
you have the slightest doubts, check with
the authorized service center.
• Only use the machine according to the
instructions give in this manual.
• Do not extend the trimming line beyond
the guard and do not operate the trimmer
without both lines extended and proper line
installed.
• Check regularly that the nuts, bolts and
screws are tight.
IV Assembly
1.ACCESSORY LIST
The trimmer is accompanied
1. Guard
2. Screw 4X18 Safety Bolts
Fig 2
Fig. 3
2.ASSEMBLY OF GUARD
The only assembly required for your trim-
mer is to install guard and Insert the Middle
Tube3
1), Place the Safety Guard on the Motor
Housing head.
2), turn the Safety Guard to have the hole in
the Safety Guard to fit the screw hole in the
Motor Head and lock it.

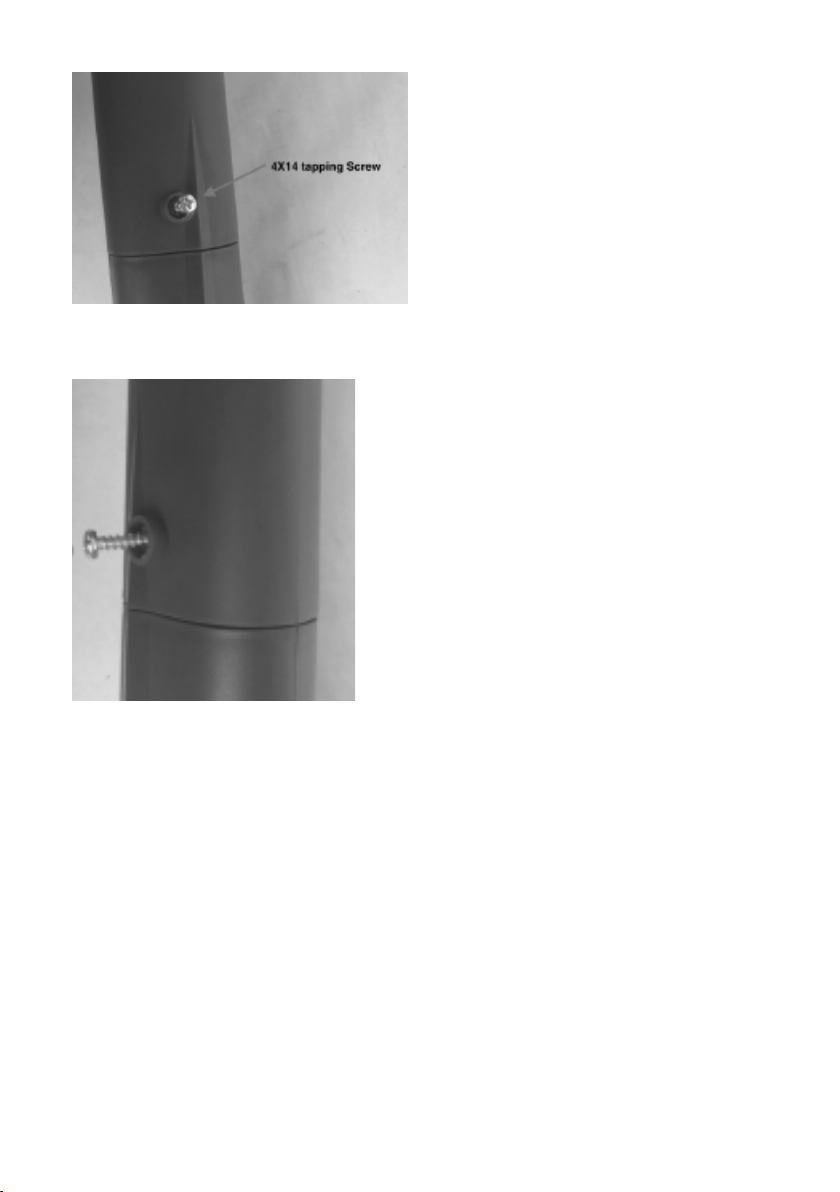

3.INSERT THE Middle TUBE
1), Insert the Middle tube3 to the Main
Handle and Motor Housing in Position.
2) tightening it with 2 Tapping Screws 4X18
to lock it
Fig 4

Fig 5
Fig 6
V - Operation
1.Before use, check that the tools in good
working condition and that the length of the
trimmer line is correct, as follows:
2.Remove the cover of the line cutting
blade.
3.Examine the general condition of the tool.
Inspect the guard, switch, cordest and
extension line. Check for loose screws,
misalignment, and binding of moving parts,
improper mounting, broken parts and any
other condition that may affect its safe
operation. If abnormal noise or vibration
occurs during operation, turn the line trim-
mer off immediately and have the problem
corrected .Do not use a damaged tool and
attach a label“DO NOT USE”to the tool.
NOTE:ADJUST THE TELESCOPIC TUBE TO
PROPER LENGTH ACCORDING TO YOUR
OPERATION REQUESTS. THE TUBE CAN
EXTEND AND SHORTEN WHEN YOU PRESS
THE BUTTON BY PUSHING THE TUBE
FORWARD AND BACKWARD.
WARNING:WHEN YOU ARE OPERATING:
1.Ensure that you are on a flat surface and
have secure footing.
2.Check that the line touches or goes
beyond the edge of the guard.
3.If the line is too short, pull on the nylon
line and repeatedly press the spool button
(9) until the line reaches the edge of the
guard. Pull the second line until it reaches
the edge of the guard.
WARNING. For your own safety when
adjusting the length of the line, avoid com-
ing into contact with the line cutting blade
which is fixed to the guard. It is extremely
sharp. Keep your hands well away from this
area.
WARNING. The tool runs for approximately
5 seconds after it has been switched off.
Let the motor come to a complete stand still
before setting the tool down.
9.EXTENDING THE LINE
To extend the line press the spool onto the
ground whilst the motor is turning and the
line will extend automatically. For most ef-
fective grass trimming, ensure the machine
is operation at full speed and then use slow
shallow sweeps of the line, ensuring that
you do not overload the machine by cutting
too fast or cutting through heavy terrain.

10.TRIMMING
1. Make sure that the work area is free of
rock, debris, lines and other foreign objects.
2. Start the tool before approaching the
grass to be cut.
3. If you need to release the line,
please“bump”the spool button of the trim-
mer on the ground to feed outwore line.
If too much line is fed out and it projects
beyond the guard edge it is cut by the line
cutting blade.
4. Cut the grass by swinging the tool from
right to left and proceed slowly keeping the
trimmer inclined forwards at an angle of
about 30.Light cuts are better than heavy
cuts as they allow the cut grass to fall away
from the spool preventing the grass from
clogging the spool.
5. Start cutting nearest the mains power
source and work away from it to make it
easier to avoid the cable.
6. High grass should be cut in layers always
beginning from the top. Do not cut damp or
wet grass. Do not overload your tool.
7. Avoid wearing the line out quickly by
knocking against hard objects (stones,
walls, fences etc).
8. Watch out for kickbacks in the events of
impact with hard objects.
9. After finishing the cutting operation, keep
the head close to ground level, release the
switch and follow the motor to come to a
complete stand still. Place the trimmer on
the ground, switch off and remove the cable
plug from the mains supply
NOTE. Periodically clean out the grass
between the spool and the rim of the guard
to prevent the tool from vibrating.
VI Maintenance
11.Store the tool, instruction manual and
accessories in a secure, dry place. In this
way you will always have the information
ready to hand.
1. Remove dust and dirt regularly.
2. Re-lubricate all moving parts at regular
intervals.
3. Never use caustic agents to clean plastic
parts.
4. Never disassemble the tool or carry out
any repairs. Always have the trimmer main-
tained or repaired by a competent person at
an authorized service center.

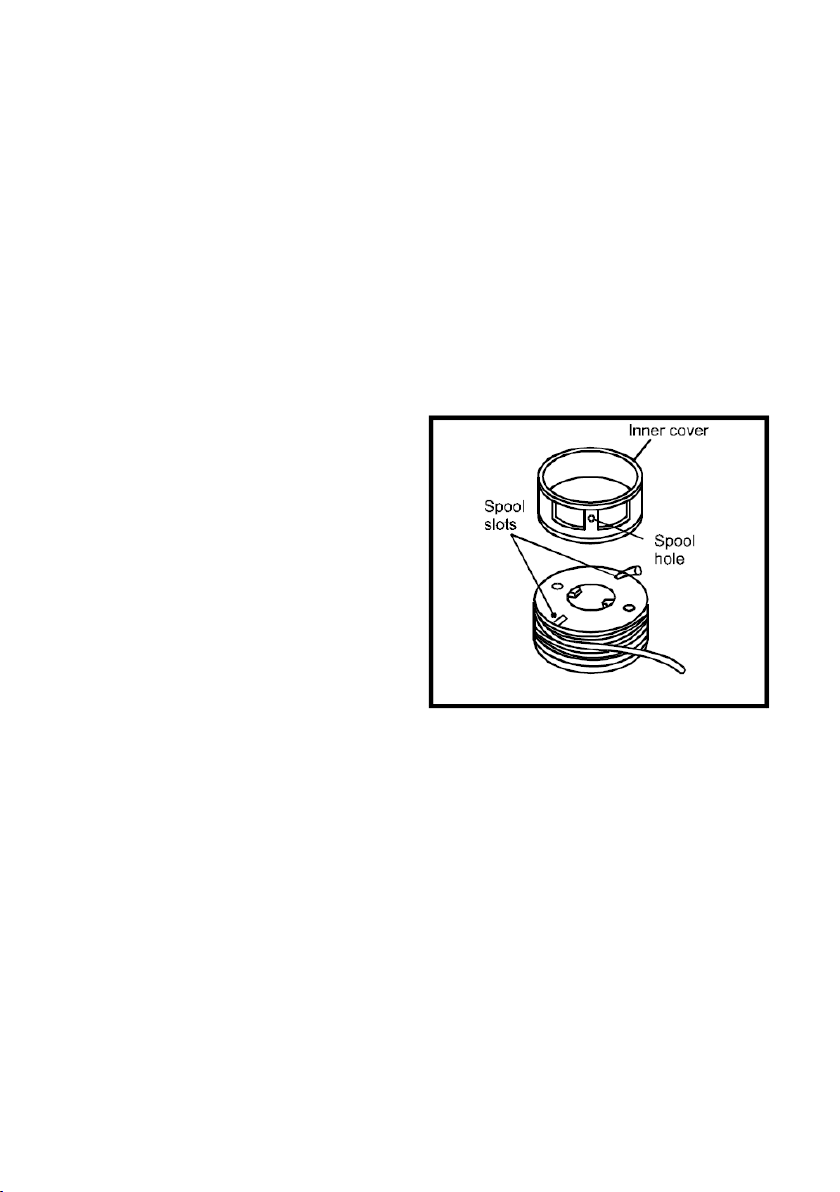

5. REPLACING THE SPOOL
Inner cover
Spool slots
Spool hole
1. Ensure the switch is in the off position
and disconnect the cable plug from the
mains supply.
2. Ensure that you are on a flat surface and
have secure footing.
3. Turn the spool holder take the inner cover
off the spool then insert one end of the line
into the base of the spool into the spool
slot provided, ensuring that it is securely in
place.

4. Wind the line anti-clockwise around
the spool leaving a length of line (approx.
.2inches).
5. With the length of line left insert it in to
the hole of the inner cover and then replace
the cover back on to the spool.
6. Push the spools back into the spool
holder and tighten clockwise ensuring it is
located securely in place.
CAUTION. After changing the line spool,
run the trimmer under no load for at least
a minute to make sure that the line and
the tool are both operating correctly. Use
only the line spool as recommended by the
manufacturer.
LUBRICATION AND SERVICE
1. There are no parts that require lubrication
for normal use.
2. When the line trimmer needs new carbon
brushes or after 40 hours of use, take
it to an authorized service center for the
replacement of the carbon brushes and the
following:
•Lubrication
•Mechanical drive check including spindle,
bearing and enclosure
•Electrical circuits check including switch,
wiring and motor.
•Mechanical and electrical performance
CAUTION. Do not use cleaning agents to
clean the plastic parts of the tool. A mild
detergent on a damp cloth is recommended.
Water must never come into contact with
the tool. Do not use this trimmer in wet
rainy conditions.
STORAGE
1. Store the trimmer away from direct
sunlight.
2. Do not store in a nylon bag as this can
encourage formation of mould.
3. At the end of the season, give the trim-
mer an overall cleaning and a thorough
check.
Do not leave the trimmer resting on the floor
for extended periods as it could cause the
shape of the guard to alter, posing a safety
risk. Hang it off the floor by the top
handgrip.

2 YEAR GUARANTEE
Casals guarantees that this product has been thoroughly inspected and tested before being dispatched and is
free from mechanical and electrical defects and complies with the applicable safety standards. However, should
defects due to faulty material or workmanship develop, under normal domestic use, within 6 months from the date
of purchase please return the product to the store from where it was purchased for a full refund or replacement.
The following conditions apply:
1. Please ensure you retain your receipt as this must be presented when making a claim under the terms of the
guarantee. It is impossible to determine the guarantee period without proof of purchase, so please keep this
in a safe place.
2. If a refund or exchange is required the product must be complete with all accessories, parts and packaging.
3. Missing parts will render the guarantee void.
4. Upon receipt of your appliance check it for any transport damage to ensure it is safe for use. Return it to the
store as soon as possible for exchange if damaged. The guarantee is void if products are damaged after use,
so please do not use the damaged product.
5. Your product is designed for normal domestic household use. Failure to read and comply with the instructions
for use, cleaning and maintenance will render your guarantee void, so please read these instructions carefully
to ensure your safety, and get the most effective use from the product.
6. Any abuse, negligent, improper use will render the guarantee void and Creative Housewares (Pty) Ltd
will not be liable for any loss or damage.
7. This Guarantee will not apply if this tool is damaged by accident or from normal wear and tear.
8. Any attempted repair, or replacement of unauthorised parts will render the guarantee void, so please contact
an authorised service centre or agent for any service or repair requirements.
9. Accessories such as bits, blades, sanding disc, cutting lines, etc are excluded from this guarantee.
10. Normal consumables parts, such as carbon brushes, bearings, chucks, cord assembly’s, spark plugs,
recoil pulleys and bump head assembly’s are specifically excluded from this guarantee.
Extended 24 Month Limited Guarantee
• Casals takes pride in their product quality and therefore offer an extended 24 month limited guarantee from the
original date of purchase to offer the consumer peace of mind on their purchase.
• Should defects due to faulty material or workmanship develop, under normal domestic use, within 24 months
from the original date of purchase, please return the product to the store from where it was purchased for repair
free of charge.
• Casals will however replace a product, if the cost of the repair is not commercially viable or if their ability to
conduct repair effectively cannot be guaranteed.
• NB: The guarantee on replaced products will be from the original date of purchase.
• All repairs carry a 3 month guarantee even if this falls outside of the 2 year guarantee period. Casals will at-
tempt to conduct repairs within reasonable industry standards but cannot be held responsible or liable for any
circumstances not under their control.
Before returning your product, check for the following:
1. Your household mains supply socket is working and switched on.
2. The mains supply circuit is not overloaded (White trip switch on your DB board is off).
3. You have read the trouble shooting guide in your Instructions for Use.
4. All accessories and parts are present.
If service or repair becomes necessary outside the guarantee period, this service is still available however all
transport/postage, spares and labour costs will be paid by the consumer. All chargeable repairs will require the
consumers’ approval in writing once the quote is accepted. Once the go-ahead has been received Casals will
undertake to conduct the repair within a reasonable time and maintain the condition of the product as received.
For any assistance, service, queries and complaints please contact our Customer Care on 086 111 5006 or e-mail help@
creativehousewares.co.za.

Be on the look-out for these Casals
products at your local outlet:
CD4800RE
DBS900 MFS400 1200EA CS184L
AG115-500 AG115-710 AG230-710 SP1200 JS55A
MFS180 BS76-710 OS150 PL82-650 HAF2000A
CS1200RE IDR500REA ID710REA RHD1050
Durban
35 Adrain Road, Windermere,
Durban, South Africa, 4001
Tell: [phone]
Fax: [phone]
Johannesburg
Unit 25 & 26 San Croy Office Park
Die Agora Road, Croydon, 1619
Tell: [phone]
Fax: [phone]
