Casambi XPRESS-LR User manual

www.casambi.com
Information in this document is subject to change. © Copyright Casambi Technologies Oy 2023 1
PRODUCT TECHNICAL SPECIFICATIONS EN
XPRESS-LR US V1.0 EN
Project:
Reference Type:
Item Code:
Date:
Notes:
XPRESS-LR
Xpress-LR is a wireless user interface that brings huge
flexibility to interior design as furniture can be replaced
and walls can be rebuilt without having to take the wiring
of switches or switch placement into account. The switch
can be kept wherever the user needs it and it gives direct
access to all the important Casambi lighting control
functionalities.
PRODUCT DESCRIPTION

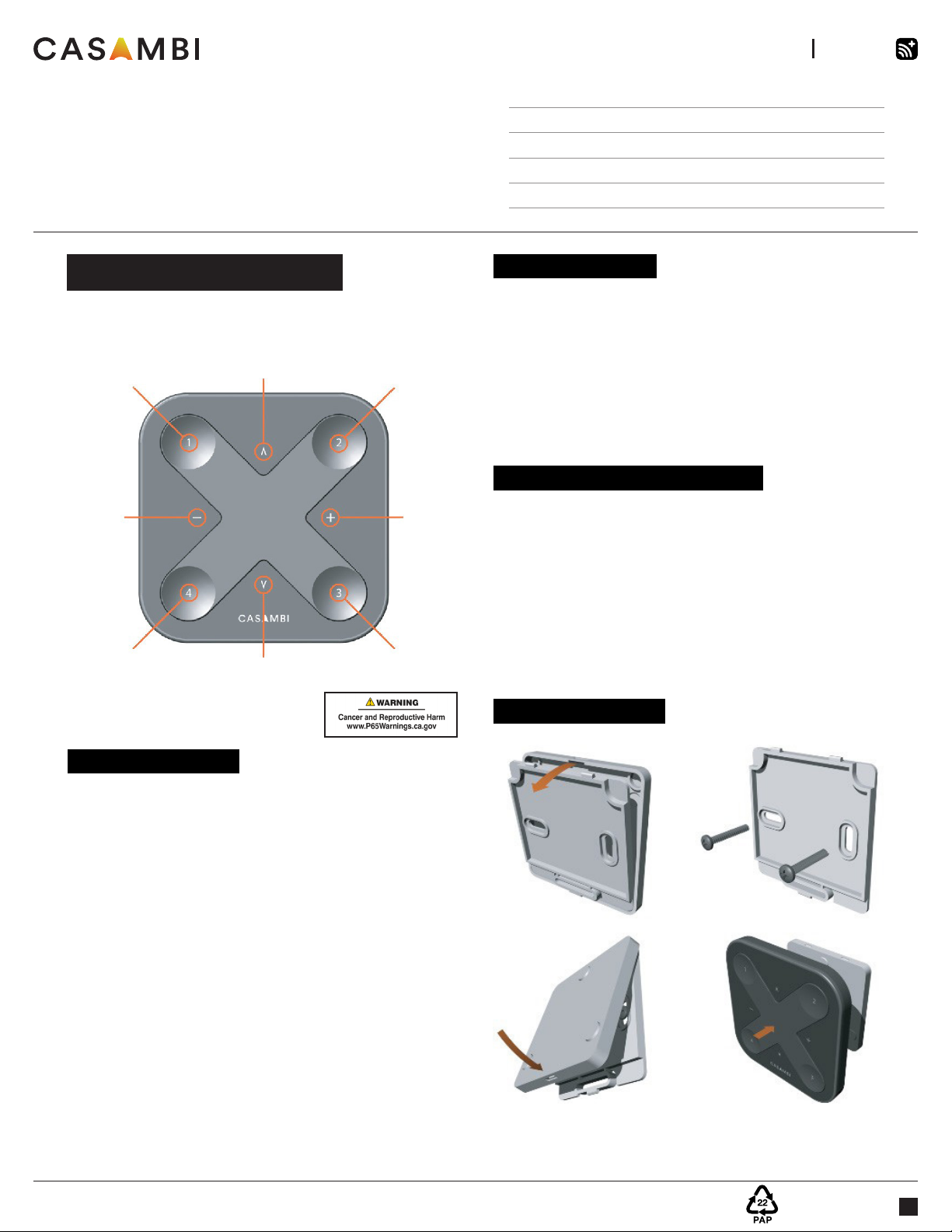

BASIC FUNCTIONS
Preset button Multipurpose button
Dim down Dim up
Preset button
Preset button Multipurpose button Preset button
The preset buttons of Xpress-LR can be configured via
the Casambi app. A light indicates the selected preset.
Dim up, Dim down:
• Smooth dimming of last chosen preset
Multipurpose buttons:
• Change of color temperature in steps of 25 Kelvin
• Change of the indirect/direct ratio
Preset buttons:
• Individual luminaire control
• Group control
• Control of all luminaires
• Recall scenes
• Recall animations
MOUNTING
The Xpress-LR switch includes a wall mounting bracket. The
Xpress-LR magnetically attaches to the mounting bracket.
CASAMBI MESH-NETWORK COMPATIBILITY
There are different radio modes that can be selected
when creating a network in the Casambi App: ‘Balanced’,
‘Better Performance’ and now ‘Long Range’ options. The
Xpress-LR enables long-range capabilities only when the
long-range radio mode has been selected and all the oth-
er devices within the network are long-range capable. It
will revert to the shorter, standard range when deployed in
networks set to ‘Balanced’ or ‘Better Performance’ modes.

www.casambi.com
Information in this document is subject to change. © Copyright Casambi Technologies Oy 2023 2
PRODUCT TECHNICAL SPECIFICATIONS EN
XPRESS-LR US V1.0 EN
Project:
Reference Type:
Item Code:
Date:
Notes:
Dimming
• Hold the Dim down or Dim up button:
Smooth dimming of last chosen preset, cycle takes
5 seconds
• Press the Dim down button:
Chosen preset goes to 0%
• Press the Dim up button:
Chosen preset goes to 100%
Preset Buttons
• Press:
The chosen preset (luminaire control, group control,
all luminaires, scene recall or animation recall) will
turn on
• Press again:
The chosen preset (luminaire control, group control,
all luminaires, scene recall or animation recall) will
turn off
Color Temperature
• Hold the Multipurpose button:
Changes color temperature smoothly, cycle takes 5
seconds
• Press the upper Multipurpose button:
Changes to the warmest color temperature
• Press the lower Multipurpose button:
Changes to the coldest color temperature
Turn Off
• Press the Dim down and Dim up button for more than
1 second:
Turns all luminaires off in selected network
SMART FUNCTIONS
Indirect/Direct Ratio*
• Hold the upper Multipurpose button:
Dims up smoothly the indirect lighting, cycle takes 5
seconds
• Hold the lower Multipurpose button:
Dims up smoothly the direct lighting, cycle takes 5
seconds
• Press the upper Multipurpose button:
The indirect part goes to max level
• Press the lower Multipurpose button:
The direct part goes to max level
*sum of indirect/direct in all cases 100%

www.casambi.com
Information in this document is subject to change. © Copyright Casambi Technologies Oy 2023 3
PRODUCT TECHNICAL SPECIFICATIONS EN
XPRESS-LR US V1.0 EN
Project:
Reference Type:
Item Code:
Date:
Notes:
Input
• Voltage: 3VDC
• Battery Type: CR2430 Lithium Coin Cell
Operating conditions
• Operating temperature: +32°F... +104°F (0°C... 40°C)
• Storage temperature: -13°F... +158°F (-25°C... 70°C)
• Max. relative humidity: 0...80%, non-cond.
Radio Transceiver
• Operating frequencies: 2.402...2.480 Ghz
• Maximum output power: +8 dBm
Mechanical data
• Dimensions: 3.54”x3.54”x.47” (90 x 90 x 12 mm)
• Weight: 2.54 oz (72 g)
• Degree of protection: IP20 (indoor use only)
TECHNICAL DATA
Certifications
• Contains FCC ID: T7V1780
• Contains IC: 216Q-1780
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna,
• Increase the separation between the equipment and the receiver,
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected,
• Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
----------------------------------------------------------------------
This device complies with Industry Canada’s license-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
This electrical product must not be disposed of as unsorted
municipal waste. Please dispose of this product correctly:
Regulations governing hazardous waste identification,
classification, generation, management and disposal,
found in title 40 CFR parts 260 through 273, should be
observed.
DISPOSAL INSTRUCTIONS
