Cascade TEK SVO-10-VC User manual

Vacuum Control Oven SVO-10-VC
Installation and Operation Manual

2 | Page
Manufacturing Warranty
For warranty information outside the USA please visit:
www.cascadetek.com/resource/limited-international-warranty-policy-cascade-tek-solution-llc
For warranty information inside the USA please visit:
www.cascadetek.com/resource/limited-usa-warranty-policy-–-cascade-tek-solutions-llc

3| Page
Vacuum Control Oven 220 – 240 Voltage
Part Number (Manual): 4861811
Revision: March 28, 2018
Cascade TEK is a brand of Sheldon Manufacturing, INC.
Safety Certifications
These units are CUE listed by TÜV SÜD as vacuum ovens for professional, industrial or educational
use where the preparation or testing of materials is done at an ambient air pressure range of 22.14 –
31.3 inHg (75 – 106 kPa), and no flammable, volatile or combustible materials are being heated.
These units have been tested to the following requirements:
CAN/CSA C22.2 No. 61010-1:2012
CAN/CSA C22.2 No. 61010-2-010/R:2009
UL 61010-1:2012
UL 61010A-2-010:2002
EN 61010-1:2010
EN 61010-2-010:2003

4 | Page
TABLE OF CONTENTS
INTRODUCTION .........................................................................................................................................................7
Read this Manual.................................................................................................................................................................... 7
Safety Considerations and Requirements ...................................................................................................................... 7
Contacting Assistance ..........................................................................................................................................................8
Engineering Improvements..................................................................................................................................................8
Vacuum Pump Options.........................................................................................................................................................9
Compressed Air Supply Required .....................................................................................................................................9
Gasket Chemical Vulnerabilities...................................................................................................................................... 10
RECEIVING YOUR OVEN .........................................................................................................................................11
Inspect the Shipment............................................................................................................................................................ 11
Orientation Images .............................................................................................................................................................. 12
Record Data Plate Information......................................................................................................................................... 14
INSTALLATION .........................................................................................................................................................15
Hardwire Requirement........................................................................................................................................................ 15
Installation Procedure Checklist ...................................................................................................................................... 15
Required Ambient Conditions........................................................................................................................................... 16
Required Clearances........................................................................................................................................................... 16
Power Source Requirements .............................................................................................................................................17
Power Feed Wiring............................................................................................................................................................... 18
Lifting and Handling ............................................................................................................................................................ 18
Leveling................................................................................................................................................................................... 19
Install the Oven ..................................................................................................................................................................... 19
Installation Cleaning............................................................................................................................................................ 19
Shelving Installation............................................................................................................................................................ 20
Connect Venting and Gas Supplies................................................................................................................................ 21
Venting Pump Exhaust....................................................................................................................................................... 22
GRAPHIC SYMBOLS ............................................................................................................................................... 23
CONTROL OVERVIEW ............................................................................................................................................ 25
OPERATION.............................................................................................................................................................. 29
Operating Precautions....................................................................................................................................................... 29
Theory of Operation ........................................................................................................................................................... 30
Put the Oven into Operation ............................................................................................................................................ 32
Evacuating the Oven Chamber....................................................................................................................................... 33
Backfilling the Chamber .................................................................................................................................................... 36
Set the Oven Limit Temperature......................................................................................................................................37
Setting a Constant Temperature Setpoint ................................................................................................................... 38
Heating Profiles ................................................................................................................................................................... 38
Password ............................................................................................................................................................................... 39
Oven Limit Active................................................................................................................................................................. 40
Data Ports.............................................................................................................................................................................. 42
OPERATOR MAINTENANCE.................................................................................................................................. 43
Cleaning................................................................................................................................................................................. 43
Maintaining Atmospheric Integrity ................................................................................................................................. 44
Electrical Components....................................................................................................................................................... 44
Storage................................................................................................................................................................................... 44
Diagnostic Questionnaire – Heating Issues................................................................................................................ 45
UNIT SPECIFICATIONS .......................................................................................................................................... 59
Weight..................................................................................................................................................................................... 59
Dimensions............................................................................................................................................................................ 59
Capacity ................................................................................................................................................................................. 59
Vacuum ..................................................................................................................................................................................60
Temperature Performance ............................................................................................................................................... 60
Power...................................................................................................................................................................................... 60

5| Page
REPLACEMENT PARTS LIST...................................................................................................................................61

6 | Page
TABLE OF CONTENTS

7| Page
INTRODUCTION
Thank you for purchasing a Cascade TEK oven. We know you have many choices in today’s
competitive marketplace when it comes to constant temperature equipment. We appreciate you
choosing ours. We stand behind our products and will be here if you need us.
READ THIS MANUAL
Failure to follow the guidelines and instructions in this user manual may create a protection
impairment by disabling or interfering with the unit safety features. This can result in injury or death.
Before using the unit, read the manual in its entirety to understand how to install, operate, and
maintain the unit in a safe manner. Keep this manual available for use by all operators. Ensure all
operators are given appropriate training before the unit begins service.
SAFETY CONSIDERATIONS AND REQUIREMENTS
Follow basic safety precautions, including all national laws, regulations, and local ordinances in your
area regarding the use of this unit. If you have any questions about local requirements, please
contact the appropriate agencies.
SOPs
Because of the range of potential applications this unit can be used for, the operator or their
supervisors must draw up a site-specific standard operating procedure (SOP) covering each
application and associated safety guidelines. This SOP must be written and available to all operators
in a language they understand.
Intended Applications and Locations
SVO vacuum ovens are engineered for drying, curing, and baking applications under vacuum in
professional, industrial, and educational environments. The ovens are not intended for use at
hazardous or household locations.
Power
Your unit and its recommended accessories are designed and tested to meet strict safety
requirements.
•Always hardwire the unit power feed to a protective earth-grounded electrical source that
conforms to national and local electrical codes. If the unit is not grounded, parts such as
knobs and controls can conduct electricity and cause serious injury.
•Position the unit so operators can quickly and easily disconnect or uncouple the power feed
in the event of an emergency.
•Avoid damaging the power feed. Do not bend it excessively, step on it, or place heavy
objects on it. A damaged power feed can easily become a shock or fire hazard. Never use a
power feed if it has been damaged or altered in any way.
•Use only approved accessories. Do not modify system components. Any alterations or
modifications to your oven not explicitly authorized by the manufacturer can be dangerous
and will void your warranty.

8 | Page
INTRODUCTION
CONTACTING ASSISTANCE
Phone hours for Technical Support are 6 am – 4:30 pm Pacific Coast Time (west coast of the United
States, UTC -8), Monday – Friday. Please have the following information ready when calling or
emailing Technical Support: the model number and the serial number (see page 14).
[e-mail]
888-835-9250
FAX: [phone]
Cascade TEK Solutions LLC
300 N 26th Avenue
P.O. Box 625 Bldg. B
Cornelius, OR 97113
ENGINEERING IMPROVEMENTS
Sheldon Manufacturing continually improves all of its products. As a result, engineering changes and
improvements are made from time to time. Therefore, some changes, modifications, and
improvements may not be covered in this manual. If your unit’s operating characteristics or
appearance differs from those described in this manual, please contact your Cascade TEK dealer or
customer service representative for assistance.

9| Page
INTRODUCTION
VACUUM PUMP OPTIONS
SVO-10-VC ovens can be ordered with one of several vacuum pump types installed inside the oven
utility cabinet. These pumps vary in evacuation flow rates and suitability for different baking
applications.
Refer to the vacuum pump manufacturer manual included with the oven for specifications and
compatibility with applications. Consult the manual for operating requirements such as pump oil and
sorbent use.
COMPRESSED AIR SUPPLY REQUIRED
Compressed air provides the mechanical pressure needed to operate the automated vacuum and
gas backfill vent valves on the back of the oven. The oven chamber cannot be evacuated or auto
backfilled without a compressed air supply.
Use ¼ inch OD (outside dimension) tubing to connect the supply to the ¼ inch push fitting on the back,
left side of the oven, labeled Air 70 PSI.
The oven requires 70 psi of air pressure delivered at the port to function. Never exceed 80 psi.
Building
Pneumatic
Supply

10 | Page
INTRODUCTION
GASKET CHEMICAL VULNERABILITIES
The oven comes with a Viton® gasket built into the oven door. The gasket must seal against the un-
nicked contact surface on the oven body in order for the oven chamber to hold vacuum.
The gasket is a low wear, long-duration component that is rated to 220°C and typically replaced only
during scheduled services on the oven. However, the gasket is attacked by ketones, low molecular
weight esters, and compounds containing nitros. Exposing the gasket to these may damage its
integrity and require an early replacement.

11 | Page
RECEIVING YOUR OVEN
INSPECT THE SHIPMENT
Shipping and Warranty
•When a unit leaves the factory, safe delivery becomes the responsibility of the carrier.
•Damage sustained during transit is not covered by the manufacturing defect warranty.
•Save the shipping carton until you are certain that the unit and its accessories function
properly.
Receiving
When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you
find any damage to the unit,follow the carrier’s procedure for claiming damage or loss.
1. Carefully inspect the shipping carton for damage.
2. Report any damage to the carrier service that delivered the unit.
3. If the carton is not damaged, open the carton and remove the contents.
4. Inspect the unit for signs of damage. See the orientation depiction on the next page as a
reference.
5. The unit should come with an Installation and Operation Manual, a profile programming guide,
an operator manual for the vacuum display, and a manufacturer vacuum pump manual.
6. Verify the correct number of accessory items has been included.
7. Carefully check all packaging for accessories before discarding.

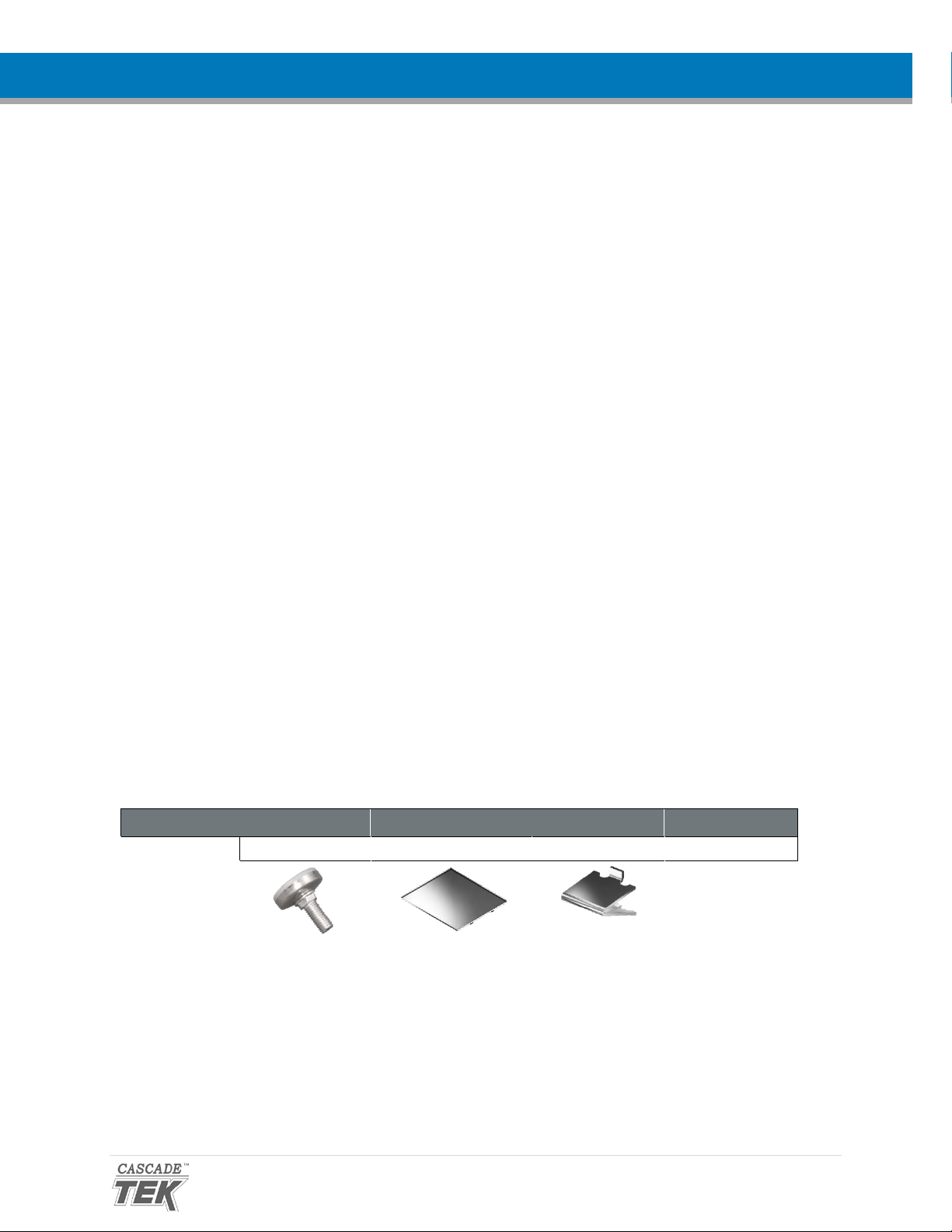

Included Accessory Items:
SVO-10-VC Leveling Feet Shelf Shelf Clip
4 3 18

12 | Page
SVO
-10-VC
RECEIVING YOUR OVEN
ORIENTATION IMAGES
Oven Chamber Door
Door Hasp
Door Latch
Control Panel
Door Gasket
Shelf Standard Mounting Rail
Temperature Probe
(Below Shelf)
Shelf

13 | Page
RECEIVING YOUR OVEN

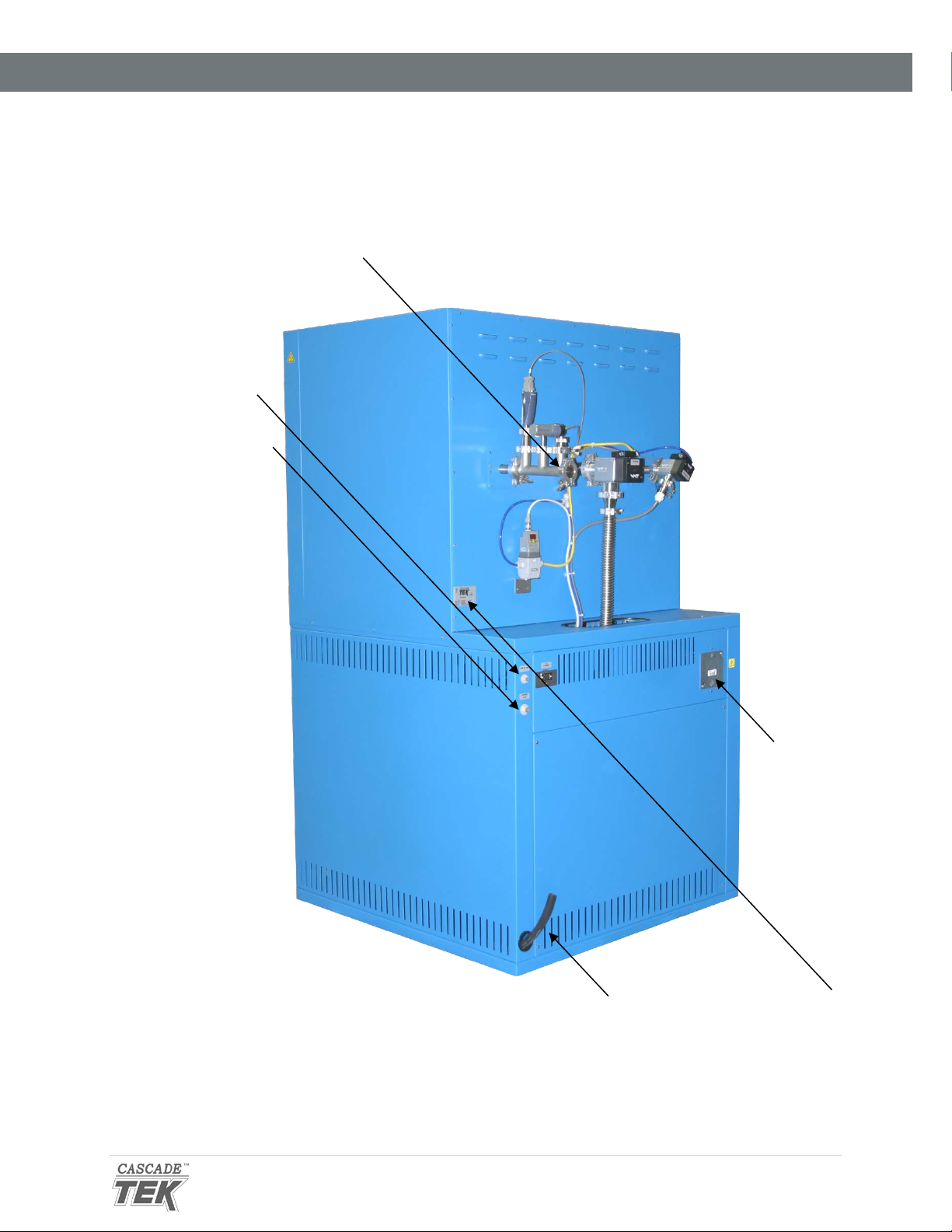

Back of Oven – SVO-10-VC
Backfill Port 3/8
inch (9.5 mm)
Hardwire Power
Feed
Data Plate
Auxiliary Chamber Port (KF-25)
Compressed Air
Port ¼ inch (6.35
mm) Push Fitting
Vacuum Exhaust Tubing
(standard pump units)

14 | Page
RECEIVING YOUR OVEN
RECORD DATA PLATE INFORMATION
Record the unit serial number and model number below for future reference. Tech Support needs
this information to provide accurate help during support calls and emails.
•The data plate is located on the back, left side of the oven, above the gas inlet port.
Model Number
Serial Number

15 | Page
INSTALLATION
HARDWIRE REQUIREMENT
The oven requires permanent connect wiring (commonly known as hardwiring). Wiring to the power
source must be performed by a qualified electrical technician. All other Installation steps may be
performed by the operator.
INSTALLATION PROCEDURE CHECKLIST
For installing the unit in a new workspace location.
Pre-Installation
Verify a compressed air supply is available and can be connected to the
oven. See page 21.
Check that the required ambient conditions for the unit are met, page 16.
Check that the spacing clearance requirements are met, page 16.
•Unit dimensions may be found on page 59.
Check that a suitable permanent connect power supply is present, page 17.
Install the oven in a suitable workspace location
Review the lifting and handling instructions, page 18.
Install the oven in its workspace location, page 19.
The oven may be connected to its power supply after this procedure.
Make sure the oven is level, page 19.
Set up the oven for use
Clean the chamber and shelving if needed, page 19.
Install the shelving in the oven chamber, page 20.
Connect the oven to its pressurized air supply source along with any optional
backfill gas supply, page 21.
Connect the oven vacuum pump exhaust to a ventilation system to remove
outgassed byproducts from the workspace area, page 22.

16 | Page
INSTALLATION
REQUIRED AMBIENT CONDITIONS
When selecting a location to install the unit, consider all environmental conditions that can adversely
impact its temperature performance. These include:
•Proximity to other ovens, autoclaves, and any device that produces significant radiant heat
•Heating and cooling vents or other sources of fast-moving air currents
•High-traffic areas
•Direct sunlight
This oven is built for use indoors, at room temperatures between 15°C and 40°C (59°F and 104°F), at no
greater than 80% Relative Humidity (at 25°C / 77°F). Operating outside these conditions may adversely
affect the oven temperature performance.
REQUIRED CLEARANCES
Spacing required for providing ventilation and cooling air flows.
6 inches (152 mm) of clearance is required on the sides.
12 inches (305 mm) of headspace clearance is required between the top of the unit and any
overhead partitions.
Do not place objects on top of the oven.
Vacuum, backfill, and access ports are located on the back of the oven. Leave sufficient clearance
for operators to safely access these ports.
Gas In Ports
6” (152 mm)
12” (305 mm)
12” (305 mm)
12” (305 mm)
6” (152 mm)
Door Swing
Auxiliary Port
Leave a 130° arc for the door swing. This
allows large sample trays to be
removed safely from the chamber
without damaging the door seal or
metal sealing surfaces.

17 | Page
INSTALLATION
POWER SOURCE REQUIREMENTS
When selecting a location for the oven, check that each of the following requirements is satisfied:
Power source: The power source voltage and amperage must match the power requirements listed
on the oven data plate (located on the back of the unit, above the gas inlet port):
Model AC Voltage Amperage Phase Frequency
SVO-10-VC 220 – 240 20 1 50/60 Hz
•The power source must be protective earth grounded. The source must conform to all
national and local electrical codes.
•Supplied voltage must not vary more than 10% from the data plate rating. Damage to the
oven may result if supplied voltage varies more than 10%. Use a separate circuit to prevent
loss of the unit due to overloading or circuit failure.
•The oven may be operated at 208 volts. This falls within the acceptable 10% variation from
the stated 220 – 240-volt range.
•A switch or circuit-breaker must be used in the building installation to protect against
overcurrent conditions.
oRequired circuit-breaker for the wall power source is 30 Amps.
•A dedicated separate circuit for the oven is recommended to prevent possible loss of
product due to overloading or failure of other equipment on the same circuit.
Power Feed Disconnect:
•The oven must be positioned so that all operators have access to the power feed
disconnect in case of emergencies.
•The disconnect must be in close proximity to the equipment and within easy reach of the
operator.
•The disconnect must be marked as the disconnecting device for the equipment.
Internal Circuit Breakers: These ovens come equipped with multiple internal circuit breakers.
Resetting these is a service-level procedure. The cause of the overcurrent conditions that tripped
the breakers must be identified and repaired prior to resetting.

18 | Page
INSTALLATION
POWER FEED WIRING
The oven comes provided with an integral 6-inch (150-mm) wire braid consisting of:
•Two 10-gauge hot wires – black
•One 10-gauge earth ground – green-yellow
The oven must be earth grounded using the protective conductor terminal (green with yellow
stripe wire). Do not remove the protective conductor (earth connection). Removing the protective
conductor will negate the oven’s protections against potentially dangerous electric shocks and
create a potential fire hazard.
LIFTING AND HANDLING
The oven is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow
these guidelines when lifting the oven:
•Lift the oven only from its bottom surface.
•Doors, handles, and knobs are not adequate for lifting or stabilization.
•Restrain the oven completely while lifting or transporting so it cannot tip.
•Remove all moving parts, such as shelves and trays, and lock doors in the closed position
during transfers to prevent shifting and damage.
Remove the shipping cover to expose the power
wire braid. Use a Phillips-head screwdriver.

19 | Page
INSTALLATION
LEVELING
Install the 4 leveling feet in the corner holes in the bottom of the oven.
The oven must be level and stable for safe operation.
Note: To prevent damage when moving the unit, turn all 4 leveling feet so that the leg of each foot
sits inside the unit.
INSTALL THE OVEN
Place the unit in a workspace location that meets the criteria discussed in the previous entries of the
Installation section.
•Verify that the oven stands level and does not rock. Adjust the leveling feet as needed.
•A qualified technician may now connect the oven to its power source.
INSTALLATION CLEANING
The unit was cleaned at the factory, but not sterilized. It may have been exposed to contaminants en route
during shipping.
•Remove any wrappings and coverings prior to cleaning.
•Do not clean with deionized water.
•See the Cleaning topic in the Operator Maintenance section (see page 43) for more
information on how to clean the oven chamber prior to putting the unit into operation.

20 | Page
INSTALLATION
SHELVING INSTALLATION
To ensure accurate temperature measurement, one shelf bottom must be in close proximity to the
oven temperature probe.This probe extends out from the chamber back wall. Do not place the
shelf in direct contact with the probe.
1. Install the shelf clips in the slots of the shelf standard mounting rails located on the sides of
the chamber interior, 6 clips per shelf.
a. Squeeze each clip, insert the top tab first, and then the bottom tab using a
rocking motion.
2. Set the shelves on the clips.
a. Verify the shelves are level.
Rocking Motion
Probe
Shelf
Install 6 Shelf Clips
Place the Shelf
