Catalina 19808-000 User manual

ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
MODEL #19808-000
6-HEAD LED DECORATIVE
TRACK LIGHT
1

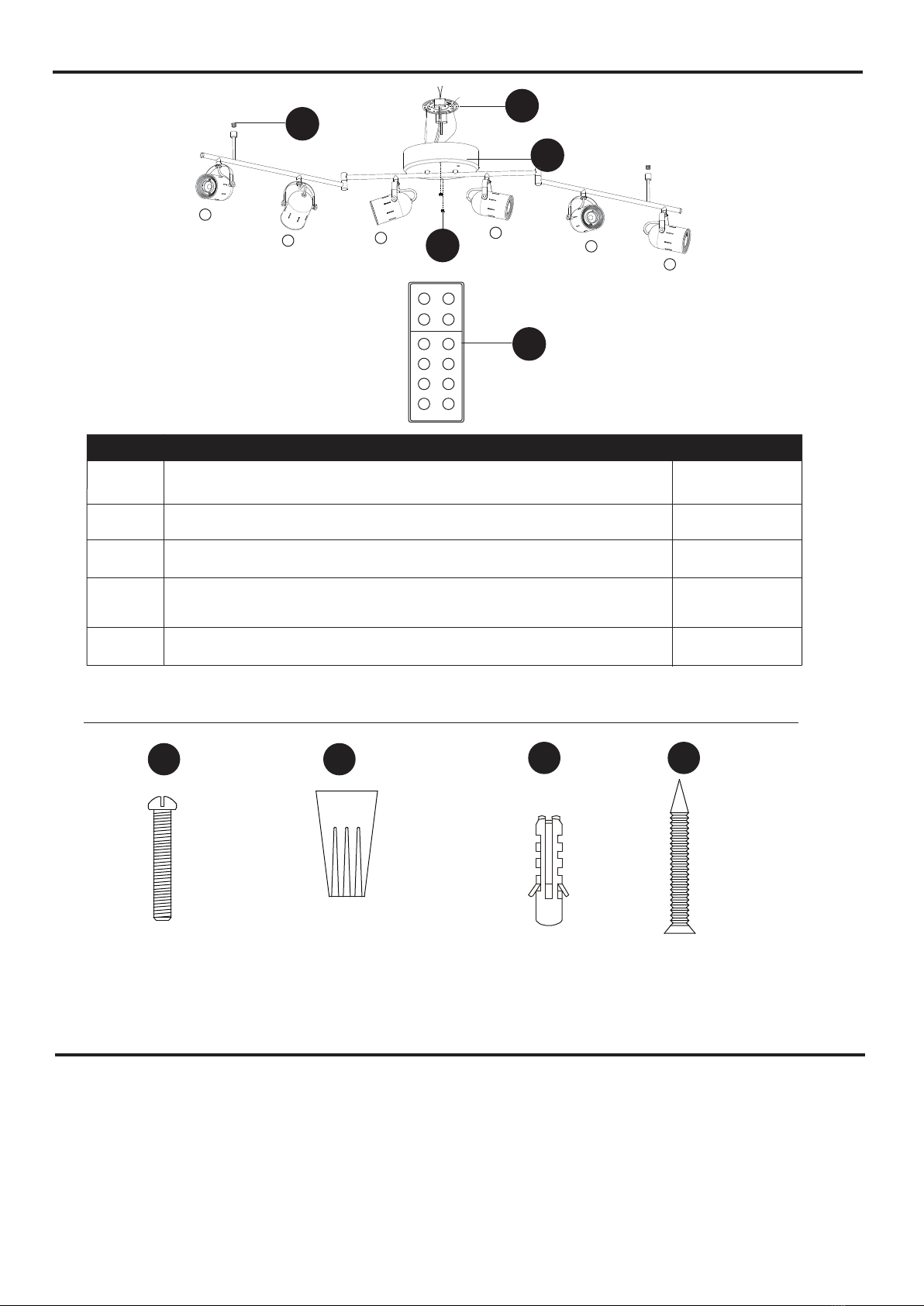

PACKAGE CONTENTS
2
A
B
C
Mounting Bracket (preassembled to Fixture Assembly (B))
QUANTITYPART DESCRIPTION
Fixture Assembly
1
1
2
Canopy Nut (preassembled to Fixture Assembly (B))
Junction
Box Screw
AA BB
Wire Connector
Qty. 3
Qty. 2
HARDWARE CONTENTS (not shown actual size)
CC DD
Anchor
Qty. 2
Wood Screw
Qty. 2
D2
E1 Remote (CR2025 battery included)
A
E
D
B
C
1 2
1
234
5
6
34
5 6
SaveRecall
OFFON
+
-
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Assembly Time: 30~60 minutes
Tools Required for Assembly (not included): Ladder, Phillips Head Screwdriver, Flathead
Screwdriver, Wire Cutters, Pliers, Safety Glasses, Drill and 7/32 in. Drill Bit
Helpful Tools (not included): Wire Stripper, Tape
Ceiling Support Stem Bushing
(preassembled to Fixture Assembly (B))

3
SAFETY INFORMATION
WARNING
• Before assembling the lighting fixture, refer to the caution titled ELECTRICAL
CONNECTIONS. If you feel you do not have enough electrical wiring experience, refer to a •
do-it-yourself wiring handbook or have the fixture installed by a qualified, licensed
electrician.
• Before starting the installation, disconnect the power by turning off the circuit breaker or by
removing the fuse at the fuse box. Turning the power off to the light switch is not sufficient to
prevent electrical shock.
• This fixture is suitable for indoor use only.
• To avoid risk of electric shock or fire, do not modify this lamp; if any modification is made it
may render the product unsafe.
• Do not use this fixture with a dimmable wall switch.
CAUTION
•All electrical connections must be in accordance with local codes, ordinances and the
National Electrical Code.
•This fixture is intended to be mounted to an outlet junction box. The box must be
directly supported by the building structure.
• ELECTRICAL CONNECTIONS (Required Supply Circuit: 120V, 60Hz)
Connect the white wire(s) from the fixture to the white wire of the supply circuit. Connect the black
wire(s) from the fixture to the black wire of the supply circuit. Connect the green (or bare copper)
colored wire to the grounding conductor of the supply circuit. Use U.L./CSA
Listed wire connectors suitable for the size, type and number of conductors. No loose
strands or loose connections should be present. Secure wire connectors with U.L./CSA
Listed electrical tape.
• This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment on
and off, the user isencouraged to try to correct the interference by one or more of the following:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the lighting unit and receiver.
3. Connect the lighting unit into an outlet on a circuit other than the outlet which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for assistance.
Please read and understand the entire manual before attempting to assemble, operate or
install the product.

E
ASSEMBLY INSTRUCTIONS
AA x 2
Hardware Used
1. Unscrew canopy nuts (C) from fixture assembly (B)
and detach mounting bracket (A). Attach mounting
bracket (A) to the junction box (not included) with
junction box screws (AA).
Note: The preassembled screws on mounting
bracket (A) should protrude out from the junction box.
Junction
Box Screw
Wire Connector
BB x 3
Hardware Used
2. Attach hook on inside of canopy of fixture
assembly (B) to loop on hanging strap of
mounting bracket (A), allowing for hands-free wiring.
Make electrical connections using wire connectors
(BB). Refer to ELECTRICAL CONNECTIONS in the
Safety Information section on page 3.
1
2
3
2
3
34
35
AA
A
A
A
B
B
C
BB
6
DD
CC
B
B
D
D
D
D
B
6. For drywall applications where there is no direct wood
support, drill a 7/32 in. hole at this marked location and
install the plastic anchor (CC). Remove the Ceiling Support
Stem Bushing (D) from the knurled support stem fitting and
secure to the ceiling using Plastic Anchor (CC) with Wood
Screw (DD). See Fig. 6. For direct-to-wood installations
drill a 1/16 in. pilot hole at the marked location and install
the Ceiling Support Stem Bushing (D) using only the Wood
Screw (DD). Once installed, move the adjustable arm back
into position and thread the knurled support stem nut onto
Ceiling Support Stem Bushing (D) to secure.
4.To properly mark and install Ceiling Support Stem
Bushing (D) the following is recommended: unscrew
Ceiling Support Stem Bushing (D) until it is almost out
of the knurled adjustable arm fitting. Align each adjustable
arm of Fixture Assembly (B) to the desired position. See
Fig. 4. Hold the adjustable arm tight to the ceiling and
using a Number #2 pencil (or similar), mark the outside
edge (circumference) of the Ceiling Support Stem
Bushing (D). See Fig.5
5. Move the adjustable arm away and now locate the
center of this hole pattern.
3. Unscrew preassembled Ceiling Support Stem Bushing (D)
from the support stem nuts on the adjustable arms of fixture
assembly (B). Save for later use.
Place the fixture assembly (B) against the mounting
surface, allowing the preassembled screws on
mounting bracket (A) to pass through the canopy of
the fixture assembly (B). Secure with previously
removed canopy nuts (C).
4
D

4
Anchor
CC x 2
Hardware Used
Wood Screw
DD x 2
OPERATION INSTRUCTIONS
ON -- Turn 'ON' all lamps to full brightness at the same time.
-- Turn 'OFF' all lamps at the same time.
-- Press and hold to increase or decrease the light intensity for all
lamps.
-- Press 1 - 6 once to turn 'ON' the single corresponding track head
- press a second time to turn 'OFF' the track head.
To adjust the brightness of any individual track head: Press and hold
the corresponding button for two seconds; the track head will cycle
from full brightness to low dim - release the button at the desired
brightness.
Once you have set the individual track heads to the desired 'ON' / 'OFF'
and dimming range you may SAVE this setup: Press the SAVE button
to store this setting - subsequent settings will be erased.
OFF
+
-
1 2
34
5 6
Recall
SAVE
Press RECALL to turn on the fixture to the last SAVE setting.
1
234
5
6
REPLACING BATTERY FOR REMOTE
C
R
2
0
2
5
H
L
3
V
L
I
T
H
I
U
M
B
A
T
T
E
R
Y
+
+
CR2025
FRONT “+”
①
①
②
②
1. Push the lock tab towards the battery compartment and
pull out the battery compartment at the same time.
See illustration ①and ②.
2. Remove the old battery and replace with a new 3 Volt
CR2025 cell battery (not included).
Restore the battery compartment in place.
CAUTION:
1. Do not short circuited, recharge, heat, disassemble nor dispose in fire.
2. Do not make the anode and the cathode reversed.
3. Keep battery out of children’s reach.
4. Do not store batteries near an oven, stove, or other heat source.
E
1 2
34
5 6
SaveRecall
OFFON
+
-
1. Switch on the power and leave the wall switch in the “ON” position.
2. Use the remote (E) to control the fixture functions.
5

WARRANTY
TROUBLESHOOTING
CARE AND MAINTENANCE
•
Clean this unit periodically. Clean the surface finish only a mild cleanser, dry with a soft cloth.
• Never use rough cloth, abrasives or chemical cleaners containing acids or harsh solvents.
•
1. Power is off.
2. Bad main supply wiring.
3. Defective switch.
4. The remote battery has run 4. Replacing the battery.
out.
Light will not turn on.
Fuse blows or circuit trips
when fixture is turned on.
Wrong wiring or power wire
is grounding out.
Consult a certified professional
electrician.
2. Consult a certified professional
electrician.
1. Make sure power supply is on.
3. Consult a certified professional
electrician.
POSSIBLE CAUSEPROBLEM CORRECTIVE ACTION
Manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for
three (3) year from the date of original purchase.
Electronic parts including passive infrared devices, photoelectric switching mechanisms, and light
bulbs provided with manufacturer are warranted for 30 days from the date of original purchase.
This warranty does not cover parts becoming defective due to misuse, accidental damage, improper
handling and/or installation and specifically excludes liability for indirect, incidental or consequential
damages. Product found to be defective may or may not be replaced with same or like type product,
contingent on the nature of the defect, and or replacement availability and or compensated for at a
prorated value. This warranty gives you specific rights and you may also have other rights, which
vary from state to state. Proof of purchase is required to exercise the warranty.
