Catalyst 63607151 User manual

Item No: 63607151
THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
Lot Number:
Date:
Congratulations on your Catalyst purchase. Follow these simple instructions and you’ll
have your TV mounted in no time.
This kit fits most TVs 42in. - 70in. (107cm - 178cm), up to 99lbs (45kgs).
Keep this Instruction Manual for future reference.
Keep your original proof of purchase (store receipt).
If you have any questions and/or wish to order parts, please call us toll free at 800-747-2660.
:NIM
3.94in
/
100MM
MAX:
ni57.51
/
4
00MM
MIN :
3.94in
/1
00MM
MAX:23.6
2in
/600MM
-15°
+5°
±45°
MIN :
2.83in
/
72
MM
MAX:
15.59in
/
396
MM
Swivel
Tilt

1
Before Proceeding any further please make sure your kit has the following items.
1 x Heavy Duty Full-Motion Mount
2 x 8.66in. (220mm) Velcro Cable Ties
1 x 6 ft. HDMI™cable
Safety Glasses
Drill Bit
7/32in.
(5mm)
Drill
Hammer
Philips
Screwdriver
Drill Bit
3/8in.
(9,5-10mm)
Stud
Finder
Tools Needed ( Not Included)
Wood
Masonry/Concrete Masonry/
Concrete
Wall Anchor

Item Item
Components Components
A1
B1
C2
D2
F
G
4
8
H1
y
tQytQ
E 4
1
1
Mounting Hardware List Qty Mounting Hardware List Qty
M8 X 16MM
M6 X 12MM
M5 X 12
M4 X 12MM
M8 X 40
M6 X 35MM
M5 X 30MM
M4 X 30MM
4
4
4
4
4
4
M4 / M5washer
M6 / M8washer
M6 / M8spacer
M4 / M5spacer
4
4
4
4
I
J
K
L
M
N
O
P
Q
R
S
T
MM
MM
Hardware List
4
4
Parts List
2
V
W
Wall Bracket
TV Plate
TV Bracket
Fixed Arm
Lag Bolt
Washer
Screw
Allen Wrench
Allen Wrench
Magnetic Leveler

3
Become familiar with the instructions and all parts.
Make sure that all parts are in the box and in good condition.
Assemble the product on the open flat carton or a rug to protect the product and
your floor.
Some heavy products need a second person to assist in the assembly.
Do not install on sloping surface.
This TV mount is designed for use on a vertical wall that is constructed with wood
studs, masonry or solid concrete.
Assembly Tips:
Never let children climb on product or play with product.
Do not sit or stand on product.
Do not fasten a TV that is heavier than the recommended loading to the mount.
Improper installation may cause property damage and or personal injury, so the installation is
recommended to be done by two qualified contractors. The manufacturer is not liable
for damage or injury caused by incorrect mounting, assembly or use.
The size and weight of your TV must be not exceed 42in. - 70in. (107cm - 178cm) diagonally
or 99lbs (45kgs). The wall must be capable of supporting five times the weight of TV plus the
mount.
This mount allows the TV to tilt -150- +50, swivel -450- +450.
Improper handling can result in cuts and lacerations.
Pictures for reference only, subject to our available products.

PLEASE CHOOSE BEST INSTALLATION OPTION BASE ON TV BACK PANEL HOLE SPACING:
Option 1: 3.94 in x 3.94 in / 100 mm x 100 mm or 7.87 in x 7.87 in / 200 mm x 200 mm
1
A
B
Remove TV Plate (B) from Wall Bracket (A) using allen wrench (H), keep the screws for future use in
Step 4.
A
2Wood Stud Installation
16in. / 407mm
or
24in. /610mm
FE
Using a stud finder, locate the center of wall studs, then hold Wall Bracket (A) against the wall at your
desired position. Next use a pen or pencil to mark the location of where the 4 mounting Lag Bolts (E)
will go into the center of the wall stud. Before marking, ensure the wall bracket is level using the
included magnetic leveler (W).
Remove wall bracket. Drill pilot holes at the marked 4 holes using 7/32 in. (5mm) drill bit. Fasten Wall
Bracket (A) to wall with Lag Bolts (E) and washer (F).
Do not over-tighten Lag Bolts (E).
4
H

Masonry/Concrete Installation
Use a pen or pencil to mark the location of where the 4 mounting Lag Bolts (E) will go into wall while
holding Wall Bracket (A) against the wall at your desired position. Before marking, ensure the wall
bracket is level using the included magnetic leveler (W).
Remove wall bracket. Drill holes at the marked 4 holes using 3/8 in. (9,5-10mm) drill bit. Sink Lag
Bolt Anchors (not included) into holes with hammer until flush with wall surface. Fasten Wall
Bracket (A) to wall with Lag Bolts (E) and Washers (F).
Do not over-tighten Lag Bolts (E).
3
Carefully lay your TV face-down on a rug or flattened carton. Hand thread screws into the
threaded inserts on the back of your TV to determine which screw diameter (M4, M5, M6, or M8)
to use.
If your TV has a flat back, use the shorter screws. Spacers and longer screws are supplied to
accommodate:
Irregular / round back TVs
TVs with inset mounting holes
Extra space is needed to access cable connections
Position your TV plate (B) over your TV hole pattern, making sure the TV Plate is centered
and level, Install using the short screw and washer, or long screw with washer and spacer
combination you selected for your TV.
DO NOT TIGHTEN SCREWS WITH ELECTRIIC DRILL/SCREWDRIVER. HAND TIGHTEN ONLY.
5
Spacer
Wall Anchor
(Not Included)
E
F

4
H

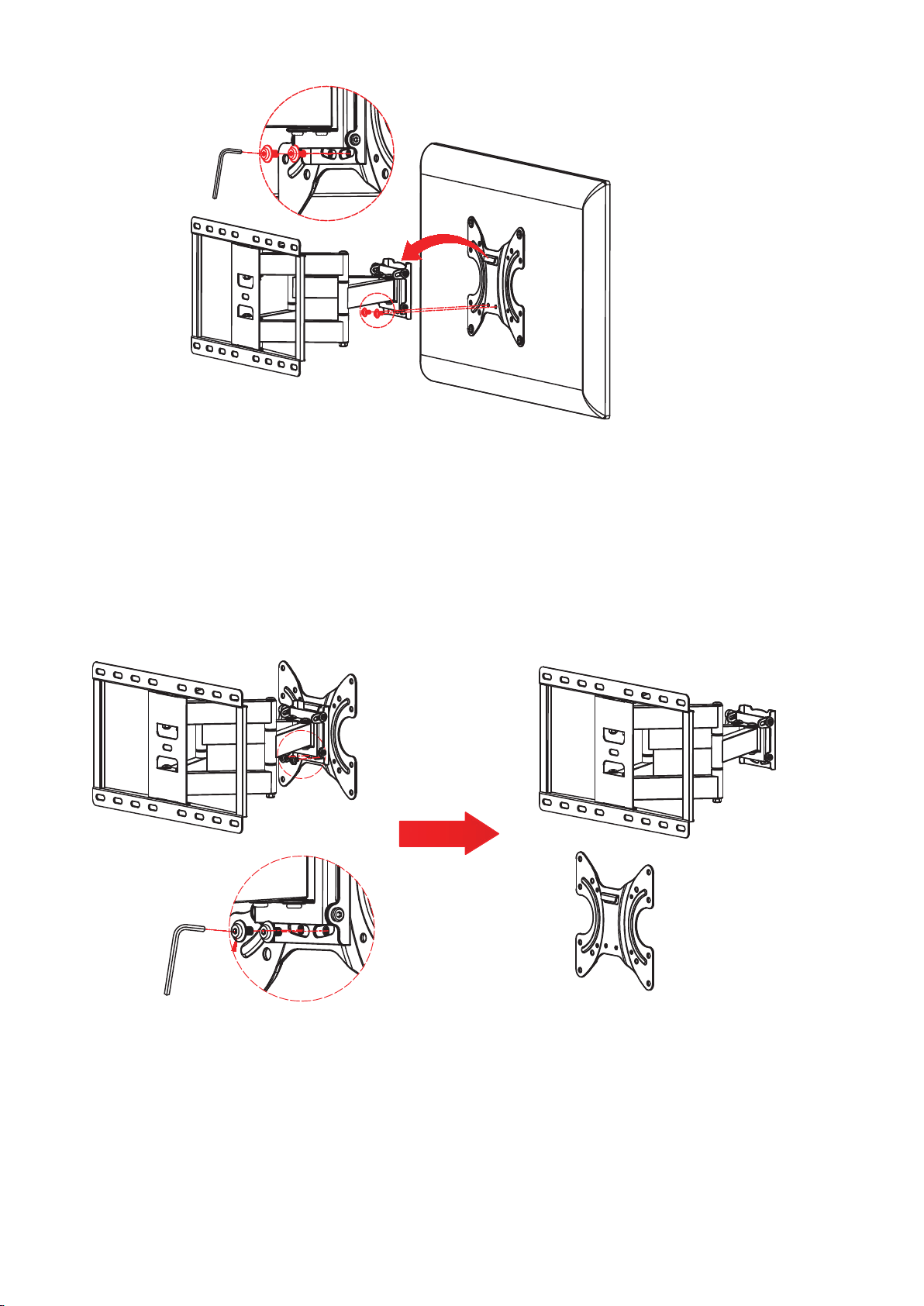

Hang TV to Wall Bracket as shown above.It is recommended two people, one on each side of
TV participate in hangingTV to wall plate..
Tilt the top of the TV towards the wall and carefully position TV plate (B) over the wall bracket (A)
until locking into place. Then fasten it with screws you disassembled in Step 1.
Option 2: 15.75 in x 15.75 in / 400 mm x 400 mm or 23.62 in x 15.75 in / 600 x 400 mm
1
A
B
Remove TV Bracket (B) from wall bracket (A) using Allen wrench (H), keep the screws for future use in
Step 5.
H
6

A
2Wood Stud Installation
16in. / 407mm
or
24in. /610mm
FE
Using a stud finder, locate the center of wall studs, then hold Wall Bracket (A) against the wall at your
desired position. Next use a pen or pencil to mark the location of where the 4 mounting Lag Bolts (E)
will go into the center of the wall stud. Before marking, ensure the wall bracket is level using the
included magnetic leveler (W).
Remove wall bracket. Drill pilot holes at the marked 4 holes using 7/32 in. (5 mm) drill bit. Fasten wall
plate (A) to wall with Lag Bolts (E) and washer (F).
Do not over-tighten Lag Bolts (E).
Masonry/Concrete Installation
Use a pen or pencil to mark the location of where the 4 mounting Lag Bolts (E) will go into wall while
holding Wall Bracket (A) against the wall at your desired position. Before marking, ensure the wall
bracket is level using the included magnetic leveler (W).
Remove Wall Bracket. Drill holes at the marked 4 holes using 3/8 in. (9,5-10mm) drill bit. Sink Lag
Bolt Anchors (not included) into holes with hammer until flush with wall surface. Fasten Wall
Bracket (A) to wall with Lag Bolts (E) and Washers (F).
Do not over-tighten Lag Bolts (E).
7
Wall Anchor
(Not Included)
E
F

3
B
CV
G
Attach TV Bracket (C) to TV Plate (B), then fasten it with screws (G) and allen wrench (V).
4
Slide Fixed Arm (D) onto TV Bracket (C). See Figure 1.
V
D
C
G
Carefully lay your TV face-down on a rug or flattened carton. Hand thread screws into the threaded
inserts on the back of your TV to determine which screw diameter (M4, M5, M6, or M8) to use. If
your TV has a flat back, use the shorter screws. Spacers and longer screws are supplied to
accommodate:
Irregular / round back TVs
TVs with inset mounting holes
Extra space is needed to access cable connections
Position your assembled bracket over your TV hole pattern, making sure the brackets are vertically
centered and level. Fasten TV Brackets (C) and Fixed Arm (D) with screws (G) and allen wrench (V).
Then install using the short screw and washer, or long screw with washer and spacer combination
you selected for your TV.
DO NOT TIGHTEN SCREWS WITH ELECTRIC DRILL/SCREWDRIVER. HAND TIGHTEN ONLY.
Figure 1
8
CD
Spacer

5
H
Hang TV to Wall Bracket as shown above. It is recommended two people, one on each side of
TV participate in hanging TV to Wall Plate.
Tilt the top of the TV towards the wall and carefully position TV Plate (B) over the Wall Bracket (A)
until locking into place. Then fasten it with screws that you disassembled in Step 1.
9
HDMI Cables
Information:
This Kit includes 1 HDMI™ cable.
Supports Ethernet, 3D and 4K Definition.
O.D.: 6.0mm
Double molding
In-Wall CL2 Rated
Technical Specifications:
Each HDMI cable measures 6 feet (1829 mm) in length.
1.4 Version
Velcro Cables Ties
Information:
This kit includes 2 velcro cable ties to help manage your cords.
Each Velcro cable tie measures 8.66in. (220mm)

10
Product Warranty
This Limited Warranty covers any defects in material or workmanship for purchases made in the
U.S.A and Canada, and excludes claims from conditions, malfunctions or damage not resulting
from defects in material or workmanship. The warranty duration is one year. Keep your original
proof of purchase (store receipt). If after inspection you find the product is defective, damaged
or missing parts. DO NOT return to the store. Please contact customer service
at (800) 747-2660 M-Th, 8am-5pm; Fri, 8am-12pm (Pacific Time).
Or email customerrelations@tvmountsnow.com
Please keep this Instruction Manual for future reference.
U.S. and other foreign patents pending /
Patentes de los EUA y países extranjeros en trámite /
Brevets en cours pour les États-Unis et autres pays /
U.S. und andere ausländische Patente sind hängig
All rights reserved / Derechos Reservados /
Tous droits réservés
Made in China / Hecho en China /
Fabriqué en Chine
2015
