CATANA Group BALI 4.8 User manual

ENGLISH –October 2020 - IND B Page 1of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
OWNER’S MANUAL
IN ACCORDANCE WITH EUROPEAN DIRECTIVE
2013-53-EU
DESIGN CATEGORY A
This document comprises 142 pages, numbered from 1to 60, plus 82 pages of plans and diagrams.

ENGLISH –October 2020 - IND B Page 2of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
Cette page est blanche intentionnellement
This page intentionally left blank

ENGLISH –October 2020 - IND B Page 3of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
Your dealer
Name _______________________________________________________________
Address _______________________________________________________________
_______________________________________________________________
is the representative of CHANTIER CATANA SAS and will assist you with everything you need to resolve
any issues which might arise duringthe launch and the steppingof your mast, as well as technical checks
for the commissioning and upkeep of your boat. He will assist you as necessary with the administrative
process for registeringyour boat.
As soon as you have taken ownership of your boat, please familiarise yourself with this Owner’s Manual,
then sign and date notice of receipt below, and give (or send) this to your dealer.
Cut along the dotted line
-----------------------------------------------------------------------------------------------------------------
Receipt of Owner’s Manual
I, the undersigned:
Name ________________________________________________________________
Address ________________________________________________________________
________________________________________________________________
Owner of BALI 4.8 n°_____________
declare that I have received the Owner’s Manual for the BALI 4.8 sailboat, comprising:
- the written declaration of conformity
Date: __________ (today’s date)
Signature

ENGLISH –October 2020 - IND B Page 4of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
Cette page est blanche intentionnellement
This page intentionally left blank

ENGLISH –October 2020 - IND B Page 5of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
CONTENTS
1. VESSEL DESIGN CATEGORY ...................................................................................................................8
2. TECHNICAL CHARACTERISTICS OF THE BOAT .....................................................................................10
3. ELECTRICAL SYSTEMS..........................................................................................................................12
4. GAS INSTALLATION..............................................................................................................................22
5. INTERIOR LAYOUT...............................................................................................................................26
6. BILGE PUMPS AND PLUMBING CIRCUITS............................................................................................27
7. FLOODING ...........................................................................................................................................33
8. FIRE SAFETY.........................................................................................................................................34
9. ENGINE................................................................................................................................................40
10. FUEL INSTALLATION..........................................................................................................................42
11. STEERING SYSTEM.............................................................................................................................43
12. SAILING..............................................................................................................................................45
13. RIGGING............................................................................................................................................47
14. LIGHTNING PROTECTION ..................................................................................................................50
15. PROTECTION OF THE ENVIRONMENT AND SAFETY..........................................................................50
16. SAFETY EQUIPMENT..........................................................................................................................51
17. HAULING OUT, TRANSPORT AND STORAGE ASHORE.......................................................................52
18. ANCHORING, TYING ALONGSIDE AND TOWING...............................................................................52
19. HULL - UPKEEP...................................................................................................................................53
20. DAVITS AND AFT DOOR (depending on options)..............................................................................56
21. TRANSFER OF OWNERSHIP...............................................................................................................59
22. LIST OF PLANS ...................................................................................................................................61
23. AFTER-SALES SERVICE .....................................................................................................................142
24. LIST OF ACCOMPANYING DOCUMENTS..........................................................................................142

ENGLISH –October 2020 - IND B Page 6of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
INTRODUCTION
Dear Sir/Madam,
Welcome aboard, and welcome to the happy family of BALI 4.8 owners.
This manual has been designed to help you get the most enjoyment out of your boat in safety. It contains
details of the boat, the equipment supplied or installed, and its systems, as well as information on their
use. Please read it carefully and familiarise yourself with the boat before use.
This Owner’s Manual is not an instruction course in safe navigation or seamanship. If this is your first boat
or if you have changed to a type of boat with which you are not familiar, for your comfort and safety,
make sure you acquire sufficient experience of the boat’s handling and use before taking command.
Ensure that the wind and sea state which is forecast corresponds to the design category of your boat, and
that both yourself and your crew are capable of handlingthe boat in these conditions.
Even though your boat is designed for it, the sea states and wind conditionswhich correspond to design
Categories A, B and C vary from storm conditions for Category A to strong conditions for the top of
Category C, subject to the dangers of abnormal waves or gusts, and as a result, dangerous conditions, in
which only a fit, well-trained, experienced crew, sailinga well-maintained boat, can navigate safely.
This Owner’s Manual does not form a detailed guide to maintenance or repair. In case of difficulty, please
contact the manufacturers or their representative. If a service manual is supplied, please make use of it.
Always use the services of an experienced professional for maintenance, fitting accessories or making
modifications. Modifications which might affect the safety characteristics of the boat must be evaluated,
effected and documented by a competent person. The boat’s manufacturers cannot be held responsible
for any unapprovedmodifications.
In certain countries an operator’s licence or authorisation are required, or there may be specific
regulations in force.
Always properly maintain your boat, bearingin mind wear and tear which can result over time, or, as the
case may be, excessive or inappropriate use.
Any type of boat, no matter how solidly built, may be severely damaged if used incorrectly. Such use is
not compatible with safe navigation. Always adapt your course and boatspeed to the prevailing sea
conditions.
If your boat is equipped with a liferaft, carefully read its user manual. The crew should have on board all
the necessary safety equipment (lifejackets, harnesses, etc.) corresponding to the type of boat, to the
weather conditions,etc. In certain countries such equipment is mandatory. The crew should be trained
in the use of all the safety equipment and emergencymanoeuvres (recovery of a man overboard, towing,
etc.) Sailingschools and yacht clubs regularly organise trainingsessions.
It is recommended that all persons wear appropriate flotation aids (lifejackets, buoyancy aids, etc.)
whenever they are on deck. Note that in some countries, it is obligatory to wear flotation aids which
conform to the laws of that country.

ENGLISH –October 2020 - IND B Page 7of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
KEEP THIS MANUAL IN A SAFE PLACE AND IN THE EVENT OF YOUR SELLING THE BOAT, PLEASE PASS
IT ON TO THE NEW OWNERS.
WARNING
Our boats are regularly upgraded as result of customer experience and research carried out by the
shipyard. As a result, the specifications given in this Owner’s Manual are not contractual and are subject
to modification without notice and without obligation to update.
The aim of this manual is to cover a maximum of information. Therefore, it is possible that certain
paragraphs or equipment described is not applicable to your boat. If in doubt, refer to the inventory
supplied by your dealer when you ordered your boat.

ENGLISH –October 2020 - IND B Page 8of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
1. DESIGN CATEGORY OF THE BOAT
Your BALI 4.8 comes under the design category CAT A.
In normal usage conditions, your boat is designed to sail in waves with a significant wave height of less
than 7m and winds lower than Beaufort Force 10, and to withstand more severe conditions.
This capacity is equally dependent on the competence of the crew, their physical ability, the upkeep of
the boat and its equipment.
Take all necessary precautions before putting to sea.
CATANA SAS cannot guarantee perfect functioning of the vessel in exceptional sea conditions (violent
storms, hurricanes, cyclones, waterspouts, etc.)
DESIGN CATEGORIES
Category A:Boats which are designed to sail in winds which are lower than Beaufort Force 10 and in
seas with a significant wave height lower than 7m and above (see Note 1 below), and to a greater extent
be self-sufficient. Abnormal conditions such as hurricanes are excluded. Such conditions can be
encountered on long passages, for example ocean crossings, or near coastlines where there is no
protection from wind and waves for several hundred nautical miles.
Category B:Boats which are designed to sail in winds which do not exceed Beaufort Force 8 and in
correspondingsea states:a significant wave height of less than or equal to 4m (see Note 1 below). Such
conditions as may be encountered when sufficiently far offshore, or near coastlines where there is no
protection from wind and waves for several dozen nautical miles. These conditionscan also be
encountered on inland seas of sufficient size to be capable of seeing such wave heights.
Category C:Boats which are designed to sail in winds which do not exceed Beaufort Force 6 and in
correspondingsea states:a significant wave height of less than or equal to 2m (see Note 1 below). Such
conditions as may be encountered on exposed inland waters, in estuaries and in coastal waters with
moderate weather conditions.
Category D:Boats which are designed to sail in winds which do not exceed Beaufort Force 4 and in
corresponding sea states (occasional waves with a maximum height of 0.3m). Such conditions as may
be encountered sheltered inland waters, and in coastal waters in fine weather conditions.
NOTE 1: Significant wave height means the mean height of the highest third of the waves, which
correspond approximately to the height of the wave as estimated by an experienced observer. Certain
waves may have a height of double this value.

ENGLISH –October 2020 - IND B Page 9of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
CATANA SAS has chosen the Institut pour la Certification et la Normalisation dans le Nautisme as the
notified body to verify that your boat conforms to European Directive 2013/53/EU, within the
framework of the European directive certification moduleB + C.
Identification
The Hull IdentificationNumber is located on the starboardside of the transom. It is comprised of a series
of letters and numbers beginningwith FR-CAT….
1.1. Degrees of danger

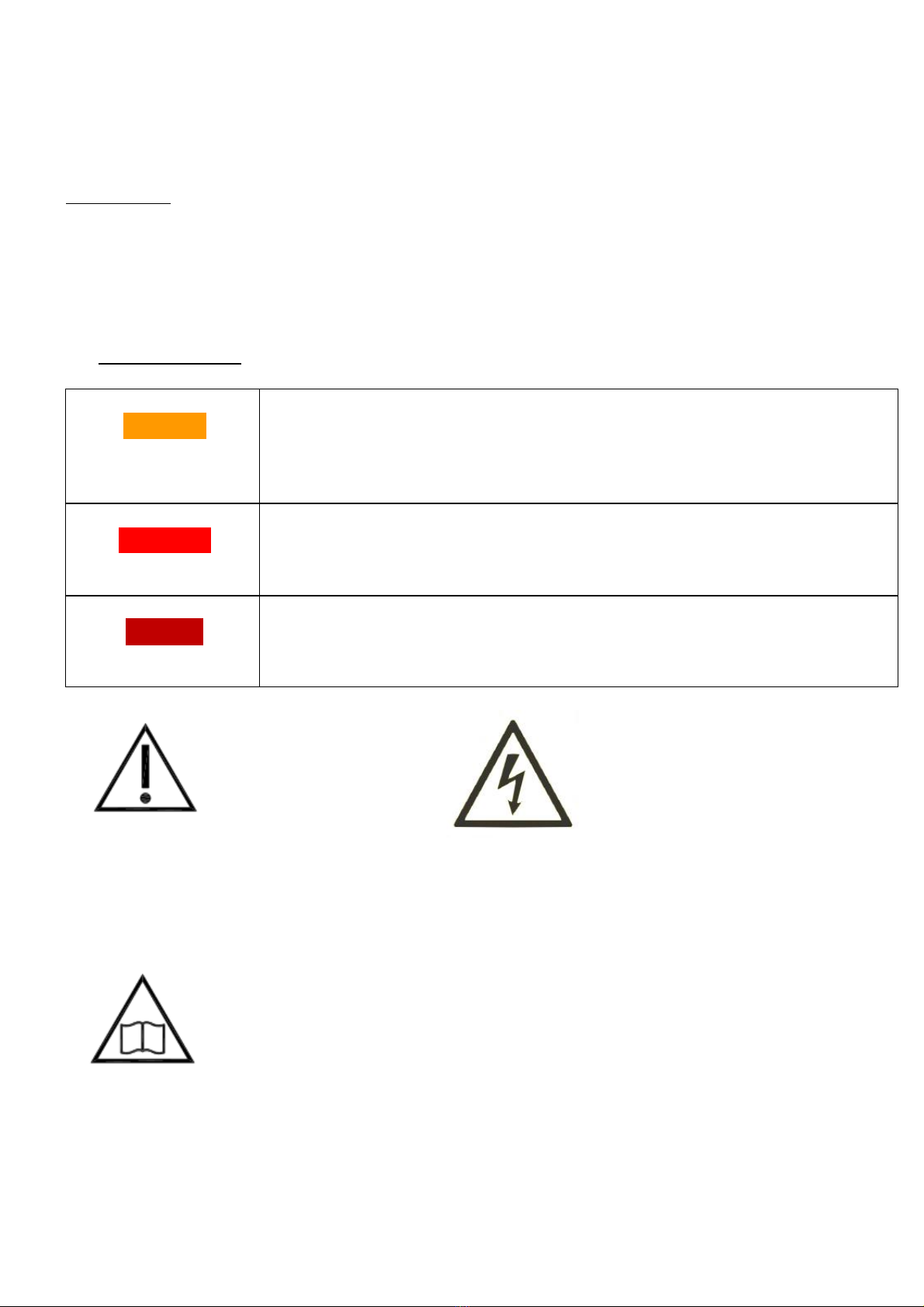

CAUTION
Indicates a reminder of safety practices or a CONCERN applied directly to
dangerous practices which could result in personal injury or damage to the boat
and fittings.
WARNING
Indicates that a risk exists which could result in injury or death if appropriate
precautions are not taken.
DANGER
Indicates the presence of an extreme intrinsic risk which would result in a high
probability of death or serious injury if appropriate precautions are not taken.
WARNING RISK OF ELECTRIC SHOCK
READ OWNER’S MANUAL

ENGLISH –October 2020 - IND B Page 10 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
2. TECHNICAL CHARACTERISTICS OF THE BOAT
2.1. General specifications
Model:
BALI 4.8
Naval Architect:
Xavier Faÿ
Design Category:
A
N° of the notified body:
CE/0607
CIN N°:
See starboard sugarscoop
Hull length Lh:
14.2 m
Waterline length:
14.1 m
Maximum length Lmax:
Hull beam Bh:
Maximum beam Bmax:
14.82 m
3.49 m
7.89 m
Draft (at maximum load):
1.35 m
Air draft (in lightship condition):
23.17 m
Principal means of propulsion:
Mast length:
Sail
19.520 m
Light displacement Mlc:
16,211 kg
Maximum laden displacement:
22,600 kg
Mainsail area (standard roach)
79 m²
Self-tacking solent area
47 m²
Code zero area
96 m²
Fresh water excludingwater heater (approx.)
600 L + 400 L (pack)
Diesel capacity (approx.)
600 L + 400 L (pack)
Holding tank (dependingon options see plans)
55 L
Engine battery
130Ah x 1
Service batteries
130Ah x 4 +2 (pack)
Principal means of propulsion
Sail
Maximum permitted engine power
2 x 45 hp up to 2 x 57 hp
Weight of permanent tanks
2,260 kg
Nb: the capacity of the various freshwater and diesel tanks is not generally completelyusable as a result
of the trim or loadingof the vessel. For diesel, it is recommended to maintain a reserve of 20%.

ENGLISH –October 2020 - IND B Page 11 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
2.2 Builder’s Plate
Design Category: A
Maximum number of persons = 12
WARNING
Do not exceed the maximum recommended numberof persons. Whatever the numberof personson
board, the total weight of persons and equipment must never exceed the maximum recommended
load.
Max recommended load = 3,325 kg
WARNING
On loading the boat, never exceed the maximum recommended load. Always load the boat with care
and distribute the load in an appropriate manner so as to maintain the theoretical trim
(approximately horizontal). Avoid stowing heavy loads up high.
CE 0607
Part of the information is given on the builder’s plate which
is located near the chart table. A full explanation of the
information appears in the followingsection.
: CE marking indicatingthat the boat conforms to all the
requirements of the Directive. This sequence of
numbers is the code of the Certification body. In this
case, the ICNN (Institut pour la Certification de la
Normalisation dans le Nautisme), see Declaration of
Conformity
: Recommended by the builder when the boat is sailingin sea
conditions correspondingto its design category.
The maximum load as indicated on the builder’s plate
(3,325 kg) does not include the weight of the contents of
the tanks (fuel 800 kg and fresh water 1,000kg) When they
are full (1,800kg total)

ENGLISH –October 2020 - IND B Page 12 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
3. ELECTRICAL SYSTEMS
(Plans on pages 82 to 93)
3.1. Safety advice and use of the electrical system
WARNING
Incorrect use of the direct current or alternating current systems can result in a risk of fire or
explosion.
Incorrect use of the alternating current system can result in the risk of electrocution.
Always:
-Check the battery state and the charging system before putting to sea.
-Disconnect and remove the batteries when winterizing the boat.
-Maintain the voltageof the batteries at over 12V during the winter.
-Check the functioning of the navigation instruments.
-Always keep spare fuses on board for the power circuits.
-Check the functioning of the navigation lights before sailing at night.
-Have the electrical system checked at least every two years.
-Disconnect the vessel’s electrical supply if the system is not in use.
-Connect any metallic covers of electrical equipment to the vessel’s earthing system (green
cable, or green with a yellow stripe).
-Use electrical equipment which is either double-insulated or has an earthing connection.
Never:
-Work on a live electrical installation.
-Modify an installation and the relevant wiring diagrams, unless this has been carried out
by a qualified marine electrician.
-Change or modify the breaking capacity of the protective circuit breakers.
-Replace electrical apparatus or equipment with components which exceed the rated
capacity without resizing the cabling and circuit breakers.
-Leave the vessel unattended when the electrical system is live, with the exception of an
automatic bilge pump and fire or theft protection systems.
If a fuse or a circuit breaker continues to trip, call a specialist to determine the cause of the short-circuit.
The electrical distribution system on board works using a remote installation: the equipment controlled
by this system (from the electrical panel) is protected by thermal-magnetic circuit breakers. In this case,
all that is required is to eliminate the short circuit.
Other equipment (interior lighting, comfort equipment, etc.) is protected by fuses either under the chart
table or in the remote distributionboxes (see pages 14-15).
The lights are powered by RADIO control units with automaticreset.

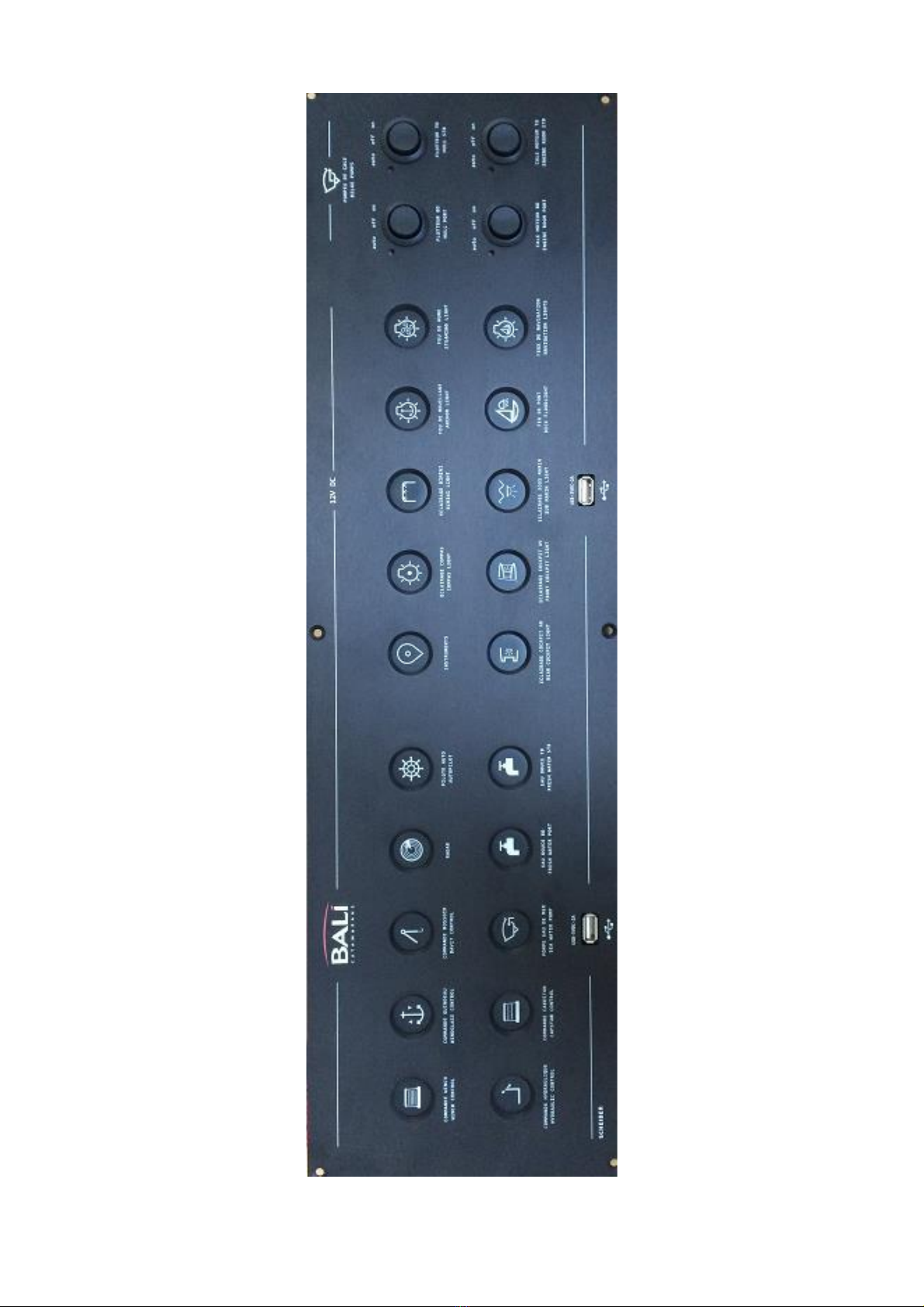

ENGLISH –October 2020 - IND B Page 13 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]

ENGLISH –October 2020 - IND B Page 14 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
3.2. Installing new equipment
Since 1st January 1996, electrical equipment has been subject to the European Directive on
“electromagnetic compatibility” (Ref 2014/30/EU). If any new equipment is to be installed, it must
therefore conform to these standards and must be CE marked. The equipment mustalso be accompanied
by a certificate of conformity and a user manual.
Only use electrical equipment which is double insulatedor has an earth connection in the case of a 220V
installation. When fitting such equipment, ensure you followthe installation instructions with respect to
cable sizing and fuse protection.
To avoid any maintenance problems, make appropriate changes to the wiring diagram to show the
modifications.
Replaceable fuses: beneath the chart table.
Fuse box and lighting configuration control box:
Access beneath the removable panel under the beds in forward and aft port and starboard cabins.
The bed-base under the mattress will need to be removed.
Fuse box (Feed for lighting, fans,
reading lights, USB sockets)
Lighting configuration controlbox

ENGLISH –October 2020 - IND B Page 15 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
3.3 Batteries
All the batteries installedfor engine startingor the domesticsystem are gel type batteries and as such do
not require any specific maintenance; the only precaution to observe is to maintain a sufficient level of
charge.
Their capacity has been calculated to respond to the power requirementsof the on-boardaccessories. To
avoid any problems, the level of charge must be monitored and the batteries maintained.

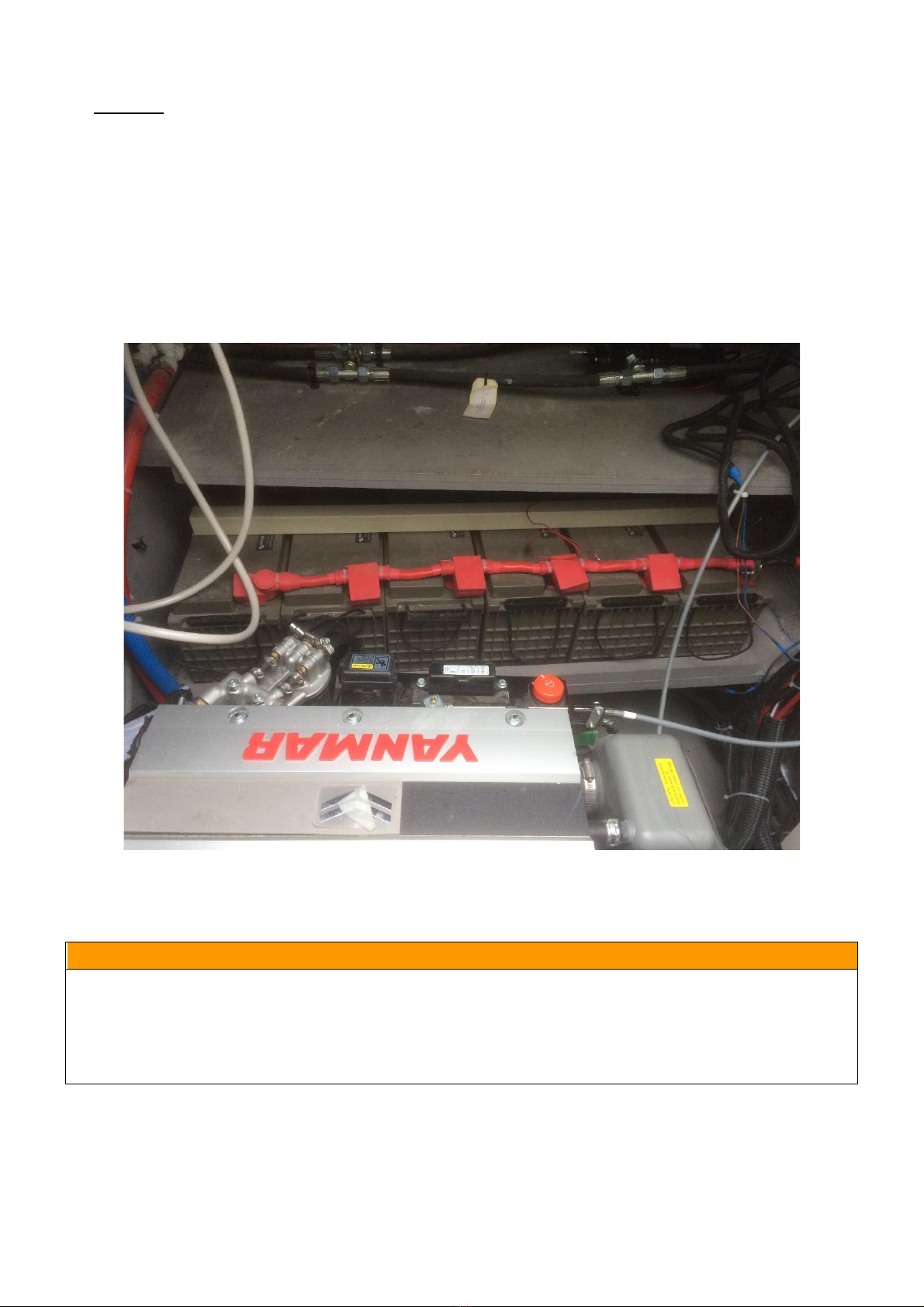

The starboard battery bankis comprised of several 130 Ah batteries which form the service battery bank
and the starboard engine starter battery. (Figure 1).
The port engine has its own 130 Ah starter battery. In the event of failure of this battery, use the COUPLER
switch located in the port engine compartment
CAUTION
-If you install any new electrical equipment, ensure that the overall electrical consumption of this
equipment is compatible with your battery capacity.
-Never allow the two terminals of a battery to be bridged by any conductive object (tools, etc.)
-Before replacing a fuse, always switch off the power to the circuit. Defective fuses must be
replaced with fuses of the same size
Figure 1

ENGLISH –October 2020 - IND B Page 16 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
3.4 Windlass and electric winch
CAUTION
-When using the windlass or electric winch it is essential that the engine is running and is at a
slightly increased speed.
-Always switch off the feed at the electrical panel when these are not in use.
Switching on the power to the windlass or electric winches is done at the electrical panel.
The windlass is operated via the corded remote control located beneath the chain locker lid.
The electric winches have dedicated controls positionednext to them.
Windlass remote control

ENGLISH –October 2020 - IND B Page 17 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
The circuit breakers for the Windlass and for the Electric winch are located on the electrical panel beneath
the starboard aft cabin companionway access.
3.5 Charging Systems
Your boat is fitted with several charging systems. When alongside a dock with a shore-power electricity
supply, the service batteries are charged by a charger or a combined inverter/charger (depending on
options). At sea, the same system is used if your boat is equipped with a generator. If your engines are
fitted with optional power alternators, they are connected to the domesticsystem. If your boat is fitted
with solar panels, these produce energy which is stored by the service batteries.
CAUTION
-Regularly check the alternator belt tension and the condition of the belts.
-To maintain solar panel efficiency (if fitted), it is essential they are kept clean and are not in any
shade.
-You must not stand or walk on the solar panels.

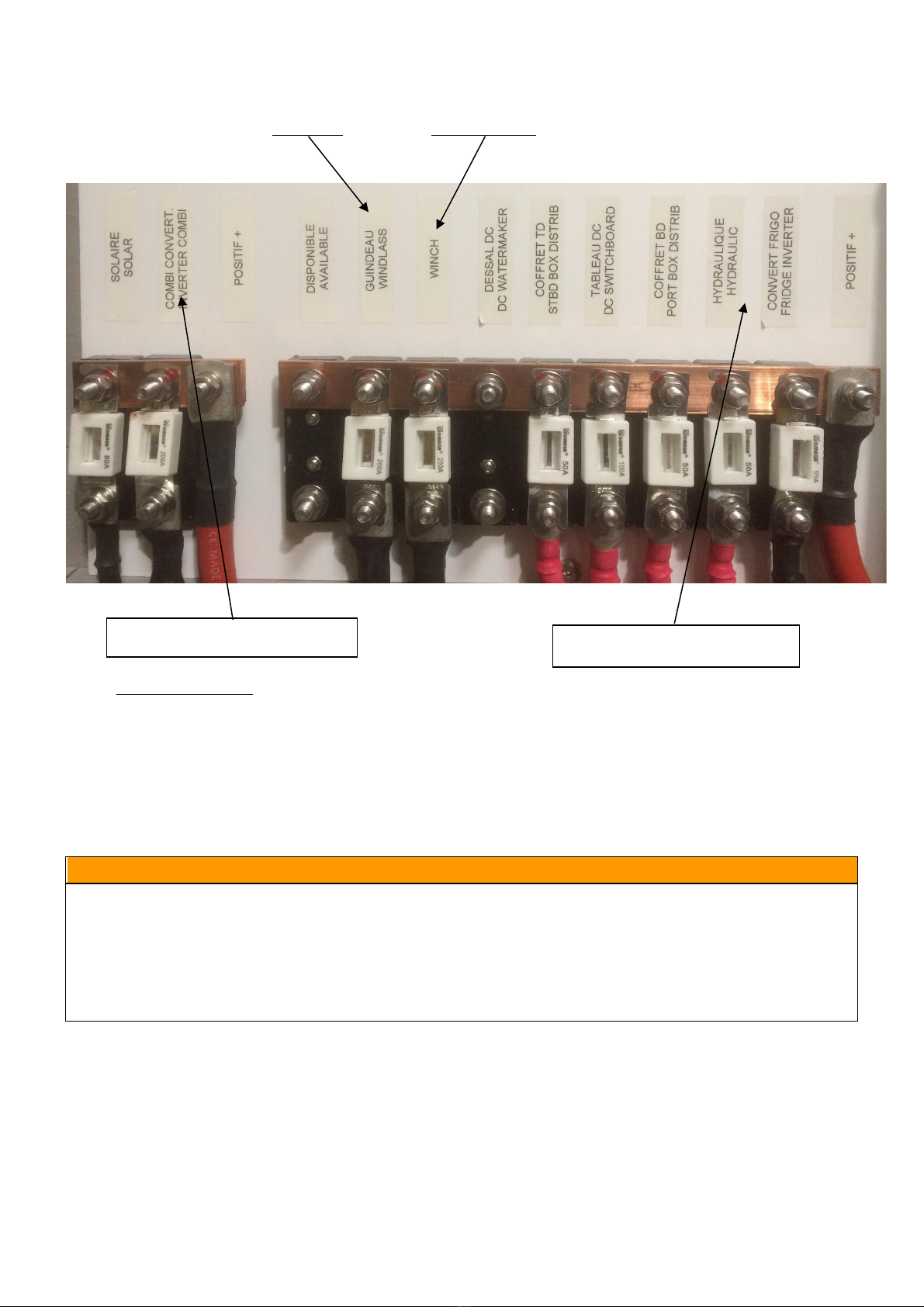

Fuse for the inverter/charger
Fuse for the fridge inverter

ENGLISH –October 2020 - IND B Page 18 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]

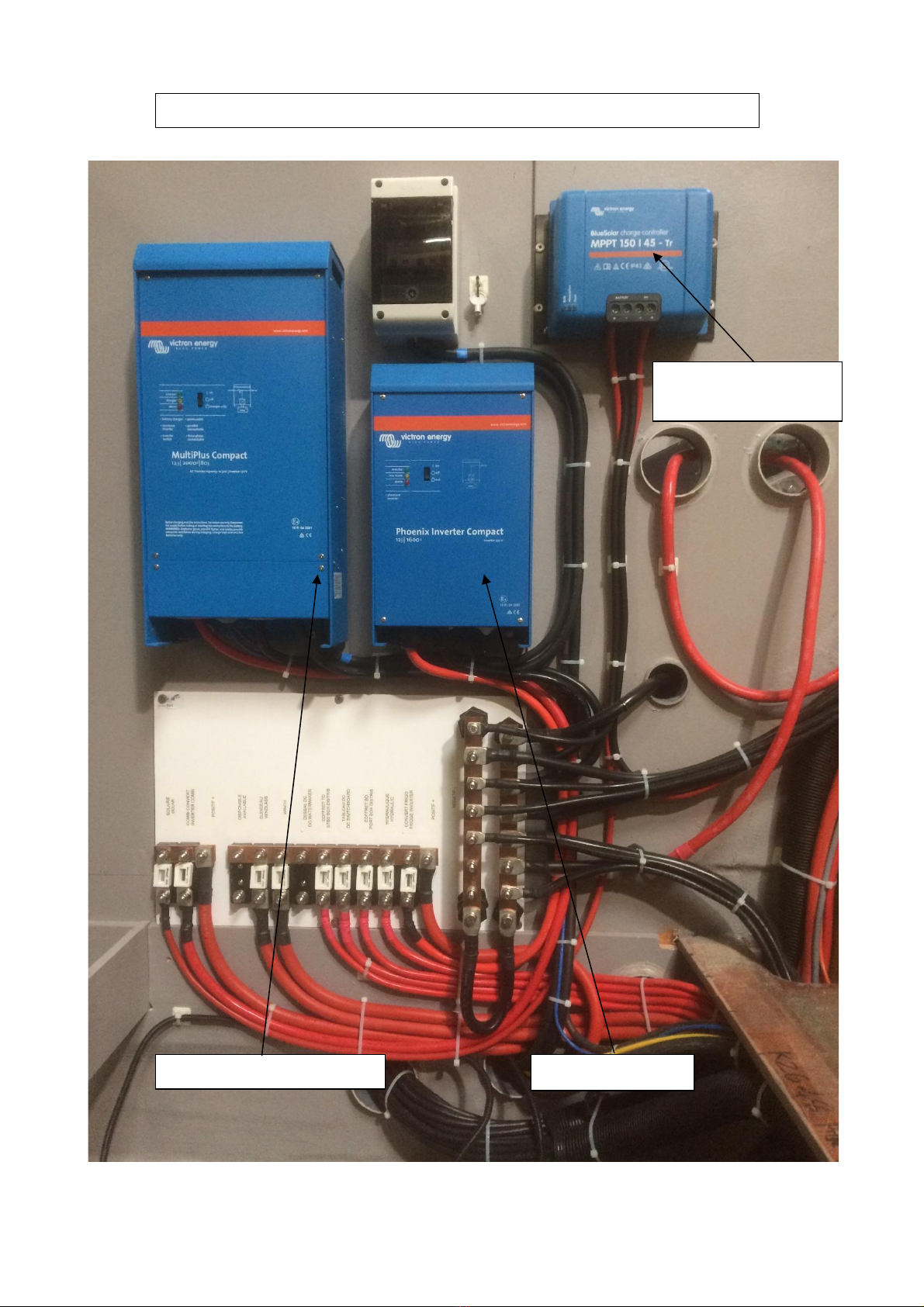

Electric panel located beneath the aft cabin companionway, starboardside
Combined inverter/charger
Fridge inverter
Charge controller
solar panels

ENGLISH –October 2020 - IND B Page 19 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
3.6 AC Installation (220/110 Volts ISO 13297)
DANGER
The on-board AC installation is protected by a circuit breaker and is equipped with an RCD (residual
current device). Their correct functioning should be tested monthly.
The wiring for any additional on-board AC accessories must be done by a professional, with new,
appropriately sized circuit breakers.
If maintenance is beingcarried out with the boatout of the water, switch it to the ‘’ON’’ position to ensure
earthing protection via the shore power.
Location of the AC shore power circuit breaker: Starboard engine compartment.
If the vessel is equipped with a generator, an RCD will be installed near to it. The same applies if the vessel
is fitted with a DC/AC converter.

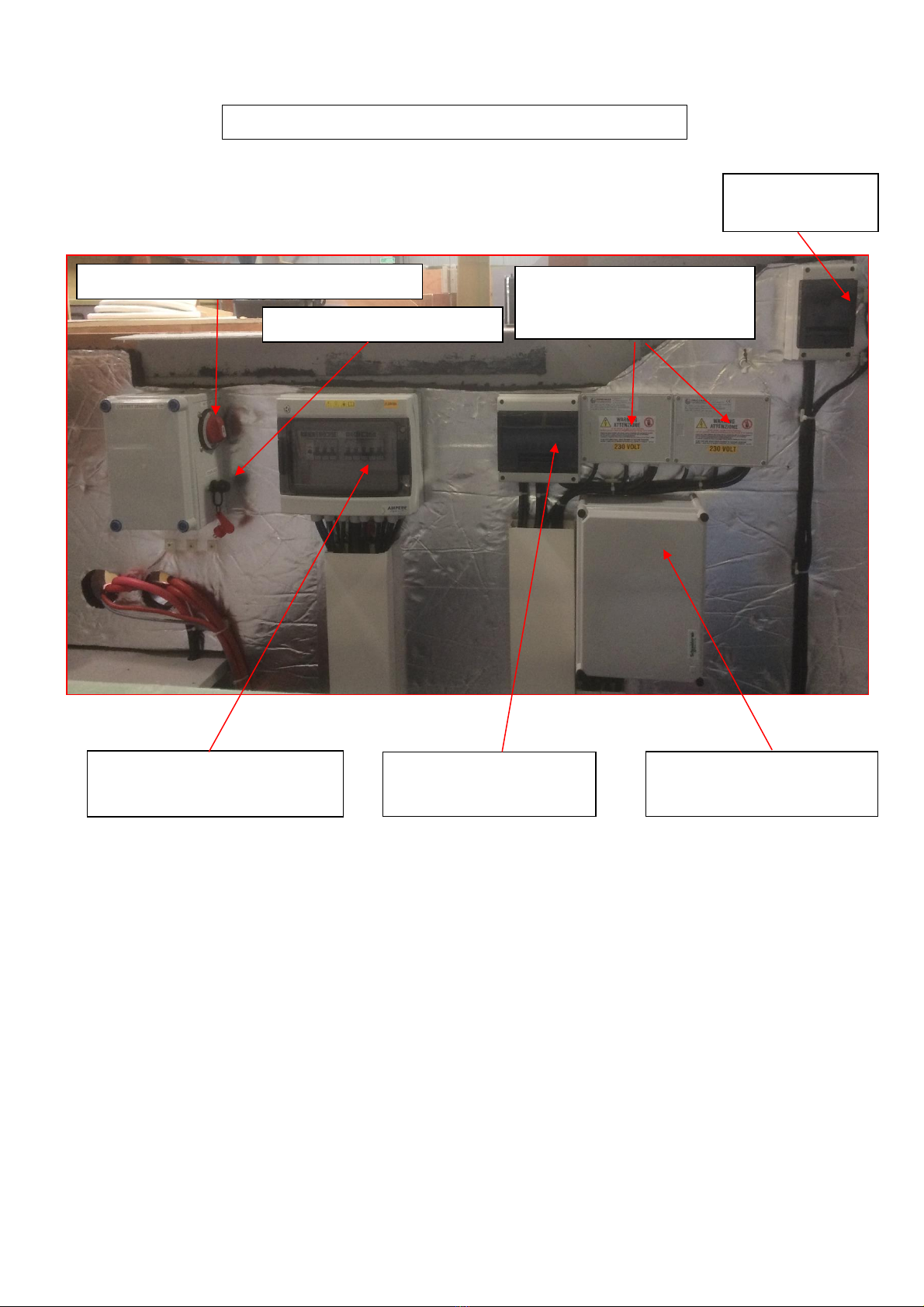

The circuit breakers for the various AC circuits are housed in an electrical box in the starboard engine
compartment.
Shore power socket

ENGLISH –October 2020 - IND B Page 20 of 142
CATANA SAS - Zone Technique du Port - 66140 CANET EN ROUSSILLON (FRANCE)
e - mail: [e-mail]- Tel [phone] - Fax[phone]
Battery shut-off switch starboard engine
Box for AC specialised line and
cabin socket circuit-breaker
AC 230v air-conditioning
electrical box (if option)
Electrical box supply
inverter (generator option)
Air conditioning relays port
and stbd if fitted (option)
Shore power
circuit breaker
Electrical panel located in starboard engine compartment
SERVICE battery shut-off key
