Catler CG 8030 User manual

CG 8030
COFFEE GRINDER
Instructions
for use

COFFEE
GRINDER

CONTENTS
4 Congratulations
5 Catler recommends safety rst
11 Know your coee grinder CG 8030
13 Operating your coee grinder CG 8030
21 Care and cleaning
23 Tips and tricks
24 Troubleshooting
CONTENTS 3

CONGRATULATIONS
Congratulations
on the purchase of your new coee grinder CG 8030.
4

5
CATLER RECOMMENDS SAFETY FIRST
CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture
consumer products with the safety of you, our valued customer
foremost in mind. In addition we ask that you exercise a degree
of care when using any electrical appliance and adhere to the
following precautions:
IMPORTANT SAFEGUARDS FOR YOUR COFFEE GRINDER CG 8030
 Carefully read all instructions
before operation and save for
future reference.
 Remove and safely discard
any packaging material and
promotional labels before using
the appliance for the rst time.
 To eliminate a choking
hazard for young children,
remove and safely discard the
protective cover tted to the
power plug of this appliance.
 This appliance has been
designed specically for the
purpose of grinding roasted
coee beans ONLY. Under no
circumstances should this
product be used for other
purposes than it is intended.
 This appliance is not designed
to grind pre ground coee
in bean hopper. Under no
circumstances should this
product be used that is sticky,
or extremely hard, or make
pastes of any fruits, seeds
or herbs i.e. curry pastes, nut
batters.
 Do not insert any metal
objects or similar product
into the bean hopper which
could damage or negatively
inuence the device operation.
 Do not place the appliance
near the edge of a bench or
table during operation. Ensure
that the surface is level, clean
and free of water.
 Do not place the appliance
on or near a hot gas burner,
electric element or where it
could touch a heated oven.
 Do not operate the appliance
on a sink drain board.
 Before you connect the
appliance into the power
outlet make sure the voltage
on the rating label corresponds
to the voltage in your power
outlet.

6CATLER RECOMMENDS SAFETY FIRST
 Always ensure the appliance
is properly assembled before
connecting to a power outlet
and operating. Follow the
instructions provided in this
book.
 Ensure the surface is level,
clean and free of water.
 This appliance is not intended
to be operated by means of
an external timer or separate
remote control system.
 Before operation, ensure the
bean hopper lid is securely
attached to the hopper.
 The device should not be
switched on until the bean
hopper and hopper lid are
locked into position in the
grinding chamber.
 Do not operate the device
without locking the bean
hopper lid in position. Keep
ngers, hands, hair, clothing
and utensils away from the
bean hopper during operation.
 Do not move the appliance if
turned on. Do not manipulate
with the appliance if placed
on the power base and turned
on.
 Do not put metal or similar
items into the jug as this may
damage or aect the operation
of the unit.
 Always ensure the
START|PAUSE|CANCEL button
has been pressed to cancel
before attempting to move
the appliance, when the
appliance is not in use and
before cleaning and storing.
The appliance is turned o
if button illumination goes
o. Now, you can unplug the
appliance from the power
outlet.
 If you do not use the appliance
for a long time or you attempt
to leave unattended, unplug
the appliance from the power
outlet.
 Do not disconnect the
appliance from the power
point by pulling the electric
cable - it may damage the
electric cable/power point.
Disconnect the cable from the
power point by gently pulling
the plug of the electric cable.
 Do not operate the device for
longer than 2 minutes as this
could cause overheating. Allow
the coee grinder to cool
down for 20 minutes after long
operation.

7
CATLER RECOMMENDS SAFETY FIRST
WARNING:
TO PROTECT AGAINST
ELECTRIC SHOCK, DO NOT
IMMERSE THE POWER BASE,
POWER CORD OR POWER
PLUG IN WATER OR ALLOW
MOISTURE TO COME IN
CONTACT WITH THESE PARTS.
 Do not remove the jug from
the power base during
operation.
 The appliance is not intended
for use by young children
or inrm persons unless
they have been adequately
supervised by a responsible
person to ensure they can use
the appliance safely.
 Use only supplied accessories
or recommended accessories
by a manufacturer. Otherwise
it may result in re, electric
shock or injury to persons.
 Keep the appliance clean. Refer
to Care and Cleaning.
WARNING:
DO NOT WASH THE POWER
BASE UNDER RUNNING WATER.

8CATLER RECOMMENDS SAFETY FIRST
IMPORTANT SAFEFUARDS FOR ALL ELECTRICAL APPLIANCES
 This appliance is for household
use only.
 Unwind the power cord fully
before use.
 Do not let the cord hang over
the edge of a table or counter,
touch hot surfaces or become
knotted.
 This appliance is not intended
for use by persons (including
children) with reduces physical,
sensory or mental capabilities
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
 Children should be supervised
to ensure that they do not play
with this appliance.
 It is recommended to inspect
the appliance regularly. Do
not use the appliance if power
supply cord, plug or appliance
becomes damaged in any way.
Return the entire appliance to
the nearest authorised Catler
Service Centre for examination
and/or repair.
 Any maintenance other than
cleaning should be performed
at an authorised Catler Service
Centre.
 Do not use this appliance for
other than its intended use.
Do not use in moving vehicles
or boats. Do not use outdoors.
 The installation of a residual
current device (safety switch)
is recommended to provide
additional safety protection
when using electrical
appliances. It is advisable that
a safety switch with a rated
residual operating current not
exceeding 30mA be installed in
the electrical circuit supplying
the appliance. See your
electrician for professional
advice.
 For the security reasons, we
recommend to plug the Catler
Coee Grinder directly to its
own circuit, separate from
other appliances. It is not
recommended using hub or
extension cord.

9
CATLER RECOMMENDS SAFETY FIRST
WARNING:
DO NOT OPERATE THE APPLIANCE ON AN INCLINED
SURFACE. DO NOT MOVE THE APPLIANCE WHILE IT IS
SWITCHED ON.
WARNING:
ALWAYS ENSURE THE BEAN HOPPER IS INSERTED FIRMLY
AND LOCKED PROPERLY.
WARNING:
THE POWER PLUG WHEN PLUGGED MUST REMAIN
ACCESSIBLE FOR EASY REMOVING.

10 CATLER RECOMMENDS SAFETY FIRSTASSEMBLING YOUR FOOD PROCESSOR FP 8010
Get to know

11
KNOW YOUR COFFEE GRINDER CG 8030
KNOW YOUR COFFEE GRINDER CG 8030
A. Bean hopper lid
Air tight seal to maximise bean freshness.
B. Bean hopper
450g bean hopper with locking system
for easy removal and bean transfer.
C. Hardened stainless steel conical burrs
Maximises particle size for full avour
potential.
- removable and adjustable upper burr
D. Backlit LCD screen
Displays grind setting, grind size, number
of shots or cups and current grind time.
E. GRIND AMOUNT|PROGRAM dial
Adjusts programmed amount to increase
or decrease dose.
F. SHOTS|CUPS button
Selects number of shots or cups.
G. Grind outlet
H. Grind tray
Catches grind overow.
Removable for easy cleaning.
I. Grind size dial
60 custom grind settings from espresso
to plunger.
J. START|PAUSE|CANCEL button
Starts, pauses and cancels operation.
K. Portalter activation switch
Activates or cancels grinder with a press
of the portalter.
Accessories
L. Portalter cradle 50–54mm
M. Portalter cradle 58mm
N. Conical burr cleaning brush
O. Grinds container
For storing ground coee.
Oi - container cap
Oii - container lid
Not shown
Grinding chamber
Minimises static of beans before dispensing.
Automatic thermal safety shut o
Protects motor from overheating.
Power saving/sleep mode
Unit powers down to standby after 5 minutes
of non use.
Cord storage
A
B
C
D
E
F
G
H
N
O
Oii
Oi
M
L
I
J
K

12 SEZNAMTE SE SE SVÝM CATLER SPOTŘEBIČEM
Operating

13
OPERATING YOUR COFFEE GRINDER CG 8030
OPERATING YOUR COFFEE GRINDER CG 8030
GRINDER OVERVIEW
Your Catler Coee Grinder CG 8030 pro uses
hardened stainless steel conical burrs and is
able to grind whole bean coee suitable for
a range of brewing methods, from the nest
setting for espresso to the coarsest setting
for plunger. You are able to select the amount
of shots or cups with a single button. The
grind amount (dose) for all coee types is
controlled by a digital timer. The default dose
for each brew method is able to be adjusted
by simply turning the grind amount dial and
changing the time the grinder will run. Once
you have your desired dose, you can press
and hold the PROGRAM button to set your
custom time. You can grind directly into
a portalter, grinds container or drip coee
lter basket.
BEFORE FIRST USE
Before rst use, remove and safely discard
all promotional labels and packing materials
attached to your Catler product.
Wash hopper, cradles, grind container,
container lid and cleaning brush in warm
soapy water and dry thoroughly. Wipe
exterior of grinder with a soft damp cloth
and dry thoroughly. Place grinder on at
level surface and plug power cord into
230–240V outlet and switch Power‘ON’.
ENERGY SAVING FEATURE
The grinder will automatically switch
o if not used after 5 minutes.
To reactivate the machine whilst in
POWER SAVING/SLEEP MODE, press
any button on the grinder control panel.
NOTE:
If bean hopper has not been locked
into position,‘PLEASE LOCK HOPPER’
message will be displayed on the LCD
screen disabling the operation of the
grinder for safety.

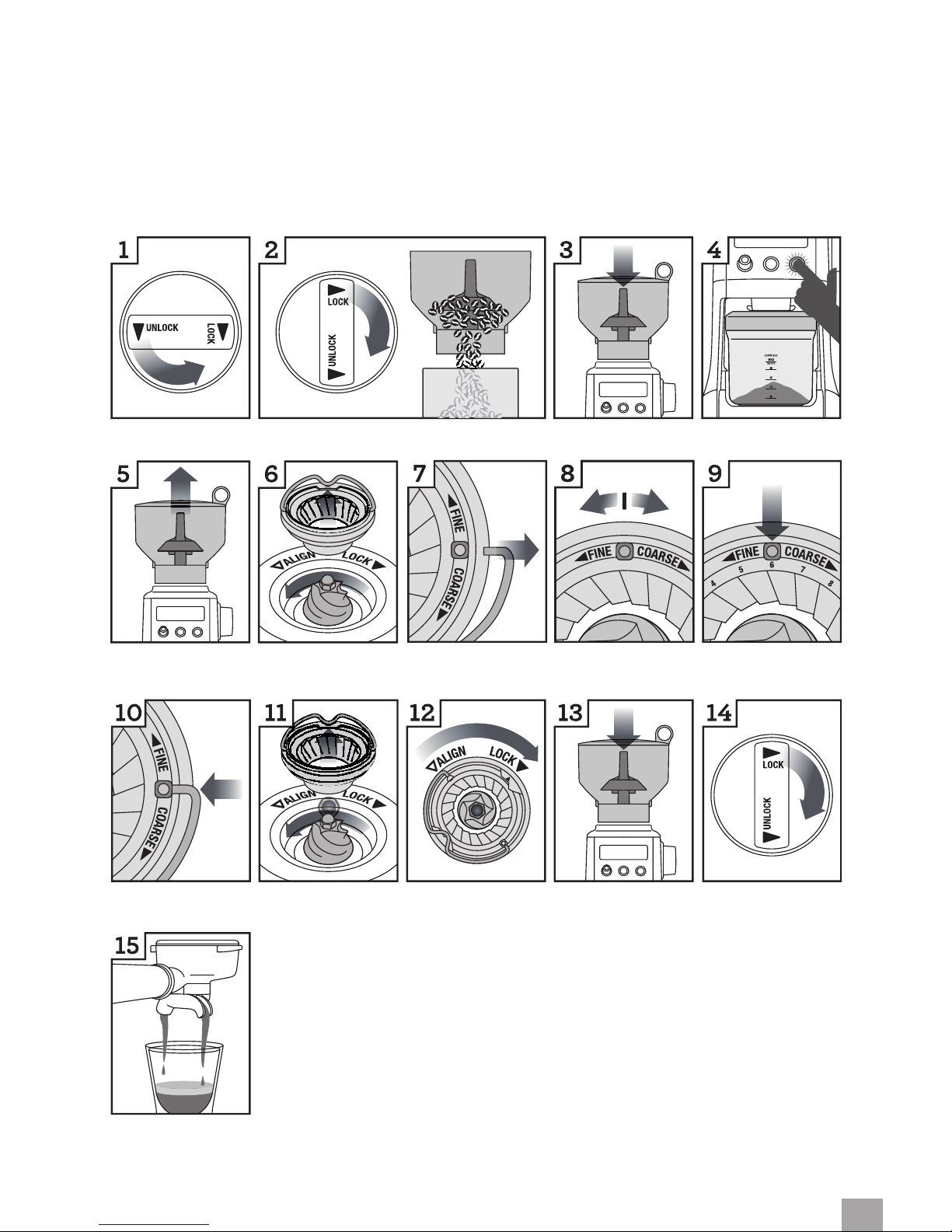

ASSEMBLING GRINDER
Bean hopper
Align tabs on the base of the bean hopper
and insert hopper into position. Turn the
bean hopper dial 90° to lock into position.
Fill with fresh coee beans and secure lid
on top of bean hopper.
The bean hopper can be removed by turning
dial anti clockwise and lifting hopper to pull
out. The locking system allows you to remove
and transfer beans in the hopper to a storage
container safely.
Within each brew method, espresso,
percolator, lter or plunger, there is a range
of grind size settings. Between each brew
method the grind size settings will dier. This
is due to each method requiring dierent
grind sizes for optimum extraction.

14
Experiment with dierent grind size settings
by rotating the grind size dial to achieve the
brew that best suits your taste.
Grinding for espresso eoee
Use single wall lter baskets when grinding
fresh coee beans. Use the ner 1–30
settings in the ESPRESSO range.
Step 1:
Insert the appropriate portalter cradle size.
Insert your portalter into the cradle.
PUSH
CRADLES
NOTE:
You can change the amount already
selected during operation by pressing
the SHOTS|CUPS button. Maximum
number of shots with the cradle
inserted is 2.
Step 2:
Selecting your SHOTS|CUPS
Select the desired amount of ground coee
required by pressing the SHOTS|CUPS button.
Continue pressing the SHOTS|CUPS button
until desired amount is displayed.
The maximum number of shots or cups for
each brew method is shown in the coee
chart below. The amount dispensed will vary
depending on the brew method selected and
the grind amount.
Rotate the grind amount dial to adjust the
grinding time to achieve the correct amount
of coee. Increasing time will increase the
dose and decreasing the time will decrease
the dose.
OPERATING YOUR COFFEE GRINDER CG 8030

15
OPERATING YOUR COFFEE GRINDER CG 8030
COFFEE CHART
Brew method Espresso Percolator Drip lter Plunger
Grind setting Fine Medium Medium coarse Coarse
Grind size 1-30 31-45 46-54 55-60
Amount 1 up to 8 shots 1 up to 12 cups 1 up to 12 cups 1 up to 12 cups
Step 3:
Select your grind size
For espresso, we recommend selecting grind
size setting 12 as a starting point and moving
the grind size dial coarser or ner to adjust
the ow of espresso as required. This should
be done in conjunction with setting the
grind amount (dose).
You will need to extract a shot of espresso to
determine if a change in grind size and/or
grind amount is necessary to achieve the
correct rate of ow. Traditionally, a single shot
of espresso is dened as ~30ml in 30 seconds
and a double shot of espresso as ~60mls
in 30 seconds.
NOTE:
If the grind size dial is tight,
run the grinder by pressing the
START|PAUSE|CANCEL button while
turning the grind size dial. This will
release coee grounds caught
between the burrs.
Grinding into grinds container
or coee lter
Step 1:
Remove cradle by sliding out from under the
grind outlet.
PULL
Slide in grinds container with cap open
or coee lter directly under grind outlet.
OPEN CONTAINER
CAP

16 OPERATING YOUR COFFEE GRINDER CG 8030
• Select the required amount of ground
coee by pressing the SHOTS|CUPS
button.
• Press the START|PAUSE|CANCEL button
to start grinding operation.
You can grind into grinds container without
the lid. However, we recommend keeping the
lid on to prevent coee grinds from escaping.
FEATURES GRINDER
Automatic grinding
Grinding automatically allows you to grind
hands-free. The grinder will automatically
stop when the preset amount of coee is
dispensed.
• ‘Press & release’either the
START|PAUSE|CANCEL button or push the
handle of your portalter once. This will
activate the PORTAFILTER SWITCH.
• Grinding will automatically stop when
the preset amount is dispensed.
OR
PRESS & RELEASE
ZATLAČIT
PORTAFILTER SWITCH
It is normal for the correct amount of coee
to appear overlled in your portalter.
Untamped coee is approximately three
times the volume of tamped coee.
NOTE:
Programming a custom grind amount/
time sets it for just that brew method.
This will not change the other shots
or cups settings.

17
OPERATING YOUR COFFEE GRINDER CG 8030

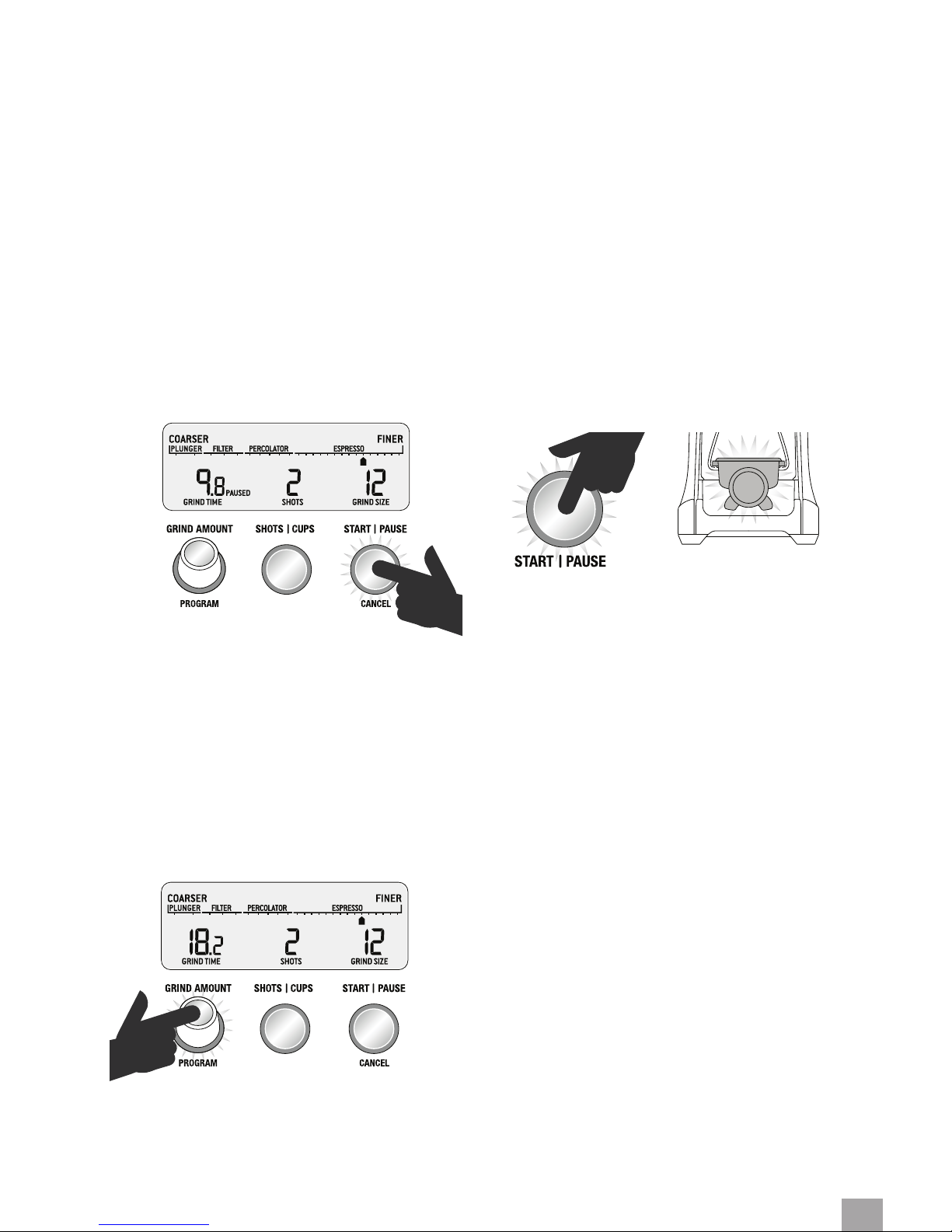

Pause function
You can pause the grinder during operation
allowing you to collapse or settle the coee
in the portalter.
• ‘Press & release’the START|PAUSE|CANCEL
button to start the grinding operation.
• During grinding, press the
START|PAUSE|CANCEL button again
to pause the operation for 10 seconds.
• Press again within this time to resume
the balance of the dose.
PRESS & RELEASE
Program function
Once you have set your required dose, you
can program this time into the number of
shot(s) currently displayed on the LCD. Press
and hold the PROGRAM button, grinder
will beep twice to conrm. Only the shot
displayed will be programmed, all other
shots will remain unchanged.
PRESS & HOLD
Manual grinding
Grinding manually allows you to have
complete control over how much coee
is dispensed.
• ‘Press & hold’either the
START|PAUSE|CANCEL button or push the
handle of your portalter to activate the
PORTAFILTER SWITCH for as long as you
require.
• ‘Release’ START|PAUSE|CANCEL button
or PORTAFILTER SWITCH and grinding will
stop.
PRESS, HOLD & RELEASE
OR
ZATLAČIT
PORTAFILTER SWITCH

18 OPERATING YOUR COFFEE GRINDER CG 8030
ADJUSTING YOUR GRIND AMOUNT
The GRIND AMOUNT dial gives you the
ability to modify the preset SHOTS|CUPS
amounts to deliver more or less ground
coee into your portalter or grinds
container.
Increasing the grind amount
To increase the grind amount selected, turn
the GRIND AMOUNT dial to the right.
Each adjustment will increase the grind time
by 0.2 of a second.
Decreasing the grind amount
To decrease grind amount selected, turn
the GRIND AMOUNT dial to the left.
Each adjustment will decrease the grind
time by 0.2 of a second.
NOTE:
To RESET the grind amount/time to
the default settings,‘press & hold’ the
SHOTS|CUPS button until a long beep
sounds.

19
OPERATING YOUR COFFEE GRINDER CG 8030
ADJUSTING CONICAL BURRS
Some types of coee may require a wider grind range to achieve an ideal extraction or brew.
A feature of your Catler Coee Grinder CG 8030 pro is the ability to extend this range with an
adjustable upper burr. We recommend making only one adjustment at a time.
Unlock hopper Hold hopper over container & turn dial
to release beans into container Align hopper into position Run grinder until
empty
Remove hopper Remove upper burr Remove wire handle
from both sides
of the burr
Move adjustable
top burr, 1 number,
coarser or ner
Align the number
with the handle
opening
Insert wire handle
from both sides of
the burr
Push upper burr
rmly into position Lock upper burr Align hopper into position Lock hopper
Check your extraction
Air tight
container

20 ASSEMBLING YOUR FOOD PROCESSOR FP 8010
Care and cleaning
Tips and tricks
Troubleshooting
