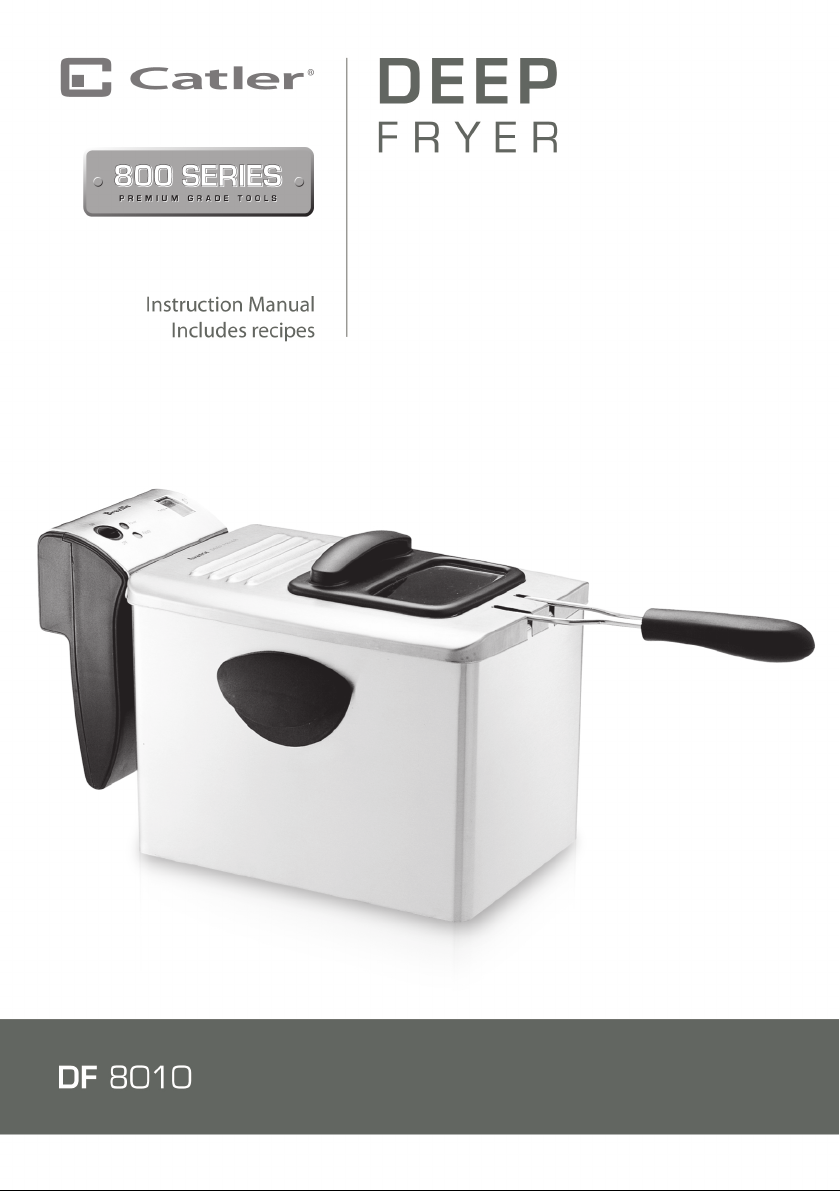

Catler 800 SERIES User manual

DEEP FRYER

CONTENTS
CONTENTS
3 Congratulation
4 Catler recommends safety rst
6 Know your Deep Fryer DF 8010
8 Assembling your Deep Fryer DF 8010
9 Operating your Deep Fryer DF 8010
14 Care and cleaning
15 Cooking guide
16 Handy tips
R1 Recipes
2

3
Congratulations
on the purchase of your new Deep Fryer DF 8010.
CONGRATULATIONS

4
CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture consumer products with
the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise
a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR DEEP FRYER DF 8010
CATLER RECOMMENDS SAFETY FIRST
• Read all instructions before operating this
appliance and save for future reference.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Children should be supervised to ensure
that they will not play with the appliance.
• Always turn the appliance o, rst turn
o at the power outlet and then unplug
cord when not in use before attempting
to move the appliance, before cleaning or
storing.
• Do not immerse the appliance controller,
supply cord or plug in water or any other
liquid.
• Do not leave the appliance unattended
when in use.
• Always use the appliance on a dry, level
surface.
• Do not let the cord touch hot surfaces,
become knotted or hang from the edge of
benchtops.
• Do not place this appliance on or near a hot
gas or electric burner, or where it could
touch a heated oven.
• This appliance is for household use only.
Do not use this appliance for other than
its intended use. Do not use in moving
vehicles or beats. Do not use outdoors.
• Regularly inspect the supply cord, plug
and actual appliance for any damage. If
found damaged in any way, immediately
cease use of the appliance and return the
entire appliance to the nearest authorised
Catler Servise Centre for examination,
replacement or repair.
• Keep this unit clear of walls, curtains and
other heat sensitive materials (minimum
distance 20 cm). Do not place unit under
shelving or ammable materials when in
use.
• Always follow the maximum and minimum
quantities of oil stated in the instructions
and recipes.
• Do not exceed the maximum ll level
(3 litres). Never overll the bowl with oil.
Extreme caution must be used when the
appliance is lled with hot oil. Always allow
the appliance to cool before removing
the oil.
• Do not move the deep fryer during cooking
or whist hot.
• When deep frying, ensure no water comes
in contact with hot oil as this will cause
splattering. Ensure that the deep fryer is
dry before adding any oil.
• Never lean over the deep fryer when lifting
the lid. Excess trapped steam created
during the cooking process will be released
when the lid is opened.

• Never pour oil out of the deep fryer when
either the unit or oil is hot. Allow both
the unit and contents to cool completely
before removing oil.
• It is not recommended to add extra oil
when hot as splashing may occur.
• Always ensure the heater element and
controller are correctly positioned onto
the bowl assembly and lled to min/max
before connecting to a power outlet.
• Do notuse thedeep fryer onmetal surfaces,
for example, a sink drain board.
• At no time should the deep fryer be left
unattended when in use.
• Do not place anything on top of the deep
fryer when the lid is closed, when in use
and when stored.
• The installation of a residual current
device (safety switch) is recommended to
provide additional safety protection when
using electrical appliances. It is advisable
that a safety switch with a rated residual
operating current not exceeding 300mA be
installed in the electrical circuit supplying
the appliance. See your eletrician for
professional advice.
5CATLER RECOMMENDS SAFETY FIRST

KNOW YOUR DEEP FRYER DF 8010
Mesh lter
Frying basket with fold
down handle
Powerful
2 200 watt
removable
element
Removable
stainless
steel bowl
‘Cool Zone’
technology
4 litre oil capacity
Power‘On’switch
‘On’ and‘Ready’
lights
Variable
temperature
control
Stylish stainless
steel exterior
1,2 kg food capacity
Large viewing window
6
KNOW YOUR DEEP FRYER DF 8010

Operating

8
ASSEMBLING YOUR DEEP FRYER DF 8010
ASSEMBLING YOUR DEEP FRYER DF 8010
1. Remove lid by simply lifting o deep
fryer.
2. The hinged basket is designed for compact
storage (Fig. 1).
3. To extend handle, pull handle and lift
backwards.
4. Lift back panel upwards and away from
unit (Fig. 2).
5. Remove bowl by grasping rim of bowl and
lifting upwards (Fig. 3).
6. Reverse these steps to reassemble your
new deep fryer.
NOTE:
The stainless steel removable bowl
can only be inserted one way.
1
3
2
WARNING:
WHEN ASSEMBLING YOUR DEEP FRYER FOR USE, PLEASE ENSURE THE TONGUES
(FIG.1) ON THE DEEP FRYER ASSAMBLY ARE INSERTED INTO THE GROOVES (FIG.2)
ON THE DEEP FRYER BODY. THE DEEP FRYER WILL NOT OPERATE UNLESS CORRECTLY
ASSEMBLED.
2
GROOVES
TONGUE
1

9OPERATING YOUR DEEP FRYER DF 8010
OPERATING YOUR DEEP FRYER DF 8010
Before rst use
Remove all packaging materials and any
promotional labels from your deep fryer.
Wash the lid, removable bowl and wire frying
basket in hot soapy water and dry throughly.
Wipe inside of the bowl with a damp cloth
and dry thoroughly.
1. Place the deep fryer on a dry, level
surface. Ensure the deep fryer is not too
close to the edge of the bench top, and
that the power cord or basket handle
does not hang over the edge.
2. With the basket out of the deep fryer, add
oil to the bowl. Ensure not to add less
than the minimum level mark or exceed
the maximum level mark (min. 2,5 and
max. 4 litres).
NOTE:
Important: NEVER exceed the maxi-
mum ll level (4 litres).
3. Replace the lid.
4. Plug the power cord into a 230 V power
outlet and turn on the power ´On´ switch.
5. Turn the temperature control dial to the
desired temperature. The red ´Power On´
light will illuminate.
NOTE:
Your Deep Fryer DF 8010 is tted
with a special interlock switch and
will not operate if not properly
assembled.
6. Preheat the oil at the selected temperature
until the ´Green´ temperature ready light
illuminates.
NOTE:
When cooking the rst batch of food,
allow the deep fryer to cycle on and
o twice (as indicated by the green
temperature ´Ready´ light) before
placing the food into the deep fryer.
This will take approximately 15–20
minutes.
WARNING:
POWER CORD NEEDS TO BE FULLY EXTENDED BEFORE USE.
ALWAYS ADD THE REQUIRED AMOUNT OF OIL BEFORE SWITCHING THE POWER ON AT
THE POWER OUTLET.

7. When the oil has preheated, place the
basket into the deep fryer in the raised
position, with the basket handle in the
extended horizontal position (Fig. 4).
8. Add food to the basket. Do not ll the
basket so that it is more than two-thirds
full.
9. Holding the fryer basket handle lift from
the holding position and gently lower
the basket into the oil.
10. You may choose to cook with the lid on or o
the deep fryer.
NOTE:
Uniform-sized pieces will cook more
evenly.
11. When the food is cooked, raise the
basket out of the oil to drain, then turn
temperature control dial back to 150 °C
then turn the power ´O´ with the power
switch, then unplug the power cord.
12. Keep the basket in the raised position for
a few minutes to drain the oil from the
food before serving.
13. If continuing to cook allow the unit to
regest until the ´Green´ temperature light
illuminates.
14. Allow the deep fryer to fully cool before
emptying the oil or cleaning the unit.
10
OPERATING YOUR DEEP FRYER DF 8010
WARNING:
DURING AND IMMEDIATELY AFTER COOOKING, YOU MAY SEE STEAM RISING
THROUGH THE FILTER VENT OPENINGS IN TEH LID. THIS IS NORMAL, HOWEVER
AVOID TOUCHING THIS AREA DURING COOKING TO PREVENT STEAM BURNS AS THE
STEAM THAT IS GENERATED IS AT A HIGH TEMPERATURE.
AS THE BASKET ITSELF GETS VERY HOT, ONLY USE THE HANDLE TO HOLD OR CARRY
THE BASKET FOR SERVING.
4

11 OPERATING YOUR DEEP FRYER DF 8010
The submerged heating element system
on the DF 8010 allows oil to be heated
more eectively, and respond quickly to oil
temperature change.
Oil before the heating element is cooler and
allows cooked foods including crumbs to sink
to the bottom of the stainless steel bowl and
not cook any further, tainting the oil taste.
This allows further cooking to take place
without food particles interfering or tainting
the cooked result.
The Cool Zone Technology results in less need
to change the cooking oil. Used oil can be
re-used more times than in standard deep
fryers.
Always add the required amount of oil
BEFORE switching the power on at the power
outlet. An Auto Cut-Out safety switch will be
activated if the unit is turned on without oil
in the bowl.
To re-activate the unit, let the unit cool
completely and then reset by pushing the red
button on the back of the controller assembly
above the cord storage.
´COOL ZONE´ TECHNOLOGY AUTO CUT-OUT RESET BUTTON

Cleaning

• Before cleaning the deep fryer, always
make sure the unit is disconnected from
the power outlet.
• Make sure the unit and oil are completely
cool. Do not attempt to move or carry the
deep fryer, element and control assembly
while it is hot.
• Wash the basket in hot soapy water. Dry
thoroughly.
• Remove the control assembly of the deep
fryer by lifting upwards (Fig. 5).
• Grasp each side of the removable bowl
and lift upwards (Fig. 6).
• Empty the bowl of cooled oil. As oil can
be re-used several times (depending on
type of food cooked), lter the oil through
a ne sieve.
• The removable stainless steel bowl
allows for easy cleaning. Wipe down the
bowl with absorbent paper, then a damp
cloth and a little mild detergent. Finally
wipe the bowl with a clean damp cloth
and dry with a clean dry cloth.
• Wipe over the controller assembly and
element with a damp cloth and a little
mild detergent. Finish o with a clean
damp cloth followed by a clean dry
cloth.
• The removable bowl, frying basket and
outer body are dishwasher safe.
• Wipe over the outside of the unit with
a damp cloth and a little mild detergent.
Finish o with a clean damp cloth
followed by a clean dry cloth.
• Reassemble unit for storage.
14
CARE AND CLEANING
CARE AND CLEANING
5
6
WARNING:
ALWAYSTURNTHE APPLIANCE OFF,TURNTHE POWER OFF AT THE POWER OUTLET AND
THEN UNPLUG CORD BEFORE ATTEMPTING TO MOVE THE APPLIANCE AND BEFORE
CLEANING.
DO NOT UNDER ANY CIRCUMSTANCES IMMERSETHE CONTROL ASSEMBLY, THE SUPPLY
CORD OR PLUG IN WATER OR ANY OTHER LIQUID.

15 COOKING GUIDE
COOKING GUIDE
The cooking times given in this chart are only a guide, and should be adjusted to suit the
quantity of food being deep fried.
Food Temperature Approximate cooking time
Fish (in batter) 180 °C 5–7 minutes
Fish cocktail pieces (in batter) 190 °C 4–6 minutes
Chicken pieces (crumbed) 170 °C 12–15 minutes
Prawn cutlets (raw, crumbed) 180 °C 3–4 minutes
Potato wedges (pre-cooked) 170 °C 7–10 minutes
Potato chips (thick) 190 °C 5–6 minutes
Potato chips (thin) 190 °C 2–4 minutes
Onion rings 190 °C 2–4 minutes
Spring rolls (small) 180 °C 4–6 minutes
Mushrooms 150 °C 4–5 minutes
Fruit fritters 180 °C 4–5 minutes

16
HANDY TIPS
HANDY TIPS
Food should be crisp when deep fried. If
results are soggy, it is because the oil is not
hot enough. This can be attributed to one or
more of the following:
• Not enough preheating time.
• Temperature setting is too low.
• Too much food in the basket (do not ll
more than two thirds full).
• Do not use solid frying oil, only use liquid
oils.
• Use a good quality liquid oil. For best
results we recommend the oils listed in
the table below. We do not recommend
fats that deteriotate quickly such as
lard or dripping. Deep frying in butter
or margarine is also not recommended
because of the low smoke-point
temperatures.
• Oil can be re-used several times before
it starts to break down (smoke-point
decreased ie. The oil will burn at a lower
temperature, fried food will be less
crisp). Filter the cooled oil through a ne
sieve then store in an airtight container
in a dark place. As oil will absorb food
avour, it is a good idea to label the
container with the type of food the oil
was used for. For example you would not
deep fry a dessert in oil previously used
for cooking sh. A ne sieve can be a new
chux cloth, paper coee lter or clean
cotton material.
• Olive oil is not recommended for deep
frying due to its low smoke-point.
RECOMMENDED OILS
Vegetable oil:
A general term that revers to a blend of oils
extracted from various seeds and fruits.
Vegetable oil has a very mild avour and aroma.
It is low in cholesterol and saturated fats.
Sunower oil:
The oil is extracted from the seeds of the
sunower plant. It is pale yellow in colour
with virtally no avour. Sunower oil is high
in polyunsaturated fats and low in saturated
fats.
Canola oil:
Made from seeds of the canola plant. It is
relatively low in saturated fats, contains
Omega 3 fatty acids and has a bland neutral
avour.
Saower oil:
Safflower oil is derived from the seeds
form the safflower. It is strong in flavour,
rich in colour and has a high smoke-point.
Safflower oil is high in poyunsaturated fats
and vitamin E.
Peanut oil:
Peanut oil is obtained from the kernels of the
groundnut or peanut. It has a delicate avour,
nutty odour and has a high smoke – point.
Peanut oil is high in mono-unsaturated oil
and vitamin E.
WARNING:
DO NOT USE SOLID FRYING OILS, ONLY USE LIGUID OILS AS PER THE RECOMMEN-
DATIONS.

17
Due to continuous product improvements we reserve the right to make
technical and design changes.
Disposal of Used Electrical & Electronic Equipment
The meaning of the symbol on the product, its accessory or packaging indicates
that this product shall not be treated as household waste. Please, dispose of
this equipment at your applicable collection point for the recycling of electrical
& electronic equipments waste. In the European Union and Other European
countries which there are separate collection systems for used electrical and
electronic product. By ensuring the correct disposal of this product, you will help
prevent potentially hazardous to the environment and to human health, which
could otherwise be caused by unsuitable waste handling of this product. The
recycling of materials will help conserve natural resources. Please do not therefore
dispose of your old electrical and electronic equipment with your household
waste. For more detailed information about recycling of this product, please
contact your local city oce, your household waste disposal service or the shop
where you purchased the product.

RECIPES
