CAV DX-7 User manual

注意：CAV 保留在不作任何预先通知的情况下对规格和外型进行修改。
NOTE : SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE WITHOUT NOTICE .
使用说明书
H I GH -E N D S P E A K E R S Y S T E M
DX-7
SPEAKER SYSTEM
Operating Instructions
Product: HIGH-END SPEAKER SYSTEM
Model: DX-7
Manufacturer: CAV Audio (Guangzhou) Co.,Ltd
Address: 9, MingJing Industrial District Hualong,
Panyu,Guangzhou,China
广东汉洋电器有限公司
品名：HIGH-END扬声器系统
型号：DX-7
生产：广州汉林电器实业有限公司
地址：广州市番禺区化龙镇石化公路明经路段九号
CAV INC.

HIGH-END SPEAKER SYSTEM
更多信息请浏览 CAV官网 www.cn-cav.com
DX-7

尊敬的用户：
感谢您购买了DX-7, 它是CAV倾力制作的一款具有精湛技术和深厚艺
术内涵完美结合的扬声器系统, 该系统是CAV表现美学、艺术形式与真实
音乐合而为一的理想载体, 也是本公司独具个性的又一代表性产品。
本公司的企业精神是高尚生活, 愿您体验高尚生活中的音乐。
为获得最佳性能和完备的服务支持, 敬请仔细阅读本说明书, 并妥善保
存以备将来查阅。

主要特点:
1. 箱体采用三维宫格支撑技术
箱体内部纵横多层木架支撑，箱体大动态的播放时的共振得到有效抑制，消除箱体自身
振动产生的音染。
2. 高音单元采用德国伊顿ETON的magnesium-diaphragm高音扬声器
这款镁振膜高音在表面两边涂覆陶瓷材料，这种三明治结构同时兼备高硬度和高阻尼的
声学特性。
3. 中低音采用德国ETON的HEXACONE六角蜂巢振膜扬声器
中低音用德国ETON的HEXACONE三明治六角蜂巢振膜技术，在提高刚性的同时还能增
大振盆内部阻尼，使声音更清晰、更干净，同时振动质量的的降低可以显著的改善低频
的瞬态响应，速度更快，失真更低。
4. 分音器采用高纯度铜箔电感技术
分音器滤波电感采用高纯度铜箔电感，可以使分音器内部损耗达到最低，同时大电流的
状态无磁饱和失真，涡流失真降至最低。
5. 扬声器系统设计LEAP曲线优化
扬声器系统设计过程反复用LEAP系统优化，每个部分的参数值都优化到最佳状态。
注意事项:
1、音箱连接线应确实与功率放大器连接可靠，否则会产生噪声。
2、音箱应放置于水平、坚固的地方。音箱后背离墙应有大约20-50厘米距离，会使低音更
为丰满。
3、如果音箱的极性接反，会导致立体声效果不佳。
保养:
1、如无必要，请尽量避免音箱在满负荷的状态下长时间工作。
2、开机前，请注意功率放大器音量旋钮的位置，应在最小或较小音量位置才开机。
3、清洁音箱表面，请用干软布擦净。切记不要用天拿水、汽油等化学溶剂，否则会损坏音
箱表面。
附件：
音箱连接线3.6米2条。
注:上述规格如有变动，恕不另行通知。
DX-7 SPL/IMP
01 06
CURVE FOR FREQUENCY AND IMPEDANCE DX-7
DX-7扬声系统使用说明

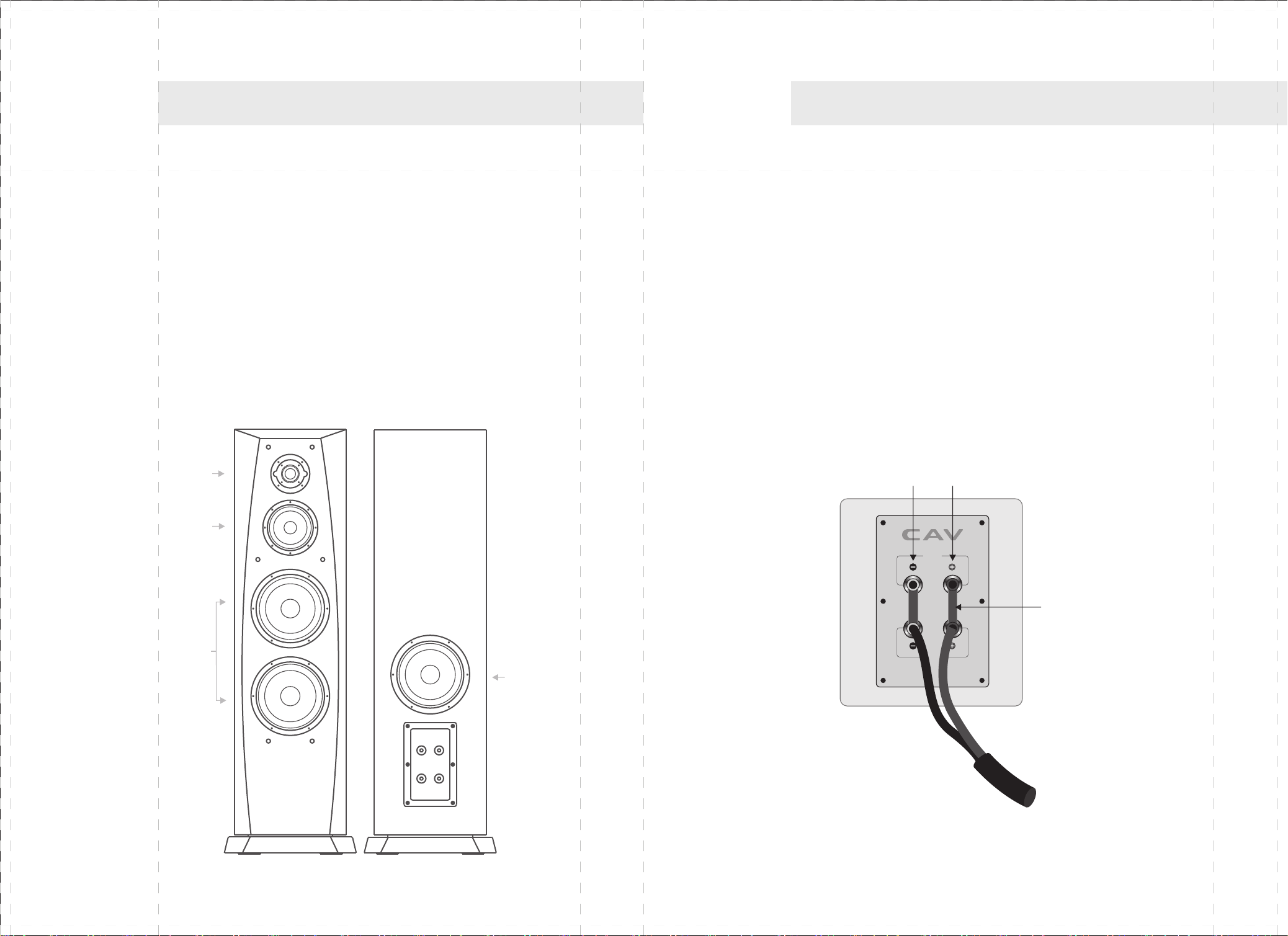

8" Passive Radiator
正极端连接柱
功放机连接线
镀金铜片
负极端连接柱
TWEETER
MIDRANGE
WOOFER
Category: 3-ways 4 units (with passive radiator）
Tweeter : 1x1” ETON magnesium-diaphragm Tweeter
Mid: 1x5.25” ETON three-layer hexacone sandwich cone Mid-Bass
Bass: 2x8” ETON three-layer hexacone sandwich cone Woofer
Passive Radiator: 1x8” ETON three-layer hexacone sandwich cone Passive Radiator
Sensitivity: 89 dB
Power Handling: 40W-200W
Impedance: 4 Ω
Frequency Range: 28Hz-20kHz
Dimensions：W375xD551xH1200 mm
Net weight：75kg
(Cabinet back)
05 02
TECHNICAL SPECIFICATION DX-7 DX-7 扬声器系统连接方法
连接方法一:
普通一台功放机连接方法
1、确定功放机的电源处于关闭状态。
2、确认DX-7后接线板上的两组接线柱之间的连接铜片是将两个正极、负极分别连接好。
3、取出附件里的音箱连接线，从功放的正负极输出接出，正极(+)连接红色端，负极(-)连接
黑色端，线的另一端与音箱的正负极分别连接起来。(见图)
4、最后再打开功放机的电源。
INPUT
INPUT

INPUT
INPUT
接入功放机
A扬声器输出端
接入功放机
B扬声器输出端
OPERATING GUIDE
The nominal power of the speaker refers to low frequency power. Excessive
reliance on the mid and tweeter drivers or constant deviation from nominal
distribution may result in damage due to overloading. Please note that damage
caused by this is not covered by warranty. To ensure the HIGH FIDELITY
performance, the sensitivity of this Hi-End speaker system is relatively low.
NOTICES
1. This speaker system was designed for domestic use only. If used outside of
these guidelines, warranty may not apply and we would recommend that you
seek for professional advice with regards to setup and installation.
2. By sound pressure testing, the recommended space requirement for optimum
listening is 25 square meters-80 square meters in area and 2.8-7.0 meters
vertical height.
3. European Community compliant in design and manufacture. No special power
requirements apply.
SPEAKER PLACEMENT
1. Place speakers to the front of listener and position symmetrically.
2. Do not place the speakers side by side. A minimum of 1.5 meter between
speakers is recommended. Ideally, both speakers and listener should from a
triangle to get the best stereo effect.
3. Place speakers close to the wall (leaving 20-50cm space) to better bass
response. Ideally the tweeter drivers should be a listener's ear height.
4. Avoid direct sunlight and any liquid on the speakers.
03 04
DX-7扬声器系统连接方法
连接方法二:
双线分音:用多台功放推
1、确定功放机的电源处于关闭状态。
2、将DX-7后接线板上的两组接线柱之间的连接铜片拆下, 让两组接线柱正极、负极处于断
开状态。
3、将一台功放机的输出端左右声道正负极分别与DX－7的上面一组接线柱连接, 再将另一台
功放的左右声道的正负极分别与DX－7的下面一组接线柱连接。
4、最后打开功放机的电源(这种连接方法需要再多购买本公司音箱连接线2条)。
另注：此方法仅供参考,实际音效与调试方法与器材搭配有关。
OPERATING GUIDE DX-7

Connect the amplifier
A to output terminal
Connect the amplifier
B to output terminal
03 04
CONNECTION DX-7
CONNECTION 2
BI-WIRING, DRIVEN BY TWO AMPLIFIER
1、Before connecting any wires, ensure the power amplifier is turned off.
2、Take off the two set of gold strap in the real board, Ensure the Positive pole
and Negative pole is disconnection.
3、Connect the positive and negative of the output for left(right)channel for the
amplifier with the two wire post(+,-)on the upside of the rear board of DX-7
;Connected the positive and negative of the output for left(right)channel the
amplifier with the two wire post(+,-)on the underside of the rear board of DX-
7.
4、Now you can turn on the power of amplifier (For this way ,you should buy
another cable from our company).
Note:
This operating guide is only for reference.
The actual performance should be relative to the quality of connecting cable and
setting measurement.
DX-7扬声器系统使用指南
使用指南:
本音箱的标称功率是指低频功率，过分地提升高音或中音使用，信号成份的比例严重偏
离正常分布，将有可能使高、中音单元超负荷而损坏，在音响系统中，功率放大器的标称功
率往往会大于音箱的标称功率，这是为了应付音乐信号中一些瞬间强信号的缘故，也是音响
系统的最基本要求之一。因此，在使用中需格外小心勿将音量开至最大，否则，将会造成损
坏。(因此造成的损坏，我们将不负责免费保修）有的系统标称功率大，可能听起来声音并
不大。这与音箱的灵敏度有关。灵敏度高，在相同的功率下，声音听起来就响得多，这当然
是我们所希望的。但是，在高保真音响系统中，为了照顾高保真性(即:减少失真，以及整个
频段的平衡)可能灵敏度会较低一些，这在您的使用中须引起注意。
提醒:
1、非专业扩声设备，如需特殊用途，请在专家指导下进行。
2、声压测试新界定的听音空间面积为25m2-80m2， 垂直高度：2.8m-7.0m。
3、欧共体标准适配性参数设计，对功放机无任何特殊要求，极易推动。
音箱的放置:
1、音箱应放置在听音位置的前方，左右对称地放置。
2、勿将音箱并排地放置地一起。轴线距离应大于1.5M，会使立体声的效果较佳。（一般来
说，听音位置与两个音箱构成等三角形，效果是比较理想的。）
3、音箱靠墙约20-50厘米放置，会使低音听起来丰满。请注意音箱的放置高度，高音单元
最好是接近人耳的高度。
4、避免阳光直接照射和雨淋。
INPUT
INPUT

8" 低音
1" 高音
5.25" 中音
8" 被动辐射器
Negative pole (-) Positive pole (+)
Copper Stick
Connecting
cable to the amplifier
INPUT
INPUT
声学类型：被动幅射器箱passive radiator Box 4 way
高音单元: 1x1英寸陶瓷镁三明冶振膜高音 (ETON /德国伊顿)
中低音单元: 1x5.25英寸三明冶振膜低音单元 (ETON /德国伊顿)
低音单元: 2x8英寸三明冶振膜低音单元 (ETON /德国伊顿)
被动幅射器: 1x8英寸三明冶振膜被动幅射器 (ETON /德国伊顿)
灵敏度: 89dB
额定阻抗: 4Ω
功率范围: 40W - 200W
频响范围: 28Hz – 20kHz
外形尺寸：W375xD551xH1200 mm
重量：75kg
（音箱背面）
05 02
DX-7扬声器系统技术规格 CONNECTION DX-7
CONNECTION 1
NORMAL, DRIVEN BY ONE AMPLIFIER
1、Before connecting any wires, ensure the power amplifier is turned off.
2、Make sure that the golden flake between the top wire post(+,-)l and
thebottom wire post(+,-) are connected.
3、Connect the speaker to the amplifier with the cable in the attachment. Ensure
that the (+)pole (red) on the rear of the speakers are connected to the
(+)pole(red) of the power amplifier.Ensure that the (-)pole (black) on the rear
of the speakers are connected to the (-)pole (black)of the power amplifier.
4、Now you can turn on the power of amplifier.

DX-7 频率响应 / 阻抗曲线图
01 06
SPEAKER SYSTEM OPERATING INSTRUCTIONS DX-7
KEY FEATURES:
1. Cabinet adopting 3D palace supporting technology
Inside cabinet is with multi-layer wooden rack constructed vertically and
horizontally, the acoustic resonance is restrained effectively and vibration gets
damping.
2. Fitted with ceramic drivers produced by Accuton for tweeter and mid-range
Anti-resonant cutout fills in the ceramic dome provide for damping of the
dome resonance. Using Accuton’s ultra hard ceramic dome contributes
excellent sound transfer speed up to 9700m/s, much faster than using other
normal material. This ensures of pure sound and minimum distortion.
3. Fitted with Hexacone midrange and woofer drivers produced by Eton
midrange and Woofer are built in Hexacone by Eton, due to its flat
constructionmethod the chassis is additionally well suited for side mounting, it
increases the hardness and vibration damping, which let the speaker more
clear and clean. Excellent vibration damping elements ensure better low
frequency’s instant response, faster speed but less distortion.
4. Crossover with high copper-containing resistor technology
Having high copper-containing filtering resistor in Crossover, the internal
consumption is kept at the lowest and eddy current distortion is minimized.
5. Best measurement by LEAP for loudspeaker systems
In order to gain the best performance, the testing by leap is repeatedly and find
out the best design for loudspeaker systems.
PRECAUTIONS
1. Make sure the connecting wires are firmly connected to the power amplifier to
prevent electrical leakage.
2. Place speakers close to the wall (leaving 20-50cm space) for better bass
response.
3. Be sure that connecting wires have correct polarity to get the correct stereo
effect.
MAINTENANCE
1. Do not use speakers at peak loads constantly.
2. Always ensure that the volume in the low or minimum position before starting
up.
3. To clean the surface, wipe with a dry soft cloth. Do not use chemical solvents
such as mentholated spirits etc. which may cause damage to the surface of the
speakers.
ACCESSORIES
Speaker cable in 3.6 meters (x2)
For the purpose of improvement, specification and design are subject to change
without notice.
DX-7扬声器系统频率响应和阻抗特性曲线

DX-7
HIGH FIDELITY SPEAKER
Dear end-users
Thank you and congratulation on your purchase CAV latest high-end speaker
system-DX-7. This system represents the perfect combination between beauty
and real music, and CAV' updated design as well.
Our company's spirit is to give you noble life through our products. Please
enjoy our products and enjoy your life.
To get the best performance and help maintain the system, please read this
instruction manual carefully and keep it for future reference.
