Cavaliere 218 Series Assembly instructions

Installation Guide
and Users Manual
Wall Mount Range Hood
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
218 Series Pro Wall Hood
Rev. 1025u.1d

Page 1
Important Safety Notice
Read all Instructions before Installing and operating this appliance
The installation in this manual is intended for qualied installers, service technicians or persons with •
similar qualied background. Installation and electrical wiring must be done by qualied profession-
als and in accordance with all applicable codes and standards, including re-rated construction.
DO NOT• attempt to install this appliance yourself. Injury could result from installing the unit due to
lack of appropriate electrical and technical background.
Range hood may have very sharp edges; please wear protective gloves if it is necessary to remove any •
parts for installing, cleaning or servicing.
Activating any switch ON before completing installation may cause ignition or an explosion.•
Due to the size and weight of this range hood, two people installation is recommended.•
To reduce the risk of re, electric shock, or injury to persons:
For general ventilating use only. • DO NOT use to exhaust hazardous or explosive materials and va-
pors.
The combustion air ow needed for safe operation of fuel-burning equipment may be affected by this •
unit’s operation. Follow the heating equipment manufacturer’s guideline and safety standards such
as those published by the National Fire Protection Association (NFPA), and the American Society of
Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
Before servicing or cleaning unit, switch power OFF at service panel and lock service panel to pre-•
vent power from being switched ON accidentally.
Clean grease laden surfaces frequently. To reduce the risk of re and to disperse air properly, make •
sure to vent air outside. DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics
or garages.
Ducted fans MUST always be vented to the outdoors.•
Use only metal ductwork and this unit MUST be grounded.•
Sufcient air is needed for proper combustion and exhausting of gases through the duct to prevent •
back drafting.
When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hid-•
den utilities.
All electrical wiring must be properly installed, insulated and grounded.•
Old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease re.•
Check all joints on duct work to insure proper connection and all joints should be properly taped.•
Use this unit only in the manner intended by the manufacturer. If you have questions, contact the •
vendor.
To reduce the risk of a stove top grease re:
Keep all fan, bafe, spaces, lter, grease tunnel, oil container and grease-laden surfaces clean. Grease •
should not be allowed to accumulate on fan, bafe, spaces, lter, grease tunnel and oil container.
Always turn range hood ON when cooking at high heat or when cooking aming foods. •
Use high settings on cooking range only when necessary.•
Never leave surface units unattended at high settings. Boil overs cause smoking and greasy spillovers •
that may ignite. Heat oils slowly on low or medium settings.

Page 2
Important Safety Notice
Read all Instructions before Installing and operating this appliance
The manufacturer and/or distributor/reseller declines all responsibility in the event of failure to ob-
serve the instructions given here for installation, maintenance and suitable use of the product.
The manufacturer and/or distributor/reseller further declines all responsibility for injury due to neg-
ligence and the warranty of the unit automatically expires due to improper maintenance.
The manufacturer and/or distributor/reseller will not be held responsible for any damages to per-
sonal property or real estate or any bodily injuries whether caused directly or indirectly by the range
hood.
Clean ventilating fan frequently.•
Always use appropriate cookware and utensils size.•
Always use cookware appropriate for the size of the surface element.•
To reduce the risk of injury to persons in the event of a stove top grease re:
SMOTHER FLAMES with a close-tting lid, cookie sheet, or metal tray, then turn OFF the burner. •
BECAREFUL TO PREVENT BURNS. NEVER PICK UP A FLAMING PAN—you may be burned.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the ames DO
NOT go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT or dial your local
emergency service immediately.
DO NOT USE WATER, including wet dishcloths or towels — a violent steam explosion will result.•
Use an extinguisher ONLY if:•
You know you have a Class A, B, C extinguisher, and you already know how to operate it.•
The re is small and contained in the area where it is started.•
The re department is being called.•
You can ght the re with your back to an exit.•
To reduce the risk of injury to persons in the event of a gas leaks:
Extinguish any open ame.•
DO NOT turn on the range hood fan or any type of ventilator.•
DO NOT turn on the lights or any type of appliance.•
Open all doors and windows to disperse the gas. If you still smell gas, call the gas company and re •
department, or dial your local emergency service immediately.
WARNING
Your safety and the safety of others is very important. We have provided many important safety mes-
sages in this manual and on your appliance. Always read and obey all safety messages. All safety mes-
sages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt you and others.
All safety messages will follow the safety alert symbol and the word “WARNING”.

Table of Contents
INSTALLATION
Tools needed....................................................3
Parts supplied...................................................4
Venting requirements.......................................5
Mount heights & clearance...........................5-6
Calculating vent system length.......................6
Venting methods..............................................7
Electrical requirements....................................8
Preparation......................................................9
Installation................................................10-11
Installation overview.....................................11
USE AND CARE
Range hood operations & diagrams..........12-16
Troubleshooting...........................................17
Use and care information...............................18
Specications..............................................18
MAINTENANCE
Cleaning...............................................19
Replacing the lter & light bulb.....................19
WARRANTY
Coverage & exceptions.................................20
Disclaimer & contact us.................................21
Tools needed:
Page 3
Level
Flat-blade and
Philips screw-
drivers
Powered
screwdriver
or drill
Measuring
tape
Utility knife
Marker or
pencil
Adjustable Wrench

Screw Set
Grease cup
Range Hood (vary with model)
Optional Duct Tube
For sheet rock only

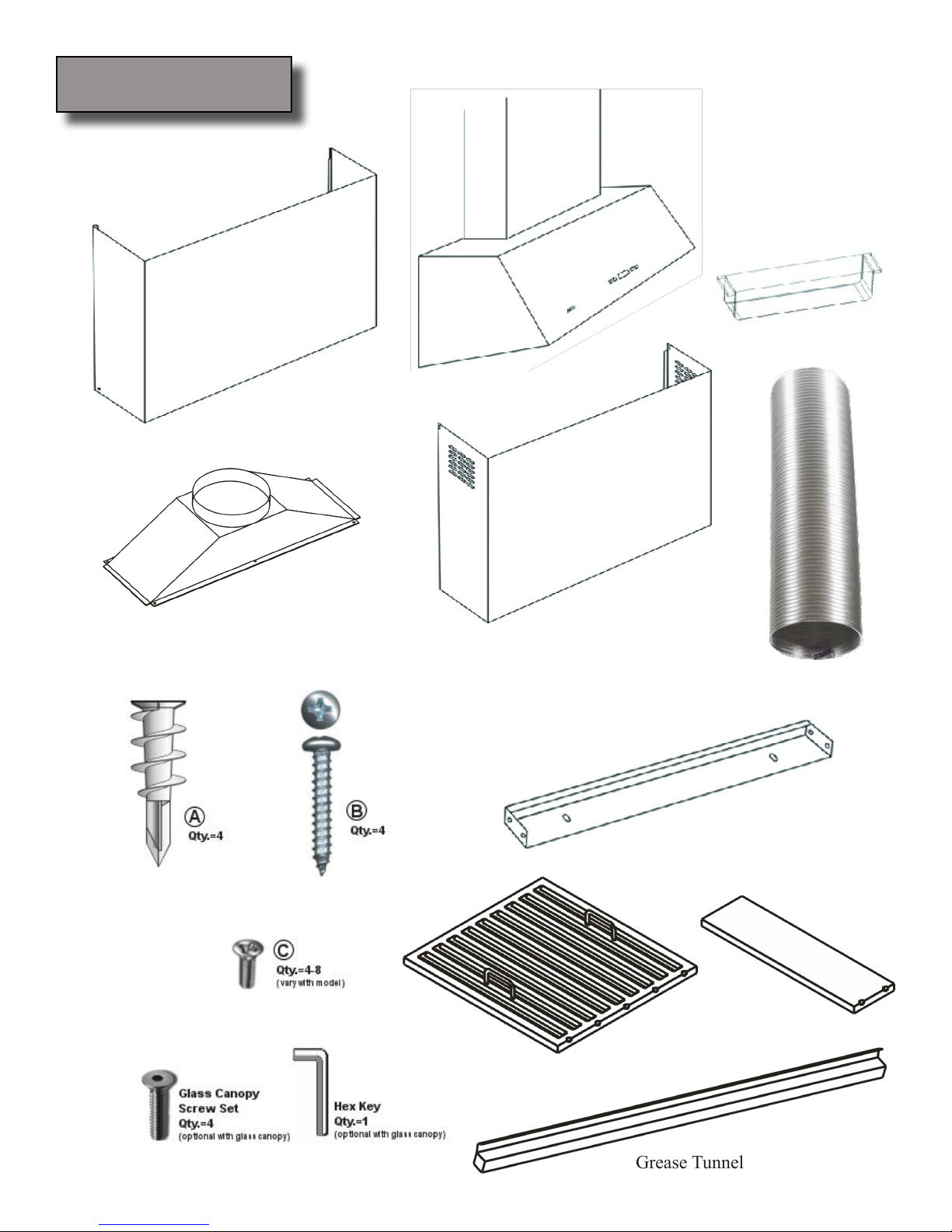

Parts supplied:
Lower standard chimney
Upper standard chimney
Mounting Bracket
Grease Tunnel
Bafe Filters
Page 4
Ducting Transition
Bafe Filter Spacer

Page 5
Ceiling
Height

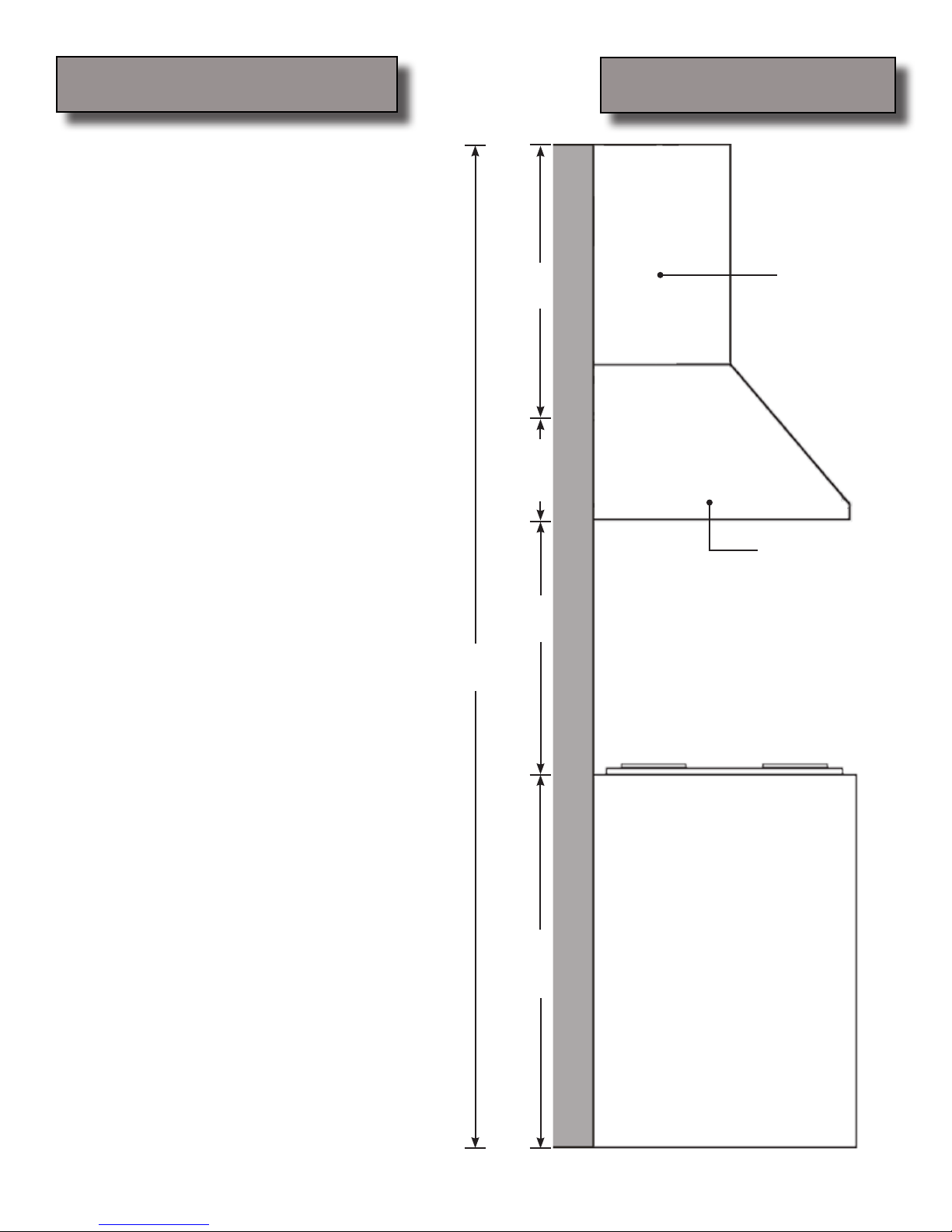

Venting Requirements Height & Clearance
Under Cabinet
Range hood
36”
Counter
Top
Min:
28”
Max: 31”
Vent system must terminate to the outside •
(roof or side wall).
DO NOT terminate the vent system in an at-•
tic or other enclosed area.
DO NOT use 4” (10.2 cm) laundry-type wall •
caps.
Use metal/aluminum vent only. Rigid metal/•
aluminum vent is recommended.
DO NOT use plastic vent.•
Always keep the duct clean to ensure proper •
airow.
Calculate the following gures before instal-•
lation:
Distance from the oor to the ceiling.1.
Distance between the oor to the coun-2.
tertop/stove (recommend* 28” to 31”).
Distance between the countertop/stove3.
to the range hood.
Height of hood and duct cover.4.
For the most efcient & quiet operation:
A distance of 28” to 31” is recommended* •
between stove top and the bottom of range
hood.
It is recommended that the range hood be •
vented vertically through the roof through 8”
(20.3 cm) or bigger round metal/aluminum
vent work.
The size of the vent should be uniform.•
Use no more than three 90° elbows.•
Make sure there is a minimum of 24” (61 •
cm) of straight vent between the elbows if
more than one elbow is used.
DO NOT install two elbows together.•
The length of vent system and number of •
elbows should be kept to a minimum to pro-
vide efcient performance.
The vent system must have a damper. If •
roof or wall cap has a damper, DO NOT
use damper (if supplied) on top of the range
hood.
Use silver tape or duct tape to seal all joints •
in the vent system.
Use caulking to seal exterior wall or roof •
opening around the cap.
* Due to different ceiling height congurations, rec-
ommended height may not be applicable.
Cabinet or Single-
piece Chimney
(Optional)
Range
Hood
Height
Cabinet
Height
Countertop/Stove

Page 6
IMPORTANT:
A minimum of 8” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate-•
ly) must be used to maintain maximum airow efciency.
Always use rigid type metal/aluminum ducts if available to maximize airow when connecting to provided •
duct.
Please use• Duct Run Calculation below to compute total available duct run when using elbows, transitions
and caps.
ALWAYS, when possible, reduce the number or transitions and turns. If long duct run is required, increase •
duct size from 8” to 9” or 10”. If a reducer is used, install a long reducer instead of a pancake reducer. Re-
ducing duct size will restrict airow and decrease airow, thus reduce duct size as far away from opening as
possible.
If turns or transitions are required: Install as far away from opening and as far apart, between 2, as possible.•
Minimum mount height between stove top to hood bottom should be no less than 28-inch*.•
Maximum mount height between stove top to hood bottom should be no higher than 31-inch*.•
It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat •
damage and re hazard; while hoods mounted too high will be hard to reach and will loose its performance
and efciency.
If available, also refer to stove top manufacturer’s height clearance requirements and recommended hood •
mounting height above range.
* Due to different ceiling height congurations, recommended height may not be applicable.
Minimum Duct Size:
Round - 8” minimum•
Rectangular - 3-1/4 x 10” minimum (requires a 8” to 3-1/4x10” adaptor, not supplied)•
Duct Run Calculation:
Recommended maximum run
8” or 3-1/4 x 10” duct 50 ft
Vent piece deduction
Each 90º elbow used 9 ft
Each 45º elbow used 5 ft
Each 8” to 3/14 x 10” transition used 7 ft
Side wall cap with damper 0 ft
Roof cap 0 ft
Duct Run Calcuation example:
One roof cap, two 90º elbow, and one 45º elbow used:
0ft + 9ft + 9ft + 5ft = 23ft used.
Deduct 23ft from 50ft, 27ft maximum available for
straight duct run.
Calculating Vent System Length
To calculate the length of the system you need, deduct the equivalent feet for each vent piece used in the system
from the recommended maximum duct run.

Page 7

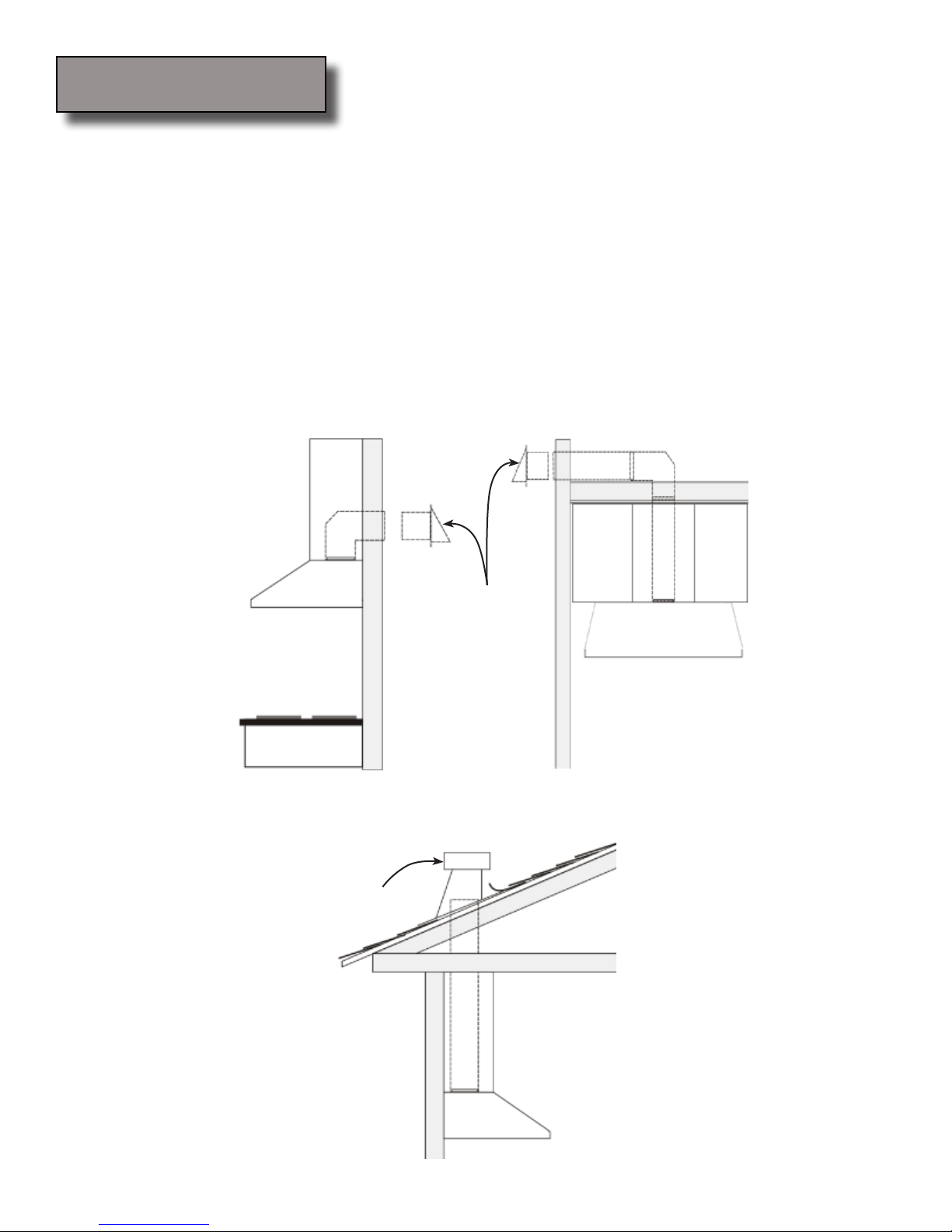

Venting Methods
This range hood is factory set for venting through the roof or wall.•
Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.•
IMPORTANT:
NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or •
garages. All exhaust must be ducted to the outside.
Use metal/aluminum duct work only. •
Fasten all connections with sheet metal screws and tape all joints with certied Silver Tape or Duct Tape.•
Use caulking to seal exterior wall or roof opening around the cap.•
Vertical roof venting
Roof cap
Option 2:
Side wall cap
Horizontal wall venting
Option 1:

Page 8
Electrical Requirements
IMPORTANT: For Europe and Other Countries with 220~240V/50Hz, please observe your local governing
codes and ordinances.
It is the customer’s responsibility:
To contact a qualied electrical installer.•
To assure that the electrical installation is adequate and in conformance with National Electrical Code, •
ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.
2 No. 0-M91 - latest edition** and all local codes and ordinances.
If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that
the ground path is adequate.
A 110~120V/60Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both
sides of the line.
Do not ground to a gas pipe.
Check with a qualied electrician if you are not sure that the range hood is properly grounded.
Do not have a fuse in the neutral or ground circuit.
IMPORTANT: Save Installation Instructions for electrical inspector’s use.
The range hood must be connected with copper wire/plug only.
The range hood should be connected directly to the fused disconnect (or circuit breaker) box through exible
armored or non-metallic sheathed copper cable. A U.L. - or C.S.A. - listed strain relief must be provided at each
end of the power supply cable.
Wire sizes (COPPER WIRE ONLY) and connections must conform with the rating of the appliance as specied
on the model/serial rating label. Wire sizes must conform to the requirements of the National Electrical Code
ANSI/NFPA 70 — latest edition*, or CSA Standards C22. 1-94, Canadian Electrical Code Part 1 and C22. 2 No.
0-M91 - latest edition** and all local codes and ordinances. A U.L. - or C.S.A. - listed conduit connector must
be provided at each end of the power supply cable (at the range hood and at the junction box).
Copies of the standards listed may be obtained from:
* National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
** CSA International
8501 East Pleasant Valley Road
Cleveland, Ohio 44131-5575

Preparation
Page 9
Advanced Preparations:
Be familiar with the controls of the range hood by reading 1.
through Range Hood Operations,Page 12.
Place the range hood on a at, stable surface. Connect the 2.
range hood to a designated standard outlet, 110~120V/60Hz
(220~240V/50Hz for Europe & other countries), AC only
and turn on the range hood. Verify all operations of the
range hood by referring to Range Hood Operations, Page
12.
Place all supplied parts and required hardware on a at, stable surface and verify the existence of all sup-3.
plied parts listed on Page 4.
Carefully remove the white plastic protective coat from the chimney covers and range hood.4.
Preparations:
Determine and mark the center line on the ceiling where the range hood will be installed. Make sure there is 1.
proper clearance within the ceiling or wall for exhaust vent.
Due to the weight and size of this unit, please make sure that the support system or framework being used is 2.
stable and secure in the wall.
Put a thick, protective covering over counter top, cook top or range to protect from damage or dirt. Remove 3.
any hazardous objects around the area when installing.
Mark the locations of the support mounting bracket holes, vent cutout (if used) and power supply cable cut-4.
out on the ceiling. Use drill and saber saw or keyhole saw to cut openings for power supply cable and vent
(see Venting Methods and Electrical requirements, Pages 7-8).
If venting to the outside install vent system (see 5. Venting Requirements, Page 5). Use caulking to seal exte-
rior wall or roof openings.
Disconnect main electrical supply, prepare and run electrical wiring through ceiling or wall. Leave approxi-6.
mately 12” of electrical cord hanging from the ceiling. Do not restore power until wiring is completed.

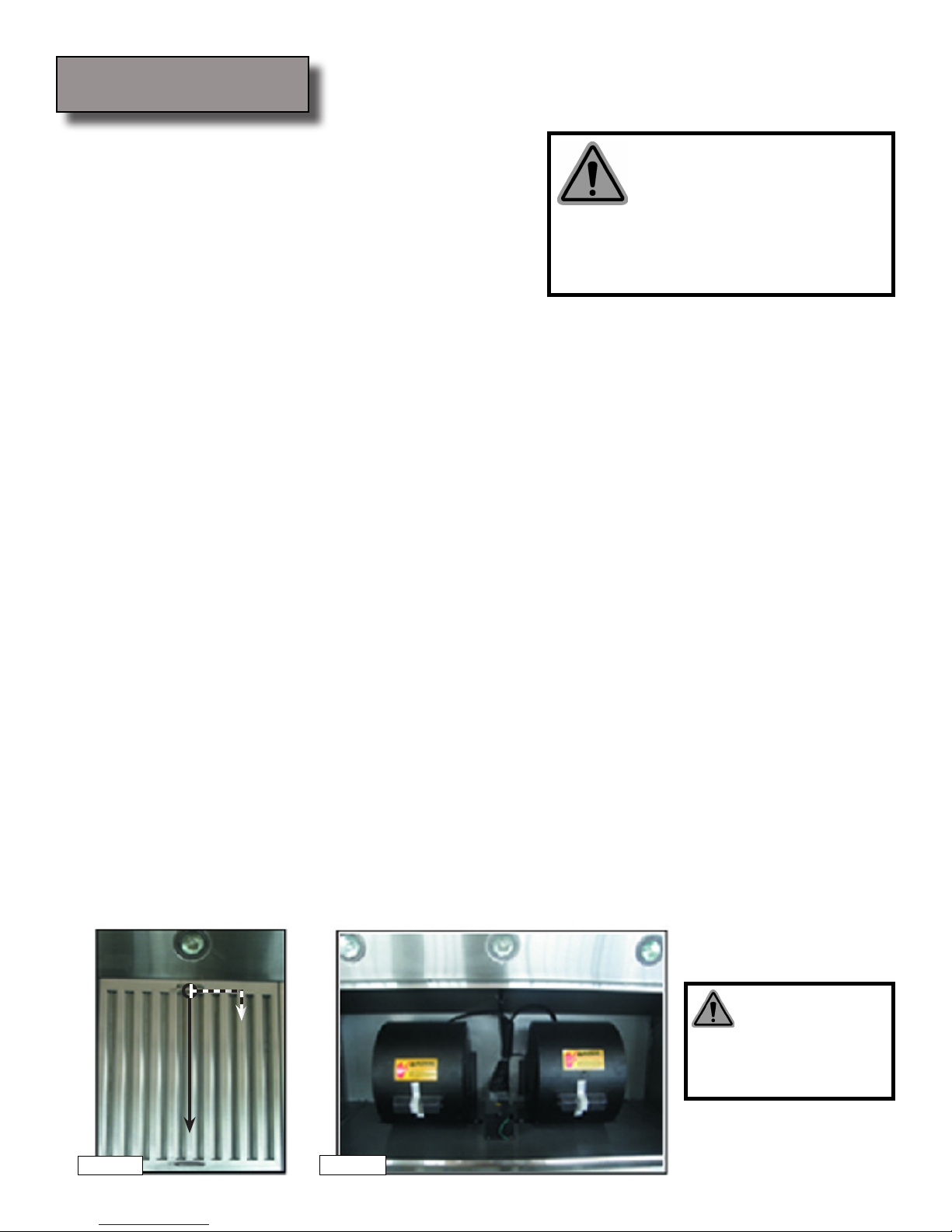

Disconnect power cord, remove the stainless steel bafe lters by pulling down toward the direction of solid 7.
arrow while holding both of the metal handles, gently pull the stainless steel bafe lters toward the direc-
tion of dashed arrow as shown in Figure 1 and the grease tunnel.
Remove the grease cup by sliding it sideway, see Figure 2 for location of the grease cup.8.
Set aside the stainless steel bafe lters, grease tunnel and grease cup until the range hood is properly in-9.
stalled.
If the range hood comes with a glass canopy and has not already been mounted to the hood, loosen the four 10.
canopy screws and washers from the hood top, carefully place the canopy on the hood top, and loosely tighten
the four canopy screws along with washers. DO NOT put excessive pressure against the glass.
Excessive Weight
Require three or more person to move and
install this range hood. Spinal or other bodi-
ly injuries could occur if it is not followed.
WARNING
WARNING
Severe Injury
Rotating fan can cause severe
injury. Stay clear of fan when
motor is running.
Figure 2
Figure 1

Installations (refer to page 4 & 11 for parts):
Measure the distance between stove top and the bottom 1.
of range hood. A distance of 28” to 31” is required.
Make sure the range hood is level and not tilted. Mark 2.
the locations of the hanging bracket holes on the wall as
shown in Figure 3A and Figure 3B.
Place the mounting bracket 3. directly above the range
hood, level it, and mark the locations of the mounting
bracket holes on the wall.
Place aside all equipments, locate marked regions and drill holes. Attach range hood to wall using anchors 4.
recommended for your type of wall:
Sheet rock wall: Attach range hood to stud blockings if possible. If stud blockings are not available, it is •
required to build a supporting structure behind the sheet rock for best weight support.
Concrete wall: Use designated screws (not provided).•
Wood wall: Use at least 5 cm long wood screws (not provided).•
Fasten two Type “A” anchors (for range hood and for mounting bracket or air diverter) on the wall as shown 6.
in Figure 4. Loosely fasten two Type “B” screws onto anchors, DO NOT fasten screws all the way. Hang the
range hood on the Type “B” screws and hand tighten them. Leave approximately 1/8” of gap from the wall to the
range hood.
Place the mounting bracket against the wall and align the holes from mounting bracket with holes from Type 7.
“A” anchors, fasten two Type “B” screws through the holes onto the anchors as shown in Figure 5. Leave ap-
proximately 1/8” of gap from the wall to the mounting bracket.
Page 10
Installation
Figure 3A
Figure 4
Secure
upper
support
frame
Figure 3B
Fasten mounting
bracket
Slide up and secure
upper chimney to
mounting bracket
Hold in position and
secure lower chimney
to range hood
Figure 5

Page 11
Installation (Continued)
Upper chimney
Wall mount
range hood
Lower chimney
8” Round duct (exhaust)
Air Movement Direction
Note: Type “A” anchors are designed
for dry wall. Not to be used with any
other types of walls.
Calculate8. the height of the duct tube and extend approximately 6” (15 cm) longer than required, connect the
lower end of the duct tube to the range hood and the upper end to the vent system. Make sure the main electri-
cal supply remains disconnected then connect power plug to the electrical cord or wall plug.
Have one person carefully position both upper and lower chimneys on the range hood, let the second person 9.
slide the sides of the chimneys into the 1/8” gap. Fasten both chimneys with four Type “C” screws.
Install grease tunnel and stainless steel bafe lters then check the operation of the range hood.10.
Installation Overview
Mounting Bracket
For sheet rock only
A B
C
A B
C

Page 12
Power
Decrease Value

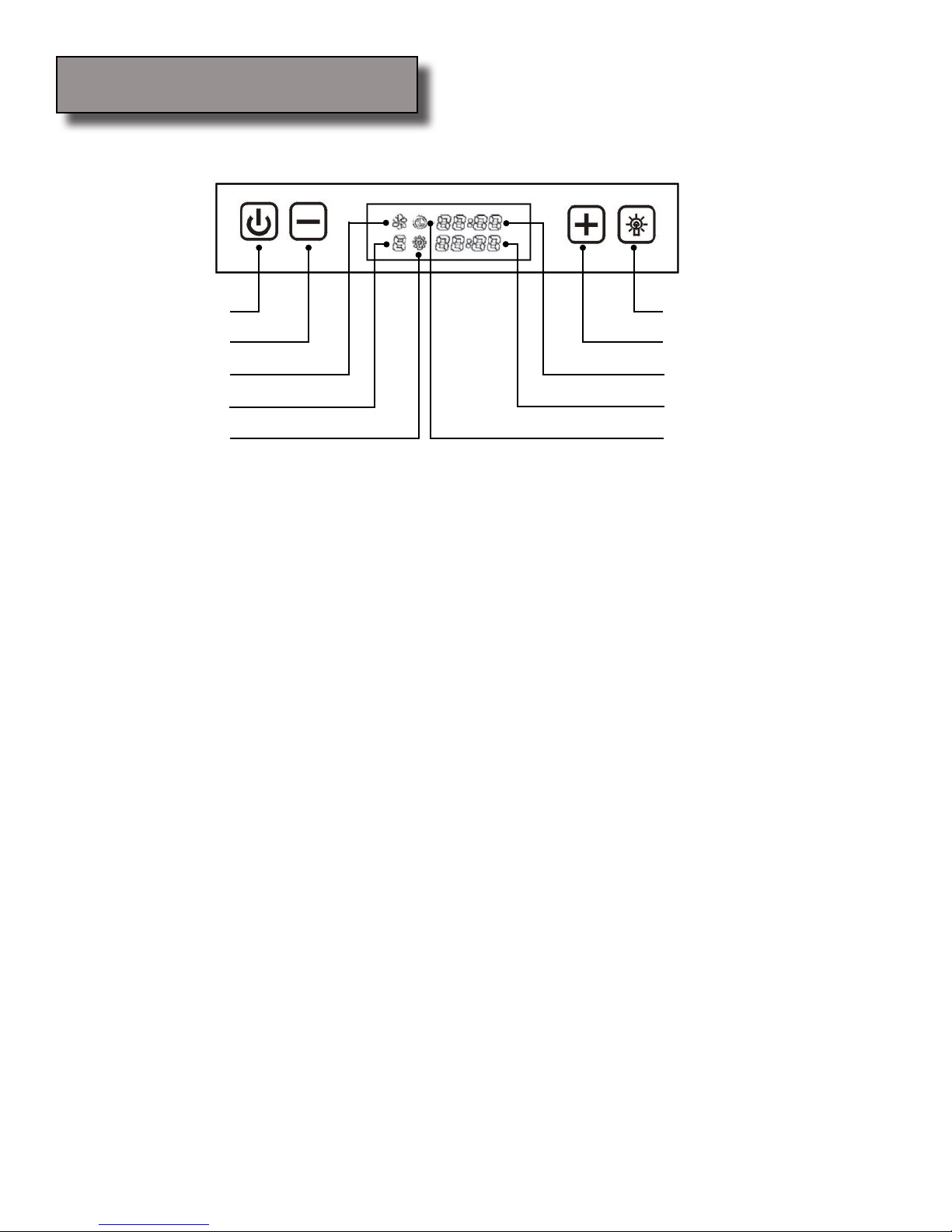

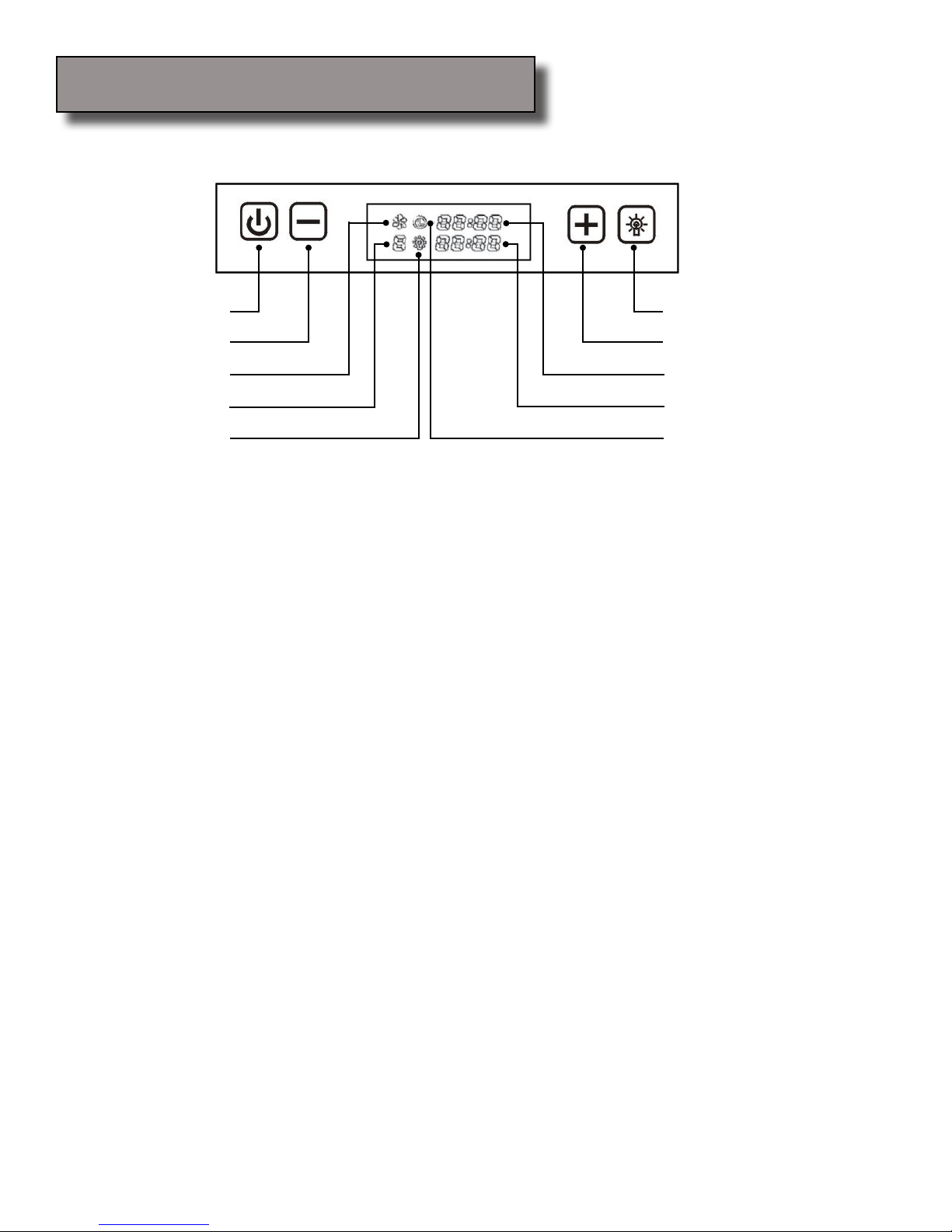

Control Panel Layout and Buttons Congurations:
Light
Increase Value
Blower Power Indicator
Blower Speed Indicator
Power-On Elapsed Digital Timer
Power-Off Delay Digital Timer
Power-Off Delay Timer Indicator
Light Power Indicator
This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best re-
sults, start the range hood before cooking and allow it to operate several minutes after the cooking is completed
to clear all smoke and odors from the kitchen.
Button functions:•
Power: Power ON/OFF the range hood and activate power-off delay timer.•
Decrease Value: Blower (motor) speed decrease, timer value decrease, and enter timer mode.•
Increase Value: Blower (motor) speed increase timer value increase, and cumulative timer reset.•
Blower Power Indicator: Lights up when blower (motor) is running.•
Blower Speed Indicator: Shows current blower (motor) speed (1-6).•
Light Power Indicator: Lights up when lights turned on.•
Light: Turns ON/OFF and dim halogen lights.•
Power-On Elapsed Digital Timer: Indicates the accumulated time the system is running.•
Power-Off Delay Digital Timer: Indicates the length of time left for delay off function.•
Power-Off Delay Timer Indicator: Lights up when auto-shutdown delay timer function is on.•
Controls:•
Automatic cleaning reminder:•
This range hood is equipped with a cleaning reminder that will activate following 30 hours of use. •
When blower (motor) starts to rotate, cumulative running time will be shown in Power-On Elapsed
Digital Timer. This timer icon ashes when 30 hours is up and reminds user to clean the aluminum
lter.
After cleaning the lter and when the motor is not in use, press and hold • Increase Value button over
3 seconds to reset the timer. Please note that turning off the system will not reset the Power-On
Elapsed Digital Timer.
Adjusting the blower (motor) speed:•
Press• Power button once to turn on the system. The Blower Power Indicator icon ashes showing
that the blower (motor) is ready. Decrease Value button will decrease the speed of the blower (mo-
tor) from 6 to 1 (strongest to quietest). Increase Value button will increase the speed of the blower
(motor) from 1 to 6 (quietest to strongest).
Press• Power button once to turn off the system.
Note: The system saves user congurations, hence settings such as light, timer and blower (motor) speed
will remain the same the next time it is turned on.
Range Hood Operations

Page 13
Power
Decrease Value
Control Panel Layout and Buttons Congurations:
Light
Increase Value
Blower Power Indicator
Blower Speed Indicator
Power-On Elapsed Digital Timer
Power-Off Delay Digital Timer
Power-Off Delay Timer Indicator
Light Power Indicator
Controls:•
Adjusting the timer function:•
While the blower (motor) is not running, press and hold • Decrease Value button over 3 seconds to
enter timer mode. Adjust to desired period of delay off timer by pressing Increase Value or Decrease
Value button (minimum 1 minute to maximum 15 minutes). This setting will be saved immediately.
Activating the timer function:•
While the blower (motor) is running, press and hold • Power button for over 3 seconds to activate
delay off timer. Power-off delay indicator will lit up and power-off delay digital timer will begin to
countdown, when it reaches zero, the blower (motor) will shut down.
Adjusting the light:•
Press• Light button once to turn on the lights, and once again to turn off the lights.
While the lights are off, press and hold • Light button for over 3 seconds to dim the lights from low to
high. Level of brightness will be stored in system’s memory.
Note: Light settings are independent from other settings (including power-off delay) and lights has to be
manually turned on or off.
Note: The system saves user congurations, hence settings such as light, timer and blower (motor) speed
will remain the same the next time it is turned on.
Range Hood Operations (Continued)

Page 14

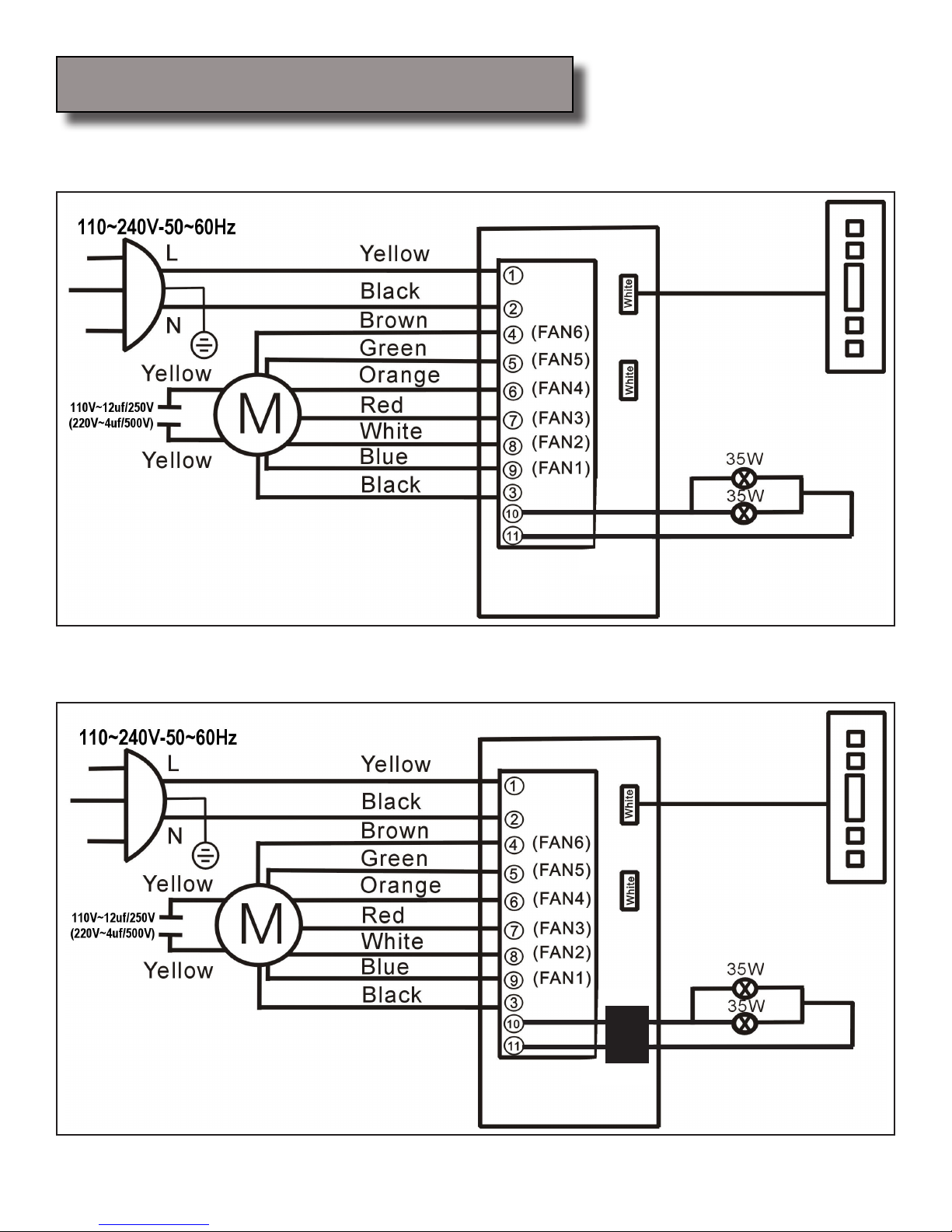

Control type 1 - Touch Sensitive Version (Six speed with type GU10 bulb)
Measurements & Diagrams
12V/75W
Transformer
Control type 1 - Touch Sensitive Version (Six speed with type MR16 bulb)

Page 15
Measurements & Diagrams (Continued)

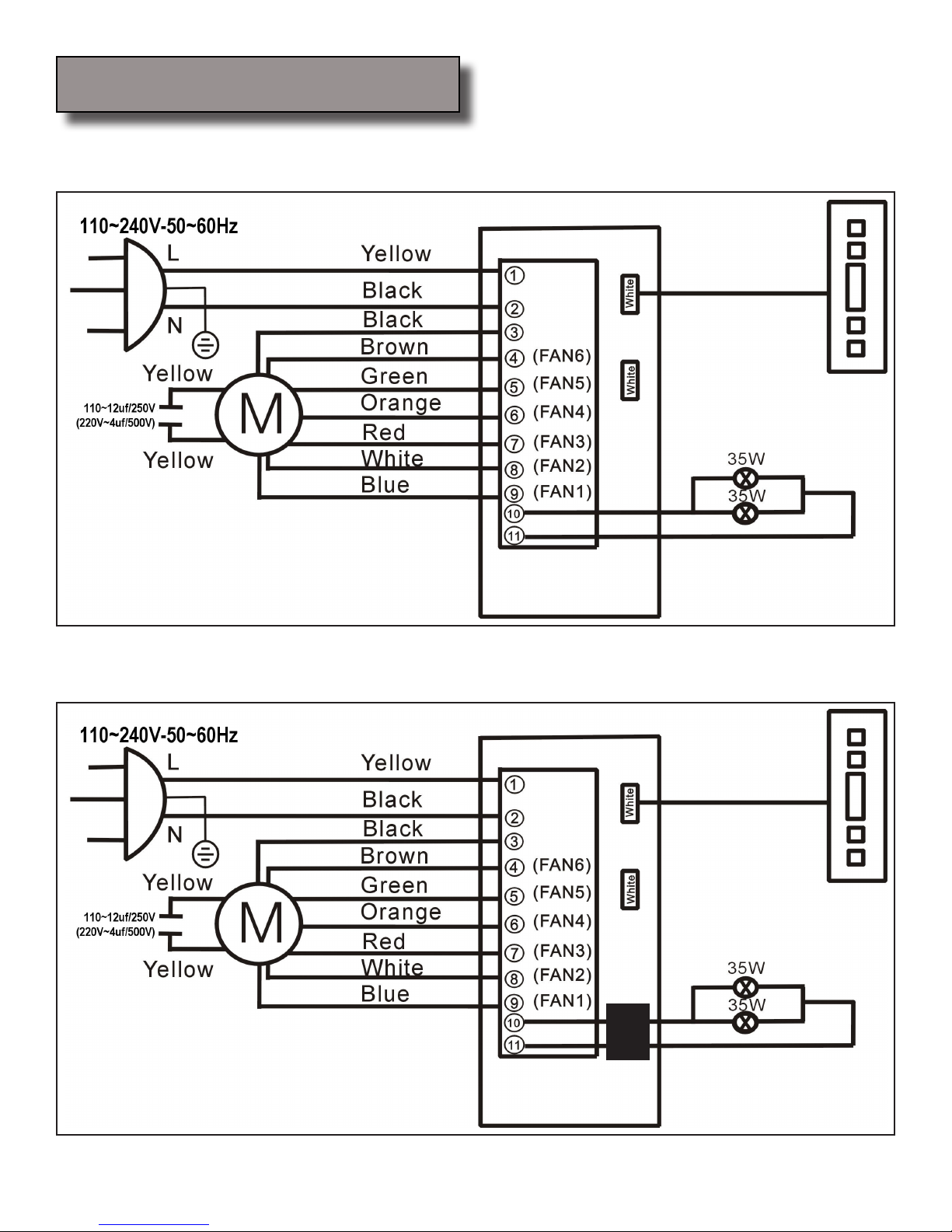

Control type 1 - Soft-Touch Version (Six speed with type GU10 bulb)
Control type 1 - Soft-Touch Version (Six speed with type MR16 bulb)
12V/75W
Transformer

Page 16
Measurements & Diagrams (Continued)

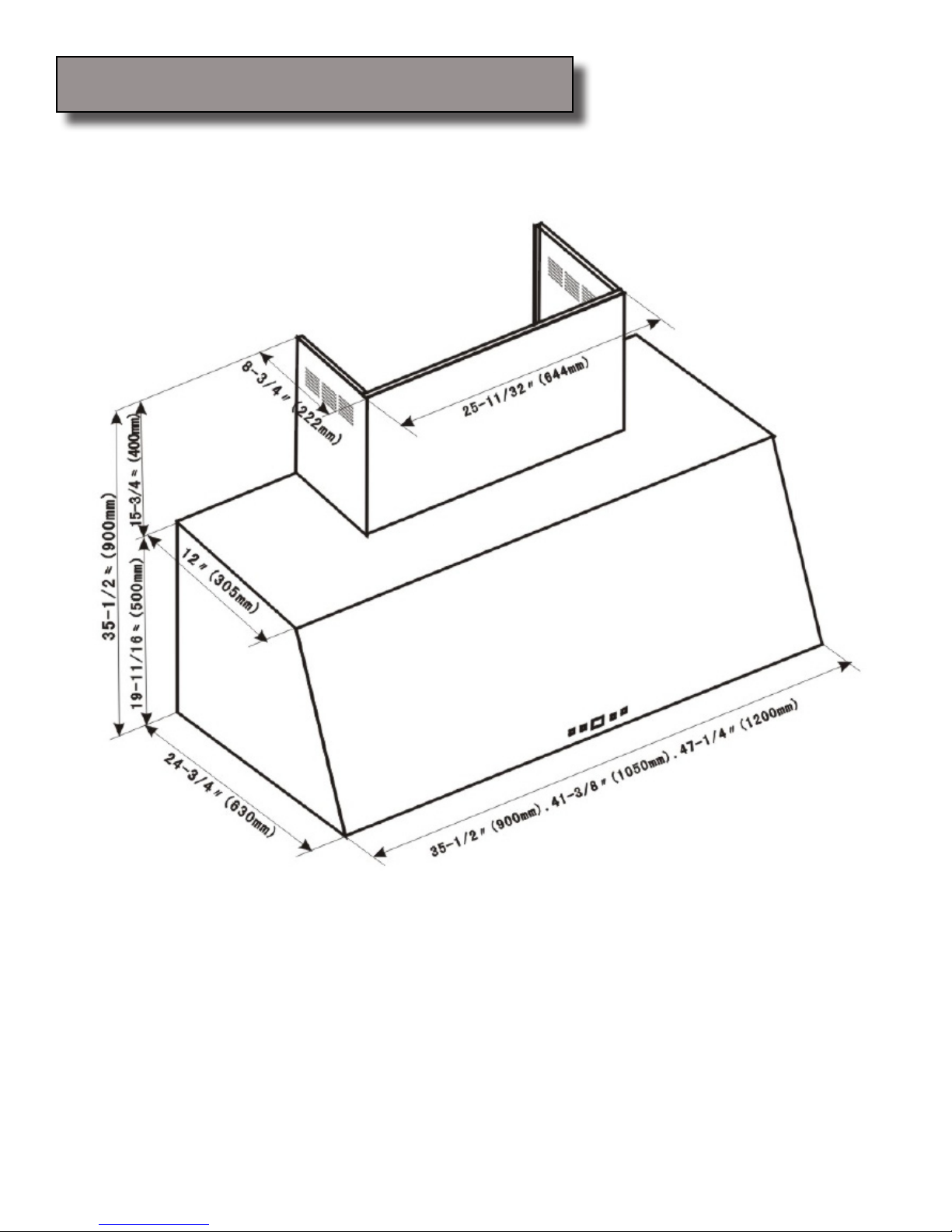

All measurements in parenthesis are in millimeter.•
All inch measurements are converted from millimeters, thus inch measurements are estimated.•

Page 17
Troubleshooting
If the range hood does not operate after installa-1.
tion:
Check if the range hood has been plugged in, make •
sure that all power has been turned back on and all
electrical wiring are properly connected.
Swap out light assembly to working ones to deter-•
mine whether it is caused by defective bulbs. (See
Replacing the light bulbs, page 19)
The range hood vibrates when the blower is on:2. The range hood might not have been secured prop-•
erly on to the ceiling.
The blowers seems weak:3. Check that the duct sized used is at least 8” (20 •
cm). Range hood WILL NOT function efciently
with insufcient duct size. For example: 10” (25.4
cm) duct over 8” (20 cm) hole and loosely secured.
Check if duct is clogged or if damper unit is not •
opening properly. A tight mesh on a side wall cap
unit might also cause restriction to the air ow.
The lights work but the blower is not spinning at 4.
all, is stuck or is rattling.
The blower might be jammed or scraping the bot-•
tom due to shipping damage.
The hood is not venting out properly:5. Make sure the distance between the cook top and •
the bottom of the hood is within 28” (71 cm) and
31” (79 cm) in range.
Reduce the number of elbows and length of duct •
work. Check if all joints are properly connected,
sealed, and taped.
Make sure the power is on high speed for heavy •
cooking
NOTE: For all other inquiries, please contact your local reseller.

Page 18
Use and Care Information
WARNING — TO REDUCE THE RISK OF FIRE, ELEC-
TRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING: Use this unit only in the manner in-
tended by the manufacturer. If you have questions, contact
the manufacturer. Before servicing or cleaning unit, switch
power off at service panel and lock switch power off at
service panel and lock service panel to prevent power from
being switched on accidentally. When the service discon-
necting means cannot blocked, securely fasten prominent
warning device such as a tag to the service panel.
CAUTION: For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
WARNING — TO REDUCE THE RISK OF A RANGE
TOP GREASE FIRE: Never leave surface units unattended
at high settings. Boil overs cause smoking and greasy spill-
overs that may ignite. Heat oils slowly on low or medium
settings.
Always turn hood ON when cooking at high heat or when
cooking aming foods.
Clean ventilating fans frequently. Grease should not be al-
lowed to accumulate on fan or lter.
Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING — TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING: SMOTHER
FLAMES with a close-tting lid, cookie sheet, or metal
tray, then turn off the burner. BECAREFUL TO PREVENT
BURNS. If the ames do not go out immediately, EVACU-
ATE AND CALL THE FIRE DEPARTMENT. NEVER
PICK UP A FLAMING PAN— you may be burned.
DO NOT USE WATER, including wet dishcloths or towels
— a violent steam explosion will result. Use an extinguish-
er ONLY if:
You know you have a Class ABC extinguisher, and you
already know how to operate it.
The re is small and contained in the area where it is
started.
The re department is being called. You can ght the re
with your back to an exit.
Specications*:
Body Stainless Steel
Power Rating 110~120V/60Hz or 220~240V/50Hz (for Europe & other countries)
General Input Power 323 W (218W + 3x35W)
Motor Input Power 218 W (Dual Motors)
Motor Revolution 800 RPM (±10%) to 2100 RPM (±10%)
Levels Of Speed Control 6 Levels
Maximum Airow 1200 (±10%) CFM
Air Pressure 320 pa
Noise Level (dB / sone) Approximately 28 / 0.7 to 53 / 5.6 (Lowest to highest Speed)
Motor Type Dual Chamber Ultra Quiet
Fan Type Dual Centrifugal / Sirocco
Control Type 6 Speed Electronic Control Panels with LED Display
Illumination 35W Maximum, Dimmable
Venting Size 8 inch (20 cm) Round
Interference Protection Radio Frequency Interference Protected
Specications
1. In House Test Static Pressure “0”.
2. One sone is roughly equivalent to the sound of a refrigerator (1kHz) at 40 decibels.
3. Subject to change without notice, please contact your local reseller for details.

Page 19
WARNING
Hazard of Burns!
Light bulb become extremely hot when turned on.
DO NOT touch bulb until switched off and cooled.
Touching hot bulbs could cause serious burns.
Align arrows on both rings
Maintenance
SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating!
For optimal operation, clean range hood and all bafe/spacer/lter/grease tunnel/oil container regularly. Regular care will
help preserve the appearance of the range hood.
Cleaning Exterior surfaces:
Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. Comet •
Power Scruv®, EZ-Off® oven cleaner), or steel wool/scoring pads, which will scratch and damage the stainless steel
surface. For heavier soil use liquid degrease such as “Forumla 409®” or “Fantastic®” brand cleaner.
If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of the hood. Avoid getting •
cleaning solution onto or into the control panel. Follow directions of the stainless steel cleaner. CAUTION: Do not
leave on too long as this may cause damage to hood nish. Use soft towel to wipe off the cleaning solution, gently
rub off any stubborn spots. Use dry soft towel to dry the hood.
After cleaning, you may use non abrasive stainless steel polish such as 3M• ® or ZEP®, to polish and buff out the stainless
luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.
DO NOT allow deposits to accumulate or remain on the hood.•
DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface and cause rusting.•
DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel •
for extended periods. Many of these compounds contain chemicals, which may be harmful. Rinse with water after ex-
posure and wipe dry with a clean cloth.
Cleaning Stainless Steel Bafe Filters:
IMPORTANT: Drain oil from oil containers before oil and residue overow!
The metal lters tted by the factory are intended to lter out residue and grease from cooking. It need not be replaced •
on a regular basis but are required to be kept clean.
Filters should be cleaned after every 30 hours of use.•
Remove and clean by hand or dishwasher. Spray “Formula 409• ®” or equivalent degreasing detergent and leave to soak
if heavily soiled. Dry lters and re-install before using hood.
Replacing Filters:
The stainless steel bafe lters are designed to last but are required to be replaced if damaged, please contact your local •
reseller for replacement lters.
Replacing the light bulb:
This range hood uses halogen bulb (please refer to the actual specication of the hood purchased):•
USA/Canada:
35W Type MR16 12V / Type GU10 120V
Europe and other Countries:
35W Type MR16 12V / Type GU10 220V
Make sure the range hood is unplugged or turn OFF breaker. •

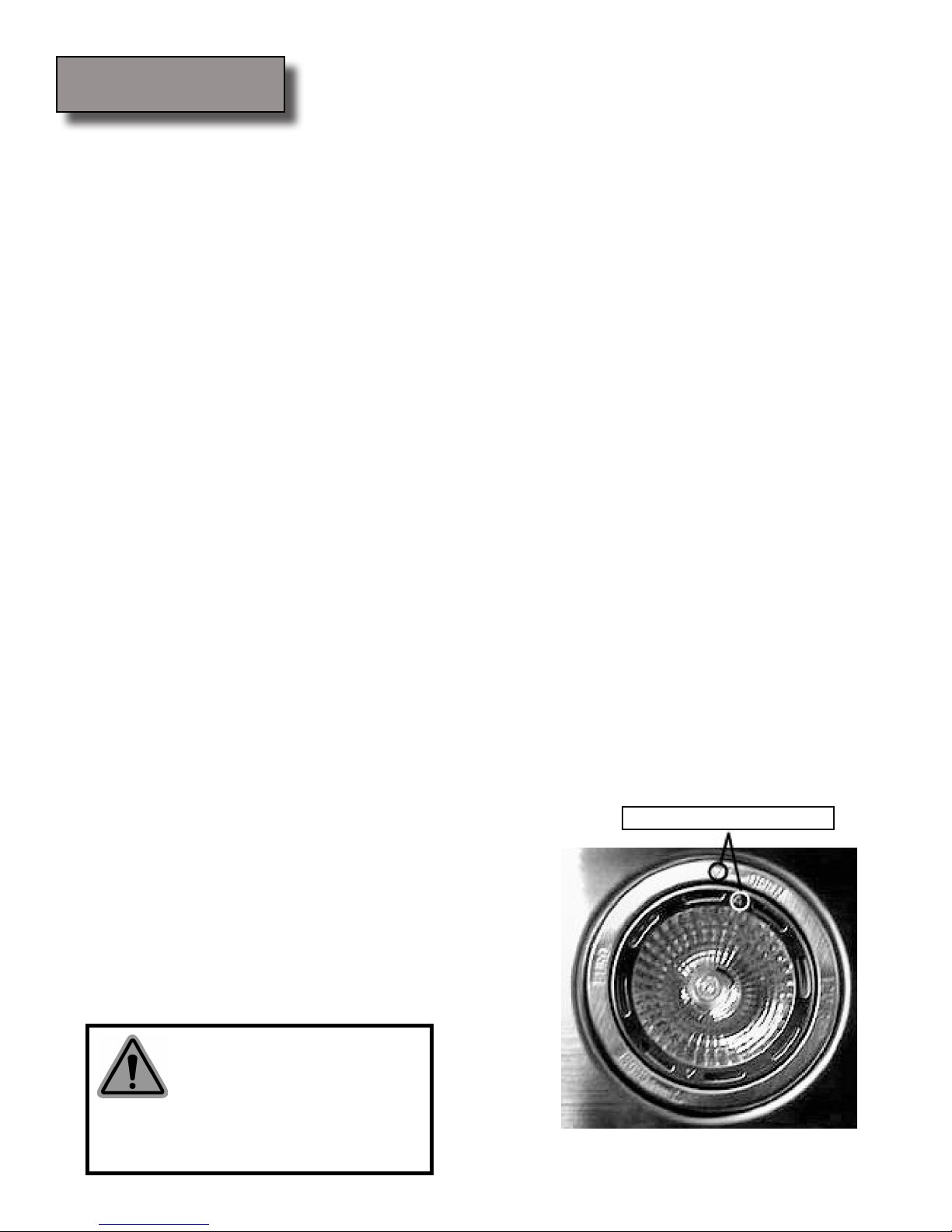

Make sure the lights are cool to touch, carefully align the ar-•
row on the inner ring with the arrow on the outer ring where it
says OPEN. The inner ring will loosen and the light bulb will
be available for removal. Install a new halogen light bulb and
reverse the steps.
Turn ON breaker and range hood to test for operation.•
Other manuals for 218 Series
2
This manual suits for next models
1
Table of contents
Other Cavaliere Ventilation Hood manuals

Cavaliere
Cavaliere AirPRO 238 Assembly instructions

Cavaliere
Cavaliere 218 Series User manual

Cavaliere
Cavaliere 198 Series Assembly instructions

Cavaliere
Cavaliere AirPRO 238 User manual

Cavaliere
Cavaliere AirPRO 238 Professional Series Assembly instructions

Cavaliere
Cavaliere 218 Series User manual

Cavaliere
Cavaliere 30 Instruction Manual

Cavaliere
Cavaliere CAV-SV168M-30 User manual

Cavaliere
Cavaliere AirPRO 238 Professional Series User manual

Cavaliere
Cavaliere UC200 Series Instruction Manual
