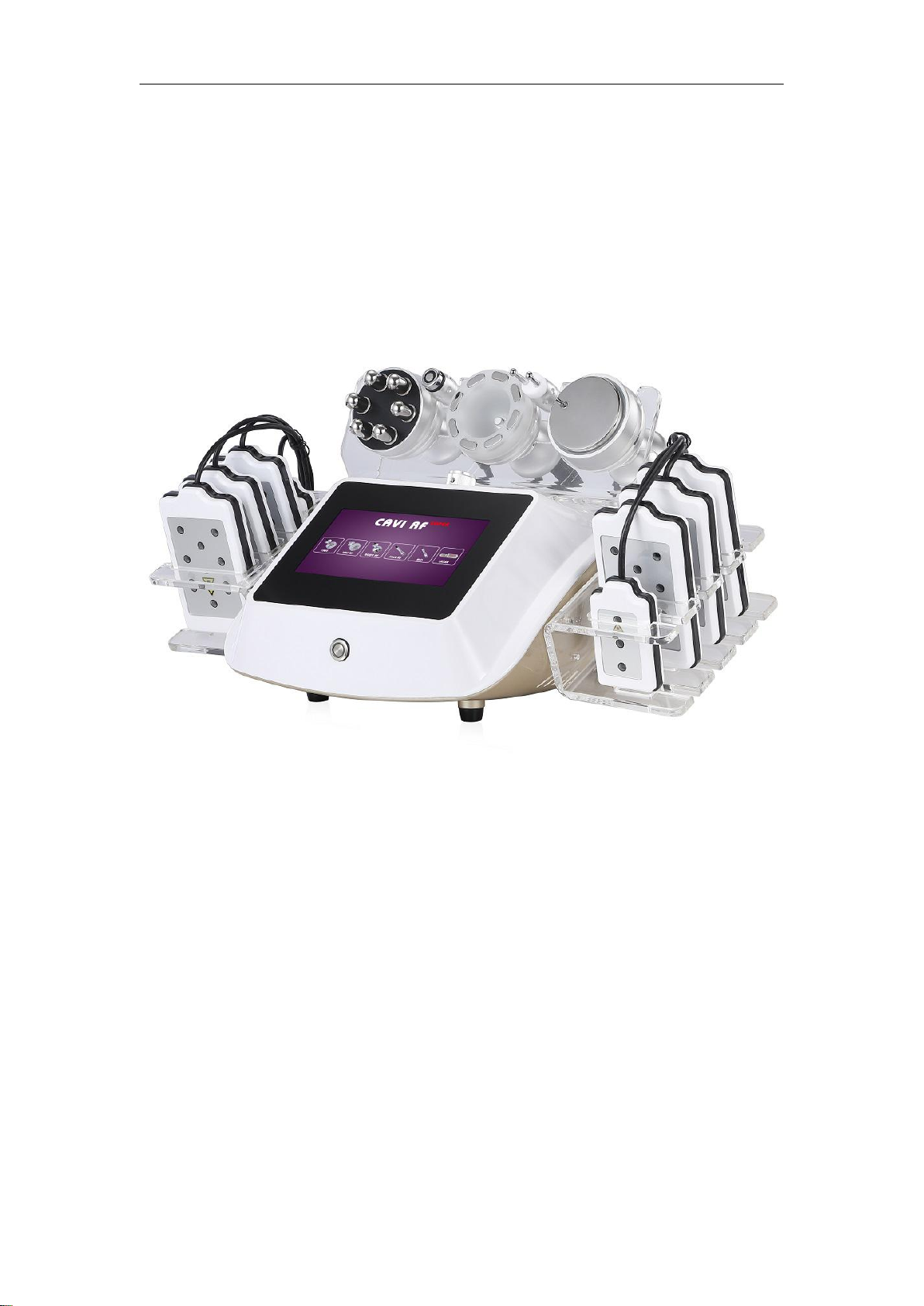

cavitation RF SUPER User manual

Cavitation RF SUPER
1
User Manual
Please read through the manual before operating the system
This product does not belong to medical ,please don't use for disease treatment！

Cavitation RF SUPER
2
Applicator Installation:
Attention:
Please install THREE hand pieces Correctly before operate the machine.
for lipolaser
Applicator Description:
1.Emergency stop button and Key Switch:
1.cavitation Hand piece:
Take the cavitation hand piece on the relevant holder,then insert it into the cavitation 4 pins socket.

Cavitation RF SUPER
3
3.Radio Frequency Handle piece for Body :
Take the RF-body hand piece on the relevant holder,then insert it into the RF-body 6 pins socket.
4.Radio Frequency Handle piece for Face :
Take the RF-body hand piece on the relevant holder,then insert it into the RF-body 5 pins socket.
5.BIO EMS handle:
Take the bio hand piece on the relevant holder,then insert it into the 2 pins socket.
6.Vacuum RF handle:
Take the vacuum rf hand piece on the relevant holder,then insert it into the big vac rf socket.
7.Big laser pads:6 pieces:
Take the big lipo laser hand piece on the relevant holder,then insert it into the 2 pins socket.
8.small laser pads:2 pieces:
Take the small lipo laser hand piece on the relevant holder,then insert it into the 2 pins socket.

Cavitation RF SUPER
4
After-Sale Service
Warranty
stipulates the warranty for the original purchaser as follows:
provides 12 months warranty period on its any product for any defect caused by material or
manufacturing quality starting from the installation day.
According to the warranty stipulation, responsibilities are limited to repair and replacement
of the part and material recognized in conformity with above conditions.
won't bear any responsibility for any damage caused by misapplication of the user or repair
of disapproval
Out of Warranty
A product that has no SERIES Number
Applicators dropping or any shock
Applicator acrylic rack
Maintenance Advantage
Easy to check and confirm the problem
Simple to find out the solution
Quick to replace Function Module
Maintenance Policy
Must provide the photo, even the Video depends upon the different situation
Without manufacturer’s permission, purchaser can’t send back the machine, otherwise, the
purchaser has to bear the transportation fee and the customs tax and
manufacturer has the right to refuse to handle.
Caution
Contraindication
Please avoid the treatment from the following patients
1. Pregnant women or women who may be pregnant
2. Cardiopaths
3. Patients with vascular diseases
4. Patients with pacemakers
5. Patients with therombosis and or thrombophlebitis

Cavitation RF SUPER
5
6. Patients being treated with anticoagulants
7. Patients who have undergone a transplant
8. Carriers of large metal prostheses
9. Diabetics
10. Epileptics
11.Patients with cancer.
12.Patients with heart diseases.
13.Patients with sensory or physical impairment.
Caution when use
The machine shoule be
Cavitation Function
Apply Sufficient Amount of gel
Keep the applicator in full contact with treatment area
Do not keep the applicator at the same place
Move the applicator slowly, But constantly
Avoid the treatment over bone and do not aim directly to the joint
Always make a skin fold in order to get better access to the fat tissue
In case of resting during treatment, please “PAUSE” and then “STOP” to avoid
over-output of the machine
Radio Frequency Function
Apply sufficient amount of gel
Keep the applicator in full contact with treatment area
Do not keep the applicator at the same place
Move the applicator slowly, but constantly.
Avoid the treatment over bone and do not aim directly to the joint
Always make a skin fold in order to get better access to the fat tissue
In case of resting during treatment, please “PAUSE” and then “STOP” to avoid
over-output of the machine
Vacuum RF PDT Function
Apply sufficient amount of Oil
Keep the applicator in full contact with treatment area,
Do not keep the applicator at the same place
Move the applicator slowly, but constantly.
Avoid the treatment over bone and do not aim directly to the joint
Always make a skin fold in order to get better access to the fat tissue
In case of resting during treatment, please “PAUSE” and then “STOP” to avoid
over-output of the machine

Cavitation RF SUPER
6
BIO/EMS Function
Apply sufficient amount of gel or Oil
Keep the applicator in full contact with treatment area
Do not keep the applicator at the same place
Avoid the treatment over bone and do not aim directly to the joint
Always make a skin fold in order to get better access to the fat tissue
In case of resting during treatment, please “PAUSE” and then “STOP” to avoid
over-output of the machine
LipoLaser Function
Keep the applicator in full contact with treatment area
Keep the applicator at the same place
Please use the strap to fix the laser pads
Avoid the treatment over bone and do not aim directly to the joint
Always make a skin fold in order to get better access to the fat tissue
In case of resting during treatment, please “PAUSE” and then “STOP” to avoid
over-output of the machine
After one client treatment or 2 hours usage, please allow about 20 minutes resting of
system, it can prolong the lifetime of machine.
Operation:
Main operation interface:

Cavitation RF SUPER
7
1.Cavitation :touch it and
enter into the Cavitation function interface;
2.Vac RF LED :touch it and enter into the vac rf function interface:
3.RF-Body :touch it and enter into the body rf function interface;
4..RF-Face :touch it and enter into the face rf function interface;
5.BIO-Face :touch it and enter into the face BIO function interface;
6.Lipolaser :touch it and enter into the lipolaser function interface;

Cavitation RF SUPER
8
Operation:
Cavitation
1.set the treatment time :
Touch to ajust the treatment time from 5 to 60 mins,(preset time:20 mins)
2.Set the cavitation mode :
Touch to ajust the cavitation mode amongAUTO,M1,M2,M3 modes.
3.set the cavitation power :
Touch to ajust the vacuum power level from 10% to 100% .
4.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .
5.Stop button :touch it to stop the treatment.

Cavitation RF SUPER
9
Operation:
VAC RF-Body
1.set the treatment time :
Touch to ajust the treatment time from 5 to 60 mins,(preset time:20 mins).
2.Set the RF mode :
Touch to ajust the RF mode among Auto,M1,M2,M3 modes.
3.set the RF power :
Touch to ajust the RF power level from 10% to 100% .
4.set the vac mode :
Touch to ajust the vacuum mode among M1,M2,M3,M4.
5.:touch it to start the treatment after all the parameter ajusted.
5.Pause button :touch it to pause the treatment,if need to change working mode,power
or treatment time during treatment,please touch it firstly,then change the
parameters.
6.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .
7.Stop button :touch it to stop the treatment.

Cavitation RF SUPER
10
Operation:
RF-Body
1.set the treatment time :
Touch to ajust the treatment time from 5 to 30 mins,(preset time:20 mins).
2.Set the RF mode :
Touch to ajust the RF mode among Auto,M1,M2,M3 modes.
3.set the RF power :
Touch to ajust the RF power level from 10% to 100% .
4.:touch it to start the treatment after all the parameter ajusted.
5.Pause button :touch it to pause the treatment,if need to change working mode,power
or treatment time during treatment,please touch it firstly,then change the
parameters.
6.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .
7.Stop button :touch it to stop the treatment.

Cavitation RF SUPER
11
Operation:
RF-Face
1.set the treatment time :
Touch to ajust the treatment time from 5 to 30 mins,(preset time:20 mins).
2.Set the RF mode :
Touch to ajust the RF mode among Auto,M1,M2,M3 modes.
3.set the RF power :
Touch to ajust the RF power level from 10% to 100% .
4.:touch it to start the treatment after all the parameter ajusted.
5.Pause button :touch it to pause the treatment,if need to change working mode,power
or treatment time during treatment,please touch it firstly,then change the
parameters.
6.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .
7.Stop button :touch it to stop the treatment.

Cavitation RF SUPER
12
Operation:
BIO-Face
1.set the treatment time :
Touch to ajust the treatment time from 5 to 30 mins,(preset time:20 mins).
2.Set the RF mode :
Touch to ajust the BIO mode among M1,M2,M3,M4 modes.
3.set the RF power :
Touch to ajust the BIO power level from 10% to 100% .
4.:touch it to start the treatment after all the parameter ajusted.
5.Pause button :touch it to pause the treatment,if need to change working mode,power
or treatment time during treatment,please touch it firstly,then change the
parameters.
6.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .
7.Stop button :touch it to stop the treatment.

Cavitation RF SUPER
13
Operation:
Lipolaser
1.set the treatment time :
Touch to ajust the treatment time from 5 to 30 mins,(preset time:20 mins).
2.Set the laser mode :
Touch to ajust the RF mode among Auto,M1,M2,M3 modes.
3.set the laser power :
Touch to ajust the cavitation power level from 10% to 100% .
4.Touch any plaser pad to select the it to work
4.:touch it to start the treatment after all the parameter ajusted.
5.Pause button :touch it to pause the treatment,if need to change working mode,power
or treatment time during treatment,please touch it firstly,then change the
parameters.
6.Back button :touch it to return to the main function interface,it would be touched after
touching the pause button .

Cavitation RF SUPER
14
7.Stop button :touch it to stop the treatment.
Contact Info
Repair or any enquiry for this, it shall be back to manufacturer,
Specification
Model
Cavitation RF SUPER
Power
500W
Cavitation frequency
40Khz
Cavitation modes
4 types of pulse
Radio Frequency
5Mhz high frequency
Radio Frequency modes
AUTO,M1,M2,M3
Vacuum
650 mmHg
BIO mode
M1,M2,M3,M4
Lipolaser wavelength
650nm
Laser modes
AUTO,M1,M2,M3
Lipo Laser Power
100mw
Machine Display
7 inch touch screen
Input voltage
220~240V/100-120V, 60Hz/50Hz
