CAWA TE-2115 User manual

40W 2.1-Channel Sp ker System
_TE-2115_

CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
ATTENTION:
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing)instructions in the
literature accompanying the appliance.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if an unauthorized
change or modification is made.
ATTENTION:
POUR €:VITER LES CHOC €:LECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE
LA PRISES ET POUSSER JUSQU'AU FOND.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and
other countries.

INFORMATION:
This equipment complies with Class B digital device regulations.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

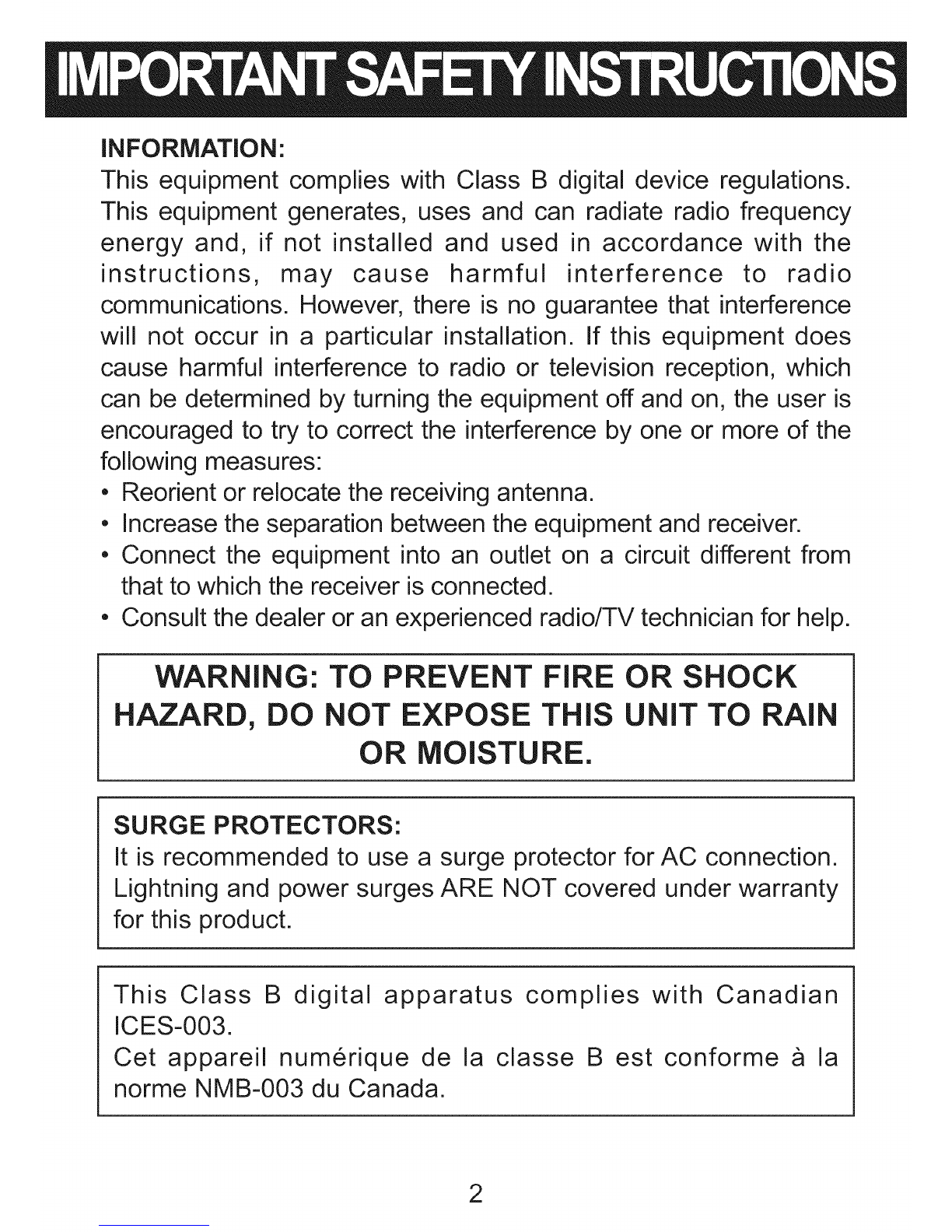

WARNING:
HAZARD, DO TO PREVENT FIRE
NOT EXPOSE THIS
OR MOISTURE.
OR SHOCK
UNIT TO RAIN
SURGE PROTECTORS:
It is recommended to use a surge protector for AC connection.
Lightning and power surges ARE NOT covered under warranty
for this product.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numerique de la classe Best conforme a la
norme NMB-003 du Canada.
2

Before using the unit, be sure to read all operating instructions carefully. Please
note that these are general precautions and may not pertain to your unit. For
example, this unit may not have the capability to be connected to an outdoor
antenna.
1. READ iNSTRUCTiONS
All the safety and operating instructions should be read before the product is
operated.
2. RETAIN iNSTRUCTiONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating instructions should be adhered to.
4. FOLLOW iNSTRUCTiONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a dry cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the product's manufacturer as they may
cause hazards.
7. WATER AND MOISTURE
Do not use this product near water-for example: near a bathtub, washbowl, kitchen
sink or laundry tub; in a wet basement; or near a swimming pool.
8. ACCESSORIES
Do not place this product on an unstable cart, stand, tripod, bracket or table. The
product may fall, causing serious injury and serious damage to the
product. Use only with a cart, stand, tripod, bracket or table PORTABLECARTWARN_NG
(symbol provided by RETAC)
recommended by the manufacturer or sold with the product. Any
mounting of the product should follow the manufacturer's instructions,
and should use a mounting accessory recommended by the
manufacturer.
8A. An appliance and cart combination should be moved with care.
Quick stops, excessive force and uneven surfaces may cause the
appliance and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back or bottom are provided for
ventilation, to ensure reliable operation of the product and to protect it from
overheating. These openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug or other similar surface.
This product should never be placed near or over a radiator or heat source. This
product should not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
10. POWER SOURCES
This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home,
consult your appliance dealer or local power company. For products intended to
3

operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This product is equipped with a polarized alternating-current line plug (a plug having
one blade wider than the other). This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace
your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the appliance.
13. LIGHTNING
To protect your product from a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product due to lightning
and power-line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power
lines or other electric light or power circuits, or where it can fall into such power lines
or circuits. When installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact with them might
be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords as this can result in a risk of fire or
electric shock.
16. OBJECT AND LiQUiD ENTRY
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short out parts that could result in fire or electric shock.
17.
Never spill or spray any type
of liquid on the product.
OUTDOOR ANTENNA
GROUNDING
If an outside antenna is
connected to the product,
be sure the antenna
system is grounded so as
to provide some protection
against voltage surges and
built-up static charges.
Section 810 of the National
Electric Code, ANSI/NFPA
70, provides information
with respect to proper
grounding of the mast and
supporting structure,
grounding of the lead-in
ANTENNA
LEAD IN
WiRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE . GROUNDING CONDUCTORS
EQUIPMENT (NEC SECTION 810-21)
CLAMPS
NEC - NATIONAL ELECTRICAL CODE
SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
$2898A EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
4

wire to an antenna discharge product, size of grounding conductors, location of
antenna discharge product, connection to grounding electrodes and requirements
for grounding electrodes.
18. SERVICING
Do not attempt to service this product yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified
service personnel.
19. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses
replacement parts specified by the manufacturer or those that have the same
characteristics as the original part. Unauthorized substitutions may result in fire,
electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this product, ask the service technician
to perform safety checks to determine that the product is in proper operating
condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the
manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions, as an adjustment of other controls may result
in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance-this
indicates a need for service.
23. HEAT
The product should be situated away from heat sources such as radiators, heat
registers, stoves or other products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-
40 of the NEC that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
25. The MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
5

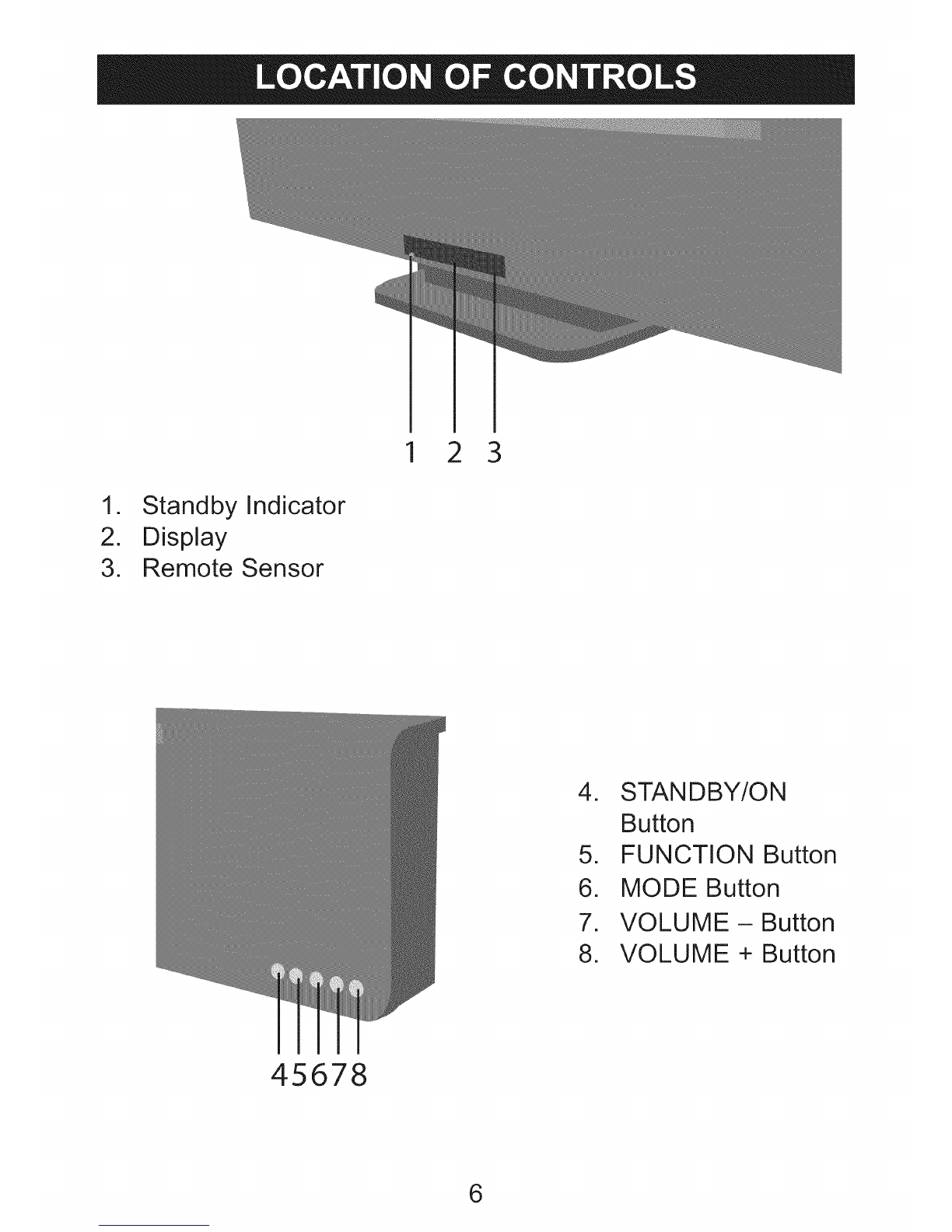

1. Standby Indicator
2. Display
3. Remote Sensor
2 3
4. STANDBY/ON
Button
5. FUNCTION Button
6. MODE Button
7. VOLUME - Button
8. VOLUME + Button
45678
6

REAR
12 3 4 3 56 7
1. DVD Audio Left and Right In Jacks
2. TV Audio Left and Right Audio In Jacks
3. Wall Mount Hooks
(BRACKET & ASSEMBLY PART NO. 2115i Wall Mount assy*)
4. Stand
5. Fuse
6. POWER ON/OFF Switch
7. AC Cord
*Consumer Replaceable Part
(See page 14 to order.)
7

REMOTE
1. POWER button
2. BYPASS button
3. MUTE button
4. TSXT button
5. WOW button
6. FUNCTION button
7. VOLUME + Button
8. VOLUME- button
*Consumer Replaceable Part (See page 14 to order.)
8

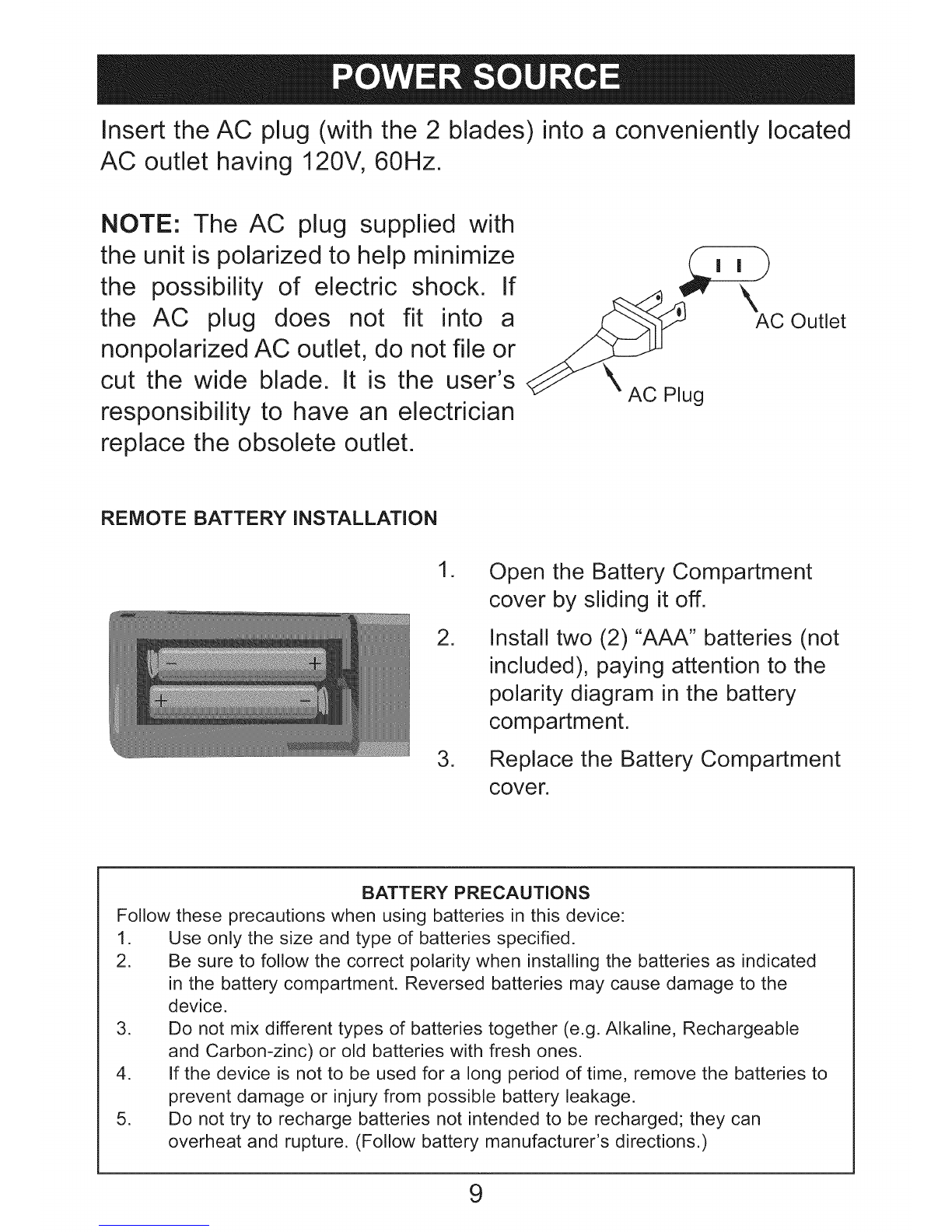

Insert the AC plug (with the 2 blades) into a conveniently located
AC outlet having 120V, 60Hz.
NOTE: The AC plug supplied with
the unit is polarized to help minimize
the possibility of electric shock. If
the AC plug does not fit into a
nonpolarized AC outlet, do not file or
cut the wide blade. It is the user's
responsibility to have an electrician
replace the obsolete outlet.
AC Outlet
AC Plug
REMOTE BATTERY INSTALLATION
.
.
.
Open the Battery Compartment
cover by sliding it off.
Install two (2)"AAA" batteries (not
included), paying attention to the
polarity diagram in the battery
compartment.
Replace the Battery Compartment
cover.
BATTERY PRECAUTIONS
Follow these precautions when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated
in the battery compartment. Reversed batteries may cause damage to the
device.
3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable
and Carbon-zinc) or old batteries with fresh ones.
4. If the device is not to be used for a long period of time, remove the batteries to
prevent damage or injury from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can
overheat and rupture. (Follow battery manufacturer's directions.)
9

1. Make sure these instructions are read and completely understood before attempting installation. If you are unsure of
any part of this installation, contact a professional installer for assistance.
2. The wall or mounting surface must be capable of supporting the combined weight of the mount and the Soundbar;
otherwise the structure must be reinforced.
3. Safety gear and proper tools must be used. A minimum of two people are required for this installation. Failure to use
safety gear and/or attempting this installation alone can result in property damage, serious injury, or death.
4. Follow all instructions and recommendations regarding adequate ventilation and suitable locations for mounting your
display.
Remove the Stand from the main unit by unscrewing the
two screws using the supplied
hexagon wrench.
Attach the Wall Mount Bracket to the wall using the four
ST4x40mm screws and washers, making sure it is very
secure.
Plastic Nails
Hole
__ 300MM_
WAL L
c_
If hanging below a hung TV,
make sure to leave at least 40mm
between the TV and this unit.
Measure for the holes in the wall as shown, and then
drill holes using an 8mm drill bit. If Use a hammer and
gently nail in the four anchors, if a stud is not directly
behind the hole.
Place the main unit onto the Wall Mount Bracket and
screw in using the two M4x16mm screws.
10

Connect a DVD to the DVD Audio In jacks and a TV to the TV Audio In jacks to output
the sound through this speaker.
iI
DVD
LJ
TV
DVD: To listen to the DVD player connected to the DVD In jacks, press the
FUNCTION button until DVD appears in the display.
NOTES:
, When connecting the unit, refer to the owner's manual of the TV, as
well as this manual.
, When connecting the unit, make sure the power is off and both units
are unplugged before making any connections.
, Instead of the TV's or DVD's audio output, you can use an external
audio equipment, such as a non-iPod MP3 audio player, with a audio
left and right out jacks.
11

VOLUME
i/
Press the VOL- button _ to
decrease or the VOL+
button _ to increase the volume.
The volume level will be indicator
briefly in the display.
MUTE
E!
Press the MUTE button once to
reduce the volume entirely, press
again to resume.
FUNCTION
B
Pepeatedly press the FUNCTION
button to select DVD mode or TV
mode.
12

To turn the power off, press the
POWER button; the Standby
indicator will light.
BYPASS: Select to bypass the
sound effects.
TSXT: Select to TSXT the sound
effects. Tru-Surround XT is a sound-
scheme that has the ability to take
multi-channel encoded sources,
such as Dolby Digital,and reproduce
the multi-channel surround effect
using just this speaker.
WOW: Select to WOW the sound
effects. Selecting this option
improves the dynamic audio
performance of compressed
and uncompressed audio by
expanding the size of the audio
image and creating a deep,
rich bass response.
13

Power source ............................................................... AC 120V/60Hz
Subwoofer impedance: .............................................................. 8 Ohm
Surround impedance: ................................................................ 6 Ohm
S/N: .............................................................................................. 60dB
Subwoofer power output: .............................................................. 24W
Left and Right speakers power output: ....................................... 8Wx2
THD (1KHz, 1W): ......................................................................... 0.5%
Frequency response (Subwoofer): ........................... 40Hz--,200Hz 5dB
Frequency response (Left and Right channels): ....200Hz---20KHz 5dB
L/R separation (1KHz): ................................................................ 40dB
L/R Balance: .................................................................................. 2dB
Weight ..................................................................................... 25.2 Lbs
Dimensions ................................... 43.82" (H) X 8.58" (W) X 10.07" (D)
Weight and dimensions are approximate.
Specifications are subject to change without notice.
14
