CCi TM-01 User manual

50-000037-04 Installation Guide 1
Triple Mount Mast Bracket Installation Guide (TM-01)
DISCLAIMER:
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety
codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence
over information in this document. Antenna systems should be inspected once a year by qualified personnel to verify proper installation,
maintenance, and condition of equipment. Communication Components Antennas Inc. disclaims any liability or responsibility for the results of
improper or unsafe installation.

50-000037-04 Installation Guide 2
Triple Mount Mast Bracket Installation Guide (TM-01)
Step
Task
3
Attachsecondpairof Clamps (Item 1) Mast Bracketto mastsuchthat they are
spaced (topto top)1200mm for6’antennas,800mm for4’antennas and
330mm for2’antennas alignedtothe firstset.
4
Ensurethat theM10threaded inserts are facinguponall clamps. Adjust M12
threaded rodsas requiredso that approximatelyequal amounts stick out past
eachclamp. This shouldensureno interferencewith theantennas tobe
installed.

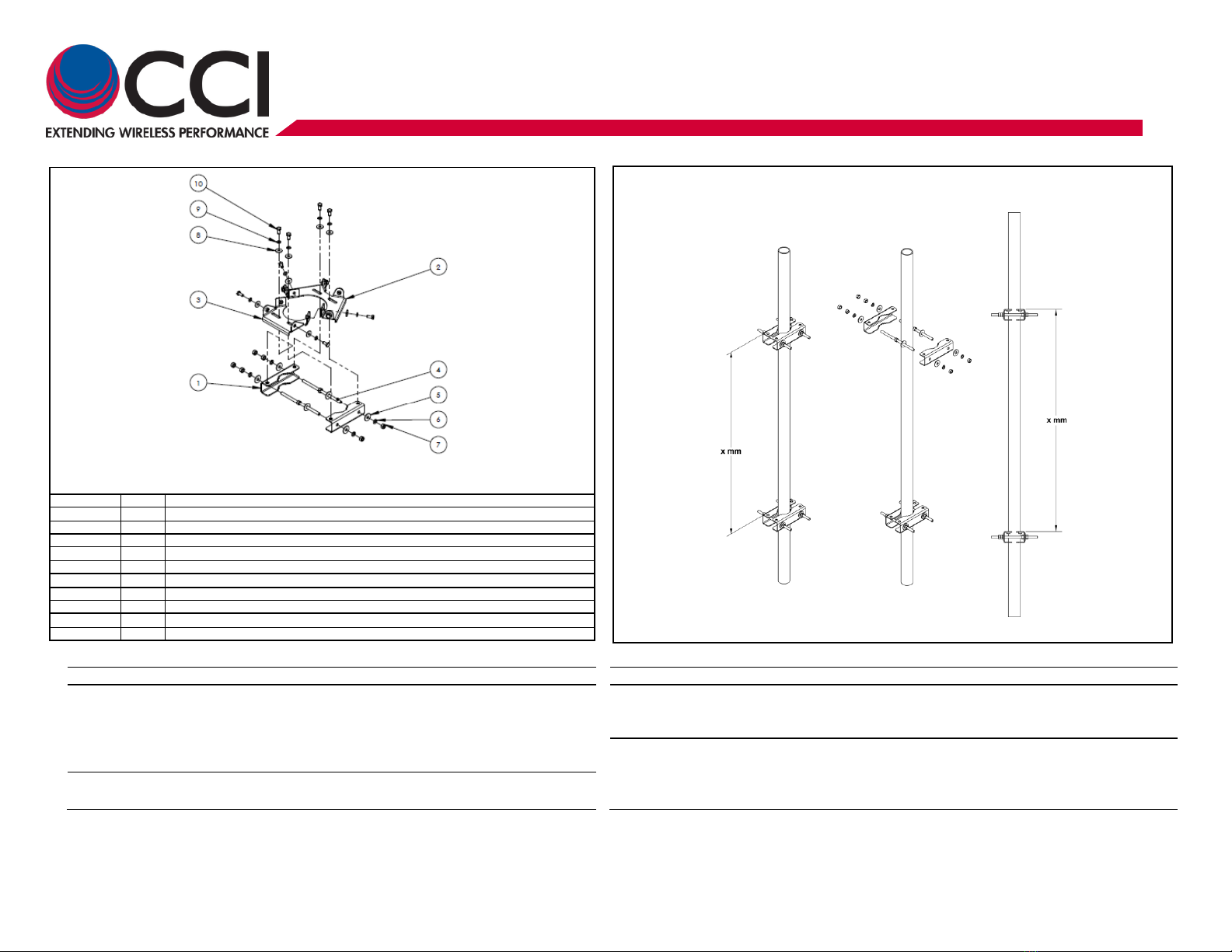

Fig.2:Mast Bracket Clamp Mounting
Fig.1:Triple Mount Mast Bracket BOM
ITEM
QTY
DESCRIPTION
1
4
MASTBRACKET, CLAMP, TRIPLEMOUNT, TM-01
2
2
MASTBRACKET, DUALHINGE, TRIPLEMOUNT, TM-01
3
2
MASTBRACKET, SINGLE HINGE,TRIPLE MOUNT, TM-01
4
4
THREADED ROD, M12,X1.75, 250L, DIN975,CLASS 8.8
5
12
WASHER,FLAT,M12,37 OD,MIN2.3 THK,DIN 9021,STEEL
6
8
WASHER,SPLITLOCK,M12,DIN127B,STEEL
7
16
NUT, HEX, M12X1.75,DIN 934, CLASS 8,STEEL
8
24
WASHER,FLAT,M10,30OD, MIN2.3THK, DIN9021,STEEL
9
24
WASHER,SPLITLOCK,M10,DIN127B,STEEL
10
24
SCREW, HEX,CAP,M10X1.5, 25L, DIN933,CLASS 8.8
Step
Task
1
The Triple Mount Mast Bracketcan bepolemounted using the Mast
Bracket Clamp, Dual HingeMast Bracketand the Single Hinge Mast
Bracket. See Fig. 1 for the Triple Mount Mast BracketBOM. Each TM-
01 TripleMount Mast Bracket Kit includes twoTripleMount Mast
Brackets.
2
Attach first pairof Mast BracketClamps (Item 1)to mast usingM12
hardware(Items 4, 5, 6 and 7)as shown.

50-000037-04 Installation Guide 3
Triple Mount Mast Bracket Installation Guide (TM-01)
Step
Task
5
Attach aSingle HingeBracket (Item 3)to each pairof clampsusing
M10hardware (Items 8, 9, and 10)as shown inFig. 3.
Step
Task
6
Fastena Dual Hinge Bracket (Item 2)to each SingleHinge Bracket(Item 3)
using M10hardware(Items 8, 9, and 10)as shownand torqueto54N·m (40
ft·lbs). Attach DualHingeBrackets(Item 2)to Clamps(Item 1)using M10
hardware (Items 8, 9, and 10) as shown inFig. 4.
Fig.3:SingleHingeBracket Mounting to Clamps
Fig.4:DualHingeBracket Mounting to Clamps

50-000037-04 Installation Guide 4
Triple Mount Mast Bracket Installation Guide (TM-01)
Step
Task
7
Install Antenna #1on to theSingle Hinge Brackets (Item 3)usingM10
hardware as shown in Fig. 5. Align Antenna #1 in the direction specified
by thesiteengineer. Theorientationof theAntenna is normal to the sector
unless specificallyrequired otherwise. Adjust thespacingand alignmentof
the upperand lowerpairs of Clamps (Item 1)as required.
8
TorqueM12 clamp hardware to 54N·m (40ft·lbs).
Step
Task
9
Tighten M10 hardware holding hinge brackets (Item 2 & Item 3)to clamps
(Item 1) and torqueto 54 N·m (40 ft·lbs). Completedinstallationshould
appear as shown in Fig. 6.
Fig.5:Antenna#1Alignment
Fig.6:Antenna#1Installation

50-000037-04 Installation Guide 5
Triple Mount Mast Bracket Installation Guide (TM-01)
Fig.8: Antenna#2 Installation
Fig.9:Antenna#3 Installation
Step
Task
11
Install Antenna #3on to Dual Hinge Brackets(Item 2)using M10 hardware
(Items 8, 9, and 10)as shown inFig. 9, and torqueto54N·m (40ft·lbs).
12
Referto Antenna Installation Guide.
Step
Task
10
Install Antenna #2on to Dual Hinge Brackets(Item 2)using M10
hardware(Items 8, 9, and 10) as shown inFig. 8, and torqueto 54N·m
(40 ft·lbs).
