CCR 400 User manual

CCR Model 400
4-Channel MFC Power Supply/Controller Manual
CCR
Process Products
5/08
200 Terrence Matthews Crescent Kanata, Ontario, K2M2C6 Canada
Tel: 613-723-3386 Fax: 613-723-9160

PRODUCT DESCRIPTION ------------------------------------------------------------------------------
SPECIFICATIONS -----------------------------------------------------------------------------------------
FRONT PANEL ---------------------------------------------------------------------------------------------
REAR PANEL -----------------------------------------------------------------------------------------------
CONNECTOR PIN DESIGNATIONS
Transducer Connector (J1, J2, J3, J4) ---------------------------------------------------
Analog Output (J5) ----------------------------------------------------------------------------
Alarms (J8) --------------------------------------------------------------------------------------
RS232 (J6) --------------------------------------------------------------------------------------
RS485 (J7, J9) ---------------------------------------------------------------------------------
STARTUP ----------------------------------------------------------------------------------------------------
MANUAL SETUP
Selecting Display (Flow or Total) ----------------------------------------------------------
Selecting Valve Override (Open, Close or Run) ---------------------------------------
Selecting Setpoint (Control Voltage) -----------------------------------------------------
Selecting Units of Measure and Gas Identifiers --------------------------------------
Selecting Filter (-3dB A/D Converter Filter Frequency ------------------------------
Selecting Input (0-5Vdc, 0-10Vdc or 4-20mA Signal Input -------------------------
Selecting Alarms (High and Low with Hysteresis) ------------------------------------
Selecting Ratio (Master/Slave Operation) ----------------------------------------------
MANUAL CAL/RANGE
Calibrate (Zero Only) -------------------------------------------------------------------------
Calibrate (Range Only) ----------------------------------------------------------------------
Calibrate (Zero & Range) -------------------------------------------------------------------
Range (Changing Range) ------------------------------------------------------------------
Calibrate (Multiplier) --------------------------------------------------------------------------
RS232/485 HOOKUP ------------------------------------------------------------------------------------
RS232/485 COMMANDS
Setting/Reading Setpoint & Flow Alarms -----------------------------------------------
Setting/Reading Alarm Hysteresis, Units of Measure & Gas ID ------------------
Setting/Reading Signal Input & Filter ----------------------------------------------------
Setting/Reading Multiplier ------------------------------------------------------------------
Setting/Blanking/Reading Display --------------------------------------------------------
Resetting Total ---------------------------------------------------------------------------------
Setting/Reading Range Value -------------------------------------------------------------
Enable Master/Slave Channels & Setting Local/Remote Operation -------------
UNITS OF MEASURE TABLE -------------------------------------------------------------------------
GAS IDENTIFICATION TABLE
Gas #1 thru 66 --------------------------------------------------------------------------------
Gas #67 thru 130 -----------------------------------------------------------------------------
Gas #131 thru 180 ---------------------------------------------------------------------------
JUMPER LOCATIONS FOR PURGE SIGNAL SELECTION
Jumper Locations for GND and +15V Purge Signals --------------------------------
TABLE OF CONTENTS
1
2
3
4
5
5
6
6
6
7
9
9
10
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
21
22
22
22
23
24
25
26
27

The CCR Model 400 is a high performance, microprocessor-based 4-channel power
supply/controller designed for use with Mass Flow Controllers (MFC). A linear regulator
provides a low noise, foldback current limited, thermal overload protected +15Vdc and
-15Vdc power supply @ 250mA each for each of the (4) MFC's. The CCR 400 accepts,
user selectable 0-5Vdc, 0-10Vdc or 4-20mA input signals. It also supplies 0-5Vdc, 0-10Vdc
or 4-20mA setpoint signals, for each channel, for flow control.
The firmware utilizes a Real Time Operating System (RTOS) for real time multitasking
capabilities. This allows continuous monitoring of each channel's flow rates, total flow and
setpoints regardless of the task being performed. A 16-bit multi-channel, high speed,
sigma-delta analog-to-digital converter provides accurate flowrate data. A 32K x 8 battery
backed RAM stores more than 90 Units of Measure and 190 Gas Identifiers selectable by
the user. All pertinent data, required by the microprocessor at power-up to re-initialize the
system, is also stored in the same RAM.
Ratio control is user selectable for master/slave operation. Channel 1 is always the master
and any of the other 3 channels may be selected as slaves. This master/slave arrangement
utilizes the actual flow of Channel 1 as the master signal.
The CCR400 utilizes a 4-line by 20 character back lighted LCD display. A built in Totalizer, one
for each channel automatically recognizes the units of measure selected and adjusts the
time base for the integrator accordingly. The user can select either Flow or Total to be
displayed for each channel. When selected, the setpoint signal is displayed and can be
altered via the front panel switches. Override controls for opening or closing the MFC
valves are also available for each channel. Annunciator LED's display the selected valve
override conditions.
Both RS232 and RS485 serial communications are available. All functions selectable from
the front panel switches are also accessible via the RS232/RS485 serial ports. Only one,
either RS232 or RS485, serial port is active at any one time. Selection, including a baud
rate of 9600 or 19.2K, is made via the front panel switches.
Each flow channel has a high and low user programmable alarm. The alarms activate an
opto-isolated open collector transistor output capable of switching 25Vdc @ 10mA.
The unit can be rack mounted using standard half-rack hardware or can be bench mounted
using the retractable stand provided. Input power is selectable, via the rear panel power
selector for 100, 115 or 230 Vac, 50-400 Hz.
PRODUCT DESCRIPTION
PAGE 1

Signal Input
Number of Channels ------------------------
Signal Type ------------------------------------
Input Resistance
Voltage ---------------------------------
Current ---------------------------------
Setpoint Output (Control Signal)
Signal Type -------------------------------------
Accuracy (typ) ---------------------------------
Analog-to-Digital Converter
Inputs --------------------------------------------
Technique --------------------------------------
Resolution --------------------------------------
Speed (max) -----------------------------------
Totalizer (Each Channel)
Technique --------------------------------------
Time Base (Quartz Crystal) ---------------
Accuracy (typ) --------------------------------
Microprocessor
Type ---------------------------------------------
Speed -------------------------------------------
Operating System ----------------------------
Non-volatile memory ------------------------
Serial Communications
RS232 -------------------------------------------
RS485 -------------------------------------------
Baud Rate --------------------------------------
Transducer Power Supply (Each Channel)
Voltage ------------------------------------------
Current (min) ----------------------------------
Input Power
Voltage ------------------------------------------
Current (typ) -----------------------------------
Fuse ---------------------------------------------
SPECIFICATIONS
4
0-5Vdc, 0-10Vdc, 4-20mA , user selectable
>10 Megohm
120 ohms
0-5Vdc, 0-10Vdc, 4-20mA (user selectable)
+/-0.05% FS (Voltage), +/-0.1% FS (Current)
4
Sigma-Delta
16-bit (bi-polar)
100 Hz
Integrated (Riemann Sum) Value
20MHz
+/- 30ppm
80C31
20MHz
RTOS with multitasking capabilities
32K x 8 Battery backed Ram
Bi-directional (user-selectable)
Full-duplex (user-selectable)
9600 or 19.2K baud (user-selectable)
+/-15Vdc, +/-0.75Vdc
250mA
100/115/230 Vac, +/-10% (switch selectable)
500 mA
1 amp SLO BLO (Time Delay)
PAGE 2

ANNUNCIATORS: Displays OVERRIDE signal status of each channel. If annunciators are not
illuminated, the Setpoint (Control) voltage is active.
DISPLAY AREA
Column 1: Reserved for displaying (*) Active Channel, (M) Master Channel, (S) Slave Channel or (T) Totalizer.
Column 2: Reserved for polarity indicator (minus sign for negative signal, none for positive).
Col's 3 - 8: Actual scaled value of input signal. Displays FLOW or TOTAL in normal display mode. Displays
the Setpoint (Control) value when CH SEL is depressed.
Column 9: Space
Col's 10-14: Units of Measure
Column 15: Space
Col's 16-20: Gas Identifier
ESC: Escape key used to exit MENU sequence without updating current settings.
ENTER: Key used to enter new settings.
KEYPAD: Used to quickly enter new settings.
OVERRIDE: Used with CH SEL to override Setpoint (Control) voltage inputs with valve OPEN or valve
CLOSE signals. RUN disables OPEN or CLOSE selection.
CH SEL: Used to scroll through Channels 1, 2, 3 and 4 to update the selected Channel's
Setpoint (Control) voltage or to send the selected OVERRIDE signal.
MENU: Key used to enter MENU or manual setup sequence.
SCROLL: Used to scroll MENU selections UP or DOWN
FRONT PANEL
PAGE 3
12345
678
3
4
5
6
7
8
1
2
CH 1
CH 2
CH 3
CH 4
3
6
9
2
5
8
0
1
4
7
ENTERESC
MENU
CH
SELECT
OPEN
CLOSE
RUN
OPEN
CLOSE
M 100.00 SCCM C4H6
T 2750.0 SCCM N2
S 500.00 SLM Ar
* 115.00 SCCM C02
9
9
CCR
Model 400

POWER INLET WITH FUSE (1 amp TIME DELAY or SLO BLO)
POWER SELECTOR SWITCH
RS232 SERIAL PORT (J6)

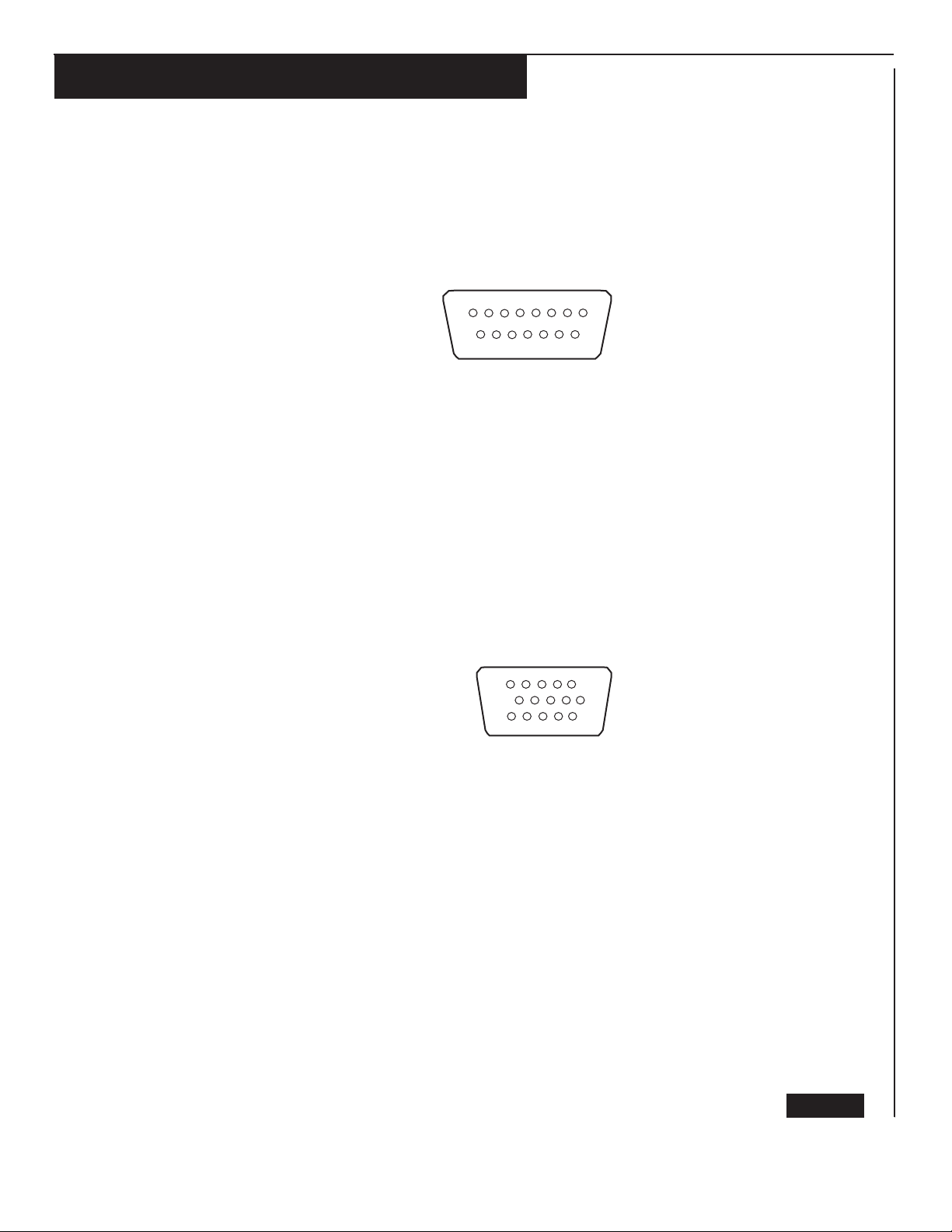

TRANSDUCER CONNECTORS (J1, J2, J3, J4)
ANALOG OUTPUT (J5)
ALARMS (J8)
RS-485 SERIAL PORT (J7, J9)
POWER ON/OFF SWITCH
REAR PANEL
1
8
9
15
1
8
9
15
1
8
9
15
1
8
9
15
1
10
9
18
19
26
J1
CHANNEL 1
J3
CHANNEL 3
J2
CHANNEL 2
J4
CHANNEL 4
J8
ALARMS
1
J5
ANALOG OUT
5
11
15
1
J9
RS485
5
69
1
J7
RS485
5
69
1
J6
RS232
5
69
6
10
230
115
100
O
T250 1A
VAC
1
2
3
4
5
678
1
2
3
4
5
6
7
8
PAGE 4

TRANSDUCER CONNECTORS (J1, J2, J3, J4)
ANALOG OUTPUT (J5)
CONNECTOR PIN DESIGNATIONS
PAGE 5
1SIGNAL COMMON
2SIGNAL INPUT
3GROUND
4VALVE OPEN
5SETPOINT COMMON
6-15Vdc
7NC
8SETPOINT SIGNAL
9GROUND
10GROUND
11NC
12VALVE OFF
13+15Vdc
14NC
15NC
1
8
9
15
Transducer Connector (Female)
Rear Panel View
1SIGNAL CH 1
2SIGNAL COMMON CH 1
3SIGNAL CH2
4SIGNAL COMMON CH2
5NC
6NC
7NC
8NC
9NC
10NC
11SIGNAL CH3
12SIGNAL COMMON CH3
13SIGNAL CH4
14SIGNAL COMMON CH4
15NC
1
5
11
15
6
10
Analog Output Connector (Female)
Rear Panel View

ALARMS (J8)
RS232 (J6)
RS485 (J7, J9)
CONNECTOR PIN DESIGNATIONS
PAGE 6
1CH1 HIGH ALARM
2CH 1 LO W ALARM
3CH1 ALARM COMMON
4CH2 HIGH ALARM
5CH2 LOW ALARM
6CH2 ALARM COMMON
7NC
8NC
9NC
10NC
11NC
12NC
13NC
14NC
15NC
16NC
17NC
18NC
19CH3 HIGH ALARM
20CH3 LOW ALARM
21CH3 ALARM COMMON
22CH4 HIGH ALARM
23CH4 LOW ALARM
24CH4 ALARM COMMON
25NC
26NC
Alarm Connector (Female)
Rear Panel View
1NC 6 DSR
2RXD 7 NC
3TXD 8 NC
4DTR 9 NC
5DIGITAL GROUND
1NC 6 NC
2RXD(-) 7 RXD(+)
3TXD(+) 8 TXD(-)
4DIGITAL GROUND 9 NC
5NC
1
10
9
18
19
26
1
5
69
1
5
69
RS232 Connector (Female)
Rear Panel View
RS485 Connector (Female)
Rear Panel View
TXD
RXD

The CCR 400 has a 100 Vac, 115 Vac or 230 Vac, 50/60 Hz power selector switch located at the rear of the
instrument. Please refer to page 4 to locate this switch. Verify the power selector switch is in the proper position
prior to connecting the power cable to the unit. Verify power ON/OFF switch is in the OFF position. Then perform
the following steps.
1. Connect the power cable to the instrument and apply the proper input power. Do not make any other
connections to the instrument.
2. Turn power ON/OFF switch ON.
3. The display will momentarily display the current version of the firmware utilized, then show the following
factory default display.
126.72 SCCM #1
126.72 SCCM #2
126.71 SCCM C3H6O
126.72 SCCM C2H3N
Note: All 4 channels should have the CLOSE annunciators illuminated. The values 126.71 and 126.72
are approximate and is the display for an open signal input . It may not correspond exactly to the
display shown on this unit.
4. Change the Units of Measure and Gas Identifiers as desired. Please refer to page 10. To blank the Units
of Measure select "00" then "ENT". To blank the Gas Identifier select "000" then "ENT". To blank the
entire line, please refer to RS232/485 Commands, Selecting/Blanking/Reading Display on page 21.
5. The CCR 400 is factory calibrated at 0.000 and 5.000Vdc to display 0.00 and 100.00 for each channel.
To change the display range, without recalibration, see MANUAL CAL/RANGE, Range(Changing Range)
on page 15. To enter a Gas Correction Factor or Multiplier, refer to MANUAL CAL/RANGE, Calibrate
(Multiplier) on page 16. The factory Multiplier setting is 1.0000.
6. The CCR 400 can accept 0-5Vdc, 0-10Vdc or 4-20mA input signals. If either 0-10Vdc or 4-20mA is
required, the instrument needs to be recalibrated. Select the proper signal input for the Transducer to be
used for each channel. Please refer to MANUAL SETUP, Selecting Input on page 11. Do not attempt to
recalibrate the instrument at this time. The factory Input setting is 0-5Vdc.
7. Select Filter to optimize reading stability and conversion speed. The factory Filter setting is 15Hz.
8. Allow 30 minutes warm-up time.
9. Turn power ON/OFF switch OFF.
10 . Connect Transducer #1 to J1 on the CCR 400 using the Connector Pin Designation information on
page 5. Connect all ground connections available to the transducer. Example: If the transducer has 3
ground pins, connect all three ground pins shown on J1. All ground pins on J1, J2, J3 and J4 are
common but are routed on separate wires from the connector to a ground plane on the instrument
motherboard.
11. Connect Transducers #2, 3 and 4 to the instrument. The instrument is designed to provide
+/-15Vdc @ 250 mA to each transducer. Do not use a Transducer that requires more than
+/-15Vdc @ 350mA on any channel.
12. Verify the display illuminates and the transducer readings are essentially correct. If the selected signal
input for a channel is 0-5Vdc proceed to Step 11 for that channel. If the selected signal input for a
channel is 0-10Vdc or 4-20mA, that channel needs to be recalibrated. Refer to MANUAL CAL/RANGE,
Calibrate section pages 14 and 15 to recalibrate that channel.
START-UP
PAGE 7

13. To utilize the Setpoint (Control) voltage for MFC's, set the Setpoint voltage for each channel to the
desired setting. Please refer to MANUAL SETUP, Selecting Setpoint (Control Voltage) on page 10.
The factory Setpoint default is 0.0000 for all 4 channels.
The Setpoint voltage, for a 0-5Vdc signal input, is calculated as follows.
Setpoint Voltage = (Setpoint Value/Range Value) * 5.000Vdc
Example: If the Setpoint Value = 120.00 SCCM and the Range Value is 250.00 SCCM,
the Setpoint Voltage = (120.00/250.00)*5.000 = 2.400Vdc.
For a 0-10Vdc signal input
the Setpoint Voltage= (120.00/250.00)*10.000Vdc = 4.800Vdc
For a 4-20mA signal input
the Setpoint Current = (120.00/250.00)*16mA + 4mA = 11.68mA.
14. The Flowrate Alarms are used to monitor the flowrate of the MFC. If the flow rate is not within the
selected HIGH and LOW Alarm values, an opto-isolated open collector output is activated. This output
can be used to illuminate warning lights to alert the user if the Flow Controller's Setpoint (Control)
voltage is not controlling the flow within a desired window. Refer to MANUAL SETUP, Selecting Alarms
on page 12. The factory default is HIGH Alarm set at 75.000, LOW Alarm at 25.000 and HYSTERESIS
at 010 counts.
15. To activate the Setpoint (Control) voltage to the MFC, select RUN for the desired channel. Reference
MANUAL SETUP, Selecting Valve Override (Open, Close or Run) on page 9. The default at power-up
is Valve Close.
16. If the Units of Measure are in flow units, the CCR 400 automatically calculates TOTAL flow using a
Riemann Sum Integration method. To display TOTAL or to reset the TOTAL display, refer to
MANUAL/SETUP, Selecting Display (Flow or Total) on page 9. If the Units of Measure are not in flow
units, the TOTAL is not calculated or displayed.
17. The CCR 400 has both RS232 and RS485 serial communications ports. Only one port is active at any
one time and is user selectable. The RS232 port has (1) 9-pin D-sub connector, while the RS485 port
has (2) 9-pin D-sub connectors. All Setups described earlier can be performed using the serial
communications ports. Reference RS232/485 Hookup and Commands on pages 17 through 26.
PAGE 8
START-UP

Selecting Display (Flow or Total)
If Flow is selected, the most significant digit location will be left blank. If Total is selected, a "T" appears in
this location and the Unit of Measure changes accordingly. If the Unit of Measure selected is not a flow
rate unit of measure, Total will not be displayed.
Selecting Valve Overide (Open, Close or Run)
Channel 1 is shown selected above. An asterisk appears to signify the Channel selected. To select
Channel 2, depress CH SEL switch twice, then select OPEN, CLOSE or RUN. If OPEN is selected,
ground is applied to the appropriate channel connector pin-4. This ground is at the same potential as
pin-9. If CLOSE is selected, ground is applied to pin-12. Both pin-4 and pin-12 are grounded with an
open collector transistor capable of sinking 250mA at 25V. If RUN is selected, no override signals are
sent and the MFC Setpoint control is activated.
MENU MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
DISPLAY: 1=FLOW
2=TOTAL
1
-- -- FLOW: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
1
-- -- 500.0 SCCM Ar
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
2
--
|
|
|
|
|
---- TOTAL: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
RESET TOTAL?
1=NO
2=YES
500.0 SCCM Ar
T 0000 SCC H2
50.00 SCCM CF4
950.0 SCCM CH4
2
-- -- 2
-- --
-------------------------------------------- --
1
--
CH SEL --------------- ------ CH1 500.0 SCCM Ar
CH2 1000 SCCM H2
CH3 50.00 SCCM CF4
CH4 950.0 SCCM CH4
-- *500.0 SCCM Ar
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
OPEN
OPEN
CLOSE
CH1 500.0 SCCM Ar
CH2 1000 SCCM H2
CH3 50.00 SCCM CF4
CH4 950.0 SCCM CH4
OPEN
CLOSE
CLOSE
------ ------
|
|
|
|
|
|
|
|
|
CH1 500.0 SCCM Ar
CH2 1000 SCCM H2
CH3 50.00 SCCM CF4
CH4 950.0 SCCM CH4
OPEN
CLOSE
RUN
------ ------
|
|
|
|
|
|
|
|
|
MANUAL SETUP
PAGE 9

Selecting Setpoint (Control Voltage)
The example above shows how the setpoint for Channel 2 is changed. When CH SEL is depressed an
asterisk points to the channel selected. To select Channel 4, depress CH SEL switch 4 times. The value
displayed after the asterisk is the current setpoint value. Typing in a new value overrides the old value. If
ESCis depressed instead of ENT, the old value is retained.
Selecting Units of Measure and Gas Identifiers
The bold characters shown in the above flow chart indicate the updated Units of Measure and Gas
Identifier selected. Note: When the Units of Measure and Gas Identifiers are selected, ENT must be
depressed before the selection is made. This is because it may require the inputting of more than 1 digit
to make the desired selection.
CH SEL -- -- 500.0 SCCM Ar
*1250.0 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
-- * 575.0 SCCM Ar
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
CH SEL 500.0 SCCM Ar
*1575.0 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
1
-- -- -- -- -- -- -- --
570.ENT
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
2
-- -- SETUP:
1=BRIGHTNESS
2=UNITS/GASID
3=FILTER
:
4=INPUT
5=ALARM
6=RATIO
2
-- -- UNITS: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
1
-- -- UNITS:
1=SCCM
2=SLM
3=%
:
66=PSI
1
-- -- --
ENT
GASID:
1=#1
2=#2
3=C3H60
:
191=C8H10
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------- 3
-- -- --
ENT 500.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
MANUAL SETUP
PAGE 2
--------------
---------------------------------------
PAGE 10
0

Selecting Filter (-3db A/D Converter Filter Frequency)
The Filter selection sets the output word rate which in turn sets the corner frequency for the sigma-delta A/D
converter. With an output word rate of 15Hz, the filter's corner frequency is typically 12.7Hz. The filters are
optimized to settle to full accuracy every conversion and yield better than 80dB rejection for both 50 and 60Hz
with output word rates at or below 15Hz. The last filter output word rate setting for the selected channel is
displayed for user convenience. Each channel may be set to a different filter output word rate. The factory
default is15Hz for each channel to optimize response time and noise rejection.
Selecting Input (0-5Vdc, 0-10Vdc or 4-20mA Signal Input)
The Input selection sets the full scale input signal and the full scale setpoint (control) signal for the selected
channel. The selected channel and the input signal setting that was previously selected is displayed during
selection. The factory default is 0-5V for each channel. Any input may be selected for any channel. The
instrument compensates for any incompatibilities even in the Master/Slave configuration.
Example: If the full scale input selected is 0-10V, then the full scale setpoint output is also 0-10V. If the
Master Channel is 0-10V and the Slave Channel is 4-20mA, the instrument compensates for the
incompatibility and sends a 0-10V setpoint signal for the Master and a 4-20mA setpoint signal proportional to
the 0-10V input signal for the Slave.
Note: For most MFC's the full scale input is 0-5V, while for pressure transducers the input is 0-10V.
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
2
-- -- SETUP:
1=BRIGHTNESS
2=UNITS/GASID
3=FILTER
:
4=INPUT
5=ALARM
6=RATIO
3
-- -- FILTER: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
1
-- -- FILTER: 1=4Hz
2=15Hz
CHANNEL 1 3=30Hz
15Hz 4=100Hz
1
-- -- 500.0 SCCM N2
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
2
-- -- SETUP:
1=BRIGHTNESS
2=UNITS/GASID
3=FILTER
:
4=INPUT
5=ALARM
6=RATIO
4
-- -- ANALOG: 1=0-5V
2=0-10V
CHANNEL 2 3=4-20mA
0-5V
1
-- -- 500.0 SCCM N2
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
INPUT: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
2
-- --
MANUAL SETUP
PAGE 11

Selecting Alarms (High and Low with Hysteresis)
Each channel has a HIGH and LOW alarm to monitor the flow rate signal. If the flow rate is higher than
the HIGH alarm or less than the LOW alarm, an optically isolated open collector output is turned on. This
alarm may be used as a warning that the flow rate is not within the limits set by the setpoint (control)
signal. A programmable HYSTERESIS of 1 to 999 counts provide a deadband for the alarms. To exit the
alarm setup a "4" to exit must be selected.
In the above example, the HIGH alarm limit was changed from 75.000 to 50.000, the LOW alarm limit from
25.000 to 10.000 and HYSTERESIS from 010 to 001. The factory default is 75.000, 25.000 and 010 for
the HIGH, LOW and HYSTERESIS settings, respectively.
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
2
-- -- SETUP:
1=BRIGHTNESS
2=UNITS/GASID
3=FILTER
:
4=INPUT
5=ALARM
6=RATIO
5
-- -- ALARM: 1=Chnl 1
2=Chnl 2
3=Chnl 3
4=Chnl 4
1
-- -------
ALARMS: 1=HIGH LIMIT
2=LO W LIMIT
3=HYSTERESIS
4=EXIT
1
-------------------- -----
----------------------------------------------------------------------------------------------------
---- ALARM:
CHANNEL 1
HIGH LIMIT 75.000
5
-- -- -- -- -- -- -- --
0.000 ENT
2
-------------- -------
ALARM:
CHANNEL 1
LOW LIMIT 25.000
1
-- -- -- -- -- -- -- --
0.000 ENT
ALARM:
CHANNEL 1
HYSTERESIS 010
1
----------------------- -- -- -- --
0
0ENT
---
3
-------- -------
---------
4
-- ---
500.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
------------------
----
--------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------
---------------------------------------------------------------------------
----------------------------------------------------
-----------------------------------
----------------
---------
-------------------------------
MANUAL SETUP
PAGE 12

Selecting Ratio (Master/Slave Operation)
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
2
-- -- SETUP:
1=BRIGHTNESS
2=UNITS/GASID
3=FILTER
:
4=INPUT
5=ALARM
6=RATIO
6
-- -- RATIO:
1=DISABLE MASTER
2=ENABLE MASTER
3=EXIT
1
------ -------
SLAVE A:
1=DISABLED
2=CHAN 2
3=EXIT
1
---------------- ---
--------------------------------------------------------------------------------------------------------
----
2
------------ ----
---
3
--- ---
500.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
----------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------
--------------------------------
---------
--------------------------
MANUAL SETUP
PAGE 13
2
-- -----
500.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
SLAVE B:
1=DISABLED
2=CHAN 3
3=EXIT
SLAVE B:
1=DISABLED
2=CHAN 3
3=EXIT
1
-------- ----- SLAVE C:
1=DISABLED
2=CHAN 4
3=EXIT
2
-- -------
---
------------
SLAVE C:
1=DISABLED
2=CHAN 4
3=EXIT
500.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
1
--- ---
M 500.0 SCCM C3H60
1000 SCCM H2
S 50.00 SCCM CF4
950.0 SCCM CH4
1
--- ---
SLAVE C:
1=DISABLED
2=CHAN 4
3=EXIT
--- SLAVE C:
1=DISABLED
2=CHAN 4
3=EXIT
1
-------- -----
2
--- -------
------------------------------
M 500.0 SCCM C3H60
S 1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
1
--- ---
M 500.0 SCCM C3H60
S 1000 SCCM H2
S 50.00 SCCM CF4
950.0 SCCM CH4
1
--- ---
---
2
-- --
------------
M 500.0 SCCM C3H60
S 1000 SCCM H2
S 50.00 SCCM CF4
S 950.0 SCCM CH4
---
-- --
------------
M 500.0 SCCM C3H60
S 1000 SCCM H2
50.00 SCCM CF4
S 950.0 SCCM CH4
2

Calibrate (Zero only)
The "Zero only" sequence shown above is used to zero the MFC. Verify the input signal is at or
close to zero prior to performing this sequence. In SCREEN 5, the data shown after "SIGNAL" is the raw
analog-to-digital data corresponding to the input signal applied. This data is live and will change as the
input signal is changed. It should be close to zero, unless the MFC is being zeroed at a point other than
zero. If ENT is depressed during SCREEN 5, the value present at the input will be zeroed on the display,
as shown in SCREEN 6. If ESC is entered, the previous zeroed value applies.
Calibrate (Range only)
The Range only sequence is used to calibrate the full scale reading of the MFC. Apply a full scale input
signal, typically 5Vdc to the signal input prior to performing this sequence. At SCREEN 5, the user has 2
alternatives. The first is to accept the display RANGE value shown by depressing ENT. The second is to
enter a new RANGE value, as shown above, prior to completing the RANGE sequence. The Signal
displayed on SCREEN 6 is the live, un-scaled analog-to-digital converter data, and will change as the
input changes. The value present when ENT is depressed will be used in the full scale calibration
calculations. If ESC is entered instead of ENT, the previous calibration applies. NOTE: DO NOT USE
THE RANGE ONLYSEQUENCE TO CHANGE RANGES. USE SELECTION 2 SHOWN IN SCREEN 2.
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
3
-- -- CAL/RANGE
1=CALIBRATE
2=RANGE
1
-- -- CALIBRATE: 1=Chnl1
2=Chnl2
3=Chnl3
4=Chnl4
1
-- ---
-------------------------------------------------------------------------------------------------------
----
------------
---------------
MANUAL CAL/RANGE
PAGE 14
0.0 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
ENT
--- ----
CALIBRATE:
1=ZERO ONLY
2=ZERO & RANGE
3=RANGE ONLY
:
4=MULTIPLIER
1
-- -- ZERO:
CHANNEL 1
SIGNAL 9
ENTER TO ACCEPT
SCREEN 1 SCREEN 2 SCREEN 3
SCREEN 4 SCREEN 5 SCREEN 6
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
3
-- -- CAL/RANGE
1=CALIBRATE
2=RANGE
1
-- -- CALIBRATE: 1=Chnl1
2=Chnl2
3=Chnl3
4=Chnl4
1
-- ---
---------------------------------------------------------------------------------------------------------------------------------------
----
------------
-------------------
150.00 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
ENT
CALIBRATE:
1=ZERO ONLY
2=ZERO & RANGE
3=RANGE ONLY
:
4=MULTIPLIER
3
-- --
RANGE VALUE:
CHANNEL 1
VALUE 100.00
ENTER TO ACCEPT
SCREEN 1 SCREEN 2 SCREEN 3 SCREEN 4
SCREEN 5 SCREEN 7
1
-- -- -- -- -- -- -- --
5.000RANGE VALUE:
CHANNEL 1
SIGNAL 25963
ENTER TO ACCEPT
ENT
-- --
SCREEN 6
Entering 0150.0 instead of 150.00
will result in a full scale display
of 150.0 instead of 150.00

Calibrate (Zero & Range)
The Zero & Range calibration allows both zero and full scale calibrations to be performed in the same
sequence. The input signal needs to be changed from a zero to a full scale value during the calibration
sequence. The same rules apply as previously mentioned in the Zero only and Range only procedures.
Range (Changing Range)
The Range sequence is nota calibration sequence. Changing the Range value simply replaces the
Range value used during the previous full scale calibration. The analog-to-digital converter data used
during the previous full scale calibration is still valid. Ranging is a simple way to change ranges when
changing MFC's. It assumes the full scale output voltage of the new MFC is the same as the previous
MFC.
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
3
-- -- CAL/RANGE
1=CALIBRATE
2=RANGE
2
-- -- RANGE: 1=Chnl1
2=Chnl2
3=Chnl3
4=Chnl4
1
-- ---
-------------------------------------------------------------------------------------------------------
----
-----------
----------------
MANUAL CAL/RANGE
PAGE 15
RANGE VALUE:
CHANNEL 1
VALUE 100.00
ENTER TO ACCEPT
SCREEN 1 SCREEN 2 SCREEN 3
SCREEN 4
150.00 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
ENT
SCREEN 5
1
-- -- -- -- -- -- -- --
5.000
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
3
-- -- CAL/RANGE
1=CALIBRATE
2=RANGE
1
-- -- CALIBRATE: 1=Chnl1
2=Chnl2
3=Chnl3
4=Chnl4
1
-- ---
-------------------------------------------------------------------------------------------------------
----
-----------
----------------
RANGE VALUE:
CHANNEL 1
VALUE 100.00
ENTER TO ACCEPT
SCREEN 1 SCREEN 2 SCREEN 3
SCREEN 6
150.00 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
ENT
SCREEN 8
1
-- -- -- -- -- -- -- --
5.000
CALIBRATE:
1=ZERO ONLY
2=ZERO & RANGE
3=RANGE ONLY
:
4=MULTIPLIER
SCREEN 4
1
-- -- ZERO:
CHANNEL 1
VALUE 9
ENTER TO ACCEPT
SCREEN 5
ENT
-- --
RANGE VALUE:
CHANNEL 1
SIGNAL 25963
ENTER TO ACCEPT
SCREEN 7
-----------------------------------------------------------------------------------------------------------------------------------------
----
-----------
ENT
-- --
---------------------

Calibrate (Multiplier)
Entering a MULTIPLIER value changes the display by that multiplier factor. All data values are multiplied
by the MULTIPLIER prior to display. The MULTIPLIER is sometimes referred to as a GAS
CORRECTION factor when used with MFC's. If the MFC is calibrated with nitrogen and another gas is
used with the MFC, a GAS CORRECTION factor can be entered to recalibrate the MFC to the gas used.
MANUAL CAL/RANGE
PAGE 16
MENU -- MENU: 1=DISPLAY
2=SETUP
3=CAL/RANGE
4=COMM
3
-- -- CAL/RANGE
1=CALIBRATE
2=RANGE
1
-- -- CALIBRATE: 1=Chnl1
2=Chnl2
3=Chnl3
4=Chnl4
1
-- ---
-------------------------------------------------------------------------------------------------------
----
-----------
----------------
SCREEN 1 SCREEN 2 SCREEN 3
105.00 SCCM C3H60
1000 SCCM H2
50.00 SCCM CF4
950.0 SCCM CH4
ENT
SCREEN 6
1
-- -- -- -- -- -- -- --
5
.000
CALIBRATE:
1=ZERO ONLY
2=ZERO & RANGE
3=RANGE ONLY
:
4=MULTIPLIER
SCREEN 4
4
-- -- MULTIPLIER
CHANNEL 1
FACTOR 1.0000
SCREEN 5

RS232/485 HOOKUP
PAGE 17
TXD(+) -----------------------------
TXD(-) -----------------------------
RXD(+) -----------------------------
RXD(-) -----------------------------
IC-485
RXD(+)
RXD(-)
TXD(+)
TXD(-)
IC-485
--------------------- RXD(+)
------------------ RXD(-)
---------------- TXD(+)
-------------- TXD(-)
KDT-4000 #01
PC1
COM1/COM2
IC-485
--------------------- RXD(+)
------------------ RXD(-)
---------------- TXD(+)
------------- TXD(-)
:
:
KDT-4000 #02
--------------------- RXD(+)
------------------ RXD(-)
---------------- TXD(+)
------------- TXD(-)
IC-485
RXD(+)
RXD(-)
TXD(+)
TXD(-)
KDT-4000 #nn
--------------------- RXD(+)
------------------ RXD(-)
---------------- TXD(+)
------------- TXD(-)
------------ -----------------------------------------------------------------------------------------------------
---------------- -------------------------------------------------------------------------------------------------
-------------------- --------------------------------------------------------------------------------------------
------------------------ ----------------------------------------------------------------------------------------
MULTIDROP/4-WIRE FULL DUPLEX
RS-485 CONNECTION
TXD(+) -----------------------------
TXD(-) -----------------------------
RXD(+) -----------------------------
RXD(-) -----------------------------
IC-485
PC2
COM1/COM2
J7-7
2
3
8
J9-7
2
3
8
J7-7
2
3
8
J9-7
2
3
8
J7-7
2
3
8
J9-7
2
3
8
Note: nn=32 maximum (drivers and receivers)
TXD -----------------------------
RXD ----------------------------
GND -----------------------------
IC-232
RXD
TXD
DIGITAL GND
KDT-4000
PC1
COM1/COM2
J6-3
2
5
IC-232
BI-DIRECTIONAL RS-232 CONNECTION
RS232/485 data is transmitted at 9600 or 19.2K baud (user-selectable)
in the following format:
One Start Bit
Eight Data Bits in ASCII Format
No Parity Bit
One Stop Bit
Note: All commands and queries are case sensitive and require
an upper case character.
Reading Display
RS232 Query:
C1Response: "CH1<>sddd.dd<>eeeee<>xxxxx<>z
where: <>= blank (ASCII 20)
s= polarity sign (blank for +, ASCII 2E for -)
ddd.dd= data in ASCII format with decimal in
displayed position.
eeeee= unit of measure
xxxxx= gas id
z= carriage return (ASCII 0D)
C5Response: "CH1<>sddd.dd<>eeeee<>xxxxx<>z
CH2<>sddd.dd<>eeeee<>xxxxx<>z
CH3<>sddd.dd<>eeeee<>xxxxx<>z
CH4<>sddd.dd<>eeeee<>xxxxx<>z"
RS485 Query:
*aaC1Response: "CH1<>sddd.dd<>eeeee<>xxxxx<>z
*aaC5Response: "CH1<>sddd.dd<>eeeee<>xxxxx<>z
CH2<>sddd.dd<>eeeee<>xxxxx<>z
CH3<>sddd.dd<>eeeee<>xxxxx<>z
CH4<>sddd.dd<>eeeee<>xxxxx<>z"
where: aa= CCR 400 address
Reference: Checking/Changing RS485 Address on pg 19.
:
:
:
:
:
:
:
:

Checking CCR 400 RS485 Address Setting
RS485 Query:
*00XResponse: "MULTIDROP ADDRESS: 01"
Note: All CCR 400's will respond to * 0 0 X. To prevent bus
contention, connect only 1 CCR 400 to the RS485 port
for this check.
Setting Setpoint (Control) Voltage
RS232 Command:
SP1<dd.ddd>Set CH1 Setpoint to dd.ddd
SP2<dd.ddd>Set CH2 Setpoint to dd.ddd
SP3<dd.ddd>Set CH3 Setpoint to dd.ddd
SP4<dd.ddd>Set CH4 Setpoint to dd.ddd
Example: Send S P 1 1 0 0 . 0 0
CH1 Setpoint (Control) Voltage setting will be
100.00.
Note: < > must contain 5 digits and 1 decimal point.
<ddddd.> is a valid entry. Setpoint is always positive.
RS485 Command:
*aaSP1<dd.ddd>Set CH1 Setpoint at Address 01 to dd.ddd
*aaSP2<dd.ddd>Set CH2 Setpoint at Address 01 to dd.ddd
*aaSP3<dd.ddd>Set CH3 Setpoint at Address 01 to dd.ddd
*aaSP4<dd.ddd>Set CH4 Setpoint at Address 01 to dd.ddd
Example: Send * 0 1 S P 2 2 5 0 0 . 0
CCR 400 with Address 01 will have CH2 Setpoint
(Control) Voltage set to 2500.0
Setting Alarms
RS232 Command:
A1H<dd.ddd>Set CH1 High Alarm to dd.ddd
A2L<dd.ddd>Set CH1 Low Alarm to dd.ddd
A2H<dd.ddd>Set CH2 High Alarm to dd.ddd
A2L<dd.ddd>Set CH2 Low Alarm to dd.ddd
A3H<dd.ddd>Set CH3 High Alarm to dd.ddd
A3L<dd.ddd>Set CH3 Low Alarm to dd.ddd
A4H<dd.ddd>Set CH4 High Alarm to dd.ddd
A4L<dd.ddd>Set CH4 Low Alarm to dd.ddd
Example: Send A 4 L 3 5 . 0 0 0
CH4 Low Alarm Setpoint will be 35.000
RS485 Command:
*aaA1H<dd.ddd>Set CH1 High Alarm at Address 02 to dd.ddd
*aaA1L<dd.ddd>Set CH1 Low Alarm at Address 02 to dd.ddd
*aaA2H<dd.ddd>Set CH2 High Alarm at Address 02 to dd.ddd
*aaA2L<dd.ddd>Set CH2 Low Alarm at Address 02 to dd.ddd
*aaA3H<dd.ddd>Set CH3 High Alarm at Address 02 to dd.ddd
*aaA3L<dd.ddd>Set CH3 Low Alarm at Address 02 to dd.ddd
Example: Send *02A3H500.00
CCR 400 with Address 02 will have CH3 High
Alarm set to 500.00
Changing CCR 400 RS485 Address Setting
RS485 Command:
*00x<aa>Set CCR 400 Address to aa
Example: Send * 0 0 x 2 2
CCR 400 will respond with a "spade" character to
acknowledge receipt of this command and change
its Address to "22"
Reading Setpoint (Control) Voltage
RS232 Query:
SP1Response: "SP1ddd.dd"
SP2Response: "SP2ddd.dd"
SP3Response: "SP3ddd.dd"
SP4Response: "SP4ddd.dd"
RS485 Query:
*aaSP1Response: "SP1ddd.dd"
*aaSP2Response: "SP2ddd.dd"
*aaSP3Response: "SP3ddd.dd"
*aaSP4Response: "SP4ddd.dd"
Reading Alarms
RS232 Query:
A1HResponse: A1H ddd.dd
A1LResponse: A1L ddd.dd
A2HResponse: A2H ddd.dd
A2LResponse: A2L ddd.dd
A3HResponse: A3H ddd.dd
A3LResponse: A3L ddd.dd
A4HResponse: A4H ddd.dd
A4LResponse: A4lL ddd.dd
RS485 Query:
*aaA1H Response: A1H ddd.dd
*aaA1L Response: A1H ddd.dd
*aaA2H Response: A2H ddd.dd
*aaA2L Response: A2L ddd.dd
*aaA3H Response: A3H ddd.dd
*aaA3L Response: A3L ddd.dd
*aaA4H Response: A4H ddd.dd
*aaA4L Response: A4L ddd.dd
RS232/485 COMMANDS
PAGE 18
Table of contents
Other CCR Power Supply manuals
Popular Power Supply manuals by other brands

Pulsar
Pulsar PS601250 instructions

Hy-Gain
Hy-Gain 602 Installation & operation instructions

Placid Industries
Placid Industries PS-12 manual

Altronix
Altronix Vertiline8 installation guide

Siemens
Siemens SINAMICS G120P PM330 Installation guides

Patton electronics
Patton electronics 1001RP Series Service manual
