CEBIEN C-water dual Kitchen User manual

Installation and operation manual for C-water dual Kitchen
- Please read the installation and instruction for porper use of this product.
- This installation and instruction manual contains a product warranty.
- Some internal and extermal changes may be made to improve the performance of the product.
- This product is for home use. It is prohibited to use for commercial and experimental purposes, and separate
product warranty regulations follow when used for commercial purposes.
- The illustrations in the manual are intended to help you understand the installation and use, and may be
partially different from the actual shape.
Electrolysis Sterilization Water System
Product: Kitchen Faucet Company: Cebien Co., Ltd.
Model : Dual Kitchen Inspection : Korea Conformity Laboratories(KCL)
Water-saving rating
Indication of water-saving ratings
according to the Waterworks Act.
Maximum discharge
flow 5L or less / M

1
Cautions for Safety (Requires stringent compliance for safety)
The manual entails crucial details on damages or injuries that may be inflicted
for users, and thus shall be read thoroughly before installation or use.
Keep manual well so that it can be referred to at any time.
Details that may cause possible fatality or critical injury when breached.
Details that may cause injury or physical damage when breached
| Highlights items that should be banned from doing
Highlights items that need to be abided by
Warning |
Caution |
Ban |
Forced Instrioins |
- This appliance can be used by children aged from 3 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- The outlet must not be connected to any tap or fitting other than those specified.
- The water inlet of this appliance shall not be connected to inlet water obtained from
any other water heating system.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.

Safety Warning

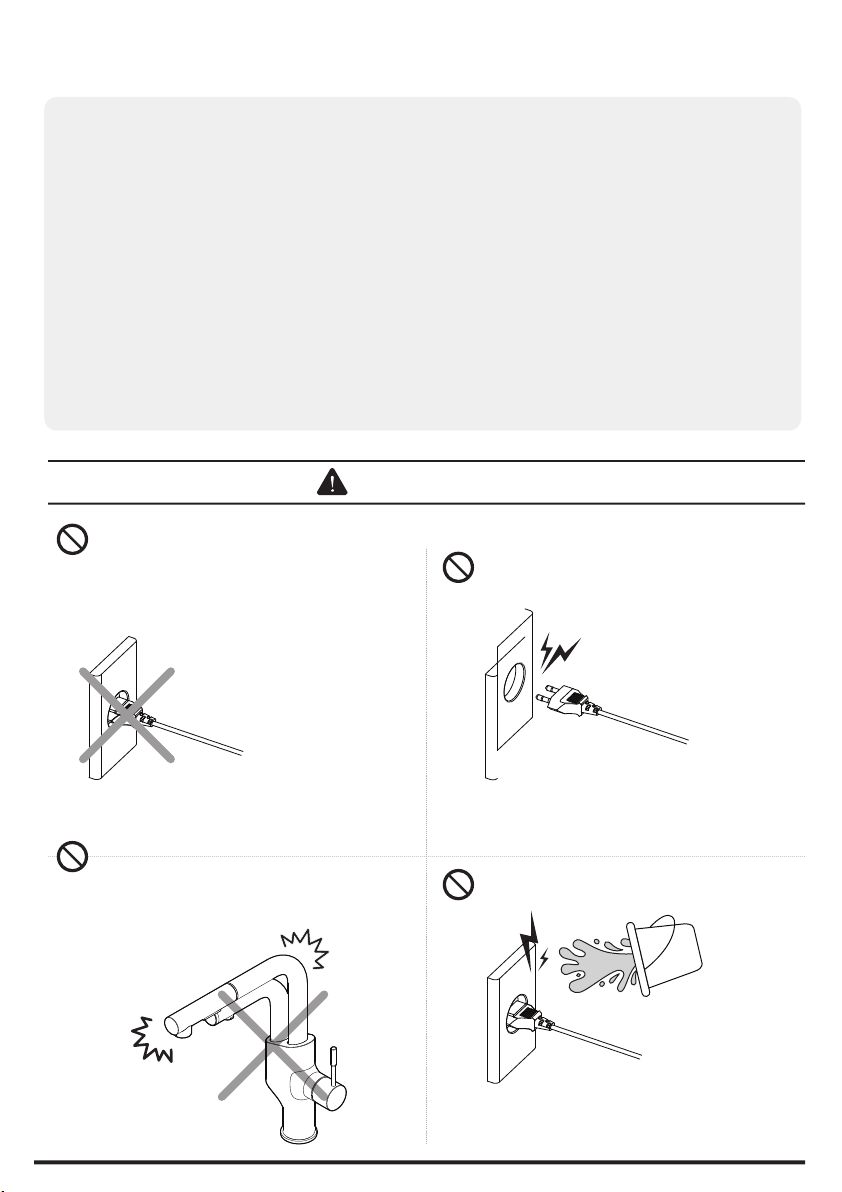

Ban Do not connect power to product that is not
installed and has no water hose connection.
Use separately power voltage of 220V with rating
over 10A. .
BAN
Connect power adapter to concentric plug
Do not use broken product as it is.
Do not use product for purposes other than
stipulated in user manual.
Do not pour water on product main body or adapter.
Refrain from using at places with high humidity.
BAN
BAN
BAN
- This has risks of heat or fire.
- Connect power adapter
to concentric plug
- This may cause fire or electric shock.
● All damages that arise from situations like earthquake, lightning, flood that are
exempt from the company’s liability, actions by a 3rd party, other accidents and
intended action by consumer or misuse/abuse shall not be subject to the company’s
responsibility.
● The company shall not be liable for subsidiary damage (business profit loss, business
halt, etc.) that result from product use or not being able to use product .
● The company shall not be liable for all damages that arise from not abiding by the
details of the manual .

Cautions for Safety (Requires stringent compliance for safety)
- A damaged power cord is dangerous and must be replaced
by the manufacturer, dealer or qualified person.
- This device is not intended for use by persons including
children who lack physical, sensory or mental abilities or
who lack the experience and knowledge to be able to use
this device safely without supervision or direction.
- Please make sure that children do not play with this device.
The body is for fixing and
do not try to pull it.
Do not forcefully pull or bend the water supply hose
and power cord.
Cautions for Safety

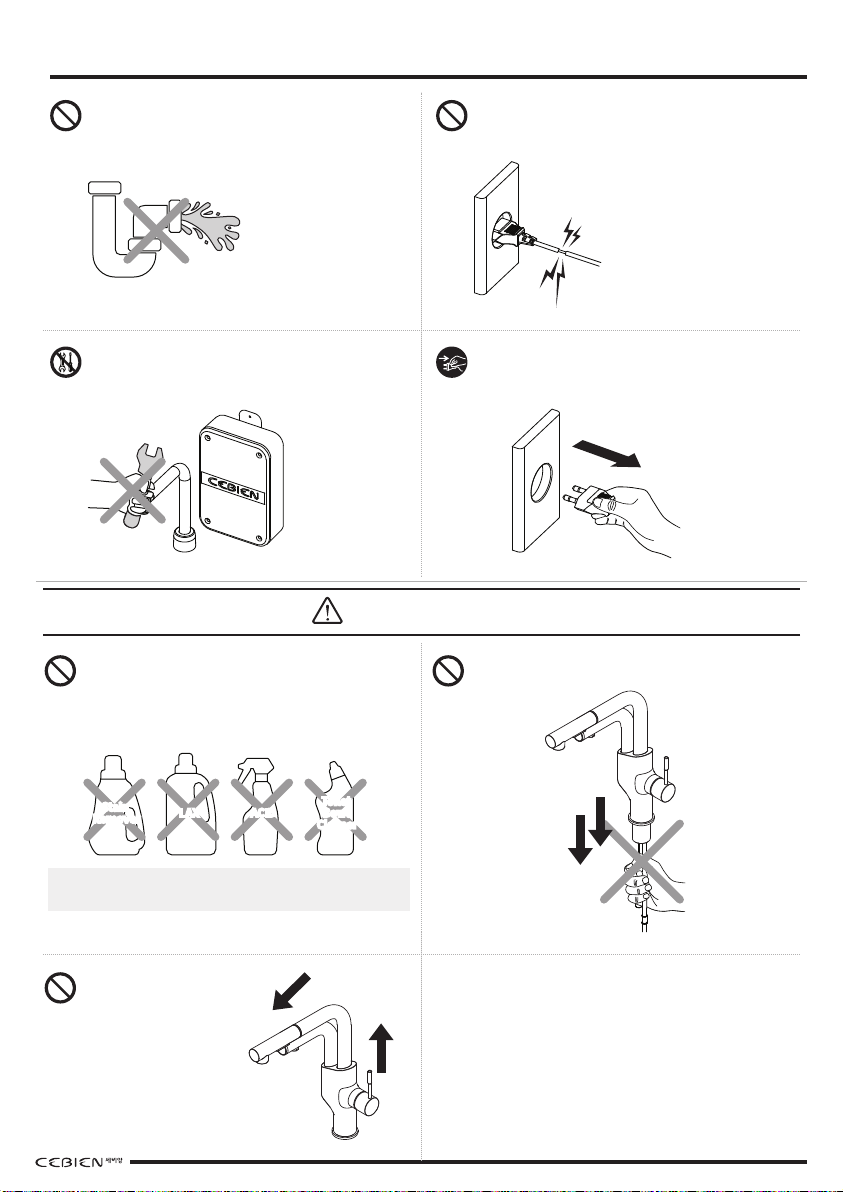

When cleaning, do not spray or use cleaning agent
(with acidity, for gas range, sink, toilet, bathroom,
benzene, paint thinner, cleanser or other stain r
emovers) on product exterior.
BAN BAN
BAN
- Using above detergents may cause product surface color
change (corrosion), damage and power-related issues.
Stain
Remover LAX ACID Toilet
Bowl
Cleaner
Stain
Remover LAX ACID Toilet
Bowl
Cleaner
- This may causee or
electric shock.
Connect water hose to waterworks only.
Refrain from connecting underground water
or industrial water to product
Do not use damaged power adapter or
loose concentric plug
BAN
Do not dis-assemble, fix or reform product.
Make sure no foreign substances go inside product.
Unplug power adapter from plug for safety when
cleaning exterior or disassembling product.
BAN
Power/Adapter
Disconnection
- This may cause product
malfunction and downgrade in
sterilization and cleaning function.
- Power adapter shall be fixed
only by manufacturer, vendor
or certified technicians.
- This may cause fire or
electric shock.
Disassemble,
Remodel Ban

Name of parts

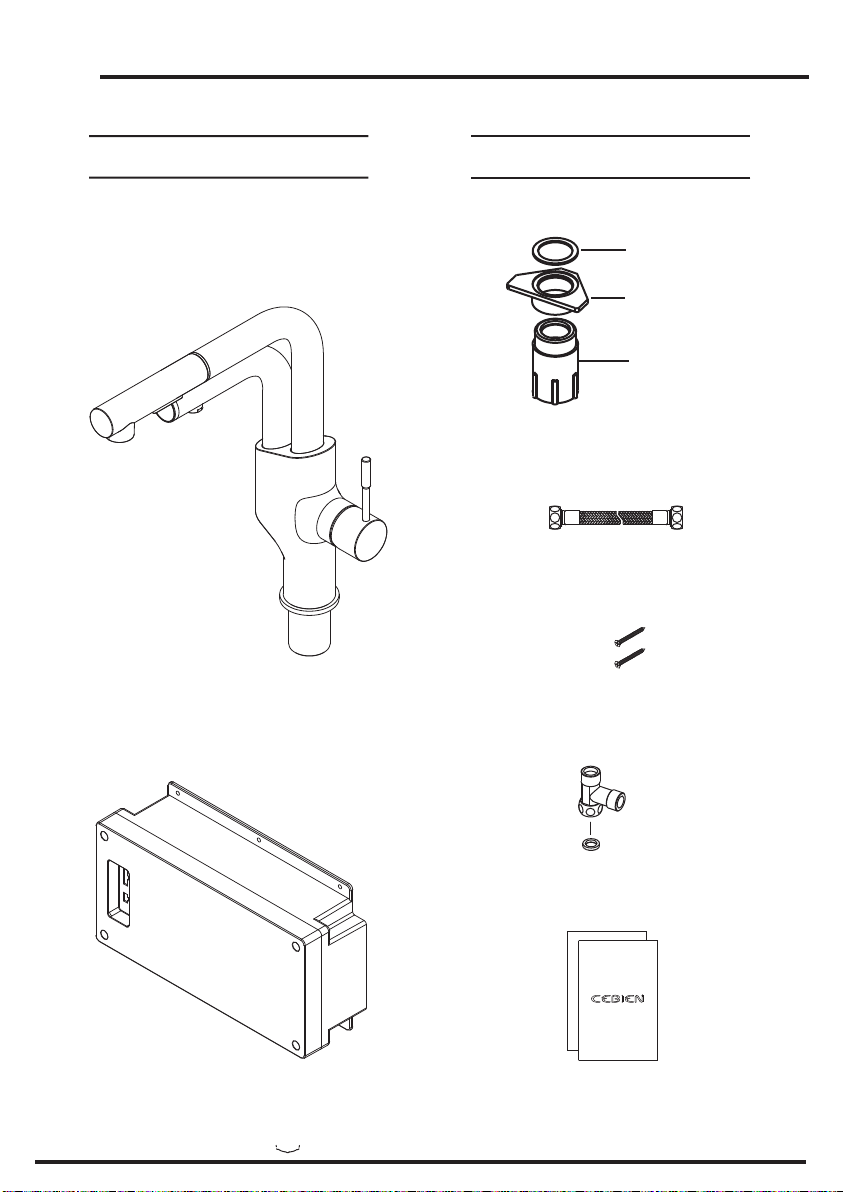

Main Body(1)
Mian box(1)
Main Body Components
2
Shunt valve(1)
installation manual(1)
Locker nut set(1)
Packing(1)
Triangular plate(1)
Locker nut(1)
Main box locker piece(2)
High pressure hose(1)

Installation
3
| Preparation
After assembling the packing and the triangular plate
to the lower threaded part of the product body,
firmly assemble it with the locker nut.
Before installation, check whether installation
hole is Φ36~Φ39.
1Before installation, flow water through water supply
valve to remove foreign substances like sand,.
2
| Product installation
Main body
installation
Put the product body into the installation hole so that
the hose and electric wire are not twisted and attach
the product closely.
Under the sink
Ø36~Ø39
Caution: When installing, check whether
rubber packing is attached (its absence
can lead to water leakage). Adding too
much force can cause damage.
3. Install shunt valve.
Rubber packing
Install shunt valve.
3
Rubber
Packing(1)

Installation
Main box installation
Sink hose connection and
weight installation
hose installation
150mm or more
cold water pipe
Weight
Sink hose1
Sink hose2
adapter
Installation of
the sterilizing
water supply
and outlet hoses.
hot water
pipe
cold water
pipe

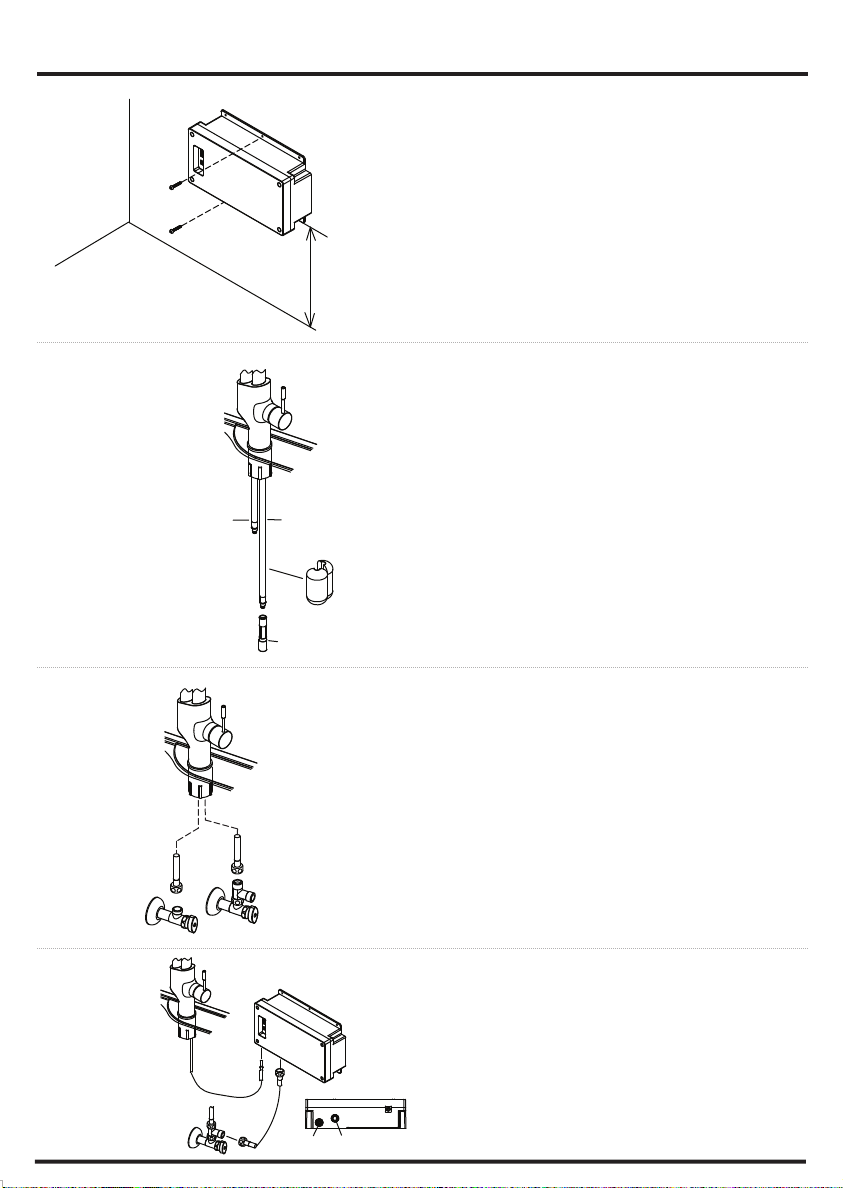

Install the main box on the side under the sink, right side
recommended. Install at a height of 150mm or more from
the floor, and avoid structures such as piping and drainage
lines that interfere with the surroundings.
After assembling sink hose 1 and adapter of the product
body, assemble sink hose 2 (one-touch method).
Fix the weight at a point 60cm from the end of the sink. When
installing the weight, be careful not to loosen the lock device
and fix it.
In case of interference depending on the installation
environment, change the position of the weight and install it.
Install the water supply hose(hot/cold water) of the product
body. Be careful not to twist the water supply hose during
installation.
1) Connect the sterilizing water supply hose to the shunt
valve of the cold water pipe and the inlet(①)of the main box.
2) Conect the sterilizing water outlet hose of the product
body to the outlet(②)of main box.
②①

1) Water leakage check : With the water supply valve open, check that there is no water leaking from the piping connections.
2) Operation check [Power]: Connect the power cord to the outlet, and the lamp flickers on the touch part of the product body.
If [White] does not light up, check if the power cord is properly connected.
| Confirmation after installation
Touch connector
Speaker
connector
Mainbox leakage check
- hose assembly
Body leakage check
- Handle operation part,
sink lower locker nut
Piping and hose connections
leakage check
Check the lighting of
the touch part lamp
Connector and power cord connection
Connect the touch connector and speaker connector of the
product body to the connector of the main box.
Connect the power cord of the main box to a power outlet.

How to use
4
1. How to use the sink faucet
2. How to use electrolysis water
touch part
(White) (Blue) (Red)
hot water
cold water
ON
OFF
function switch
button
1) Electrolysis sterilization water is operated by touch method.
When you touch it once, electrolysis sterilization water
(cold water) comes out, and when you touch it twice, the water
discharge stops. If you touch the touch part for 3 seconds in
the standby state, electrolysis sterilization water (tepid water)
comes out, and the water jetting stops when you touch it twice.
2) Indication of lamps during operation
Standby Electrolysis water
(cold) Electrolysis water (tepid)

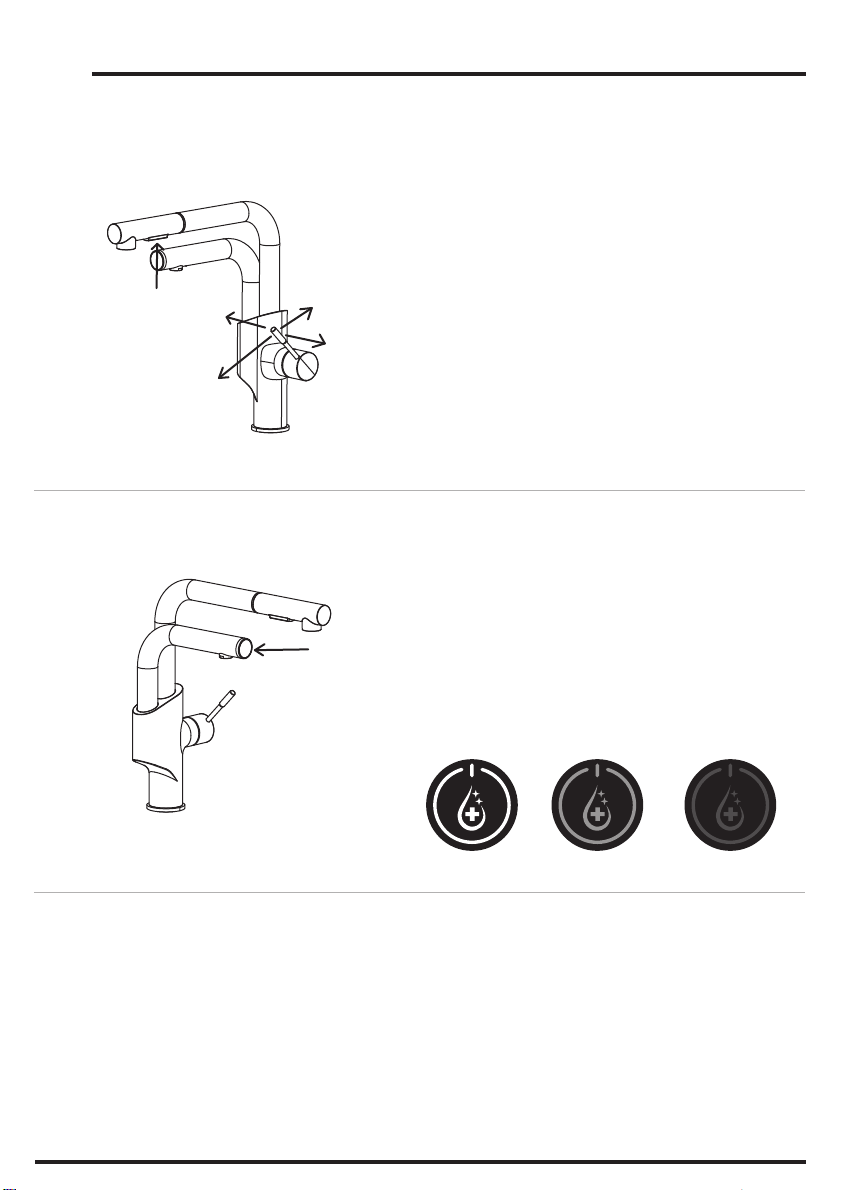

1) Flow control
- Whe the lever is opened to the right, water comes out.
- The amount of water is adjusted according to the action of
opening the lever to the right.
- When the lever is closed to the left, water does not come out.
2) Temperature control
- When the lever is pulled toward the front part, the water
discharge temperature decreases, and when the lever is
pushed toward the rear side, the water discharge temperature
increases.
3) How to convert spray and foam (direct water)
- If you press the button on the sink head during use, the
function is switched.

5
Water not coming out
Case Things to check
Check if the water is cut off
Check if the valve is closed
See of the packing between valve is on the way
Check if Airrator is blocked
Check if the adaptor is connected to the outlet
Check if main body is turned off
Check if hoses are connected properly
Contact service center if water is leaking from the product
Check if there is impurity in the packing/airrator
Make the fixation nut tighter
Check if the power if being supplied well
Check if the adaptor is plugged in fully
Remove impurities on the touch sensor part
Matters to Check Ahead of Malfunction Report
Product turbulence
When it’s not functioning
When it’s not operating
When there’s leakage
Weak water flow

Product Specifications
6
씨-워터�듀얼키친 Electric Water Ionizer
C-Water Dual Kitchen
F-CW0201
KCW-2021-0294
R-R-PWk-F-CW0202
Main body 136*328*316 (mm)
Main Box 285*171*83 (mm)
Brass, ABS, Insoluble Electrode, PE
230V~, 50Hz
1250W
Max 32℃
Normal water : 5.51l or less /min Max water (Base on 98kPa)
include install parts
Sterilization water 1.21l /min
1 ug or less / L
Cebien Co., Ltd.
Made in KOREA
4.6kg
Water supply
method
Directly connected to waterworks
Use
temperature
5℃ ~ 35℃
Use pressure
98kPa ~ 686 kPa (1kgf/㎠~7kgf/㎠)
Suggested use
tempreature
196kPa or more(2kgf or more /cm2)
Purpose
indoor only
Size
Model Name(Korean)
Model Name(English)
Model No.
Safety Certification No.
Registration No.
Manufacturer
Country of origin
Product weight
Use
environment
Main material
Rated voltage and frequency
Normal Rated Power
Hot water temperature
Amount of emission
Lead leaching
