Cedia FLATLIFT SUPERFLAT User manual
P.01
Operating Manual
Outperform. Outlast.
Operating Manual
Operating Manual
P.02
Operating Manual
Outperform. Outlast.
CONTENTS
CONTENTS
K.01 INTRODUCTION
K.02 FEATURES
K.03 PRODUCT DIMENSIONS
K.04 INITIAL PRODUCT SET-UP
K.05 PRODUCT CONTROL
K.08 TROUBLE SHOOTING
Set-up P.06
Images P.07 - P.08
Programming the remote control (S435) P.09
Resetting the receiver P.10
K.09 LEGAL NOTICE
K.06 PRODUCT INTEGRATION
Information TV swiveling P.11
P.03
Operating Manual
Outperform. Outlast.
CONTENTS
INTRODUCTION
INTRODUCTION
C.01:
Quality
In the choice of our components, our primary focus was on ensuring a high level of functionality,
straightforward use, safety and reliability.
We would like to thank you for the trust you have placed in our Flatlift brand products.
We can help you with your installation through providing individual customer care.
For safety reasons, the unauthorized conversion and/or changing of the product is not permitted. Do not
dismantle this product.
This product is not a toy and does not belong in the hands of children.
Do not allow the product to become damp or wet.
Do not leave the packaging material lying around as children may choke if they swallow it.
The product will be damaged if it is dropped, even from a low height.
Before using the product for the rst time, please check that the free raising and lowering of the Flatlift
including the mounted TV equipment is possible and ensure a collision-free run.
For legal reasons and insurance purposes, your Flatlift is equipped with an ‘automatic safety
device’.
This means that the button which controls the raising and lowering must be pressed down all
the time.
The system stops and remains in the same position as soon as you let go of the button.
Intended Use
The product swivels out of LCD and plasma TV equipment.
All company names and product names are trademarks of the corresponding owner. All rights reserved.
The scope of supply can vary depending on the product and the range of xtures and ttings. Please
check that the product supplied is complete and inform us within seven days of delivery if the scope of
supply is not complete.
Safety and Hazards Recommendations
Please read this chapter carefully and follow all of the instructions provided. In this way you are able to
guarantee the reliable operation and a long lifespan for your lift system. Keep the operating manual in a
safe place.
In the event of damage which is the result of non compliance with this operating manual, all claims pertai-
ning to the guarantee are null and void. We generally accept no responsibility for secondary damage.
We accept no responsibility for damage to objects or persons which is caused by the inappropriate use of
the product or through ignoring the safety instructions. In such cases, all claims pertaining to the guaran-
tee are null and void.
P.04
Operating Manual
Outperform. Outlast.
Features:
Installation dimensions Flatlift
H=750mm W=1540mm D=60mm
TV weight max. 150 kg
TV size 52-65“ (inch)
opening rate 18%/h
Soft Start / Soft Stop
Low noise level < 45 db
Environmental temperature from +5°C bis 40°C
Flatlift Superat
Control box
230V power supply unit
Motor cabel (1x)
433,92 MHz receiver
433,92 MHz remote control
Scope of supply:
PRODUCT FEATURES
PRODUCT FEATURES
C.02:
BUY NOW
L
I
F
E
T
I
M
E
R
e
p
a
i
r
c
o
s
t
l
i
m
i
t
5
y
e
a
r
s
f
u
l
l
s
e
r
v
i
c
e
GUARANTY
P.06
Operating Manual
Outperform. Outlast.

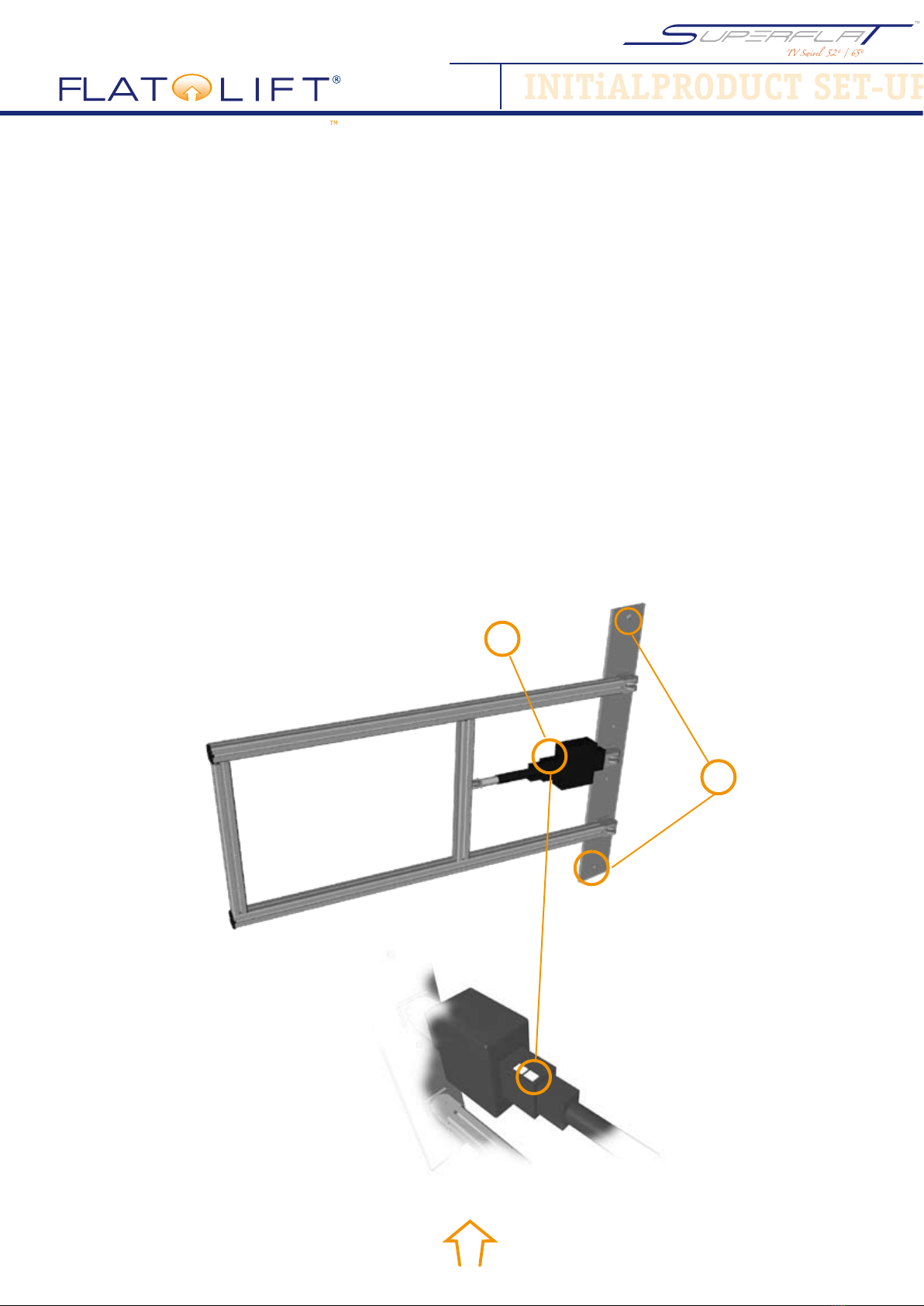

Initial setting /installation:
1) Fix your Flatlift Superat (img.1, no.1 and P.07, img. 1b) with 2 screws upon the wall. Depending on
assembly you can swivel your Superat system left- or rightwards
2) Connect the motor (img.1, no. 2) with the motor cable (P.08, img. 3) through the control box
(P.08, img 2, no. 39).
3) Connect the receiver (P.08, img. 4, no. 4) with the the control box (P.05, img 2, no. 5)
4) Link the power cord (P.08, img. 5) with the control box (P.08, img. 2, no. 6) and than with the mains
voltage.
5) Connect the wall power supply (P.08, img. 4, no. 7) of the receiver with the mains voltage.
6) Swivel out and in your Superat for 2 times. Observe at the moving that your system has a collision
clear course.
7) You can scroll the vertical mountings to adept them to your TV holdings (P.07, img. 1c).
8) Now you can mount your TV (P.07, img. 1d) on the Superat. Please consider that the liftsystem
needs space between the TV and the e.g. covering (P.11, img.1).
If you separate the motor cable from the control box, then the Flatlift must be initialised all
over again.
1
Image 1
INITiALPRODUCT SET-UP
INITAL PRODUCT SET-UP
C.04:
2
P.09
Operating Manual
Outperform. Outlast.
Image 2
56
3
4
1
Image 1
PRODUCT CONTROL
PRODUCT CONTROL
C.05:
2
INITIALPRODUCT SET-U
Programming the remote control (S435):
You can also get additional remote controllers for your Flatlift system (optional extra). As the controllers are
coded, you have to programme them.
1) To access the programming key, remove the cover (image 1, no. 1) on the receiver.
2) Press down the left hand key (image 1, no. 2). After this, an LED (image 1, no. 3) will then ash slowly.
3) Holding the programming key down, press the rst key on the remote control at the same time (image
2, no. 5). On recognising the remote control, the LED (image 1 no. 3) starts to ash rapidly.
4) Release both of the keys.
5) To store a second channel, repeat the procedure starting at step 2 using the second key on the remote
control (image 2, no. 6). If your remote control has been successfully recorded, you should hear a soft
‘click’ in the receiver when you press down the key on the controller.
P.010
Operating Manual
Outperform. Outlast.
Image 3
2
3
4
1
Abb.5
PRODUCT CONTROL
PRODUCT CONTROL
C.05:
Image 4

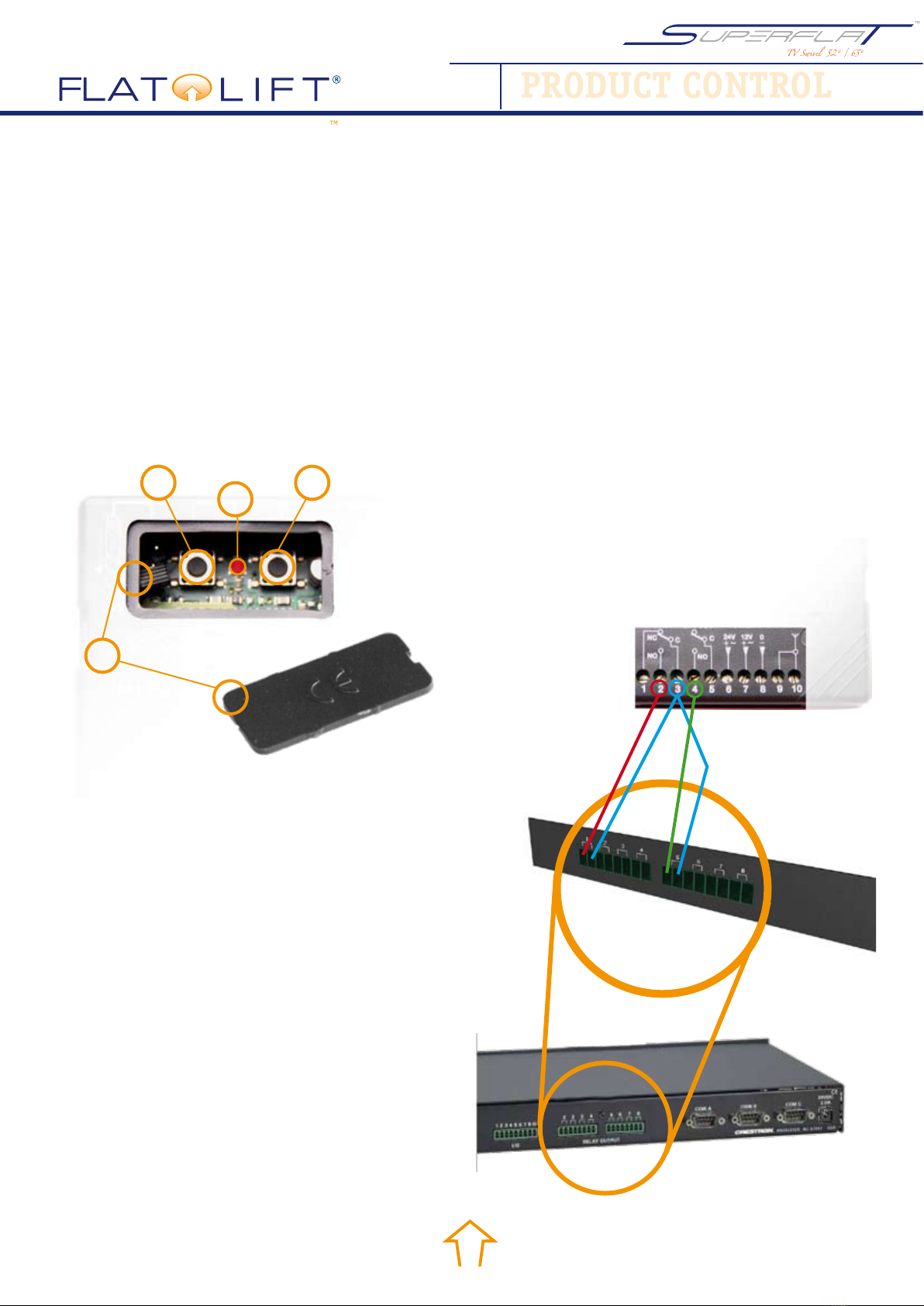

Resetting the receiver:
It may sometimes occur that the transmitting codes stored in the receiver are lost.
In this case, the receiver must be cleared and re-programmed.
1) To access the programming key, remove the cover (image 1, no. 1) on the receiver.
2) Press down both of the programming keys (image 3, no. 2 + 4) until the LED (image 3, no. 3) rapidly
ashes. This is the signal that the memory has been successfully cleared.
3) Now re-enter your remote control (refer to P.09).
Connection to a room control system:
You can connect your Flatlift to a room contro
l system (image 5) if this system has 2 relay outputs
with potential free contacts. These relays must be
actuated for a programmable time period.
1) Remove the receiver from the power supply
2) Remove the cables (contacts 2-4) from the receiver
(image 4).
3) Now connect the blue and red cable to one of the
relay outputs (control command: lower Flatlift).
4) Bridge the blue cable onto the second relay
output and also attach the green cable to this
relay output (lift Flatlift).
P.011
Operating Manual
Outperform. Outlast.
PRODUCT CONTROL
PRODUCT INTEGRATION
PRODUCT INTEGRATION
C.06:
Image 1

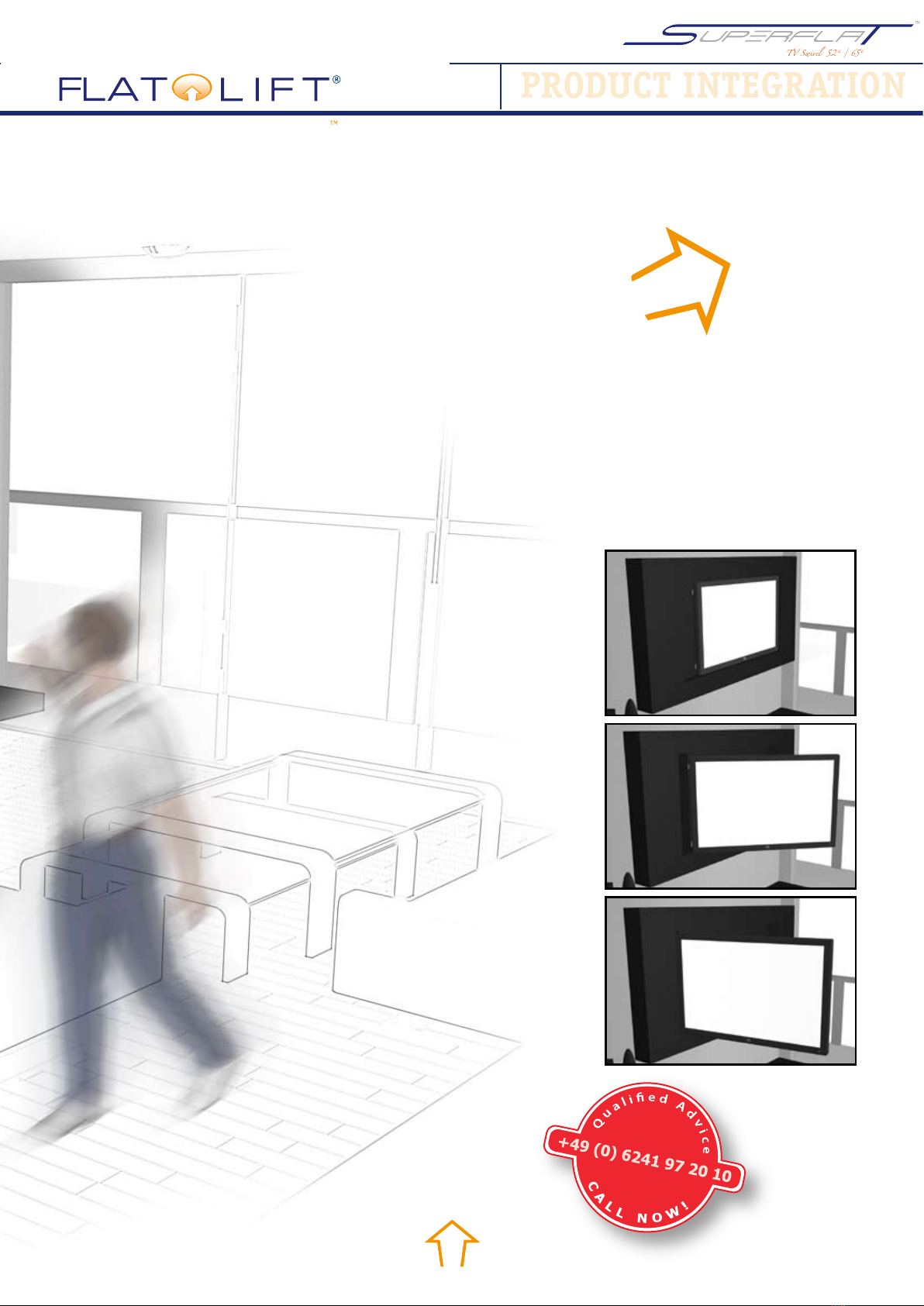

Infomation TV swiveling:
The Superat can swivel out up
to 90° (img.1)
Please consider that the liftsys-
tem needs space between the TV
and the e.g. covering.
The space approrite the TV
depth (img 1,no. 1).
It is very important to consider
this to prevent a collision and
to defent your TV and Superat
liftsystem of an damage.
1
approprite
TV depth
Topview
BUY NOW
P.013
Operating Manual
Outperform. Outlast.
PRODUCT INTEGRATION
PRODUCT INTEGRATION
PRODUCT INTEGRATION
C.06:
Abb.5
Man sieht auf der Abb.5
(Schnitt) wie der Koffer auf dem
Flatlift montiert ist. Diese Mon-
tage ähnelt der Deckelvariante
2 (siehe S.11 Abb.3). Im abge-
senkten Zustand ist der Deckel
mit der restlichen Schrankäche
bündig.
The Flatlift Superat automatic swivel
LCD-/Plasma Wallmounts are special
developed motorized mounting con-
cepts for LCD and Plasma Flatscreens.
This system ts for TV sizes from 30“
to 65“.
BUY NOW
P.014
Operating Manual
Outperform. Outlast.
TROUBLE SHOOTING
TROUBLE SHOOTING
C.08:
Trouble shooting:
If your Flatlift is not working properly, please make sure you check the following things:
The Flatlift won’t move up or down
Is the power cord attached to the control box?
SCheck the mains connection
Are all of the plugs properly connected to the control box? (NOTE: plugs which are not connected properly
can damage the system)
SCheck all of the connections
SThe motor cables must be connected starting at port 1 and going up
Is there any evidence of damage to the cables, the control box, the remote control or the Flatlift?
S Damaged components must be exchanged. Please contact us.
The Flatlift has stopped and will only move in the wrong direction.
S Is your Flatlift fully extended already?
S Is the TV too heavy?
SRemote control command possibly deleted!
SProgramming or initialisation error!
SStopping point incorrectly programmed
Have you, in error, attached a TV to your Flatlift which is too heavy?
STake the TV off the Flatlift and now see if the Flatlift works.
Is the remote control working?
SChange the battery in the remote control if necessary.
Is the receiver receiving the signals?
SWhen activating the remote control, the relay should ‘click’ on both channels. (If the receiver does
not ‘click’, please delete the channels and re-set them. Refer to page 9)
The lifting mechanism jerks or stutters?
SPlease check as to whether another frequency source is also transmitting at 433 Mhz in your house
(possible sources of problems: garage door opener, baby phone, alarm system or intercom). With a
frequency jammer you will have to change over to a frequency of 868 Mhz! A free changeover from
433 Mhz to 868 Mhz is only possible within the rst 7 days subsequent to the date of delivery.
Please contact us if this particular point is relevant to you.
If you experience any problems setting your system up or you experience an error, you can also contact
us over the telephone or via Email:
Customer Service:
Via email: info@atlift.de
Our telephone service time is 7.30 am - 5.30 pm. The telephone number is +49 (0) 62 41 - 97 20 10.
Please have the following information at hand / or include it in any email that you sent to us:
Your customer number
Your invoice number or delivery receipt number
The purchase date of your Flatlift
The name/model of your Flatlift system
P.015
Operating Manual
Outperform. Outlast.
TROUBLE SHOOTING
FLATLIFT Referencen
LEGAL NOTICE
LEGAL NOTICE
C.09:
Legal Notice
FLATLIFT TV Lift Systeme GmbH
Gewerbegebiet Südwest
Niedesheimer Str. 15
67547 Worms, GERMANY
Tel.: +49 (0) 62 41 97 20 10
Fax.: +49 (0) 62 41 97 20 12
info@ atlift.de
www. atlift.de
Hours of business: Mon-Fri. 7:30 am- 5:30 pm
Managing Director: Sascha Rissel
HRA Mainz: HRB 40436
USt. (VAT) ID: On request
Status of document: JULY 2008
© 2008 FLATLIFT TV LIFT SYSTEME GMBH
