Celiera DUCTLESS MINI SPLIT AIR CONDITIONING SYSTEMS Parts list manual

DUCTLESS MINI SPLIT AIR CONDITIONING SYSTEMS
INSTRUCTION & INSTALLATION MANUAL
ENGLISH
© Céliera Corporation.All rights reserved. Unauthorized duplication, reproduction prohibited.

CONTENTS
SAFETY PRECAUTIONS................................................................1
NAMES OF THE PARTS................................................................ 3
INDOOR UNIT DISPLAY............................................................... 4
EMERGENCY FUNCTION & AUTO-RESTART FUNCTION.................. 5

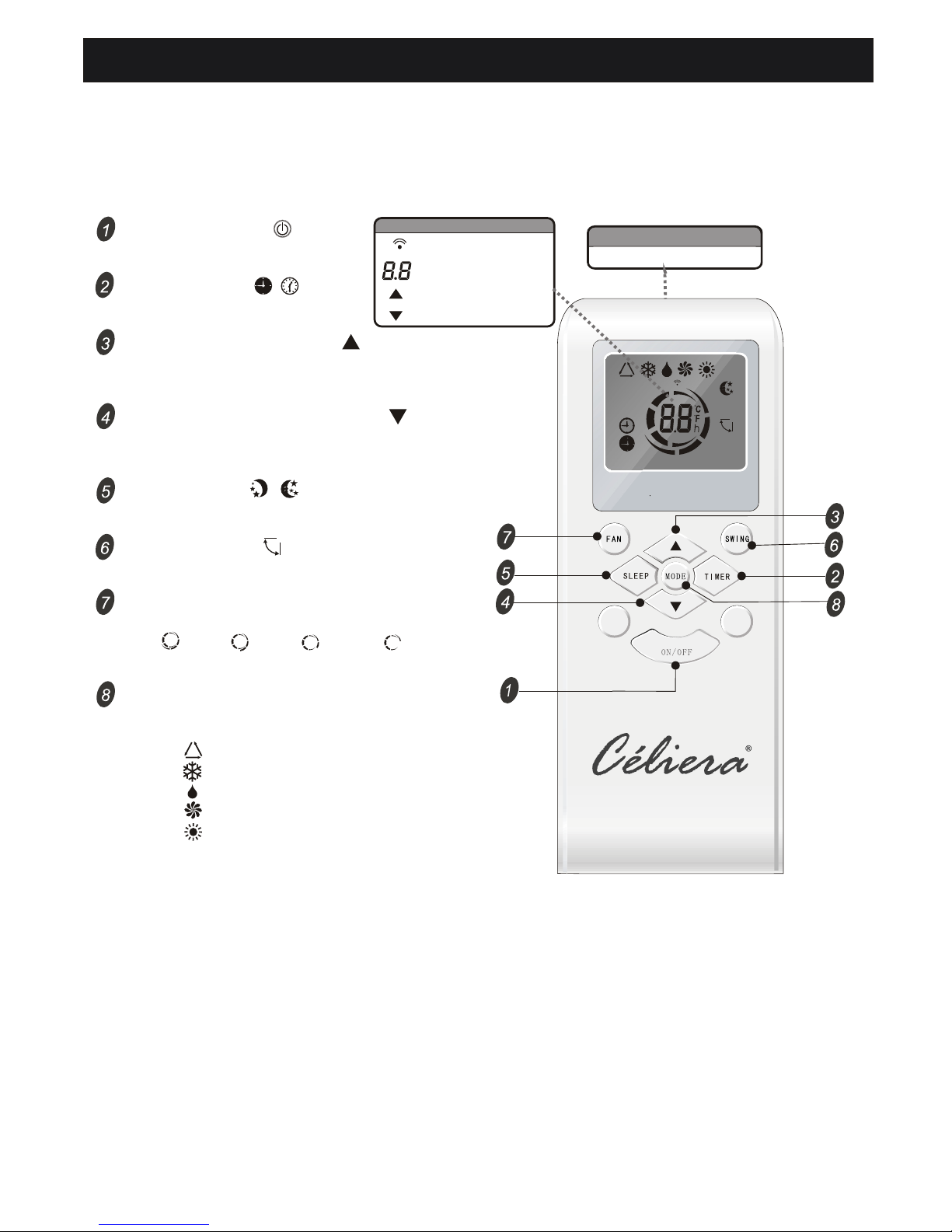

REMOTE CONTROL....................................................................6
MODES OF OPERATION............................................................. 9
PROTECTION.............................................................................14

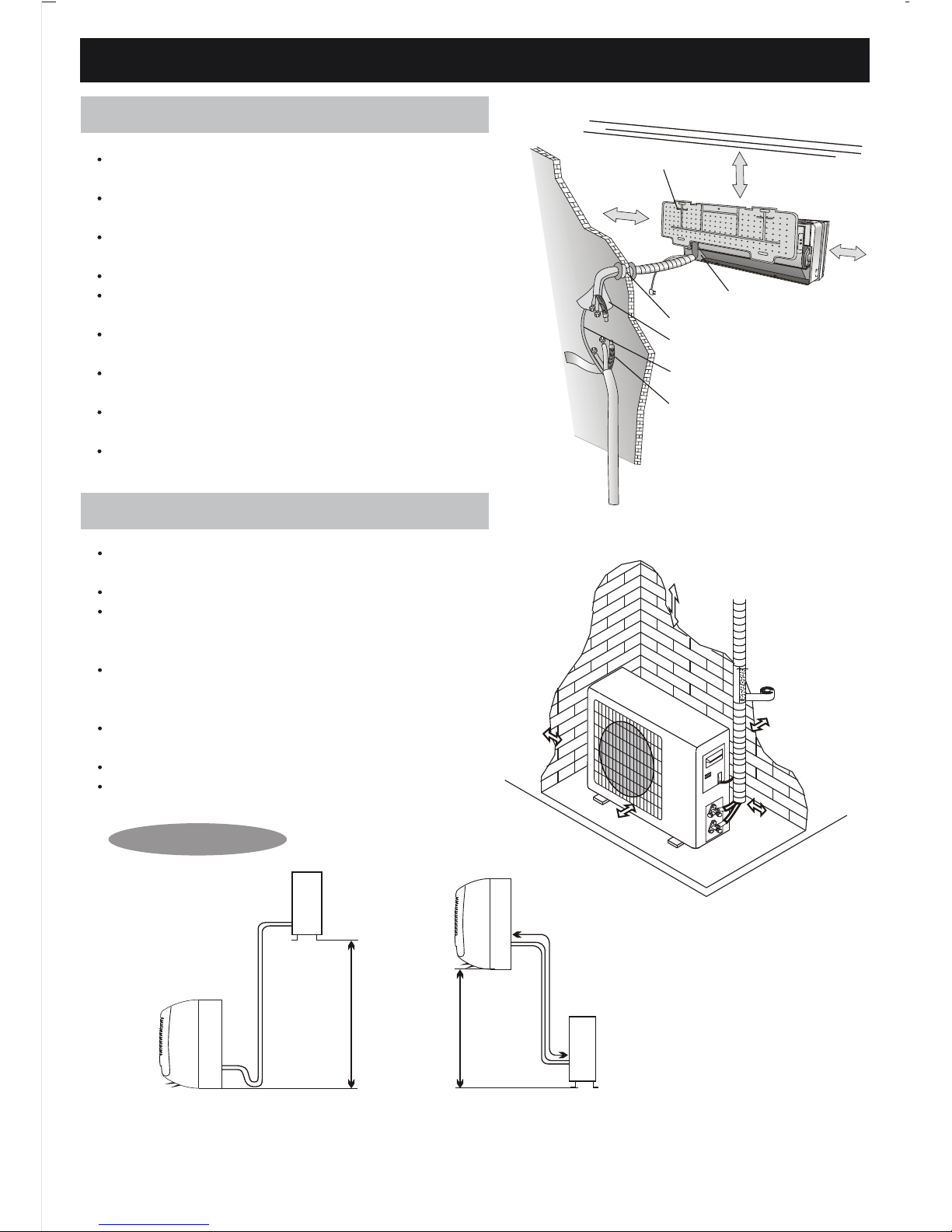

INSTALLATION MANUAL.............................................................. 15
MAINTENANCE..........................................................................24
TROUBLESHOOTING.................................................................. 25
In line with our policy of continual product improvement, the aesthetic and dimensional
characteristics, technical data and acessories of this appliance may be changed without notice.

1
Never remain directly exposed to the flow of cold air
for extended periods. Direct and prolonged exposure
to cold air could be dangerous to your health.
Particular care should be taken in rooms where there
are children, elderly, or sick individuals.
If the appliance gives off smoke or there is a burning
smell, immediately disconnect the power supply and
contact the Service Center. Prolonged use of the device
afterward could cause fire or electrocution.
Have repairs carried out only by a Service Center
authorized by the manufacturer. Incorrect repair could
expose the user to risk of electric shock, fire hazard,
etc.
Do not try to install the air conditioner alone; always
contact trained, experienced personnel.
Cleaning and maintenance must be carried out by
specialized technical personnel. Under any
circumstances, disconnect the appliance from the
mains electricity supply before carrying out any
cleaning or maintenance.
Ensure that the mains voltage corresponds to the rating
stamped on the rating plate. Keep the switch and
power plug clean. Insert the power plug correctly and
firmly into the socket to avoid risk of electric shock or
fire due to insufficient contact.
Do not pull out the plug to switch off the appliance
during operation. Doing so could create a spark and
cause a fire or create a fire hazard, etc.
SAFETY RULES AND RECOMMENDATIONS FOR THE USER
Do not install the appliance closer than 50cm from
flammable substances (alcohol, etc.) or pressurized
containers (e.g. spray cans).
If the appliance is used in areas without the possibility
of ventilation, precautions must be taken to prevent
any leaks of refrigerant gas from remaining in the
environment to avoid creating a fire hazard.
The packaging materials are recyclable and should be
disposed of in separate waste bins. The air conditioner
itself must be taken to a special waste collection center
for proper disposal.
Only use the air conditioner as instructed in this
booklet. These instructions are not intended to cover
every possible condition or situation. As with any
electric household appliance, common sense and
caution are therefore always recommended for
installation, operation, and maintenance.
The appliance must be installed in accordance with
applicable national regulations.
Before accessing the terminals, all the power circuits
must be disconnected from the power supply.
Read this guide before installing and using the
appliance.
During the installation of the indoor and outdoor units,
access to the working area should be off limits to
children. Unforseeable accidents can occur.
Make sure that the base of the outdoor unit is securely
installed and stable before use.
Check that air cannot enter the refrigerant system and
check for refrigerant leaks when moving the air
conditioner.
Carry out a test cycle after installing the air conditioner
and record the operating data.
The ratings of the fuse installed in the built in-control
unit are 3.15A / 250V for 220V units, and 3.15A /
125V for 110V units.
The indoor unit must be protected using a fuse of
suitable capacity for the maximum input current or with
another overload protection device.
Ensure the mains voltage corresponds to the voltage
stamped on the rating plate. Keep the switch or power
plug clean. Insert the power plug correctly and firmly
into the socket to avoid risk of electric shock or fire due
to insufficient contact.
Check that the socket is suitable for the plug or have
the socket replaced.
SAFETY RULES AND RECOMMENDATIONS FOR THE INSTALLER

2
SAFETY RULES AND RECOMMENDATIONS FOR THE USER
SAFETY RULES AND PROHIBITIONS
Disable automatic functions if you foresee not using
the device for an extended period of time. The air flow
direction must also be properly adjusted.
The flaps should be directed downwards in heating
mode and upwards in cooling mode.
Only use the air conditioner as instructed in this
booklet. These instructions are not intended to cover
every possible condition or situation. As with any
electric household appliance, common sense and
caution are therefore always recommended for
installation, operation, and maintenance.
Ensure that the appliance is disconnected from the
power supply when it will not be in operation for an
extended period and before carrying out any cleaning
or maintenance.
Selecting the most suitable temperature can prevent
damage to the appliance.
This appliance has been made for air conditioning
domestic environments and must not be used for any
other purpose, such as for drying clothing, cooling
food, etc.
The packaging materials are recyclable and should be
disposed of in separate waste bins. The air conditioner
itself must be taken to a special waste collection center
for proper disposal.
Always use the appliance with the air filter mounted.
The use of the conditioner without the air filter could
cause an excessive accumulation of dust or waste on
the inner parts of the device with possible subsequent
failures.
The user is responsible for having the appliance
installed by a qualified technician, who must check that
it is earthed in accordance with current legislation and
insert a thermomagnetic circuit breaker.
Do not climb onto or place any heavy or hot objects
on top of either the indoor or outdoor unit.
Do not leave windows or doors open for long when the
air conditioner is in operation.
Do not direct the flow of cold air onto plants or
animals. Prolonged direct exposure to cold air
produced by the air conditioner could have negative
effects on plants and animals.
Do not put the air conditioner in contact with water.
The electrical insulation could be damaged and lead
to electrocution.
Never insert a stick or similar object into the appliance.
Such misuse can lead to injury or damage to the
operation of the units.
Children should be supervised to ensure that they do
not play with the appliance. If the supply cord is
damaged, it must be replaced by the manufacturer, an
authorized service agent, or similarly qualified
personnel to avoid hazard.
Do not bend, tug or compress the power cord, since
this could damage it. Electrical shock or fire are often
caused by damaged power cords. Specialized
technical personnel should be the only persons
allowed to repair or replace damaged power cords.
Do not use extensions or gang modules.
Do not touch the appliance when barefoot or parts of
the body are wet or damp.
Do not obstruct the air inlet or outlet of the indoor or
outdoor units. Obstruction of these openings causes a
reduction in the operating efficiency of the air
conditioner and can lead to consequent failures or
damages.
Do not alter the characteristics of the appliance in any
way.
Do not install the appliance in environments where the
air could contain gas, oil or sulphur or near sources of
heat.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or lack of experience and
knowledge unless they have been given supervision or
instruction concerning use of the appliance by a
person responsible for their safety.

3
NOTE: the above figures are only intended to be a simple
diagram of the overall units and may not correspond to the
appearance of the units purchased.
•The air conditioner is made up of two or more units
connected to each other through copper pipes
(properly insulated) and an electrical connecting
cable.
•The indoor unit is installed onto the wall of the
room intended to be air conditioned.
•The outdoor unit is installed on the ground or
on an outdoor wall using suitable brackets.
•Technical data for the air conditioner is printed
on the labels placed on both indoor and outdoor
units.
•The remote control is designed for quick and
simple use.
WALL AIR CONDITIONER
17
16
15
14
13
17
16
15
14
13
Description
No.
OUTDOOR UNIT
Air Outlet Grille
Cover
Gas Valve
Liquid Valve
Outdoor Unit Rating Label
12
11 10 987
6
4-5
2-3
1
Remote Control
12
Airflow Direction Flaps
11
Indoor Unit Rating Label
10
Emergency Button
9
Deflectors
8
Ionizer Generator (if installed)
7
Terminal Block Cover
6
Signal Receiver
5
LED Display
4
Optional Filter (if installed)
3
Air Filter
2
Front Panel
1
Description
No.
INDOOR UNIT
NAMES OF THE PARTS

4
Unit working
RUN
5
TIMER mode
TIMER
4
Indicates the set temperature in C° or F°
Temperature display (if present)
3
SLEEP mode
SLEEP
2
Shows that the unit is powered
POWER
1
Function
Led
No.

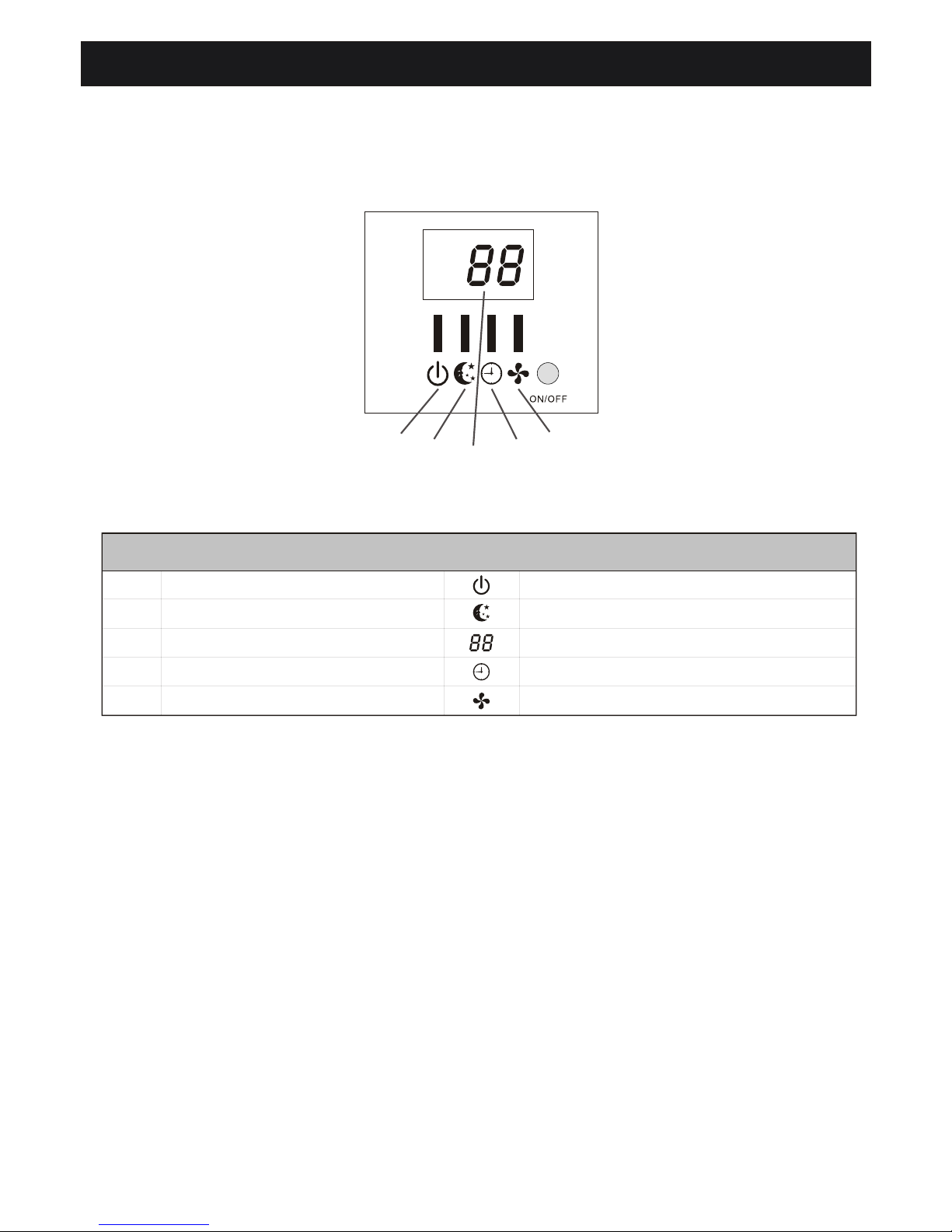

INDOOR UNIT DISPLAY
12 4 5
3

Emergency
Button
5
Emergency
Button

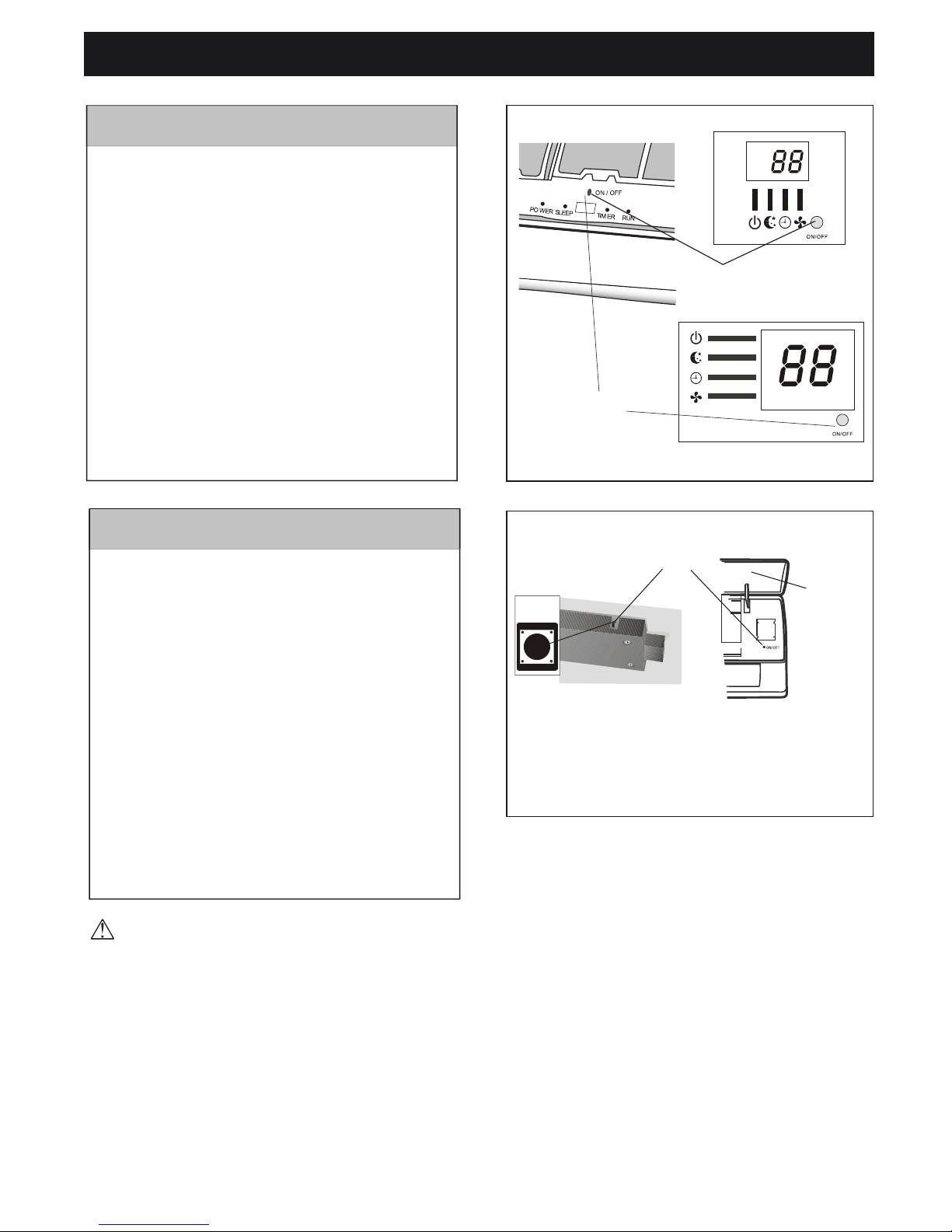

EMERGENCY FUNCTION AND AUTO-RESTART FUNCTION
AUTO-RESTART FUNCTION
The appliance comes equipped with a preset Auto-
Restart function by the manufacturer. Using this
function, the air conditioner can keep the selected
settings after a blackout or a voltage drop.
To deactivate the Auto-Restart function, perform the
following:
1. Switch the air conditioner off and unplug it.
2. Press and hold the emergency button while
while plugging it back in.
3. Keep pressing the emergency button for at least
10 seconds until you hear four short beeps from
the unit. The Auto-Restart function is now off.
To re-activate the Auto-Restart function, follow the
same procedure until you hear three short beeps
from the unit.
Emergency
Button
Front
Panel
Display PCB
In some models, the
emergency button will be
on the right side of the unit
under the front panel.
If the remote control is lost, perform the
following:
Lift the unit’s front panel to reach the
air conditioner’s emergency button.
1. Press once and you will hear one beep.
The system will operate in forced cool
mode.
2. Press twice and you will hear two beeps.
The system will operate in forced heat
mode. (NOTE: Heating function not
available on all models.)
3. To switch off the unit, press the
emergency button one more time and
you will hear one long beep. After 30
minutes in a forced function mode, the
system will automatically begin working
in FEEL mode. The FEEL function is
described on page 13 of this manual.
EMERGENCY FUNCTION
The shape and position of the emergency button
may vary according to the model, but their function
will be the same.
Note: the external static pressure of heat pumps (on select models) is 0 Pa for all models.
Note: Displays shown are for reference only and may not reect
the actual product.

6
Note: each mode and relevant function will be further specified in following pages.
Transmits signals to the system.
Signal Transmitting Window
Temperature Adjustment
(All modes)
(˚C ˚F ) Temperature
( h ) Timer Setting Mode
Transmitting Icon
Setting Display
ON/OFF Button
Starts and stops operation
TIMER Button
Selects TIMER operation
UP Button (TOO COOL)
Increases the set room temperature (16°C - 31°C)
and time (0.5h-24h)
DOWN Button (TOO WARM)
Decreases the set room temperature (16°C - 31°C)
and time
SLEEP Button
Sets or cancels sleep function
SWING Button
Adjusts airflow direction
FAN Button
Controls the indoor fan motor speed:
Auto High Med or Low
(This function does not work in sleep mode)
MODE Button
Selects the type of operating mode:
FEEL
COOL
DRY
FAN
HEAT
(Heating function not available in all units)
FEEL mode selects the operating mode
automatically depending on the room temperature
FEEL mode is the default initial mode
REMOTE CONTROL
NOTE: The Remote controls all functions of the system.
If it is lost, the system can still function using the EMERGENCY BUTTON,
but certain functions will not be accessible.

7
FEEL mode
COOL mode
DRY mode
FAN ONLY mode
HEATING mode
TRANSMIT SIGNAL
TIMER OFF
TIMER ON
AUTO FAN mode
LOW FAN mode
MEDIUM FAN mode
HIGH FAN mode
SLEEP mode
FLAP SWING mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Indicator
No. Symbols

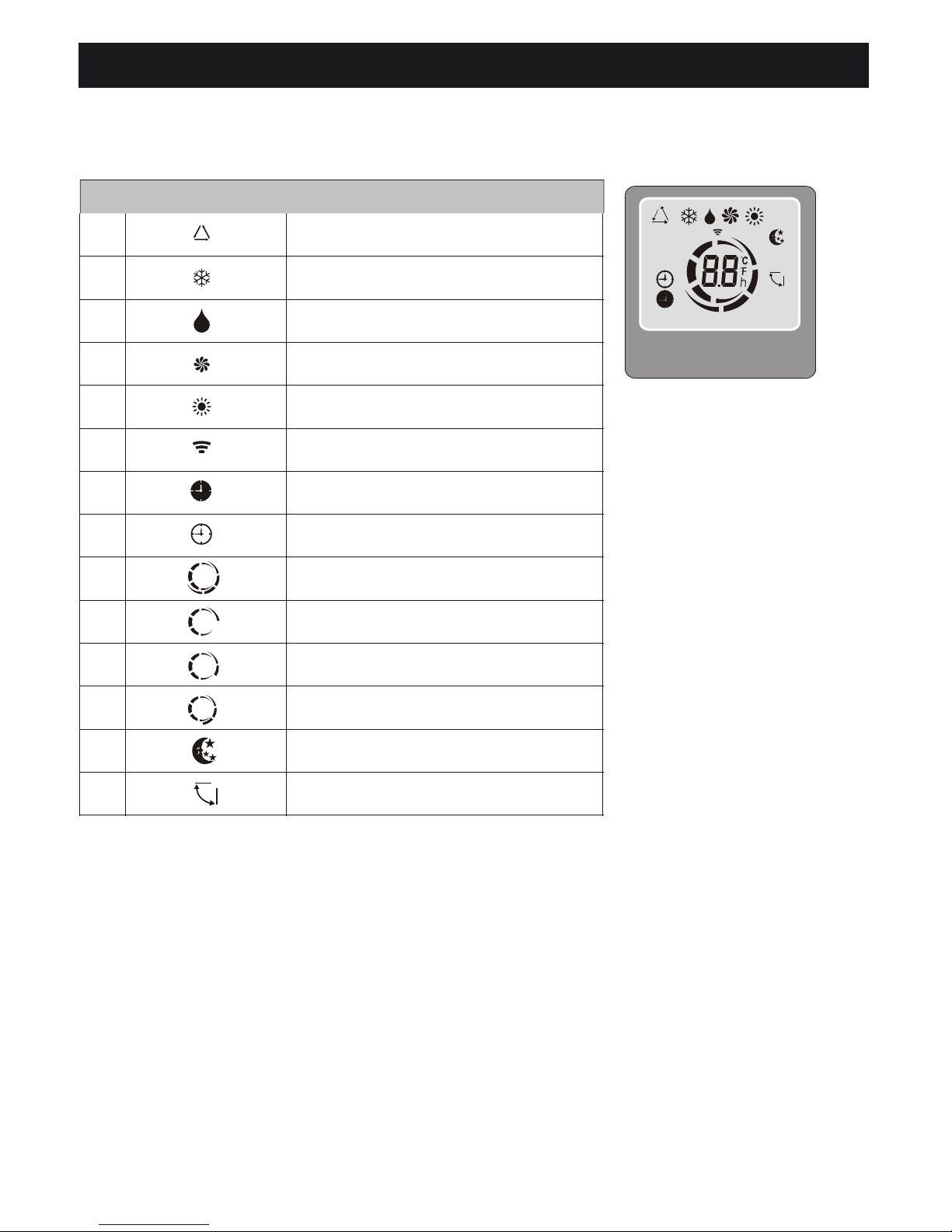

Guide to LCD Symbols
Remote Control Display
REMOTE CONTROL

Preliminary Instructions
How to Insert the Batteries
•See Diagram 1: Remove the cover from the battery
compartment by sliding it in the direction of the arrow.
•Insert the new batteries, ensuring that the (+) and (-)
symbols are correct.
•Replace the cover by sliding it into place.
Use 2 LRO 3 AAA (1.5V) batteries. Do not use
rechargeable batteries. Replace the old batteries with
new ones of the same type when the display is no
longer legible.
The remote control batteries must be disposed of in
accordance with the applicable laws in place in the
country of use.
See Diagram 2:
When you insert the remote control’s batteries
for the first time or if you change them, you may see
a DIP switch under the back cover (select models).
1
2
3
4
5
DIP 1 ON:
DIP 1 OFF:
DIP 2 ON:
DIP 2 OFF:
NOTE: Heating function not available on all units. After adjusting
the DIP switches, you will need to remove the batteries and re-insert
them using the above procedure to reset the remote control.
See Diagram 3:
When inserting the remote control’s batteries for the first time or
if you change them, you will need to program the remote to
function in cooling or heating mode (if available).
Immediately after inserting the batteries, the remote’s LCD display
will flash the COOL symbol and the HEAT symbol
one at a time. If a button is pressed while the COOL symbol
is displayed, the remote will be set to operate the system in
cooling only mode. If a button is pressed while the HEAT symbol
is displayed, the remote will be set to operate the system in heating
only mode (if applicable).
NOTE: The remote will not be able to operate the
system in cooling only mode if it is set to heating
only mode. Also, it will not be able to operate the
the system in heating only mode if set to cooling
only.
DIP switch position Function
The display will read in degrees Celsius.
The remote control is set to cooling only mode.
The remote control is set to heating only mode.
The display will read in degrees Fahrenheit.
8
It is recommended to use the supplied Remote Control Holder
for easy location and usage. The supplied holder may be mounted
to a wall as shown in Diagram 5.
To Use
See Diagram 4:
•Direct the remote control toward the indoor unit
•Make sure no objects are between the remote
and the signal receiver.
•Select the desired function by pressing the
appropriate button on the remote control.
•Do not leave the remote exposed to direct
sunlight for extended periods of time.
•Keep the remote at least 1m away from other
electrical appliances, such as televisions or
microwave ovens.
Signal
Receiver
Remote Control Holder
Cooling Only
Mode
Heating Only
Mode
REMOTE CONTROL PROGRAMMING

‘Flaps’
Deflectors
Filter
Fan
Heat
Exchanger
A IR
S WING
9
MODES OF OPERATION
This air conditioner is designed to create a comfortable
climate for individuals in the affected room.
All models can cool and dehumidify the air completely
automatically and some models can also provide heat
using either a heat pump or electric heat.
Air pulled by the fan enters through the grill of the front
panel and passes through the filter, which traps dust
inside. Air is then sent to the heat exchanger and is
cooled, dehumidifed, or re-heated by the heat
exchanger.
Heat removed from the air is then sent outside.
When the cycle is finished, the fan sends the freshened
air back into the room. The direction of the air outlet is
regulated by the flaps, which are motorized to move up
and down as well as left and right by the vertical
deflectors.
‘SWING’ CONTROL OF AIR FLOW
• The air flow from the outlet is uniformly
distributed throughout the room.
• Air can be directed in a particular
way for optimum effect.
The SWING button on the remote controls the position
of the flaps, causing air to be directed up or down.
For best results and to guarantee even diffusion of air
in the room, use the follwing tips:
•In cooling mode, orient the flaps horizontally or
slightly upward
•In heating mode (if applicable), orient the flaps
downward, as warm air will always tend to rise
upward.
Vertical deflectors can be positioned manually and are
located under the flaps. By adjusting these, air can
be directed to flow to the right or to the left.
Manual adjustment of the deflectors must be done
with the unit switched off.
CAUTION: Never position the flaps manually; the
control mechanism is delicate and can be seriously
damaged.
DANGER: Never insert your hand or any objects into
the air outlet of the units - all units contain a fan that
operates at high speed.
‘Flap’
Movement

10
COOLING MODE
The cooling function allows the air conditioner
to cool the room while dehumidifying the air at
the same time.
To activate the cooling function (COOL), press the MODE
button until the symbol (COOL) appears on the LCD
display.
The cooling cycle is activated by using the or keys
to set the system to a temperature lower than that of the
room.
To adjust the system to an optimal level, set the temperature,
the speed, and the direction of air flow using the correct
keys.
The heating function allows the air conditioner
to produce hot air either through a heat pump
or using electric heat.
To activate the heating function (HEAT), press the MODE
button until the symbol (HEAT) appears on the LCD
display.
The heating cycle is activated by using the or keys
to set the system to a temperature higher than that of the
room.
To adjust the system to an optimal level, set the temperature,
the speed, and the direction of air flow using the correct
keys.
HEATING MODE (SELECT MODELS)
Each unit that includes heating is fitted with
a Hot Start function, which delays immediate
startup of the system for several seconds so
that air produced will be immediately hot.
During heating mode, the unit can automatically
activate a defrost cycle, which is essential to
clear the condenser from a excess desposit of frost.
The process usually lasts for 2-10 minutes and
during defrosting, the fan will stop operating.
After completing the defrost cycle, it will return
to heating mode automatically.
MODES OF OPERATION

11
TIMER MODE - TIMER ON
TIMER MODE - TIMER OFF
MODES OF OPERATION
The TIMER function allows the system to
automatically switch on.
The TIMER function allows the system to
automatically switch off as well.
To set timed start, the system should be turned off.
Press TIMER, set the desired temperature by pressing the
or buttons. Press TIMER again and set the amount
of time, again using the or buttons. Press TIMER
again until the display shows the amount of time
entered until the programmed TIMER start. The
timer is now set.
IMPORTANT NOTE: Before setting a timed start,
you must choose which mode the system will begin
running in. Press the MODE button to select the
correct system function, press the FAN button to
select the correct fan speed, then turn the system off
using the ON/OFF button. You may then set a timed
start using the above instructions.
To cancel a timed start that has already been entered,
press the TIMER button again.
If the system is powered off, it will be necessary to reset
a timed start again using the above instructions.
To set a timed stop, the system should be turned on.
Press the TIMER button, then use the or buttons
to set the amount of time desired until the system will
automatically stop. As you do this, the display will
show the amount of time the system can be
programmed to stop after.
To cancel a timed stop that has already been entered,
press the TIMER button again.
If the system loses power or is turned off, it will be
necessary to reset a timed stop again using the above
instructions.
NOTE: Both timed starts and timed stops can only be
programmed in half hour increments.

12
MODES OF OPERATION
FAN MODE
DRY MODE
The system can be set to run in FAN mode,
providing ventilation only.
To run the system in FAN mode, press the MODE
button until the FAN symbol appears on the
display. Pressing the FAN button while in this mode
changes the fan speed to LOW, MEDIUM, HIGH,
or AUTO.
The remote control will automatically save the last
fan speed setting from the previous time the system
was in operation.
In FEEL mode (automatic), the air conditioner will
automatically select the appropriate fan speed and
mode of operation, COOL or HEAT (if available).
The system can also be set to run in DRY mode,
reducing the humidity of the air in the room for
increased comfort.
To run the system in DRY mode, press the MODE button
until the DRY symbol appears on the display. The air
conditioner will automatically cycle between cooling and
fan only modes to dehumidify the air.

13
FEEL MODE
SLEEP MODE
MODES OF OPERATION
The initial default operating mode is FEEL.
FEEL mode automatically adjusts the function
of the system based on a temperature range.
To set the air conditioner to FEEL mode, press the
MODE button until the FEEL symbol appears
on the display.
While in FEEL mode, the fan speed and the
temperature are automatically set according to
the room temperature. The room temperature is
measured by a sensor built into the indoor unit
and is programmed to stay within a certain range.
Ambient Temp. Operation Mode Auto Temp.
< 20° C
20° C - 26° C
> 26° C
DRY mode
COOL mode
FAN (cool only units)
HEAT (if available) 23° C
18° C
23° C
For optimal performance of your air conditioner, only adjust the
temperature ± 2° C, and adjust the fan speed and direction of air
flow by using the FAN control function and correct positioning
of the deflectors.
This system can also function in SLEEP mode,
which will automatically adjust the temperature
to maximize comfort during night time sleep.
To put the air conditioner into SLEEP mode, press the
SLEEP button until the SLEEP symbol appears on the
display.
If the system is set to run using the cooling or DRY function,
the set temperature will automatically be raised by 1° C
every 60 minutes for a total of 2° C during the first 2
hours.
If the system is set to run using the heating function, the set
temperature will be gradually lowered by 2° C during the
first 2 hours.
After 10 hours operating in SLEEP mode, the system will
switch off automatically.

2
1
3
Heating
For T1 Climate condition models:
14
No.
MODEL
2
1
3
No.
MODEL
PROTECTION
In the cases listed below, the built-in protective device may be tripped,
causing the system to stop operation.
For Tropical (T3) Climate condition models:
Heating
Cooling
Cooling
Dry
Dry
Outdoor air temperature is over 24° C
Outdoor air temperature is below -7° C
Room temperature is over 27° C
Outdoor air temperature is over 43° C
Room temperature is below 21° C
Room temperature is below 18° C
Outdoor air temperature is over 24° C
Outdoor air temperature is below -7° C
Room temperature is over 27° C
Outdoor air temperature is over 52° C
Room temperature is below 21° C
Room temperature is below 18° C
After stopping and restarting the air conditioner or after changing the mode
during operation, will not restart immediately; as a protective measure for the
compressor, it will pause for three minutes before resuming normal function.

INSTALLATION MANUAL---Selecting the Installation Place
Install the indoor unit level on a strong wall that is not
subject to vibrations.
The inlet and outlet ports should not be obstructed:the
air should be able to blow all over the room.
Do not install the unit near a source of heat , steam,or
flammable gas.
Install the unit near an electric socket or private circuit.
Do not install the unit where it will be exposed to
direct sunlight.
Install the unit where connection between indoor and
outdoor unit is as easy as possible.
Install the unit where it is easy to drain the condensed
water.
Check the machine operation regularly and leave the
necessary spaces as shown in the picture.
Install the indoor unit where the filter can be easily
accessible.
condensed water drain pipe
150
150
150
Sleeve
insulating covering
electrical cable
Mounting plate
Do not install the outdoor unit near sources of heat,
steam or flammable gas.
Do not install the unit in too windy or dusty places.
Do not install the unit where people often pass.Select
a place where the air discharge and operating sound
level will not disturb the neighbours.
Avoid installing the unit where it will be exposed
to direct sunlight ( other wise use a protection , if
necessary, that should not interfere with the air flow).
Leave the spaces as shown in the picture for the air to
circulate freely.
Install the outdoor unit in a safe and solid place.
If the outdoor unit is subject to vibration, place rubber
gaskets onto the feet of the unit..
water drain pipe
300
500
2000
300
minimum space to be left (mm) showing
in the picture
500
Outdoor unit
Indoor unit
Pipe length is
15 meters Max.
be less than 5m
Height should
Outdoor unit
Indoor unit
Pipe length is
15 meters Max.
be less than 5m
Height should
Installation Diagram
15
INDOOR UNIT
OUTDOOR UNIT
Only persons and/or companies qualified and experienced in the installation,service and repair of refrigerant
products should be permitted to do so.The purchaser must ensure that the person and/or company who is to
install,service or repair this air conditioner has qualifications and experience in refrigerant products.

INSTALLATION MANUAL---Installation of the Indoor unit
1. By using a level, put the mounting plate in a perfect
square position vertically and horizontally.
2. Drill 32 mm deep holes in the wall to fix the
plate;
3. Insert the plastic anchors into the hole;
4. Fix the mounting plate by using the provided tapping
screws
5. Check that the mounting plate is correctly fixed;
50
5mm
Note : Keep the drain pipe down towards the direction
of the wall hole, otherwise leakage may occur.
Before starting installation, decide on the position of the
indoor and outdoor units, taking into account the minim-
um space required around the units
Install the indoor unit in the room to be air conditio-
ning, avoiding to install in corridors or communal
areas.
Install the indoor unit at a height of at least 2.5 m
from the ground.
To install, proceed as follows:
1. Decide where to drill the hole in the wall for the pip-
ing ( if necessary ) according to the position of the
mounting plate;
2. Install a flexible flange through the hole in the wall to
keep the latter intact and clean.
The hole must slope downwards towards the exterior
Note : The shape of the mounting plate may be different
from the one above, but installation method is similar .
Indoors Outdoors
1. Lift the front panel.
2. Take off the cover as indicated in the piciure ( by
removing a screw or by breaking the hooks).
3. For the electrical connections, see the circuit diagram
on the right part of the unit under the front panel.
4. Connect the cable wires to the screw terminals by
following the numbering ,Use wire size suitable to
the electric power input (see name plate on the unit)
and according to all current national safety code
requirements.
5. The cable connecting the outdoor and indoor units
must be suitable for outdoor use.
6. The plug must be accessible also after the appliance
has been installed so that it can be pulled out if nece-
ssary.
7. An efficient earth connection must be ensured.
8. If the power cable is damaged, it must be replaced by
an authorised Service Centre.
Front panel
Terminal block cover
wiring diagram
Note:The cable wires has been connected to the main
PCB of indoor unit by manufacturer according to the
model without terminal block
16
Installation of the mounting plate
Drilling a hole in the wall for the piping
Electrical connections---Indoor unit

INSTALLATION MANUAL---Installation of the Indoor unit
3
2
1
The piping can be run in the 3 directions indicated by
numbers in the picture . When the piping is run in
direction 1or3, cut a notch along the groove on the side
of the indoor unit with a cutter.
Run the piping in the direction of the wall hole and bind
the copper pipes , the drain pipe and the power cables
together with the tape with the drain pipe at the bottom,
so that water can flow freely.
Do not remove the cap from the pipe until connecting
it, to avoid dampness or dirt from entering.
If the pipe is bent or pulled too often , it will become
stiff . Do not bend the pipe more than three times at
one point.
When extending the rolled pipe, straighten the pipe by
unwinding it gently as shown in the picture.
1. Remove the indoor unit pipe cap (check that there is
no debris inside).
2. Insert the fare nut and create a flange at the extreme
end of the connection pipe.
3. Tighten the connections by using two wrenches
working in opposite directions torque wrench
Connecting the pipes
Indoor unit condensed water drainage
The indoor unit condensed water drainage is fundamen-
tal for the success of the installation.
1. Place the drain hose below the piping, taking care not
to create siphons.
2. The drain hose must slant downwards to aid drainage.
3. Do not bend the drain hose or leave it protruding or
twisted and do not put the end of it in water . If an
extension is connected to the drain hose , ensure that
it is lagged when it passes into the indoor unit.
4. If the piping is installed to the right, the pipes, power
cable and drain hose must be lagged and secured onto
the rear of the unit with a pipe connection.
1) Insert the pipe connection into the relative slot.
2) Press to join the pipe connection to the base.
YES
17
Refrigerant piping connection
Connections to the indoor unit
NO NO
NO
YES
Extending the rolled pipe
Shape the connection pipe

INSTALLATION MANUAL---Installation of the Indoor unit
INSTALLATION OF THE INDOOR UNIT
refrigerant
pipe
refrigerant
pipe
insulation
sleeve
connection
(for heat-pump)
cable 1
connection
cable
Probe
cable(for heat-pump) Condensed water
drain pipe
Covered by vinyl tape
After having connected the pipe according to the instruc-
tions, install the connection cables. Now install the drain
pipe. After connection,lag the pipe, cables and drain pipe
with the insulating material.
1. Arrange the pipes ,cables and drain hose well.
2. Lag the pipe joints with insulating material , securing
it with vinyl tape.
3. Run the bound pipe , Cables and drain pipe through
the wall hole and mount the indoor unit onto the upper
part of the mounting plate securely.
4. Press and push the lower part of the indoor unit tightly
against the mounting plate
mounting plate
INSTALLATION MANUAL---Installation of the outdoor unit
The outdoor unit should be installed on a solid wall
and fastened securely.
The following procedure must be observed before co-
nnecting the pipes and connecting cables : decide
which is the best position on the wall and leave enough
space to be able to carry out maintenance easily.
Fasten the support to the wall using screw anchors
which are particularly suited to the type of wall;
Use a larger quantity of screw anchors than normally
required for the weight they have to bear to aviod
vibration during operation and remain fastened in the
same position for years without the screws becoming
loose.
The unit must be installed following the national
regulations.
drain pipe
The condensed water and the ice formed in the outdoor
unit during heating operation can be drained away thro-
ugh the drain pipe
1. Fasten the drain port in the 25mm hole placed in the
part of the unit as shown in the picture.
2. Connect the drain port and the drain pipe.
Pay attention that water is drained in a suitable place.
18
Outdoor unit condensed water drainage
(only for heat pump models)
drain port
