Cellar Cool CM User manual

CM SERIES
VERSION 2
OWNER’S MANUAL
NOTICE: To activate the split system warranty,
the installing certied HVAC/R service tech
must complete the split system warranty
checklist and send back to CellarCool.
24V Thermostat Conversion Kit Option

Copyright © 2012. CellarCool. All rights reserved.
CellarCool copyrights this manual, the product design, and the design concepts, with all rights reserved. Your rights with
regard to the hardware and manual are subject to the restrictions and limitations imposed by the copyright laws of the
USA. Under copyright laws, this manual may not be copied, reproduced, translated, transmitted, or reduced to any printed
or electronic medium or to any machine-readable form, for any purpose, in whole or in part, without the written consent
of CellarCool.
Every effort has been made to ensure that the information in this manual is accurate. CellarCool is not responsible for
printing or clerical errors.
CellarCool reserves the right to make corrections or improvements to the information provided and to the related
hardware at any time, without notice.
Vinothèque and CellarCool are registered trademarks, and ECE is a trademark of CellarCool. All rights reserved.
Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a
recommendation. CellarCool assumes no liability with regard to the performance or use of these products.
01.04.2017
We manufacture, test and certify 100% of our wine cooling units in
the USA. By sourcing the best components and closely controlling our
manufacturing processes, we can assure the highest-quality,
lowest defect manufacturing rates in the industry.
Conforms to ANSI/UL Std 427
Certied to CAN/CSA Std C22.2 No. 120

TABLE OF CONTENTS
Introduction ................................................ 3
Before You Start ............................................ 4
Receiving & Inspecting the System ......................... 5
Quick Reference Guide
Knockout Locations ...................................... 7
Unit Specications ....................................... 8
Condensing Unit ......................................... 10
Preparing the Wine Cellar................................... 11
System Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting Guide ..................................... 16
Maintenance Schedule ..................................... 19
Technical Assistance & Accessories ......................... 20
Installation Terms and Conditions .......................... 21

CCM 062817
Page 2 | 1-855-235-5271
WARNING
The evaporator unit (fan coil unit) must be insulated using the insulation blanket provided in
accordance with this manual. Refer to the insulation blanket installation instructions.
Failure to follow the instructions provided will result in a poor vapor barrier, water
damage, rust, and system corrosion which will void the warranty on your unit.
The evaporator unit (fan coil unit) must be insulated using berglass insulation (R13 or higher)
in addition to the provided insulation blanket. This includes the cavity between the ceiling
joists. A warm attic environment will reduce the capacity of the cooling system, as the system
will absorb heat from the attic in addition to the heat load from the wine cellar. This, in eect,
will signicantly reduce the cooling system’s ability to cool the wine cellar.
Failure to properly insulate the evaporator unit may cause condensation to form on the
surface of the housing and water damage to the surrounding structure, the cooling unit, and
possibly the wine cellar.
To avoid these issues, install the insulation kit and insulate the surface of the evaporator unit
that is located outside of the wine cellar using berglass insulation.
*Additional insulation is required!

www.cellarcool.com | Page 3
CM SERIES
WARRANTY REGISTRATION
In order to activate the warranty of your system, the verication and operational
documentation must be completed by the certied refrigeration technician
installing your system and submitted via mail, fax, or e-mail.
Mail to:
CellarCool
ATTN: Warranty Registration
1738 E. Alpine Avenue
Stockton, CA 95205-2505
USA
Fax to:
209-466-4606
Scan and email to:
[e-mail]
INTRODUCTION
Customer Service
Thank you for purchasing a CellarCool cooling system. We strive to provide the highest-quality products and the best possible
customer service. If you have any questions about your system, please call us at 1-855-235-5271 or visit cellarcool.com.
Using the Manual
This owner’s manual is intended to assist in the proper maintenance of the cooling system. In order to ensure the longevity of
your cooling unit, the equipment should be installed as outlined in the technician’s manual. It is also vital to establish a proper
care and maintenance schedule. Please read and review this manual carefully and keep it for future reference.
What is the CellarCool Cooling System?
The CellarCool cooling system is a specialized refrigeration system designed for one purpose only: to maintain the optimal
temperature and humidity levels conducive to the proper storage and aging of ne wines. This system produces minimal in-cellar
noise and has the most lenient exhaust requirements. An exterior housing is required for outdoor condensing unit installations.
How Does the Cooling System Work?
Similar to the air conditioning systems used for homes, the evaporator unit (fan coil unit) and condensing units are installed
in separate locations and are connected by a refrigerant line set. The evaporator portion is commonly installed in the wine
cellar, with the condensing unit is located either outside or in a remote indoor location that is ventilated. An exterior housing is
required for outdoor condensing unit installations.
Temperature Setting
The system is designed to maintain a cellar temperature of 55°F as long as the ambient temperature does not exceed 110°F.

CCM 062817
Page 4 | 1-855-235-5271
BEFORE YOU START
1-800-343-9463
1. Inspect all components prior to installation. If damage is found, please contact your distributor or CellarCool Customer
Service at 1-800-343-9463.
2. The evaporator unit and condensing unit each require a dedicated 115V, 20-amp circuit. Use a surge protector with the
unit. Do not use a GFI (ground fault interrupter) line.
3. The evaporator unit and condensing unit require no communication lines unless the system is equipped with a Cold Weather
Start Kit. If the system is equipped with a Cold Weather Start Kit, a low-voltage 18-2 thermostat wire will need to be run
between the evaporator unit (fan coil unit) and the condensing unit.
4. A standard 18-5 thermostat wire must be run from the evaporator unit (fan coil unit) to the thermostat.
5. You are REQUIRED to install a drain line to remove condensation from the evaporator unit (fan coil unit).
6. The warranty is not active until a warranty checklist has been received, reviewed, and approved.
7. The system is intended for use in properly designed and constructed wine cellars. Hire a professional wine storage
consultant with a valid contractor’s license to build your wine cellar.
8. CellarCool requires that all split systems be installed by a certified HVAC-R technician only. NATE or equivalent is
recommended.
If you encounter a problem with your CellarCool system, please refer to the Troubleshooting Guide. If you have any further
questions or concerns, or need assistance, please contact CellarCool’s Customer Service at 1-800-343-9463. Please be sure
all testing has been completed prior to contacting Customer Service. Please have your results ready for your representative.

www.cellarcool.com | Page 5
CM SERIES
RECEIVING & INSPECTING THE SYSTEM
• Use caution when lifting and check package for damage.
• Lift only at the designated hand-hold locations on the shipping container, or fully support the unit from underneath. A
shipment may include one or more boxes containing accessories.
• Before opening the container, inspect the packaging for any obvious signs of damage or mishandling.
• Write any discrepancy or visual damage on the bill of lading before signing.
• Allow the condensing unit to sit for 24 hours prior to start-up. The condensing unit can be placed in the installation
location, piped and evacuated during this time.
Note: CellarCool units are manufactured in the USA and tested prior to shipment.
• Review the packing slip to verify contents.
• Check the model number to ensure it is correct.
• Check that all factory options ordered are listed.
If any items listed on the packing slip do not match your order information,
contact CellarCool Customer Service immediately.
Check all shipped boxes for the following contents:
Please leave the unit in its original box until you are ready for installation. This will allow you to move the product safely without
damaging it. When you are ready to remove the product from the box, refer to the installation instructions.
TIP: Save your box and all packaging materials. They provide the only safe means of transporting/shipping the unit.
Evaporator Unit Box Condensing Unit Box
(1) CM Series evaporator unit (fan coil unit)
Evaporator installation hardware bag:
• (12) 2½” Phillips wood screws
• (12) #8 ⁄” Phillips pan-head screws
• (1) Bypass plug
• (1) ¼” barbed coupling
• (2) 3” strip of cork tape
Documentation bag:
• CM Series Version 2 owner’s manual
• CM Series Version 2 technician’s manual
• R-134a split system warranty checklist
(1) CM Series condensing unit
Accessory kit bag:
• Evaporator installation hardware bag
CM Series insulation blanket bag:
• CM Series insulation blanket
Condensing unit accessory kit:
• (1) Filter drier
• (1) Sight glass

CCM 062817
Page 6 | 1-855-235-5271

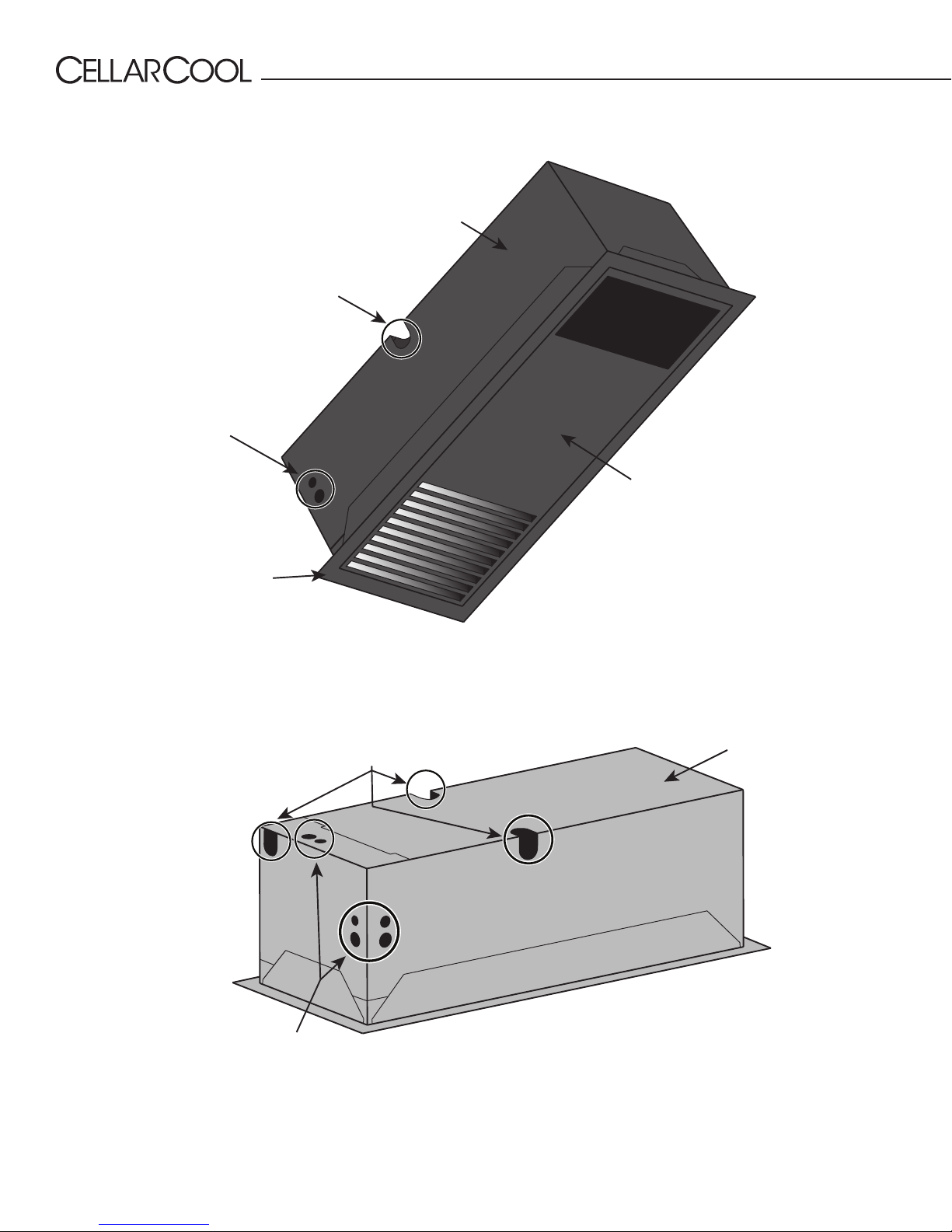

QUICK REFERENCE GUIDE
Top View
Bottom View
Mounting Bracket (Paintable)
Supply and Return Grille (Paintable)
Evaporator Unit (Fan Coil Unit)
Electrical Knockouts
Line Set Knockout (x6)
Note: The unit comes in black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.
Top Panel
Electrical Knockout
Options
Line Set Knockout
Options

www.cellarcool.com | Page 7
CM SERIES
5
6
7
8
PROPRIETARY AND CONFIDENTIAL
NEXT ASSY
KNOCKOUT LOCATIONS
Side View of Evaporator Unit
Top View of Evaporator Unit
1.5”
8.05”
14.1”
4.55”
1.75”
1.75”
34.25”
35.75”
35.75”
12.65”
6.58”
1.5”
4.57”
12.65”
20.4” 15.35”
20.4” 15.35”
Front View of Evaporator Unit
14.10”
12.65”
10.65”
12.65”
1.5”
4.58”
6.58”
1.45”
2”

CCM 062817
Page 8 | 1-855-235-5271

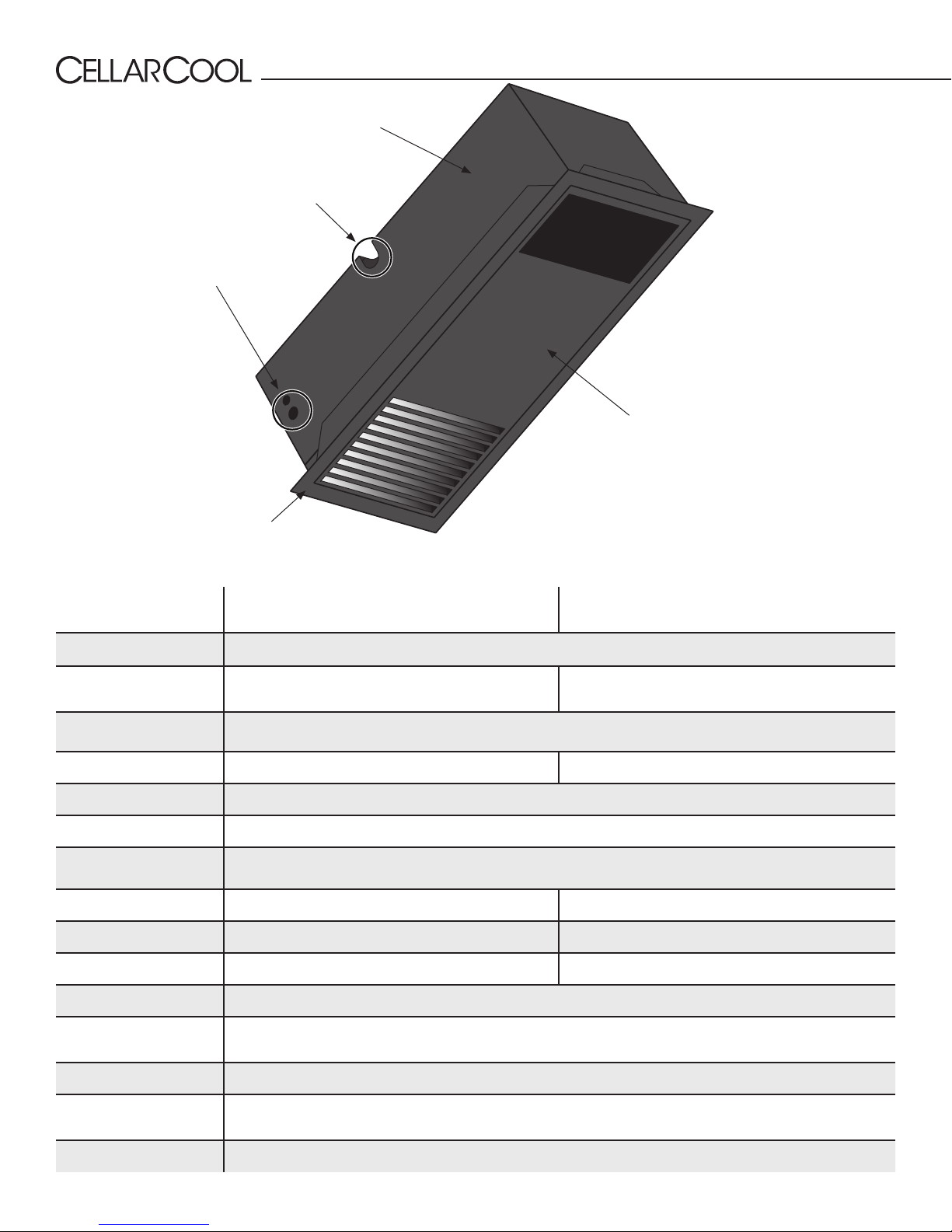

CM 3500 SPECIFICATIONS
Model 3500 Evaporator
(Fan Coil Unit)
3500 Condenser
(Air-Cooled Condensing Unit)
Cellar Size (cu. ft.) 1000
Dimensions 12.75”H x 14.5”W x 35.75”D
(17.10”H x 38.75”D w/mounting bracket) 13.5”H x 12”W x 18”D
BTUh with 90° air entering
the condenser coil* 3650
CFM 321 190
Refrigerant R-134a
Condensing Unit HP 1/3++
Voltage Rating 115V (20-amp dedicated circuit required)
Weight (lbs) 80 56
AMPS (Starting/Running) 2/1 23.5/6.8
dBA 58.5 65
Drain Line ¼” ID clear plastic tubing
Installation Evaporator unit (fan coil unit) is installed through the cellar ceiling. Condensing unit is
installed up to 100 line ft. from the evaporator unit.
Thermostat After market (24V thermostat not included)
Temp. Delta
55°F max temperature dierential between the cellar temperature and condensing unit intake
temperature
Warranty 2 years (parts and labor)
Mounting Bracket (Paintable)
Supply and Return Grille (Paintable)
Evaporator Unit (Fan Coil Unit)
Electrical Knockouts
Line Set Knockout (x6)

www.cellarcool.com | Page 9
CM SERIES
CM 5000 SPECIFICATIONS
Model 5000 Evaporator
(Fan Coil Unit)
5000 Condenser
(Air-Cooled Condensing Unit)
Cellar Size (cu. ft.) 2000
Dimensions 12.75”H x 14.5”W x 35.75”D
(17.10”H x 38.75”D w/mounting bracket) 13.5”H x 12”W x 18”D
BTUh with 90° air entering
the condenser coil 4900
CFM 321 350
Refrigerant R-134a
Condensing Unit HP 1/2
Voltage Rating 115V (20-amp dedicated circuit required)
Weight (lbs) 80 69
AMPS (Starting/Running) 2/1 43.6/8.7
dBA 58.5 65
Drain Line ¼” ID clear plastic tubing
Installation Evaporator unit (fan coil unit) is installed through the cellar ceiling. Condensing unit is
installed up to 100 line ft. from the evaporator unit.
Thermostat After market (24V thermostat not included)
Temp. Delta
55°F max temperature dierential between the cellar temperature and condensing unit intake
temperature
Warranty 2 years (parts and labor)
* Sizing the Unit to the Room
There are several factors such as glass, stone, concrete, etc. which will change the required amount of BTUs needed to
properly cool your wine room. We strongly recommend utilizing the cellar wizard on the CellarCool website in order to
ensure you are selecting the proper cooling system for your application. Under-sizing your cooling unit can lead to pre-
mature failure and/or prevent the system from reaching the desired set temperature.

CCM 062817
Page 10 | 1-855-235-5271

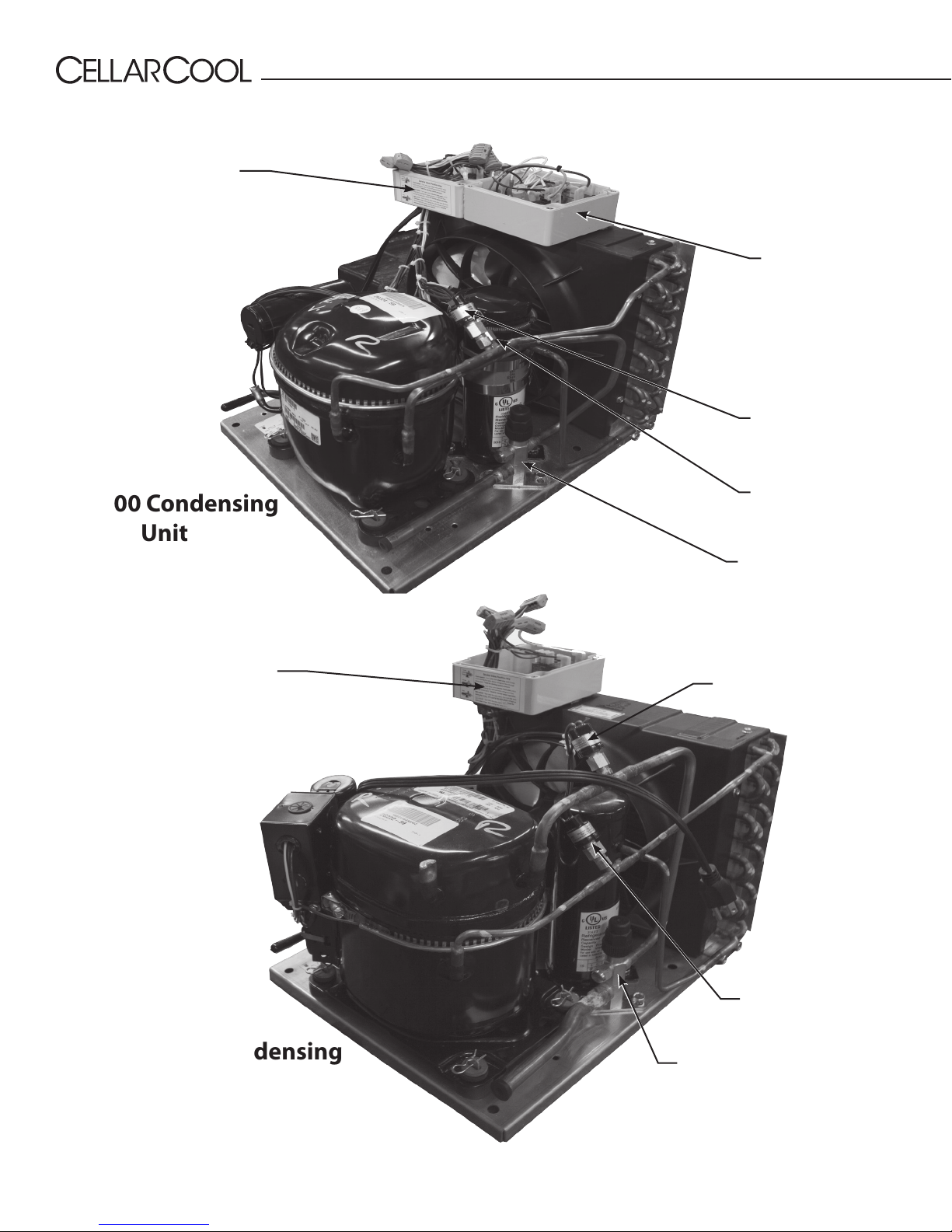

CONDENSING UNIT QUICK REFERENCE GUIDE
CM5000 Condensing
Unit
CM3500 Condensing
Unit
Standard Electrical Box
Suction Line Service Valve
Fan Cycling Switch
Cut-Out: 75 psi
Cut-In: 120 psi
Cold Weather
Start Kit Electrical
Box (if equipped)
Standard Electrical Box
Low-Pressure Switch
Cut-Out: 5 psi
Cut-In: 20 psi
Suction Line
Service Valve
Fan Cycling Switch
Cut-Out: 75 psi
Cut-In: 120 psi
Low-Pressure Switch
Cut-Out: 5 psi
Cut-In: 20 psi

www.cellarcool.com | Page 11
CM SERIES
The performance and life of your system is contingent upon the steps you take in preparing the wine cellar. Improp-
erly preparing your enclosure or incorrectly installing your unit may cause unit failure, leaking of condensation, and
other negative side eects.
It is highly recommended that you obtain the assistance of a wine storage professional.
Wine storage professionals work with licensed contractors, refrigeration technicians, and racking companies to build
well-insulated, beautiful, and protective wine cellars. CellarCool has put together some useful tips to assist in the
installation process. Our recommendations are meant to act as a guide in the process of building a proper enclosure.
Your intended location may have specic needs which we do not address.
Wall & Ceiling Framing
Build wine cellar walls using standard 2x4 or 2x6 boards and ceiling joists without violating local or state codes in
your area. As a general rule, the thicker the walls and the higher the insulation value, the more consistent your cellar
temperature will be.
Insulation
Insulation is REQUIRED in order to properly use CellarCool products. It is vital that all walls and ceilings be insulated
to keep the cellar temperature as consistent as possible during the summer and winter months. Standard berglass
or rigid foam insulation is normally used in cellar construction; in some cases, “blown-in” insulation is used. The
R-value, or quality of insulation, is determined by the rate at which heat passes through the insulation. The higher
the R-value, the more resistant the insulation is to conducting heat, and the more consistent your wine cellar’s
temperature will be. Using higher R-values in insulation will lower your operating costs and CellarCool unit run time.
(R-13 is the recommended minimum; R-19 is preferred for interior cellar walls, and R-30 for ceilings and exterior walls.)
Vapor Barrier
Water vapor creates its own pressure, separate from the ambient air pressure, and will intrude into colder/drier
areas. A vapor barrier is REQUIRED in order to prevent the intrusion of water vapor and maintain the correct cellar
temperature and humidity. It is recommended that 6-millimeter plastic sheeting be applied to the warm side of the
cellar walls. The vapor barrier must also be applied to the outside walls and ceiling. If it is impossible to reach the
outside, then the plastic must be applied from within the cellar. The most common method is to wrap the entire
interior, leaving the plastic loose in the stud cavity so the insulation can be placed between each stud. All of the walls
and ceiling must be wrapped in plastic for a complete vapor barrier.
In areas of high humidity, such as Southern and Gulf States, the vapor barrier will prevent inltration of warm moist
air. The moist air can cause mold to form, and standing water in drain pans promote microbial and fungal growth that
cause unpleasant odors and indoor air quality problems. If mold is found, remove it immediately and sanitize that
portion of the unit.
Note: High humidity signicantly increases the heat load on the cooling system.
Any break in the vapor barriers (cut, nail hole, over-lapping, etc.) will cause a moisture leak and must be sealed. The
electric conduit is a “duct” for vapor to travel in. The conduit should be caulked and sealed on the warm air end.
PREPARING THE WINE CELLAR

CCM 062817
Page 12 | 1-855-235-5271
Unobstructed Airow
Unobstructed airflow to and from the system is critical for the system’s overall performance and lifespan. A
minimum of 3 feet of clearance around the unit is crucial (5 feet is ideal). The air blown by the fans needs to circulate
and either dissipate or absorb heat from the space. The system will operate more efficiently with a greater amount of
air to exchange.
Door and Door Seal
An exterior-grade (1¾”) door must be installed as a cellar door. It is very important that weather stripping is attached
to all four sides of the doorjamb. A bottom “sweep” or threshold is also required. The door must have an excellent
seal to keep the cool cellar air from escaping the cellar. If the door is not sealed properly, the cooling system may run
continuously, shortening its operational lifespan.
In cases where glass doors are used and the room size is close to the recommended system size, the next larger
size CellarCool system should be used. This will compensate for the insulation loss due to the lower insulation rating
of glass.
Note: Avoid attempting to camouflage the unit. This will restrict
airflow, and thus the system’s ability to work efficiently.

www.cellarcool.com | Page 13
CM SERIES
Ambient Temperature Factor
The cooling system has the ability to cool a wine cellar eciently to 55°F as long as the ambient temperature of the area
to which it is exhausting does not exceed 110°F. Therefore, you the condensing unit to exhaust in a space which will not
exceed 110°F, allowing for proper dissipation of the heat exhausted by the condensing unit. Without proper heat dissipa-
tion the system will not have the capacity to keep the wine at a desirable 55°F.
Ventilation
The necessity of dissipating heat away from the condensing unit is critical to the system’s performance and cannot
be overstated. As the system operates and cools, a greater amount of heat is generated on the condensing side of
the system. Adequate ventilation is required in order to dissipate heat away from the condensing unit. If ventilation
is inadequate, the exhaust will heat the area or room and adversely aect the system’s ability to cool. In some cases, it
may be advisable to install a vent fan to dissipate heat within the exhaust area on the condensing side of the system.
However, you must have a fresh air inlet as well.
WARNING! Allowing your system to operate in high ambient temperatures for
extended periods of time will greatly decrease the life of your system and void
your warranty. The cooler the temperature of the air entering the condenser coil,
the more cooling capacity the system has. The less heat gain through the common
wall, the lower the consumption of electricity.
CEILING
EVAPORATOR
UNIT
Note: The unit comes in black. The mounting bracket and front grille
are paintable, enabling you to match your desired color.
Note: If you are unsure whether you have adequate ventilation in your installation location, please
contact us to assess your specic installation at [e-mail] or 1-855-235-5271.

CCM 062817
Page 14 | 1-855-235-5271
Initial Start-Up
Set the thermostat to COOL and fan switch to AUTO.
Lower the set point to the desired cellar temperature. (A
temperature of 55°F is the recommended set point.) See
thermostat instructions for details.
Normal System Cycle
The thermostat should turn the cooling system on when
it senses a temperature one (1) degree higher than the set
point. See thermostat instructions for details.
Anti-Short Cycle
Most thermostats have a safety feature that will prevent
the condensing unit from cycling on and o within a short
period of time. During the anti-short cycle, the condensing
unit will typically remain o for 5-7 minutes. See thermostat
instructions for details.
Fan Operation
If the fan switch on the thermostat is in the AUTO position, it
will run only during the cooling cycle. If the fan switch on the
thermostat is in the ON position, the fan will continuously run
until the switch is set back to the AUTO position.
NOTE: To ensure correct system operation, the 24V thermostat
must be placed inside the wine cellar, preferably in a central
location away from any airow.
SYSTEM OPERATION
The cooling system is equipped with the hardware needed to support a 24-volt air conditioning thermostat (not included).

www.cellarcool.com | Page 15
CM SERIES
NOTES

CCM 062817
Page 16 | 1-855-235-5271
TROUBLESHOOTING GUIDE
Unit has ice forming on the evaporator unit (fan coil unit)
Possible cause Solution
Evaporator lter or coil is dirty Remove the lter and wash it, then clean the coil with a vacuum.
If coil is very dirty, use a spray bottle with a small amount of liquid
dish detergent or coil cleaner. Spray coil, let set for ve minutes, then
ush with fresh water.
There is something blocking the supply and/or return air Remove blockage
The evaporator fan is not turning on Call Customer Service for details on how to perform the bypass plug
test. If all components run correctly, and the system cools during
the bypass plug test, there is either an issue with the 24V thermo-
stat conversion kit or the thermostat. Contact Customer Service for
further action.
If evaporator unit (fan coil unit) continues to ice Observe ice formation pattern. If only part way up the coil face, the
system could be low on refrigerant. If all the way up, the coil may be
dirty or airow is blocked.
The set point is too low Raise set point to recommended set point of 55°F
Unit does not run/power up
Possible cause Solution
Evaporator unit (fan coil unit) is not plugged in Make sure the unit is plugged into an outlet
Line voltage rating is incorrect for the system Check line voltage to make sure there is 110V-120V
Thermostat not calling for cooling Lower set point
Faulty thermostat or wiring Call Customer Service
Cellar temperature is too warm
Possible Cause Solution
The temperature of the room to which the condensing unit exhausts
exceeds 110°F Intake temperature needs to drop below 110°F
The system is undersized for the cellar Order correct size system
There is something blocking the supply and/or return air on the
evaporator unit (fan coil unit) or the condensing unit Remove air ow obstruction
Evaporator unit (fan coil unit) is mounted too low in the cellar Relocate unit so the distance from the ceiling and top of the unit is
no more than 18”
One or more of the fans is not turning on Please contact the installing technician to troubleshoot
Compressor is not turning on Please contact the installing technician to troubleshoot
Compressor keeps cycling on overload Make sure all fans are working and there is no airow obstruction
Poor seal around door or other areas requiring a seal (around the
unit, wall joints, etc.)
Make sure there are no air gaps around the door. If door seal is
damaged, replace it.
Thermostat set too high Adjust thermostat to lower temperature
Evaporator coil is frosted or iced up Observe ice formation pattern. If only part way up the coil face,
evaporator unit (fan coil unit) could be low on refrigerant. If so, con-
tact your installing technician to assist with troubleshooting.
System runs constantly
Possible Cause Solution
Leaky door seal or poorly insulated cellar Fix leaky door seal and insulate cellar

www.cellarcool.com | Page 17
CM SERIES
Unit leaks water
Possible cause Solution
Evaporator unit (fan coil unit) is not level Evaporator unit (fan coil unit) should be level on the wall to prevent
leaking
Drain line clogged or kinked Check drain line to make sure water can ow freely
Drain is clogged, preventing water from escaping Disconnect drain and clear it out;check drain for blockage
Drain line does not have a downward slope Fix drain line so there is a downward slope from the unit to the drain
Coil is iced, causing drain pan to freeze and water to overow Melt ice with blow drier. Soak up with a towel.
Unit runs but does not cool
Possible cause Solution
Lack of air ow Make sure fan is unobstructed and that the evaporator lter,
evaporator coil, and condenser coil are clean and free of debris
System undersized Contact Customer Service
Compressor is overheating Shut system o for 1 hour to allow compressor to cool. Turn back on
and check for cooler air ow out. If compressor runs, check for and
clean condenser coil as possible cause of compressor overheating.
If problem repeats, contact you installing technician to assist with
troubleshooting.
Evaporator fan runs but compressor does not
Possible cause Solution
Compressor and/or starting components faulty Please contact the installing technician to troubleshoot
Compressor may have overheated Shut system o for 1 hour to allow compressor to cool. Turn back on
and check for cooler air ow out. If compressor runs, check for and
clean condenser coil as possible cause of compressor overheating.
If problem repeats, contact your installing technician to assist with
troubleshooting.
Compressor runs but evaporator fan does not
Possible cause Solution
Faulty fan motor Please contact the installing technician to troubleshoot
Faulty thermostat Please contact the installing technician to troubleshoot
Fan switch on thermostat set to "on" Set fan switch to the "auto" position
Fan relay in thermostat or 24V thermostat conversion kit stuck on Call Customer Service for details on how to perform the bypass plug
test
Compressor short cycles
Possible cause Solution
Evaporator unit (fan coil unit) thermostat location Move thermostat out of airow
System low on refrigerant charge Please contact the installing technician to troubleshoot
Condenser fan motor/capacitor faulty Please contact the installing technician to troubleshoot
Compressor and /or starting components faulty Please contact the installing technician to troubleshoot
Humidity in cellar too low
Possible cause Solution
Not enough moisture Purchase and place a humidier (or a decorative fountain) in cellar

CCM 062817
Page 18 | 1-855-235-5271
Does not power up or run
Possible cause Solution
Batteries on thermostat have lost their charge Change batteries
Thermostat wired incorrectly Check wiring on 24V thermostat and correct
Wiring issue at evaporator unit (fan coil unit) Contact Customer Service for troubleshooting
Condensation levels are critical and prevent the unit from running Contact Customer Service for troubleshooting
24V transformer in evaporator unit (fan coil unit) has failed Contact Customer Service for troubleshooting
Evaporator fan runs continuously
Possible cause Solution
Fan switch on thermostat set to "on" Set fan switch to the "auto" position
Fan relay in thermostat or 24V conversion kit stuck on Call customer service for details on how to perform the bypass plug
test
Units equipped with the 24V Thermostat Conversion Kit:
