1 - before You sTarT
Thank you for purchasing our Zephiro Fog 900. Enjoy your new equipment and make
sure to read this manual carefully before operation! This user manual is made to
provide both an overview of controls, as well as information on how to use them.
1.1. What is included
Package includes:
y1x Smoke Machine
y1x Power Cord
y1x Remote Controller
y1x Wireless Receiver
y1x Wired Controller
y1x Mounting Bracket with washers and screws
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition. If the box or the contents
(the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier or dealer/seller immediately. In addition, keep
the box and contents for inspection.
1.3. Accessories
Centolight can supply a wide range of quality accessories that you can use with
your ZEPHIRO Series equipment, like Consumables, Cables, Splitters, DMX control-
lers, and a wide range of other fixtures.
All products in our catalogue has been long tested with this device, so we recom-
mend you to use Genuine Centolight Accessories and Parts. Ask your Centolight
dealer or check out our website www.centolight.com for any accessories you could
need to ensure best performance of the product.
1.4. Disclaimer
The information and specifications contained in this User Manual are subject to
change without notice. Centolight assumes no responsibility or liability for any errors
or omissions and reserves the right to revise or to create this manual at any time.

55
Zephiro Fog 900 User Manual
Eng
Copyright© 2021 Centolight. All rights reserved.
2 - safeTY InsTruCTIons
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions
2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live terminals
are involved within this apparatus, even under the normal oper-
ating conditions, which may be sufficient to constitute the risk of
electric shock or death.
The symbol is used to describe important installation or configu-
ration problems. Not following advice and information on how to
avoid such problems may lead to product malfunction.
Caution! This symbol indicates high temperature parts! In par-
ticular, the nozzle of the Zephiro Fog 900 can cause burns. Pay
attention to high temperatures and avoid touching the nozzle.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing material
and exhausted consumables as much as possible.
Warning of Moisture Prevention: it remind the operator to keep
the machine and controller dry. Do not use them on rainy and
snowy days.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.
2.2. Safety Notes
Please read the following Safety Notes carefully before working with the product.
They include important safety information about installation, usage, and mainte-
nance.

66
Zephiro Fog 900 User Manual
Eng
1) Personal Safety
yAlways connect the product to a grounded circuit to avoid the risk of electric
shock. During heating up and operation, the housing will get hot: do not touch.
yThe product is very hot during operation and it remains hot for a long time after
operation has stopped. Do not touch the product’s nozzle.
yMake sure that children, unauthorized people and animals do not have access
to the machine.
yThe operation noise is without harm to ear. No need to wear ear protection
when close to the working machine.
2) Mounting and Rigging
yFor safety reasons, it is not recommended to mount the product on suspended
structures. Operate the product while it is on the ground only.
yThe product is for both indoor and outdoor use but, in order to prevent risk of
fire or shock, do not expose the product to rain or moisture
CAUTION: When transferring product from extreme temperature environments,
(e.g. cold truck to warm humid ballroom) condensation may form on the inter-
nal electronics of the product. To avoid causing a failure, allow product to fully
acclimate to the surrounding environment before connecting it to power.
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
yBe sure that no ventilation slots on the product’s housing are blocked.
3) Power and Wiring
yAlways make sure that the voltage of the outlet to which you are connecting
the product is within the range stated in paragraph “8 - Specification” on page
13 or rear panel of the product (AC220V- 50/60Hz).
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo eliminate unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by unplugging
it.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground.

77
Zephiro Fog 900 User Manual
Eng
4) Water / Moisture
yThe unit should be protected from moisture and rain, and can not be used near
water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
5) Heat
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Don not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -10°C to 50°C (14°F to 122°F).
6) Fuse
yTo avoid the risk of fire and damage to the unit, use only the type of fuse de-
scribed in “8 - Specification” on page 13. Before replacing the fuse, make
sure the device is switched off and unplugged.
7) DMX connection
yWhen use DMX controller, please make sure that there is no interference sources
(e.g. intercom, high frequency radio waves and radiation source).
8) Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
3 - InTroduCTIon
It is well known how the world of show business and entertainment is based on
the fusion of music, images, lights and environmental effects. The sensory involve-
ment of those who enjoy the entertainment event is increasingly present nowadays.
Centolight knows very well this need and thanks to the Zephiro line it offers a wide
range of machines for smoke, fog, bubbles, snow and more.
Zephiro Fog 900 is a powerful and compact fog machine; designed for profession-
al small to medium on-stage applications and equipped with wired and wireless
control.
It can generate a persistent and homogeneous fog that greatly enhances visual
effects and light beams of any type of fixtures in settings such as theaters, photo
and TV studios, film sets, discos, live events, etc.

88
Zephiro Fog 900 User Manual
Eng
It has a power output of 900W and is designed for indoor applications with an
output of 140m³/minute. Consumption is about 1L/hour of continuous emission (de-
pending on liquid density). The internal tank is 1 liter.
3.1. Features
y140m³/Minute smoke output fills up a small/medium sized room quickly
yContinuous smoke output after about 3 minutes warm-up time
y1L Tank capacity for about 2-hour continuous use without refilling
yWired and wireless controllers

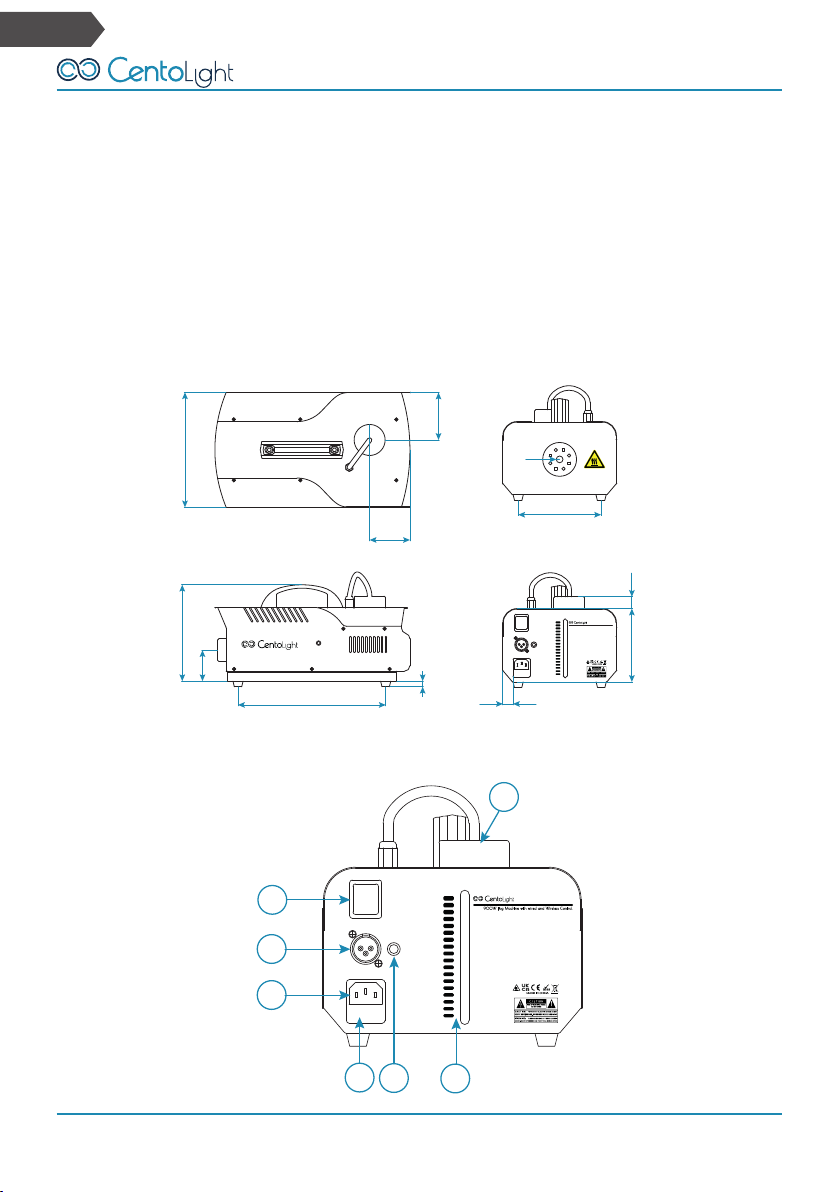

3.2. Product Dimensions
130mm
(5.1”)
21mm
(0.8”)
18mm (0.7”)
262mm (10.3”)
55mm
(2.2”)
10mm
(0.4”)
171mm (6.7”)
147mm (5.8”)
R6
204mm (8.0”)
84,5mm
(3.3”)
71,5mm (2.8”)
ON
900W Fog Machine with wired and Wireless Control
OFF
POWER
AC 220V/50Hz
100%
0%
WIRED/WIRELESS CONTROL
READY
Importedin the EU by FRENEXPORT SPA
ViaE. Ferrari, 10 - 62017 Porto Recanati
www.frenexport.com
ZEPHIRO
FOG 900
ZEPHIRO
FOG 900
3.3. Rear Panel
ON
900W Fog Machine with wired and Wireless Control
OFF
POWER
AC 220V/50Hz
100%
0%
WIRED/WIRELESS CONTROL
READY
Imported in the EU by FRENEXPORT SPA
Via E. Ferrari, 10 - 62017 Porto Recanati (Italy)
www.frenexport.com
ZEPHIRO
FOG 900
1
2
3
456
7

99
Zephiro Fog 900 User Manual
Eng
1. On/off switch
2. Remote Control receiver /Manual
Control connector
3. Power inlet (IEC connector)
4. Fuse
5. Warm Up Indicator
6. Fluid level indicator
7. Liquid hose and liquid tank cap
4 - ProduCT overvIew
4.1. Mains Power & Fuse
Power Inlet (3) - In case of loss or replacement of the cable, refer to the following
table which shows the correspondence of the internal wires:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
The earth must to be connected! Pay attention to the safety! Before taking into
operation for the rst time, the installation has to be approved by an expert.
Fuse Holder (n.4) - In case you need to replace the fuse, make sure that the appli-
ance is switched off, disconnect the input power plug, and unscrew the fuse holder
cover shown above with a Phillips screwdriver.
CAUTION: Replace the fuse ONLY with one of the same type indicated in the sec-
tion “8 - Specication” on page 13 (T10A/250V - 5x20 mm). A lower value
fuse would blow immediately after the rst power on; a higher value would not
act as a fuse in case of anomalous current absorption or short circuit.
WARNING: Always connect the product to a protected circuit (with circuit break-
er). Make sure the machine has an appropriate electrical ground to avoid the
risk of electric shock or re.
WARNING: Never connect the Zephiro Fog 900 to a rheostat (variable resistor)
or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to
100 % switch.
5 - seTTIng uP
yZephiro FOG 900 can be installed in high places (with clamps or couplers, not
included), or placed on the ground.

1010
Zephiro Fog 900 User Manual
Eng
yKeep it in horizontal position, do not tilt or flip. Before connecting this unit to
mains, fill in the tank with fluid. Always use water-based fog fluid and check
that nozzle is clean and unobstructed.
yBefore connecting to power, check whether mains voltage is suitable for the unit
or not.
yConnect the supplied wired controller or the wireless receiver to rear panel of
the fog machine (n.2)
yPower cord should be plugged into a grounded electrical outlet. Once con-
nected, put power switch to “ON”, then fog machine start warming up and the
indicator LED on the rear panel is red. During the warm up process, also the red
LED on the wired controller is ON. After heating is complete, the indicator LED
on the rear panel turns green. In the same time, on the wired controller, the red
LED turns OFF and the green LED turns ON; then fog machine is ready to use.
yUse the wired controller or the supplied wireless control, in order to activate the
fog machine.
6 - ConTrol Mode
Zephiro FOG 900 can be operated with a manual controller or with a remote con-
troller according to which it is connected in the appropriate socket
WIRED/WIRELESS CONTROL
6.1. Controllers
A
B
2
1
3
WIRELESS CONTROLLER
WIRED CONTROLLER

1111
Zephiro Fog 900 User Manual
Eng
1) Wireless remote control
Once warm-up is complete, press A or B button to start fog emission. By pressing
them long time, you can spray fog long time till the unit will warm up again. By re-
leasing buttons, it stops spraying).
2) Wired control
Connect the controller to the machine rear panel through MANUAL CONTROL con-
nector.
1. Manual fog switch: Fog projection when pressed.
2. Red LED - Warm Up Indicator.
3. Green LED - Fog Machine Ready.
6.2. Wireless Remote Battery Replacement
If the remote control cannot work (red LED does not lit and machine does not oper-
ates), please check whether battery is low and need to be replaced.
To change the battery, remove the cover on the back of the remote control and
replace the old battery with one of the same type (23A - 12V).
ATTENTION: Pay attention to respect the polarity. The two ends of the battery
have a “+” (positive pole) and a “-” (negative pole) respectively. These marks are
also present inside the battery compartment. Make sure the “+” of the battery is
towards the “+” indicated in the battery compartment.
7 - CorreCT use and MaInTenanCe
This fog machine should be used in dry and well-ventilated place . Please avoid any
water or rain fall in the machines, if water and rain fall in, turn off the power immedi-
ately. Keep far away from children, fire, explosive and flammable things, and avoid
scalding.
NOTE: In the rst time use, some liquid might spray out. This is normal.
yWhen liquid is getting low, please add it again in time. If the fog machine works
without fluid for a long time, its pump and other parts could get damaged.
When adding fluid, remember to turn power off, and carefully avoid spilling over
to cause short circuits.
yThe fog machine should work under professional operator’s supervision, please
do not add flammable liquids or gas into the fog fluid tank.
yWhen you don’t use the machine for long time or after use, please disconnect
power or unplug the power cable. After using, please wipe out the liquid in the
tank, as it would avoid the housing to be corroded.

1212
Zephiro Fog 900 User Manual
Eng
yAll fog machines will have condensation or moisture around the Output Deflec-
tor.
yAll fog machines have heating-cooling cycles. When internal temperature drops
to minimum, the pump automatically turns on and begins heating. Once heating
is complete, the machine starts to spray fog again.
yIn the case of a serious operating problem, stop using the unit immediately.
Never try to repair the unit by yourself Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center Always use the same type of spare parts
yNever connect the device to a dimmer pack.
yMake sure the power cable in never crimped or damaged and never disconnect
it by pulling or tugging on the cable.
WARNING: Fog machines may set o Smoke Alarms.
7.1. Routine Maintenance And Common Faults
ATTENTION: Periodically clean your machine to reduce replacement parts and
repair expenses.
yPoor fog liquid can cause blockage. It is recommended to use high quality fog
liquid.
yThe machine might get blocked due to high concentration fluid, not-pure fluid
or overheat, so regular care and maintenance can ensure long-term use. After
about 40 hours continue use, please prepare an 80% distilled water and 20%
white vinegar blend to remove any accumulated impurities inside boiler and
pipe, as following:
yWash the pipe in the tank and its filter head.
yPour out any liquid inside, and replace with the cleaning liquid (80% distilled
water and 20% white vinegar), turn on power, keep it operating till the cleaning
liquid runs out.
yIf the fog turns less, and the pump makes noise, switch off the unit immediately
and check fluid level, fuse, controller interface and power plug. If all of these are
normal, please connect power again. If problems still continue, please contact
the supplier.
yWhen you shut down the machine, it is recommended that you remove any
remaining fluid inside. Especially when the machine will not be used for a long
time. It is recommended that you open the tank, remove the fluid hose and
place it next to the tank in open air.
yAfter use, let the fog machine cool down before transporting it by the handle.
Small bits of fog may still be emitted just after the machine is turned off. Let the
machine cool down for at least 20 minutes and only transport it when the hous-
ing of the machine reaches a temperature that is comfortable enough to handle.

1313
Zephiro Fog 900 User Manual
Eng
Transporting the machine while it is still hot may cause injuries and permanent
damage to the internal electronics and heating elements.
8 - sPeCIfICaTIon
Heating Element 900 Watt
Output distance 2-3 meters
Warm-up time Approximately 3 Minutes
Tank capacity 1 Liter
Fog output 140m³/Min
Ready-indicator Led indicator on rear panel
Wireless remote controller 433,92 MHz (Max 10 Meters)
Wired remote controller Start/Stop switch
Mounting bracket Included
Power requirements 220V AC, 50Hz
Internal fuse 10A 250V fast blow 20mm glass
Dimensions 345 x 205 x 185 mm (13.6 x 8.1 x 7.3 in)
Weight 3,4 Kg – 7.5 lbs.
Packing Size 410 x 250 x 230 mm (16.1 x 9.8 x 9 in)
Packing Weight 4,4 kg – 9.7 lbs.
Note: Our products are subject to a process of continual further development. Therefore modifications to
the technical features remain subject to change without further notice.

1414
Zephiro Fog 900 User Manual
Eng
9 - warranTY and servICe
All Centolight products feature a limited two-year warranty. This two-year warranty
starts from the date of purchase, as shown on your purchase receipt. The following
cases/components are not covered by this warranty:
yAny accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
Centolight shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at Centolight’s discretion either by repairing or
exchanging individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become the property of
Centolight.
While under warranty, defective products may be returned to your local Centoli-
ght dealer together with the original proof of purchase. To avoid any damages in
transit, please use the original packaging if available. Alternatively, you can send
the product to Centolight SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto Re-
canati - Italy. In order to send a product to service center, you need an RMA number.
Shipping charges have to be covered by the owner of the product.
For further information please visit www.centolight.com
10 - warnIng
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2012/19/UE) and your
national law.
This product should be handed over to a designated collection point, e.g.,
on an authorized one-for-one basis when you buy a new similar product or to an
authorized collection site for recycling waste electrical and electronic equipment
(WEEE).
Improper handling of this type of waste could have a possible negative impact on
the environment and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recy-
cling, please contact your local city office, waste authority, approved WEEE scheme
or your household waste disposal service.

1515
Ita
soMMarIo
1 - Prima Di Iniziare 16
1.1. Cosa è Incluso - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
1.2. Istruzioni per il Disimballaggio - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
1.3. Accessori - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
1.4. Limiti di Responsabilità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 16
2 - Istruzioni di Sicurezza 17
2.1. Significato dei simboli - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
2.2. Note sulla sicurezza - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
3 - Introduzione 19
3.1. Caratteristiche - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.2. Panoramica del Prodotto - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.3. Dimensioni del Prodotto- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
4 - Panoramica del Prodotto 21
4.1. Cavo di Rete e Fusibile - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
5 - Guida all’Uso 21
5.1. Modalità Di Controllo - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
5.2. Dispositivi di Controllo- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
5.3. Sostituzione della Batteria - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
6 - Uso Corretto e Manutenzione 23
6.1. Manutenzione Ordinaria E Guasti Comuni - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
7 - Speciche Tecniche 25
8 - Garanzia e Assistenza 26
9 - Avviso UE e SEE (Norvegia, Islanda, Liechtenstein) 26

1616
Manuale Utente Zephiro Fog 900
Ita
1 - PrIMa dIInIzIare
Grazie per aver acquistato la Zephiro Fog 900. Prima di iniziare, assicuratevi di leg-
gere attentamente questo manuale; è stato creato per fornire sia una panoramica
dei controlli, sia informazioni su come usarli.
1.1. Cosa è Incluso
La confezione include:
y1x Macchina fumo
y1x Cavo di alimentazione
y1x Radiocomando
y1x Ricevitore Wireless
y1x Comando a filo
y1x Staffa di montaggio con rondelle e viti
yQuesto Manuale Utente
ATTENZIONE: La confezione non è un giocattolo! Tenere fuori dalla portata dei
bambini! Conservare in un luogo sicuro per un uso futuro.
1.2. Istruzioni per il Disimballaggio
Tirare fuori dall’imballo il prodotto e controllare il cartone per assicurarsi che tutte
le parti siano presenti e in buone condizioni. Se la confezione o il contenuto risultas-
sero danneggiati dalla spedizione o mostrassero segni di maltrattamento, avvisare
immediatamente il vettore o il rivenditore e conservare la scatola e il contenuto per
una eventuale ispezione.
Se l’apparecchiatura dovesse essere restituita, è importante farlo nell’imballo ori-
ginale. Si prega di non intraprendere alcuna azione senza prima aver contattato il
proprio rivenditore o il nostro servizio di assistenza (visitare www.centolight.com).
1.3. Accessori
Centolight fornisce un’ampia gamma di accessori che è possibile usare con le ap-
parecchiature della serie ZEPHIRO; quali materiali di consumo, cavi, splitter, control-
ler DMX e un’ampia gamma di altre apparecchiature. Tutti i prodotti nel catalogo
Centolight sono stati testati a lungo con questo dispositivo, quindi ti consigliamo di
usare sempre accessori e ricambi originali.
1.4. Limiti di Responsabilità
Le informazioni e le specifiche contenute in questo manuale utente sono soggette
a modifiche senza preavviso. Centolight non si assume alcuna responsabilità per
eventuali errori od omissioni e si riserva il diritto di rivedere o creare questo manua-
le in qualsiasi momento.

1717
Manuale Utente Zephiro Fog 900
Ita
Copyright© 2021 Centolight. Tutti i diritti riservati.
2 - IsTruzIonI dI sICurezza
yLeggete queste istruzioni
yConservate queste istruzioni
yPrestate attenzione a tutti gli avvertimenti
ySeguite tutte le istruzioni
2.1. Signicato dei simboli
Questo simbolo viene utilizzato per indicare che all’interno di
questo apparecchio sono presenti terminali sotto tensione, anche
in condizioni operative normali, che possono essere sufficienti a
costituire il rischio di scosse elettriche o morte.
Questo simbolo è usato per descrivere importanti problemi di
installazione o configurazione. Il mancato rispetto dei consigli e
delle informazioni su come evitare tali problemi può portare al
malfunzionamento del prodotto.
Attenzione! Questo simbolo indica parti ad alta temperatura! In
particolare, l’ugello della Zephiro Fog 900 può causare scottatu-
re. Prestare attenzione alle alte temperature ed evitare di toccare
l’ugello.
Questo simbolo indica un terminale di messa a terra.
ATTENZIONE Descrive precauzioni da osservare per prevenire lesioni o morte
dell’operatore.
Per proteggere l’ambiente, cercare di riciclare il più possibile il
materiale di imballaggio e i materiali di consumo esauriti
Avvertenza per prevenire gli effetti dell’umidità: ricorda all’opera-
tore di mantenere asciutta la macchina e i materiali di consumo.
Non utilizzarli in caso di pioggia e neve.
Non gettare questo prodotto come spazzatura generica, conferire
il prodotto seguendo le normative sui rifiuti elettronici in vigore
nel vostro paese.
2.2. Note sulla sicurezza
Leggere attentamente le seguenti note sulla sicurezza prima di usare il prodotto.
Sono riportate importanti informazioni su installazione, utilizzo e manutenzione.

1818
Manuale Utente Zephiro Fog 900
Ita
1) Sicurezza Personale
yCollegare sempre il prodotto a un circuito con messa a terra per evitare il rischio
di scosse. Durante il riscaldamento e il funzionamento, il telaio si surriscalda.
yIl prodotto è molto caldo durante il funzionamento e rimane caldo a lungo dopo
lo spegnimento. Non toccare l’ugello del prodotto.
yAssicurarsi che bambini, persone non autorizzate e animali non abbiano acces-
so alla macchina.
yIl rumore durante il funzionamento non provoca danni all’orecchio. Non è neces-
sario indossare protezioni per le orecchie quando si è vicini alla macchina.
2) Montaggio e Appendimento
yPer motivi di sicurezza, si sconsiglia di non montare il prodotto su qualsiasi tipo
di supporto o su strutture sospese. Utilizzare il prodotto solo quando è a terra.
yIl prodotto è sia per uso interno che esterno ma, per prevenire il rischio di incen-
di o scosse, non esporre il prodotto direttamente a pioggia o umidità.
ATTENZIONE: Durante il trasferimento del prodotto da ambienti a temperature
estreme (es.: da un Camion freddo a una sala da ballo calda e umida) potreb-
be formarsi condensa all’interno del prodotto. Per evitare di provocare guasti,
consentire al prodotto di acclimatarsi completamente all’ambiente circostante
prima di collegarlo all’alimentazione.
yNon utilizzare in uno spazio ristretto. Installare sempre il prodotto in una
posizione con ventilazione adeguata, ad almeno 50 cm (20 in) dalle superfici
adiacenti.
3) Alimentazione e Cablaggio
yAssicurarsi sempre che la tensione della presa alla quale si collega il prodotto
sia compresa nell’intervallo indicato nella tabella “7 - Specifiche Tecniche” a
pagina 25 o sul pannello posteriore del prodotto.
yVerificare che il cavo di alimentazione non sia piegato o danneggiato. Non
collegare mai questo prodotto a un dimmer o a un reostato.
yNon scollegare mai il prodotto dal cavo di alimentazione tirando il cavo.
yPer attenuare l’usura e migliorarne la durata, durante i periodi di non utilizzo
scollegare completamente il prodotto dall’alimentazione.
yPer evitare scosse elettriche, tutti gli apparecchi devono essere collegati a circu-
iti con messa a terra a norma.

1919
Manuale Utente Zephiro Fog 900
Ita
4) Acqua / Umidità
yL’apparecchio deve essere protetto dall’umidità e dalla pioggia e non può esse-
re utilizzato vicino all’acqua (ad es.: vicino a una vasca, un lavello, ecc.)
5) Calore
yL’apparecchio deve essere posizionato lontano da fonti di calore come radiato-
ri, stufe o altri apparecchi che producono calore.
Non utilizzare quando la temperatura ambiente è superiore a 50°C. La tempera-
tura di lavoro va da -10°C a 50°C (da 14°F a 122°F).
6) Fusibile
yPer evitare il rischio di incendi e danni alle apparecchiature, utilizzare solo il tipo
di fusibile descritto nella tabella “7 - Specifiche Tecniche” a pagina 25. Prima
di sostituire il fusibile, assicurarsi che il dispositivo sia spento e scollegato.
7) DMX
yQuando si usa una centralina DMX, assicurarsi che non vi siano sorgenti di
interferenza (ad es. Citofoni, onde radio e sorgenti di radiazioni).
8) Manutenzione
yNon eseguire interventi di assistenza diversi da quelli descritti nel manuale. Af-
fidare tutte le riparazioni solo a personale qualificato. Utilizzare solo accessori/
collegamenti o parti raccomandati da CentoLight.
3 - InTroduzIone
E’ noto come il mondo dello spettacolo e dell’intrattenimento si basi sulla fusione
tra musica, immagini, luci ed effetti ambientali. Il coinvolgimento sensoriale di chi
fruisce l’evento di intrattenimento è sempre più presente al giorno d’oggi. Centolight
ha ben chiara questa esigenza ed attraverso la linea Zephiro offre una vasta gam-
ma di macchine per fumo, nebbia, bolle, neve e altro ancora.
Zephiro Fog 900 è una macchina per fumo potente e compatta; pensata per le
applicazioni medio-piccole professionali on stage e dotata comando a filo e teleco-
mando.
E’ in grado di generare un fumo persistente e omogeneo che valorizza al massimo
gli effetti visivi e i fasci luminosi di qualsiasi tipo di faro in contesti quali teatri, studi
fotografici e televisivi, set cinematografici, discoteche, eventi live, ecc.

2020
Manuale Utente Zephiro Fog 900
Ita
Ha una potenza di 900W ed è pensata per applicazioni al chiuso con una emissio-
ne di 140m3/minuto di fumo. Il consumo è fi circa 1L/ora con emissione continua (a
seconda della densità del fumo). La tanica interna è di 1 litro.
3.1. Caratteristiche
y140m³/Minuto per una copertura di ambienti di piccole-medie dimensioni
yEmissione continua di fumo dopo circa 3 minuti di riscaldamento
yCapacità del serbatoio di 1 litro, circa 2 ore continue senza ricaricare
yComando a filo e Radiocomando
3.2. Panoramica del Prodotto
130mm
(5.1”)
21mm
(0.8”)
18mm (0.7”)
262mm (10.3”)
55mm
(2.2”)
10mm
(0.4”)
171mm (6.7”)
147mm (5.8”)
R6
204mm (8.0”)
84,5mm
(3.3”)
71,5mm (2.8”)
ON
900W Fog Machine with wired and Wireless Control
OFF
POWER
AC 220V/50Hz
100%
0%
WIRED/WIRELESS CONTROL
READY
Importedin the EU by FRENEXPORT SPA
ViaE. Ferrari, 10 - 62017 Porto Recanati
www.frenexport.com
ZEPHIRO
FOG 900
ZEPHIRO
FOG 900
3.3. Dimensioni del Prodotto
ON
900W Fog Machine with wired and Wireless Control
OFF
POWER
AC 220V/50Hz
100%
0%
WIRED/WIRELESS CONTROL
READY
Imported in the EU by FRENEXPORT SPA
Via E. Ferrari, 10 - 62017 Porto Recanati (Italy)
www.frenexport.com
ZEPHIRO
FOG 900
1
2
3
456
7
