CentoLight SQUARE 200PZ User manual

Carefully read this manual and properly take care of it
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Manuale Utente
200W Led Profile Spot Light with Zoom, Beam Shaping Shutters & Gobo Slot
Sagomatore a Led da 200W con Zoom, Ghigliottine e Porta Gobo
ENG
ITA
SQUARE 200PZSQUARE 200PZ

22
Dear customer,
First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy
all possible needs of light designers and professionals of entertainment lighting, by
offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this fixture and, if you want to collaborate, we
are looking for a feedback from you about product operation and possible im-
provements to be introduced in the next future. Go to our website www.centolight.
com and send an e-mail with your opinion; this will help us to build equipment ever
closer to professional’s real requirements.
The CENTOLIGHT Team
Gentile Cliente,
Grazie per aver scelto un prodotto CENTOLIGHT®. La nostra missione è quella di
soddisfare ogni possibile richiesta da parte di light designers e professionisti dell’il-
luminotecnica per l’intrattenimento, offrendo una vasta gamma di apparecchiature
basate su tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al fine di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.centolight.com ed
inviateci una mail con la vostra opinione; questo ci aiuterà a sviluppare nuovi pro-
dotti quanto più vicini alle vostre esigenze.
Il Team CENTOLIGHT

33
Eng
Table of ConTenTs
1 - Before you Begin 4
1.1. What is included- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.2. Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.3. Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.4. Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
2 - Safety Instructions 5
2.1. Symbols Meaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3 - Mounting and Rigging 6
3.1. Rigging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.2. Water / Moisture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.3. Heat - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
3.4. Servicing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4 - Introduction 7
4.1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4.2. Product Dimensions and Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5 - Product Setup 9
5.1. Rear Panel Description- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
5.2. About Power Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10

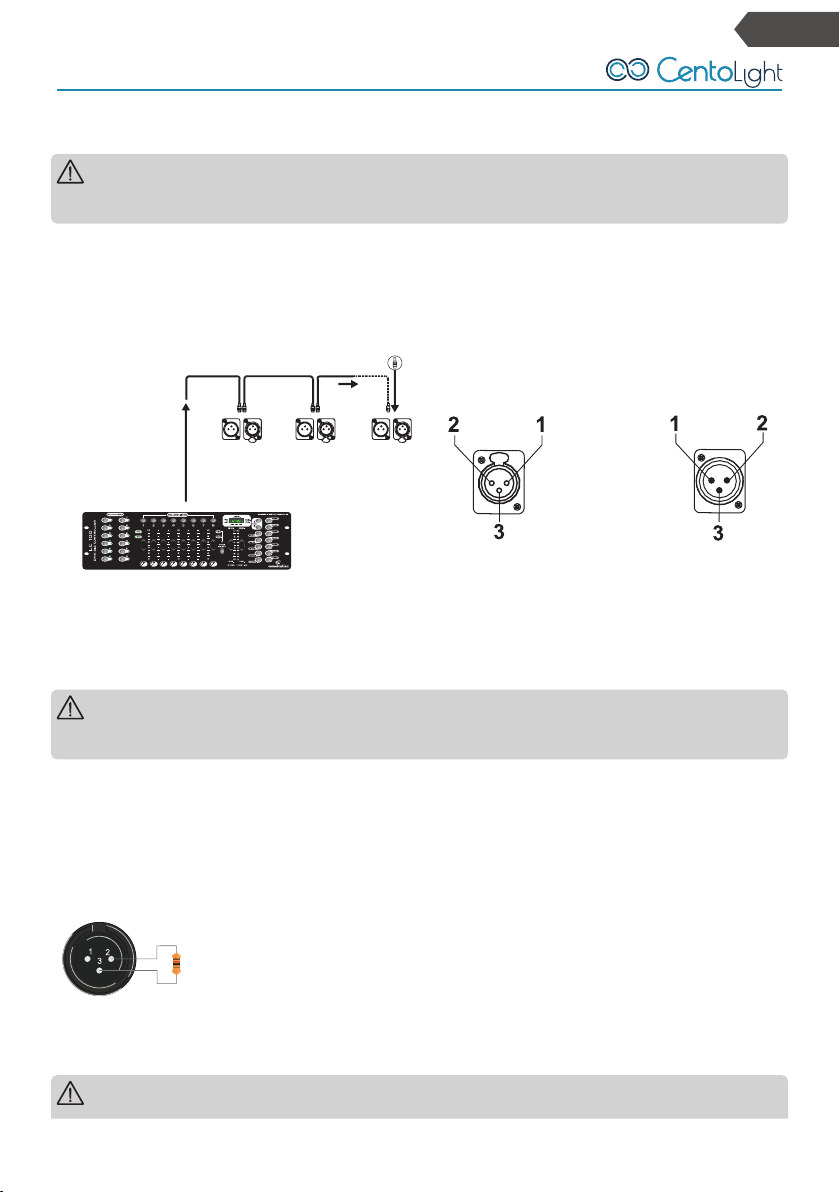

5.3. About Dmx Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
5.4. DMX Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11

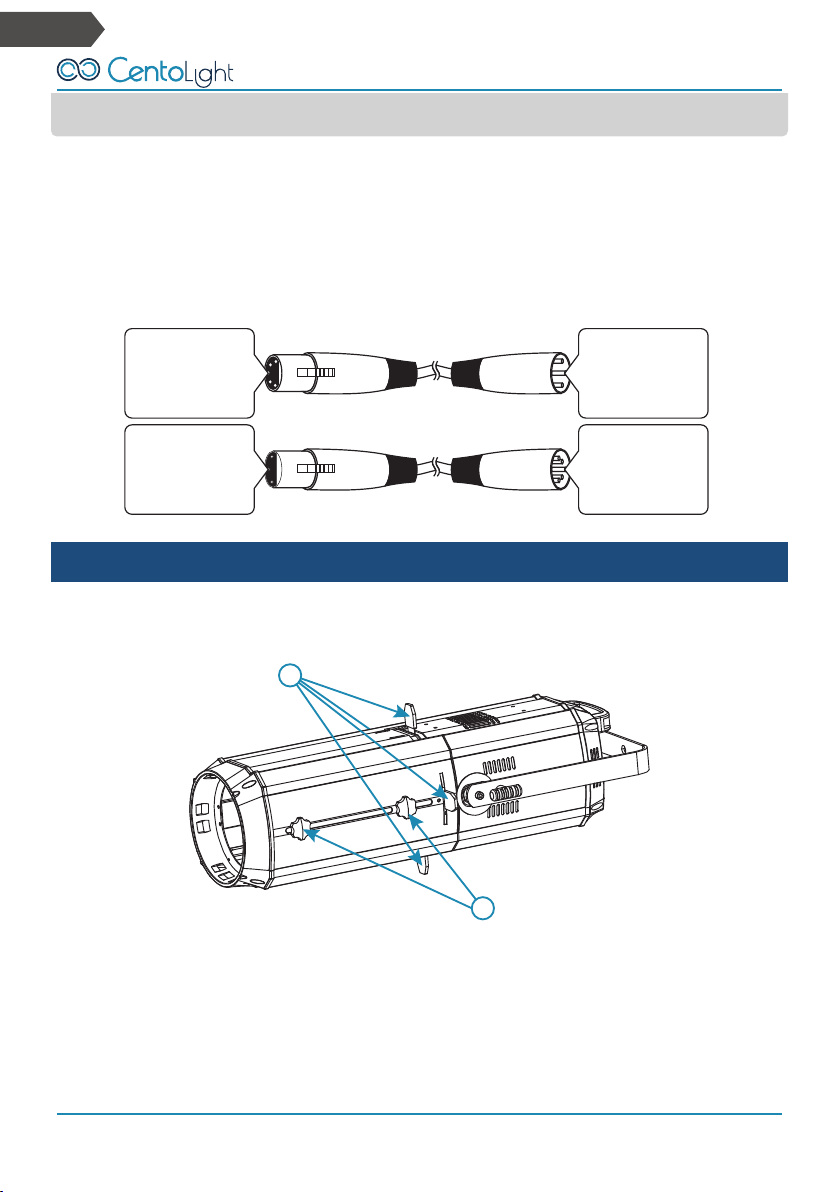

5.5. 3-Pin vs 5-Pin DMX cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
6 - Prole Use 12
6.1. Beam Shape, Zoom and Focus Adjusting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12

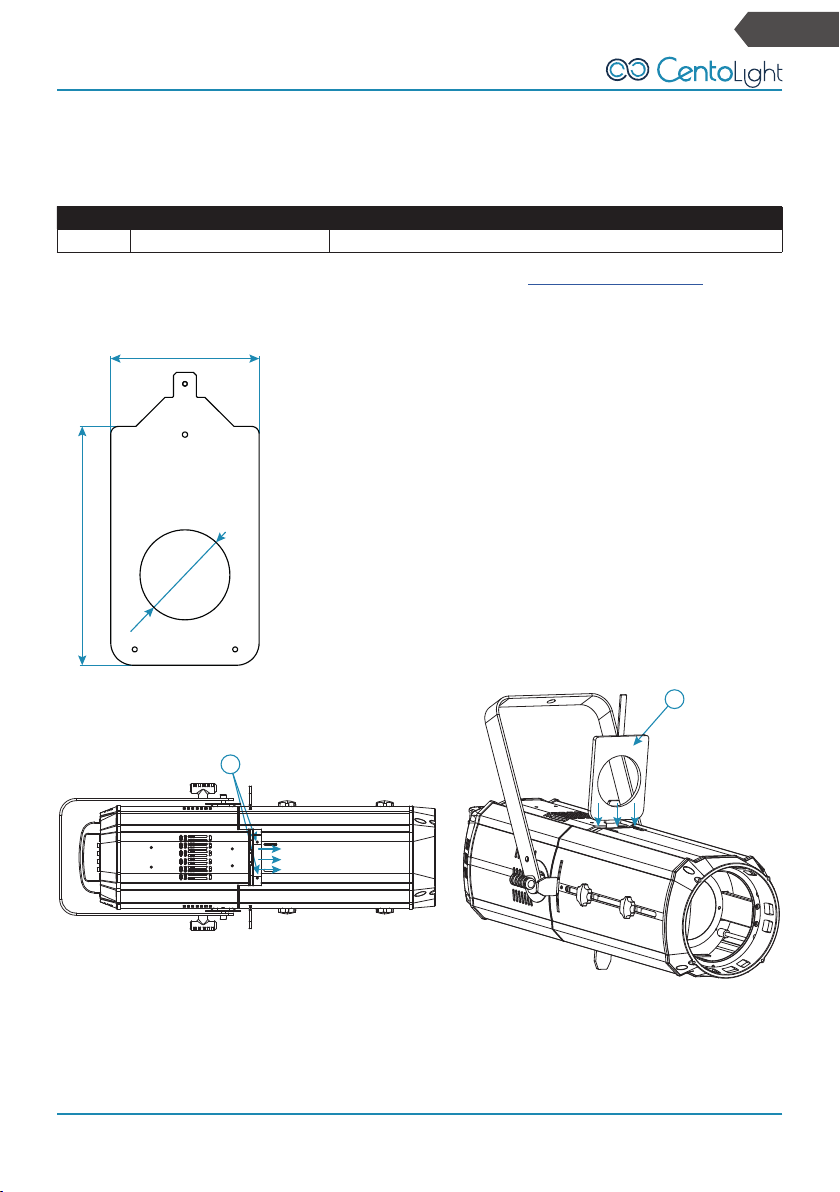

6.2. Use of Gobo- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
6.3. Use of Iris - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
7 - Menu Operation 14
7.1. Setting the DMX Address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
7.2. DMX Channel Assignments and Values - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
8 - Lux Chart 16
9 - Troubleshooting 17
10 - Specication 18
11 - Warranty And Service 19
12 - Warning 20

44
SQUARE 200PZ User Manual
Eng
1 - before you begin
Thank you for purchasing SQUARE 200PZ. Enjoy your new equipment and make sure
to read this manual carefully before operation! This user manual is made to provide
both an overview of controls, as well as information on how to use them.
1.1. What is included
Package include:
y1x CENTOLIGHT SQUARE 200PZ Profile Light
y1x 1.5m (59in ca.) Powercon to Europlug power cable
y1x Powercon Connector (Grey, for mains link)
y1X 1.5m (59in ca.) DMX Cable 3-pin XLR-M to 3-pin XLR-F
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition. If the box or the contents
(the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier or dealer/seller immediately. In addition, keep
the box and contents for inspection.
If the fixture must be returned to the manufacturer, it is important that it is returned
in the original manufacturer box and packing. Please do not take any action without
first contacting your dealer or getting in touch with our after-sales support service
(visit www.centolight.com for details).
1.3. Accessories
CENTOLIGHT can supply a wide range of quality accessories that you can use with
your SQUARE Series equipment, like Cables, Splitters, DMX controllers, and a wide
range of other fixtures. In particular, there are some specific accessories specifically
addressed to SQUARE 200PZ.
SKU Model Description
J812J SQUARE GOBO-200PZ Gobo Holder for SQUARE 200PZ Profile
J813J SQUARE IRIS-200PZ Manual Iris for SQUARE 200PZ Profile
Ask your CENTOLIGHT dealer or check out our website www.centolight.com for any
accessories you could need to ensure best performance of the product. All products

55
SQUARE 200PZ User Manual
Eng
in our catalogue has been long tested with this device, so we recommend you to use
Genuine CENTOLIGHT Accessories and Parts.
1.4. Disclaimer
The information and specifications contained in this Manual are subject to change
without notice. CENTOLIGHT assumes no responsibility or liability for any errors or
omissions and reserves the right to revise or to create this manual at any time.
Copyright© 2021 CENTOLIGHT. All rights reserved.
2 - safeTy insTruCTions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions

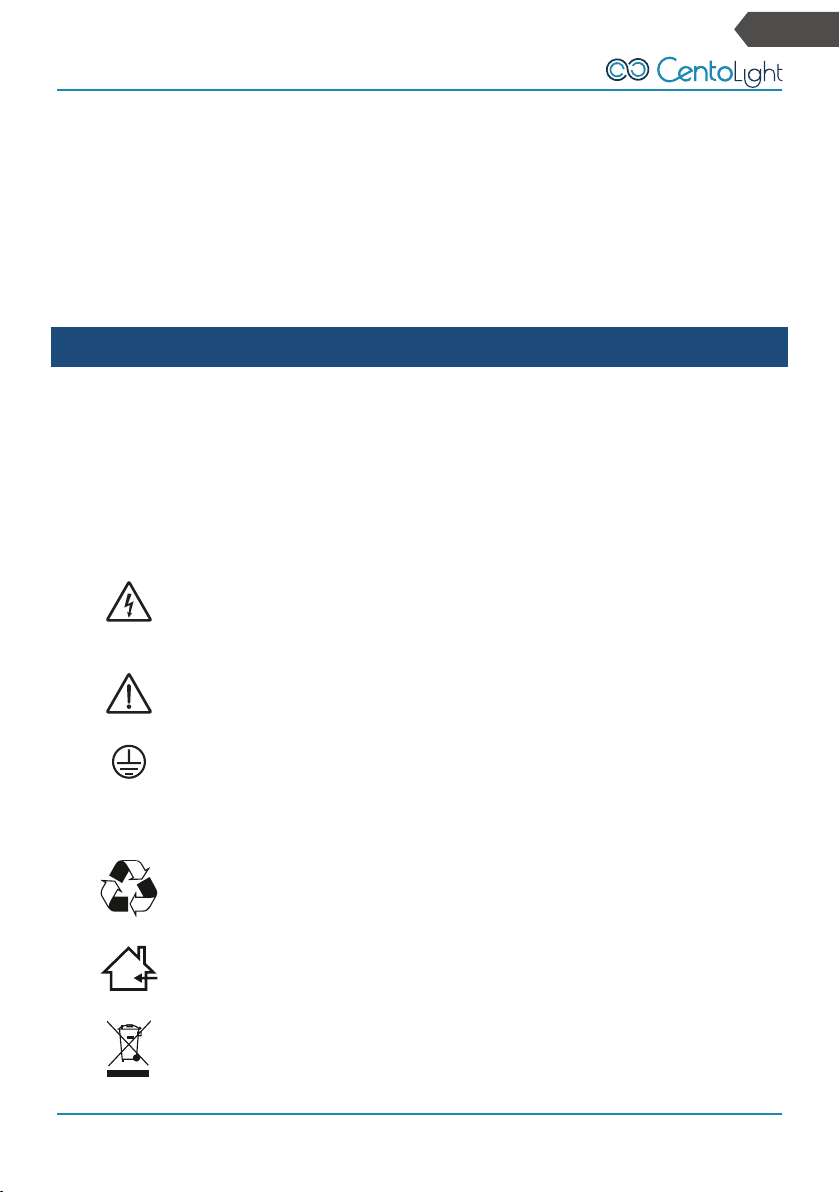

2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufficient to constitute the
risk of electric shock or death.
The symbol is used to describe important installation or config-
uration problems. Not following advice and information on how
to avoid such problems may lead to product malfunction.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing materi-
al and exhausted consumables as much as possible.
This symbol indicates that the fixture is intended to indoor use
only. Keep the machine dry and do not expose to rain and mois-
ture.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.

66
SQUARE 200PZ User Manual
Eng
3 - MounTing and rigging
Pay attention to safety! Please respectively consider the EN 60598-2-17 and the
national standard during the installation. Only authorized technicians can carry
out the installation.
3.1. Rigging
yThe installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming demolition. The
installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in
a way that no part of the installation can fall down if the main attachment fails.
yWhen rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden. The operator has to make sure that the safety measure and
the machine’s technical installation is approved by an expert before taking into
operation for the first time and after changes before taking into operation an-
ther time. He has also to make sure that an expert approves safety measure and
the machine’s technical installation once a years.
IMPORTANT: Overhead rigging requires extensive experience, including (but not
limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you
lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily
injury or property loss.
yIf the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the
room.
CAUTION: Use appropriate clamps to rig the xture on the truss. Make sure that
the device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.
3.2. Water / Moisture
yThe product is for indoor use. In order to prevent risk of fire or electric shock, do
not expose to rain or moisture

77
SQUARE 200PZ User Manual
Eng
yThe unit can not be used near water; for example near a bathtub, a kitchen sink,
a swimming pool, etc.
3.3. Heat
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20in (50 cm) from adjacent surfaces. Be sure that
no ventilation slots on the product’s housing are blocked.
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Do not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -20°C to 55°C (-4°F to 131°F).
3.4.Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
4 - inTroduCTion
Centolight SQUARE 200PZ is a professional LED Profile with adjustable beam from
15° to 36° via manual zoom and focus. It is designed for theaters and fixed installa-
tions where high LED chip reliability and warm white lighting (approx. 3.200K) are
required.
The light source is a 200W CITILED® LED with CRI ≥90 to allow excellent color ren-
dering, especially in indoor venues like TV studios, theaters and museums.
Great attention is paid to quality of dimmer control and chip temperature, to
minimize the consequences of using LEDs instead of traditional lamps. The cool-
ing system uses high precision fans in order to keep noise within 25dB @ 1m. The
4 beam-shaping shutter system allows both radial and angled adjustment of the
beam. The fixture is equipped with a compartment for gobos and manual iris (both
optional), as well as the front color-frame holder (included).
4.1. Features
yLED Profile Spot with Manual Zoom from 15° to 36° & Focus
yRadial/Angled Blade-Framing System
y200W Warm-White CITILED® LED with over 50,000h lifetime

88
SQUARE 200PZ User Manual
Eng
yColor Temperature: 3100±150K
yLuminous Flux (15°-36°): 2146-589lux/5m
yCRI: WW≥90
ySmooth 16-bit Dimmer
yFlicker-Free Operation
yLow-Noise Cooling System
yGobos/Iris Slot
yColor Frame Holder included
4.2.Product Dimensions and Overview
691mm (27.20”)
301mm (11.85”)
340mm (13.38”)
271mm (10.67”)
340mm (13.38”)
1
2
3
4
5
6
7
8
9
1. Profile Tube 2. Slots for Iris and Gobo
3. Beam Adjustment Flake 4. Light Emitting Section
5. Handle 6. Nut for Suspension Loop

99
SQUARE 200PZ User Manual
Eng
7. Focusing Slot & Adjustment Nut 8. Zooming Slot
9. Zooming Adjustment Nut
5 - ProduCT seTuP
5.1. Rear Panel Description
SQUARE 200PZ
POWER IN POWER OUT DMX IN DMX OUT
DOWN ENTERUP
MENU
Imported by:
FRENEXPORT SPA
www.frenexport.com
AC100~240V
50/60Hz
2
1
43
The operation panel includes 2x8 characters LCD display and control button opera-
tion area.
1) LED Display
It shows the operating mode and all system information. Read “7 - Menu Operation”
on page 14 for details on all menus.
2) Control Buttons
MENU Button - Short-press it to switch the setting pages.
UP Button - It scrolls up individual items in the selection menu and sub-menus for
system settings (DMX address, Operation Mode, etc.), and increases values/settings
of parameters.
DOWN Button - It scrolls down individual items in the selection menu and sub-
menus for system settings (DMX address, Operation Mode, etc.), and increases
values/settings of parameters.
ENTER Button - Press ENTER to access menu levels and confirm parameter value
changes.

1010
SQUARE 200PZ User Manual
Eng

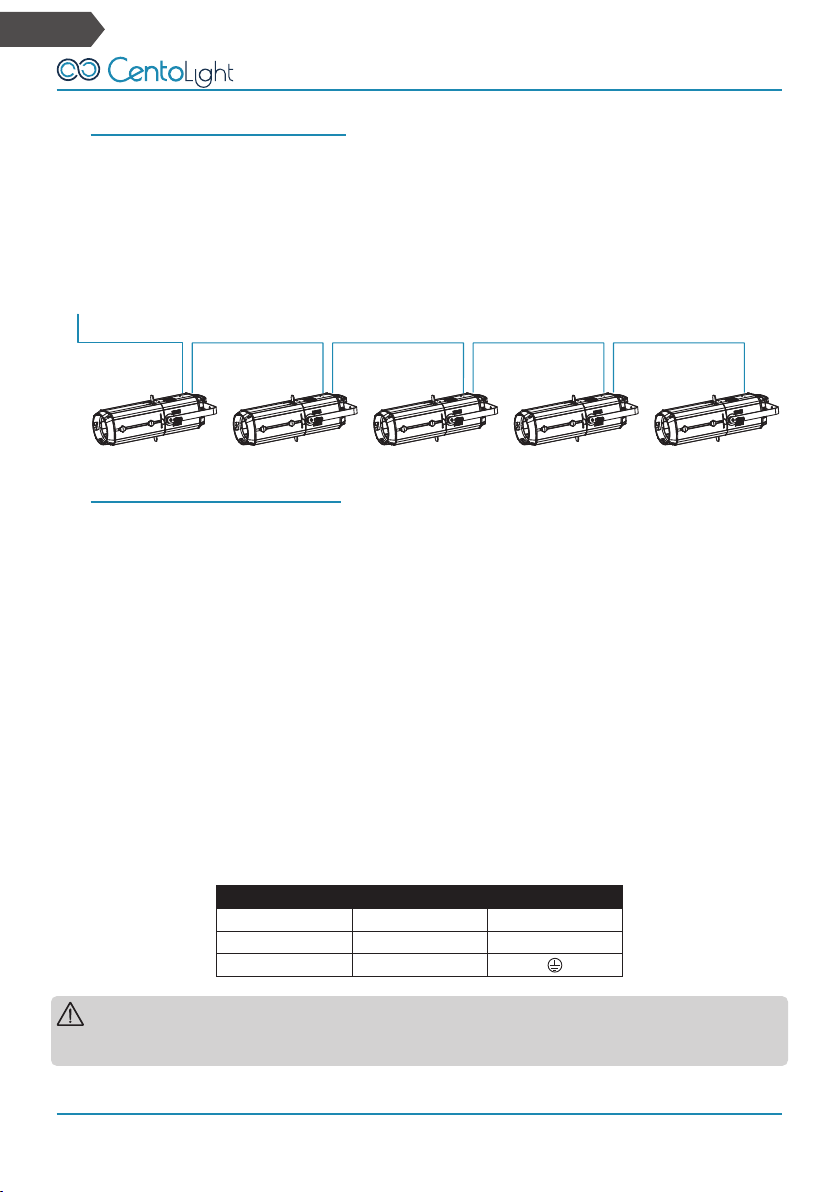

3) Power Input/Output Sockets
Plug the power-cord included with SQUARE 200PZ into an AC socket properly con-
figured for this fixture. Please read “5.2. About Power Connection” on page 10 for
details. This fixture is also equipped with an output power connector to be used as
power mains source in case of cascade connection up to a maximum of 5 fix-
tures.
1st Unit 5th Unit 4th Unit3rd Unit2nd Unit
Power Input
100-240Vac - 50/60Hz
4) DMX Input/Output Sockets
DMX Input is a 3-pin male XLR socket for connection to a DMX control device. DMX
output is a3-pin female socket for sending the DMX control signal to other units.
Please read “5.3. About Dmx Connection” on page 11 for details on how to man-
age DMX connections.
5.2. About Power Connection
yAlways make sure that the voltage of the outlet you are connecting the product
to is within the range stated in paragraph “10 - Specification” on page 18 or
rear panel of the product (AC110V-240V 50/60Hz).
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground and circuit breaker.
yWire correspondence is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
Earth must be connected! Always pay attention to safety! Before taking into
operation for the rst time, the installation has to be approved by an expert.

1111
SQUARE 200PZ User Manual
Eng
5.3. About Dmx Connection
When use a DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source).
DMX machines are designed to receive data through a serial Daisy Chain. A Daisy
Chain connection is where the DATA OUT of one fixture connects to the DATA IN of
the next fixture. The order in which the machines are connected is not important
and has no effect on how a controller communicates to each of them. Use an order
that provides for the easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect machines using shielded 2-conductor twisted pair cable with 3-pin XLR
male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega-
tive (S-), and pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the x-
tures will not work at all, or will not work properly.
5.4.DMX Terminator
120ohm, 1/4W
Resistor
DMX Terminator
DMX is a resilient communication protocol, however errors still
occasionally occur. In order to prevent electrical noise from dis-
turbing and corrupting the DMX control signals, a good habit is to
connect DMX output of last fixture in the chain to a DMX termina-
tor, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω
(ohm), 1/4 Watt resistor connected across Signal (-) and Signal (+),
respectively, pins 2 and 3, which is then plugged into the output
socket on last projector in the chain. The connections are illustrat-
ed below.
Complimentary signal cable can transmit signals to 20 unit xtures at most.

1212
SQUARE 200PZ User Manual
Eng
Signal amplier is a must to connect more xtures.
5.5. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and fixtures manufacturers are not
standardized around the world. However, two are the most common standards:
5-Pin XLR and 3-Pin XLR system. If you wish to connect this fixture to a 5-Pin XLR in-
put fixture, you need to use an adapter-cable or make it by yourself. Below you can
see the wiring correspondence between 3-Pin and 5-Pin plug and socket standards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
6 - Profile use
6.1. Beam Shape, Zoom and Focus Adjusting
1
2
Focus
Zoom
After fixing or hanging the fixture, having connected Power In/Out and DMX In/Out
cables,
1. Draw out the 4 beam-adjustment flakes.
2. Power on the unit and loosen the zoom and focus adjustment nuts.
3. Adjust the zoom first from 15° to 36°, then the focus by moving respectively on
the focusing and zooming slots.

1313
SQUARE 200PZ User Manual
Eng
6.2. Use of Gobo
If want to get the Gobo effect on your Square 200PZ Profile, you need to purchase
first the gobo-holder listed below:
SKU Model Description
J812J SQUARE GOBO-200PZ Gobo Holder for SQUARE 200PZ Profile
Ask your CENTOLIGHT dealer or check out our website www.centolight.com for
further information.
159,3mm (6.27”)
99mm (3.90”)
Ø60mm
(2.36”)
You have then to make a Ø60mm (2.36”) gobo with the
inverse image of the picture you want to show through
the SQUARE 200PZ.
Refer to the drawing beside to for all details on mini-
mum/maximum gobo size.
Both metal and glass can be used with SQUARE series
LED Profiles.
1. Loosen the nut for the gobo/iris flake and then
move it forward to open the slot.
2. Insert the gobo holder with the gobo inside.
3. Tum on the light and adjust Zoom and Focus knobs
until your get the requested size and the clearest
gobo projection.
1
2
6.3. Use of Iris
Sometimes it is requested to reduce the diameter of the beam even below the
minimum allowed by the manual zoom (15°). In these cases you can use the SQUARE
IRIS-200 iris - listed below - to reduce the diameter up to to 0°.

1414
SQUARE 200PZ User Manual
Eng
SKU Model Description
J813J SQUARE IRIS-200PZ Manual Iris for SQUARE 200PZ Profile
The manual iris is installed in the same slot used for the gobos. Of course, you have
to choose between iris or gobo as they cannot be used simultaneously.
136,55mm (5.4”)
121mm (4.76”)
Ø100mm
(3.94”)
1. Loosen the nut for the gobo/iris flake and then move it forward to open the slot.
2. Insert the iris inside the slot.
3. Tum on the light, adjust Zoom and Focus knobs until your get the requested
beam size.
4. Use the manual iris to reduce the beam up to 0°.
7 - Menu oPeraTion
By pressing MENU button, the display will cycle through 8 menus. Press ENTER but-
ton to enter the corresponding menu, press UP or DOWN to modify current parame-
ter value. Then, press ENTER button again to save current value.
No. MENU Function Description
1A001 – A512 DMX512 address
setting It ranges from 1 to 512. Press UP and DOWN keys to adjust address; press ENTER to confirm.
2 L000 – L255 LED brightness
control It ranges from 1 to 255. Press UP and DOWN keys to adjust brightness; press ENTER to confirm.
3 P000 – P255 Strobe Speed It ranges from 1Hz to 20Hz. Values range from 1 to 255. Press UP and DOWN keys to adjust
speed, then press ENTER to confirm.

1515
SQUARE 200PZ User Manual
Eng
4 EP-0 – EP-1 DMX 512 Signal Hold
On
It can be 0 or 1. When this function is 0, if you
disconnect the DMX cable, the LED will automat-
ically turn off. When it is 1, if you disconnect the
DMX cable, the LED will keep on.
Press UP and DOWN keys to choose 0 or 1, then
press ENTER to confirm.
5 PI-0 – PI-1 DMX 512 Controlling
Priority
It can be 0 or 1. When it is 1, the profile is priori-
tized to DMX controls, therefore independently of
current mode (manual, strobe, etc.) will automat-
ically switch to DMX mode and respond to the
DMX commands. When it is 0, there is no DMX
priority on operative mode.
Press UP and DOWN keys to choose 0 or 1, then
press ENTER to confirm.
6 dP-0 – dP-1 Display Backlight
When it is 1, the LED display will be off after
about 30 seconds. When it is 0, the display will
be always ON.
Press UP and DOWN keys to choose 0 or 1, then
press ENTER to confirm.
7 Nt50 Internal Temperature
It shows the internal temperature. It should not
exceed. When it is over 50°C (122°F) the fan
starts to run. It normally does not exceed 60°
(140°F).
8 dISP Display Inversion Press UP and DOWN keys to change upside
down the display; press ENTER to confirm.
7.1. Setting the DMX Address
When selecting a starting DMX address, always consider the number of DMX chan-
nels. If you choose a starting address that is too high, you could restrict the access
to some of the product channels. SQUARE 200PZ uses 2 DMX channels, which de-
fines the highest configurable address to 511 to have all channels controllable. This
allows you to control of up to 256 units in the 2-channel control mode.
7.2. DMX Channel Assignments and Values
When use DMX control, the system takes 2 channels. Below you can see the channel
assignments.
1) 2-ch DMX512 Channel Chart
CHANNEL FUNCTION DESCRIPTION
Channel 1 Dimmer 0-255: Total dimming linear dimming , from Dark to Bright.
Channel 2 Strobe 0-255: Strobo speed adjustment
NOTE: Under DMX condition, without a DMX controller and in daisy-chain
connection of multiple Proles (read paragraph “5.2. About Power Connection”

1616
SQUARE 200PZ User Manual
Eng
on page 10 to see how to make), you can achieve the Master-Slave mode.
It means that the rst machine of the chain controls all the other xtures, and
they follow the master one. Of course, both master and slaves must be set on
same DMX address.
8 - lux CharT
1) Lux Chart at 15°
Distance 5m 10m
2146 905Lux
15° 15°
2) Lux Chart at 36°
Distance 5m 10m
589 302Lux
36° 36°

1717
SQUARE 200PZ User Manual
Eng
9 - TroubleshooTing
Problem Probable Cause(s) Remedy
No response from fixture
when power is applied No power to fixture Check power cables
Check mains plug
Fixture does not reset
correctly Electronic failure Contact service technician*
No light, LED cuts out
intermittently, or burns out
too quickly
LED missing or blown Disconnect fixture and replace
the LED
Fixture or LED is too hot Allow fixture to cool. If prob- lem persists, contact service
technician*
Fixture resets but does
not respond correctly to
controller (DMX mode
operation)
Controller not connected Connect controller
Incorrect addressing of the
fixtures Check address setting on fixture and controller
Bad data link connection Inspect cables and correct poor connections and/or broken
cables.
Fixture resets but does
not respond correctly to
controller (DMX mode
operation)
Conflict between tracking
and vector control Eliminate scene cross-fade on
controller
Data link not terminated Insert termination plug in output
of last fixture**
Defective fixture on 2 devices
transmitting on link
Bypass fixtures one at a time
until normal operation is
regained: unplug both connec-
tors and connect them directly
together
* To contact CentoLight service, see “11 - Warranty And Service” on page 19 or visit www.centolight.com
** For instruction on how to install a DMX terminator, see “5.4. DMX Terminator” on page 11.

1818
SQUARE 200PZ User Manual
Eng
10 - sPeCifiCaTion
Light Source 1 x 200W Warm White CITILED®
Chip Life over 50,000h
CCT (Color Temperature) 3100±150K
Beam Angle 15°-36°
Luminous Flux 2146 (15°) / 589(36°) lux/5m, 905 (15°) / 302 (36°) lux/10m
CRI WW≥90
Refresh Rate Over 15.000Hz (Flicker-Free)
Framing System 4 Blade-Framing System adjustable for radial and angle posi-
tion
Zoom Manual from 15° to 36°
Focus Manual
Lens Material High-Quality Glass
Dimmer 16-Bit Smooth Linear Dimming
Strobe 0-20Hz
Cooling System Quite Fan (under 25dB @1m)
DMX Channel Modes 2-Channels (RDM Included)
Control Modes DMX, Strobo, Manual Dimming
Control Panel 4 Buttons and LED Display
IP rate IP20
DMX In/Out 3-pin XLR
Power Socket Powercon In/Out
Voltage 100~240V 50/60Hz
Max Power Consumption 220W
Working Temperature -30÷55°C
Color Frame Included
Max. Fixture Size (WxDxH) 691 x 340 x 340 mm – 27.20 x 13.38 x 13.38 in (C-bracket includ-
ed)
Net Weight 9,8kg – 21.60 lbs.
Packing Size (WxDxH) 785 x 380 x 380 mm – 30.90 x 14.96 x 14.96 in
Packing Weight 12,0kg – 26.45 lbs.
Note: Our products are subject to a process of continual further development. Therefore modifications to
the technical features remain subject to change without further notice.

1919
SQUARE 200PZ User Manual
Eng
11 - WarranTy and serviCe
All CENTOLIGHT products feature a limited two-year warranty. This two-year
warranty starts from the date of purchase, as shown on your purchase receipt. The
following cases/components are not covered by this warranty:
yAny accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
CENTOLIGHT shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at CENTOLIGHT’s discretion either by repairing
or exchanging individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become the property of
CENTOLIGHT.
While under warranty, defective products may be returned to your local CENTOLI-
GHT dealer together with the original proof of purchase. To avoid any damages in
transit, please use the original packaging if available. Alternatively, you can send
the product to CENTOLIGHT SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto
Recanati - Italy. In order to send a product to service center, you need an RMA num-
ber. Shipping charges have to be covered by the owner of the product.
For further information please visit www.centolight.com

2020
SQUARE 200PZ User Manual
Eng
12 - Warning
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household
waste, according to the WEEE Directive (2012/19/UE) and your national law.
This product should be handed over to a designated collection point, e.g., on an au-
thorized one-for-one basis when you buy a new similar product or to an authorized
collection site for recycling waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on
the environment and human health due to potentially hazardous substances that
are generally associated with EEE. At the same time, your cooperation in the correct
disposal of this product will contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recy-
cling, please contact your local city office, waste authority, approved WEEE scheme
or your household waste disposal service.
