Central Machinery 65342 User guide

TOW-BEHIND SHREDDER
11 HP
65342
SET UP, OPERATING, AND SERVICING
INSTRUCTIONS
Using an engine indoors CAN KILL YOU IN
MINUTES.
Engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
Only use OUTSIDE
and far away from
windows, doors, and
vents.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
REV 09f

SKU 65342 For technical questions, please call 1-800-444-3353. Page 2
CONTENTS
IMPORTANT SAFETY
INFORMATION ............................ 3
BASIC SPECIFICATIONS ............. 7
UNPACKING .................................. 7
ASSEMBLY INSTRUCTIONS........ 8
OPERATING INSTRUCTIONS .... 12
STARTING THE ENGINE ................. 12
EQUIPMENT OPERATION............... 14
TECHNICAL SPECIFICATIONS.. 17
SERVICING.................................. 17
MAINTENANCE PROCEDURES .....17
CLEANING, MAINTENANCE, AND
LUBRICATION SCHEDULE:
ENGINE..........................................20
STORAGE ........................................20
CLEANING, MAINTENANCE, AND
LUBRICATION SCHEDULE:
MACHINE.......................................21
TROUBLESHOOTING - ENGINE 22
TROUBLESHOOTING -
SHREDDER ............................... 24
PARTS LISTS AND ASSEMBLY
DIAGRAMS................................ 25
PARTS LIST - SHREDDER .............. 25
ASSEMBLY DIAGRAM -
SHREDDER ...................................26
PARTS LIST & ASSY. DIAGRAM -
CYLINDER HEAD SYSTEM ..........27
PARTS LIST & ASSY. DIAGRAM -
CYLINDER BARREL .....................27
PARTS LIST & ASSY. DIAGRAM -
CRANKCASE COVER...................28
PARTS LIST & ASSY. DIAGRAM -
CRANKSHAFT ..............................28
PARTS LIST & ASSY. DIAGRAM -
PISTON ..........................................29
PARTS LIST & ASSY. DIAGRAM -
CAMSHAFT ...................................29
PARTS LIST & ASSY. DIAGRAM -
RECOIL STARTER ........................30
PARTS LIST & ASSY. DIAGRAM -
FAN COVER .................................. 30
PARTS LIST & ASSY. DIAGRAM -
CARBURETOR..............................31
PARTS LIST & ASSY. DIAGRAM -
FLYWHEEL .................................... 31
PARTS LIST & ASSY. DIAGRAM -
IGNITION SYSTEM........................32
PARTS LIST & ASSY. DIAGRAM -
STARTER MOTOR ........................32
PARTS LIST & ASSY. DIAGRAM -
CONTROL SYSTEM......................33
PARTS LIST & ASSY. DIAGRAM -
MUFFLER SYSTEM ......................33
PARTS LIST & ASSY. DIAGRAM -
AIR CLEANER...............................34
PARTS LIST & ASSY. DIAGRAM -
FUEL TANK SYSTEM....................34
LIMITED 1 YEAR / 90 DAY
WARRANTY .............................. 35
EMISSION CONTROL SYSTEM
WARRANTY .............................. 35
PLEASE READ THE
FOLLOWING CAREFULLY....... 36

SKU 65342 For technical questions, please call 1-800-444-3353. Page 3
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operating,
inspection, maintenance and cleaning pro-
cedures. Write the product’s serial number
in the back of the manual (or month and
year of purchase if product has no num-
ber). Keep this manual and the receipt in
a safe and dry place for future reference.
IMPORTANT SAFETY
INFORMATION
In this manual, on the labeling,
and all other information
provided with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
WARNING! Read all instructions.
Failure to follow all instructions
listed below may result in re,
serious injury and/or DEATH.
The warnings and precautions
discussed in this manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator that
common sense and caution are
factors which cannot be built into
this product, but must be supplied
by the operator.
SAVE THESE INSTRUCTIONS
SET UP PRECAUTIONS
Gasoline fuel and fumes are amma-1.
ble, and potentially explosive. Use
proper fuel storage and handling pro-
cedures. Do not store fuel or other
ammable materials nearby.
Have multiple ABC class re extin-2.
guishers nearby.
Operation of this equipment may cre-3.
ate sparks that can start res around
dry vegetation.
The operator should contact local re
agencies for laws or regulations relat-
ing to re prevention requirements.
Set up and use only on a at, level, 4.
well-ventilated surface.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 4
Wear ANSI-approved safety goggles5.
and heavy-duty work gloves during
set up.
Use only oil and fuel recommended6.
in the “Specications” section of this
manual.
OPERATING PRECAUTIONS

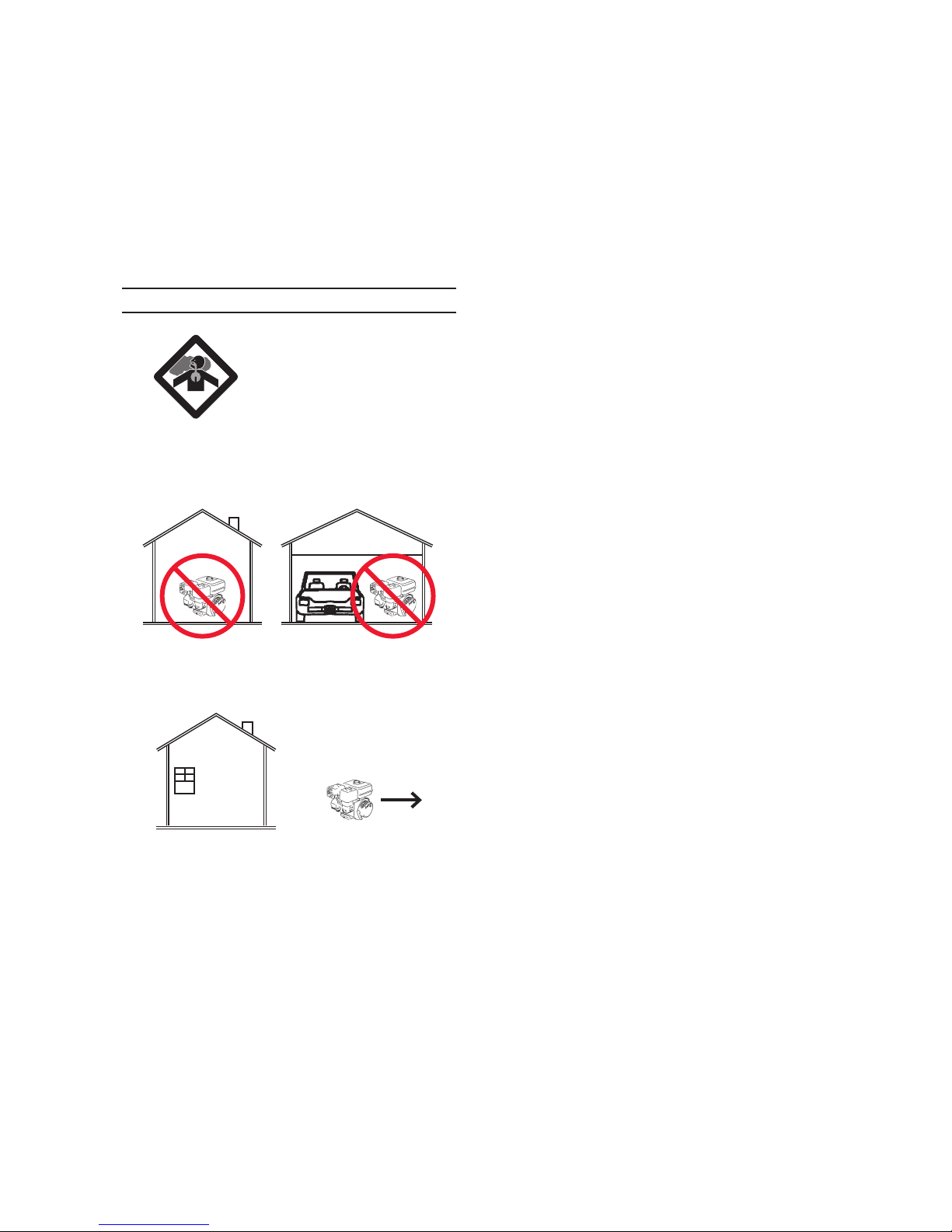

1. CARBON MONOXIDE
HAZARD
Using an engine indoors
CAN KILL YOU IN
MINUTES.
Engine exhaust contains carbon
monoxide. This is a poison you
cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are
open.
Only use OUTSIDE and far away
from windows, doors, and vents.
Keep all safety guards in place and in2.
proper working order at all times.
NEVER place ngers or hands 3.
inside the Chipper Hopper (6) or
Shredder Hopper (85) when the
machine is running. Do not lean or
reach over the Hoppers when the
machine is running.
Do not look into the Hoppers (6, 85)4.
or Discharge Chute when the ma-
chine is running.
Keep children away from the Shred-5.
der, especially while it is operating.
Do not feed metal, stone, glass, or6.
any other non-botanical objects into
the Shredder.
Do not attempt to shred or chip ma-7.
terial larger than specied on the
machine or in this manual. (Chipper
Hopper: 3” diameter maximum.
Shredder Hopper: 1” diameter
maximum.)
This Tow-Behind Shredder is for8.
off-road use only. Never attempt to
tow the machine on public highways,
roads, or thoroughfares. Do not ex-
ceed 5miles per hour when towing.
Do not transport the Shredder with9.
the Engine (61) running.
Never operate this machine without10.
the Chipper Hopper (6), Shredder
Hopper (85), or Guide Board (3)
properly attached to the machine.
Keep your face and body back and11.
to the side of the Chipper Hopper (6)
while feeding material into the ma-
chine to avoid accidental kickback
injuries.
Never operate this machine without12.
good visibility or light.
Do not operate this machine on a13.
paved, gravel, or non-level surface.
Do not sit or stand on this machine.14.
Do not tilt the machine while the En-15.
gine (61) is running.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 5
Always stand clear of the discharge16.
zone when operating this Shredder.
Before starting the Shredder, make17.
sure the Hoppers (6, 85) and cutting
chamber are empty and free of all
debris.
If it becomes necessary to push18.
material through the Hoppers (6, 85),
use a small diameter stick. Do not
use your hands, feet, or any metal
object.
Do not allow processed material to19.
build up in the discharge zone. This
may prevent proper discharge and
can result in kickback of material
through the Hopper (6, 85) openings.
If the machine’s Impeller strikes a for-20.
eign object, or if the machine begins
making an unusual noise or vibrates
excessively, immediately shut off the
Engine (61). Allow the Impeller to
come to a complete stop. Disconnect
the spark plug wire. Then perform
the following steps:
Inspect for damage.a.
Repair or replace damaged parts.b.
Check for any loose parts and tight-c.
en to ensure continued safe opera-
tion.
Do not leave the Shredder unattend-21.
ed when it is running. Turn off the
Engine before leaving the work area.
Wear ANSI-approved safety goggles,22.
hearing protection, and heavy duty
work gloves during use.
People with pacemakers should23.
consult their physician(s) before
use. Electromagnetic elds in close
proximity to a heart pacemaker could
cause pacemaker interference or
pacemaker failure. Caution is neces-
sary when near the engine’s magneto
or recoil starter.
Use only accessories that are recom-24.
mended by Harbor Freight Tools for
your model. Accessories that may be
suitable for one piece of equipment
may become hazardous when used
on another piece of equipment.
Do not operate in explosive atmo-25.
spheres, such as in the presence of
ammable liquids, gases, or dust.
Gasoline-powered engines may ignite
the dust or fumes.
Stay alert, watch what you are doing26.
and use common sense when operat-
ing this piece of equipment. Do not
use this piece of equipment while
tired or under the inuence of drugs,
alcohol or medication.
Do not overreach. Keep proper foot-27.
ing and balance at all times. This en-
ables better control of the equipment
in unexpected situations.
Use this equipment with both hands28.
only. Using equipment with only
one hand can easily result in loss of
control.
Dress properly. Do not wear loose29.
clothing or jewelry. Keep hair, cloth-
ing and gloves away from moving
parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
Parts, especially exhaust system30.
components, get very hot during use.
Stay clear of hot parts.
Do not cover the engine or equipment31.
during operation.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 6
Keep the equipment, engine, and sur-32.
rounding area clean at all times.
Use the equipment, accessories, etc.,33.
in accordance with these instructions
and in the manner intended for the
particular type of equipment, taking
into account the working conditions
and the work to be performed. Use
of the equipment for operations differ-
ent from those intended could result
in a hazardous situation.
Do not operate the equipment with34.
known leaks in the engine’s fuel sys-
tem.
This product contains or, when used,35.
produces a chemical known to the
State of California to cause cancer
and birth defects or other reproduc-
tive harm. (California Health & Safety
Code § 25249.5, et seq.)
When spills of fuel or oil occur, they36.
must be cleaned up immediately.
Dispose of uids and cleaning materi-
als as per any local, state, or federal
codes and regulations. Store oil rags
in a bottom-ventilated, covered, metal
container.
Keep hands and feet away from37.
moving parts. Do not reach over or
across equipment while operating.
Before use, check for misalignment38.
or binding of moving parts, breakage
of parts, and any other condition that
may affect the equipment’s operation.
If damaged, have the equipment
serviced before using. Many ac-
cidents are caused by poorly main-
tained equipment.
Use the correct equipment for the39.
application. Do not modify the equip-
ment and do not use the equipment
for a purpose for which it is not in-
tended.
SERVICE PRECAUTIONS
Before service, maintenance, or1.
cleaning:
Turn the engine switch to itsa.
“OFF” position.
Allow the engine to completelyb.
cool.
Then, remove the spark plug.c.
Never attempt to unclog either the2.
feed intake or discharge opening
while the Engine (61) is running.
Immediately shut off the Engine
(61). Allow the Impeller to come
to a complete stop. Remove the
Spark Plug from the Engine. Then
perform the following steps:
Remove the clogged material.a.
Inspect for damage.b.
Repair or replace damaged parts.c.
Check for any loose parts and tight-d.
en to ensure continued safe opera-
tion.
Keep all safety guards in place and in3.
proper working order. Safety guards
include mufer, air cleaner, mechani-
cal guards, and heat shields, among
other guards.
Do not alter or adjust any part of the4.
equipment or its engine that is sealed
by the manufacturer or distributor.
Only a qualied service technician
may adjust parts that may increase or
decrease governed engine speed.
Wear ANSI-approved safety goggles5.
and heavy duty work gloves during
service.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 7
Maintain labels and nameplates on6.
the equipment. These carry impor-
tant information. If unreadable or
missing, contact Harbor Freight Tools
for a replacement.
Have the equipment serviced by a7.
qualied repair person using only
identical replacement parts. This will
ensure that the safety of the equip-
ment is maintained. Do not attempt
any service or maintenance proce-
dures not explained in this manual
or any procedures that you are un-
certain about your ability to perform
safely or correctly.
Store equipment out of the reach of8.
children.
Follow scheduled engine and equip-9.
ment maintenance.
Refueling Precautions:10.
Do not smoke, or allow sparks,a.
ames, or other sources of ignition
around the equipment, especially
when refuelling.
Do not rell the fuel tank while the b.
engine is running or hot.
Do not ll fuel tank to the top. Leave c.
a little room for the fuel to expand as
needed.
Refuel in a well-ventilated area only.d.
SAVE THESE
INSTRUCTIONS.
BASIC SPECIFICATIONS
Fuel Type 89+ octane unleaded
gasoline
Capacity 1.72 Gallons
Engine Oil Type 10W-30
Capacity 1.16 Quarts
Note: Additional specications found in
the TECHNICAL ENGINE SPECIFI-
CATIONS chart in this manual.
The emission control system for this
engine is warranted for standards set by
the U.S. Environmental Protection Agency.
For warranty information, refer to the last
pages of this manual.
At high altitudes, the engine’s carbu-
retor, governor, and any other parts that
control the fuel-air ratio will need to be
adjusted by a qualied mechanic to allow
efcient high-altitude use and to prevent
damage to the engine and any other de-
vices used with this product.
UNPACKING
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown on the cover of this manual as soon
as possible.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 8
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
STARTING:
Turn the Power Switch of the
equipment to its “OFF”
position, wait for the engine to
cool, and remove the Spark
Plug before assembling or
making any adjustments to
the equipment.
TO PREVENT
SERIOUS INJURY:
Operate only with proper
spark arrestor installed.
Operation of this equipment
may create sparks that
can start res around dry
vegetation.
The operator should contact
local re agencies for laws
or regulations relating to re
prevention requirements.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
ASSEMBLY INSTRUCTIONS

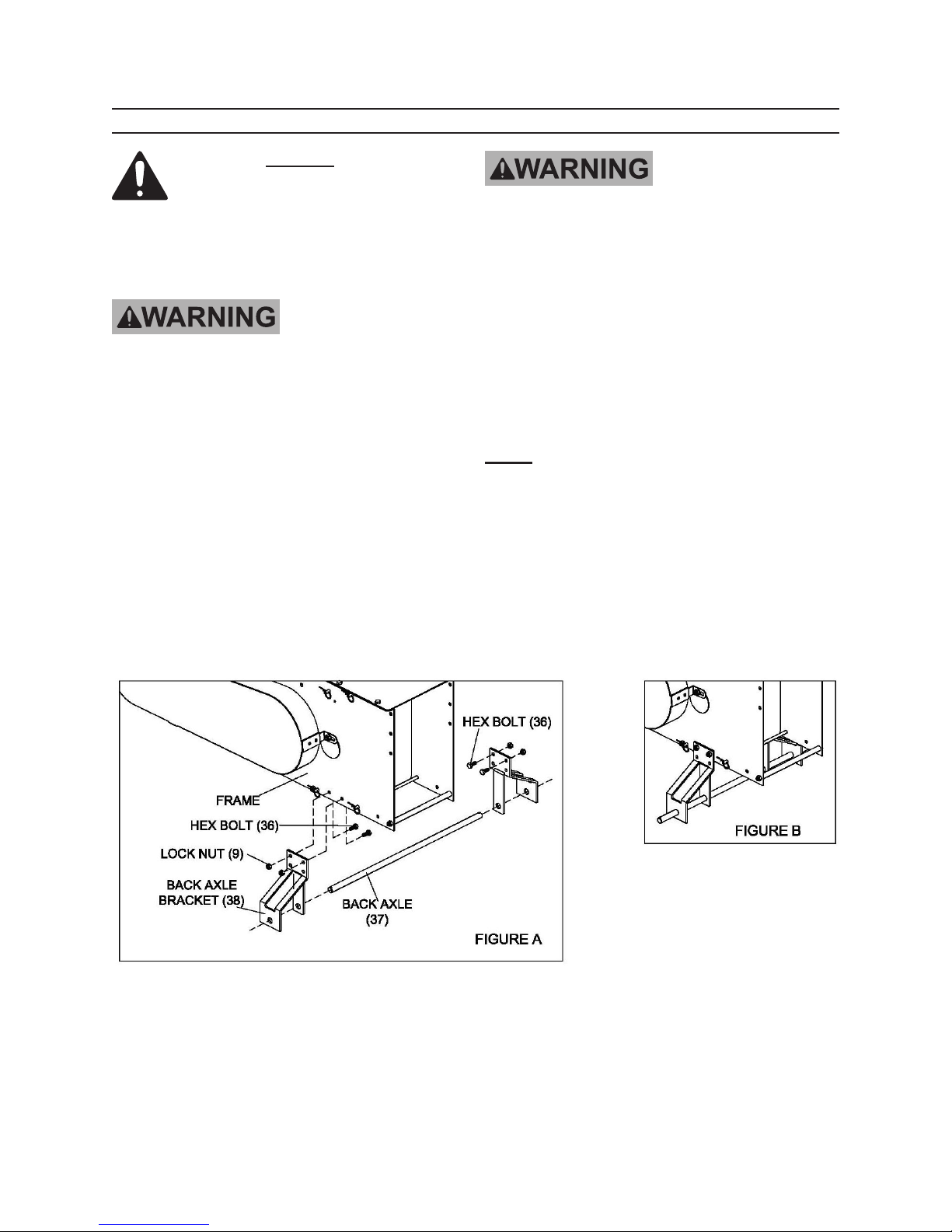

Attach the two Back Axle Brackets (38) to the rear of the frame using four Hex1.
Bolts (36) and four Lock Nuts (9). Then insert the Back Axle (37) into the bottom
hole of the two Back Axle Brackets. (See Figures A and B.)
Attach the Front Axle Bracket (45) and Front Axle (43) to the front of the frame2.
using four Hex Bolts (36) and four Lock Nuts (9). (See Figures C and D, next
page.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 9
Attach the Handle Assembly (52) to the Front Axle (43).3. (See Figures E and F.)

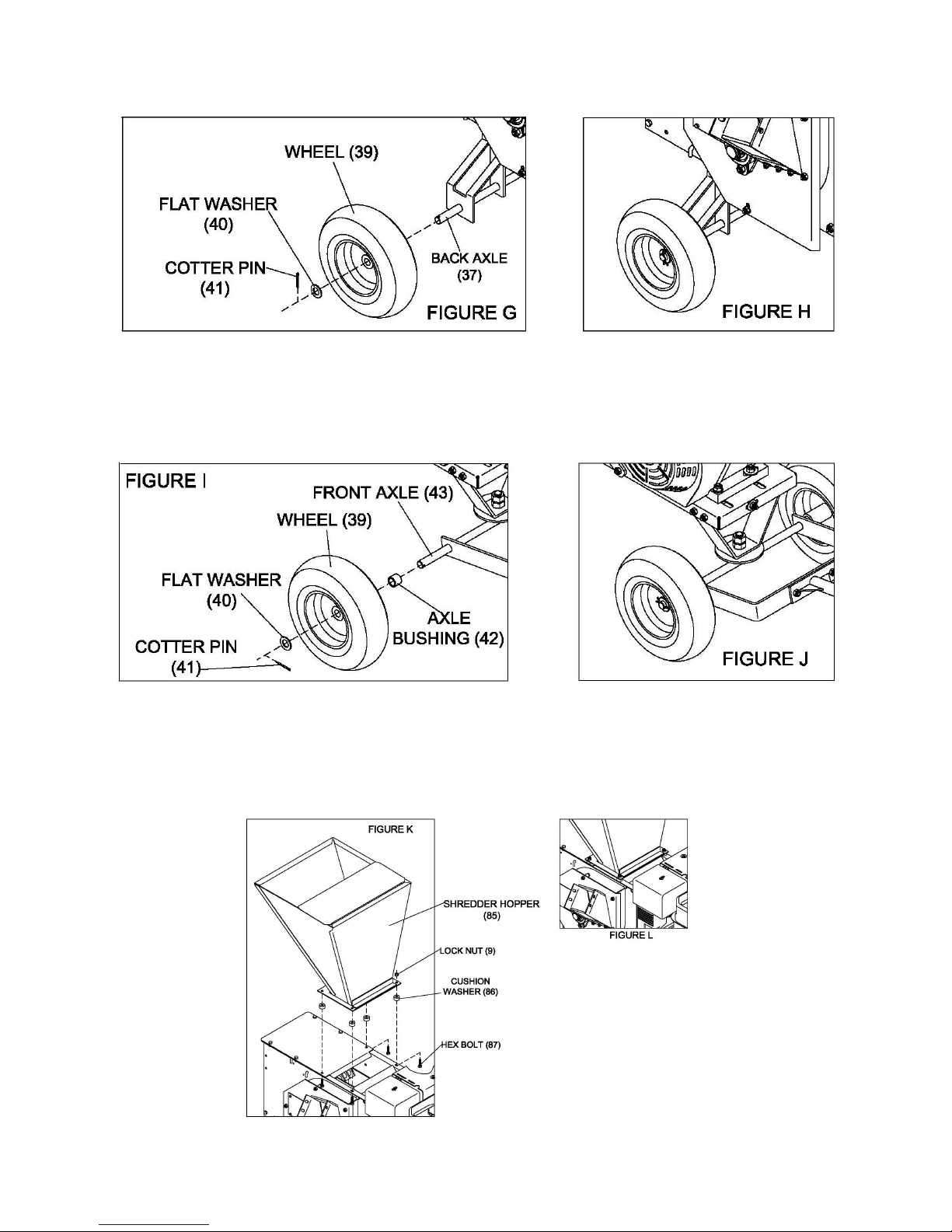

Attach a Wheel (39) to the Back Axle (37) using one Flat Washer (40) and one4.
Cotter Pin (41). Make sure to spread the Cotter Pin once it is inserted through the
end of the Back Axle. Then repeat this step for the other end of the Back Axle.
(See Figures G and H, next page.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 10
Attach a Wheel (39) to the Front Axle (43) using one Axle Bushing (42), one Flat5.
Washer (40), and one Cotter Pin (41). Make sure to spread the Cotter Pin once it
is inserted through the end of the Front Axle. Then repeat this step for the other
end of the Front Axle. (See Figures I and J.)
Place four Cushion Washers (86) between Shredder Hopper and the machine.6.
Insert four Hex Bolts (87) upward through the machine and base of the Shredder
Hopper (85). Then secure the Shredder Hoppper to the machine using four Lock
Nuts (9). (See Figures K and L.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 11
Insert four Carriage Bolts (7) through the square holes in the bottom of the Chip-7.
per Hopper opening going from inside-out. Locate the four mounting holes of the
Chipper Hopper (6) onto the four Carriage Bolts. Then secure the Chipper Hopper
to the machine using four Big Washers (8) and four Lock Nuts (9).
(See Figures M and N.)
Attach the Plastic Board (83) to the Shredder Hopper (85) using three sets of Hex8.
Bolt (84), Press Bar (91) and Lock Nut (27). (See Figures O and P.)
The9. Tow-Behind Shredder is now fully assembled. (See Figures Q and R.)
FIGURE Q FIGURE R

SKU 65342 For technical questions, please call 1-800-444-3353. Page 12
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Starting the Engine
Inspect the Engine (61) and the
Shredder looking for damaged,
loose, and missing parts before
set up and starting. If any
problems are found, do not
use the machine until properly
repaired.
Checking and Filling Engine Oil:
CAUTION! Your Warranty is VOID if the
Engine’s crankcase is not properly
lled with oil before each use. Before
each use, check the oil level. Do not
run the Engine with low or no engine
oil. Running the Engine with no or
low engine oil WILL permanently
damage the Engine.
Remove the Dipstick and wipe it off1.
with a clean rag. Clean area around
Dipstick. (See Figures S and T.)
Reinsert the Dipstick (do not thread2.
in) completely and remove it to check
the oil level. The oil level should be
between the high and low marks on
the Dipstick.
(See Figures S and T.)
If the oil level is below the low mark3.
add the appropriate type of oil until the
oil level is between the high and the
low marks.
Oil type and capacity:
SAE 10W-30 / 1.16 Quarts
Replace the Oil Dipstick.4.
(See Figures S and T.)
CAUTION! Do not run the Engine with too
little or too much oil. The Engine will
be permanently damaged.

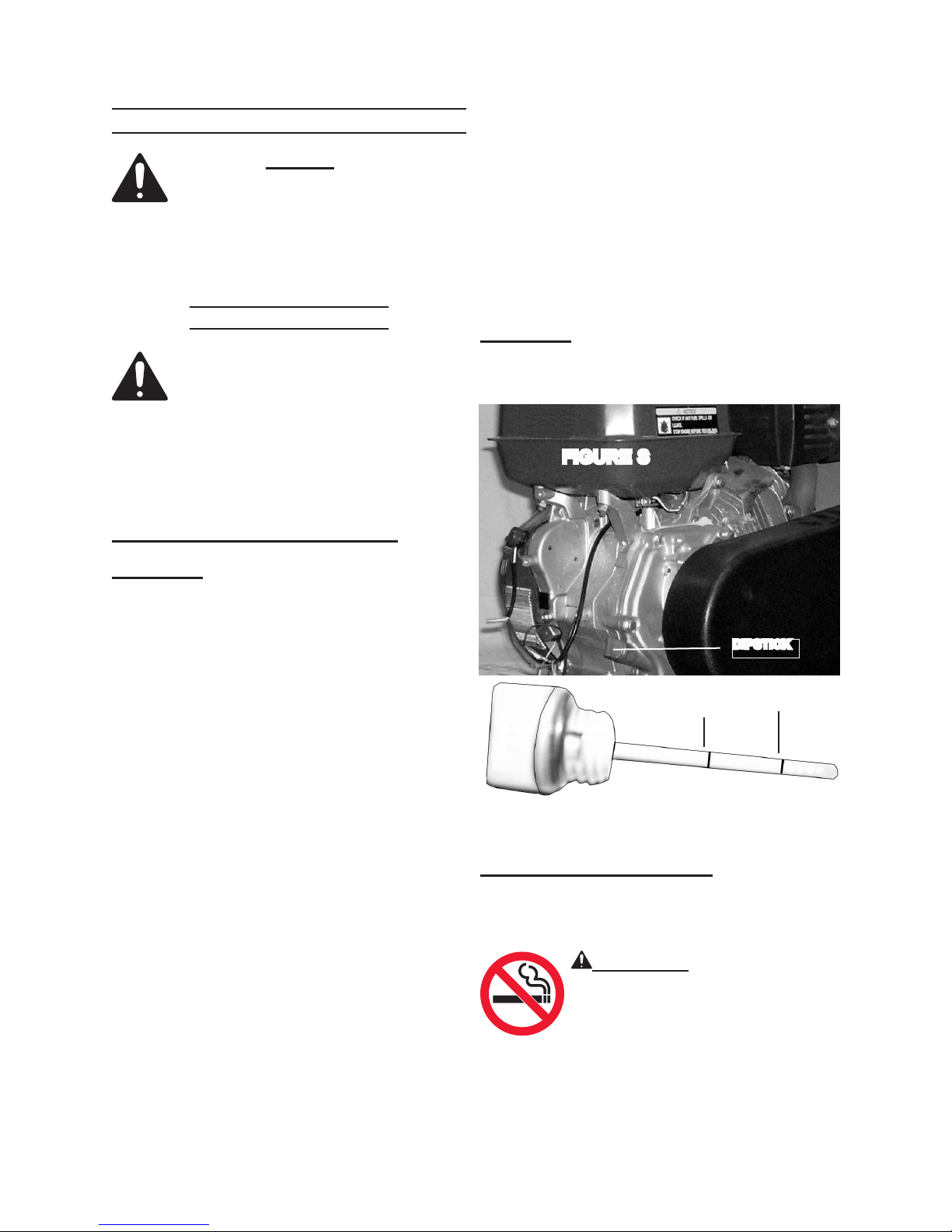

FIGURE S
DIPSTICK
FIGURE T
LOW
FULL
Checking and Filling Fuel:
Check the fuel level on the built in fuel1.
gauge. (See Figure U, next page.)
WARNING! TO PREVENT
SERIOUS INJURY FROM
FIRE:
Fill the Fuel Tank in a well-
ventilated area away from ignition
sources. Do not smoke. Do not ll
when engine is hot.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 13
To ll the Fuel Tank, rst wipe off the 2.
Fuel Tank Cap and the surrounding
area. (See Figure U.)
Unscrew, and remove the Fuel Tank3.
Cap. (See Figure U.)
Remove the Fuel Tank Filter and4.
remove any dirt and debris. Then
replace the Fuel Tank Filter.
(See Figure U.)
Fill the Fuel Tank to about 1 inch5.
under the ll neck of the Tank with the
unleaded gasoline mixture.
(See Figure U.)
Then replace the Fuel Tank Cap.6.
(See Figure U.)

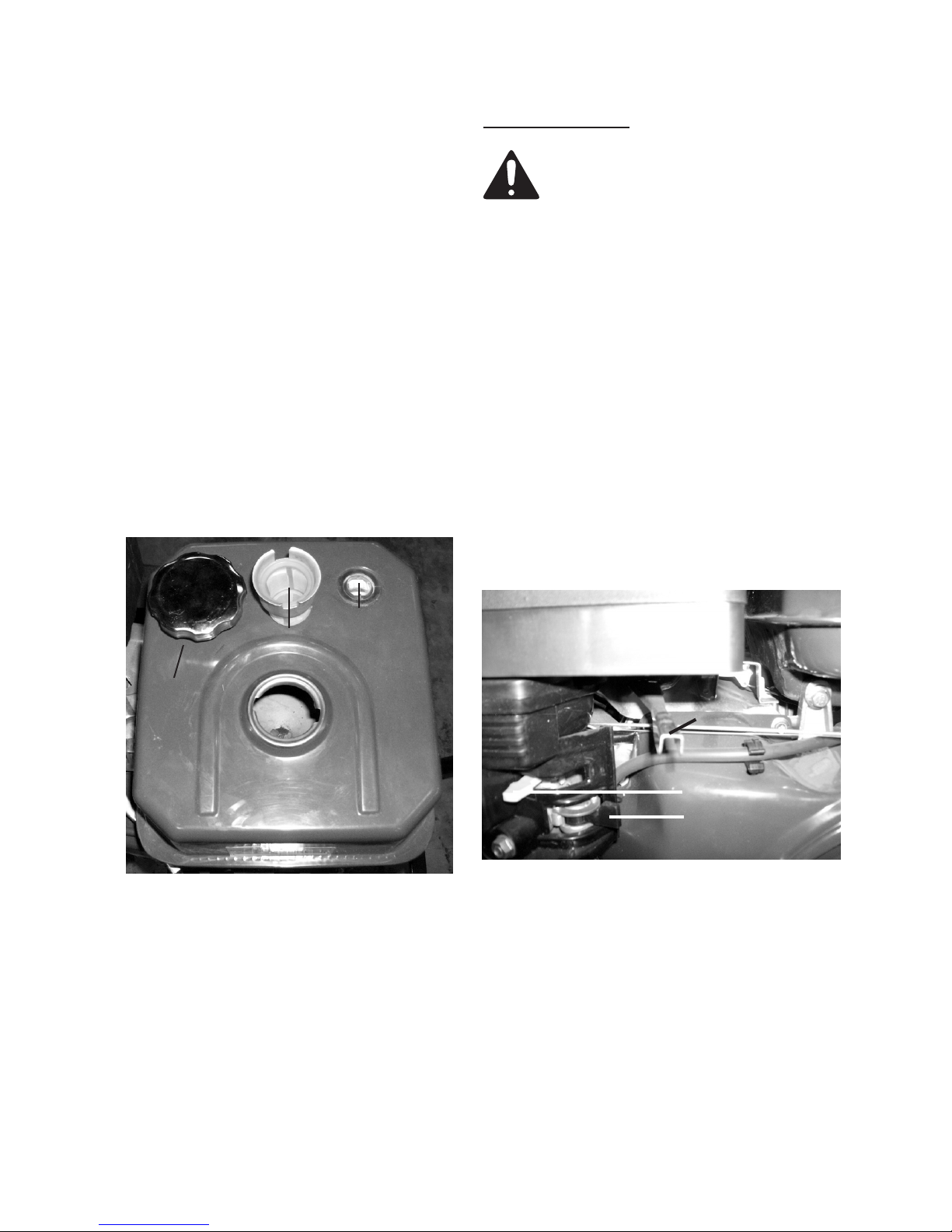

FIGURE U
FUEL
TANK
CAP
FUEL TANK FILTER
FUEL GAUGE
Start Procedure:
Before starting the engine:
Follow the Set Up Instruc-a.
tions to prepare the equip-
ment.
Inspect the equipment andb.
Engine.
Fill the Engine with the prop-c.
er amount and type of fuel
and oil.
Read the Equipment Opera-d.
tion section that follows.
Turn the Engine Fuel Valve to its1.
“OPEN” position. (See Figure V.)
Turn the Engine Choke Lever to its2.
“CHOKE” position. Set the Choke Le-
ver in the “RUN” position when start-
ing a warm Engine. (See Figure V.)
FIGURE V
CHOKE LEVER
FUEL VALVE
THROTTLE
Then turn the Engine Power Switch to3.
its “ON” position.
(See Figure W, next page.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 14

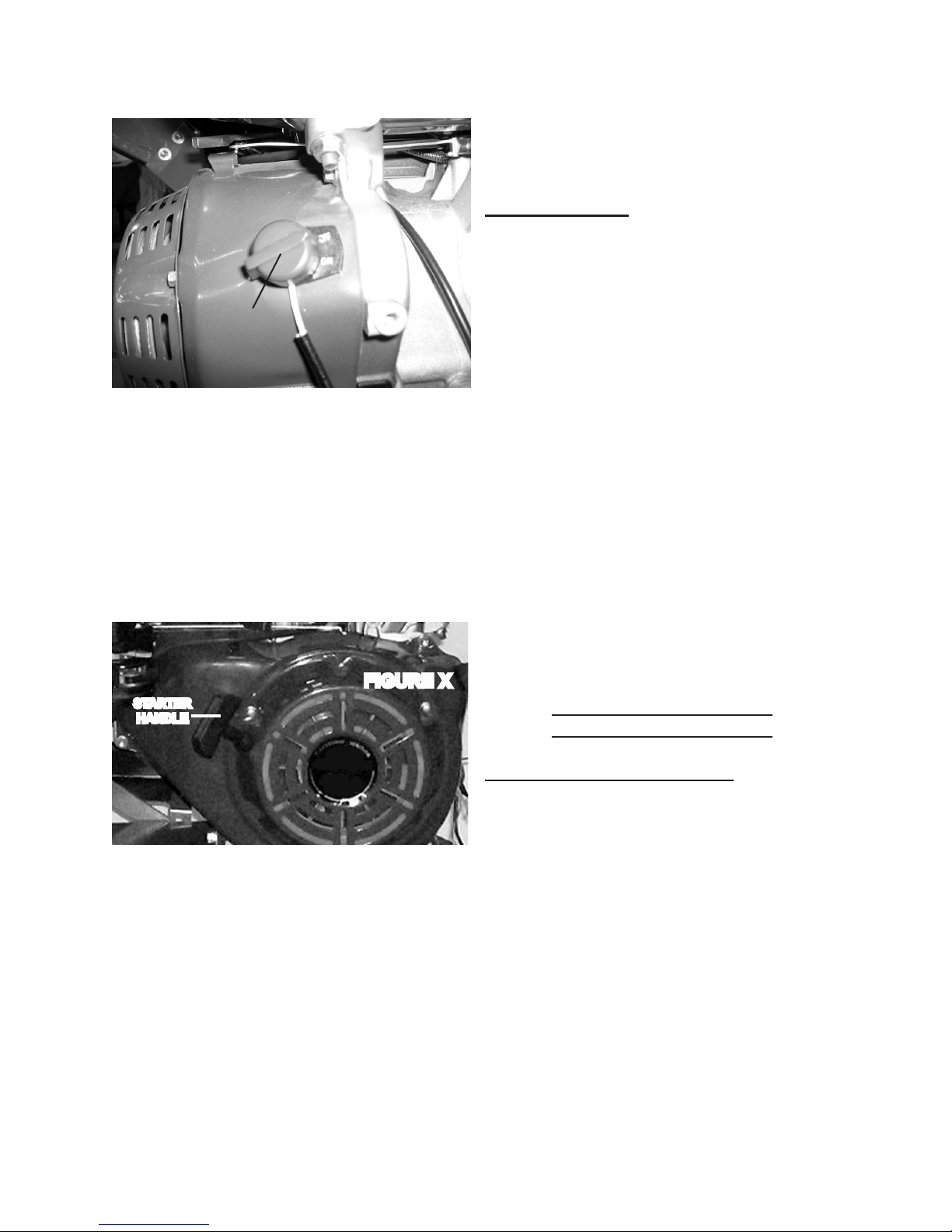

FIGURE W
POWER
SWITCH
4. Grasp the Starter Handle, and pull
slowly until resistance is felt. While
holding the Handle, allow the Starter
Rope to rewind slowly. Then, pull the
Starter Handle with a rapid, full arm
stroke. Once again while holding
the Handle, allow the Rope to rewind
slowly. Repeat as necessary, until the
Engine starts. (See Figure X.)
FIGURE X
STARTER
HANDLE
After the Engine starts and warms up,5.
slowly move the Choke Lever to its
“RUN” position. (See Figure V.)
To adjust the Engine’s speed, move6.
the Engine Throttle to the left for in-
creased speed. Move the Throttle to
the right for decreased speed.
(See Figure V.)
IMPORTANT: Allow the Engine to run7.
at no load until warm (1-5 minutes)
with no load after each start-up to al-
low the Engine to stabilize.
Break-in Period:
Breaking-in the Engine will help to1.
ensure proper equipment and Engine
operation, and will extend the En-
gine’s lifespan. The warranty is void
if the Engine is not broken in properly.
The rst 20 hours of operation is the
break-in period.
During the rst 3 hours of use:2.
Do not apply a heavy load to the•
equipment.
Do not operate the Engine at its•
maximum speed.
After the rst 20 hours of use:3.
Change the engine oil.•
Under normal operating conditions
subsequent maintenance follows the
schedule explained in the MAINTE-
NANCE AND SERVICING section.
Equipment Operation
Using the Shredder Hopper:
The Tow-Behind Shredder can pro-1.
cess dry or green organic material.
Green material will process easier
and faster than dry material. Soft
wood processes easier than hard
wood. Rotating the branch as you
feed it into the machine will improve
performance.
The Shredder Hopper (85) is located2.
at the top of the machine and is the
opening into which all materials to be
shredded should be fed.
(See Figure Y.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 15
Due to the wide variety of materials3.
that can be shredded, and their differ-
ent physical characteristics, only feed
limited quantities of any material into
the Shredder Hopper (85) at rst. The
amount and length of material can be
increased if you nd that the material is
being processed without any difculty.
Make sure not to overload the machine4.
by feeding too much material into the
Shredder Hopper (85) at one time. If
you hear the RPM’s (speed) of the
Engine decreasing, immediately stop
feeding material into the machine. Do
not resume feeding material into the
hopper until the Engine has returned to
full speed.
The maximum diameter of material5.
that can be shredded is 1”. Any ma-
terial larger than 1” diameter should be
fed into the Chipper Hopper (6).
Several small branches can be fed into6.
the Shredder Hopper (85) at one time
providing their combined diameter is
less than 1”.
Branches longer than three feet should7.
be cut to make them more manage-
able.
8. Use safety
equipment. Always
wear ANSI-approved
safety goggles, hearing protection, and
heavy duty work gloves.
Make sure the Tow-Behind Shredder9.
is located on a dry, at, level surface
capable of supporting the weight of the
machine, materials being processed,
the operator(s), and any additional
tools and equipment.
Make sure the machine is empty of10.
material prior to starting the unit.
Start the Engine (61), and allow it to11.
run at full speed. (Refer to previ-
ous instructions in this manual for
Engine starting and operation.)
Always stand clear and to the side of12.
the Discharge Chute located at the
bottom of the machine.
Without putting your hands into the13.
Shredder Hopper (85), slowly drop
the material into the Hopper. The
machine will pull the material in auto-
matically.
(See Figure Y.)
14. Never use
your hands to feed
material into the
Shredder Hopper (85). If necessary, use
a stick to push the branches, leaves, etc.
into the Hopper. (See Figure Y.)
Do not allow processed material to15.
build up in the Discharge Chute.
This may prevent proper discharge
and can result in kickback of material
through the Shredder Hopper (85).
(See Figure Y.)
Should the machine jam during16.
use, immediately turn off the En-
gine’s Power Switch. Wait until the
machine completely stops. Allow
the Engine (61) to completely cool.
Remove the Engine’s Spark Plug
Wire. Clear the jam. Re-install the
Spark Plug Wire. Then restart en-
gine and resume operation.
When nished, turn the Engine’s 17.
Power Switch to its “OFF” position.
Wait until the machine completely
stops. Allow the Engine to com-

SKU 65342 For technical questions, please call 1-800-444-3353. Page 16
pletely cool. Remove the Engine’s
Spark Plug Wire. Then clean out the
interior of the machine and its Dis-
charge Chute.
Using the Chipper Hopper:
The Chipper Hopper (6) is located1.
on the side of the machine and is
designed to chip the larger, heavier
materials that the Shredder Hopper is
not designed to handle.
(See Figure Y.)
The Chipper Hopper (6) can chip2.
branches and vines ranging in size
from 1” to 3” in diameter.
(See Figure Y.)
Make sure to cut the material into3.
manageable lengths (5 or 6 feet long)
before feeding them into the Chipper
Hopper (6).
Do not force material into the Chip-4.
per Hopper (6). If the machine does
not chip well, have a qualied service
technician sharpen or replace the
Chipper Knives and/or adjust the gap
between the Knives and Wear Plate.
Extremely hard knots will not process5.
very well. Short stubs that have not
self-fed into the Chipper Hopper (6)
can be pushed through with the next
branch to be chipped. Do not throw
remaining stubs or unchippable
knots into the Chipper Hopper.
Damage to the machine will result.
(See Figure Y.)
If branches are larger than 1” diam-6.
eter, feed only one branch at a time
through the Chipper Hopper (6).
(See Figure Y.)
Branches smaller than 1” diameter 7.
can be bundled together and fed
through the Chipper Hopper (6) at
one time. (See Figure Y.)
Overloading the Tow-Behind Shred-8.
der will cause the Engine (61) RPM’s
(speed) to decrease. If you hear the
Engine RPM’s decreasing, stop feed-
ing material into the machine until the
Engine has returned to full speed.
When nished, turn the Engine’s 9.
Power Switch to its “OFF” position.
Wait until the machine completely
stops. Allow the Engine to com-
pletely cool. Remove the Engine’s
Spark Plug Wire. Then clean out the
interior of the machine and its Dis-
charge Chute.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 17
TECHNICAL
SPECIFICATIONS
Engine Type Air Cooled, 4-Stroke, Single
Cylinder, Overhead Valves.
Engine Starter Type Recoil Starter
Engine Power Rating 11 H.P.
Engine Speed Maximum: 2740 RPM
Idle: 1780 RPM
Recommended Oil Type
and Capacity
10W-30
1.16 Quarts
Low Oil Protection Yes
Recommended Spark Plug
Types
NGK®BPR6ES
DENSO®W20EPR-U
LD®F7RTC
Spark Plug Gap 0.028”~0.031”
Spark Plug Arrestor Present Yes
Fuel Type 89+ octane unleaded gasoline
Capacity 1.72 Gallons
Engine
Approvals
Federal E.P.A. Certication
Chipper
Capacity 3” Diameter Material Maximum.
Shredder
Capacity 1” Diameter Material Maximum.
Material
Types Organic Materials Only.
Tire Size,
Rating, Type
4.10/3.50
2-Ply
Tubed
Engine Oil
Filter Paper Cartridge
Drive Belt
Type Goodyear®SPB-1500 V-Belt
Number of
Chipper
Blades
1 Piece
Number of
Impeller
Blades
24 Pieces
Highway
Rated Not Rated for Highway Use.
SERVICING
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
STARTING:
Turn the Power Switch of the
Engine (61) to its “OFF”
position, wait for the engine to
cool, and remove the Spark
Plug before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT
SERIOUS INJURY
FROM EQUIPMENT FAILURE:
Do not use damaged
equipment. If abnormal noise,
vibration, or excess smoking
occurs, have the problem
corrected before further use.
Maintenance Procedures
Many maintenance procedures,
including those not detailed
in this manual, will need to
be performed by a qualied
technician for safety. If you
have any doubts about your
ability to safely service the
equipment or Engine, have a
qualied technician service the
equipment instead.
Note: Warranty is void if proper mainte-
nance and servicing procedures are
not followed.

SKU 65342 For technical questions, please call 1-800-444-3353. Page 18

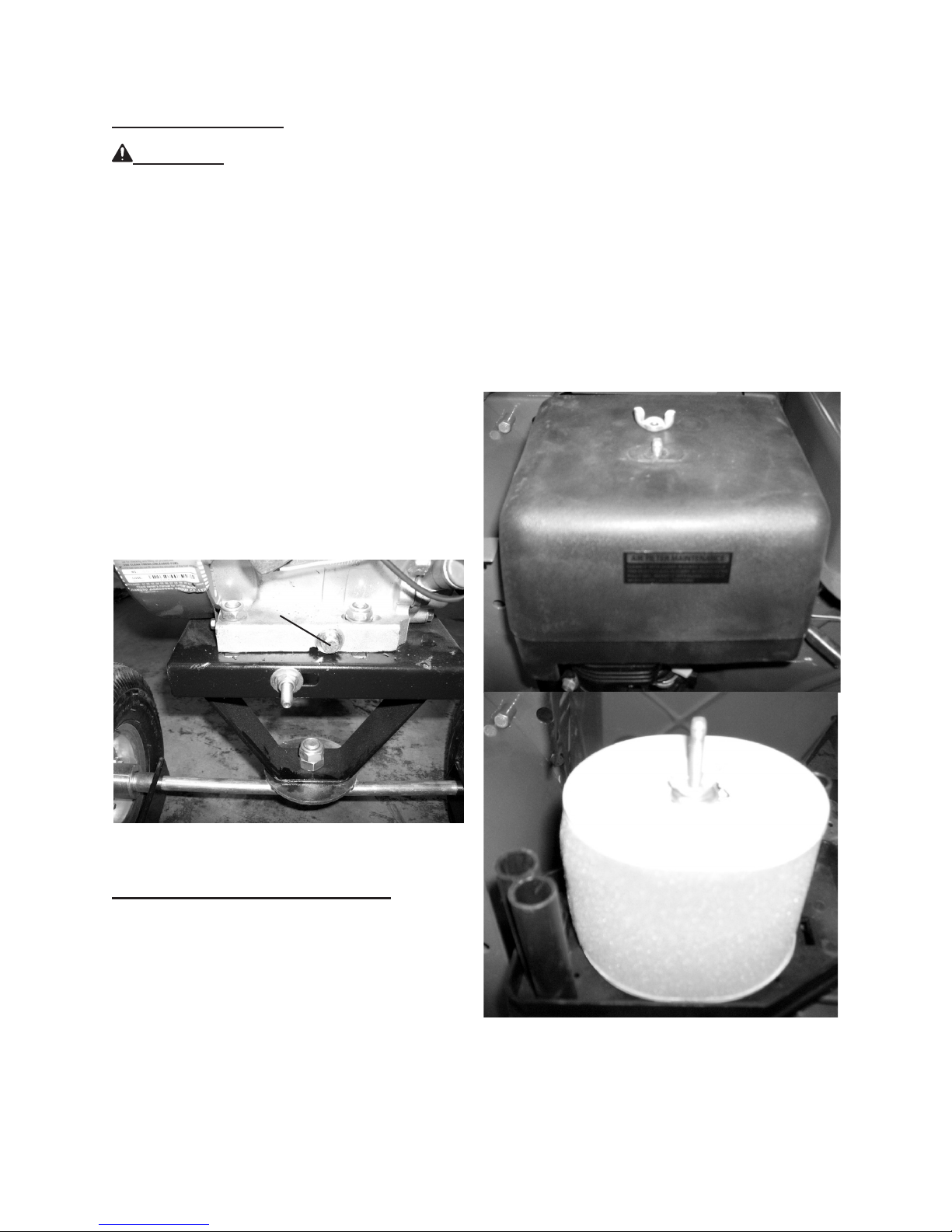

Engine Oil Change:
CAUTION! Oil is very hot during opera-
tion and can cause burns. Wait for
engine to cool before changing oil.
Place a drain pan (not included) un-1.
derneath the crankcase’s Drain Plug.
(See Figure Z.)
Remove the Drain Plug and, if pos-2.
sible, tilt the crankcase slightly to help
drain the oil out. Recycle used oil.
(See Figure Z.)
Replace the Drain Plug and gasket3.
and tighten it. (See Figure Z.)
Rell the oil to the proper level follow-4.
ing the instructions under the “Start-
ing the Engine” section.
FIGURE Z
DRAIN PLUG
Air Filter Element Maintenance:
Wipe off the Air Cleaner Cover.1.
(See Figures AA and BB.)
The Air Cleaner Cover is held in2.
place by a wing nut. Remove it.
(See Figures AA and BB.)
Remove the Air Filter Element.3.
(See Figures AA and BB.)
Wash the Filter in warm water and4.
mild detergent several times. Rinse.
Squeeze out excess water and allow
it to dry completely. Soak the Filter
in lightweight oil briey, then squeeze
out the excess oil.
(See Figures AA and BB.)
Install the new Air Filter Element or5.
the cleaned Filter. Secure the Air
Cleaner Cover before use.
(See Figures AA and BB.)
FIGURE AA
AIR CLEANER COVER
FIGURE BB
AIR FILTER ELEMENT

SKU 65342 For technical questions, please call 1-800-444-3353. Page 19

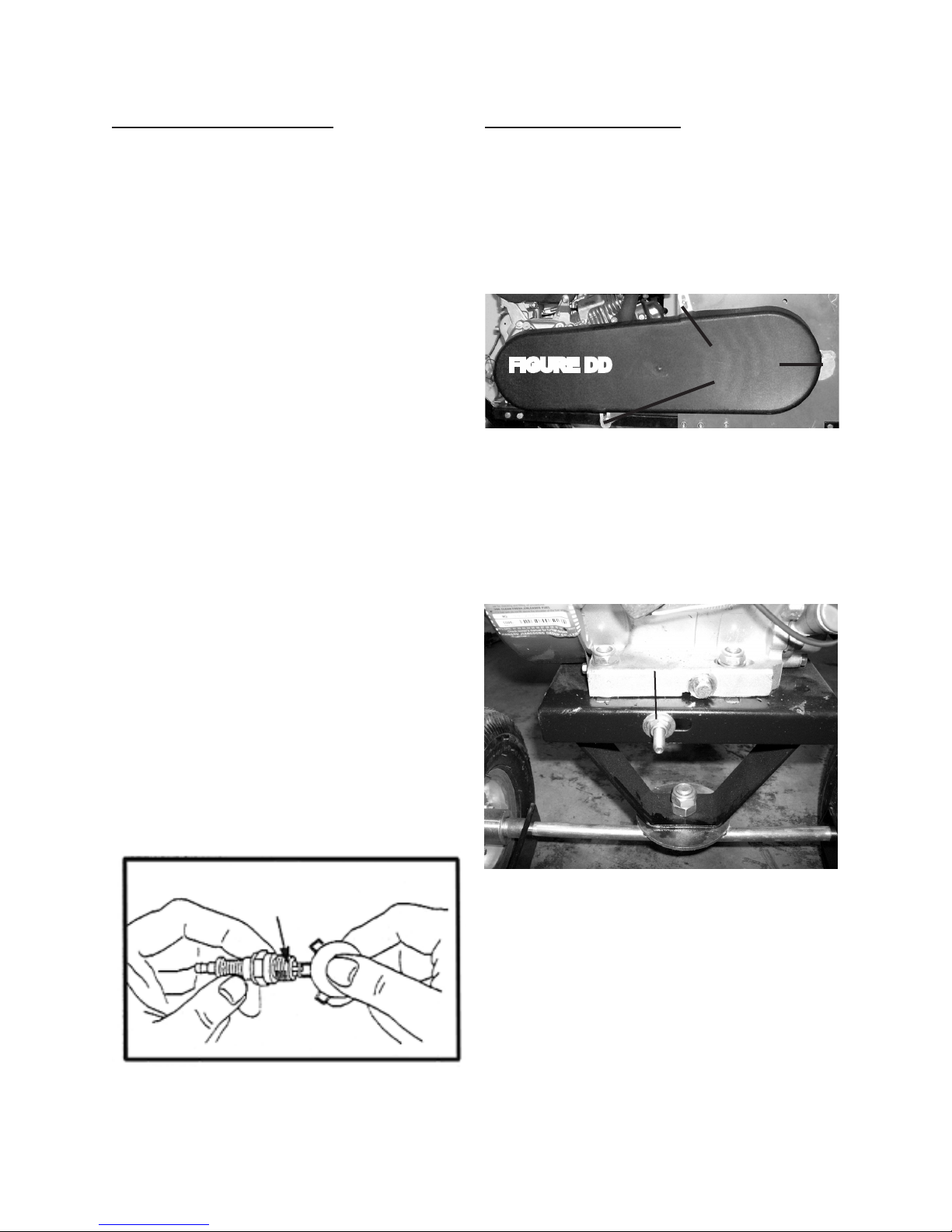

Spark Plug Maintenance:
Disconnect Spark Plug Wire from1.
end of plug. Clean out debris from
around Spark Plug.
Using a spark plug wrench, remove2.
the spark plug.
Inspect the Spark Plug:3.
If the electrode is oily, clean it using a
clean, dry rag.
If the electrode has deposits on it,
polish it using emery paper.
If the white insulator is cracked or
chipped, the Spark Plug needs to be
replaced. (See Figure CC.)
When installing a new Spark Plug,4.
adjust the Plug’s gap to the speci-
cation on the Technical specication
chart and in the illustration below. Do
not pry against the electrode or the
insulator, the Spark Plug can be dam-
aged. (See Figure CC.)
Install the new Spark Plug or the5.
cleaned Spark Plug into the Engine
(61). Gasket-style: Finger-tighten
until the gasket contacts the cylinder
head, then about 1/2-2/3 turn more.
Non-gasket-style: Finger-tighten until
the plug contacts the head, then
about 1/16 turn more.
FIGURE CC
0.028” ~ 0.031”
To Replace the V-Belt:
Unscrew and remove the three Lock1.
Nuts (9) and their three Flat Washers
(67) that secure the Belt Guard (66)
to the machine. Then remove the
Belt Guard to expose the V-Belt (65).
(See Figure DD.)
FIGURE DD LOCK NUT (9)
FLAT WASHER (67)
2. Loosen the four Hex Bolts (54) at the
base of the Engine (61).
(See Assy. Diagram.)
Loosen the Lock Nut (9) to release3.
tension on the V-Belt (65).
(See Figure EE.)
FIGURE EE
LOCK NUT
(9)
4. Remove the old V-Belt (65) from
the Clutch (62) and Belt Pulley (68).
Then install a new V-Belt (type: SPB-
1500). (See Figure FF, next page.)
Once the V-Belt (65) is installed,5.
tighten the Lock Nut (9) on the Belt
Tighten Assembly (60) to increase
tension on the V-Belt. The proper
V-Belt tension is achieved when the
Belt deects 3/8”. (See Figure FF.)

SKU 65342 For technical questions, please call 1-800-444-3353. Page 20
Retighten the four Hex Bolts (54) at6.
the base of the engine.
When nished tensioning the V-Belt 7.
(65), replace the Belt Guard (66) and
secure it in place with the three Lock
Nuts (9) and their three Flat Washers
(67). (See Figure DD.)
FIGURE FF
3/8”
CLUTCH
(62)
BELT PULLEY
(68)
V-BELT
(65)
Cleaning, Maintenance, and
Lubrication Schedule: Engine
Note: This maintenance schedule is in-
tended solely as a general guide. If
performance decreases or if the En-
gine operates unusually, check sys-
tems immediately. The maintenance
needs this Engine will differ depend-
ing on factors such as temperature,
air quality, fuel quality, and other fac-
tors.
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular op-
eration of the Engine.
After Initial 20 Operation Hours:
Change engine oil.a.
Every 25 Operation Hours Thereafter:
Clean/replace Air Filter Element.a.
Inspect/clean Spark Plug.b.
Every 50 Operation Hours:
Change engine oil.a.
Every 100 Operation Hours:
Replace Spark Plug.a.
Replace Air Filter Element.b.
Note: All maintenance procedures sched-
uled for 25, 50, and 100 operation
hours should be performed at least
yearly.
Every 300 Operation Hours:
Clean Fuel Tank and Carburetor.a.
Clean carbon build-up from Com-b.
bustion Chamber.
Storage
Wait for Engine to cool, then clean1.
Engine with clean cloth.
When the equipment is to remain idle2.
for longer than 20 days, prepare the
Engine for storage as follows:
Change engine oil and empty Fuela.
Tank.
Either leave Fuel Tank empty orb.
rell Fuel Tank with fresh unleaded
gasoline mixed with a fuel stabilizer
intended for long term Engine stor-
age (not included). After lling, run
Engine for about 5-10 minutes to cir-
culate the treated gasoline through
the Carburetor. Wait for Engine to
cool before proceeding.
Clean out area around Spark Plug.c.
Remove Spark Plug and pour one
tablespoon of engine oil into Cylin-
der through Spark Plug hole.
Reinstall Spark Plug, but leaved.
Spark Plug Wire disconnected.
