Central Pneumatic 65903 Installation manual

240 VOLT COMPRESSOR
4 HP PEAK – 29 GALLON
65903
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of
Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein. Tools required for
assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10g

SKU 65903 For technical questions, please call 1-800-444-3353. Page 2
PRODUCT SPECIFICATIONS
Motor 240 V~ / 60 Hz / 9 A (Load) / Single Phase / 4 HP Peak /
3 HP Working / 3,400 RPM / Two Capacitor (Run & Start)
Overload Reset Button 15 A
Power Cord 12 Gauge, 3-Wire (Stripped), 10 Ft. Long
240 Volt Power Cord Plug Not Included.
Air Tank Capacity 29 Gallons
SCFM Airow 8.74 @ 40 PSI / 7.7 @ 70 PSI /
7.47 @ 90 PSI / 6.67 @ 115 PSI
Compressor Pump Type Dual V-Head Cylinder / Belt Driven
Safety Valve Setting 120 PSI
Air Pressure Gauge Indicators 0-200 PSI in 5 PSI Increments
Automatic Shut Off Capability Shut Off at 115 PSI / Starts at 80 PSI
Required Air Quick Connector (Not Included) 1/4”-18 NPT Quick Connector
V-Belt Size A1118 Li
Base Mounting Holes Qty. 4 @ 1/2” Diameter
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List at the
end of the manual are included. If any parts are missing or broken, please call Harbor
Freight Tools at the number shown on the cover of this manual as soon as possible.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and assembly
diagram. Keep your invoice with this manual. Write the invoice number on the inside
of the front cover. Keep this manual and invoice in a safe and dry place for future refer-
ence.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may
result in electric shock, re, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit.1. Cluttered benches and dark areas invite
accidents.

SKU 65903 For technical questions, please call 1-800-444-3353. Page 3
Do not operate compressors in explosive atmospheres, such as in the pres-2.
ence of ammable liquids, gases, or dust. Compressors create sparks which
may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a compressor.3.
Provide barriers or shields as needed.
ELECTRICAL SAFETY
Grounded compressors must be plugged into an outlet properly installed1.
and grounded in accordance with all codes and ordinances. Never remove
the grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualied electrician if you are in doubt as to whether the
outlet is properly grounded. If the compressors should electrically malfunction
or break down, grounding provides a low resistance path to carry electricity away
from the user.
Do not expose compressors to rain or wet conditions.2. Water entering an elec-
tric motor will increase the risk of electric shock.
Do not abuse the Power Cord.3. Never use the Power Cord to pull the Plug
from an outlet. Keep the Power Cord away from heat, oil, sharp edges, or
moving parts. Replace damaged Power Cords immediately. Damaged Power
Cords increase the risk of electric shock.
AN EXTENSION CORD MUST4. NEVER BE USED WITH THIS ITEM. Connecting
this item to an outlet through an extension cord MAY CAUSE ELECTRICAL
DAMAGE TO THE MOTOR and could present a FIRE HAZARD.
PERSONAL SAFETY
Stay alert. Watch what you are doing, and use common sense during use.1.
Do not use while tired or under the inuence of drugs, alcohol, or medica-
tion. A moment of inattention while operating may result in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair.2.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Avoid accidental starting.3. Be sure the Power Switch Lever is turned off
before plugging in. Plugging in compressors with the Power Switch Lever on,
invites accidents.
Remove adjusting keys or wrenches before turning the compressor on.4. A
wrench or a key that is left attached to a rotating part of the compressor may result
in personal injury.
Do not overreach. Keep proper footing and balance at all times.5.

SKU 65903 For technical questions, please call 1-800-444-3353. Page 4
Use safety equipment. Always wear eye protection.6. Make sure you are wear-
ing your protective clothing, safety glasses with side shields and dust mask or air
respirator, if appropriate.
TOOL USE AND CARE
Do not force the compressor. Use the correct compressor for your applica-1.
tion. The correct compressor will do the job better and safer at the rate for which it
is designed. Never attempt to force the compressor to provide more pressure than
it was designed for.
Do not use the compressor if the Power Switch Lever does not turn it on or2.
turn it off. Any compressor that cannot be controlled with the Power Switch Lever
is dangerous and must be repaired or replaced.
Disconnect the Power Cord Plug from the power source before making any3.
adjustments, changing accessories, or storing the compressor. Such preven-
tive safety measures reduce the risk of starting the compressor accidentally.
Keep idle compressors out of reach of children and other untrained persons.4.
Compressors are dangerous in the hands of untrained users.
Maintain compressors with care. Keep all components of this product clean5.
and dry. Do not use a damaged compressor. Tag damaged compressors “Do not
use” until repaired.
Check for misalignment or binding of moving parts, breakage of parts, and6.
any other condition that may affect the compressor’s operation. If damaged,
have the compressor serviced before using. Many accidents are caused by
poorly maintained compressors.
Use only accessories that are recommended by the manufacturer for your7.
model. Accessories that may be suitable for one compressor may become haz-
ardous when used on another compressor.
SERVICE
Compressor service must be performed only by qualied repair personnel. 1.
Service or maintenance performed by unqualied personnel could result in a risk of
injury.
When servicing a compressor, use only identical replacement parts. Follow2.
instructions in the “Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.

SKU 65903 For technical questions, please call 1-800-444-3353. Page 5
SPECIFIC SAFETY RULES
CAUTION! Prior to its1. rst use, and thereafter prior to each subsequent use,
make sure to ll the Air Compressor with a premium quality, 30 weight, non-
detergent oil to the specied level. Running the Air Compressor with no oil or
with low oil will cause damage to the equipment and void its warranty. Refer to the
“Operating Instructions” section for details on lling the Air Compressor with oil.
When lling the Air Compressor with oil, make sure to 2. unscrew (do not pull)
the Oil Fill Cap to remove.
Use eye and ear protection.3. Always wear ANSI-approved safety impact eye
goggles, and ear plugs when using the Air Compressor.
Make sure all tools and equipment used with the Air Compressor are rated to4.
the appropriate air pressure capacity of the Air Compressor. Do not use any
tool or equipment that does not operate from 0-115 PSI. If necessary, check the
owner’s manual of the tool or equipment for its air pressure rating.
Always disconnect the Air Compressor from its electrical outlet, release any5.
remaining air pressure from the unit, and disconnect all pneumatic tools and
equipment from the unit, before performing any services or maintenance.
Avoid injury. Never direct the air jet at people or animals.6.
Inspect safety valve daily7. . If the safety valve is not working properly, tank pres-
sure can build up to dangerous levels. The tank could explode. For this reason,
pull the ring on the safety valve before each use and verify that it operates freely.
Replace safety valve if it does not operate freely.
Never remove or alter the factory sealed Safety Release Valve.
Do not attempt to readjust the automatic start and shutoff valves.8. Any
change to the automatic ON/OFF pressure levels will cause additional stress on
the motor, which may result in shortened motor life.
Drain the Air Compressor’s air tank every day.9. Do not allow moisture to build
up inside the Air Tank.
Do not unscrew the tank drain valve so that10. more than four threads are
showing.
Avoid risk of tank explosion11. .
Avoid weakening of tank by draining condensation after each use.a.
Never modify tank by drilling holes, welding to it, or modifying it’s parts.b.
The tank is designed, and factory set, to operate within a specic pressure range. c.
For that reason, never make adjustments to, or substitute parts, to the compres-
sor.
Avoid bodily injury from moving parts12. . The compressor cycles on automatically,
without notice. For this reason, always keep hands and arms away from compres-

SKU 65903 For technical questions, please call 1-800-444-3353. Page 6
sor parts when the unit is connected to electrical power. Always have compressor
safety guards in place before turning compressor on.
Use approved air hose13. . Never use plastic or PVC pipe (unless specied for Air
Compressors) to carry air under pressure. Regardless of its pressure rating, it can
burst under pressure. Use only metal pipe.
Never plug the power cord of this product into an electrical outlet while14.
standing on a wet or damp surface.
THIS AIR COMPRESSOR MAY REQUIRE A DEDICATED ELECTRICAL CIR-15.
CUIT AS THE AMPERAGE DRAW UNDER FULL LOAD, COMBINED WITH USE
OF ANY OTHER ITEM, MAY OVERLOAD YOUR CIRCUIT.
Always turn off the Air Compressor in the event of a power failure.16.
Performance of this Air Compressor may vary depending on variations in lo-17.
cal line voltage.
Maintain labels and nameplates on the Air Compressor.18. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replace-
ment.
19. WARNING! People with pacemakers should consult their physician(s) before
using this product. Electromagnetic elds in close proximity to a heart pacemaker
could cause interference to or failure of the pacemaker.
20. WARNING! The brass components of this product contain lead, a chemical
known to the State of California to cause birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5, et seq.)
21. WARNING! The warnings, precautions, and instructions discussed in this
instruction manual cannot cover all possible conditions and situations that may
occur. It must be understood by the operator that common sense and caution are
factors which cannot be built into this product, but must be supplied by the opera-
tor.
SAVE THESE INSTRUCTIONS
GROUNDING
1. WARNING! The Power Cord (31) requires the attachment of a 240 volt,
grounded, 3-Prong Plug (not included). For safety purposes, only a qualied,
certied, electrician should attach a Plug to the Power Cord. Never modify the
Plug in any way. To comply with the National Electric Code, and to provide addi-
tional protection from the risk of electrical shock, this product should only be con-
nected to a 240 volt electrical outlet that is properly grounded.
Do not use the tool if the Power Cord or Plug is damaged.2. If damaged, have it
repaired by a qualied service facility before use.

SKU 65903 For technical questions, please call 1-800-444-3353. Page 7

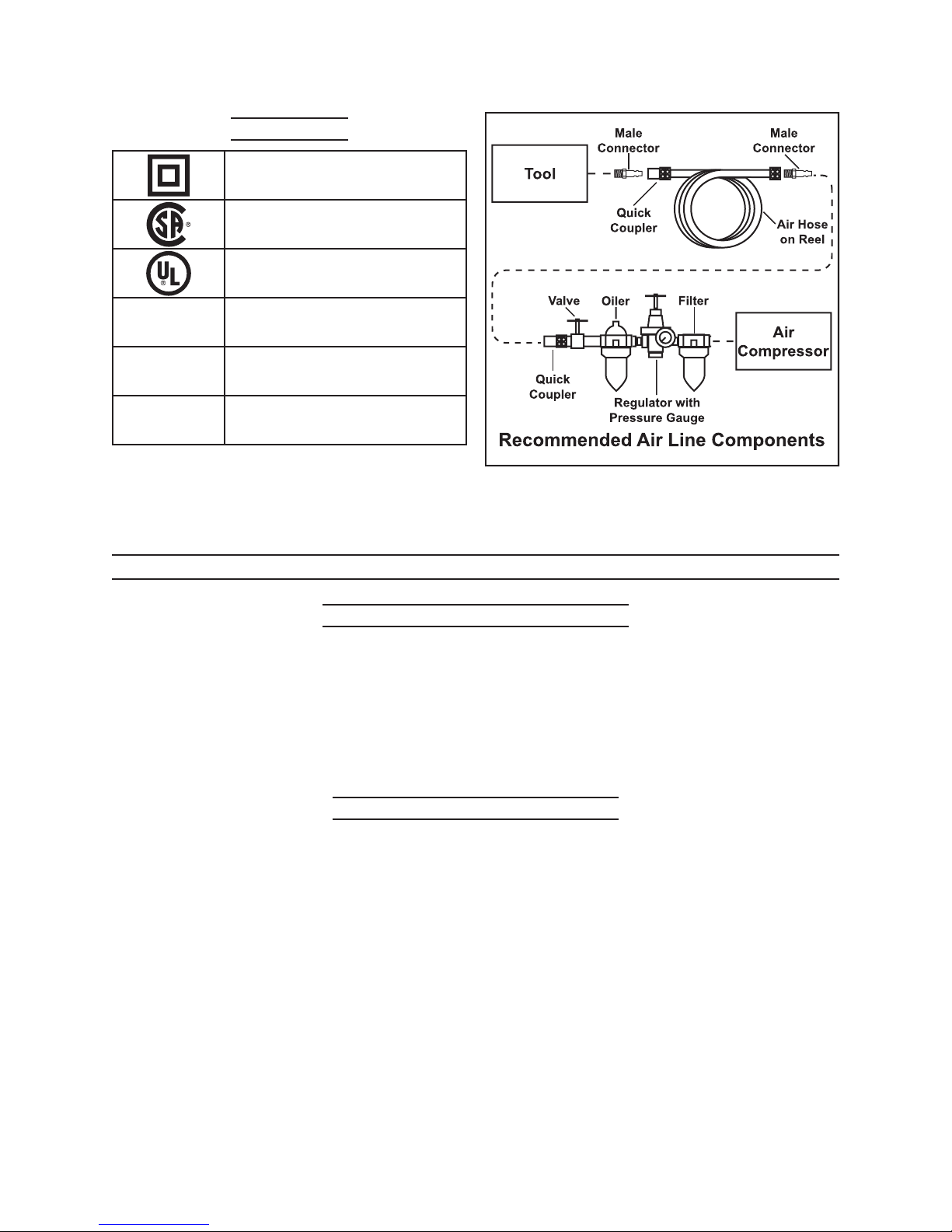

Symbology
Double Insulated
Canadian Standards Association
Underwriters Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0xxxx/min. No Load Revolutions per Minute
(RPM)
To extend the life of your air tools and equipment, install an oiler and water lter
in series with the Air Outlet Valve (4) of the Air Compressor.
ASSEMBLY INSTRUCTIONS
To Attach A Power Cord Plug:
The Power Cord (31) requires the attachment of a 240 volt, grounded,
3-Prong Plug (not included). For safety purposes, only a qualied, certied, electrician
should attach a Plug to the Power Cord. Never modify the Plug in any way. To com-
ply with the National Electric Code, and to provide additional protection from the risk of
electrical shock, this product should only be connected to a 240 volt electrical outlet that
is properly grounded.
To Attach Quick Connector:
Prior to use, the Air Compressor requires the attachment of a 1/4” NPT Quick
Connector (not included) to the Air Outlet Valve (4). To do so, wrap approximately 4” of
pipe thread sealant tape (not included) around the male threads of the Quick Connector.
Then, rmly screw the Quick Connector into the Air Outlet Valve. (See Figure D.)

SKU 65903 For technical questions, please call 1-800-444-3353. Page 8
To Fill The Air Compressor With Oil:
AIR
OUTLET VALVE
(4)
OIL FILL CAP
(28)
OIL LEVEL
INDICATOR
(35)
FIGURE D
1. CAUTION! Prior to its rst use, and thereafter prior to each subsequent
use, make sure to ll the Air Compressor with a premium quality, 30 weight,
non-detergent oil. Running the Air Compressor with no oil or low oil will cause
damage to the equipment and void its warranty.
When lling the Air Compressor with oil, make sure to 2. unscrew (do not pull) the Oil
Fill Cap (28) to remove. (See Figure D.)
Once the Oil Fill Cap (28) is removed, ll the Air Compressor with a premium qual-3.
ity, 30 weight, non-detergent oil until the level of the oil rises to the midway point
in the Oil Level Indicator (35). Then, screw the Oil Fill Cap back onto the Oil Fill
Hole. (See Figure D.)
NOTE: When the Compressor is running, some oil will escape the Oil Fill Cap4.
bleeder; this is a normal occurance.
To Mount The Air Compressor:
1. WARNING! Verify that installation surface has no hidden utility lines before drill-
ing or driving screws.
For added safety, it is recommended that the Air Compressor be mounted on a at, 2.
level, sturdy, concrete oor surface capable of withstanding the weight of the Air
Compressor and any additional tools and accessories.
REV 09b

SKU 65903 For technical questions, please call 1-800-444-3353. Page 9
To mount the Air Compressor, with assistance, move the unit to the location where3.
it is to be used. Using the four 1/2” diameter mounting holes on the feet of the
Air Compressor as a template, mark the spots where four 1/2” diameter holes will
be drilled in the concrete or wood oor. Then, temporarily set the Air Compressor
aside.
Use a masonry drill bit to drill the four 1/2” diameter holes (about 3”-4” deep) into4.
the concrete. Make sure to blow out the concrete dust from the drilled holes.
Set the Air Compressor back to the location where it is to be used, and align the5.
four 1/2” diameter mounting holes in its legs with the four pre-drilled 1/2” holes in
the concrete or wood. Then use four minimum 3” long, 1/2” diameter, concrete an-
chor bolts or lag bolts (not included) to secure the Air Compressor to the concrete
or wood oor.
OPERATING INSTRUCTIONS

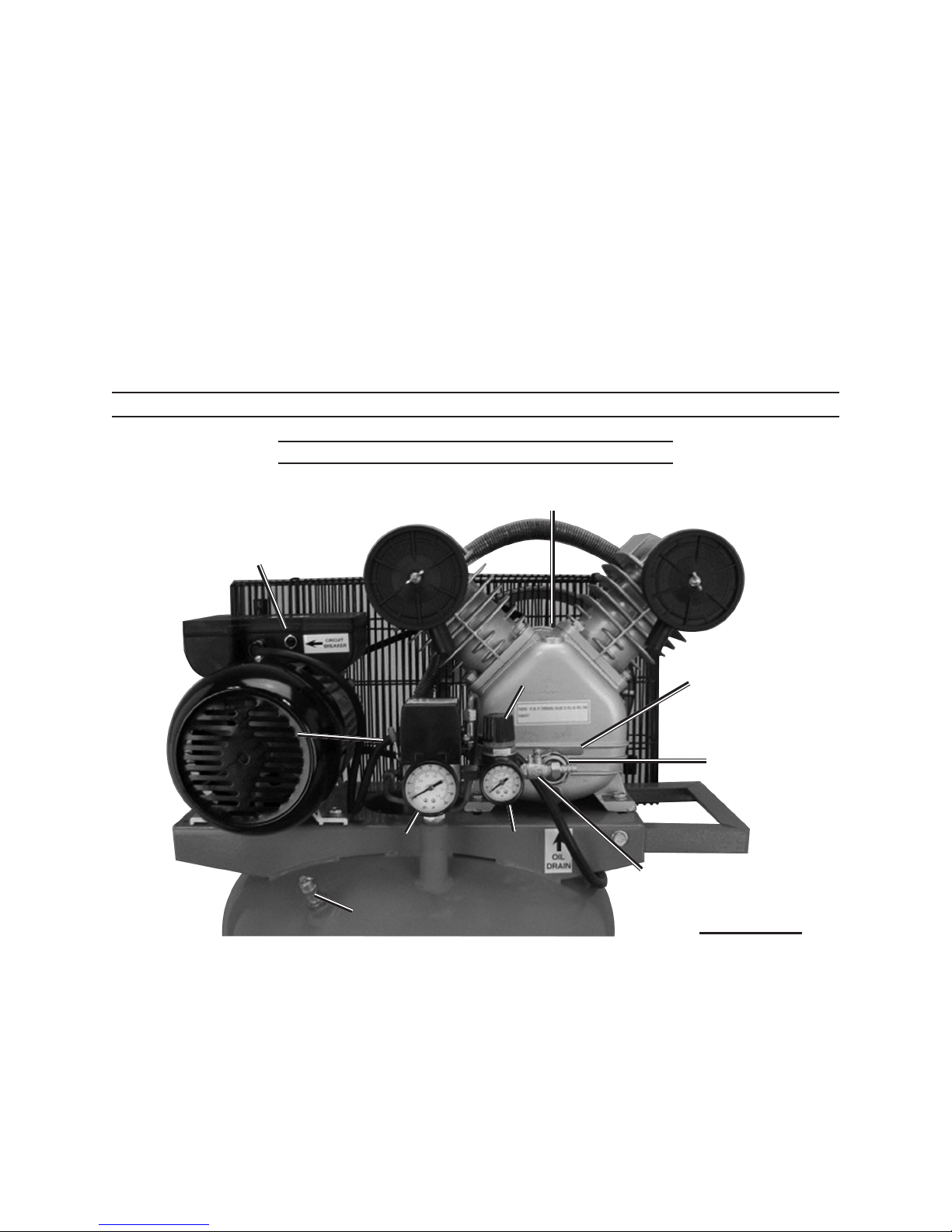

Air Compressor Pre-Start Procedures:
AIR
OUTLET VALVE
(4)
OIL FILL CAP
(28)
OIL LEVEL
INDICATOR
(35)
OUTLET
PRESSURE
GAUGE (5)
TANK
PRESSURE
GAUGE (5A)
PRESSURE
ADJUSTMENT
KNOB
(6)
POWER SWITCH LEVER
(9)
AIR OUTLET
VALVE
LEVER
OVERLOAD
RESET
BUTTON
(42)
SAFETY RELEASE VALVE (3) FIGURE E
1. Press the Power Switch Lever (9) down to its “OFF” position.
(See Figure E.)
Check the Oil Level Indicator (35), making sure the level of the oil is at the midway2.
point on the Indicator. (See Figure E.)
Check to make sure the Tank Drain Valve (33) is fully closed.3. NOTE: The Tank
Drain Valve is located on the bottom of the Air Tank (32). (See Assy. Diagram.)

SKU 65903 For technical questions, please call 1-800-444-3353. Page 10
Turn the Pressure Adjustment Knob (6)4. counterclockwise all the way to its “OFF”
position. (See Figure E.)
Turn Lever on Air Outlet Valve (4) backward to5. closed position. (See Figure E.)
Attach an air hose (not included) to Air Outlet Valve. Then, attach the other end of6.
the air hose to the pneumatic tool that will be used. (See Figure E.)
To Start The Air Compressor:
Plug the Power Cord Plug (31) into the nearest 240 volt, grounded, electrical out-1.
let.
Rotate the Power Switch Lever (9) up to its2. “ON” position. (See Figure E.)
Turn the Pressure Adjustment Knob (6)3. clockwise about halfway to its “ON” posi-
tion. (See Figure E.)
Allow sufcient time for Tank Pressure Gauge (5A) to indicate at least 4. 80 PSI.
(See Figure E.)
Check to make sure the pneumatic tool which will be used is turned off and prop-5.
erly connected to air hose.
Once the Tank Pressure Gauge (5A) has reached at least 80 PSI, turn the Lever6.
on the Air Outlet Valve (4) forward to its open position in order to supply air to the
pneumatic tool. (See Figure E.)
If necessary, turn the Pressure Adjustment Knob (6)7. clockwise to increase air
pressure to the pneumatic tool or counterclockwise to decrease air pressure to the
pneumatic tool. The Outlet Pressure Gauge (5) shows the air pressure being sup-
plied to the tool. (See Figure E.)
To Use The Air Tank Safety Release Valve:
The Safety Release Valve (3) is used when decompression is needed quickly and1.
efciently. (See Figure E.)
To decompress the Air Tank (32) pressure, rotate the Power Switch Lever (9) to the2.
OFF position to turn off the Air Compressor. (See Figure E.)
Pull out on the Safety Release Valve Ring (3) to immediately release air pressure3.
in the Air Tank (32). (See Figure E.)
To Use The Overload Reset Button:
The Air Compressor is equipped with an internal electrical circuit breaker which is1.
designed to automatically shut off the Air Compressor in the event its Motor (14)
becomes overheated. (See Figure E.)
Should the Air Compressor automatically shut off at a pressure less than 115 PSI,2.
rotate the Power Switch Lever (9) down to its “OFF” position. (See Figure E.)

SKU 65903 For technical questions, please call 1-800-444-3353. Page 11
Wait several minutes to allow the Air Compressor’s Motor (14) to cool.3.
Press the Overload Reset Button (42) to reset the electrical circuit breaker. If it4.
does not reset, wait a few additional minutes and try again. Then, rotate the Power
Switch Lever (9) to its “ON” position to resume work. (See Figure E.)
To Turn Off The Air Compressor:
When nished using the Air Compressor, press down on its Power Switch Lever (9) 1.
to turn off the unit.
(See Figure E.)
Disconnect the Power Cord Plug (31) from its electrical outlet.2.
Turn on the pneumatic tool to expend all remaining compressed air from Air Com-3.
pressor, air hoses, and pneumatic tools.
Turn Pressure Adjustment Knob (6)4. counterclockwise all the way to its “OFF” posi-
tion. (See Figure E.)
Turn Lever on Air Outlet Valve (4) backward to5. closed position. (See Figure E.)
Disconnect air hose from Air Outlet Valve (4).6. (See Figure E.)
Disconnect air hose from pneumatic tool. Keep air hose and pneumatic tool in a7.
clean, dry location out of reach of children.

SKU 65903 For technical questions, please call 1-800-444-3353. Page 12
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always make sure the Power Switch Lever (9) is in its “OFF”
position, the Air Compressor is disconnected from its electrical outlet, and
all remaining compressed air is expelled from the system before performing
any inspection, maintenance, or cleaning.
Before each use:2. Inspect the general condition of the Air Compressor. Check for
misalignment or binding of moving parts, cracked or broken parts, loose or dam-
aged connections, and any other condition that may affect its safe operation. If
abnormal noise or vibration occurs, have the problem corrected before further use.
Do not use damaged equipment.
FIGURE F
OIL FILL HOLE
PCV FILTER
(41)
OIL FILL CAP
(28)
3. Before each use: Make sure to ll the Air Compressor with a premium quality, 30
weight, non-detergent oil. Running the Air Compressor with no oil or low oil will
cause damage to the equipment and void its warranty. When lling the Air Com-
pressor with oil, make sure to unscrew (do not pull) the Oil Fill Cap (28) to remove.
Fill with oil until the level of the oil rises to the midway point in the Oil Level Indica-
tor (35). Then, screw the Oil Fill Cap back onto the Oil Fill Hole. NOTE: When the
Compressor is running, some oil will escape the Oil Fill Cap bleeder; this is a
normal occurance. Periodically clean up this oil overow. (See Figure F.)
NOTE:4. Each time the Oil Fill Cap (28) is removed, observe the PCV Filter (41)
that is located inside the Oil Fill Cap. When necessary, remove the PCV Filter and
clean with a mild solvent. Allow the PCV Filter to dry. Then, replace the PCV Filter
REV 09b

SKU 65903 For technical questions, please call 1-800-444-3353. Page 13
in the Oil Fill Cap, and screw the Oil Fill Cap back onto the oil ll hole.
(See Figure F.)
FIGURE G
WING NUT
(36)
WING NUT
(36)
AIR FILTER
(38)
AIR FILTER BOWL
(39)
AIR FILTER CAP
(37)

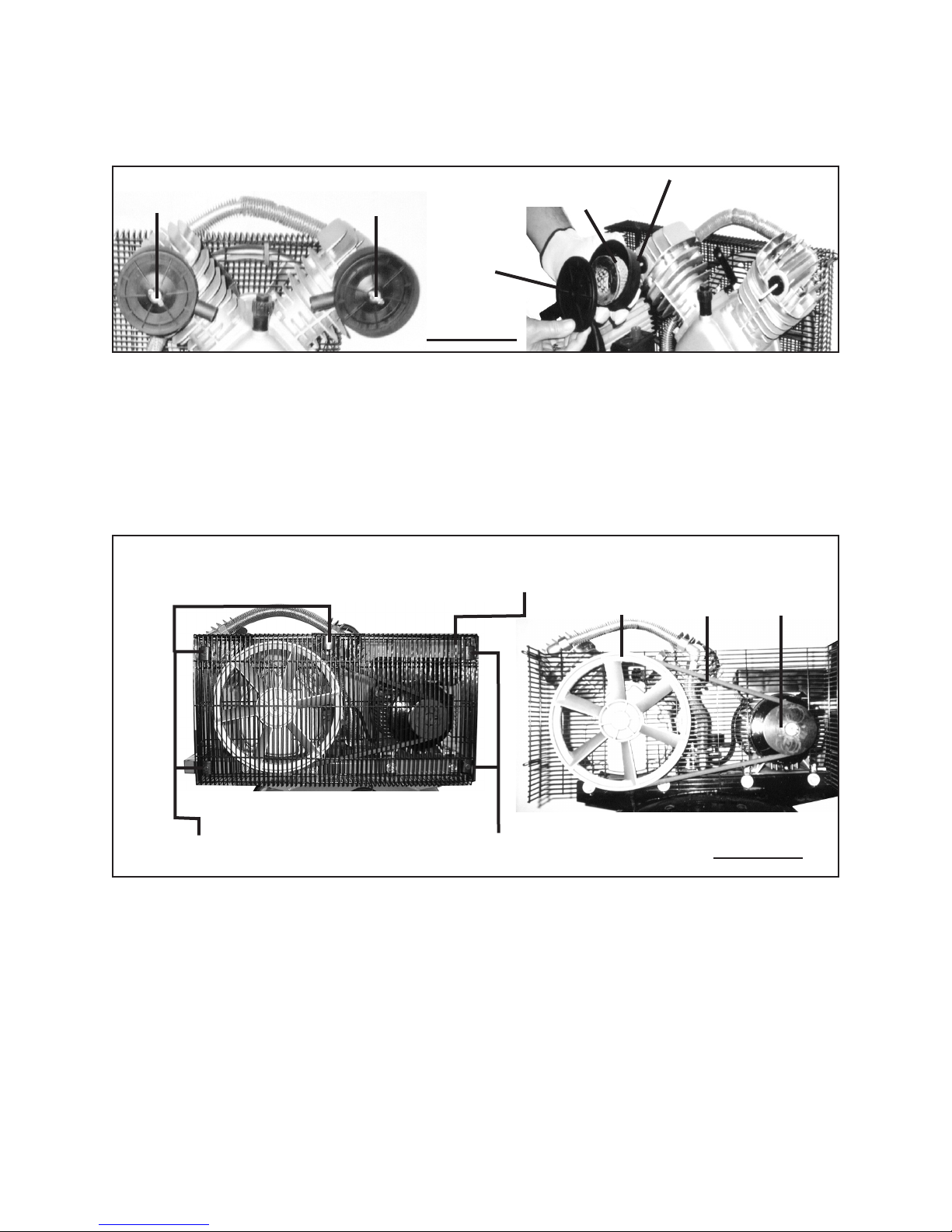

5. Weekly: The Air Compressor is equipped with two Air Filters (38) which should
be cleaned or replaced on a weekly basis. To clean or replace Air Filters, unscrew
and remove Wing Nut (36) on Air Filter Cap (37). Remove Air Filter Cap, Air Filter,
and Air Filter Bowl (39). Clean Air Filter with compressed air or, if necessary, re-
place old Air Filter with a new Air Filter. Clean Air Filter Cap and Air Filter Bowl with
a mild solvent, then dry. Replace Air Filter Bowl, Air Filter, Air Filter Cap, and Wing
Nut. Repeat these procedures for remaining Air Filter. (See Figure G.)
NUT (24)
CLIP (23)
NUT (24)
CLIP (23)
OUTER GUARD
SCREEN
(25) LARGE
BELT WHEEL
V-BELT
(27)
MOTOR
PULLEY (14)
FIGURE H
6. To replace the V-Belt: The Air Compressor is equipped with a V-Belt (size: A1118
Li). To replace the V-Belt, remove the ve Nuts (24) and Clips (23) on the Outer
Guard Screen (25). Then, remove the Outer Guard Screen.
(See Figure H.)

SKU 65903 For technical questions, please call 1-800-444-3353. Page 14
SIDE VIEW END VIEW
FIGURE I
SCREW
(30)
SCREW
(30)
SCREW
(30)

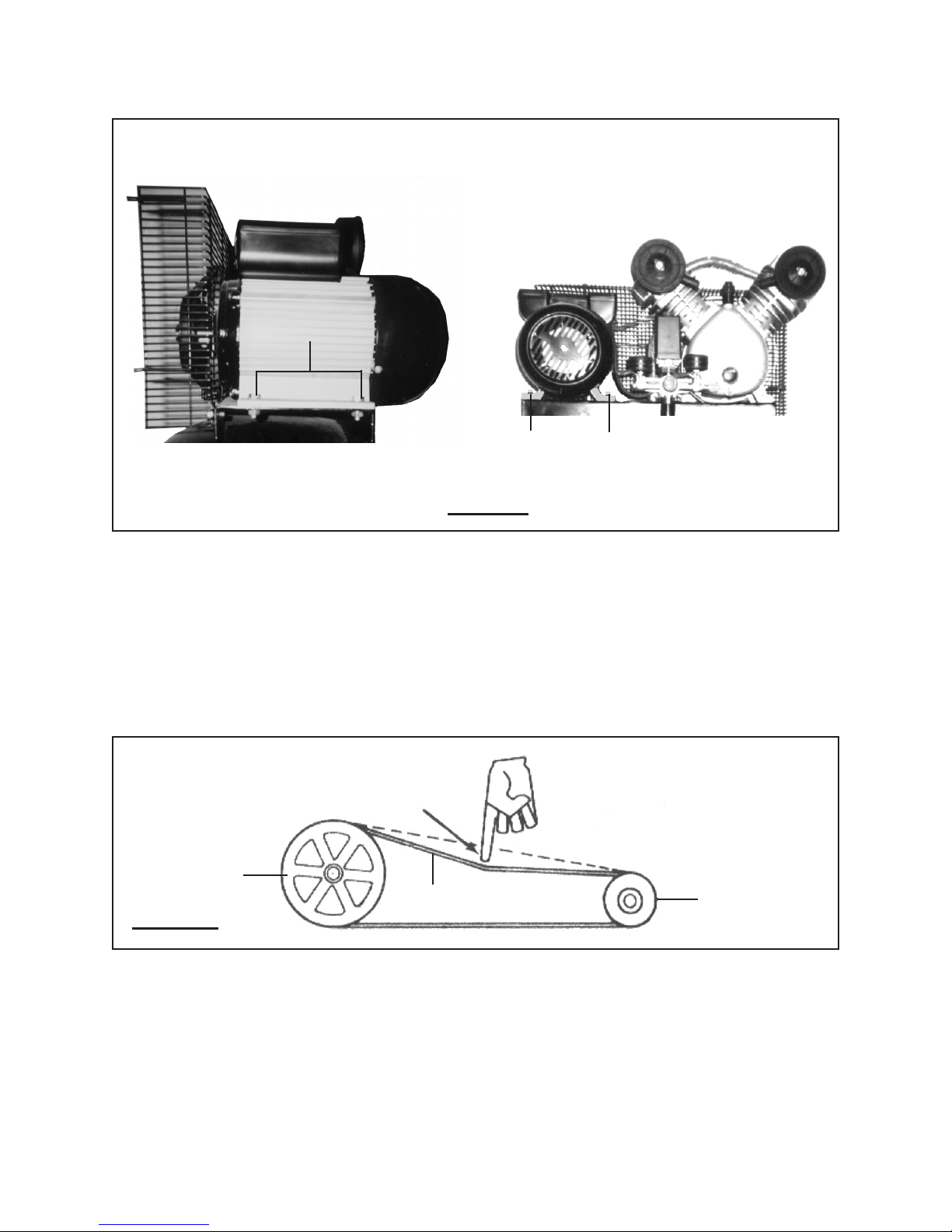

7. Loosen four Screws (30) which hold Motor (14) in place. Then, slide Motor toward
Large Belt Wheel to loosen tension on V-Belt (27).
(See Figures H and I.)
Remove loose V-Belt (27) from Large Belt Wheel and Motor Pulley (14).8.
(See Figure H.)
Install a new V-Belt (27) on Large Belt Wheel and Motor Pulley (14).9.
(See Figure H.)
MOTOR PULLEY
(14)
LARGE
BELT WHEEL
3/4”
V-BELT
(27)
FIGURE J
10. Slide the Motor (14) back toward its original position to tighten the tension on the
V-Belt (27). NOTE: To determine the proper tension on the V-Belt, with your index
nger press down on the V-Belt. The V-Belt should deect downward about 3/4”.
If necessary move the Motor Pulley (14) toward or away from the Large Belt Wheel
until the V-Belt deects downward 3/4”. Then, retighten the four Screws (3) to se-
cure the Motor (14) in place. (See Figures I and J.)

SKU 65903 For technical questions, please call 1-800-444-3353. Page 15
To clean,11. use a shop vacuum cleaner, or use compressed air.
When storing,12. make sure to keep the Air Compressor in a safe, clean, and dry
location out of reach of children.
13. CAUTION! All maintenance, service, or repairs not listed in this manual
are only to be attempted by a qualied service technician.
LIMITED 1 YEAR / 90 DAY WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that for a period
of one year from date of purchase that the tank is free of defects in materials and work-
manship (90 days if used by a professional contractor or if used as rental equipment).
Harbor Freight Tools also warrants to the original purchaser, for a period of ninety days
from date of purchase, that all other parts and components of the product are free from
defects in materials and workmanship. This warranty does not apply to damage due di-
rectly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations out-
side our facilities, normal wear and tear, or to lack of maintenance. We shall in no event
be liable for death, injuries to persons or property, or for incidental, contingent, special
or consequential damages arising from the use of our product. Some states do not allow
the exclusion or limitation of incidental or consequential damages, so the above limita-
tion of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection veries the defect, we will ei-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]

SKU 65903 For technical questions, please call 1-800-444-3353. Page 16
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
PARTS LIST
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
Part Description Qty.
1 Flat Washer (8) 4
2 Screw (M8x16) 4
3 Safety Release Valve 1
4 Air Outlet Valve 1
5 Outlet Pressure Gauge 1
5A Tank Pressure Gauge 1
6 Pressure Adjustment Knob 1
7 Connector 1
8 Double Joints 1
9 Power Switch Lever 1
10 Screw (M8x25) 4
11 Spring Washer (8) 8
12 Flat Washer (8) 8
13 Nut (M8) 8
14 Motor Pulley 1
15 Tube 1
16 Cap 1
17 Ring 1
18 Connector 1
19 No Return Valve 1
20 Exhaust 1
21 Bracket 1
22 Screw (M5x16) 5
23 Clip (5) 5
24 Nut (M5) 5
25 Outer Guard Screen 1
26 Inner Guard Screen 1
Part Description Qty.
27 V-Belt (A1118 Li) 1
28 Oil Fill Cap 1
29 Head Assembly 1
30 Screw (M8x16) 1
31 Power Cord 1
32 Air Tank 1
33 Tank Drain Valve 1
34 Nut 2
35 Oil Level Indicator 1
36 Wing Nut 2
37 Air Filter Cap 2
38 Air Filter 2
39 Air Filter Bowl 2
40 Oil Drain Plug 1
41 PCV Filter 1
42 Overload Reset Button 1
43 Large Belt Wheel 1
44 Ball 1
45 Motor Capacitor Box 1
46 Start Capacitor (CD60) 1
47 Run Capacitor (CB860) 1
48 Motor 1
49 Large Washer 1
50 Key 1
REV 10g

SKU 65903 For technical questions, please call 1-800-444-3353. Page 17
ASSEMBLY DIAGRAM
REV 10g
