Central Pneumatic 93657 User manual

1/8 HP OIL-LESS AIRBRUSH COMPRESSOR
WITH REGULATOR
Model 93657
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at: http://www.harborfreight.com
Copyright©2005 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Due to continuing improvements, actual product may differ slightly from the product described herein.

SKU 93657 For technical questions, please call 1-800-444-3353. Page 2
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep
your invoice with this manual. Write the invoice number on the inside of the front cover.
Keep this manual and invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES AND PRECAUTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
stnemeriuqeRlacirtcelE
MPR057,1/rotoMPH8/1/zH06/V021 hctiwSrewoPrekcoRFFO/NO gulPrewoPdednuorG,gnorP-3 )C
3xGWA81(droCrewoPgnoL'6
epyTrosserpmoCpmuPssel-liO,rednilyCelgniS
noitcetorPlamrehT .esiRerutarepmeTeviss
ecxErO/dnAdaolrevOnOffO-tuhScitamotuAlanretnI .slooCtinUnehWteseRcitamotuA
erusserPriAmumixaMISP65
erusse
rPriAgnikroW)suounitnoc(ISP04-0
tuptuOriAISP02@MFC5.
ffO-tuhScitamotuA ISP34tAtratScitamotuA/ISP65tAffO-tu
hScitamotuA
eguaGerusserP)stnemercnIISP2(ISP001-0
eziSteltuOriA retpadAelaMTPN"4/1htiwteltuOriASPN82-"8/1
snoisnemiDesoH )sedishtob-retpadAelameFSPN82-"8/1(gnoL'01xDI"751.xDO"632.
snoisnemiDllarevOH"4/1-9xW"8/3
-5xL"4/1-9
snoisnemiDesaBH"1xW"8/3-5xL"8/3-7
epaTlaeSdaerhTepiPdedulcnilloR1
thgieWsdnuoP8
REV 01/06

SKU 93657 For technical questions, please call 1-800-444-3353. Page 3
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when operating
a power tool. Do not use a power tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.Keep
your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry,
or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure the Power Switch (34) is in its“OFF” posi-
tion before moving the Compressor
and before performing any service, main-
tenance, or cleaning procedures on the unit.
4. Remove adjusting keys or wrenches before turning the Compressor on. A
wrench or a key that is left attached to a rotating part of the machine may result in
personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
6. Use safety equipment. Always wear eye protection. Always wear ANSI-
approved safety impact goggles when using this product.
TOOL USE AND CARE
1. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
2. Do not use the Compressor if the Power Switch (34) does not turn it on or
off. Any tool that cannot be controlled with its power switch is dangerous and
must be replaced.
3. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
4. Maintain tools with care. Properly maintained tools with a sharp cutting edge are
less likely to bind and are easier to control. Do not use a damaged tool. Tag dam-
aged tools “Do not use” until repaired.
5. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have the

SKU 93657 For technical questions, please call 1-800-444-3353. Page 4
SPECIFIC SAFETY RULES AND PRECAUTIONS
1. Maintain labels and nameplates on the Air Compressor. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a replace-
ment.
2. DANGER! This Air Compressor is NOT equipped and should not be used “as
is” to supply breathing quality air. For any application of air for human consumption,
you must fit the Air Compressor with suitable inline safety and alarm equipment (not
included). This additional equipment is necessary to properly filter and purify the air
to meet minimal specifications for Grade D breathing as described in Compressed
Gas Association Commodity Specification G 7.1-1966, OSHA 29 CFR 1910. 134,
and/or Canadian Standards Associations (CSA). In the event the Air Compressor
is used for the purpose of breathing air application and proper inline safety and
alarm equipment is not simultaneously used, existing warranties are void, and Har-
bor Freight Tools disclaims any liability whatsoever for any loss, personal injury, or
damage.
3. Make sure all tools and equipment used with the Air Compressor are rated to
the appropriate capacity. Do not use any tool or equipment that does not operate
from 3 PSI to 40 PSI.
4. Drain the Air Compressor every day. Do not allow excessive moisture to build up
inside the Air Compressor. Do not open the Water Drain Valve (40) with more than
10 PSI of air pressure in the Compressor.
5. Avoid injury. Never direct compressed air at people or animals. Never direct air-
flow at eyes and ears.
tool serviced before using. Many accidents are caused by poorly maintained
tools.
6. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous when
used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow instruc-
tions in the
“Inspection, Maintenance, And Cleaning” section of this manual.
Use of unauthorized parts or failure to follow maintenance instructions may create a
risk of electric shock or injury.

SKU 93657 For technical questions, please call 1-800-444-3353. Page 5
6. Make sure the Air Compressor is located on a flat, level, sturdy surface ca-
pable of supporting the weight of the Compressor and any additional tools
and equipment.
7. Industrial applications must follow OSHA guidelines.
8. Never stand on the Air Compressor. Serious injury could result if the Compres-
sor is tipped.
9. Never leave the Air Compressor unattended when it is plugged in and run-
ning. Turn off the Compressor, and unplug the unit before leaving.
10. Do not allow children and other unauthorized people to handle or play with
the Air Compressor.
11. Do not move or transport the Compressor if the unit is under pressure.
12. Do not force the Compressor. This tool will do the work better and safer at the
speed and capacity for which it was designed.
13. This Compressor will automatically shut off on overload or under excessive
heat. Should this occur, turn the Power Switch (34) to its “OFF” position. Wait until
the Compressor cools. Then, turn the Power Switch to its “ON” position to resume
work.
14. Spray painting only. Never use this unit with gasoline, kerosene, or any other
flammable solvent.
15. WARNING! The brass components of this product contain lead, a chemical
known to the State of California to cause birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5,
et seq. )
16. WARNING! People with pacemakers should consult their physician(s) before
using this product. Operation of electrical equipment in close proximity to a heart
pacemaker could cause interference to or failure of the pacemaker.
17. WARNING! The warnings and precautions discussed in this manual cannot
cover all possible conditions and situations that may occur. It must be understood
by the operator that common sense and caution are factors which cannot be built
into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS

SKU 93657 For technical questions, please call 1-800-444-3353. Page 6
Improperly connecting the grounding wire can result in the risk of electric shock.
Check with a qualified electrician if you are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord plug provided with the tool. Never
remove the grounding prong from the plug. Do not use the tool if the power cord or
plug is damaged. If damaged, have it repaired by a service facility before use. If the
plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of electric
shock. (See Figure A.)
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure A.)
3. Your tool must be plugged into an appropriate outlet, properly installed and
grounded in accordance with all codes and ordinances. The plug and outlet
should look like those in the following illustration. (See Figure A.)
GROUNDING
WARNING!
THIS PRODUCT
USES A
3-PRONG PLUG
120 VOLT, GROUNDED,
ELECTRICAL OUTLET
FIGURE A

SKU 93657 For technical questions, please call 1-800-444-3353. Page 7
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure B.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure B.)
THIS PRODUCT
DOES NOT USE A
2-PRONG PLUG
20 VOLT, GROUNDED,
ELECTRICAL OUTLETS
FIGURE B
SYMBOLOGY
FIGURE C

SKU 93657 For technical questions, please call 1-800-444-3353. Page 8
UNPACKING
When unpacking, check to make sure all the parts shown on the Parts List on page 11
are included. If any parts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
SETUP INSTRUCTIONS
1. CAUTION! Always make sure the Power Switch (34) of the Air Compressor is
in its “OFF” position and the unit is unplugged from its electrical outlet prior to per-
forming any service, maintenance, or cleaning of the Compressor.
2. Before operating, make sure the Air Compressor is set up in a well-ventilated area,
on a flat, level, solid surface well away from any flammable objects, such as drapes.
Never paint in an area without proper ventilation, or near possible ignition sources.
OPERATING INSTRUCTIONS
To Start The Compressor:
1. Insert the Power Cord Plug (35) into the nearest 120 volt, grounded, electrical out-
let. (See Figure A.)
2. Connect an Air Brush (not included) to the Air Hose (42) of the Compressor. Use
Hose Adapter (44) if needed.
3. Turn the Power Switch (34) to its “ON” position. (See Figure A.)
POWER
SWITCH
(34)
POWER
CORD
PLUG
(35)
WATER
DRAIN
VALVE (40)
HANDLE
(30)
FIGURE A PRESSURE
GAUGE (11)
Note: This Compressor is designed for
use with air brushes; never attempt to
operate this compressor with any other
type of painting equipment.
REGULATOR
KNOB (40)

SKU 93657 For technical questions, please call 1-800-444-3353. Page 9
INSPECTION, MAINTENANCE, AND CLEANING
1. CAUTION! Always make sure the Power Switch (34) of the Air Compressor is
in its “OFF” position and the unit is unplugged from its electrical outlet prior to per-
forming any service, maintenance, or cleaning of the Compressor.
2. Before each use, inspect the general condition of the Air Compressor. Check for
loose screws, misalignment or binding of moving parts, cracked or broken parts,
damaged electrical wiring, loose air fittings, and any other condition that may affect
the safe operation of the Compressor. If abnormal noise or vibration occurs, have
the problem corrected before further use.
Do not use damaged equipment.
3. After each use: The Filter (29) will fill up with moisture from air that flows through
the Filter. After each use, push the Water Drain Valve (41) under the Filter Cup to
drain out the moisture. (See Figure A.)
4. To clean, wipe with a damp cloth, using a mild detergent. Never use solvents such
as thinner, alcohol, trichloroethylene, etc. to clean the Air Compressor.
5. Always store the Air Compressor in a clean, dry, safe location out of reach of chil-
dren and other unauthorized people.
6. CAUTION! All maintenance, service,or repairs not mentioned in this manual
must only be performed by a qualified service technician.
REV 1/06
4. NOTE: The Compressor will automatically begin to run when the air pressure falls
below 43 PSI. When the maximum air pressure (56 PSI) is reached, the Compres-
sor will automatically switch to idle and the Compressor will stop operating. The
Compressor will automatically restart when the air pressure falls below 43 PSI.
(See Figure A.)
5. Adjust the regulated air pressure output as shown on the Pressure Gauge (11) by
lifting the Regulator Knob (40), turning it to the desired pressure and pressing it
back down.
6. When finished using the Air Compressor, turn its Power Switch (34) to its “OFF”
position. Bleed out any remaining air and disconnect the Air Brush. Briefly depress
the Water Drain Valve (41) to empty the unit of water after each use. (See Figure A.)
7. Always make sure to store the Air Compressor in a clean, dry, safe location out of
reach of children and other unauthorized people.

SKU 93657 For technical questions, please call 1-800-444-3353. Page 10
TROUBLESHOOTING
Problem Possible Causes Possible Solutions
The motor does not work. 1. No electrical power.
2. Damaged power cord.
3. Electrical wiring within the unit is
defective.
4. Power switch is defective.
1. Make sure the power cord is
plugged into a working, 120 volt,
grounded, electrical outlet.
2. Have a qualified service technician
replace the power cord.
3. Have a qualified service technician
replace electrical wiring.
4. Have a qualified service technician
replace power switch.
The motor runs, but it makes irregular
noises or a knocking noise.
1. Bearing is loose or damaged.
2. Screws in the connection rod are
loose.
1. Have a qualified service technician
replace the bearing.
2. Tighten the screws, or replace them
if necessary.
Not enough pressure when painting or
spraying. 1. Loose air connection(s).
2. Air hose is damaged.
3. Screws on cylinder cover are loose.
1. Check all air connections, and
tighten them if necessary.
2. Replace air hose.
3. Tighten screws.
Poor spray pattern. 1. Loose air connection(s)
2. The oil paint concentration is too
high.
3. The air brush nozzle is plugged or
dirty.
1. Check all air connections, and
tighten them if necessary.
2. Add paint thinner and mix
thoroughly.
3. Clean or change the nozzle.
Motor runs good, but no air pressure
or lack of air delivery.
1. Valve plate is unscrewed or out of
place.
2. Retainer ring is damaged after
excessive use at high pressure.
1. Open the front cover and make
sure the valve plate is in the proper
position. Tighten the screws if
necessary.
2. Have a qualified service technician
replace the retainer ring.
WARNING!
All servicing must be done with the power switch off and the power cord
unplugged from its electrical outlet.

SKU 93657 For technical questions, please call 1-800-444-3353. Page 11
PARTS LIST
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST
AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEI-
THERTHE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR
WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO
REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACE-
MENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS,
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISKS AND LIABILITY ARIS-
ING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACE-
MENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF
REPLACEMENT PARTSTHERETO.
REV 1/06
traPnoitpircseD.ytQtraPnoitpircseD.ytQ
1wercS852kcolBrednilyC1
2revoCraeR162gniR-O1
4ydoBraeR172daeHrednilyC1
5wercS482wercSpaC4
6ro
toMyranoitatS192retliF1
7gniraeB203eldnaH1
8rotoMyratoR113hctiwSerusserP1
9ydoBtnorF133resnednoC1
01thgiewretnuoC143hctiwSrewoP1
1
1eguaGerusserP153gulP/droCrewoP1
21gniraeB163daPrebbuR4
31gniRreniateR173rotcennoC1
41gniRnoisserpmoC183teltuOriA1
71rednilyC193k
niL1
81etalPevlaV204rotalugeRerusserP1
91evlaV114evlaVniarDretaW1
02wercS134esoHriA1
12teksaGtnorF144hsurBriArofretpadAesoH1
22r
evoCtnorF154TPN81"¼retpadAelaM1
32teksaGraeR164epaTlaeSdaerhT1
42gniR-O1

SKU 93657 For technical questions, please call 1-800-444-3353. Page 12
NOTE:
Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.

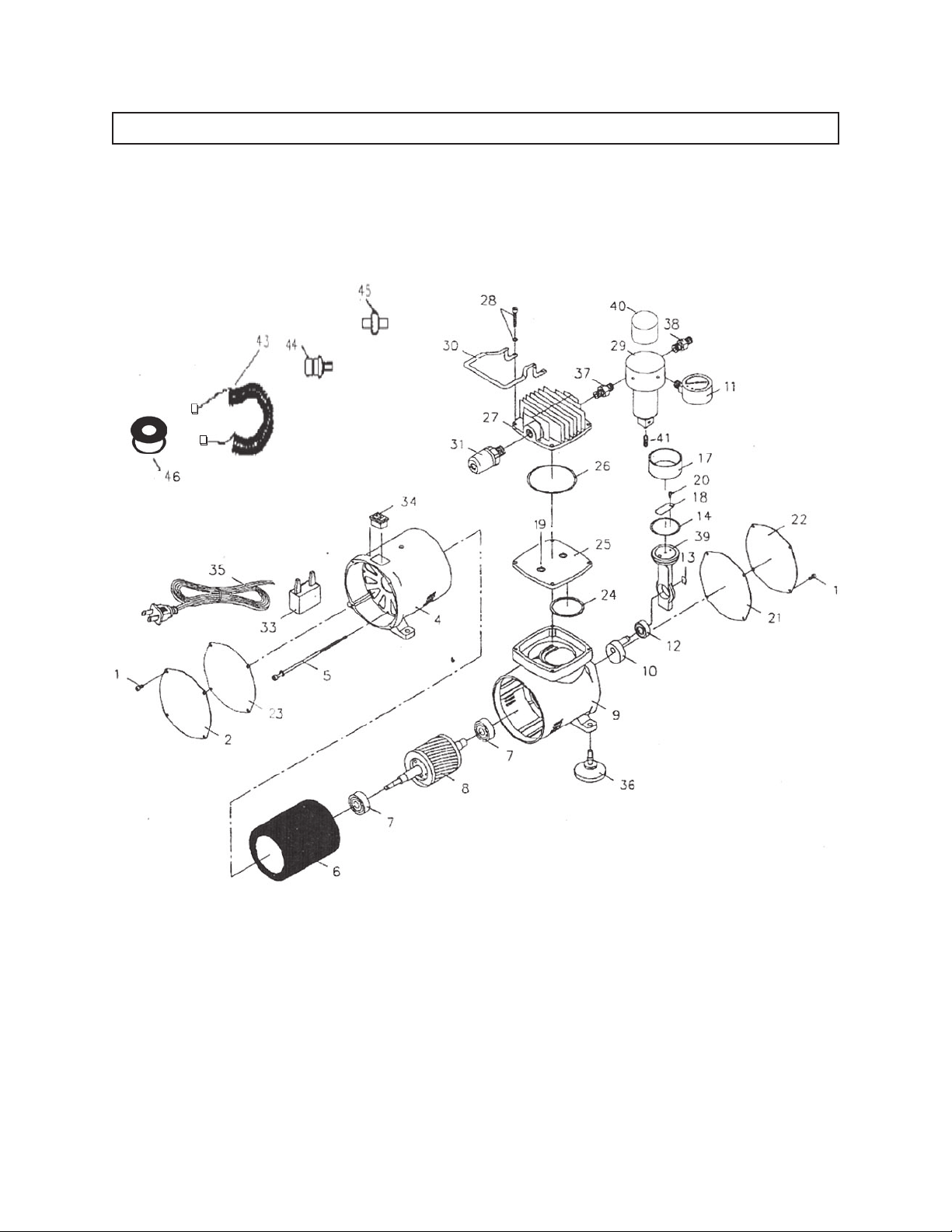

ASSEMBLY DIAGRAM
REV 1/06
