Central Pneumatic 40211 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 22l
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2022 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
Table of Contents
Safety ......................................................... 2
Installation .................................................. 6
Specifications ............................................. 6
Operation.................................................... 9
Maintenance.............................................. 10
Parts List and Diagram.............................. 11
Warranty .................................................... 12
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.

Page 3For technical questions, please call 1-888-866-5797.Item 40211
SAFETYOPERATIONMAINTENANCE INSTALLATION
IMPORTANT SAFETY INFORMATION
General Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by the operator.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate the Air Dryer in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Air Dryer motors produce sparks which
may ignite the dust or fumes.
c. Keep children and bystanders away
from an operating Air Dryer.
2. Electrical safety
a. Air Dryer plugs must match the outlet. Never
modify the plug in any way. Do not use
any adapter plugs with grounded Air
Dryers. Standard plugs and matching
outlets will reduce risk of electric shock.
b. Do not expose Air Dryer to rain or wet
conditions. Water entering a Air Dryer
will increase the risk of electric shock.
c. Do not abuse the cord. Never use the cord
for unplugging the Air Dryer. Keep cord
away from heat, oil, sharp edges or
moving parts. Damaged or entangled
cords increase the risk of electric shock.
d. Guard against electric shock. Prevent body
contact with grounded surfaces such as pipes,
radiators, ranges, and refrigerator enclosures.
3. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating this
Air Dryer. Do not use this Air Dryer while
you are tired or under the influence of
drugs, alcohol or medication. A moment
of inattention while operating a Air Dryer
may result in serious personal injury.
b. Use personal protective equipment.
Always wear ANSI-approved eye
protection during setup and use.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source or moving the Air Dryer.
4. Air Dryer use and care
a. Do not use the Air Dryer if the switch
does not turn it on and off. Any Air Dryer
that cannot be controlled with the switch
is dangerous and must be repaired.
b. Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing the Air Dryer. Such
preventive safety measures reduce the risk
of starting the Air Dryer accidentally.
c. Store an idle Air Dryer out of the reach
of children and do not allow persons
unfamiliar with the Air Dryer or these
instructions to operate it. A Air Dryer is
dangerous in the hands of untrained users.
d. Maintain the Air Dryer. Keep the Air Dryer
clean for better and safer performance.
Follow instructions for lubricating and
changing accessories. Keep dry, clean
and free from oil and grease. Check
for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the Air Dryer’s
operation. If damaged, have the Air Dryer
repaired before use. Many accidents are
caused by a poorly maintained Air Dryer.
e. Use the Air Dryer in accordance with these
instructions, taking into account the working
conditions and the work to be performed. Use
of the Air Dryer for operations different from those
intended could result in a hazardous situation.
5. Service
a. Have your Air Dryer serviced by a qualified
repair person using only identical
replacement parts. This will ensure that
the safety of the Air Dryer is maintained.
b. Replacement parts and accessories. When
servicing, use only identical replacement
parts. Use of any other parts will void the
warranty. Only use accessories intended
for use with this tool. Approved accessories
are available from Harbor Freight Tools.

Page 4 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
Air Dryer Safety Warnings
1. Risk of fire or explosion - do not spray
flammable liquid in a confined area or towards a
hot surface. Spray area must be well-ventilated.
Do not smoke while spraying or spray where
spark or flame is present. Arcing parts - keep
Air Dryer at least 20 feet away from explosive
vapors, such as when spraying with a spray gun.
2. Do not use to supply breathing air.
3. Do not leave Air Dryer unattended for
an extended period while plugged in.
Unplug Air Dryer after working.
4. Keep Air Dryer well-ventilated.
Do not cover Air Dryer during use.
5. Do not adjust internal components other
than instructed in this manual.
6. Air Dryer head gets hot during operation. Do
not touch it or allow children nearby during
or immediately following operation.
7. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
8. All air line components, including hoses, pipe,
connectors, filters, etc., must be rated for a minimum
working pressure of 150 PSI, or 150% of the
maximum system pressure, whichever is greater.
9. USE OF AN EXTENSION CORD IS NOT
RECOMMENDED. If you choose to use an
extension cord, use the following guidelines:
TABLE A: RECOMMENDED MINIMUM WIRE
GAUGE FOR EXTENSION CORDS
(120 VOLT)
NAMEPLATE
AMPERES
(at full load)
EXTENSION CORD
LENGTH
25′ 50′ 100′ 150′
0 – 6 18 16 16 14
6.1 – 10 18 16 Do not use.
10.1 – 12 16 16 Do not use.
12.1 – 16 14 12 Do not use.
a. Make sure your extension cord
is in good condition.
b. Be sure to use an extension cord which
is heavy enough to carry the current your
product will draw. An undersized cord will
cause a drop in line voltage resulting in loss
of power and overheating. Table A shows the
correct size to use depending on cord length
and nameplate ampere rating. If in doubt,
use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
Note: Performance of the Air Dryer (if powered
by line voltage) may vary depending on
variations in local line voltage. Extension cord
usage may also affect tool performance.
10. Industrial applications must follow OSHA guidelines.
11. Maintain labels and nameplates on the
Air Dryer. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
12. This product is not a toy.
Keep it out of reach of children.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
SAVE THESE INSTRUCTIONS.

Page 5For technical questions, please call 1-888-866-5797.Item 40211
SAFETYOPERATIONMAINTENANCE INSTALLATION
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH
FROM INCORRECT GROUNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether the outlet is
properly grounded. Do not modify the power cord plug provided with the Air Dryer.
Never remove the grounding prong from the plug. Do not use the Air Dryer if the power cord or plug
is damaged. If damaged, have it repaired by a service facility before use. If the plug will not fit the outlet,
have a proper outlet installed by a qualified electrician.
110-120 VAC Grounded Air Dryers: Air Dryers with Three Prong Plugs
1. In the event of a malfunction or breakdown,
grounding provides a path of least resistance for
electric current to reduce the risk of electric shock.
This Air Dryer is equipped with an electric cord
having an equipment-grounding conductor
and a grounding plug. The plug must be
plugged into a matching outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
2. Do not modify the plug provided –
if it will not fit the outlet, have the proper
outlet installed by a qualified electrician.
3. Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
The conductor with insulation having an outer
surface that is green with or without yellow
stripes is the equipment-grounding conductor.
If repair or replacement of the electric cord or
plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
4. Check with a qualified electrician or service
personnel if the grounding instructions are
not completely understood, or if in doubt as to
whether the Air Dryer is properly grounded.
5. Use only 3-wire extension cords that
have 3-prong grounding plugs and 3-pole
receptacles that accept the Air Dryer’s plug.
6. Repair or replace damaged or
worn cord immediately.

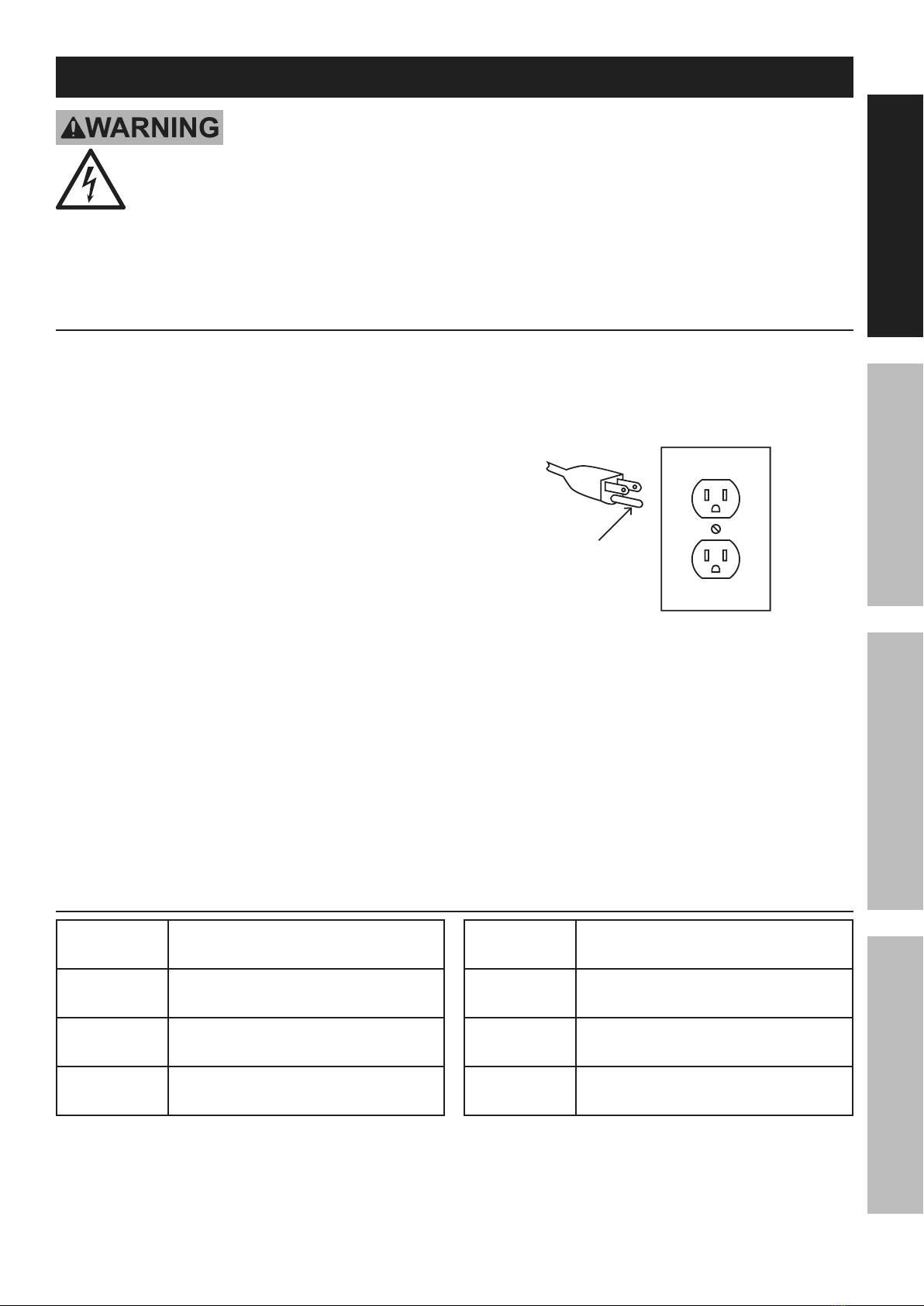

Grounding
Pin
125 VAC 3-Prong Plug and Outlet
(for up to 125 VAC and up to 15 A)
7. This Air Dryer is intended for use on a circuit
that has an outlet that looks like the one
illustrated above in 125 VAC 3-Prong Plug
and Outlet. The Air Dryer has a grounding
plug that looks like the plug illustrated above
in 125 VAC 3-Prong Plug and Outlet.
8. The outlet must be properly installed and grounded
in accordance with all codes and ordinances.
9. Do not use an adapter to connect this
Air Dryer to a different outlet.
Symbology
PSI Pounds per square inch of pressure
CFM Cubic Feet per Minute flow
SCFM Cubic Feet per Minute flow
at standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
VVolts
~Alternating Current
AAmperes

Page 6 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
Specifications
Electrical Rating 110 - 120VAC / 60Hz /
Horsepower 1/4 HP
Air Inlet / Outlet Size 1/2" Steel Pipe -14 NPT
Recommended Operating Pressure 100 PSI
Max. Operating Pressure 140 PSI
Flow Capacity 21.6 CFM
R-134A Refrigerant Pressure / Temp Range 32 - 39 PSI (2 - 8° C)
Note: This Compressed Air Dryer uses R-134A Refrigerant.
Note: Not for medical use. Do not use for hyperbaric chambers.
Installation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Air Dryer from its electrical
outlet before assembling or making any adjustments to the dryer.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Functions
Power
Switch
Gauge
Power
indicator
Error
Indicator
Air Inlet Air Outlet
Drain

Page 7For technical questions, please call 1-888-866-5797.Item 40211
SAFETYOPERATIONMAINTENANCE INSTALLATION
Installation

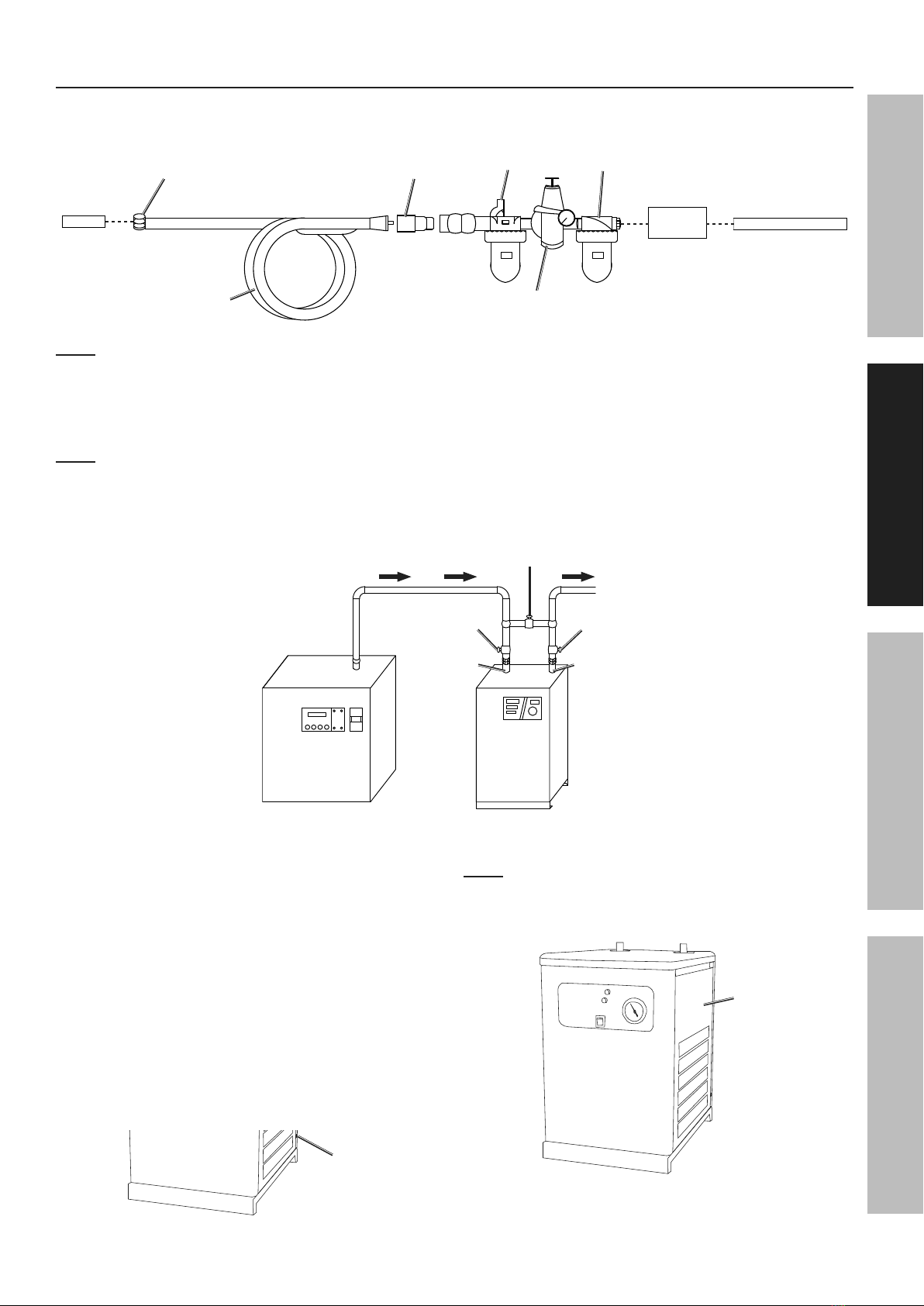

For best performance, an oiler, regulator, and inline filter should be incorporated as shown in the diagram
below. Hoses, couplers, oilers, regulators, and filters are all available at Harbor Freight Tools.
TOOL AIR
DRYER COMPRESSOR
Hose
Line
Air
Hose
Oiler Filter
Regulator
Air
Valve
Note: It will be necessary to install valves and couplers (not included) from the compressor to the
Air Dryer (1/2" steel pipe-14 NPT) and from the Air Dryer (1/2" steel pipe-14 NPT) to the tool. Use
pipe thread seal tape or pipe dope for all connections. If you are not using an automatic oiler system,
before operation, add a few drops of pneumatic tool oil to the airline connection. Add a few drops
more after each four hours of continual use. Check the air connections for leaks before use.
Note: It is recommended that a bypass valve (not included) be added between the Air Inlet and Air Outlet
of the Air Dryer for applications when the Air Dryer is not needed as shown in the diagram below. The
shutoff valves (not included) must be plumbed below the horizontal piping containing the bypass valve.
The bypass and shutoff valves must be installed by a plumber or an authorized service technician.
Air Inlet Air Outlet
Shutoff
Valve
Shutoff
Valve
Bypass
Valve
Compressor Air Dryer
1. Install the Air Dryer at least 2 feet from the wall on all
four sides. This will give the unit proper ventilation
and allow space for maintenance and repair.
2. Make sure the floor is level.
3. Do not expose the unit to rain or any moisture.
4. Install the unit out of direct sunlight and
away from any heat sources. Otherwise, the
cooling function of the unit will continually
run, eventually overheating the Air Dryer.
5. Position a small bucket to capture foul water
from the drain hose at the bottom of the unit.
Condensation water can be piped to a floor drain, if
available; be sure to follow local plumbing codes.
Drain
Front
6. Complete all plumbing as required.
Note: Electrical wiring must be done by a
professionally certified electrician.
7. Remove the Right Side Panel.
Right
Panel
Front

Page 8 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
8. Route the three conductor electrical cord
(not included) through a UL approved
cable clamp (not included) and through the
Access Hole on the rear of the unit.
Rear
Access
Hole
Note: The three conductor electrical cord (not included)
must be rated for a minimum of 10-1/2 load rated amps,
and the plug must be three pronged (recommended
12 gauge, three conductor electrical cord).

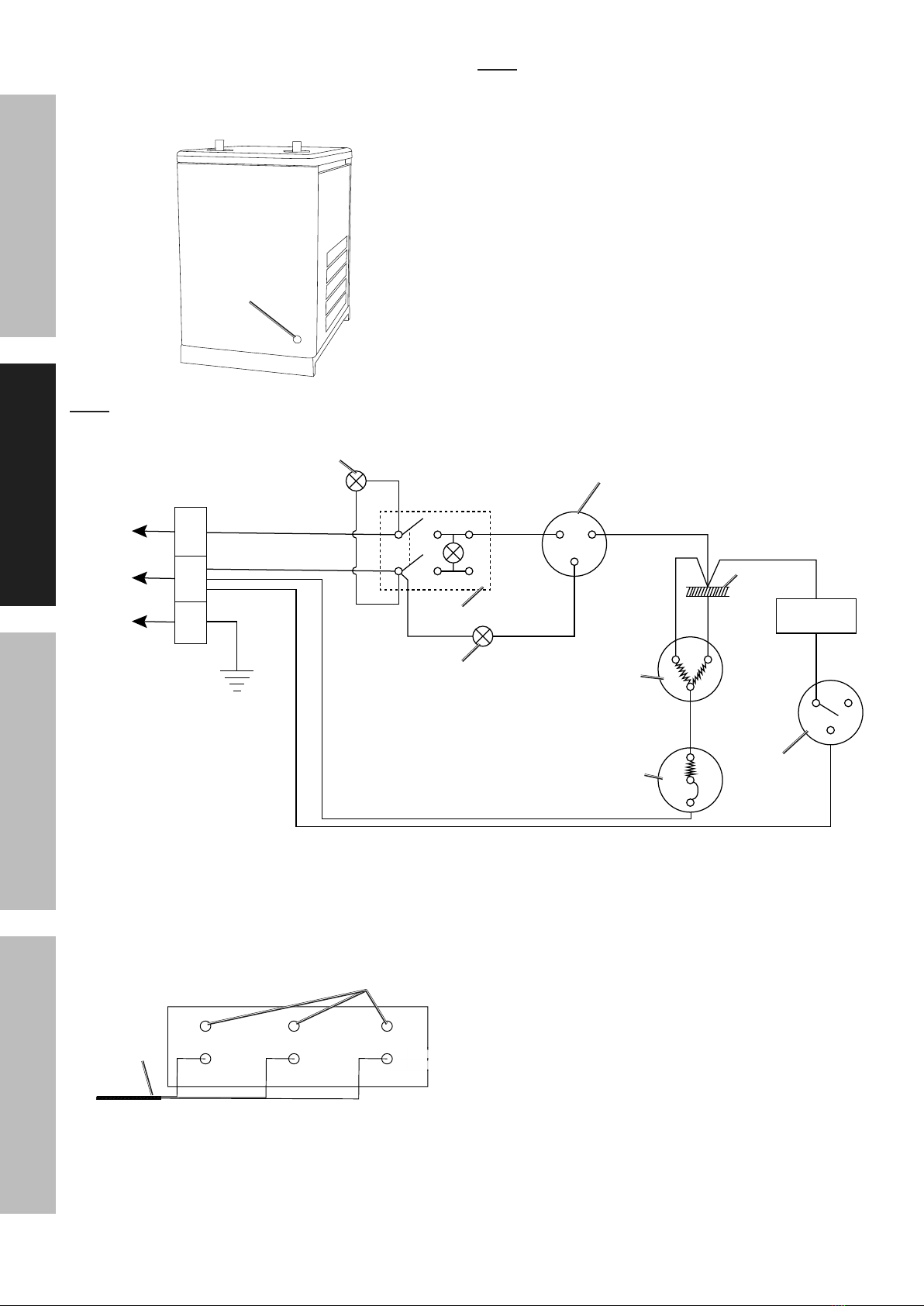

Note: The schematic diagram below is provided for additional information and clarification.
Hot
Neutral
Ground
L
N
E
Green
Blue
Red
Brown
FAN
Red
Red
Green
Blue
Blue
Blue
Yellow
Error
Indicator
Power
Indicator Refrigeration
Pressure Switch
Pressure
Switch
Power
Switch
Capacitor
Freezer
Overload
Protector
RS
C
1 3
5
C
L
H
9. Locate the Terminal Strip inside the unit. Note
the top three wires on the Terminal Strip are
pre-wired from the factory. Connect the three
conductors of the electrical cord (not included)
to the Terminal Strip as illustrated below.
Green
(Hot)
Blue
(Neutral)
Green/Yellow
(Ground)
Black
(Hot)
White
(Neutral)
Green
(Ground)
Electrical
Cord
Pre-wired at
Factory
10. Make to route the electrical cord (not included)
in the interior of the unit to prevent interference
with the fan, hot components, etc.
11. Secure the UL approved cable clamp (not included)
to the Access Hole on the rear of the unit.
12. Secure the electrical cord (not included) within
the UL approved cable clamp (not included) to
prevent strain on the electrical connections.
13. Replace the Right Side Panel.

Page 9For technical questions, please call 1-888-866-5797.Item 40211
SAFETYOPERATIONMAINTENANCE INSTALLATION
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Air Dryer Set Up
1. Route the power cord from the Air Dryer to
the grounded wall outlet, along a safe path
without creating a tripping hazard or exposing
the power cord to possible damage.
2. Using the Air Dryer without the bypass valve:
a. Open both shutoff valves.
b. Close the bypass valve.
c. Turn on the air compressor and Air Dryer.
3. Using the bypass valve without the Air Dryer:
a. Turn off the Air dryer and air compressor.
b. Close both shutoff valves.
c. Open the bypass valve.
d. Turn on the air compressor.
General Operation
Note: Determine whether the Air Dryer is to be used
or to bypass the Air Dryer. Follow the instructions
under ″Air Dryer Set Up″ on page 9.
Follow the instructions below
when using the Air Dryer:
Temperature
Gauge
Error
Indicator
Power
Indicator
Power
Switch
1. Power up the air compressor.
2. Press the Power Switch on the front control
panel to power up the Air Dryer.
Note: If the Error Indicator is on, turn off the Air
Dryer and let the unit cool. After the unit has cooled,
turn on the Air Dryer. If the Error Indicator is still lit,
take the unit to an authorized service technician.
During normal operation, the Gauge should always
be in a range between 32 - 39 PSI (2 - 8° C).
3. After the Air Dryer has warmed up, if you do not
hear the fan running, there is likely not enough
air pressure to activate the pressure switch.
a. Turn off the Air Dryer and the air compressor.
b. Close the shutoff valve for the Air Inlet.
c. Turn the Air Dryer back on and allow it to
build up pressure for a few minutes.
d. Open the shutoff valve for the Air Inlet.
e. Turn on the air compressor and
let the air in slowly at first.
4. During operation, dry air will pass from the
Air Dryer to the tool or application.
5. When finished, stop the air compressor
first. Continue to run the Air Dryer until all
compressed air runs through the system.
6. Turn off the Air Dryer.
Note: If the Air Dryer stops and the Error Indicator is
lit, the unit is running at too high of a temperature or
pressure. Let the unit cool. Unplug the Air Dryer. Open
the Right Side Panel and push the reset button on the
Pressure Switch (See the ″Parts List″ on page 11,
and the ″Assembly Diagram″ on page 12). Replace
the Right Side Panel. Plug the unit in and restart. If
the Error Indicator stays lit, or comes on continually,
take the unit to an authorized service technician.
Right
Panel
Front

Page 10 For technical questions, please call 1-888-866-5797. Item 40211
SAFETY OPERATION MAINTENANCEINSTALLATION
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and unplug the Air Dryer from its electrical outlet
before performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM AIR DRYER FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
Note: This Air Dryer uses Refrigerant 134A. The
refrigerant system does not need servicing unless
the unit begins to leak. If the unit leaks refrigerant,
take it to an authorized service technician.
1. BEFORE EACH USE, inspect the general
condition of the air dryer. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of
the Air Dryer with a clean cloth.
3. PERIODICALLY, Use a dust collector and an air
gun to clean dirt and debris off of the Condenser.
Be careful not to get too close to the unit as high
pressure will damage the unit. If grease or oil
are built up and wont blow off, remove the Left
Side Panel and wash off the Condenser with
a mild detergent, then replace the Panel.
4. Never attempt to adjust the temperature;
this adjustment should only be done by
an authorized service technician.
5. WARNING! If the supply cord of this
Air Dryer is damaged, it must be replaced
only by a qualified service technician.
6. WARNING! Repairing this unit (other than
resetting the pressure switch) should only be
performed by an authorized service technician.
7. Authorized Service Technician ONLY;
Washing the Water Separator:
a. Remove the Water Separator from the
Connector; do not lose the internal Filter.
b. Remove the Lid from the Housing
and pour out any water.
c. Disassemble the Water Separator and
its internal components and clean each
component inside and outside.
d. Reassemble the Water Separator.
Connector
Filter
Lid
Housing
O-Ring
Drainage
Piston
Pressure
Plug Control
Rod
Float
Spring
Inner
Hole
Drain Pipe

Page 11For technical questions, please call 1-888-866-5797.Item 40211
SAFETYOPERATIONMAINTENANCE INSTALLATION
Troubleshooting
Problem Possible Causes Likely Solutions
Unit shuts off
by itself
1. Temperature or pressure is too high.
2. Fan is overheated.
3. Condenser is dirty.
1. Reset the pressure switch. Clean the Condenser.
2. Reset the pressure switch. Clean the Condenser.
3. Clean the Condenser.
No power indicator
when the unit is on
Loose electrical connections. Check the connections and tighten as needed.
Unit will not
cool or dry air
Water in the refrigeration unit
because: water separator
blocked, bad valve, bad
connection to capacitor, bad
fan unit, low air pressure.
Clean water separator and drain, replace valve, check
capacitor connection, replace capacitor, replace
fan unit, turn up air pressure on air compressor.
Unit buzzes and
does not operate
Bad capacitor. Replace the capacitor.
*Qualified electrician or service technician only.
Fan does not
work at the correct
temperature
and pressure
Bad fan bearing, bad fan capacitor,
or bad temperature switch.
Replace bad fan bearing, bad fan
capacitor, or bad temperature switch.
*Qualified electrician or service technician only.
Pressure on the
inlet or outlet
valves increases
for no reason
Bad internal pressure valve. Replace internal pressure valve.
Ice accumulating
in the dryer, and/
or a pressure loss
through the unit
Formation of ice inside the unit. The hot gas bypass valve (not shown in the parts list
or assembly diagram) needs to be adjusted. This
adjustment should only be done after consultation with
out technical support service at 1-888-866-5797.
Follow all safety precautions whenever diagnosing or servicing the air dryer.
Disconnect power supply before service.
Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part Description Qty
1 U-Housing 1
2 Left Plate 1
3 Right Plate 1
4 Base Plate 1
5 Pipe Connector 1
6 Air Inlet 1
7 Air Outlet 1
8 Evaporator 1
9 Filter Valve 1
Part Description Qty
10 Water Separator 1
11 Drain 1
12 Compressor 1
13 Condenser 1
14 Pressure Switch 1
15 Fan Motor 1
16 Fan Bracket 1
17 Fan 1
18 Terminal Strip 1

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 Agoura Road • Calabasas, CA 91302 • 1-888-866-5797
Assembly Diagram
1
2
3
4
56
7
8
9
10
11
12
13
14
15
16
17
18
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts. Reference UPC 792363402118.
