Centro 85-1095-6 Quick guide

Stainless Steel Barbecue
with 3 Burners
SAFE USE, CARE AND ASSEMBLY MANUAL
WARNING
Failure to follow all of the Manufacturer’s instructions
could result in hazardous fires, explosions, property
damage, or serious personal injury or even death.
WARNING
Follow all leak check procedures carefully prior to
operation of barbecue, even if barbecue was store
assembled. Do not try to light this barbecue without
reading the Lighting Instructions section of this manual.
THIS BARBECUE IS FOR
OUTDOOR USE ONLY
FOR YOUR SAFETY
1. Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or
other appliance.
2. An LP Gas cylinder not connected for use shall not
be stored in the vicinity of this or other appliance.
FOR YOUR SAFETY
If You Smell Gas
1. Immediately turn off the flow of gas to the unit.
2. Extinguish any open flame.
3. Open the lid of the unit.
4. If the odour does not stop quickly, immediately call
your gas supplier or Fire Department for assistance.
5 YEAR LIMITED WARRANTY
85-1198-2 (PROPANE)
85-1095-6 (NATURAL GAS)
Read and save this manual for future reference.
If pre-assembled, leave this manual with
unit for consumer’s future reference.
For product inquiries, parts, and warranty and
troubleshooting support, please call 1-877-707-5463.

1
ADDITIONAL
WARNINGS
INSTALLATION The installation of this appliance must be in accordance with all local codes, or in the
absence of local codes:
•Canadian installation must conform to the current national standards, which at this time
are CAN/CGA-B149.1/2-Natural Gas /Propane installation code.

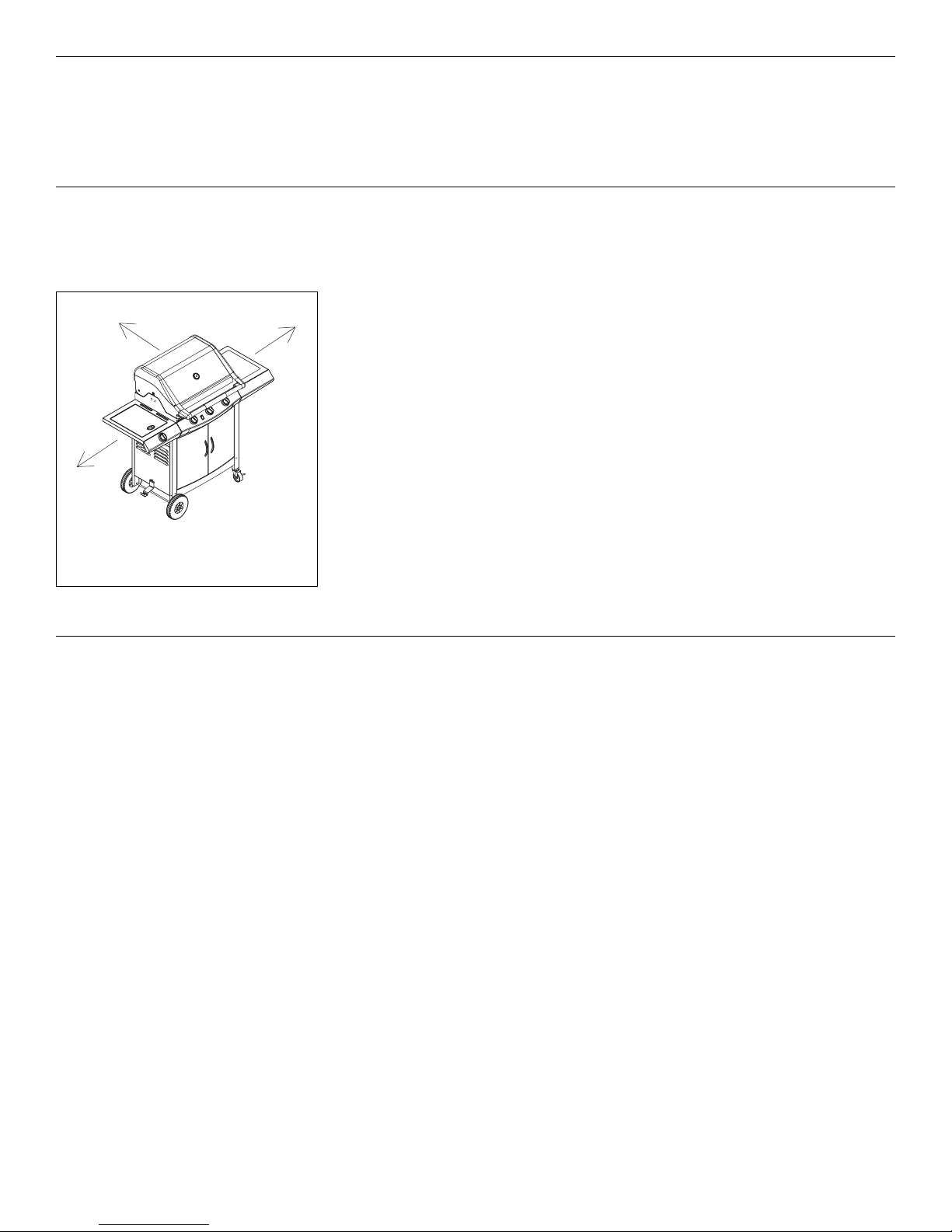

Drawing A
Minimum clearance to adjacent combustible materials:
•76 cm (30˝) from furthest protruding edge on side of barbecue.
•76 cm (30˝) from furthest protruding edge on back of barbecue.
See Drawing A
•Always keep the area around this barbecue clean and clear of any and all combustible
materials such as gasoline or other inflammable liquids, paper or oily rags.
•Do not operate this barbecue under any overhanging or unprotected construction.
•Remember this barbecue is for outdoor use only and is not for use on any boat or
recreational vehicle.
•Use this barbecue outdoors in a well-ventilated area and at least
3m (10’) from any dwelling or other building.
•Do not use in garages, or any other enclosed area.
•Do not leave your barbecue unattended while in operation.
•Do not obstruct the flow of combustion and ventilation air to the barbecue.
•Do not use while under the influence of drugs or alcohol.
•Do not store any spare L.P. (propane) cylinders, full or empty,
under or near your barbecue.
•Do not allow children to play anywhere near the barbecue.
L.P. GAS CYLINDER
Self-contained
Propane Gas System
The self-contained (propane) gas system barbecue is designed to be used with only a 9.1kg
(20lb) propane cylinder equipped with a type-1 cylinder valve. This barbecue cannot be
connected to an existing #510 P.O.L. type valve cylinder (which has left-handed threads).
Do not connect to a propane gas cylinder exceeding 9.1kg capacity or use a cylinder
with any other type of cylinder valve connection device.
The Type-1 valve can easily be recognized by the large external thread on the outside of the
valve. Older existing valves do not have this outer external thread. Any attempt to connect
a regulator to any connector other than the mating Type-1 connector (which comes with a
large, black coupling nut such as the #510 P.O.L.) could result in fires, injuries or property
damage, and could reduce the effectiveness of the important safety features built into the
Type-1 system. Also connecting the #510 P.O.L. fitting to the cylinder will negate the flow
control and the temperature shut-off features built into the new Type-1 connection system.
•The cylinder should not exceed 472 mm (18 1/2˝) in height and
317 mm (12 1/2˝) in diameter.
When purchasing a cylinder for your barbecue, it must be constructed and marked as
meeting the specifications of:
•Canada: Transport Canada.
Minimum clearance of 76 cm (30”)
on both sides and back of the barbeque.

2
FILLING
THE CYLINDER
The cylinder must be filled prior to use and must have the air purged. For safety, follow
these instructions when having your cylinder filled:
•Have only your local qualified LP gas dealer fill or repair a cylinder.
•Do not overfill the cylinder beyond the safe 80% fill level.
•Make sure the dealer tests and checks the cylinder for leaks after filling.
WARNING
If the above instructions are not completely adhered to,
it could cause a fire/explosion, resulting in death or serious Injury,
or property damage.
The Cylinder must also be equipped with:
•A shut-off valve with a correct cylinder valve outlet as specified in current standards.
•Canada: CAN/ CGA 1.6g-M97 Outdoor Gas Grilles.
a) A safety relief valve with direct connection to the vapour space of the cylinder.
b) A collar to protect the tank shut-off valve.
c) A device for vapour withdrawal.
d) A ring on the bottom to secure the tank to its support assembly.
•Always turn off the cylinder valve completely when the barbecue is not in use.
•Always handle the tank valve with utmost care.
•Never connect an unregulated L.P. gas cylinder to the barbecue.
•Always keep the cylinder, in use, securely fastened in an upright position.
•Never store a spare cylinder, empty or full,
near or under the barbecue when in operation.
•Never expose the cylinders to direct sunlight or excessive heat.
•Never insert any kind of object into the valve outlet as this may damage the backcheck;
a backcheck that is damaged can leak, and a leaking propane cylinder can result in fires
or explosions, property damage, severe injuries or death.
TRANSPORTATION
AND STORAGE
OF CYLINDER
The propane cylinder is totally safe when handled properly, but if misused, the result could
be an explosion or fire resulting in serious personal injury and/ or property damage.
To Avoid Unnecessary Risks
•Always recap the cylinder with cap provided when not connected to the barbecue.
•Do not store the cylinder in any enclosed area such as a garage, and make sure the
storage area has lots of ventilation.
•Do not store the cylinder near any appliances, or in any areas that may become hot,
such as the trunk of a vehicle.
•Make sure the cylinder is out of reach of children.
•When transporting or storing the cylinder, make sure it is in an upright position and
not on its side.
•Do not smoke around the cylinder, especially when transporting it in a vehicle.

3
HOSE AND
REGULATOR
Propane Gas Models: Your barbecue is designed to operate on L.P. (Propane) gas at a
pressure of 2.74 Kpa (11˝ water column). A regulator preset to this pressure is supplied
with the barbecue and must be used.
This regulator is equipped with the Type-1 quick-closing connecting system, which incor-
porates these safety features:
•Will not allow gas to flow until a positive seal has been made.
•Has a thermal component that will automatically shut off
the flow of gas between 115-150ºC (240-300ºF).
•Has a flow limiting feature, which will restrict the flow of gas
to 10 cubic feet/ hour.
Should the large, black thermal-sensitive coupling nut be exposed to any extreme temper-
atures above 115ºC it will soften and allow the regulator probe to disengage from the
valve, and will shut off the gas. Should this occur, do not try to reconnect the nut; instead
replace the whole regulator assembly with a new one (see the attached parts listing for
details). The regulator probe also contains a flow-sensitive feature, which limits the flow of
gas to 10 cubic feet/ hour, in the event of a regulator malfunction or hose leak. If the flow
control feature is activated, the cause of this excessive gas flow should be investigated and
corrected before using the barbecue again.
Note: Improperly lighting the barbecue can activate the flow control feature,
resulting in lower heat output. If this occurs, the re-flow feature must be reset by
turning all the burner controls and the cylinder valve off. Wait at least 30 seconds
before slowly turning on the cylinder valve, and then after another 5 seconds turn
the burner valve on and light the barbecue.
•Never connect this barbecue to an unregulated propane gas supply, or to another kind
of gas. Do not alter or change the hose or regulator in any way.
•Visually inspect the whole hose assembly before each use for evidence of wear or
damage such as cracks, burns, or even cuts. If any damage is found, replace the
assembly before using the barbecue. Use only the recommended replacement hose.
•To avoid possible damage to the hose, do not allow any grease or other hot materials
to fall on the hose, and make sure the hose does not contact any hot surfaces of
the barbecue.
•The connection fitting must be protected when it’s disconnected from the cylinder.
Do not allow the fitting to bump or drag on the ground as nicks and scratches could
help create a leak when connecting back to the cylinder.
•It is important to do the “Leak Test” procedure every time a cylinder is refilled,
or any of the components are changed, and especially at the beginning of a
new season.
•Information on connecting Natural Gas Models is located at the end of the manual.
LEAK TESTING Performa“Leak Test”
•Before lighting your barbecue for the first time.
•Every time the cylinder is refilled, or any component is replaced.
•At least once every year, preferably at the start of the season.
The “Leak Test” must be done outdoors, away from heat, open flames and flammable liquids.
Do not smoke while performing the test. Use only a mixture of 50/50 liquid soap and water
for leak testing. Never use a match or open flame.

4
PRIOR TO USING

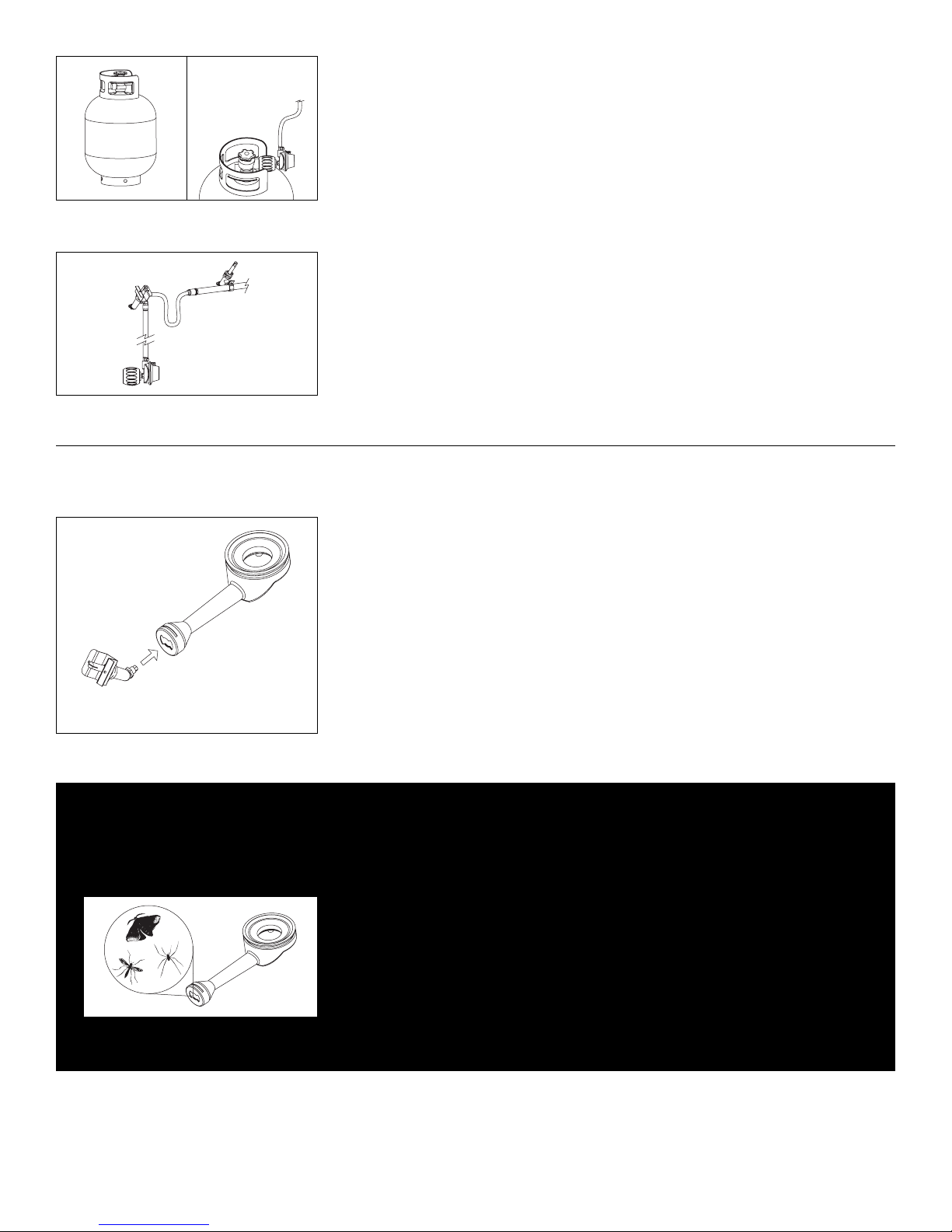

Drawing E
Drawing F
WARNING
Natural Hazards
Insects and Spiders
Do not use your barbecue until you have carefully read and fully understand all the information
in this manual. Please ensure the following:
•Your barbecue is properly assembled.
•There are no leaks in the system (see “Leak Test”).
•The burner is properly assembled, with the Venturi tubes seated over the
valve outlets (drawing E) and that there is nothing blocking the Venturi
tubes (drawing F).
•Ensure that all power cords and/ or gas supply hoses will not touch or be
near the surfaces that will get hot.
•The barbecue is in a safe location (see installation).
Ensure that the valve outlets (orifices) are assembled into the Venturi tubes approximately
6 mm (1/4˝) and that the valve outlets and Venturi tubes are approximately parallel to the
bottom of the lower body.
During shipment or storage, it’s possible that small insects like spiders could find
their way into the Venturi tubes and nest or make webs. This could block the flow
of gas through the Venturi tube causing a smoky yellowish flame, or prevent a
burner from lighting. It could even cause the gas to burn outside the Venturi tube,
which could seriously damage your barbecue. If these occur, turn off the gas flow
and wait for the barbecue to cool down. When the barbecue has cooled, remove the
burner and clean out the Venturi tubes with a brush or pipe cleaner. Replace the
burner and ensure that the Venturi tubes are seated over the orifice located on the
gas valves. Cleaning the Venturi tubes should be conducted periodically, especially
at the start of the season.
Note: Damage resulting from blocked Venturi tubes is not covered under the warranty.
Insert valve outlets into Venturi tubes
approximately 6mm (1/4”)
Drawing B Drawing C
The Following Must be Checked
•The tank valve including the threads into the tank (drawing C).
•All tank welds (drawing B).
•Regulator fittings and tank connections (drawing C).
•All hose connections (drawing D).
•With a newly filled and tested propane tank attached to the
barbecue and all the barbecue controls turned OFF, slowly open
the cylinder valve one full turn.
•Using a brush and soap, soak all the connections and components
listed above and shown in drawings B, C, D.
•Look carefully for bubbles forming, which is an indication of leaking gas.
•Tighten the connections at the bubbled areas until re-testing shows no
indication of any leaks (shut off cylinder while correcting any leaks).
•Shut off the cylinder valve and ensure all control valves are off.
•Do not use the barbecue if any leaks cannot be stopped. Turn off the
gas cylinder valve, remove the gas cylinder and seek assistance from
a qualified gas appliance service mechanic or gas dealer.
Drawing D

5
LIGHTING
THE GRILL
•Make sure you have followed all the checks, procedures and instructions
indicated in the prior sections before attempting to light the grill.
•Always raise the barbecue lid before lighting the burner.
•Do not bend directly over the barbecue while lighting in case of back flash.
•Making sure the main control knob is off, slowly and carefully open the propane gas
cylinder valve. Wait about five seconds before opening the burner valve and lighting
the barbecue. This procedure allows the pressure to stabilize, and prevents the
flow control feature from activating. Note: If the flow control feature does activate,
turn off the burner control valve and the cylinder valve, wait about 30 seconds then
turn on the cylinder valve slowly. Wait 5 seconds and turn on the burner valve and
light the barbecue.
Lighting the Main Burner
•Important: Light centre burner/ burners first!
•Once burner is lit the burner next to it will light by turning the control knob to HIGH.
•Never light the outside burners unless the centre burner /burners are lit.
Using the Ignitor to Light the Burner
•Raise the lid of the barbecue.
•Turn on tank.
•Push in and turn the control knob to “High” position.
•Push the ignitor button until a clicking noise is heard (a spark is being applied).
•If the burner does not light after three attempts, turn the control knob
to the “Off” position and wait for the gas to clear (about 5 minutes).
Repeat the previous lighting procedure.
•If the burner still does not light, refer to the troubleshooting guide for help,
or light with a long match.
Manual Lighting Procedure
The barbecue has a small hole on the lower left side of the housing. This hole is towards
the front of the barbecue and is used to manually light the barbecue.
•Raise the lid of the barbecue.
•Place a lighted match through the hole to within 16cm (1/2˝) of the burner.
•Turn on tank.
•Push in and turn the burner knob to the “High” position. At this point,
the burner should light, if it doesn’t after 5 seconds, turn the control knob
back to the “Off” position and wait for the gas to clear.
•Wait 5 minutes, and then repeat the manual light procedure. If after three tries the
burner still does not light, review the troubleshooting guide for help.

6
Lighting the Second Burner
•Turn the second control knob on the main control panel to the
“High” position. The unlit burner will automatically ignite.
Lighting the Side Burner
Use the push-button ignitor on the main control panel and the right control knob on the
side burner panel.
•Push in and turn the right control knob to the “High” position.
•Push the ignitor button until a loud click is heard, which is the
spark being formed. Repeat several times if the burner does not light.
•If the burner does not light after several tries, turn the right
control knob off and wait 5 minutes for the gas to clear.
•Repeat the above instructions. If the side burner still does not light,
refer to the troubleshooting section for help or light the burner manually.
Note: The side burner is designed to accept a maximum weight of 20 lb. Do not overload
the side burner.
Lighting the Side Burner with a Match
•Place match in front ring of provided match holder.
•Place a lighted match through the hole to within 16 cm (1/2˝) of the side burner.
•Push in and turn the burner knob to the “High” position. At this point,
the burner should light, if it doesn’t after 5 seconds, turn the control knob
back to the “Off” position and wait for the gas to clear.
•Wait 5 minutes, and then repeat the manual lighting procedure. If after three
tries the burner still does not light, review the troubleshooting guide for help.
Shutting Down the Barbecue After Use
•Turn off the gas cylinder valve.
•Turn the burner control valve to the “Off” position.
This sequence is important as it prevents residual gas from being left in the system under
pressure and will make the next use easier.

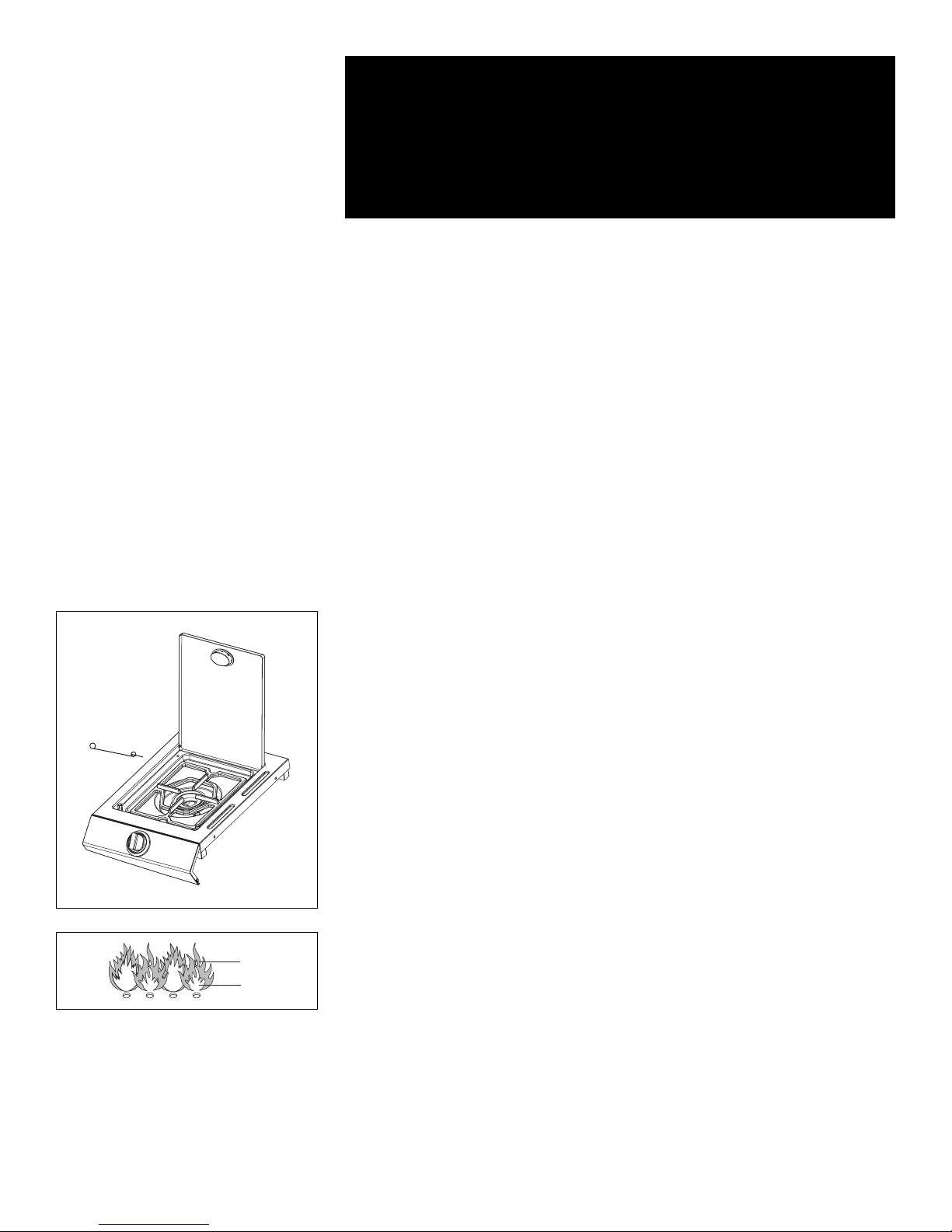

Visually Check Burner Flame
Take off the grates and heat shield. Light burners. Adjust the flame by turning the knobs
from HI to LOW. The flames will be smaller when the knobs are in the LOW position. Always
check flame prior to each use. Perform flame check for sideburner.
WARNING
If the heat output is too low, the flow control feature may have
been activated by a gas leak. If so, turn off the burner valve
and cylinder valve, and perform the “Leak Test”. If there aren’t
any leaks, re-light the burner.
HI
LOW

7
Using for the First Time: Before cooking, turn on the grill and operate on “High” for
about 10-15 minutes with the lid open. Close the lid and continue to run the grill on
“High” for another few minutes. After this, your grill should be burned in and ready to use.
Preparation: The barbecue should be preheated before adding any food. This is done by
lighting the grill and running at “High” for up to ten minutes with the lid down. If the food
you are cooking needs a lower temperature, turn the control knob to the required setting
before adding food.
Cooking Time: This is affected by many things and experience in grilling will help you. The
kind of food, the thickness of the food, and even the weather can have an effect on cooking
time. You will learn that on a hot day, a lower setting will work better and on a cold day a
higher setting may work better.
Flare-ups: Flare-ups can increase the temperature in the grill and add to the buildup of
grease, increasing the risk of a grease fire. Some flare-ups are normal to create smoke,
which helps add to the flavour of your food. To keep these flare-ups to the desire level, do
the following:
•Always trim fat from steaks/red meats before grilling.
•Cook chicken and pork on a lower setting.
•Make sure the grease drain hole is clear and that the grease catcher is not filled.
•Always cook with the lid down, and cook at the lowest efficient heat setting.
Note: With the lid down, you will keep a more consistent temperature inside the cooking
area and use less energy/gas.
WARNING
Do not leave your barbecue unattended, and watch out for children
around the barbecue. Make sure the barbecue is functioning safely
at all times. Do not move the barbecue while cooking. Make sure the
lava rocks are dry, because when wet they may breakup
due to the steam they generate.
TIPS ON USING
YOUR BARBECUE

8
STORAGE When the outdoor cooking season is over and you’re going to store the unit for the winter,
please do the following:
•After removing and cleaning the burner and grill (lightly oil
the grill after cleaning) wrap them in paper and store indoors.
•The barbecue, after being covered, can be stored outdoors.
•Do not store the L.P. cylinder in an enclosed area.
When the barbecue is not in use, the gas must be turned off at the cylinder valve. The bar-
becue and cylinder need to be stored outdoors, in well-ventilated area. Do not store the
barbecue in a garage or near heat. If there is a need for the barbecue to be stored indoors,
remove the cylinder. Continue to store the cylinder outside in the well-ventilated area and
make sure the cylinder’s safety cap is firmly threaded on the valve.
CLEANING
AND MAINTENANCE
To get many years of service out of your barbecue, perform the following procedures at
least once a year, especially at the start of a new season.
Grill: Apply a light coating of cooking oil to the grating to prevent food from sticking. After
each use, and after the barbecue has cooled down, scrub the grating with a non-abrasive
brush. Alternatively, you can was the grating with a mild detergent or baking soda, but do
not use a commercial over cleaner.
Burner and Venturi Tube: At a minimum of twice a year, it is important to remove the
burner and Venturi tube and clean them, making sure that all dirt and rust is removed. Use
a wire to clean out the hole in the Venturi tube. Make sure the bottom housing is clean and
all holes are clear. If the burner has been damaged or has rusted, replace it as soon as pos-
sible. If the burner is in good shape, reinstall it in the correct position. Also ensure that the
Venturi tube is centred over the valve outlet.

9
Y5YTNARRAW ear Limited Warranty
This Centro BBQ carries a five year limited warranty against defects in manufacturing work-
manship. This Limited Warranty is nontransferable and becomes void if used for commercial
or rental purposes. This warranty applies only when grill is used in Canada. The bill of sale
or a copy will be required together with the serial number and model number when making
any warranty claims from Trileaf Distribution. Trileaf Distribution reserves the right to have
its representatives inspect any product or part prior to honouring any warranty claim. Trileaf
Distribution shall no be liable for any transportation charges, shipping and handling
charges, or labour cost. This warranty is for replacement of defective parts only. The
Manufacturer will not be responsible for incidental or consequential damages or any labor
cost. Inability to provide proof of purchase, or if warranty coverage has expired, any request
for parts will be subject to parts, shipping and handling fees. This limited warranty does not
cover damage due to chipping and scratching of porcelain or painted surfaces including
Cooking grates, nor does it cover corrosion or discolouration due to misuse, lack of mainte-
nance, grease fires, hostile environments, accidents, alterations, abuse or neglect, improper
installation and failure to read and/or abide by any product warnings. This limited warranty
does not cover any damage sustained during removal or storage of this BBQ. Part failure due
to lack of cleaning and maintenance, or use of improper cleaning products such as Oven
Cleaner, will not be covered under this manufacturers warranty. This limited warranty does
not cover any scratches or dents, corrosion or discolouring caused by heat, abrasive or
chemical cleaners. Parts installed from other manufactures will nullify this warranty.
5 Year Limited Warranty
3 Year Limited Warranty
1 Year Limited Warranty
For one year from the date of original retail purchase Trileaf Distributions will replace any
grill part that fails or is found to be defective to the degree of non-performance under nor-
mal household use, during the limited warranty period. Trileaf Distributions Ltd. is not
responsible for any grill damage sustained during moving, storage, assembling or cleaning.
Unless otherwise noted, as in above limitations, all components are covered for a period of
one year.
IMPORTANT: Should you have difficulty operating this product, or have a part that
has become defective within the stated warranty period, DO NOT RETURN TO
STORE. STORES DO NOT STOCK REPLACEMENT PARTS AND ARE UNABLE TO HELP
WITH TROUBLESHOOTING ADVICE. PLEASE CALL 1-877-707-5463. Have your Proof
of purchase, serial number and model number available so that the customer sup-
port agent can be of assistance.
Purchaser:By accepting delivery of this Barbecue the purchaser, hereby accepts the forego-
ing and expressly waives any other remedy and damages, direct, indirect, and consequential.
The following functional parts are included under this warranty: Burners, manifold assem-
bly and carryover assembly.
The following functional parts are included under this warranty: Burners, manifold assem-
bly and carryover assembly.

10
TROUBLESHOOTING GUIDE
Corrective Action
•Clean out blockage
•Open cylinder or gas supply valve
•Ensure proper Venturi assembly
•Clean/ replace burner
•Refill cylinder
•Follow correct lighting procedure,
and perform leak test
•Tighten regulator fully (hand tighten) onto cylinder
•Straighten fuel hose
•Clean out blockage
•Clean burner
•Open air shutter
•Check all connections are tight
•Ensure collector box, burner and
ignitor are assembled properly
•Replace ignitor
•Relocate barbecue back towards wind
•Refill cylinder
•Trim meat, turn down burner controls
and/ or fuel supply
•Clean casting base and burner
•Position cooking system correctly
•Immediately shut off gas at source,
allow grill to cool and clean out Venturi tubes
•Temporary condition caused by high outside
temperatures and a full propane cylinder
•Clean/ replace burner
Possible Causes
•Blocked Venturi tubes
•Cylinder or gas supply valve turned off
•Venturi tubes not properly sealed over orifices
•Burner ports blocked
•Low or out of propane
•Flow control device activated
•Regulator not fully tightened into cylinder
•Partially blocked Venturi tubes
•Excess cooking salts on burner
•Air shutter closed
(side and rear rotisserie burner only)
•Loose wire connection
•Broken electrode ceramic
•Poor ground
•Faulty ignitor
•High wind conditions
•Propane low
•Excessive fat in meat
•Grease drain plugged
•Cooking system not positioned correctly
•Blocked Venturi tubes
•This is not a defect or a hazard
•Plugged, rusted or leaking burner
Problem
Burner will not light
(match or ignitor)
Burners not hot enough
Flames smoky yellow
Burner lights with match
but not with ignitor
Flame blows out/ down
through base
Too much heat/ excessive
flare-up
Flames under heat
control console
Regulator humming
Incomplete flame
For more troubleshooting support or parts ordering please call toll free 1-877-707-5463.

11

12
10a
16 7
11
3
2
8
9
4 5
26
12
13
27
58
14
63
3037
39
36 31 60
59
10
29
18
28
32 33 23 24 16 17
25
15
34
35
38
64 65 20 21
40
22
19
42
56
41
45
57
61
43
62
53
51
66
52
46 44
47
50 55
54
48
49

13
PARTS LISTING FOR
85-1198-2 (PROPANE)
85-1095-6 (NATURAL GAS)
Item No. Quantity Description Part No./ Spec.
1 1 Top insert G401-0074-0000
2 1 Top end, left G401-0002-9001
3 1 Top end, right G401-0003-9001
4 1 Handle grip G402-0002-9000
5 1 Handle G401-0004-0000
6 1 Thermometer G401-0075-9000
7 1 Bezel, thermometer G401-0006-0081
8 1 Handle plate, left G402-0003-0086
9 1 Warming rack G402-0024-9081
10 1 Grill body (R) G401-0011-9031
10a 1 Grill body (L) G401-011-9031
11 2 Screw for hood G401-0007-9086
12 3 Burner G401-0012-9001
13 3 Clip pin G401-0013-9082
14 2 Carryovers G402-0014-0000
15 3 Gas valve, main burner G401-0015-9000
16 1 Ignitor box G401-0016-0000
17 1 Electrode set G401-0017-9000
18 1 Electric pulse ignitor G601-0018-9000
19 1 Switch G402-0013-9000
20 1 Control panel G401-0021-0000
21 4 Bezel, knob G401-0022-0081
22 4 Knob G401-0023-9031
23 2 Join nut,valve G401-0024-9000
24 1 Adaptor G401-0025-9000
25 1 Manifold G401-0026-0082
26 2 Cooking grate G401-0027-9001
27 3 Heat plate G401-0029-0000
28 1 Sideburner frame G401-0201-0000
29 1 Lid, sideburner G401-0030-0000
30 1 Pull, sideburner lid G401-0031-9031
31 1 Firebox, sideburner G401-0301-0000
32 1 Sideburner G401-0033-9082
33 1 Burner top, sideburner G401-0032-9000
Item No. Quantity Description Part No./ Spec.
34 1 Air shutter, sideburner G401-0034-0082
35 1 Valve, sideburner G401-0035-9000
36 2 Lid support G401-0036-9000
37 1 Electrode wire G401-0038-9000
38 1 Control panel, sideburner G401-0063-0031
39 1 Cooking grate, sideburner G401-0041-9001
40 1 Side shelf G401-0400-0031
41 1 Shelf panel G401-0064-0031
42 1 Cart side assembly (L) G401-0500-0031
43 1 Cart side assembly (R) G401-0600-0031
44 1 Bottom shelf G401-0700-0031
45 1 Rear sheet assembly, cart G401-0600-0031
46 1 Door down brace, cart G401-0046-0031
47 1 Top cross member G401-0047-0031
48 1 Door assembly (L) G401-7000-0000
49 1 Door assembly (R) G401-8000-0000
50 2 Wire basket G401-0080-9031
51 2 Wheels G401-0058-9031
52 2 Wheel cap G401-0060-9034
53 1 Wheel axle G401-0059-9031
54 1 Castor assembly w/ Lock G401-0061-9000
55 1 Castor assembly G401-0062-9000
56 1 Tank up brace G402-0063-0031
57 1 Tank down brace G402-0064-0031
58 1 Grease tray G401-0801-0000
59 1 Grease cup G401-0066-0082
60 1 Hook, grease tray G401-0067-9082
61 4 Screw, tank support 1/4”-20UNCx13
62 2 Screw, door up brace ST4.2x10 Tapping Screw
63 1 Handle plate, right G402-0006-0086
64 1 Regulator G402-0069-9000
65 1 Metal hose G401-0068-9000
66 2 Washer, axle 1/4”-20UNC Nut

14
Key A: 5 Flat Washer – 2Pcs.
Key C: No:10-24UNC X 10 – 2PCs.
Key E: 1/4”-20UNC Nut – 2Pcs.
Key G: 1/4” x 13 Screw – 14 Pcs.
Key I: ST4.2 x 10 Tapping Screw – 2Pcs.
Key B: 5 Lock Washer – 2 Pcs.
Key D: 19 Washer – 2Pcs.
Key F: 7 Flat Washer – 14 Pcs.
Key H : 7 Lock Washer – 14 Pcs.
ASSEMBLY INSTRUCTIONS ToolsNeeded for Assembly
•#2 Phillips®screwdriver
•1/4˝ slotted screwdriver
•Adjustable wrench
•Pliers
•Rubber mallet
Before assembling the barbecue, read these
instructions carefully. Assemble the barbecue
on a flat, clean surface.
Notes: Do not fully tighten all
the nuts during this initial stage.

15
After removing the unit from carton please make sure that all hard-
ware is present.
Before starting to assemble the unit, read these instructions care-
fully. It is suggested to assemble the unit on a flat, clean surface.
1

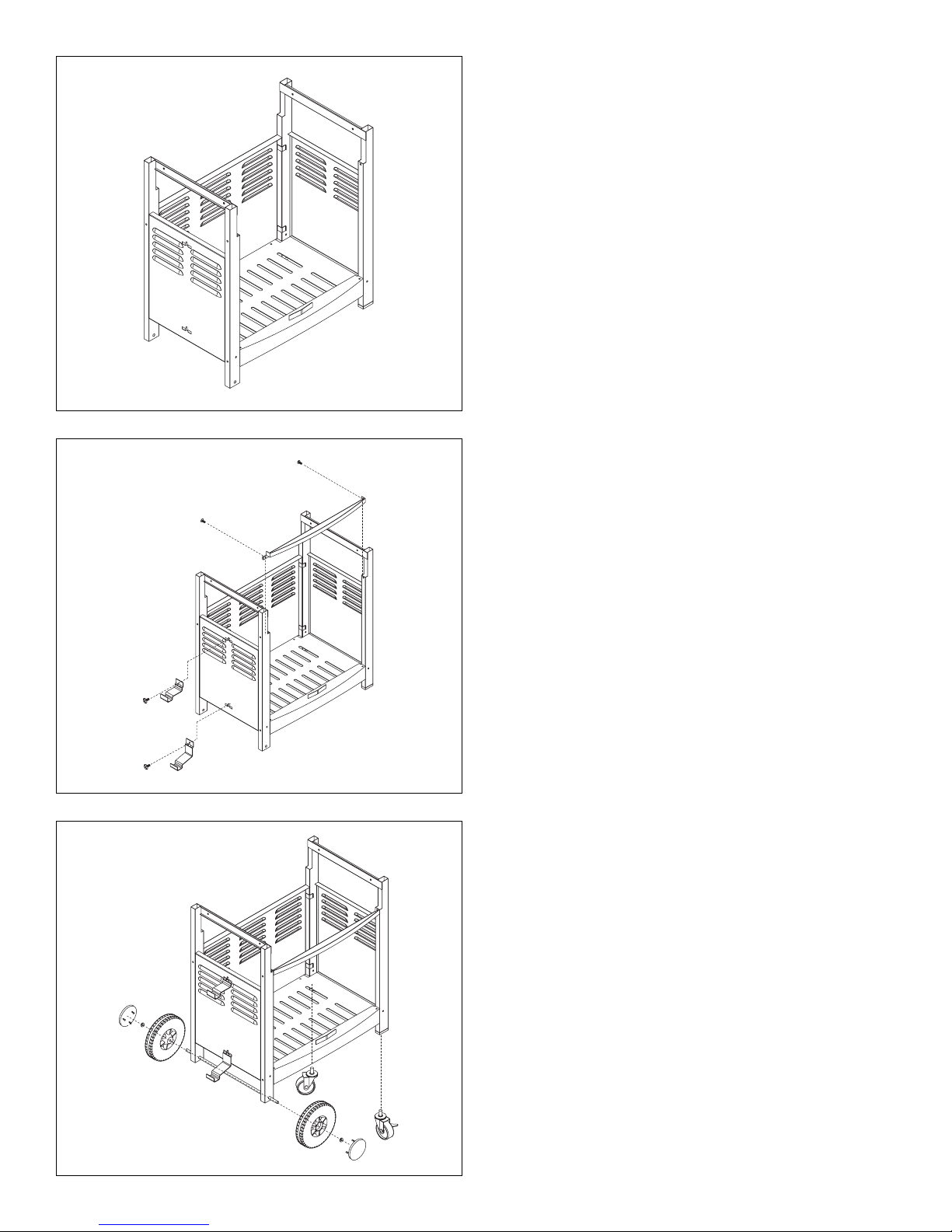

Take the main frame assembly and assemble the top cross member
(Item 47) to it using bolts (Key I) as shown. Add the Tank mounting
brackets (Item 56, 57) to outside of left side panel as shown and
assemble them to cart using bolts (Key G).
2
Assemble the wheels and castors to the bottom of legs in config-
uration as shown. Attach the wheel (Item 51) by using the axle
(Item 53) and washer and nuts (Key D, E) at each side, and snap
the wheel caps (Item 52) on. Using an adjustable wrench, screw
the casters (Item 54, 55) into the bottom of the legs.

16
5
Open the top lid, align the holes in bottom assembly with tapped
holes in cross member. Fasten the assembly in position using two
bolts, lock washers and washers (Key G, H, F) per side.
3
With the help of another person, lift the top and bottom assembly
into position as shown. Make sure to align the holes in bottom assem-
bly with tapped holes in the cross members of main frame assembly.
4
Assemble the left burner shelf assembly by sliding it into position as
shown. Repeat procedure with right shelf assembly. Fasten each
shelf assembly in position using two bolts, lock washers and washers
(Key G, H, F), two per shelf.

17
6

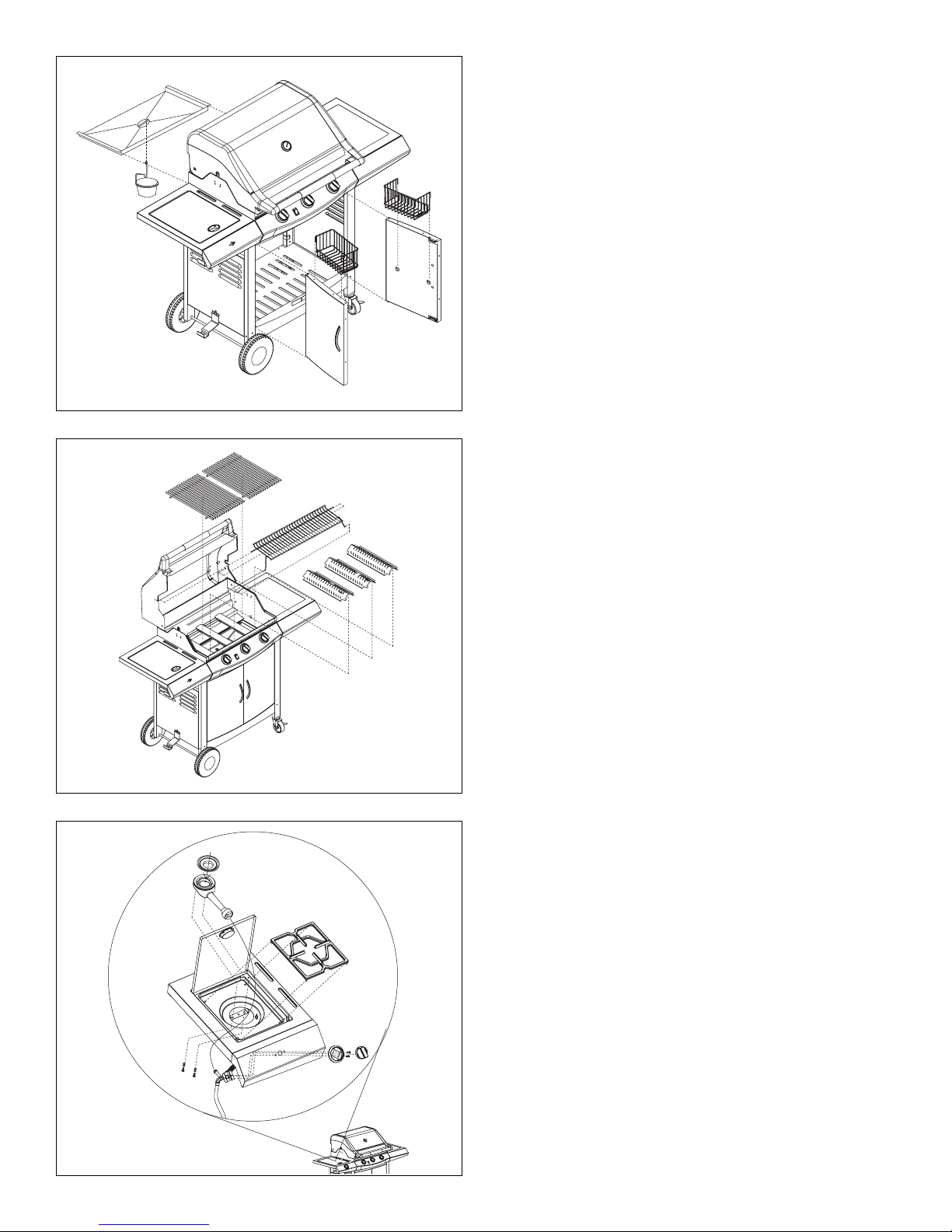

Mount the left and right doors (Item 48, 49) into position, making
sure to align the fixed hinge pin hole in door to lower cross member
and apply pressure allowing the spring-loaded hinge pin in top of
door to snap door into position. Mount the wire baskets (Item 50) on
inside of doors. Insert the grease cup (Item 59) into the cup holder
(Item 60) and slide the grease tray (Item 58) into position as shown.
7
Open up the top lid and position the heat plates (Item 27) as
shown. Add the cooking grates (Item 26) above the heating plates.
Insert the warming rack (Item 9) to the inside of lid as shown.
8
Push the side burner valve stem (Item 35) through the side burner
control panel hole (Item 38) and mount it by using two screws pro-
vided, threading through the panel and bezel.
Push the knob (Item 22) onto the valve stem with the white line on
the knob pointing upwards. Open side burner lid (Item 29) and
insert the side burner (Item 32) into the frame.
Gently slide the burner tube (Item 34) over the orifice of the valve.
Secure the burner in place using screw (Key C), lock washer (Key B)
and washer (Key A). Place cooking grate on top (Item 39).

18

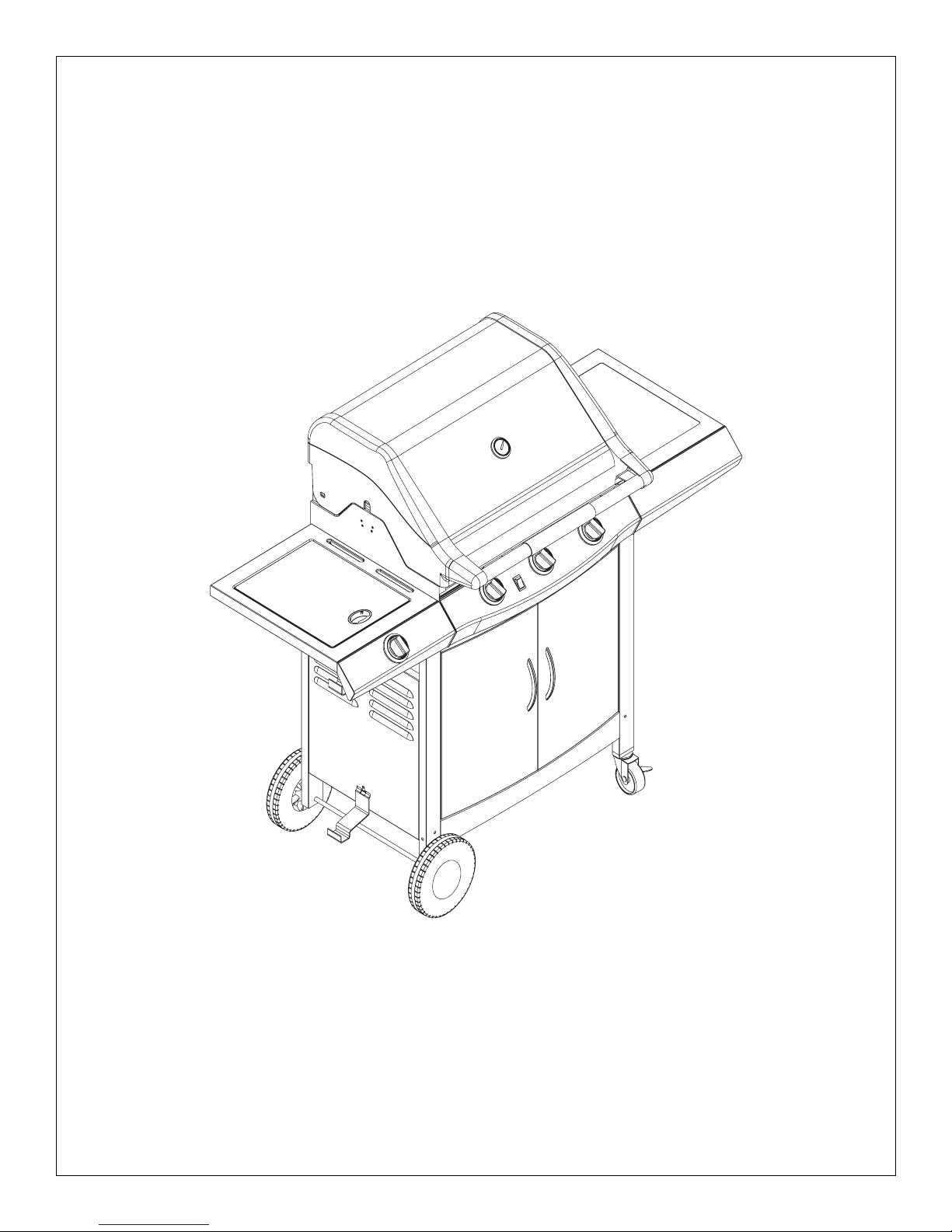

11
Assembly of the barbecue is complete. Please read cautions and
warnings before using your barbecue.
9
Carefully push the end of the ignitor wire and switch wire onto the
battery box, and then insert a AA battery into the ignitor battery
box as shown.
10
Attach the regulator valve to the 20 lb propane tank. Secure the
tank to the side brackets as shown.
