Centro 7012009 User manual

CENTRO 4900IR
Assembly Manual
85-3014-8 (G51208) Propane
85-3015-6 (G51211) Natural Gas
LIMITED 5YEAR WARRANTY
Manual Revision #: 07012009 SA
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 30 days of purchase.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-877-707-5463.

1
DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
4. Requires two people to complete the
assembly process.
5. Beware of sharp edges.
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.centrobbqs.com.
CAUTION
Read and follow all safety statements,
assembly instructions, and use and care
directions before attempting to assemble
and cook.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
INSTALLER OR ASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
HEAVY ARTICLE NEEDS 2 TO LIFT
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.
HARDWARE PACK
¼” - 20UNCX13 Screw
X 8
ø7 Lock Washer
X 20
ST4.2x10 Tapping Screw
X 9
¼” - 20UNCX38 Screw
X 4
ø7 Washer
X 20
ø5 Lock Washer
X 28
¼” - 20UNCX16 Screw
X 8
NO. 10-24UNC10 Screw
X 28
ø5 Washer
X 28
Wrench
X 1
NO. 8-32UNCx10 Screw
X 4
12 3
4 5 6
78 9
10 11 12
13
NO. 10 Nut
X 4
Knob
X 1
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (Long and short)
• ¼” Slotted screwdriver (Long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
Before assembling the barbecue, read these
instructions carefully.
Assemble the barbecue on a at, clean surface.
Grill is heavy.
Notes: Do not fully tighten all the nuts during this
initial stage.
No. Description Part Number Quantity
1 ¼"-20UNCX13 Screw 20120-13013-250 8
2 ¼"-20UNCX38 Screw 20120-13038-250 4
3 ¼"-20UNCX16 Screw 20120-13016-250 8
4 ø7 Lock Washer 41400-07000-250 20
5 ø7 Washer 40300-07000-250 20
6 NO.10-24UNCx10 Screw 20124-10010-250 28
7 ø 5 Lock Washer 41400-05000-250 28
8 ø 5 Washer 40300-05000-250 28
9 ST4.2x10 Tapping Screw 22500-42010-137 9
10 Wrench G413-0032-9082 1
11 NO.8-32UNCx10 Screw 20332-08010-250 4
12 Control Knob G412-4500-9000 1
13 NO. 10 Nut 30244-10000-250 4
14 ST4.2x20 Tapping Screw 22500-42018-250 1
14
ST4.2x20 Tapping Screw
X 1
1-877-707-5463

2 3

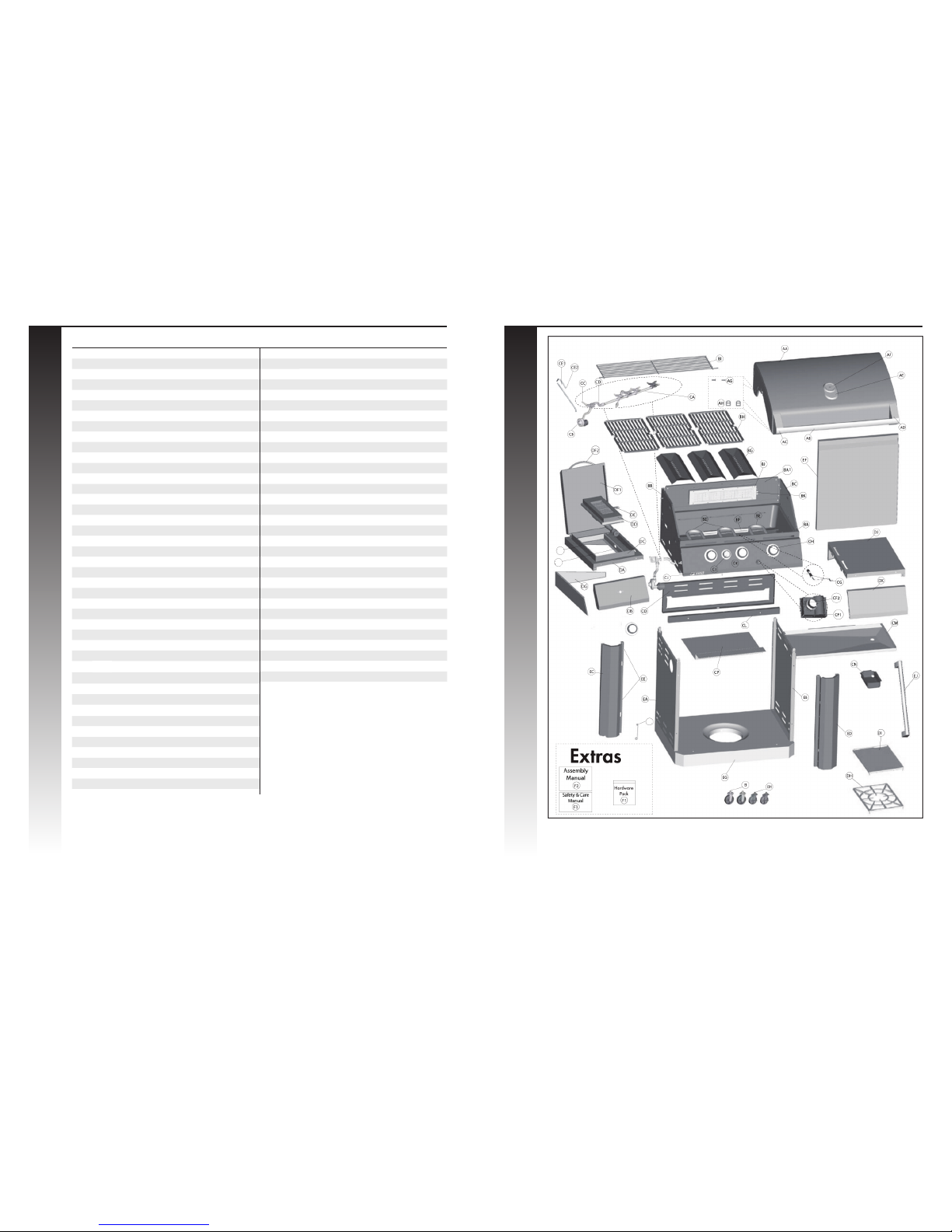

PARTS LIST (PROPANE) FOR 85-3014-8 (G51208) EXPLODED DIAGRAM (PROPANE) FOR 85-3014-8 (G51208)
Item Qty. Description Part No.
CO 1 Upper Back Panel G512-0045-01
CP 1 Heat Shield G512-0026-01
DA 1 Side Shelf Table- Left G512-3900-01
DB 1 Side Shelf Fascia- Left G617-0034-01
DC1 1 Sear Zone Wind Shield G617-0066-01
DC2 1 Sear Zone Support Frame G617-0058-01
DD 1 Side Zone Burner G617-5200-01
DE 1 Electrode Set, Sear Zone G610-0009-01
DF1 1 Lid Sear Zone G512-0030-01
DF2 1 Lid Handle Sear Zone G607-0040-01
DG 1 Side Shelf Wind Shield G512-0046-01
DH 1 Cooking Grate Sear Zone G617-0060-01
DI 1 Cooking Griddle Sear Zone G617-0061-01
DJ 1 Side Shelf Table-Right G512-3800-01
DK 1 Side Shelf Fascia-Right G617-0026-01
EA 1 Cart side panel-Left G617-0700-01
EB 1 Cart Side Panel, Right G617-0800-01
EC 1 Pillar, Left G512-1600-01
ED 1 Pillar, Right G512-1700-01
EE 2 Magnet Assembly G501-0016-01
EF 1 Door Assembly G512-5300-01
EG 1 Bottom Shelf G512-0900-01
EH 2 Wheel withLock G401-0061-01
EI 2 Wheel G606-0027-01
EJ 1 Towel Bar G511-0050-02
F1 1 Hardware Pack G512-B008-01
F2 1 Instruction Manual G512-M008-01
F3 1 Safety & Care Manual G412-M004-02
Item Qty. Description Part No.
AA 1 Top Lid G512-2900-01
AB 1 Lid Handle G512-0001-01
AC 1 Lid Handle End Cap-Left G617-0004-01
AD 1 Lid Handle End Cap-Right G617-0005-01
AE 1 Logo Plate G412-0001-01
AF 1 Thermometer G412-0003-01
AG 2 Screw for Top Lid G501-0005-01
AH 2 Lid Bumper G508-0063-01
BA 1 Burner Box Assembly G512-0200-01
BA1 1 Rotisserie Burner Brace G512-0015-01
BB 1 Upper Side Panel- Left G617-0500-01
BC 1 Upper Side Panel- Right G617-0600-01
BD 2 Main Burner-A G607-0700-A1
BE 1 Main Burner-B G502-1800-A1
BF 1 Carryover Assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0028-02
BI 1 Warming Rack G512-0004-01
BJ 1 Rotisserie Burner G617-2900-01
BK1 1 Electrode Set, Rotisserie Burner G411-0002-01
BK2 1 Ground Wire, Rotisserie Burner G411-0004-01
BK3 1 Wind Shield, Rotisserie G617-0036-01
BL 1 Match Holder G608-0019-01
CA 1 Manifold Assembly with Coupling G512-5400-01
CB 1 Regulator G433-0034-01
CC 1 Valve, Sideburner G512-0040-01
CD 1 Metal Hose, Sideburner G608-0039-01
CE1 1 Rotisseries Flexible Hose G411-0013-01
CE2 1Rotisseries LP Orice G411-0013-02
CF1 1 Electronic Igniter Assembly G508-0075-01
CF2 1 Electronic Ignition Button G501-0072-01
CG1 1 Electrode Set, Main Burner G617-0017-01
CG2 1 Ground Wire, Main Burners G411-0004-01
CH 3 Control Knob Assy G412-4500-01
CI 1 Rotisserie Knob Assy G617-4200-01
CJ 1 Series Logo G512-0033-01
CK 1 Control Panel G512-0017-03
CL 1 Front Brace G512-0044-01
CM 1 Grease Tray G512-1000-01
CN 1 Grease Cup G416-0015-01
BL
DC2
DC1

4 5
PARTS LIST (NATURAL GAS) FOR 85-3015-6 (G51211) EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3015-6 (G51211)
Item Qty. Description Part No.
CO 1 Upper Back Panel G512-0045-01
CO 1 Heat Shield G512-0026-01
DA 1 Side Shelf Table- Left G512-3900-01
DB 1 Side Shelf Fascia- Left G617-0034-01
DC1 1 Sear Zone Wind Shield G617-0066-01
DC2 1 Sear Zone Support Frame G617-0058-01
DD 1 Sear Zone Burner G617-5200-01
DE 1 Electrode Set, Sear Zone G610-0009-01
DF1 1 Lid Sear Zone G512-0030-01
DF2 1 Lid Handle Sear Zone G607-0040-01
DG 1 Side Shelf Wind Shield G512-0046-01
DH 1 Cooking Grate Sear Zone G617-0060-01
DI 1 Cooking Griddle Sear Zone G617-0061-01
DJ 1 Side Shelf Table-Right G512-3800-01
DK 1 Side Shelf Fascia-Right G617-0026-01
EA 1 Cart Side Panel-Left G617-0700-01
EB 1 Cart Side Panel, Right G617-0800-01
EC 1 Pillar, Left G512-1600-01
ED 1 Pillar, Right G512-1700-01
EE 2 Magnet Assembly G501-0016-01
EF 1 Door Assembly G512-5300-01
EG 1 Bottom Shelf G512-2500-01
EH 2 Wheel with Lock G401-0061-01
EI 2 Wheel G606-0027-01
EJ 1 Towel Bar G511-0050-02
F1 1 Hardware Pack G512-B008-01
F2 1 Instruction Manual G512-M008-01
F3 1 Safe & Care Manual G412-M004-02
Item Qty. Description Part No.
AA 1 Top Lid G512-2900-01
AB 1 Lid Handle G512-0001-01
AC 1 Lid Handle End Cap-Left G617-0004-01
AD 1 Lid Handle End Cap-Right G617-0005-01
AE 1 Logo Plate G412-0001-01
AF 1 Thermometer G412-0003-01
AG 2 Screw for Top Lid G501-0005-01
AH 2 Lid Bumper G508-0063-01
BA 1 Burner Box Assembly G512-0200-01
BA1 1 Rotisserie Burner Brace G512-0015-01
BB 1 Upper Side Panel- Left G617-0500-01
BC 1 Upper Side Panel- Right G617-0600-01
BD 2 Main Burner-A G607-0700-A1
BE 1 Main Burner-B G502-1800-A1
BF 1 Carryover assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grates G512-0028-02
BI 1 Warming Rack G512-0004-01
BJ 1 Rotisserie Burner G617-2900-01
BK1 1 Electrode Set, Rotisserie Burner G411-0002-01
BK2 1 Ground Wire, Rotisserie Burner G411-0004-01
BK3 1 Wind Shield, Rotisserie G617-0036-01
BL 1 Match Holder G608-0019-01
CA 1 Manifold Assembly with Coupling G512-5700-01
CB 1 Natural Gas Hose G501-0099-01
CC 1 Valve, Sideburner G512-0041-01
CD 1 Metal Hose, Sideburner G608-0039-01
CE1 1 Rotisserie Flexible Hose G601-0072-01
CE2 1 Rotisserie LP Orice G601-0072-02
CF1 1 Electronic Igniter Assembly G508-0075-01
CF2 1 Electronic Ignition Button G501-0072-01
CG1 1 Electrode Set, Main Burner G617-0017-01
CG2 1 Ground Wire, Main Burners G411-0004-01
CH 3 Control Knob Assy G412-4500-01
CI 1 Rotisserie Knob Assy G617-4200-01
CJ 1 Series Logo G512-0033-01
CK 1 Control Panel G512-0017-03
CL 1 Front Brace G512-0044-01
CM 1 Grease Tray G512-1000-01
CN 1 Grease Cup G416-0015-01
DC2
DC1

6 7
13
24
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
EI
EG
Back view
EH
Close up
EA
EB
EG
Front view

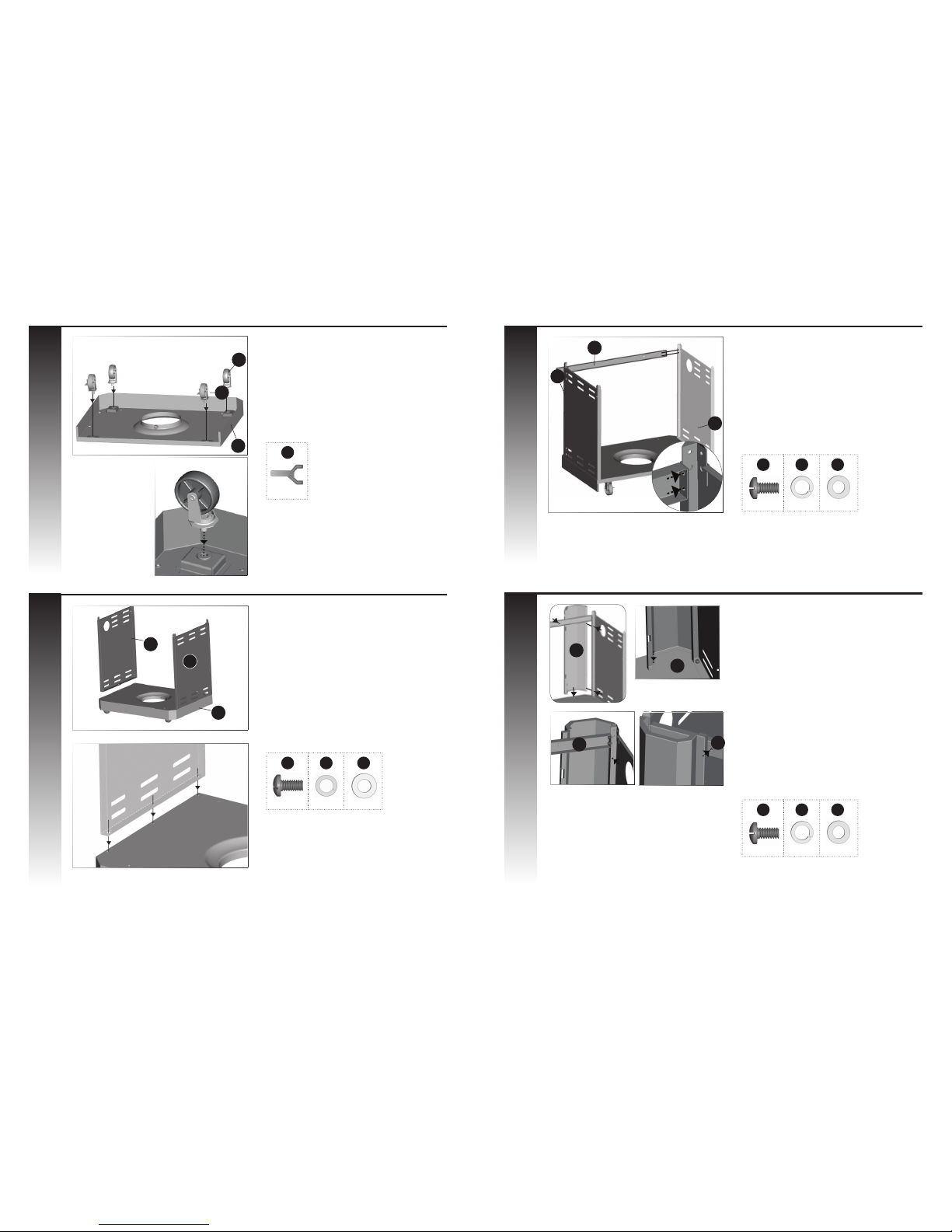

Ensure that the wheels are rmly locked in the
“ON”position before continuing.
Assemble the left side panel (EA) and the right
side panel (EB) to the bottom shelf (EG).
Close up
Attach the front brace (CL) to the Left and right
cart side panels (EA and EB)
TIP: One person should align the left side, while
the second person assembles the right side.
EB
CL
EA
Back view
Assemble the left and right pillars (EC and ED), to
the cart side panels, as shown in gure A and B.
Next, assemble the left and right pillars to the
front brace (CL) and the bottom shelf (EG), as
shown in gure C and D.
TIP: One person should align the left side, while
the second person assembles the right side.
Seperate the 2 dierent types of wheels, 2
locking wheels (EH) and 2 regular wheels (EI).
Attach the locking wheels (EH) to the back of the
bottom shelf (EG) and the regular wheels (EI) to
the front of the bottom shelf (EG).
To secure the 4 wheels, hand tighten rst. Then,
tighten further using the wrench provided in the
hardware pack.
876
YOU WILL NEED:
1 4 5
X 6 X 6 X 6
876
YOU WILL NEED:
6 7 8
X 4 X 4 X 4
876
YOU WILL NEED:
6 7 8
X 8 X 8 X 8
6
10
X 1
C
A
EC
CL
D
CJ
BEG

8 9
5
6
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
7
8
a. Position the top lid and burner box assembly
(A and B) onto cart assembly (C) as shown.
b. Use the hardware to connect both parts, on
the left and right sides, at the three points
indicated in gure B and C.
THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY
HEAVY.
BC
A

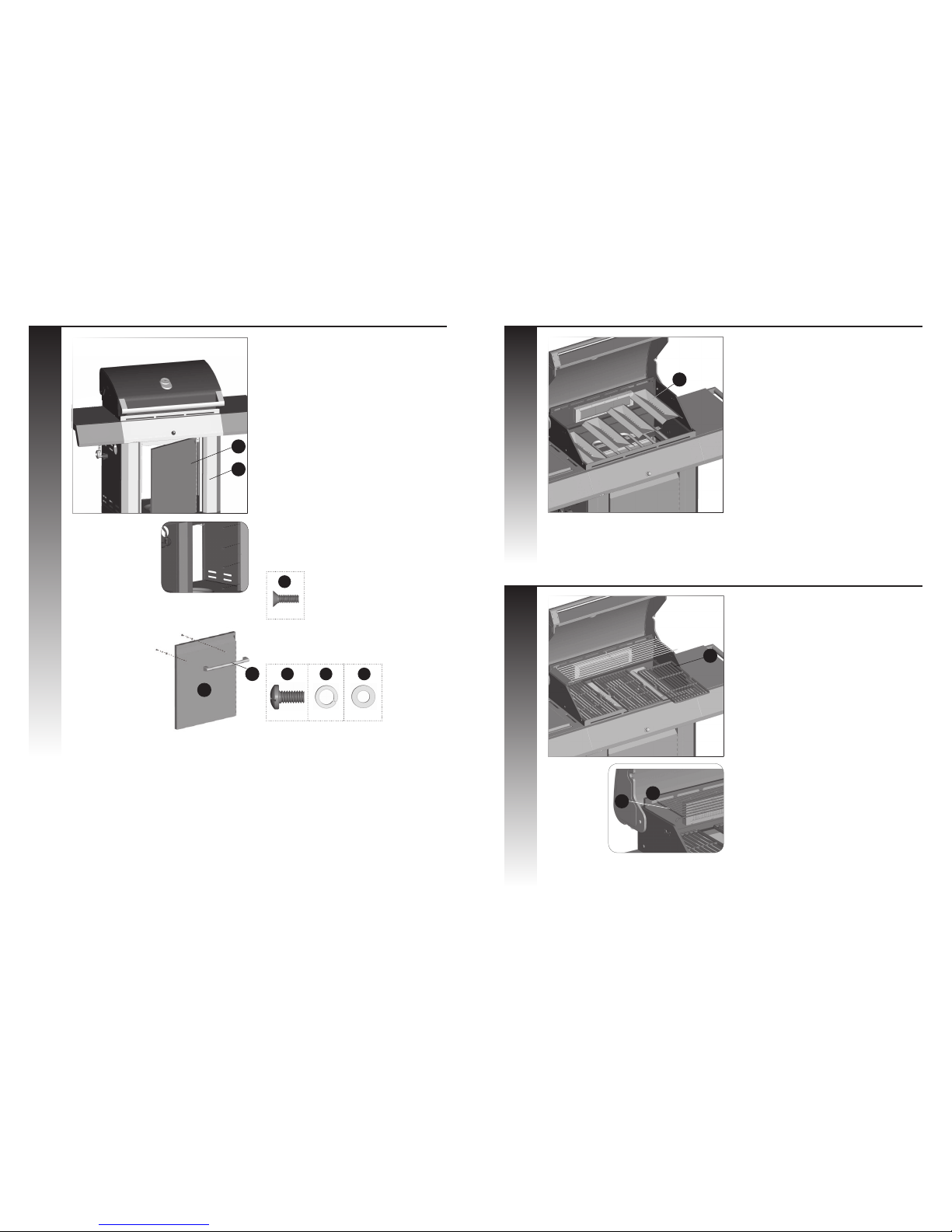

Attach the upper back panel (CO) to both the left
and right side panels (EA and EB).
Only install hardware in the bottom portion of
the back panel (CO), as shown in gure B.
CO
Back view
EB
EA
B
Attach the right side shelf fascia (DK) to the right
side shelf table (DJ), as shown.
DK
DJ
TIP: To position the right side shelf, insert the two
hooks on the side shelf assembly into the two
openings located on the right upper side panel
(BC).
Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
DJ
DK
*
B
BC
8
8
7
7
6
6
YOU WILL NEED:
YOU WILL NEED:
6
6
7
7
8
8
X 6
X 3
X 6
X 3
X 6
X 3
YOU WILL NEED:
2 4 5
X 2 X 2 X 2
YOU WILL NEED:
A
A
B
B
B
B
B
2
3
4
4
5
5
X 1X 1X 1
X 4 X 4 X 4
A+B
C

10 11
ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
11
10
9a. Attach the left shelf fascia (DB) to the left side shelf
table (DA).
b. Assemble the Side shelf wind shield (DG) to the
left side shelf table (DA), and the left side shelf
fascia (DB), as shown in Figure B and C.
DA
DB
Front
*
A
B
TIP: To position the left side shelf assembly, insert
the two hooks on the side shelf assembly into
the two openings located on the upper left side
panel (BB).
Assemble the left side shelf assembly to the cart
assembly, as shown in gure B.
BB
Remove the hardware that is pre-assembled to the
side burner valve bracket(CC), as shown in gure
A. Insert the side burner valve stem through the
rear of the left side shelf fascia(DB). Assemble the
side burner valve (cc) to the side shelf fascia (DB),
using the hardware removed.
Assemble the side burner control knob (#12) to
the side burner valve (CC).
Hardware may be included with the hardware
pack.
CC
A
876
YOU WILL NEED:
6 7 8
X 3 X 3 X 3
YOU WILL NEED:
9
X 5
YOU WILL NEED:
A
A
B
B
B
B
B
2
3
4
4
5
5
X 1X 1X 1
X 4 X 4 X 4
YOU WILL NEED:
12
X 1
DG DB
DA
DA
DG
BC
DC1
DF1
DG DB
DA
DB
12
B
CC

12 13
ASSEMBLY INSTRUCTIONS
12
ASSEMBLY INSTRUCTIONS
12
13

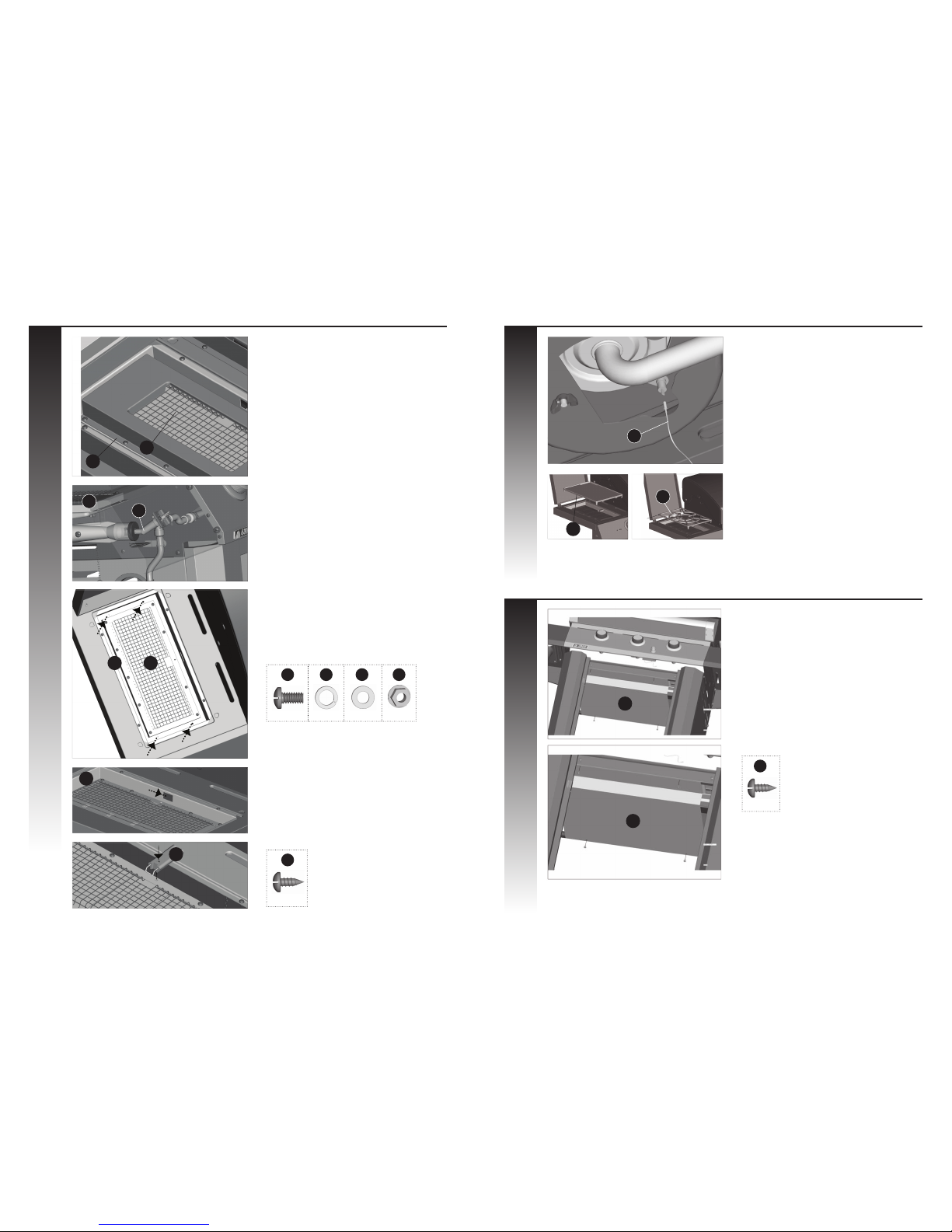

a. Position the Sear Zone burner (DD) through
the opening in the left side shelf (DA).
b. Make sure that the Sear Zone burner (DD) en-
gages the Sear Zone burner valve (CC), gas jet,
as shown in gure B.
c. Assemble the Sear Zone burner (DD) to the
Sear Zone support frame (DC1), at the 4 points
indicated in gure C.
d. Feed the Sear Zone electrode wire (DE) from
underneath the Sear Zone burner (DD), through
the small opening on the right side of the Sear
Zone support frame (DC1). Align and assemble
the electrode using the self tapping screw pro-
vided, as shown in gure D.
DD
DD
DDDC1
CC
DA
DC
DE
A
B
C
D
876
6
YOU WILL NEED:
YOU WILL NEED:
6
14
7 8 13
X 4
X 1
X 4 X 4 X 4
YOU WILL NEED:
9
Place the heat shield (CP) into the groove
which is located at the back side of the front
brace (CL) as shown in gure A. Next, attach
the heat shield (CP) to the upper back panel
(CO) by using the self tapping screws (X 4), as
shown in gure B.
X 4
B
A
e. Attach the end of the side burner electrode
wire (DE) to the underside of the side burner
electrode, as shown in gure E.
Ensure that the wire is pushed in rmly.
DE
E
f. Position either the Sear Zone cooking griddle
(DI) or the cooking grate (DH) in position on
the Sear Zone side burner side shelf. Store the
extra accessory within the BBQ chart.
FG
DI
DH
CP
CP

14 15
ASSEMBLY INSTRUCTIONS
14
EF
ED
TIP: Before attempting to assemble the door (EF)
to the right pillar (ED), locate the two clasps
on the door hinge. Next, locate the two
small openings on the right side pillar (ED).
a. Hold the door (EF) perpendicular to the BBQ
Cart. Align the two clasps on the door hinge
(EF), with the two holes on the right side pillar
(ED). Once aligned, push the two clasps into
the openings, and immediately push down to
lock clasps in place.
b. Assemble the door (EF) to the right pillar (ED),
as shown in gure B, using the screws pro-
vided.
b. Assemble the towel bar (EJ) onto door (EF).
YOU WILL NEED:
11
X 4
ASSEMBLY INSTRUCTIONS
15
16

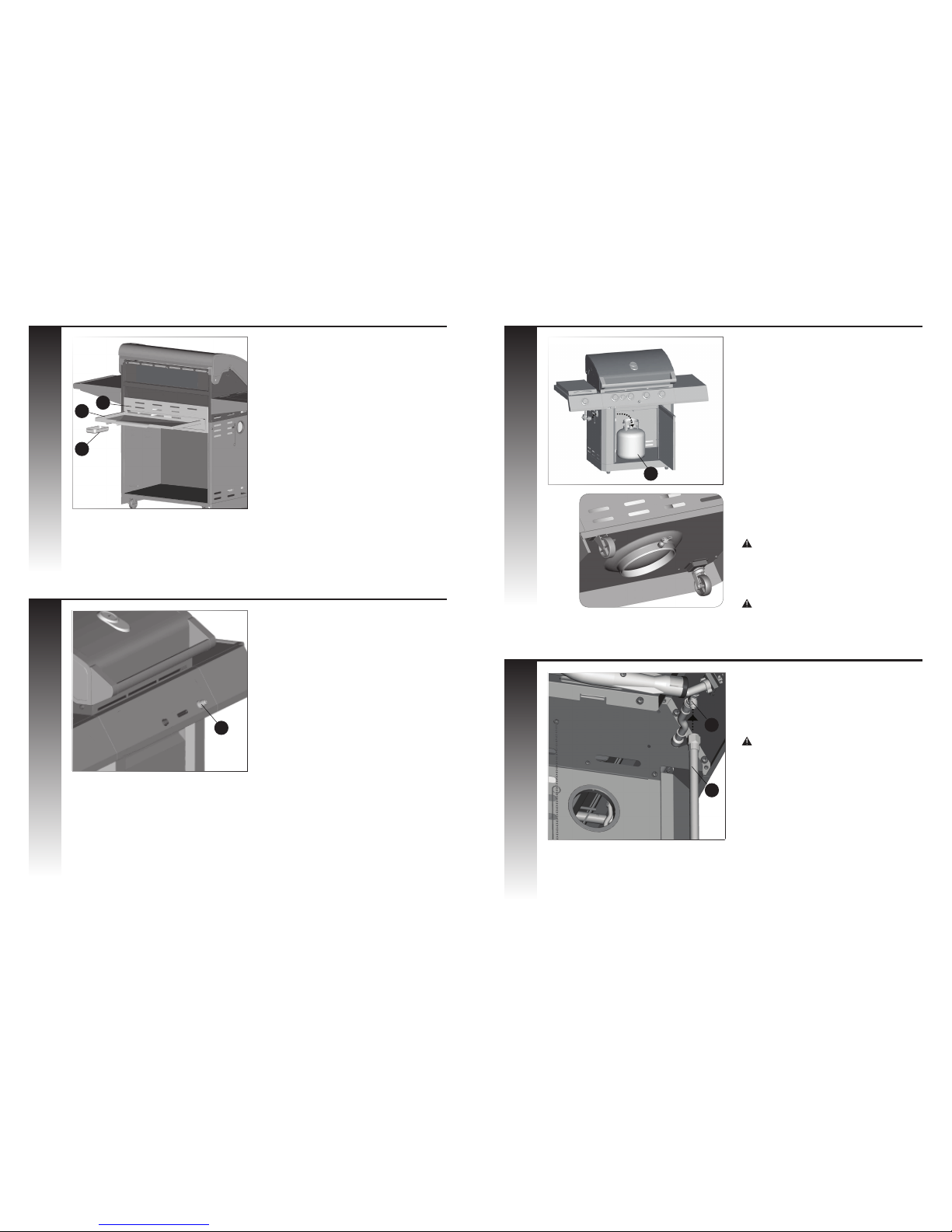

Place the ame tamers (BG) into the burner box.
BG
Model may not be exactly as shown.
a. Place the cooking grates (BH) into the burner
box, as shown in gure A.
BH
BI
A
B
b. Insert the three small positioning rods of the
warming rack (BI) into the rotisserie burner
brace (BA1).
EF
EJ 876
YOU WILL NEED:
1 4 5
X 2 X 2 X 2
BA1

16 17
ASSEMBLY INSTRUCTIONS
17
18
a. Insert the grease tray (CM) into the opening
in the upper back panel (CO), making sure to
engage tracks located under burner box.
b. Place the grease cup (CN) onto the tracks, lo-
cated on the underside of the grease tray (CM).
CM
CN
CO
Unscrew the electronic ignitor button (CF2) and
insert one AA battery into the electronic igniter
battery compartment, with the positive end facing
outward.
* Battery not included.
CF2
ASSEMBLY INSTRUCTIONS
19
20
FOR PROPANE MODEL ONLY.
For natural gas model, follow step 20.
a. Position the 20 lb propane tank onto the
bottom shelf (EG), and secure using the bolt
(already attached) located on the underside of
the bottom shelf, as shown in gure B.
b. Attach the regulator coupling nut to the LP
cylinder valve.
ATTENTION: For your families safety, do not
attempt to light this BBQ until you have reviewed
pages 4-7 of the CENTRO Safety & Care Manual.
All Safety and Leak test MUST BE PERFORMED BY
THE END USER, prior to lighting this BBQ.
BWARNING
Do not store extra propane tanks within BBQ
cart.
FOR NATURAL GAS MODEL ONLY.
Attach the natural gas hose (CB) to the side burner
valve (CC) as shown.
ATTENTION: In order to complete installa-
tion of your Natural Gas BBQ a 1/2” or 3/8”
adapter may be required to connect your
BBQ’s Natural Gas hose to your home gas
supply. Contact your Natural Gas supplier to
purchase the necessary part.
CB
CC
AEG
