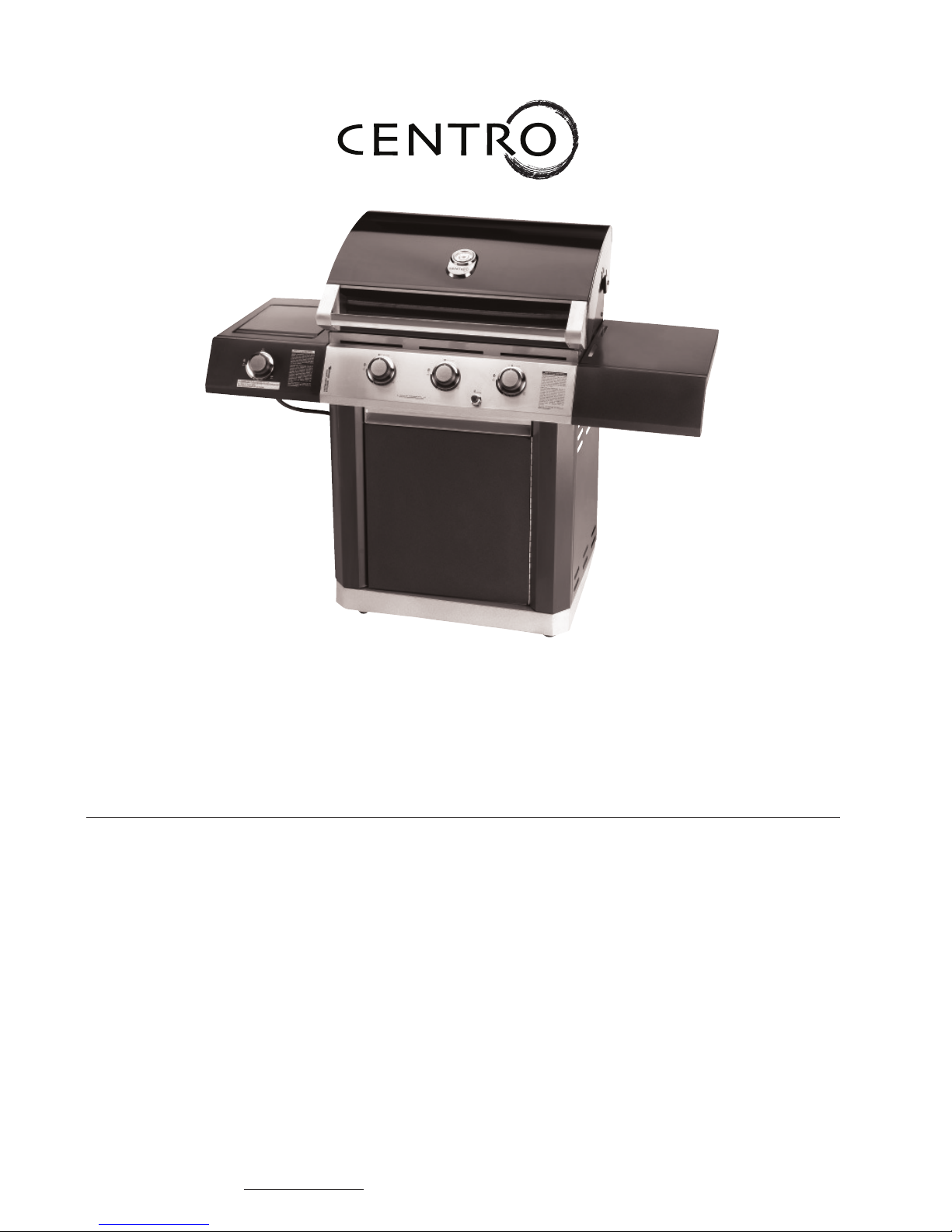

Centro Centro 3800 User manual

Centro 3800
Assembly Manual
85-1626-4 / 85-1680 (G51201) Propane
85-1651-2 / 85-1682 (G51203) Natural Gas
Limited 5-Year Warranty
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 15 days of purchase.
Manual Revision #: 210509

DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
4. Requires two people to complete the
assembly process.
5. Beware of sharp edges.
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.centrobbqs.com.
CAUTION
Read and follow all safety statements,
assembly instructions, and use and care
directions before attempting to assemble
and cook.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
T H I S B A R B E C U E I S F O R O U T D O O R U S E O N L Y
CO N TAC T C A L L C E N T R E I F A NY PA R T S A R E M I S S I N G
INSTALLERORASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
H E A V Y A R T I C L E N E E D S 2 T O L I F T

HARDWARE PACK
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (Long and short)
• ¼” Slotted screwdriver (Long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
Before assembling the barbecue, read these
instructions carefully.
Assemble the barbecue on a at, clean surface.
Grill is heavy.
Notes: Do not fully tighten all the nuts during this
initial stage.
No. Description Part Number Quantity
1 ¼"-20UNCX13 Screw 20120-13013-250 6
2 ¼"-20UNCX38 Screw 20120-13038-250 4
3 ¼"-20UNCX16 Screw 20120-13016-250 8
4 ø7 Lock Washer 41400-07000-250 18
5 ø7 Washer 40300-07000-250 18
6 NO.10-24UNCx10 Screw 20124-10010-250 24
7 ø 5 Lock Washer 41400-05000-250 24
8 ø 5 Washer 40300-05000-250 24
9 ST4.2x10 Tapping Screw 22500-42010-137 1
10 Wrench G413-0032-9082 1
11 NO.8-32UNCx10 Screw 20332-08010-250 4
12 Control Knob G412-4500-9000 1
13 Wing Nut 33301-04000-032 1
#1. ¼” - 20UNCX13 Screw (x6)
#4. ø7 Lock Washer (x18)
#10. Wrench (x1) #11. NO. 8-32UNCx10 Screw (x4)
#9. ST4.2x10 Tapping Screw (x1)
#12. Knob (x1)
#2. ¼” - 20UNCX38 Screw (x4)
#5. ø7 Washer (x18)
#7. ø5 Lock Washer (x24)
#3. ¼” - 20UNCX16 Screw (x8)
#6. NO. 10-24UNCx10 Screw (x24)
#8. ø5 Washer (x24)
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.

PARTS LIST (PROPANE) FOR 85-1626-4 (G51201)
Item Qty. Description Part No.
AA 1 Top Lid G512-0100-01
AB 1 Lid handle G512-0001-01
AC 1 Lid handle end cap-Left G617-0004-01
AD 1 Lid handle end cap-Right G617-0005-01
AE 1 Logo plate G412-0001-01
AF 1 Thermometer G412-0003-01
AG 2 Screw for top lid G501-0005-01
AH 2 Lid bumper G508-0063-01
BA1 1 Burner box assembly G512-0200-01
BA2 1 Burner box side panel- Left G617-0300-01
BA3 1 Burner box side panel- Right G617-0400-01
BA4 1 Burner box- Back Panel G502-0073-01
BB 1 Upper side panel- Left G512-0300-01
BC 1 Upper side panel- Right G512-0400-01
BD 2 Main Burner-A G502-1700-01
BE 1 Main Burner-B G502-1900-01
BF 1 Carryover Assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0008-01
BI 1 Warming Rack G512-0004-01
BJ 1 Match Holder G608-0019-01
CA 1 Manifold assembly G512-4500-01
CB 1 Regulator G433-0034-01
CC 1 Valve, Sideburner G617-0010-01
CD 1 Metal Hose, sideburner G608-0039-01
CE1 1 Electronic Ignition Assembly G501-0072-02
CE2 1 Electronic Ignition Button G501-0072-01
CF1 1 Electrode Set, Main Burner G617-0017-01
CF2 1 Ground wire, main burner G411-0004-01
CG 4 Control Knobs G412-4500-01
CH 1 Series Logo G512-0009-01
CI 1 Control Panel G512-0003-01
CJ 1 Front Brace G512-0007-01
CK 1 Grease Cup G416-0015-01
CL 1 Grease Tray G512-1000-01
CM 1 Upper Back Panel G512-5500-01
CN 1 Tank Exclusion G617-0037-01
DA 1 Side shelf table- Left G512-0600-01
DB 1 Side Shelf fascia- Left G512-0006-01
DC 1 Side Burner Drip Pan G617-0035-01
DD1 1 Side Burner Assembly G433-1400-01
DD2 1 Electrode Set, Sideburner G433-0047-01
Item Qty. Description Part No.
DE 1 Cooking Grate, Sideburner G501-0077-01
DF 1 Lid- Sideburner G501-0070-01
DG 1 Side shelf table- Right G512-0500-01
DH 1 Side shelf fascia-Right G512-0005-01
EA 1 Cart side panel-Left G512-0700-01
EB 1 Cart Side Panel, Right G512-0800-01
EC 1 Pillar, Left G512-1100-01
ED 1 Pillar, Right G512-1200-01
EE 2 Magnet assembly G501-0016-01
EF 1 Door assembly G512-5000-01
EG 1 Bottom shelf G512-0900-01
EH 2 Wheel with lock G401-0061-01
EI 2 Wheel G606-0027-01
1 Hardware Pack G512-B001-01
1 Assembly Manual G512-M001-01
1 Safety & Care Manual G617-M001-02

EXPLOADED DIAGRAM (PROPANE) FOR 85-1626-4 (G51201)
BI
AG
AH
BH
BG
BA4
BC
BA1
CG
BD BF BE
BB
DE
DF
DC
CG
CM
CH CG CI
CN CJ
CE2
CE1
CF1
DG
DH
CK
EI EH
BJ
EA
EE
CD
DD2
DD1
Safety & Care
Manual
Assembly
Manual

PARTS LIST (NATURAL GAS) FOR 85-1651-2 (G51203)
Item Qty. Description Part No.
AA 1 Top Lid G512-0100-01
AB 1 Lid handle G512-0001-01
AC 1 Lid handle end cap-Left G617-0004-01
AD 1 Lid handle end cap-Right G617-0005-01
AE 1 Logo plate G412-0001-01
AF 1 Thermometer G412-0003-01
AG 2 Screw for top lid G501-0005-01
AH 2 Lid bumper G508-0063-01
BA1 1 Burner box assembly G512-0200-01
BA2 1 Burner box side panel- Left G617-0300-01
BA3 1 Burner box side panel- Right G617-0400-01
BA4 1 Burner box, back panel G502-0073-01
BB 1 Upper side panel- Left G512-0300-01
BC 1 Upper side panel- Right G512-0400-01
BD 2 Main Burner-A G502-1700-01
BE 1 Main Burner-B G502-1900-01
BF 1 Carryover assembly G502-0012-01
BG 3 Flame tamer G617-0019-01
BH 3 Cooking grates G512-0008-01
BI 1 Warming rack G512-0004-01
BJ 1 Match holder G608-0019-01
CA 1 Manifold assembly G412-4100-01
CB 1 Natural Gas hose G501-0099-01
CC 1 Valve, Sideburner G617-0024-01
CD 1 Metal Hose, sideburner G608-0039-01
CE1 1 Electronic Igniter assembly G501-0072-02
CE2 1 Electronic Ignition Button G501-0072-01
CF1 1 Electrode Set, Main Burner G617-0017-01
CF2 1 Ground wire, main burner G411-0004-01
CG 4 Control Knob Assy G412-4500-01
CH 1 Series Logo G512-0009-01
CI 1 Control Panel G512-0003-01
CJ 1 Front Brace G512-0007-01
CK 1 Grease Cup G416-0015-01
CL 1 Grease Tray G512-1000-01
CM 1 Upper Back Panel G512-5500-01
DA 1 Side shelf table- Left G512-0600-01
DB 1 Side Shelf fascia- Left G512-0006-01
DC 1 Side Burner Drip Pan G617-0035-01
DD1 1 Side Burner Assy G433-1400-01
Item Qty. Description Part No.
DD2 1 Electrode Set, Sideburner G433-0047-01
DE 1 Cooking Grate, Sideburner G501-0077-01
DF 1 Lid F/ Sideburner G501-0070-01
DG 1 Side shelf table- Right G512-0500-01
DH 1 Side shelf fascia-Right G512-0005-01
EA 1 Cart side panel-Left G512-0700-01
EB 1 Cart Side Panel, Right G512-0800-01
EC 1 Pillar, Left G512-1100-01
ED 1 Pillar, Right G512-1200-01
EE 2 Magnet assembly G501-0016-01
EF 1 Door assembly G512-5000-01
EG 1 Bottom shelf G512-2500-01
EH 2 Wheel with lock G401-0061-01
EI 2 Wheel G606-0027-01
1 Hardware Pack G512-B001-01
1 Assembly Manual G512-M001-01
1 Safety & Care Manual G617-M001-02

EXPLOADED DIAGRAM (NATURAL GAS) FOR 85-1651-2 (G51203)
BH
BG
BC
BA1
CG
BD BF BE
CH CG CI
CF1
BB
CE2
CK
CE1
DG
DH
EI
BJ
EH
EA
EE
CM
CJ
DE
DF
CG
DD2
DD1
DA
DC
BI
CD
AG
AH
BA4
Safety & Care
Manual
Assembly
Manual

EA
EB
EG
Front view
ASSEMBLY INSTRUCTIONS
1
2
1. Separate the 2 dierent types of wheels, 2 locking
wheels (EH) and 2 regular wheels (EI).
Attach the locking wheels (EH) to the back of the
bottom shelf (EH) and the regular wheels (EI) to the
front of the bottom shelf (EG).
To secure the 4 wheels, hand tighten rst. Then, tighten
further using the Wrench provided in the hardware pack.
2. Ensure that the wheels are rmly locked in the “ON”
position before continuing.
Assemble the left side panel (EA) and the right side
panel (EB) to the bottom shelf (EG).
EI
EG
Back view
EH
Close up
Close up
#1 - ¼” - 20UNCx13 Screw (x6)
#4 - ø7 Lock Washer (x6)
#5 - ø7 Washer (x6)

ASSEMBLY INSTRUCTIONS
3. Attach the Front Brace (CJ) to the Left and right cart side
panels (EA and EB)
TIP: One person should align the left side, while the
second person assembles the right side.
3
EB
CJ
EA
Back view
44. Assemble the Left and right Pillars (EC and ED), to the cart
side panels, as shown in gure A and B.
Next, assemble the left and right pillars to the Front brace
(CJ) and the Bottom shelf (EG), as shown in gure C and D.
TIP: One person should align the left side, while the
second person assembles the right side.
A
BD
C
EC
CJ
#6 - NO. 10-24UNCx10 Screw (x4)
#7 - ø5 Lock Washer (x4)
#8. ø5 Washer (x4)
#6 - NO. 10-24UNCx10 Screw (x8)
#7 - ø5 Lock Washer (x8)
#8. ø5 Washer (x8)

5a. Position the top lid and burner box assembly (A and B)
onto cart assembly (C) as shown.
5b. Use the hardware to connect both parts, on the left
and right sides, at the three points indicated in Figure B
and C.
5THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.
ASSEMBLY INSTRUCTIONS
BC
A
#6 - NO. 10-24UNCx10 Screw (x6)
#7 - ø5 Lock Washer (x6)
#8. ø5 Washer (x6)

ASSEMBLY INSTRUCTIONS
66. Attach the upper back panel (CM) to both the left
and right side panels (EA and EB).
Only install hardware in the bottom portion of the
back panel, as shown in gure B.
CM
Back view
77. Attach the right side shelf fascia (DH) to the right side
shelf table (DG), as shown.
EB
EA
B
#2 - ¼” - 20UNCx38 Screw (x2)
#4 - ø7 Lock Washer (x2)
#5 - ø7 Washer (x2)
DH
DG
#6 - NO. 10-24UNCx10 Screw (x3)
#7 - ø5 Lock Washer (x3)
#8. ø5 Washer (x3)

99. Attach the left shelf fascia (DB) to the left side shelf
table (DA).
DA
DC
DB
Front
ASSEMBLY INSTRUCTIONS
8TIP: To position the right side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the right upper side panel (BC).
8. Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
DG
DH
*
B
*
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
BC
#6 - NO. 10-24UNCx10 Screw (x3)
#7 - ø5 Lock Washer (x3)
#8. ø5 Washer (x3)

10
ASSEMBLY INSTRUCTIONS
DA
DB
*
11. Remove the hardware that is pre-assembled to
the side burner valve bracket(CC), as shown in
gure B. Insert the side burner valve stem through
the rear of the left side shelf fascia(DB). Assemble
the side burner valve to the side shelf fascia, using
the hardware removed.
Assemble the side burner control knob (#12) to
the side burner valve (CC).
Hardware may be included with the hardware pack.
11
DA
DB
12
A
B
TIP: To position the left side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the upper left side panel (BB).
10. Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
CC
B
*
BB
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
#12. Knob (x1)

12 12a. Position the side burner (DD1) through the
opening in the left side burner drip pan (DC).
ASSEMBLY INSTRUCTIONS
Underside view
#13 - Wing Nut (x1)
DD1
12b. Make sure that the burner engages the side
burner valve as shown as shown in gure B.
12c. Using the Wing nut provided, assemble the
side burner to the side burner drip pan (DC),
as shown in gure C.
A
B
C
DC

13 For propane model only.
13. Insert the at end of the Tank Exclusion Bar
(CN) into the groove on the upper back
panel (CO), as shown in gure B. Next,
attach the tank exclusion bar (CN) to the
Front Brace (CJ) using the self tapping, as
shown in gure C.
#9 - ST4.2x10 Tapping Screw (x1)
CN
CO
ASSEMBLY INSTRUCTIONS
CJ
12Cont’d
12d. Attach the end of the side burner electrode
wire (DD2) to the underside of the side
burner electrode, as shown in gure D.
Ensure that the wire is pushed in rmly.
12e. Place the side burner cooking grate(DE)
into postion on the side burner shelf, as
shown in gure E.
DC
DE
D
E
C
B
CN
DD2

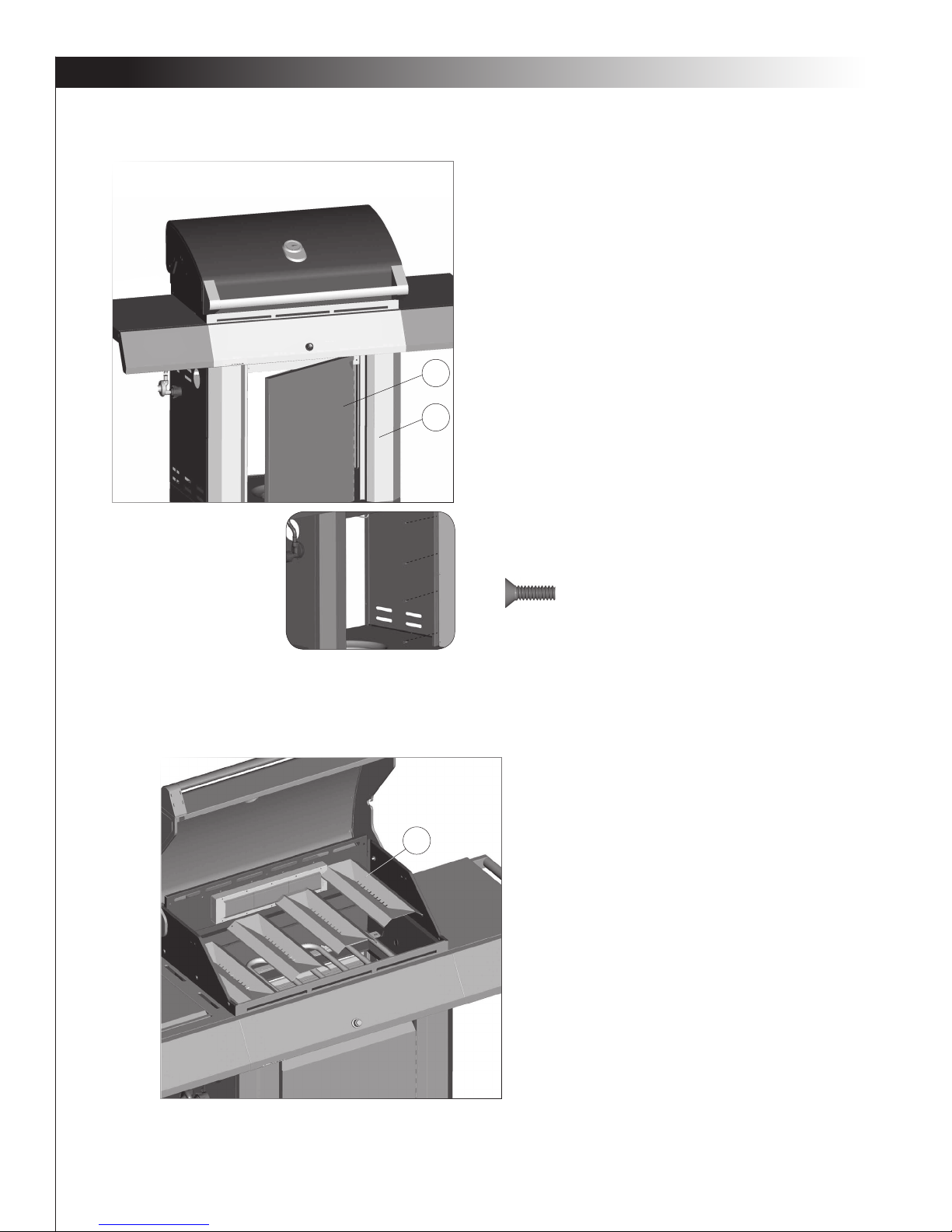

15 15. Place the ame tamers (BG) into the burner box.
ASSEMBLY INSTRUCTIONS
BG
14
#11 - NO. 8-32UNCx10 Screw (x4)
EF
ED
TIP: Before attempting to assemble the door (EF) to the
right pillar (ED), locate the two clasps on the door
Hinge. Next, locate the two small openings on the
right side pillar.
14a. Hold the door perpendicular to the BBQ Cart. Align
the two clasps on the door hinge (EF), with the two
holes on the right side pillar (ED). Once aligned push
the two clasps into the openings, and immediately
push down to lock clasps in place.
14b. Assemble the door (EF) to the right pillar (ED), as
shown in gure B, using the screws provided.
Model may not be exactly as shown.

16
17
16a. Place the cooking grates (BH) into the
burner box, as shown in gure A.
16b. Insert the three small positioning rods of
the warming rack (BI) into the rear panel of
the burner box.
17a. Insert the grease tray (CL) into the opening
in the upper back panel (CM), making sure
to engage tracks located under burner box.
17b. Place the grease cup (CK) onto the tracks,
located opn the underside of the grease
tray (CL).
ASSEMBLY INSTRUCTIONS
CL
CK
CM
BH
BI
A
B

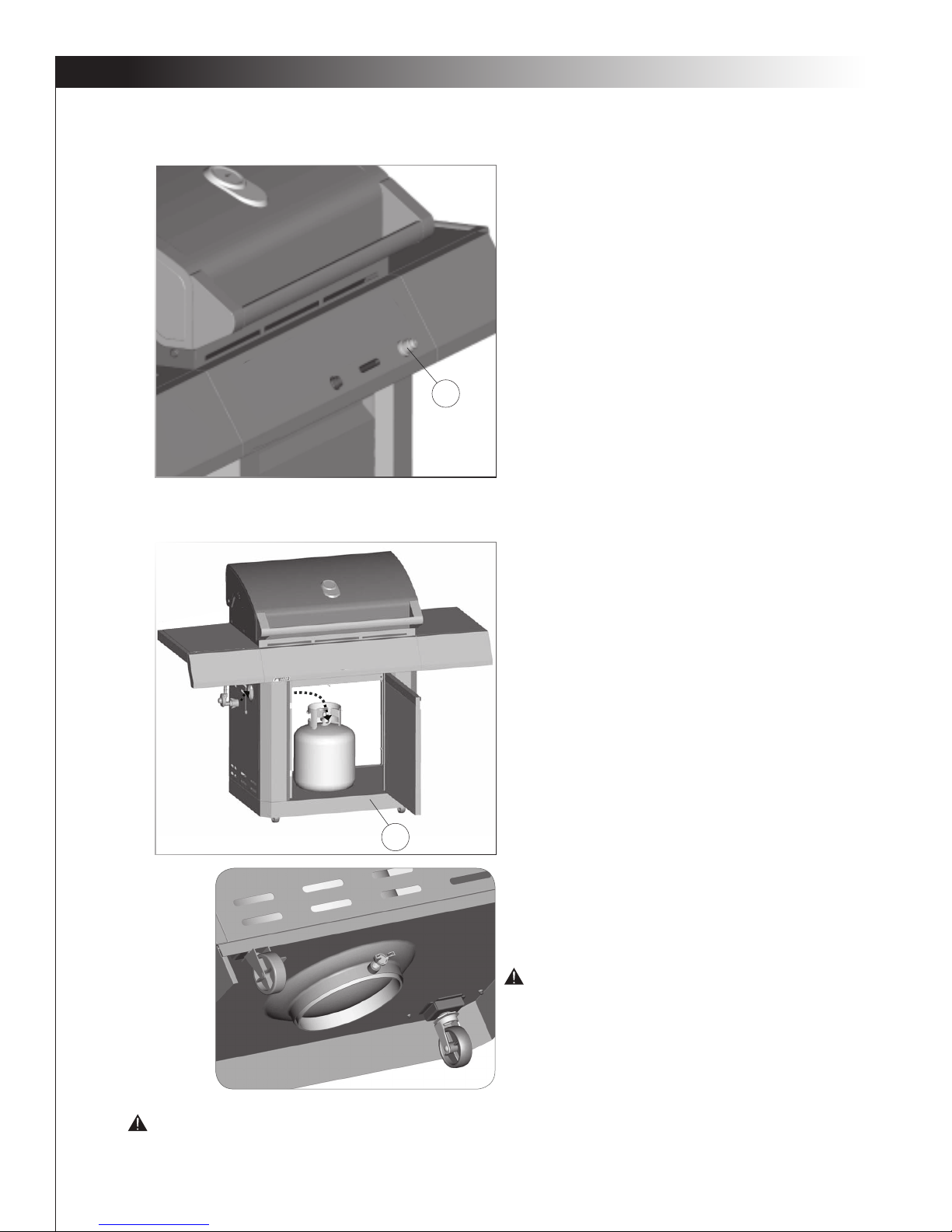

18. Unscrew the electronic ignitor button (CE2)
and insert one AA battery into the electronic
igniter battery compartment, with the positive
end facing outward.
*Batterynot included.
For propane model only.
For natural gas model, follow step 20.
19a. Position the 20 lb propane tank onto the
bottom shelf (EG), and secure using the
bolt (already attached) located on the
underside of the bottom shelf, as shown in
gure B.
19b. Attach the Regulator coupling nut to the
LP cylinder valve.
ATTENTION: For your families safety, do not at-
tempt to light this BBQ until you have reviewed
pages 4-7 of the CENTRO Safety & Care Manual.
All Safety and Leak test MUST BE PERFORMED
BY THE END USER, prior to lighting this BBQ.
18
ASSEMBLY INSTRUCTIONS
19
CE2
A
B
EG
WARNING
Do not store extra propane tanks within BBQ cart.

ASSEMBLY INSTRUCTIONS
For natural gas model only.
20. Attach the Natural Gas Hose (CB) to the side
burner valve (CC) as shown.
CB
CC
20
