Centro Centro 4800 User manual

85-1627-2 (G51202) Propane
85-1652-0 (G51204) Natural Gas
Limited 5-Year Warranty
Centro 4800
Assembly Manual
Read and save manual for future reference.
Assemble your grill immediately.
Missing or damaged parts should be
claimed within 15 days of purchase.
Manual Revision #: 020708

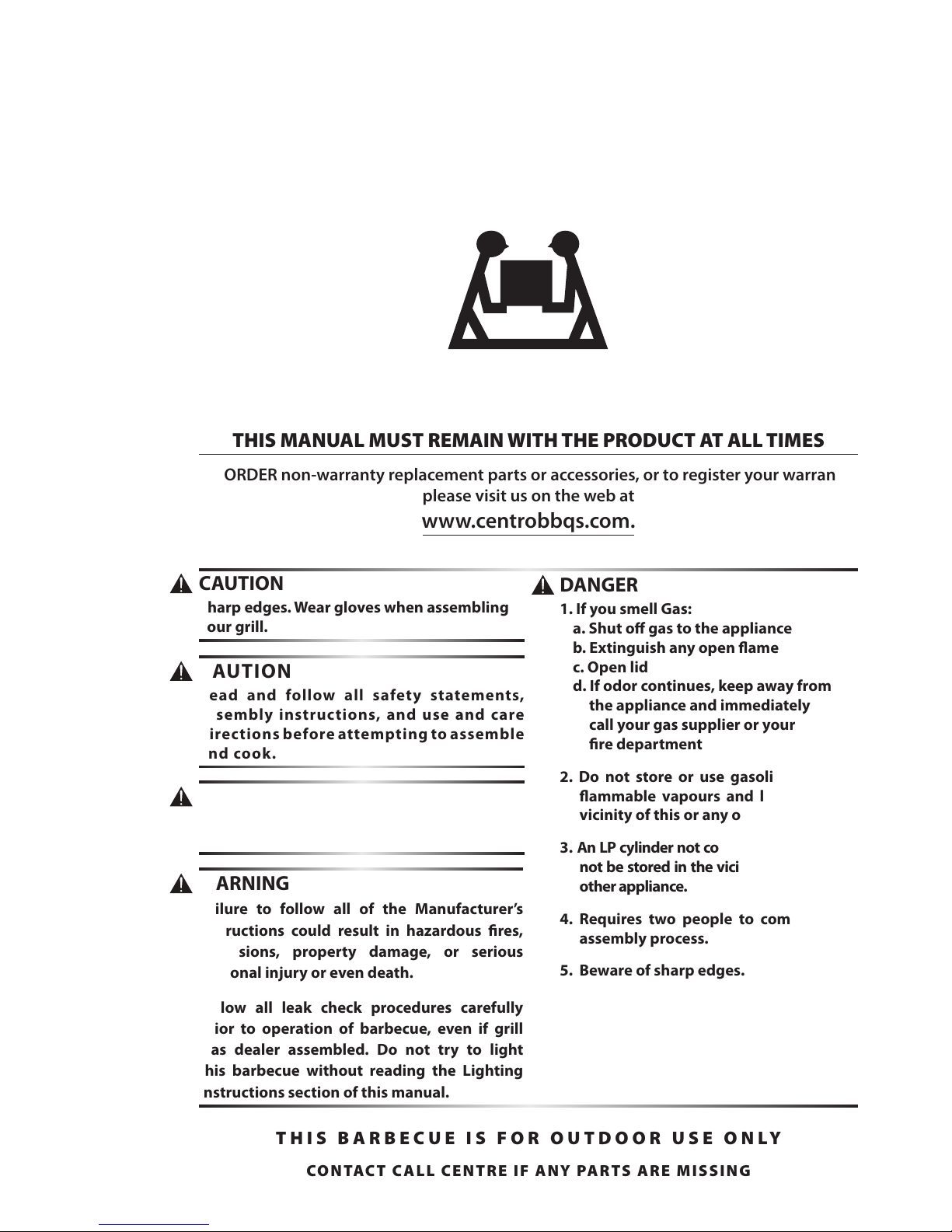

DANGER
1. If you smell Gas:
a. Shut o gas to the appliance
b. Extinguish any open ame
c. Open lid
d. If odor continues, keep away from
the appliance and immediately
call your gas supplier or your
re department
2. Do not store or use gasoline or other
ammable vapours and liquids in the
vicinity of this or any other appliance.
3. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
4. Requires two people to complete the
assembly process.
5. Beware of sharp edges.
WARNING
Failure to follow all of the Manufacturer’s
instructions could result in hazardous res,
explosions, property damage, or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES
To ORDER non-warranty replacement parts or accessories, or to register your warranty,
please visit us on the web at
www.centrobbqs.com.
CAUTION
Read and follow all safety statements,
assembly instructions, and use and care
directions before attempting to assemble
and cook.
CAUTION
Sharp edges. Wear gloves when assembling
your grill.
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
INSTALLER OR ASSEMBLER/CONSUMER
This manual should be kept with the BBQ at
all times.
HEAVY ARTICLE NEEDS 2 TO LIFT

1
ASSEMBLY INSTRUCTIONS
TOOLS NEEDED FOR ASSEMBLY
• #2 Phillips screwdriver (Long and short)
• ¼” Slotted screwdriver (Long and short)
• Adjustable wrench
• Pliers
• Rubber Mallot
Before assembling the barbecue, read these
instructions carefully.
Assemble the barbecue on a at, clean surface.
Grill is heavy.
Notes: Do not fully tighten all the nuts during this
initial stage.
No. Description Part Number Quantity
1¼"-20UNCX13 Screw 20120-13013-250 6
2 ¼"-20UNCX38 Screw 20120-13038-250 4
3 ¼"-20UNCX16 Screw 20120-13016-250 8
4ø7 Lock Washer 41400-07000-250 18
5 ø7 Washer 40300-07000-250 18
6NO.10-24UNCx10 Screw 20124-10010-250 24
7ø 5 Lock Washer 41400-05000-250 24
8 ø 5 Washer 40300-05000-250 24
9ST4.2x10 Tapping Screw 22500-42010-137 1
10 Wrench G413-0032-9082 1
11 NO.8-32UNCx10 Screw 20332-08010-250 4
12 Control Knob G412-4500-9000 1
13 Wing Nut 33301-04000-032 1
#1. ¼” - 20UNCX13 Screw (x6)
#4. ø7 Lock Washer (x18)
#10. Wrench (x1) #11. NO. 8-32UNCx10 Screw (x4)
#13. Wing Nut (x1)
#9. ST4.2x10 Tapping Screw (x1)
#12. Knob (x1)
#2. ¼” - 20UNCX38 Screw (x4)
#5. ø7 Washer (x18)
#7. ø5 Lock Washer (x24)
#3. ¼” - 20UNCX16 Screw (x8)
#6. NO. 10-24UNCx10 Screw (x24)
#8. ø5 Washer (x24)
Caution:
Sheet metal can cause injury. Wear gloves when installing the grill.

2
Item Qty. Description Part No.
CO 1Upper Back Panel G512-5500-01
CP 1Tank Exclusion G617-0037-01
DA 1Side shelf table- Left G512-1500-01
DB 1Side Shelf fascia- Left G512-0022-01
DC 1Side Burner Drip Pan G617-0035-01
DD 1 Side Burner Assembly G433-1400-01
DE1 1Electrode Set, Sideburner G433-0047-01
DF 1 Lid- Sideburner G512-0023-01
DG 1 Cooking Grate, Sideburner G501-0077-01
DH 1 Side shelf table- Right G512-1400-01
DI 1 Side shelf fascia-Right G512-0021-01
EA 1Cart side panel-Left G512-1900-01
EB 1Cart Side Panel, Right G512-1300-01
EC 1Pillar, Left G512-1600-01
ED 1Pillar, Right G512-1700-01
EE 2 Magnet assembly G501-0016-01
EF 1Door assembly G512-5100-01
EG 1Bottom shelf G512-0900-01
EH 2 Wheel with lock G401-0061-01
EI 2 Wheel G606-0027-01
1Hardware Pack G512-B002-01
1Instruction Manual G512-M002-01
1Safety & Care Manual G617-M001-02
PARTS LIST (PROPANE) FOR 85-1627-2 (G51202)
Item Qty. Description Part No.
AA 1Top Lid G512-1800-01
AB 1Lid handle G512-0001-01
AC 1Lid handle end cap-Left G617-0004-01
AD 1Lid handle end cap-Right G617-0005-01
AE 1Logo plate G412-0001-01
AF 1Thermometer G412-0003-01
AG 2 Screw for top lid G501-0005-01
AH 2 Lid bumper G508-0063-01
BA1 1Burner box assembly G512-0200-01
BA2 1Burner box side panel- Left G617-0300-01
BA3 1Burner box side panel- Right G617-0400-01
BA4 1Rotisserie Burner Brace G512-0015-01
BB 1Upper side panel- Left G512-0300-01
BC 1Upper side panel- Right G512-0400-01
BD 2 Main Burner-A G502-1700-01
BE 1Main Burner-B G502-1900-01
BF 1Carryover assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grate, Burner Box G512-0008-01
BI 1Warming Rack G512-0004-01
BJ 1Rotisserie Burner G607-4000-01
BK1 1Electrode Set, Rotisserie Burner G411-0002-01
BK2 1Ground wire, rotisserie burner G411-0004-01
BL 1Wind Shield, Rotisserie G617-0036-01
BM 1Match Holder G608-0019-01
CA 1Manifold Assembly G512-4600-01
CB 1Regulator G433-0034-01
CC 1Valve, Sideburner G617-0010-01
CD 1Metal Hose, sideburner G608-0039-01
CE 1Rotisseries Flexible hose G411-0013-01
CF1 1Electronic Igniter assembly G508-0075-01
CF2 1Electronic Ignition Button G501-0072-01
CG1 1Electrode Set, Main Burner G617-0017-01
CG2 1Ground wire, main burners G411-0004-01
CH 4Control Knob Assy G412-4500-01
CI 1Rotisserie Knob Assy G617-4200-01
CJ 1Series Logo G512-0020-01
CK 1Control Panel G512-0017-01
CL 1Front Brace G512-0007-01
CM 1Grease Tray G512-1000-01
CN 1Grease Cup G416-0015-01

3

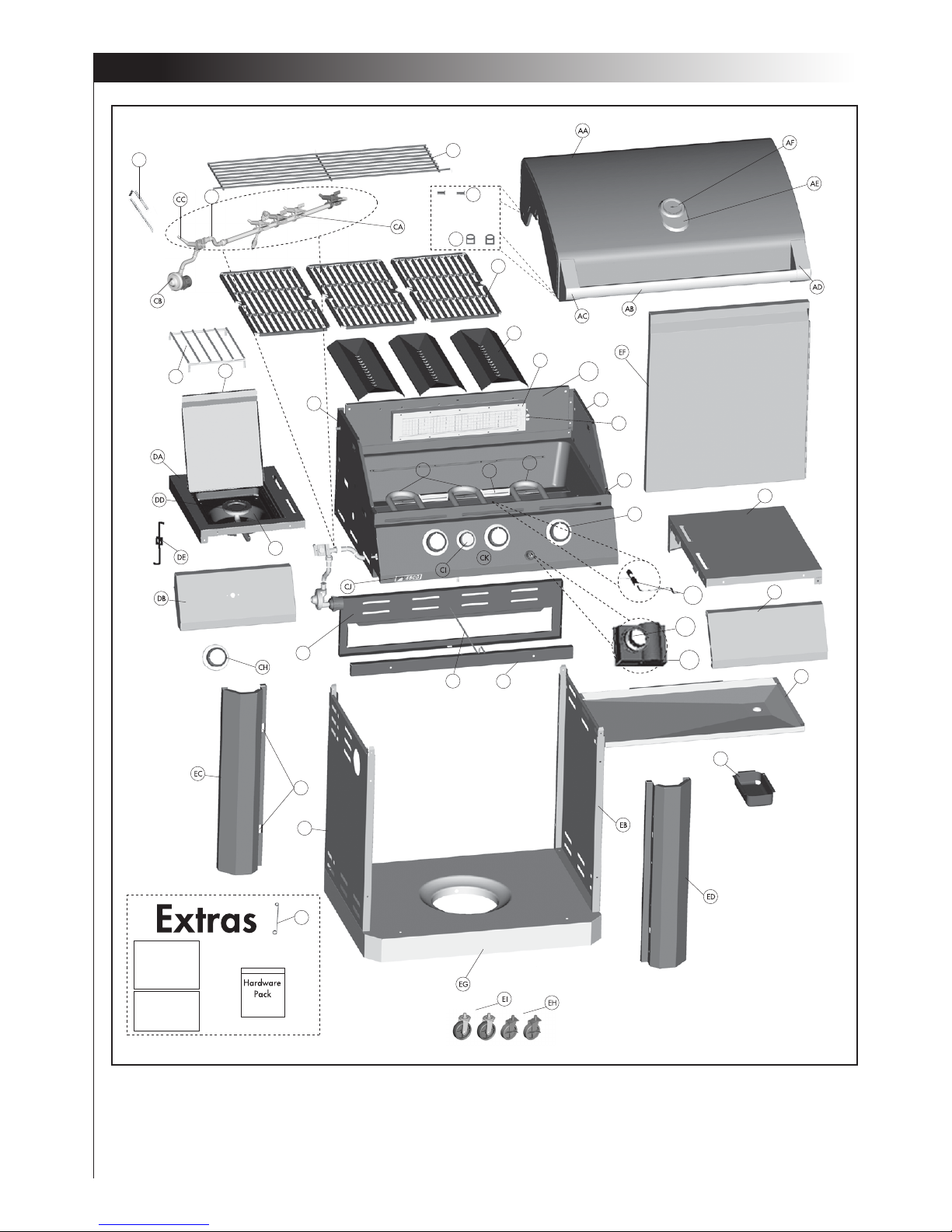

EXPLOADED DIAGRAM (PROPANE) FOR 85-1627-2 (G51202)
CD AG
AH
BH
BG
BJ
BA4
BF BE
BD
BB BC
CH
CG1
CF2
CF1
DI
DH
CM
CN
CP CL
CO
EA
EE
BI
DG DF
BA
BK
DC
CE
BM
Safety & Care
Manual
Assembly
Manual

4
Item Qty. Description Part No.
CN 1Grease Cup G416-0015-01
CO 1Upper Back Panel G512-5500-01
DA 1Side shelf table- Left G512-1500-01
DB 1Side Shelf fascia- Left G512-0022-01
DC 1Side Burner Drip Pan G617-0035-01
DD 1 Side Burner Assembly G433-1400-01
DE1 1Electrode Set, Sideburner G433-0047-01
DF 1 Lid- Sideburner G512-0023-01
DG 1 Cooking Grate, Sideburner G501-0077-01
DH 1 Side shelf table- Right G512-1400-01
DI 1 Side shelf fascia-Right G512-0021-01
EA 1Cart side panel-Left G512-1900-01
EB 1Cart Side Panel, Right G512-1300-01
EC 1Pillar, Left G512-1600-01
ED 1Pillar, Right G512-1700-01
EE 2 Magnet assembly G501-0016-01
EF 1Door assembly G512-5100-01
EG 1Bottom shelf G512-2500-01
EH 2 Wheel with lock G401-0061-01
EI 2 Wheel G606-0027-01
1Hardware Pack G512-B002-01
1Instruction Manual G512-M002-01
1Safe & Care Manual G617-M001-02
PARTS LIST (NATURAL GAS) FOR 85-1652-0 (G51204)
Item Qty. Description Part No.
AA 1Top Lid G512-1800-01
AB 1Lid handle G512-0001-01
AC 1Lid handle end cap-Left G617-0004-01
AD 1Lid handle end cap-Right G617-0005-01
AE 1Logo plate G412-0001-01
AF 1Thermometer G412-0003-01
AG 2 Screw for top lid G501-0005-01
AH 2 Lid bumper G508-0063-01
BA1 1Burner box assembly G512-0200-01
BA2 1Burner box side panel- Left G617-0300-01
BA3 1Burner box side panel- Right G617-0400-01
BA4 1Rotisserie Burner Brace G512-0015-01
BB 1Upper side panel- Left G512-0300-01
BC 1Upper side panel- Right G512-0400-01
BD 2 Main Burner-A G502-1700-01
BE 1Main Burner-B G502-1900-01
BF 1Carryover assembly G502-0012-01
BG 3 Flame Tamer G617-0019-01
BH 3 Cooking Grates G512-0008-01
BI 1Warming Rack G512-0004-01
BJ 1Rotisserie Burner G607-4000-01
BK1 1Electrode set, rotisserie burner G411-0002-01
BK2 1Ground wire, rotisserie burner G411-0004-01
BL 1Wind Shield, Rotisserie G617-0036-01
BM 1Match Holder G608-0019-01
CA 1Manifold Assembly G512-4800-01
CB 1Natural Gas hose G501-0099-01
CC 1Valve, Sideburner G617-0024-01
CD 1Metal Hose, sideburner G608-0039-01
CE 1Rotisserie Flexible hose G601-0072-01
CF1 1Electronic Igniter assembly G508-0075-01
CF2 1Electronic Ignition Button G501-0072-01
CG1 1Electrode Set, Main Burner G617-0017-01
CG2 1Ground wire, main burners G411-0004-01
CH 4Control Knobs G412-4500-01
CI 1Rotisserie Knob G617-4200-01
CJ 1Series Logo G512-0020-01
CK 1Control Panel G512-0017-01
CL 1Front Brace G512-0007-01
CM 1Grease Tray G512-1000-01

5
EXPLOADED DIAGRAM (NATURAL GAS) FOR 85-1652-0 (G51204)
Safety & Care
Manual
Assembly
Manual
CD AG
AH
BH
BG
BJ
BA4
BF BE
BD
BB BC
CH
CG1
CF2
CF1
DI
DH
CM
CN
CL
CO
EA
EE
BI
DG DF
CE
BK
CB
DC
BM
BA

6
EA
EB
EG
Front view
ASSEMBLY INSTRUCTIONS
6
1
2
1. Seperate the 2 dierent types of wheels, 2 locking wheels
(EH) and 2 regular wheels (EI).
Attach the locking wheels (EH) to the back of the bottom
shelf (EG) and the regular wheels (EI) to the front of the
bottom shelf (EG).
To secure the 4 wheels, hand tighten rst. Then, tighten
further using the Wrench provided in the hardware pack.
2. Ensure that the wheels are rmly locked in the“ON”
position before continuing.
Assemble the left side panel (EA) and the right side panel
(EB) to the bottom shelf (EG).
EI
EG
Back view
EH
Close up
Close up
#1 - ¼” - 20UNCx13 Screw (x6)
#4 - ø7 Lock Washer (x6)
#5 - ø7 Washer (x6)

7
ASSEMBLY INSTRUCTIONS
3. Attach the Front Brace (CL) to the Left and right cart side
panels (EA and EB)
TIP: One person should align the left side, while the
second person assembles the right side.
3
EB
CL
EA
Back view
44. Assemble the Left and right Pillars (EC and ED), to the cart
side panels, as shown in gure A and B.
Next, assemble the left and right pillars to the Front brace
(CL) and the Bottom shelf (EG), as shown in gure C and D.
TIP: One person should align the left side, while the
second person assembles the right side.
A
BD
C
EC
CL
#6 - NO. 10-24UNCx10 Screw (x4)
#7 - ø5 Lock Washer (x4)
#8. ø5 Washer (x4)
#6 - NO. 10-24UNCx10 Screw (x8)
#7 - ø5 Lock Washer (x8)
#8. ø5 Washer (x8)

8
5a. Position the top lid and burner box assembly (A and B)
onto cart assembly (C) as shown.
5b. Use the hardware to connect both parts, on the left
and right sides, at the three points indicated in Figure B
and C.
THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.
BC
A
#6 - NO. 10-24UNCx10 Screw (x6)
#7 - ø5 Lock Washer (x6)
#8. ø5 Washer (x6)
5
ASSEMBLY INSTRUCTIONS

9
ASSEMBLY INSTRUCTIONS

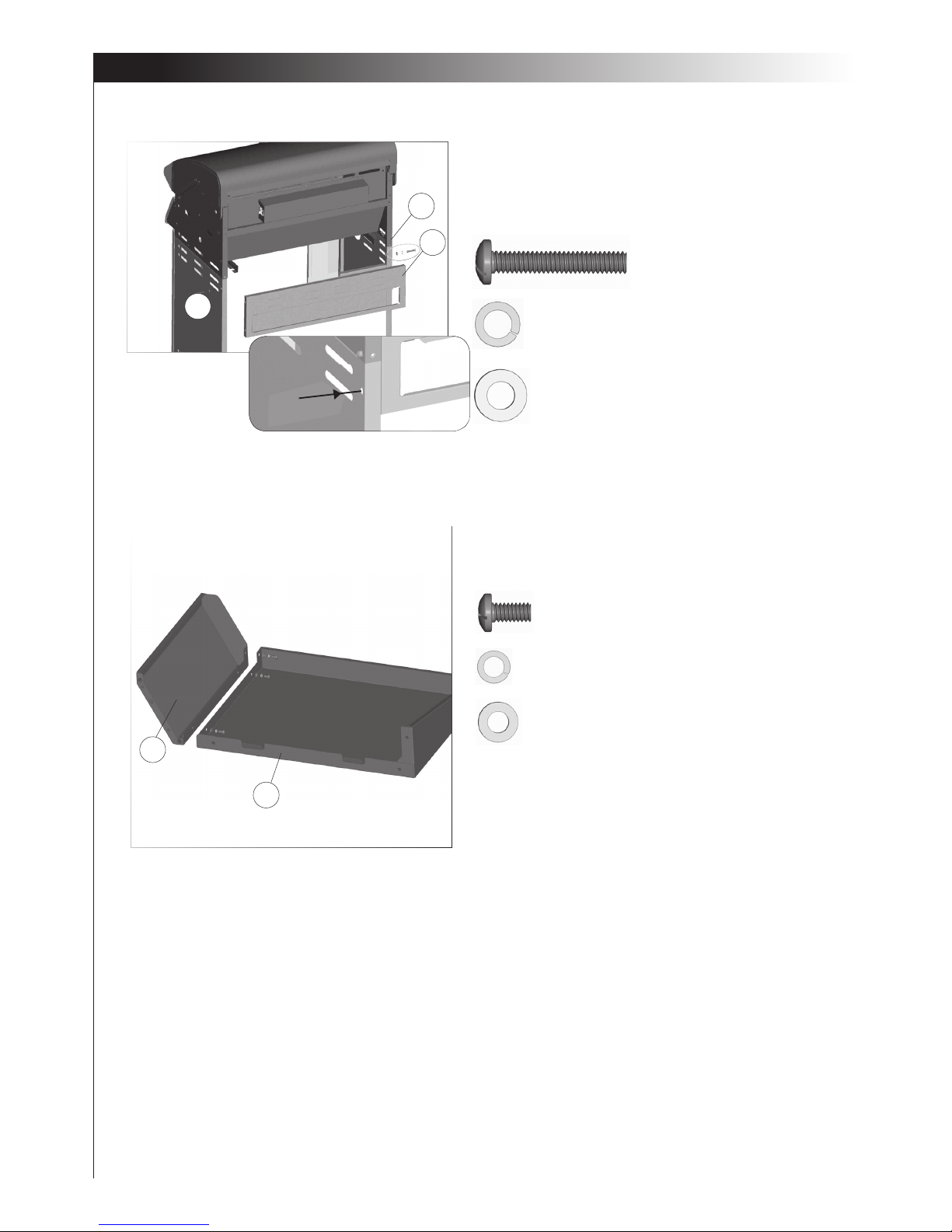

66. Attach the upper back panel (CO) to both the left and
right side panels (EA and EB).
Only install hardware in the bottom portion of the
back panel, as shown in gure B.
CO
Back view
EB
EA
B
#2 - ¼” - 20UNCx38 Screw (x2)
#4 - ø7 Lock Washer (x2)
#5 - ø7 Washer (x2)
77. Attach the right side shelf fascia (DI) to the right side shelf
table (DH), as shown.
DI
DH
#6 - NO. 10-24UNCx10 Screw (x3)
#7 - ø5 Lock Washer (x3)
#8. ø5 Washer (x3)

10
TIP: To position the right side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the right upper side panel (BC).
8. Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
DH
DI
*
B
*
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
BC
9
ASSEMBLY INSTRUCTIONS
8
9. Attach the left shelf fascia (DB) to the left side shelf
table (DA).
DA
DC
DB
Front
#6 - NO. 10-24UNCx10 Screw (x3)
#7 - ø5 Lock Washer (x3)
#8. ø5 Washer (x3)

11
11. Remove the hardware that is pre-assembled to
the side burner valve bracket(CC), as shown in
gure B. Insert the side burner valve stem through
the rear of the left side shelf fascia(DB). Assemble
the side burner valve to the side shelf fascia, using
the hardware removed.
Assemble the side burner control knob (#12) to
the side burner valve (CC).
Hardware may be included with the hardware pack.
DA
DB
12
CC
B
#12. Knob (x1)
DA
DB
*
A
B
TIP: To position the left side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the upper left side panel (BB).
10. Assemble the right side shelf assembly to the cart
assembly, as shown in gure B.
*
BB
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
10
ASSEMBLY INSTRUCTIONS
11

12

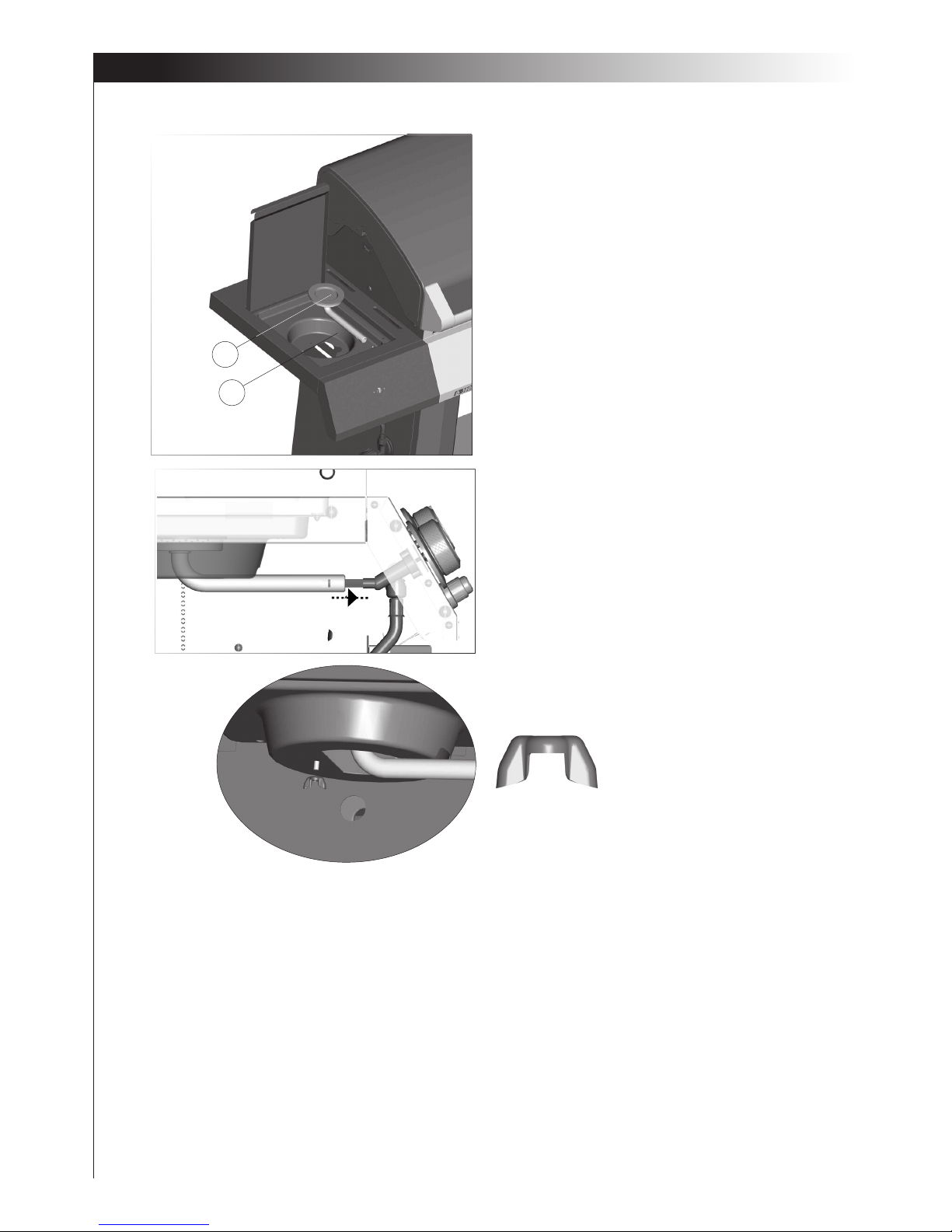

12a. Position the side burner (DD) through the
opening in the left side burner drip pan (DC).
Underside view
#13 - Wing Nut (x1)
DD
12b. Make sure that the burner engages the side
burner valve as shown in gure B.
12c. Using the Wing nut provided, assemble the
side burner to the side burner drip pan (DC),
as shown in gure C.
A
B
C
DC
12
ASSEMBLY INSTRUCTIONS
C

13
ASSEMBLY INSTRUCTIONS
13 For propane model only.
13. Insert the at end of the Tank Exclusion
Bar (CP) into the groove on the upper back
panel (CO), as shown in gure B. Next,
attach the tank exclusion bar (CP) to the
Front Brace (CL) using the self tapping, as
shown in gure C.
#9 - ST4.2x10 Tapping Screw (x1)
CP
CO
CL
12Cont’d

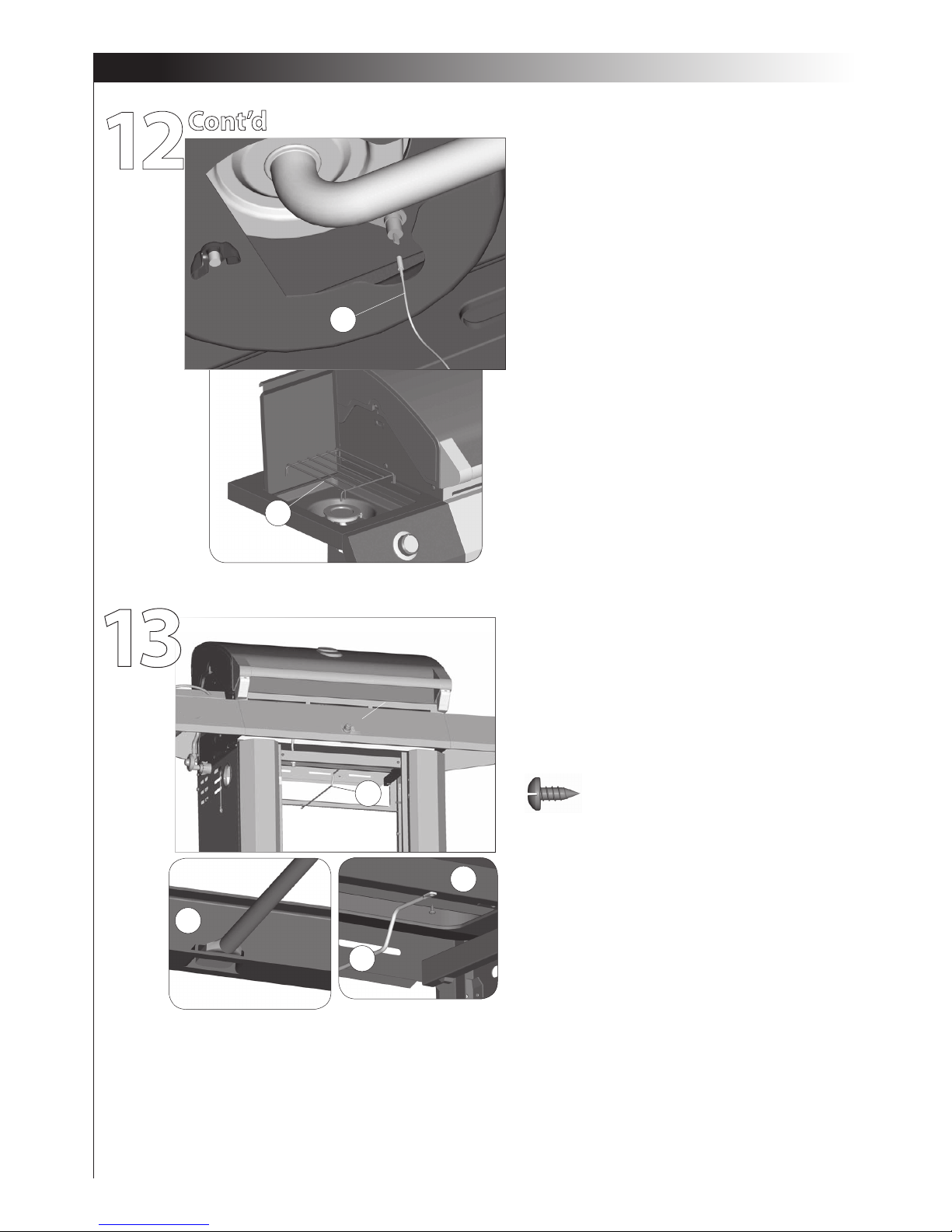

12d. Attach the end of the side burner electrode
wire (DE) to the underside of the side
burner electrode, as shown in gure D.
Ensure that the wire is pushed in rmly.
12e. Place the side burner cooking grate (DG)
into postion on the side burner shelf, as
shown in gure E.
DE
DG
D
E
C
B
CP

14
ASSEMBLY INSTRUCTIONS
15 15. Place the ame tamers (BG) into the burner box.
Model may not be exactly as shown.
BG
14
#11 - NO. 8-32UNCx10 Screw (x4)
EF
ED
TIP: Before attempting to assemble the door (EF) to the
right pillar (ED), locate the two clasps on the door
Hinge. Next, locate the two small openings on the
right side pillar.
14a. Hold the door perpendicular to the BBQ Cart. Align
the two clasps on the door hinge (EF), with the two
holes on the right side pillar (ED). Once aligned
push the two clasps into the openings, and immedi-
ately push down to lock clasps in place.
14b. Assemble the door (EF) to the right pillar (ED), as
shown in gure B, using the screws provided.

15
ASSEMBLY INSTRUCTIONS
16
17
16a. Place the cooking grates (BH) into the
burner box, as shown in gure A.
16b. Insert the three small positioning rods of
the warming rack (BI) into the Rotisserie
burner brace.
17a. Insert the grease tray (CM) into the opening
in the upper back panel (CO), making sure
to engage tracks located under burner box.
17b. Place the grease cup (CN) onto the tracks,
located opn the underside of the grease
tray (CM).
CM
CN
CO
BH
BI
A
B

16
ASSEMBLY INSTRUCTIONS
15
18. Unscrew the electronic ignitor button (CF2)
and insert one AA battery into the electronic
igniter battery compartment, with the positive
end facing outward.
* Battery not included.
For propane model only.
For natural gas model, follow step 20.
19a. Position the 20 lb propane tank onto the
bottom shelf (EG), and secure using the
bolt (already attached) located on the
underside of the bottom shelf, as shown in
gure B.
19b. Attach the Regulator coupling nut to the
LP cylinder valve.
ATTENTION: For your families safety, do not at-
tempt to light this BBQ until you have reviewed
pages 4-7 of the CENTRO Safety & Care Manual.
All Safety and Leak test MUST BE PERFORMED
BY THE END USER, prior to lighting this BBQ.
18
19
CF2
A
B
EG
WARNING
Do not store extra propane tanks within BBQ cart.

17
ASSEMBLY INSTRUCTIONS
For natural gas model only.
20. Attach the Natural Gas Hose (CB) to the side
burner valve (CC) as shown.
CB
CC
20
