IMPORTANT:
Please read this manual carefully before using this angle grinder and
save it for reference.
ANGLE GRINDER
INSTRUCTION
MANUAL
model number:054-7159-4

2 3
model no. 054-7159-4
TABLE OF CONTENTS
Read and understand this instruction manual thoroughly before using the
product. It contains important information for your safety as well as operating
and maintenance advice.
Keep this instruction manual for future use. Should this product be passed on
to a third party, this instruction manual must be included.
TABLE OF CONTENTS
Specifications 5
Safety guidelines 6
Work area safety 6
Electrical safety 6
Personal safety 6
Power tool use and care 7
Service 7
Safety warnings common for grinding 8
Kickback and related warnings 9
Safety warnings specific for grinding 10
Additional safety information 11
Double insulation 11
Electrical connection 11
Extension cords 11
Minimum gauge for cord sets 12
Warning icons 13
Key parts diagram 14
Assembly and adjustments 15
Installing the side handle 15
Mounting the wheel guard 15
Adjusting the wheel guard 16
Spindle lock 16
Installing and removing the wheel 17
Operating instructions 19
Switch the grinder on/off 19
Grinding with grinding wheels 20

54
model no. 054-7159-4
TABLE OF CONTENTS SPECIFICATIONS
SPECIFICATIONS
Motor 120V~, 60 Hz, 5.5A
Single speed 12,000 RPM (no load)
Arbor size 5/8” (16 mm)
Disc diameter 4 1/2” (115 mm)
Weight 4 lb 3 oz (1.89 kg)
Protection class Class II
MAINTENANCE 21
CLEANING 21
LUBRICATION 21
STORAGE AND HANDLING OF THE WHEELS 21
TROUBLESHOOTING 22
WARRANTY 23
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions. Read all
instructions and follow them with use of this product.

76
model no. 054-7159-4
SAFETY GUIDELINES
WORK AREA SAFETY
• Keep your work area clean and well lit.
Cluttered, dark areas invite accidents.
• Do not operate power tools in explosive
atmosphere, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks that can ignite dust
or fumes.
• Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adaptor plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce
risk of electric shock.
• Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if
your body is earthed or grounded.
• Do not expose power tool to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges, or moving parts.
Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
• If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces risk of electric
shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool when
you are tired or under the influence of
drugs, alcohol, or medication. A moment
of inattention while operating power
tools may result in serious personal
injury.
• Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing
protection used for appropriate
conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool. Carrying power tools with
WARNING!
• To reduce the risk of injury, read the instruction manual.
• Read all safety and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
• Save all warnings and instructions for future reference.
SAFETY GUIDELINES
your fingers on the switch or energising
power tools that have the switch on
invites accidents.
• Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a
rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
• Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
• If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
• Do not use power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with
the switch is dangerous and must be
repaired.
• Disconnect the plug from the power
source and/or battery pack from
the power tool before making any
adjustments, changing accessories, or
storing power tool. Such preventative
safety measures reduce the risk of
starting the tool accidentally.
• Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained users.
• Maintain power
tools. Check for
misalignment
or binding of
moving parts,
breakage of
parts and any other condition that may
affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused
by poorly maintained power tools.
• Use the power tool, accessories and
tool bits, etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool
for operations different from those
intended could result in a hazardous
situation.
SERVICE
• Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power
tools is maintained.

8 9
model no. 054-7159-4
SAFETY GUIDELINES
SAFETY WARNINGS COMMON FOR
GRINDING
• This power tool is intended to function
as a grinder. Read all safety warnings,
instructions, illustrations and
specifications provided with this power
tool. Failure to follow all instructions
listed below may result in electric
shock, fire and/or serious injury.
• Operations such as sanding, wire
brushing, polishing or cutting off are not
recommended to be performed with this
power tool. Operations for which the
power tool was not designed may create
a hazard and cause personal injury.
• Do not use accessories which are not
specifically designed and recommended
by the tool manufacturer. Just because
the accessory can be attached to
your power tool does not assure safe
operation.
• The rated speed of the accessory must
be at least equal to the maximum speed
marked on the power tool. Accessories
running faster than their RATED SPEED
can break and fly apart.
• The outside diameter and the thickness
of your accessory must be within the
capacity rating of your power tool.
Incorrectly sized accessories cannot be
adequately guarded or controlled.
• The arbour size of wheels, flanges,
backing pads or any other accessory
must properly fit the spindle of the
power tool. Accessories with arbour
holes that do not match the mounting
hardware of the power tool will run out
of balance, vibrate excessively and may
cause loss of control.
• Do not use a damaged accessory. Before
each use inspect the accessory such as
abrasive wheels for chips and cracks,
and backing pad for cracks, tear or
excess wear. If power tool or accessory
is dropped, inspect for damage or
install an undamaged accessory. After
inspecting and installing an accessory,
position yourself and bystanders away
from the plane of the rotating accessory
and run the power tool at maximum no-
load speed for one minute. Damaged
accessories will normally break apart
during this test time.
• Wear personal protective equipment.
Depending on application, use a
face shield, safety goggles or safety
glasses. As appropriate, wear a dust
mask, hearing protectors, gloves and
a workshop apron capable of stopping
small abrasive or workpiece fragments.
The eye protection must be capable
of stopping flying debris generated by
various operations. The dust mask or
respirator must be capable of filtering
particles gernerated by your operation.
Prolonged exposure to high intensity
noise may cause hearing loss.
• Keep bystanders a safe distance away
from work area. Anyone entering the
work area must wear personal protective
equipment. Fragments of workpiece or
of a broken accessory may fly away and
cause injury beyond immediate area of
operation.
• Hold power tool by insulated gripping
surfaces only.
• Position the cord clear of the spinning
accessory. If you lose control, the cord
may be cut or snagged and your hand
SAFETY GUIDELINES
or arm may be pulled into the spinning
accessory.
• Never lay the power tool down until the
accessory has come to a complete stop.
The spinning accessory may grab the
surface and pull the power tool out of
your control.
• Do not run the power tool while carrying
it at your side. Accidental contact with
the spinning accessory could snag your
clothing, pulling the accessory into your
body.
• Regularly clean the power tool’s air
vents. The motor’s fan will draw the
dust inside the housing and excessive
accumulation of powdered metal may
cause electrical hazards.
• Do not operate the power tool near
flammable materials. Sparks could
ignite these materials.
• Do not use accessories that require
liquid coolants. Using water or
other liquid coolants may result in
electrocution or shock.
• Do not use Type 11 (flaring cup) wheels
on this tool. Using inappropriate
accessories can result in injury.
• Always use side handle. Tighten the
handle securely. The side handle should
aways be used to maintain control of
the tool at all times.
KICKBACK AND RELATED WARNINGS
Kickback is a sudden reaction to a pinched
or snagged rotating wheel, backing pad,
brush or any other accessory. Pinching
or snagging causes rapid stalling of the
rotating accessory which in turn causes
the uncontrolled power tool to be forced in
the direction opposite of the accessory’s
rotation at the point of the binding. For
example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the
wheel that is entering into the pinch point
can dig into the surface of the material
causing the wheel to climb out or kick out.
The wheel may either jump toward or away
from the operator, depending on direction
of the wheel’s movement at the point of
pinching. Abrasive wheels may also break
under these conditions.
Kickback is the result of power tool misuse
and/or incorrect operating procedures or
conditions and can be avoided by taking
proper precautions as given below:
• Maintain a firm grip on the power tool
and position your body and arm to allow
you to resist kickback forces. Always
use auxiliary handle, if provided, for
maximum control over kickback or
torque reaction during start-up. The
operator can control torque reactions or
kickback forces, if proper precautions
are taken.
• Never place your hand near the rotating
accessory. Kickback may propel the
accessory over your hand.
• Do not position your body in the area
where power tool will move if kickback
occurs. Kickback will propel the tool
in direction opposite to the wheel’s
movement at the point of snagging.
• Use special care when working corners,
sharp edges etc. Avoid bouncing and
snagging the accessory. Corners, sharp
edges or bouncing have a tendency to
snag the rotating accessory and cause
loss of control or kickback.

10 11
model no. 054-7159-4
SAFETY GUIDELINES
• Do not attach a saw chain woodcarving
blade or toothed saw blade. Such blades
create frequent kickback and loss of
control.
SAFETY WARNINGS SPECIFIC FOR
GRINDING
• Use only wheel types that are
recommended for your power tool and
the specific guard designed for the
selected wheel. Wheels for which the
power tool was not designed cannot be
adequately guarded and are unsafe.
• The guard must be securely attached
to the power tool and positioned for
maximum safety, so the least amount of
wheel is exposed towards the operator.
The guard helps to protect operator from
broken wheel fragments and accidental
contact with wheel.
• Wheels must be used only for
recommended applications. For example:
do not grind with the side of cut-off
wheel. Abrasive cut-off wheels are
intended for peripheral grinding, side
forces applied to these wheels may
cause them to shatter.
• Always use undamaged wheel flanges
that are of correct size and shape for
your selected wheel. Proper wheel
flanges support the wheel thus reducing
the possibility of wheel breakage.
Flanges for cut-off wheels may be
different from grinding wheel flanges.
• Do not use worn down wheels from larger
power tools. Wheels intended for larger
power tools are not suitable for the
higher speed of a smaller tool and may
burst.
WARNING!
ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or
dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3).
• ANSI S12.6 (S3.19) hearing protection.
• NIOSH/OSHA/MSHA respiratory protection.
WARNING!
Use of this tool can generate and/or disperse dust, which may cause serious and
permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory
protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING!
Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration of use, noise from this product may
contribute to hearing loss.
WARNING!
Always use eye protection. All users and bystanders must wear eye protection that
conforms to ANSI Z87.1.
WARNING!
When not in use, place grinder on a stable surface where it will not move inadvertently,
roll or cause a tripping or falling hazard.
SAFETY GUIDELINES
ADDITIONAL SAFETY INFORMATION
• Avoid prolonged contact with dust from
power sanding, sawing, grinding, drilling,
and other construction activities. Wear
protective clothing and wash exposed
areas with soap and water. Allowing
dust to get into your mouth, eyes, or lay
on the skin may promote absorption of
harmful chemicals.
DOUBLE INSULATION
• Double insulation is a concept in
safety in electric power tools, which
eliminates the need for the usual three-
wire grounded power cord. All exposed
metal parts are isolated from the
internal metal motor components with
protecting insulation. Double-insulated
tools do not need to be grounded.
ELECTRICAL CONNECTION
• This tool has a precision-built electric
motor. It should be connected to a
power supply that is 120 V, AC only
(normal household current), 60 Hz. Do
not operate this tool on direct current
(DC). A substantial voltage drop will
cause a loss of power and the motor will
overheat. If the tool does not operate
when plugged into an outlet, double-
check the power supply.
EXTENSION CORDS
• When using a power tool at a
considerable distance from a power
NOTE:
Servicing of a tool with double insulation requires extreme care and knowledge of the system
and should be performed only by a qualified service technician. For service, we suggest
you return the tool to your nearest authorized service centre for repair. Always use original
factory replacement parts when servicing.
WARNING!
The double-insulated system is intended to protect the user from shock resulting
from a break in the tool’s internal insulation. Observe all normal safety precautions
to avoid electric shock.
CAUTION!
Accessories must be rated for at least the speed recommended on the tool label.
Wheels running over their rated speed may fly apart and cause injury. Accessory
ratings must always be above tool speed as shown on tool nameplate.

12 13
model no. 054-7159-4
SAFETY GUIDELINES
source, be sure to use an extension cord that has the capacity to handle the current the
tool will draw. An undersized cord will cause a drop in line voltage, resulting in overheating
and loss of power. Use the chart to determine the minimum wire size required in an
extension cord. Only round-jacketed cords listed by Underwriter’s Laboratories (UL) should
be used.
• When working outdoors with a tool, use an extension cord that is designed for outside use.
This type of cord is designated with “WA” or “W” on the cord’s jacket.
• Before using any extension cord, inspect it for loose or exposed wires and cut or worn
insulation.
MINIMUM GAUGE FOR CORD SETS
Ampere rating of the tool
(120 V circuit only)
Total length of cord
25’ (7.62 m) 50' (15.24 m) 100' (30.48 m) 150' (45.72 m)
more than more than Minimum gauge for the extension cord (AWG)
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended
WARNING!
Keep the extension cord clear of the working area. Position the cord so that it will not get
caught on lumber, tools, or other obstructions while you are working with a power tool.
Failure to do so can result in serious personal injury.
WARNING!
Check extension cords before each use. If damaged, replace immediately. Never use
tool with a damaged cord since touching the damaged area could cause electric shock
resulting in serious injury.
SAFETY GUIDELINES
WARNING ICONS
Some of the following symbols may be used on this tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
Class II Construction Designated double-insulated construction tools
Read the Instruction Manual To reduce the risk of injury, user must read instruction manual
Wear eye protection Always wear eye protection when operating this product
Warning symbol Alerts user to warning messages
Warning symbol Must not be used for face or angle grinding

14 15
model no. 054-7159-4
ASSEMBLY AND ADJUSTMENTS
No. Description
1On/Off switch
2 Threaded clamp nut
3 Backing flange
4 Spindle lock button
No. Description
5Grinding wheel guard
6 Side handle
7 Wrench
NOTE:
Before attempting to use your tool, familiarize yourself with all of the operating features and
safety requirements.
WARNING!
Carefully remove the tool and any accessories from the box. Make sure that all items
listed in the packing list are included. Inspect the tool carefully to make sure that no
breakage or damage occurred during shipping.
WARNING!
Do not discard the packing material until you have carefully inspected and satisfactorily
operated the tool.
4
5
3
2
6
7
1
KEY PARTS DIAGRAM
INSTALLING THE SIDE HANDLE (FIG. 1)
• Unplug the grinder.
• Screw the side handle into the gear
housing.
• Tighten the side handle securely.
MOUNTING THE WHEEL GUARD (FIG. 2,
3, 4)
It is important to choose the correct guards
to use with grinder accessories. See Fig.
2 for information on choosing the correct
accessories.
This tool is supplied with a grinding wheel
guard (Fig.2), which can be attached and
removed using the same steps:
• Open the guard latch, and align the lugs
on the guard with the slots on the gear
case cover.
• Push the guard down until the guard lugs
engage and rotate freely in the groove
on the gear case hub.
Fig. 2
NOTE:
You can install the side handle on two sides of the grinder, depending on operator preference.
It must always be used to prevent loss of control and possible serious injury.
CAUTION!
Guards must be usd with grinding wheels .The grinder is provided with a grinding
guard intended for use with grinding wheels.
WARNING!
To prevent accidental operation,turn off and unplug tool before performing the
following operations. Failure to do this could result in serious personal injury.
CAUTION!
Accessories must be rated for at least the speed recommended on the tool label.
Wheels running over their rated speed may fly apart and cause injury. Accessory
ratings must always be above tool speed as shown on tool nameplate.
Grinding guard Grinding wheel
Fig. 1

16 17
model no. 054-7159-4
ASSEMBLY AND ADJUSTMENTS
• With the guard latch open, rotate the
guard into the desired working position.
The guard body should be positioned
between the spindle and the operator to
provide maximum operator protection.
• Close the guard latch (1) to secure the
guard on the gear case. You should not
be able to rotate guard by hand when
the latch is closed. Do not operate the
grinder with a loose guard or the guard
latch in open position.
• To remove the guard, open the guard
latch, rotate the guard so that the lugs
and slots are aligned and pull up on the
guard.
ADJUSTING THE WHEEL GUARD
(FIG .5)
The guard is pre-adjusted to the diameter
of the gear case hub at the factory. If, after
a period of time, the guard becomes loose,
tighten the adjusting screw (1) with latch
in the closed position and guard installed on
the tool.
SPINDLE LOCK (FIG. 6, 7)
The spindle lock button (1) is provided to
prevent the spindle from rotating when
installing or removing wheels. Operate the
CAUTION!
Do not tighten the adjusting screw with the latch in the open position. Undetectable
damage to the guard or the mounting hub may result.
CAUTION!
If the guard cannot be tightened by the guard latch, do not use the tool and take the tool
and guard to a service centre to repair or replace the guard.
ASSEMBLY AND ADJUSTMENTS
spindle lock only when the tool is turned off
and the wheel has come to a complete stop.
To engage the lock, depress the spindle lock
button (1) and rotate the spindle until you
are unable to rotate the spindle further.

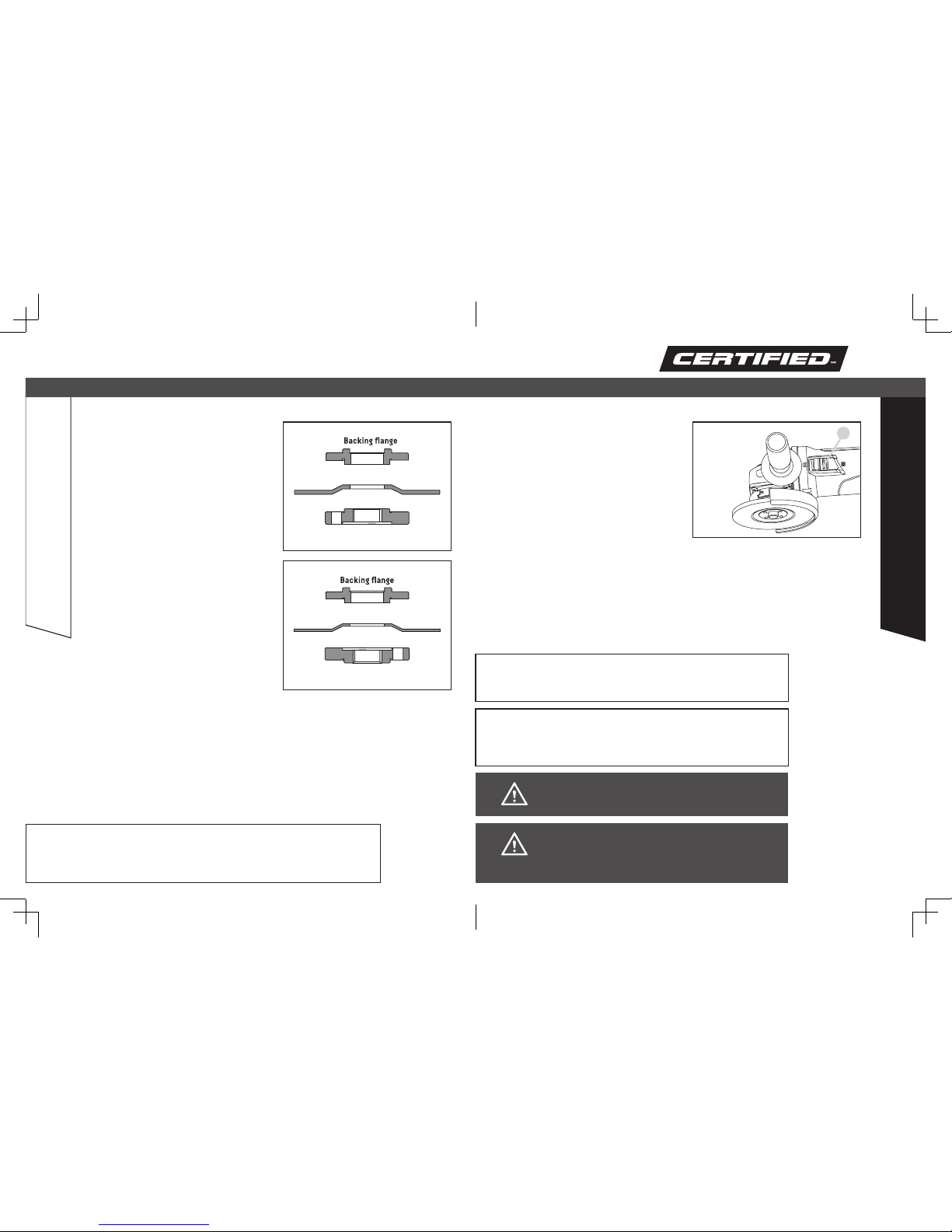

INSTALLING AND REMOVING THE
WHEEL (FIG. 8, 9)
Depressed centre wheel must be used with
included flanges.
• Turn off and unplug the tool.
• Install the unthreaded backing flange on
spindle with the raised section (pilot)
against the wheel.
• Place wheel against the backing flange,
centring the wheel on the raised section
(pilot) of the backing flange.
• While depressing the spindle lock
button, thread the threaded clamp nut
on spindle.
WARNING!
To prevent accidental operation, turn off and unplug tool before installing and
removing the grinding wheels. Failure to do this could result in serious personal injury.
WARNING!
Do not engage the spindle lock while the tool is operating. Damage to the tool will
result and attached accessory may spin off possibly resulting in injury.
3
2
1
Fig. 3
1
Fig. 4
1
Fig. 5
1
Fig. 6
1
Fig. 7

1918
model no. 054-7159-4
ASSEMBLY AND ADJUSTMENTS
If the wheel you are installing is more than
1/8" (3 mm) thick, place the threaded clamp
nut on the spindle so that the raised section
(pilot) fits into the centre of the wheel (see
Fig. 8).
If the wheel you are installing is 1/8" (3 mm)
thick or less, place the threaded clamp nut
on the spindle so that the raised section
(pilot) is not against the wheel (see Fig. 9).
• While depressing the spindle lock
button, tighten the threaded clamp nut
with included wrench.
• To remove the wheel, depress the
spindle lock button and loosen the
threaded clamp nut with included
wrench.
1/4" (6 mm) wheel
Threaded clamp nut
1/8" (3 mm) wheel
Threaded clamp nut
Fig. 8
Fig. 9
NOTE:
If the wheel spins after the threaded clamp nut is tightened, check the orientation of the
threaded clamp nut. If a thin wheel is installed with the pilot on the clamp nut against the
wheel, it will spin because the height of the pilot prevents the clamp nut from holding the
wheel.
OPERATING INSTRUCTIONS
SWITCH THE GRINDER ON/OFF
(FIG. 10)
• To start the tool, slide the ON/OFF slider
switch (1) toward the front of the tool.
To stop the tool, release the ON/OFF
slider switch.
• For continuous operation, slide the
switch toward the front of the tool and
press the forward part of the switch
inward. To stop the tool while operating
in continuous mode, press the rear part
of the slider switch and release.
WARNING!
To prevent loss of control and possible serious personal injury, always operate the
grinder with both hands, keeping one hand on the side handle.
DANGER!
Never use the grinder with the wheel guard removed and always be sure the wheel guard
is locked into place. It has been designed for use only with the wheel guard installed.
Attempting to use grinder with wheel guard removed will result in loose particles being
thrown against the operator resulting in serious personal injury.
NOTE:
If the grinder is held in one spot too long, it will gouge and cut grooves in the workpiece.
If the grinder is held at too sharp an angle, it will also gouge the workpiece because of
concentration of pressure on a small area.
NOTE:
Heavy pressure will decrease the grinder’s speed and put a strain on the motor. Normally
the weight of the tool alone is adequate for most grinding jobs. Use light pressure when
grinding jagged edges or loose bolts where there is the potential for the grinder to snag on
the metal edge.
1
Fig. 10

2120
model no. 054-7159-4
MAINTENANCE OPERATING INSTRUCTIONS
CLEANING
Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool;
never immerse any part of the tool into a liquid.
LUBRICATION
Tools are properly lubricated at the factory and are ready for use. Tools shoud be lubricated
regularly every year depending on usage. (Tools used on heavy duty jobs and tools exposed
to heat may require more frequent lubrication.) This lubrication should be attempted only by
trained power tool repair person such as those at service centres or other qualified service
personnel.
STORAGE AND HANDLING OF THE WHEELS
When not in use, the wheels should be stored carefully in a rack or box to protect from chipping
or breakage. All the wheels must be handled carefully to prevent dropping and bumping.
NOTE:
It is suggested to have the carbon brushes replaced by an authorized service centre.
WARNING!
Blowing dust and grit out of the motor housing using compressed air is a necessary
maintenance procedure. Dust and grit from metal grinding often accumulate on interior
surfaces and could create an electric shock hazard if not cleaned out.
GRINDING WITH GRINDING WHEELS
(FIG. 11)
Always carefully select and use grinding
wheels that are recommended for the
material to be ground. Make sure that the
operating speed of any accessory wheel
selected is rated at 12,000 RPM or more. Pay
attention to the dimensions of the grinding
tools. The mounting hole diameter must fit
the mounting flange without play. Do not use
reducers or adaptors.
• Secure all work in a vise or clamp to a
workbench.
• Hold the grinder in front and away
from you with both hands, keeping the
grinding wheel clear of the workpiece.
• Turn on the grinder and let the motor
and grinding wheel build up to full speed.
• Lower the grinder gradually until the
grinding wheel contacts the workpiece.
• Maintain a 20 to 30˚ angle between the
tool and work surface.
• Move the grinder continuously at a
steady, consistent pace.
• Use just enough pressure to keep the
grinder from chattering or bouncing.
• Lift the grinder away from the workpiece
before turning off the grinder.
Fig. 11

22 23
model no. 054-7159-4
PROBLEM PROBABLE CAUSE SUGGESTED CORRECTIVE ACTION
Tool will not start
Power cord is not plugged in. Plug tool into power source.
Power source fuse or circuit
breaker tripped.
Replace fuse or reset tripped circuit breaker. (If the
product repeatedly causes the circuit or fuse to trip/
blow, discontinue use immediately and have it serviced
by an authorized service centre.)
Cord damaged. Inspect cord for damage. If damaged, have cord replaced
by an authorized service centre.
Burned out switch. Have switch replaced by an authorized service centre.
Tool does not come up to speed
Extension cord has insufficient
gauge or is too long. Replace with adequate extension cord.
If equipped with variable speed,
tool may not be set at maximum
RPM.
If equipped with variable speed, check speed setting.
Low house voltage. Contact your electric company.
TROUBLESHOOTING
1-YEAR LIMITED WARRANTY
This CERTIFIEDTM product is guaranteed
for a period of 1 year from the date of
original retail purchase against defects in
workmanship and materials.
Subject to the conditions and limitations
described below, this product, if returned to
us with proof of purchase within the stated
warranty period and if covered under this
warranty, will be repaired or replaced (with
the same model, or one of equal value or
specification), at our option. We will bear
the cost of any repair or replacement and
any costs of labour relating thereto.
These warranties are subject to the following
conditions and limitations:
a) a bill of sale verifying the purchase and
purchase date must be provided;
b) this warranty will not apply to any
product or part thereof which is worn or
broken or which has become inoperative
due to abuse, misuse, accidental
damage, neglect or lack of proper
installation, operation or maintenance
(as outlined in the applicable owner’s
manual or operating instructions) or
which is being used for industrial,
professional, commercial or rental
purposes;
c) this warranty will not apply to normal
wear and tear or to expendable parts
or accessories that may be supplied
with the product that are expected to
become inoperative or unusable after a
reasonable period of use;
d) this warranty will not apply to routine
maintenance and consumable items
such as, but not limited to, fuel,
lubricants, vacuum bags, blades, belts,
sandpaper, bits, fluids, tune-ups or
adjustments;
e) this warranty will not apply where
damage is caused by repairs made or
attempted by others (i.e. persons not
authorized by the manufacturer);
f) this warranty will not apply to any
product that was sold to the original
purchaser as a reconditioned or
refurbished product (unless otherwise
specified in writing);
g) this warranty will not apply to any
product or part thereof if any part
from another manufacturer is installed
therein or any repairs or alterations
have been made or attempted by
unauthorized persons;
h) this warranty will not apply to normal
deterioration of the exterior finish,
such as, but not limited to, scratches,
dents, paint chips, or to any corrosion
or discolouring by heat, abrasive and
chemical cleaners; and
i) this warranty will not apply to
component parts sold by and identified
as the product of another company,
which shall be covered under the
product manufacturer’s warranty, if any.
ADDITIONAL LIMITATIONS
This warranty applies only to the original
purchaser and may not be transferred.
Neither the retailer nor the manufacturer
shall be liable for any other expense, loss
or damage, including, without limitation,
any indirect, incidental, consequential or
WARRANTY

24
model no. 054-7159-4
exemplary damages arising in connection with the sale, use or inability to use this product.
NOTICE TO CONSUMER
This warranty gives you specific legal rights, and you may have other rights, which may vary
from province to province. The provisions contained in this warranty are not intended to limit,
modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable
provincial or federal legislation.
Made in China
Imported by
Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8
WARRANTY
