Owner’s Manual Model Number 060-0195-2 Trailer Dump Cart
Your New Trailer Dump Cart
Congratulations on your purchase of a new Certified
TM
Trailer Dump Cart. Your Trailer Dump Cart has been
engineered and built to give you the most dependable
and best performing product possible.
Keep your manual in a safe, convenient place for future
reference. Always mention the model and part number in
any correspondence when ordering parts.
If you experience any problem you can not easily resolve,
please feel free to contact our knowledgeable and helpful
customer service department toll-free at 1 [phone].
Manual Contents
Safety Instructions 2
Carton Contents 2
Assembly 4
Operation and Maintenance 5
Parts and Support 5
Parts List 6
Warranty 7
Caution: Carefully read all rules and
instructions for safe operation. Retain
this manual for reference.
Tread pattern on tire may vary

2
Safety Instructions
The following safety precautions are suggested. This Trailer Dump Cart is designed,
engineered and tested to oer reasonably safe and eective service, provided that it
is operated in strict accordance with these instructions. Failure to do so may result in
personal injury. Always observe the rules of safe operation. Please read and retain
this manual.
• Read and understand your tractor’s owner’s manual and towing safety rules, and know
how to operate your tractor before using any attachment.
• Do not allow anyone to ride or sit on tow-behind equipment during operation.
• Be alert for holes in the terrain and other hazards. This could cause you to lose control
of the cart and lawn tractor.
• Follow maintenance and lubrication instructions as outlined in this manual.
• Tractor braking and stability may be aected with the attachment of this unit.
Be aware of changing conditions on slopes. Refer to safety rules in your tractor
owner’s manual concerning safe operation on slopes. Stay O Steep Slopes.
• Always operate up and down a slope, never across the face of a slope.
• Do not drive close to creeks, ditches or public highways.
• Always wear substantial footwear. Do not wear loose tting clothing that may
get caught in moving parts.
• Always operate up and down a slope, never across the face of a slope.
• Avoid extremely sharp turns.
• Follow the maintenance instructions as outlined in this owner’s manual.
• Do not exceed maximum towing speed of 3–4 MPH (5–6.4 km/h).
• Maximum Carrying Capacity: 1200 lb (544 kg).
• Warning of danger of improper use of the dump cart. This unit is intended
for use only with riding mowers or garden tractors. It is definitely not for highway
use, being pulled at high speeds, or transporting passenger(s) of any sort. Such
use could result in injuries for which we cannot be held responsible.
!
Model Number 060-0195-2 Dump Cart

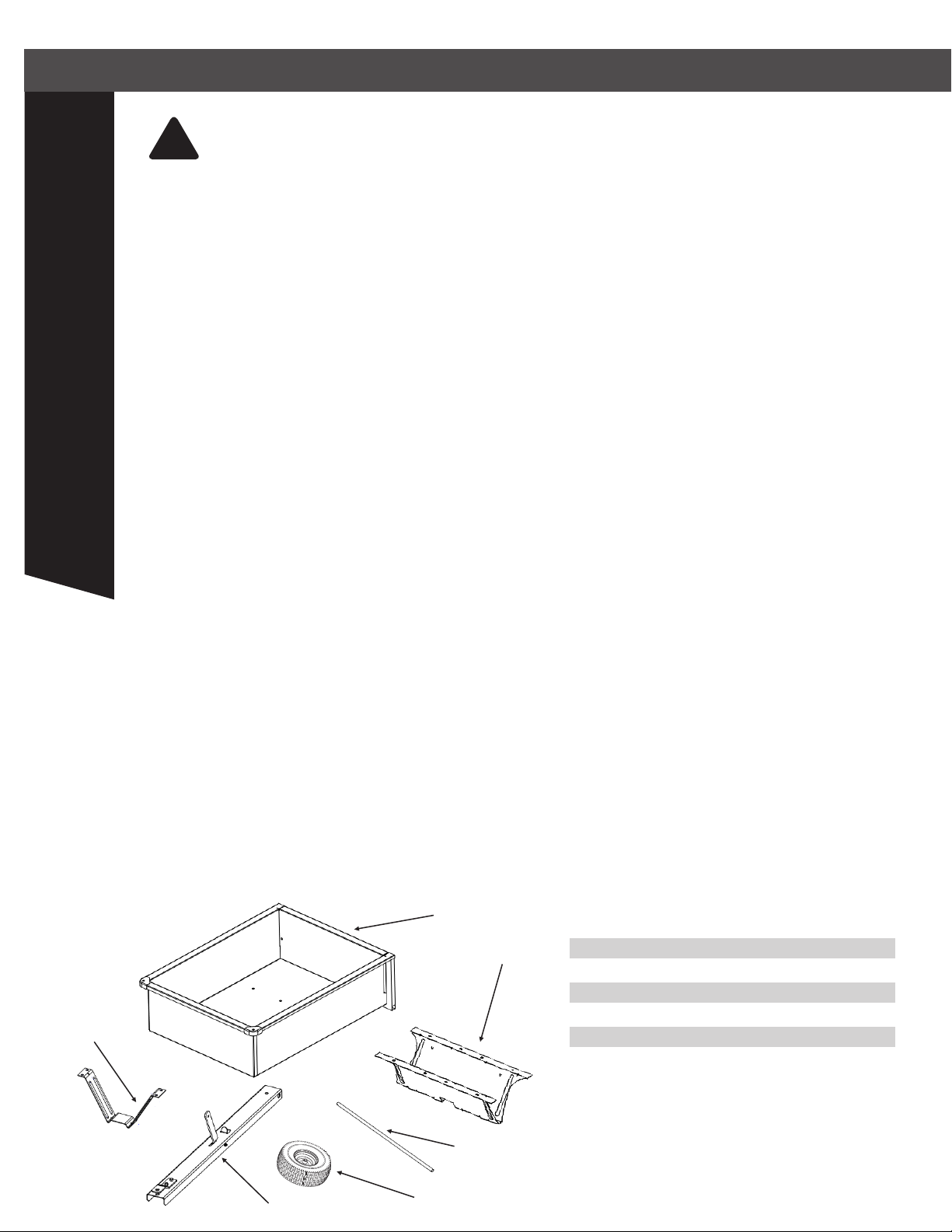

Carton Contents Ref No. Qty. Description
1 1 Body W/Tailgate
2 1 Tow Bar Assembly
3 1 Undercarriage
4 1 Axle
5 1 Pedestal
6 2 Wheels
6
4
3
2
5
1

3
Carton Contents

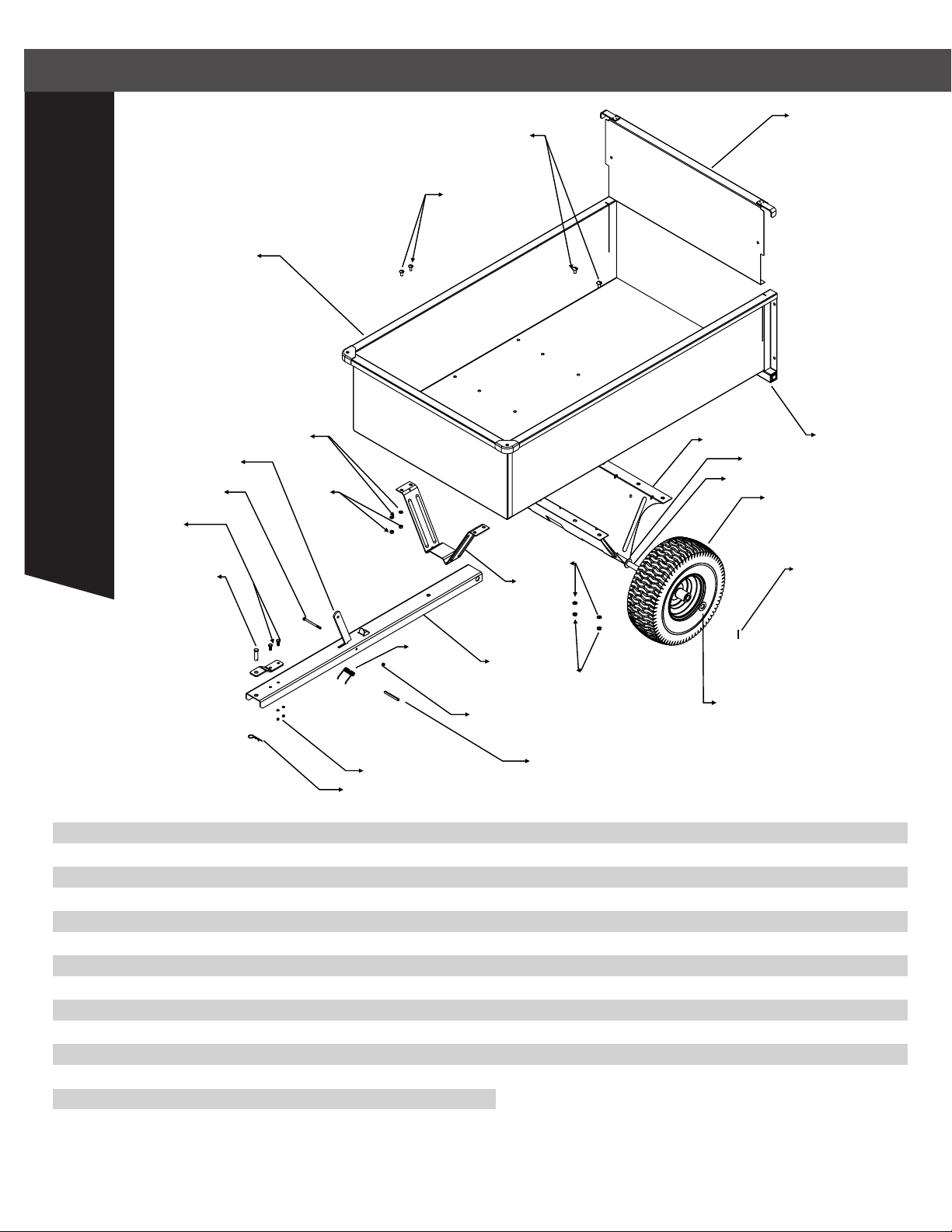

Ref No. Qty. Description
7 4 5/16 x 3/4” Truss Head Bolt
8 12 3/8 x 3/4” Truss Head Bolt
9 1 1/2 x 1 3/4” Clevis Pin
10 12 3/8” Lock Washer
11 2 1/8 x 1 1/4” Cotter Pin
12 4 5/16” Hex Head Nut
13 12 3/8” Hex Head Nut
14 1 #14 Hitch Pin Clip
15 4 3/4” Flat Washer
16 4 5/16” Lock Washer
Hardware sack may contain more parts than needed.
7
1312
13
10
9
8
14
13
11
15
16

5/16” x 3/4”
Truss Head
Bolt
5/16” Lock
Washer
5/16” Hex
Head Nut
4
Assembly Instructions
Model Number 060-0195-2 Dump Cart
Tools Needed For Cart Assembly
(2) 7/16” Wrenches
(2) 1/2” Wrenches
(1) 9/16” Wrench
(1) Pair Pliers
(1) Large Standard or Flat Screwdriver
Remove from Carton
Remove all parts and hardware packages
from the carton. Lay out all parts and
hardware and identify them using the
illustrations on pages 2-3.
Assembly Tip:
Loosely tighten all nuts and bolts at
first. Fully tighten when the unit is
completely assembled.
1. Attach Undercarriage Axle Support to
the bottom of the Body. Use 12 3/8 x 3/4”
Truss Head Bolts, 3/8” Lock Washers, and
secure with 3/8” Hex Head Nuts. See Figure 1.
Figure 3.
Figure 2.
2. Attach Pedestal to bottom front of Body.
Use 5/16 x 3/4” Truss Head Bolts from inside.
On the bottom side, use 5/16” Lock Washers
and secure with 5/16” Hex Head Nuts.
See Figure 2.
3. Move Body to at position with Undercarriage
and Pedestal face up. Slide Axle halfway through
Undercarriage. Place Tow Bar into centre slot on
Undercarriage, locking latch to Pedestal, then
slide the Axle though the holes in the Tow Bar all
the way through the Undercarriage. See Figure 3.
3/8” x 3/4”
Truss Head
Bolt
3/8” Lock
Washer
3/8” Hex
Head Nut
Figure 1.
Axle
Pedestal
Latch
3/8

Clevis Pin
Clevis Pin
Clip
1” x 1” Tube
Plug
3/4” Flat
Washer
Cotter Pin
5
Assembly Instructions
4. Place one 3/4” Flat Washer on each side of
Axle next to Undercarriage. Next place Wheel
onto Axle, add one 3/4” Flat Washer on outside
of wheel. Secure Wheel in place by inserting
Cotter Pin through hole in the end of Axle and
spreading the legs of the Cotter Pin outward.
Repeat the Wheel attachment step for the
other wheel. See Figure 4.
5. Turn Cart to an upright position, then
attach Tow Bar to Hitch of tractor by placing
Clevis Pin through Clevis Plate Hole and
securing with Clevis Pin Clip. Insert 1 x 1”
Tube Plug into Tailgate Support Tube.
See Figure 5.
Figure 5
Figure 4
STOP
MADE IN U.S.A
TRILEAF DISTRIBUTION
TRIFEUIL TORONTO,
CANADA M4S 2B8
Operation and Maintenance • Parts and Support
Operation
• TO DUMP — Pull Latch toward lawn tractor
and Cart Body will tilt back to dump position.
• TO RETURN TO PULLING POSITION — Push down
on front edge of Cart Body until Latch
engages and secures to Tow Bar.
• Tractor speed should be governed by weight
of load. The heavier the load, the slower the
speed for safe operation.
Maintenance Instructions
• Keeping the cart clean and dry will prolong
the unit’s life.
• Grease Wheels at regular intervals, at least
once every six months. More frequently if
used regularly.
• Should rust develop, sand lightly then paint
area with enamel paint.
• Check tire pressure at regular intervals
Proper ination will prolong the life of tires
(see side of tire for ination amount.)
Parts and Support
Please do not return this product
to the store prior to contacting
Certified
TM.
At Certified
TM our goal is to deliver quality,
value and outstanding service. If for any
reason our product does not meet your
expectations, please contact us and we
will take care of any problem you may
have with this unit.
When ordering replacement parts please
have the model number, part description,
part number, inspector number and date
on carton available so that we can best
serve you. 1 [phone]

Parts List
6
Model Number 060-0195-2 Dump Cart
Ref No. Part No. Qty. Description
1 5632B 1 Body
2 5622B 1 Tow Bar
3 5629 1 Axle
4 5547A 2 Wheel
5 1262 2 Cotter Pin
6 5631B 1 Tailgate
7 1264 4 3/4” Flat Washer
8 4630B 1 Pedestal
9 5630B 1 Undercarriage
10 1243P 1 Clevis Plate
11 1265P 1 Latch
12 1242 1 1/4 x 3” Spacer
13 4497 1 Spring
14 1586 4 5/16 x 3/4” Truss Head Bolt
Ref No. PartNo. Qty. Description
15 4552 12 3/8 x 3/4” Truss Head Bolt
16 1273 12 3/8” Hex Head Nut
17 1248 2 5/16 x 3/4” Hex Head Bolt
18 1275 6 5/16” Hex Head Nut
19 1274 12 3/8” Lock Washer
20 1276 6 5/16” Lock Washer
21 4466 1 1/4 x 3 1/2” Hex Head Bolt
22 1778 1 1/4” NyLock Nut
23 1840 1 1/2 x 1 3/4” Clevis Pin
24 1042 1 #14 Clevis Pin Clip
25 2176 2 1 x 1” Tube Plug
26 4471 2 1 x 1 1/4” Spacer*
(not shown)
22
8
2
6
15
14
23
11
17
21
18
20
24
12
9
3
16
19
4
5
7
7
1
18
25
13

Manufacturer’s Limited Warranty
7
The limited warranty set forth below is given by Certified.
with respect to new merchandise purchased and used in
Canada, its possessions and territories.
Certified
warranties the product(s) listed against defects
in material and workmanship, and will at our option, repair or
replace, free of charge, any part found to be defective in
materials or workmanship. This limited warranty shall only
apply if this product has been assembled, operated, and
maintained in accordance with the owner’s manual furnished
with the product, and has not been subject to misuse, abuse,
neglect, accident, improper maintenance, alteration, vandalism,
theft, fire, water, or damage because of other peril or natural
disaster.
Normal wear parts or components there of are subject to
separate terms as follows: All normal wear parts or component
failures will be covered on the product for a period of one
year. Parts found to be defective within the warranty period
will be replaced at our expense. Our obligation under this
warranty is expressly limited to the replacement or repair,
at our option, of parts found to be defective in material
and workmanship.
Contacting Service:
Warranty parts replacements are available, only with
Proof of Purchase, through our Customer Service
Department. Call 1 [phone].
This limited warranty does not provide coverage in the
following cases:
1. Routine maintenance items such as lubricants and filters.
2. Normal deterioration of the exterior finish due to use or exposure.
3. Transportation and/or labour charges.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below.
No other express warranty whether written or oral, except
as mentioned above, given by any person or entity, including
a dealer or retailer, with respect to any product, shall bind
Certified
during the period of the warranty, the exclusive
remedy is repair or replacement of the product as set
forth above.
The provisions as set forth in this warranty provide the sole and
exclusive remedy arising from the purchase.
Certified will not be liable for incidental or
consequential loss or damage including, without
limitation, expenses incurred for substitute or
replacement lawn care services or for rental
expenses to temporarily replace a warranted product.
Some provinces and territories do not allow the
exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not
apply to you.
During the warranty period, the exclusive remedy is
replacement of the part. In no event shall recovery of
any kind be greater that the amount of the purchase price
of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the
risk and liability for loss, damage, or injury to you and
your property and/or to others and their property arising
out of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other
than the original purchaser or to the person for whom it
was purchased as a gift.
Local Law to this Warranty:
This limited warranty gives you specific legal rights, and
you may also have other rights which vary from provinces
and territories.
Warranty Period:
The warranty period stated below begins with the
Proof of Purchase. Without the proof of purchase,
the warranty period begins from the date of manufacture.
Dump Cart Warranty Period:
The warranty period for this unit is as follows:
All part are cover one year from date of sale.
