Cervoz MEC-SAT-M002 User manual

MEC-SAT-M002
Mini PCI-e 2-port Serial ATA III board
User’s Manual
Third Edition, February 2014
© 2014 Cervoz Co., Ltd. All rights reserved.
Reproduction without permission is prohibited

2
Mini PCI-e SATA Card
User’s Manual
The software described in this manual is furnished under a license agreement and may be
used only in accordance with the terms of that agreement.
Copyright Notice
© 2014 Cervoz Co., Ltd. All rights reserved. Reproduction without permission is prohibited.
Trademarks
Cervoz is a registered trademark of Cervoz Co., Ltd. All other trademarks or registered marks
in this manual belong to their respective manufacturers.
Disclaimer
Information in this document is subject to change without notice and does not represent a
commitment on the part of Cervoz.
Cervoz provides this document “as is,” without warranty of any kind, either expressed or
implied, including, but not limited to, its particular purpose. Cervoz reserves the right to make
improvements and/or changes to this manual, or to the products and/or the programs
described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Cervoz
assumes no responsibility for its use, or for any infringements on the rights of third parties that
may result from its use.
This product might include unintentional technical or typographical errors. Changes are
periodically made to the information herein to correct such errors, and these changes are
incorporated into new editions of the publication.
Technical Support Contact Information
http://www.cervoz.com/support/technical.php
Cervoz Co., Ltd.
Tel: [phone]
Fax: [phone]

3
Table of Contents
Chapter 1
Introduction
4
Overviews
4
Features
4
Installation Flowchart
5
Package Checklist
5
Chapter 2
Hardware Installation
6
Chapter 3
Software Installation
10
Appendix
Pin Assignments
18
Board Side Pin Assignments
18
Device Side Pin Assignments
19
Technical Reference
20
MEC-SAT-M002 Specifications
20
MEC-SAT-M002 Dimensions
20
Product Warranty Statement
21

4
1
Introduction
Overview
MEC-SAT-M002 is a serial ATA III card for embedded PC. The card follows the Mini
PCI-e standard which is complaint with PCI Express x 1 classification and small form
factor (30.00 x 50.95 mm). This board fits in any host computer that has Mini PCI-e
card slots. MEC-SAT-M002 has great compatibilities with all types of Serial ATA
devices, including hard drive, solid state drive, and optical drive.
Features
The PCI Express boards have the following outstanding features:
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Fully compliant with PCI-Express Base Specification Rev 2.0
Two Serial ATA III 6Gb/s ports (Compatible with Serial ATA I and II)
Transfer rate of 1.5Gbps, 3.0Gbps, and 6.0Gbps
IDE/AHCI mode supported
SATA Port Multiplier and Hot-Swap supported

5
Installation Flowchart
Installation Flowchart of MEC-SAT-M002
The following flowchart provides a brief summary of the procedure you should follow to
install the Mini PCI-e card:
Package Checklist
The following items are included in the Mini PCI Express board Package:
Mini PCI-e Card x 1
20Pin Cable with two SATA Connectors (30cm) x 1
Quick Installation Guide (Printed) x 1
Driver CD x 1
Note: Notify your sales representative if any of the above items are missing or
damaged.
Connect the internal cable
Hardware Installation
Install the card in the Mini PCI-e slot
Connect SATA devices
Software Installation
Install the driver
Hardware Installation
Hardware Installation

6
2
Hardware Installation
This chapter describes the PCI Express Series hardware installation procedure. Since the
BIOS automatically assign the PCI Express board’s IRQ number and I/O addresses, you must
plug in the board before installing the driver.
Step 1
Connect the internal cable to the card
Connect the internal cable to the card (20PIN connector)
Note
Both sides of the cable connectors are the same, it doesn’t matter which side
you connect

7

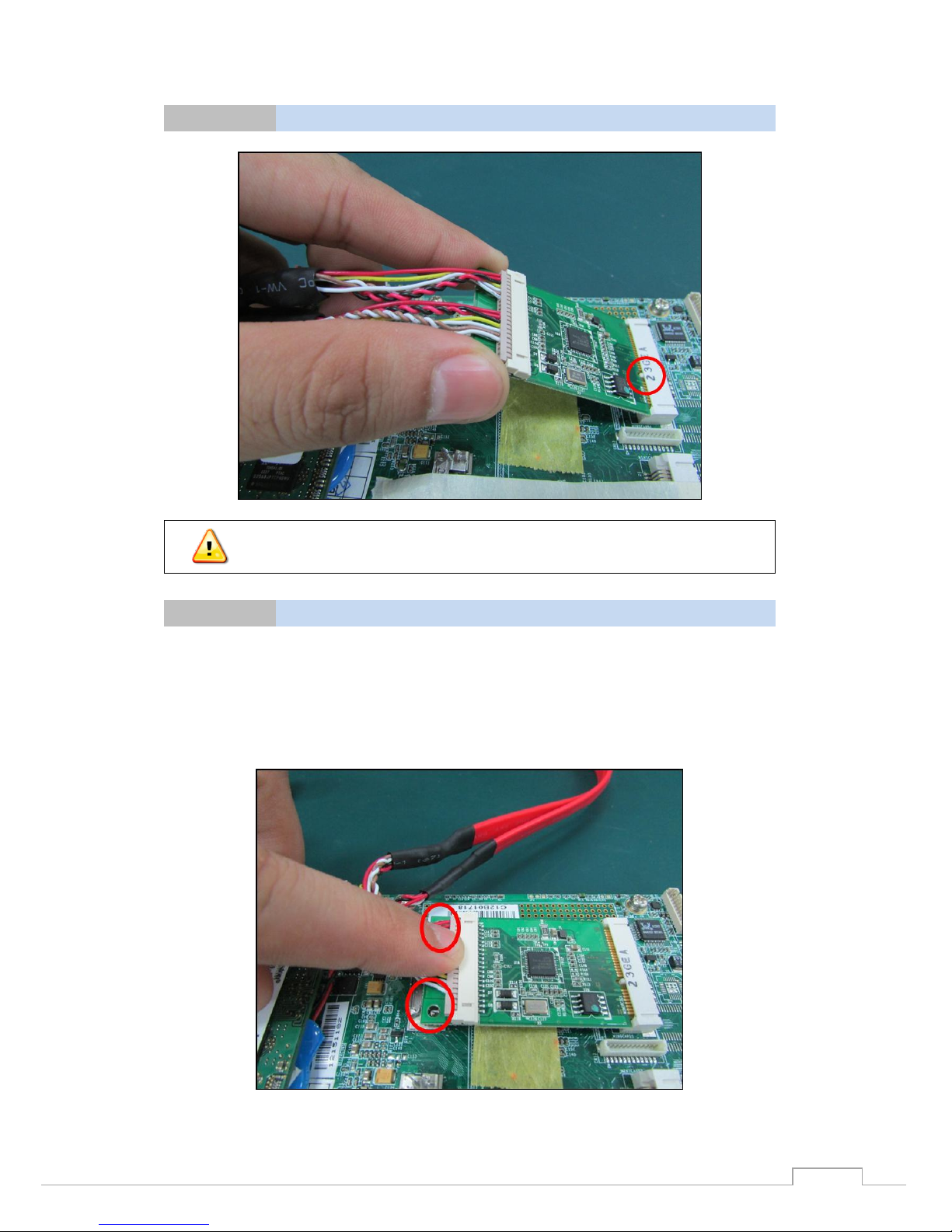

Step 2
Install the card to the Mini PCI-e slot
Make sure you install the card in the right position (fool-proof design)
Step 3
Fix the card on the motherboard (clip type or screw type)
There are 2 options to fix the card. It depends on the design of the motherboard (clip or
screw).
1. Clip type: make sure you press down the card and let the clips fix the card
2. Screw type: make sure you tighten up the screws to fix the card

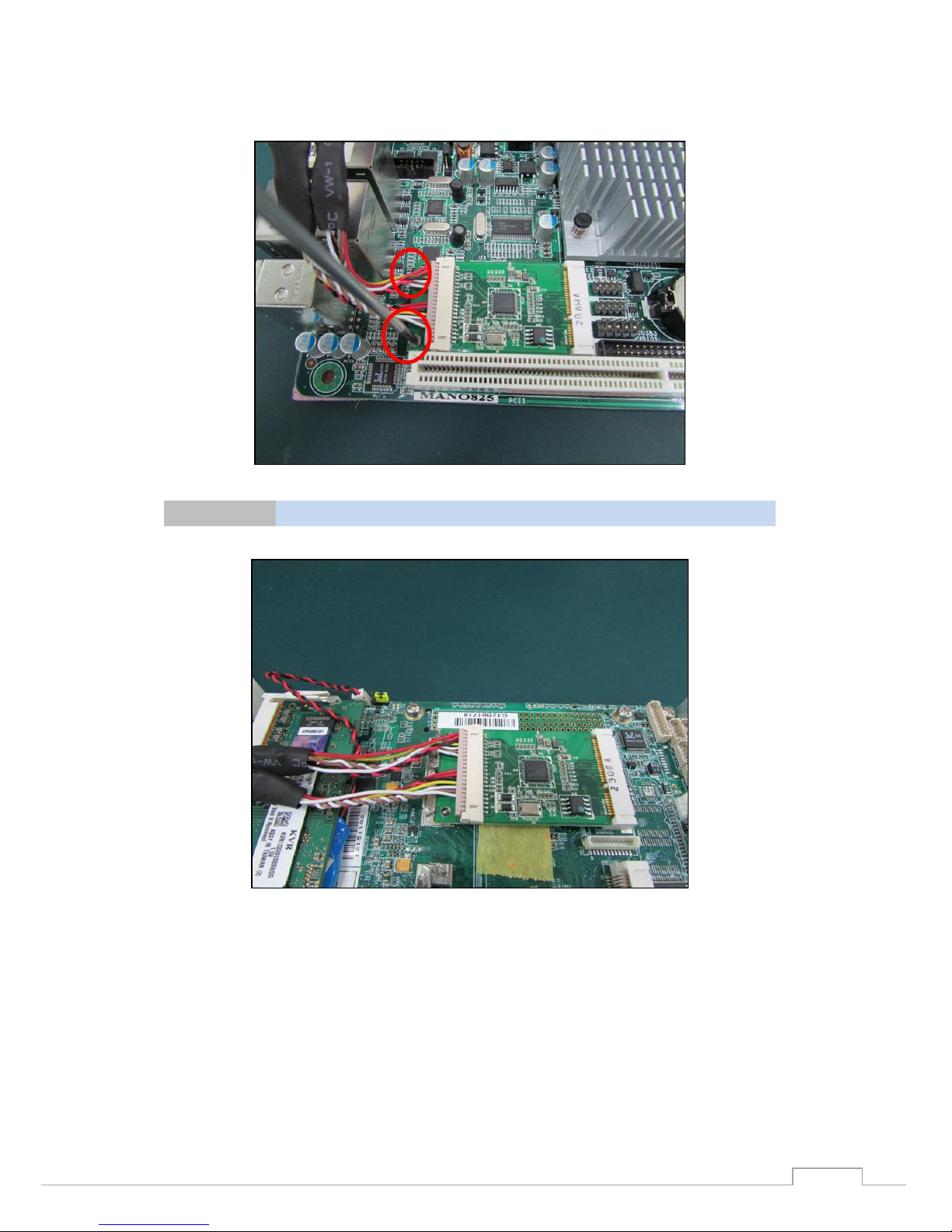

Clip type

8
Screw type
Step 4
Card installation completed
Clip type

9
Screw type
Step 5
Connect SATA devices and proceed to the next
section ”Software Installation”
Connect SATA devices (SATA connector)

10
3
Software Installation
This chapter gives installation, configuration, and update/removal procedures for the driver for
Win 2003, Win XP, Win Vista, Win 7, and Win 8.
Step 1
Turn on PC and start Windows
Note
XP OS as example

11
Step 2
Windows automatically detects the new device
1. If the card is installed properly, system would detect the new device and the hardware
wizard would start automatically.
2. Click “Cancel” to disregard
Step 3
Insert CD
Open the CD drive

12
Step 4
Find the “MEC-SAT-M002” folder
Open the “MEC-SAT-M002” file folder
Step 5
Find the “Driver” folder
Open the “Driver” folder

13

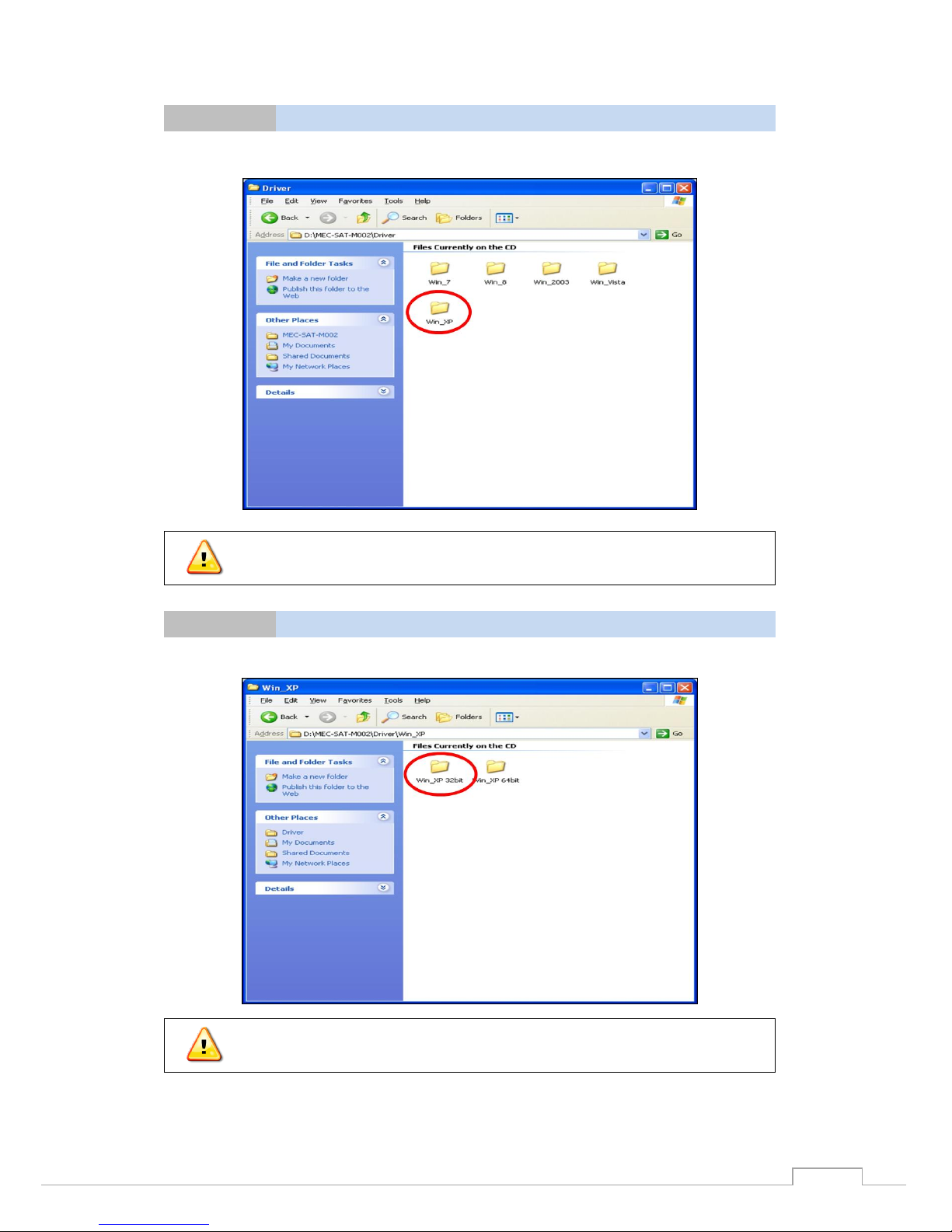

Step 6
Find the appointed OS folder (Ex.: XP)
Open the appointed OS folder (We use XP as an example in the above picture)
Make sure you select the correct OS
Step 7
Find your OS version (Ex.: XP 32bit)
Select appoint OS folder (We use XP 32bit as an example in the above picture)
Make sure you select the correct version of the OS (Ex.: 32-bit or 64-bit)

14
Step 8
Find the “setup” file
Run the “set up” file
Step 9
Driver installation set up
1. InstallShield Wizard would start automatically after “setup” is clicked
2. Click “Next”

15

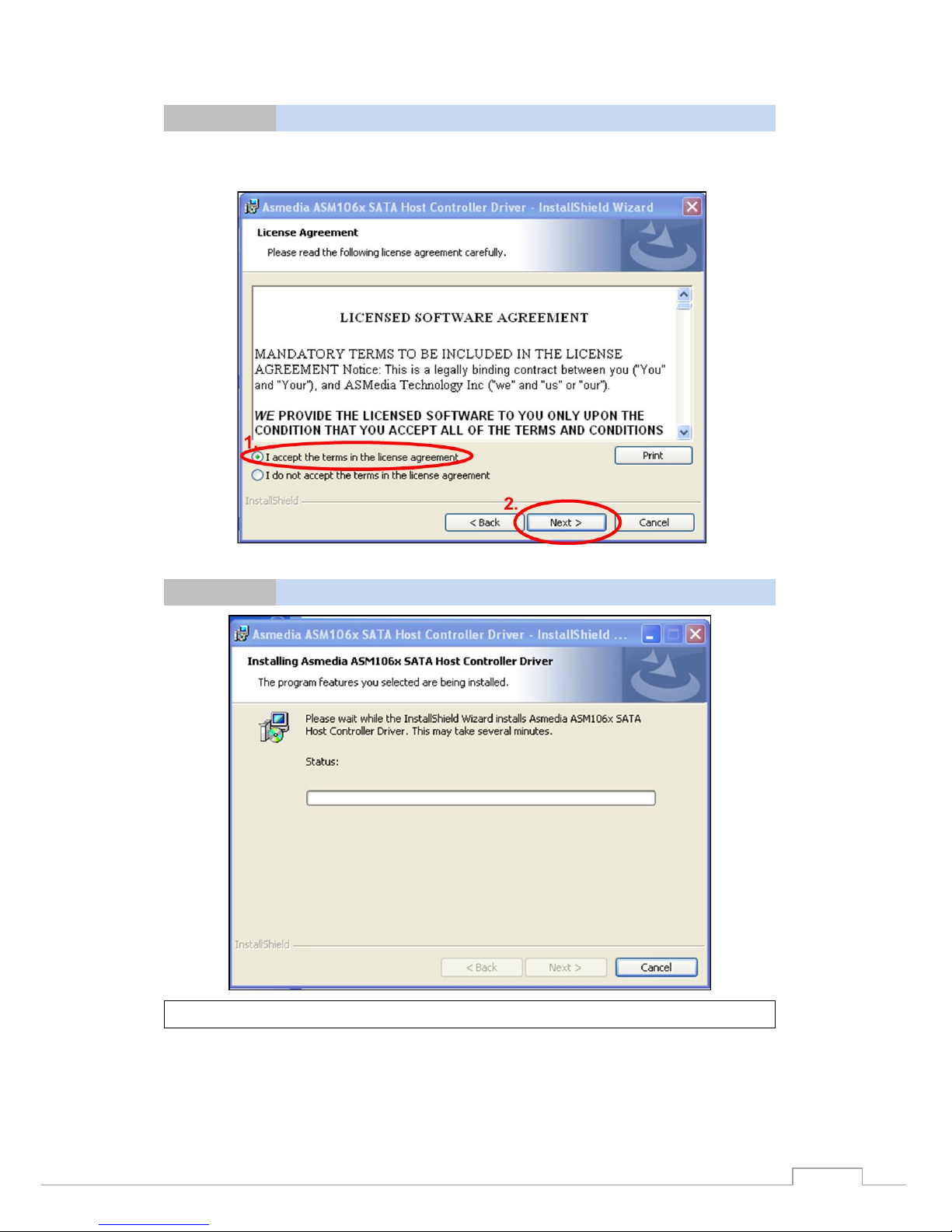

Step 10
License Agreement
1. Select “I accept the terms in the license agreement”
2. Click “Next”
Step 11
Driver installation in progress
Note
System runs the installation automatically

16
Step 12
Driver installation completed
Driver installation completed, click “Finish”
Step 13
Restart Windows
After installation is completed, click “Yes” to restart PC

17

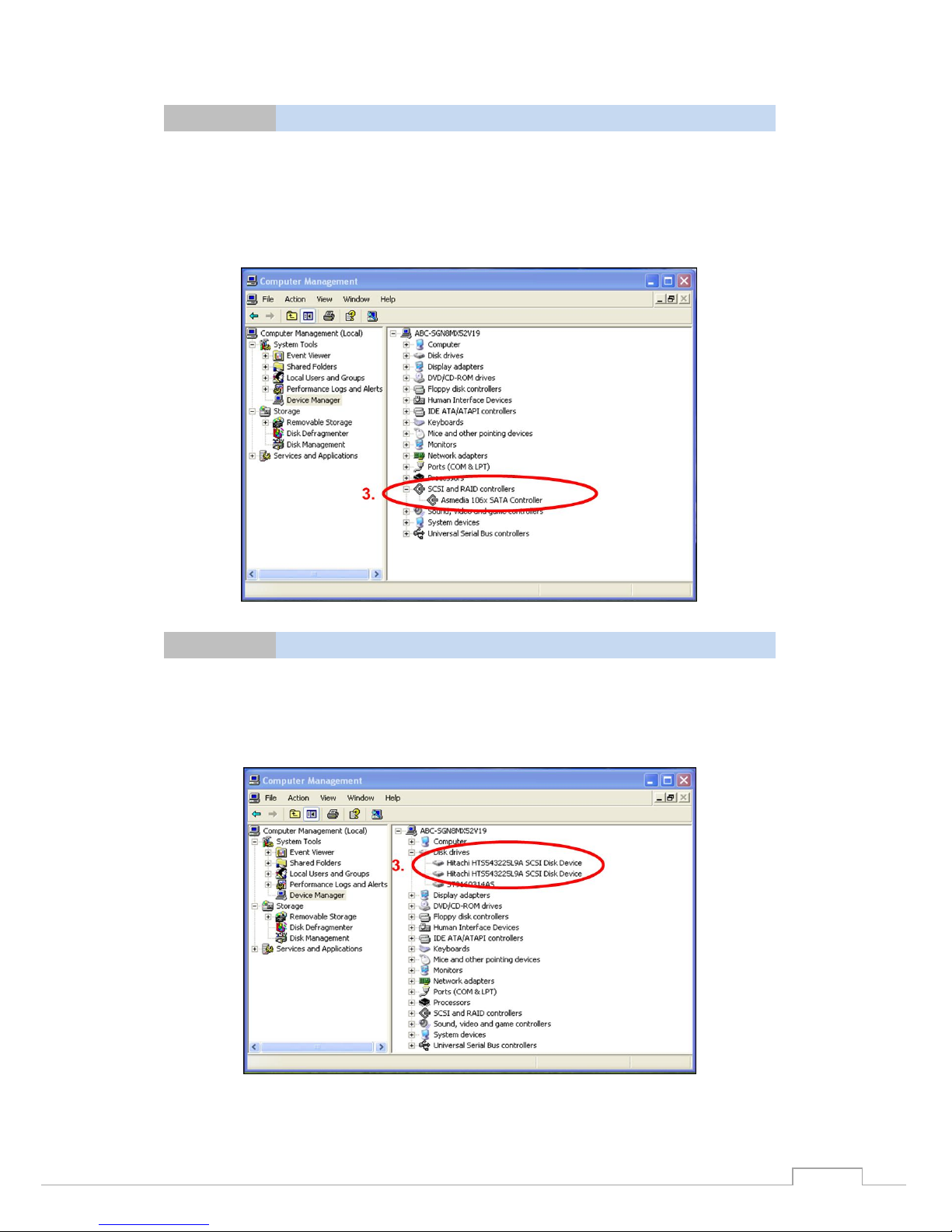

Step 14
Confirm if driver is installed
1. Start “Computer Management” program
2. Go to the route:
My Computer → Manage → Device Manager → SCSI and RAID controllers
3. You would find driver name: Asmedia 106x SATAController
4. Device is ready to be used
Step 15
Confirm if SATA device is found
1. Start “Computer Management” program
2. Go to the route: My Computer → Manage → Device Manager → Disk drives
3. You would find the names of SATA devices (Ex. Hitachi HTS….)
4. Device is ready to be used

18
Appendix
Pin Assignments

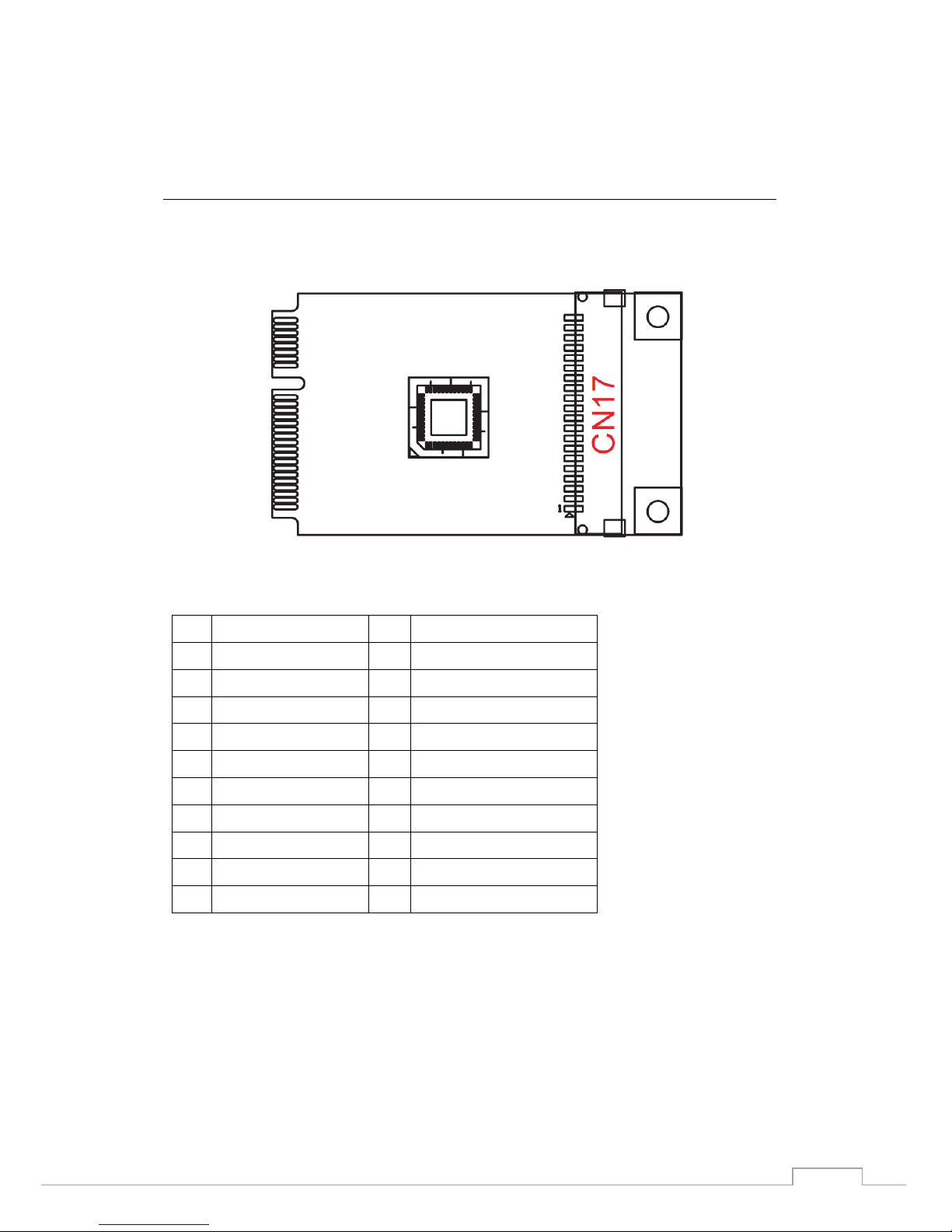

Board Side Pin Assignments
Wire to Board Connector (CN17)
Pin
Description
Pin
Description
1
GND
11
GND
2
Receive_2 +
12
Transmit_1 +
3
Receive_2 -
13
Transmit_1 -
4
GND
14
GND
5
Transmit_2 -
15
Receive_1 -
6
Transmit_2 +
16
Receive_1 +
7
GND
17
GND
8
GND
18
GND
9
SATA LED_2 +
19
SATA LED_1 +
10
SATA LED_2 -
20
SATA LED_1 -

19
Device Side Pin Assignments
SATA 7 Pin Connector
SATA 7 Pin Connector-1
SATA 7 Pin Connector-2
Pin
Description
Pin
Description
1
GND
1
GND
2
Transmit_1 +
2
Transmit_2 +
3
Transmit_1 -
3
Transmit_2 -
4
GND
4
GND
5
Receive_1 -
5
Receive_2 -
6
Receive_1 +
6
Receive_2 +
7
GND
7
GND

20
Technical Reference
MEC-SAT-M002 Specifications
General
PCI-Express Revision
PCI-Express Base Specification Rev 2.0
PCI-Express
Electromechanical
Revision
PCI-Express Mini Card Electromechanical Rev. 2.0
Hardware
Controllers
Asmedia ASM1061
Bus
Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
Interface (Connector)
Serial ATA III
2 (SATA)
Performance
Data Transfer Rate
SATA III transfer rate of 1.5Gbps, 3.0Gbps 6.0Gbps
Driver Support
Operating Systems
Win 2003, Win XP, Win Vista, Win 7, Win 8
Power Requirement
Power Consumption
360[email protected]
Dimensions
Width x Length (mm)
30.00 x 50.95
Environmental Limits
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-20°C ~ 85°C
Humidity
5% ~ 95%
Regulatory Approvals
EMC
CE, FCC
EMI
EN 55022, EN61000-3-2, EN61000-3-3, FCC Part 15 Subpart B
Class B
EMS
En 55024, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC
61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Reliability
MTBF
3,055,394 hr
Warranty
3 years

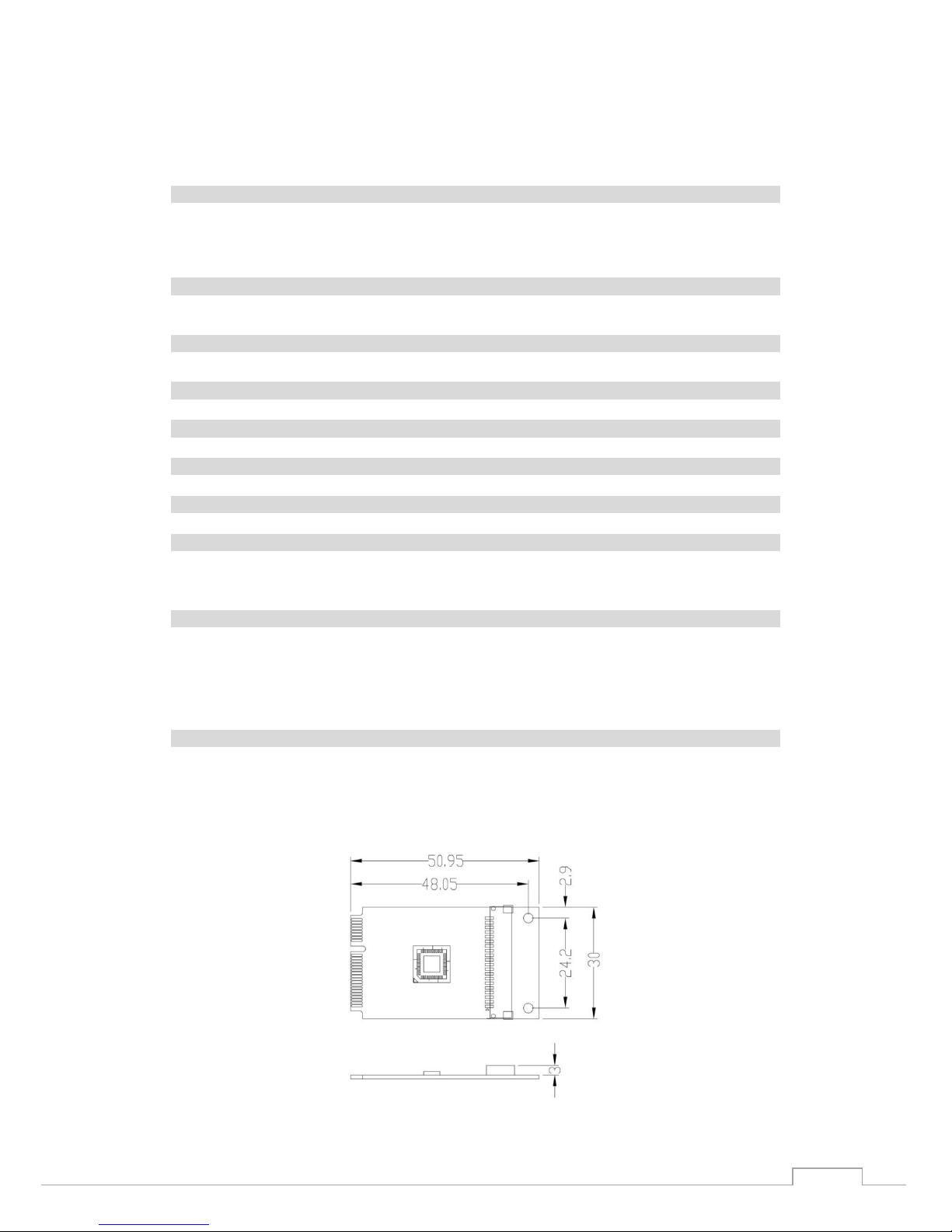

MEC-SAT-M002 Dimensions
