Cerwin-Vega RPM XMAP-1 User manual

Marine Bluetooth Audio Player
©2018 CVDA Inc. All Rights Reserved. Cerwin Vega Mobile and associated logos are registered
trademarks of CVDA Inc. in the United States and/or other countries. The Bluetooth word and mark
and logos are registered trademarks owned by Bluetooth SIG, Inc. andany use of such marks by
CVDA Inc. is under license. All other trademarks are the property of their respective owners.
Specifications subject to change without notice.

11
2
Cerwin Vega Mobile Products:
Thank you for purchasing a Cerwin Vega Mobile product for your mobile audio
system. You have chosen Cerwin Vega Mobile because you deserve the best!
Cerwin Vega Mobile products are designed and engineered to the highest quality
standards in the industry to create the ultimate listening experience in your vehicle.
For optimal performance of this product, it is highly recommended that you have it
installed by on authorized Cerwin-Vega Mobile dealer.
Our authorized dealers have the necessary experience and installation equipment to
ensure that your bluetooth controller will deliver maximum performance and explain
all the details pertaining to our warranty coverage as well.
If you decide to install the product by yourself, please thoroughly read through this
manual before getting installed. This manual will help familiarize yourself with this
Bluetooth receiver and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you have any
questions regarding the instructions in this manual or the products operational
capabilities. If you require additional assistance, please contact the Cerwin-Vega
Mobile Technical Support Deportment during business hours (PST) at 213-261-4161
ext 3182.
XMAP-1: SUPPLIED HARDWARE PARTS
1 - XMAP-1 Recreational Powersport Marine Bluetooth Audio Player
1 – Adjustable Mounting Bracket
2 – Machine Screws to mount bracket
Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you
with countless hours of listening enjoyment.
Cerwin Vega Mobile warrants all of our amplifiers and speakers to be free to defects in
materials and workmanship for a period of one (1) year.
This warranty is non-transferable and applied only to the original purchaser from an
authorized Cerwin Vega Mobile dealer. If service is required and necessary under this
warranty due to manufacturing defect or malfunction, then Cerwin Vega Mobile will
repair and/or replace defective product with either new or remanufactured like product
at no charge at our discretion.
Damage to product cause by the following will not be covered under this warranty:
abuse, accident, misuse, neglect, modifications, repairing attempts, seller/installer
misrepresentation.
This warranty does not cover any incidental, consequential, or cosmetic damage due to
accidents or normal wear and tear, nor does it cover the cost of removing or reinstalla-
tion of the product. Warranty is void if the products serial number has been removed,
defaced, and/or tampered with.
Warranty Procedure:
We recomment that you contact your Cerwin Vega Mobile authorized dealer where your
original purchase was made to initiate all warranty claims. Our authorized dealers can
guide you through the warranty procedure to ensure that your claim will be processed in
a timely manner. All warranty returns must be accompanied with a proof of purchase (a
copy of the original sales recipt) and be shipped freight prepaid to our facility with an
RA (Return Authorization) number clearly marked on the outside of the package. Direct
returns from consumers or non-authorized dealers will be refused if shipped without a
valid RA number authorized by Cerwin Vega Mobile beforehand.
INTERNATIONAL
Products purchased outside of the U.S.A. are covered only by that country’s distributor
and not by Cerwin Vega Mobile U.S.A. Please Ship All Warranty ClaimsWith
Pre-Authorized RA Number
To:
CV&DA Holdings, Inc.
ATTN: Customer Service Department
3761 S. Hill St.
Los Angeles, CA 90007 USA
Please Contact Customer Service for Further Warranty Information: U.S.A.
Tel: [phone] / Fax: [phone]

3
10
Cut Out Diameter: 3.75” / 95.25mm
Controls/Operation
XM65W
RPM104SL
XM65W
XM65W
XM65W
APS
BAN D
MOD E
POW
3.73”/94.9mm
2.75”/70mm
3.72”/94.5mm
4.44”/113mm
Mounting Surface
U Bracket
Mounting
Screws
Break Points
XM65W
Marine Speakers
Advanced System Design

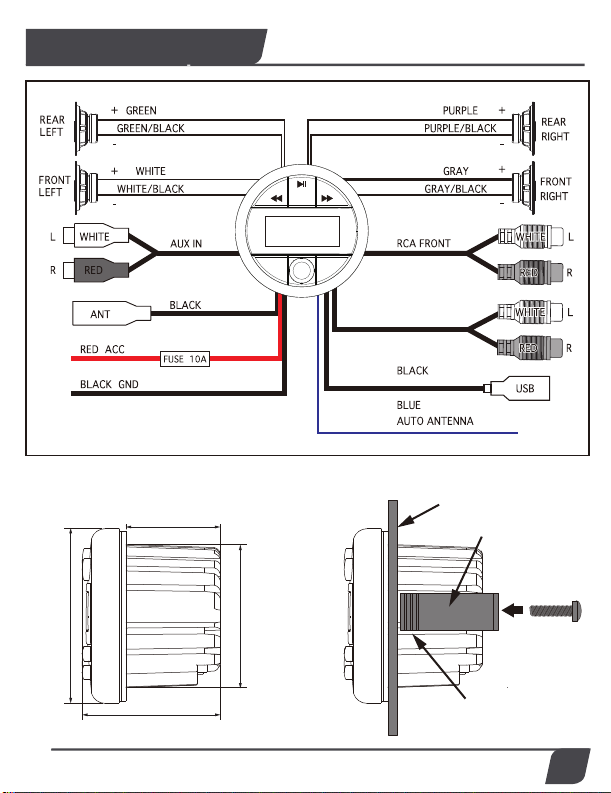

Wiring/Mounting
RCA REAR
APS
BAND
MODE
POW
+ +
+ +
SRPM750.1D
1 to 4 Woofers
(Min Impedance 1 Ohm TOTAL)
A
C
C
L
O
C
K
O
F
F
O
N
S
T
A
R
T
APS
BAND
MODE
POW
REAR RCA outputs
to Sub amplifier
Ignition
XMAP-1 UTLIZING INTERNAL AMPLIFER - PLUS - REAR CHANNEL
RCA’S TO DRIVE A SUBWOOFER AMPLIFER

9
4

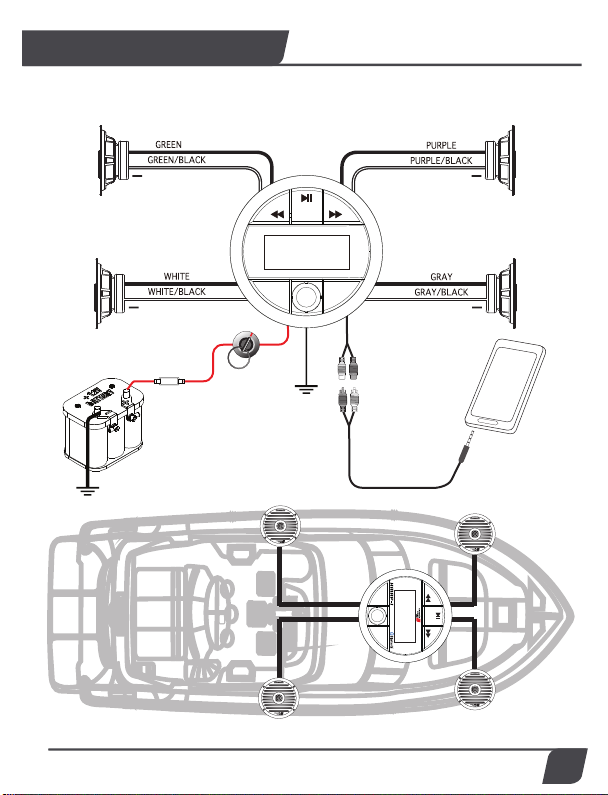

Basic System Design
General Information
XM65W XM65W
XM65W
XM65W
APS
BAN D
MOD E
POW
XM65W
Marine Speakers
Recreation Powersport Marine Source Unit
AM/FM
320 Watts Peak Power
3” Gauge Mount
IP66 Splash Proof LED Display with Clock
Bluetooth Connect
Bluetooth Connection
USB Input
Auxiliary RCA Input
4 Channels x 40 Watts RMS (320 Watts Peak Power)
2.75” / 70mm Total Mounting Depth
3.75” / 95.25mm Cut Out Diameter
AM / FM Section
USA Frequency: FM87.9 – 107.9MHz / AM530-1710kHz
Europe Frequency: FM87.5 – 108MHz / AM522 – 1620kHz
Intermediate Frequency: 10.7MHz
Noise Limit Sensitivity: >5uV
Intermediate Frequency Rejection: 50dB
MP3 Section
Signal to Noise Ratio: >55dB
Frequency Response: 20Hz – 20KHz
A/D Conversion Filter: 16BIT
Audio & Other Section
Power Output: 4 x 40 Watts Maxx
Power: DC +12 Volt Battery
Load Impedance: 4 - 8 Ohms / Channel
+ +
+ +
A
C
C
L
O
C
K
O
F
F
O
N
S
T
A
R
T
APS
BAND
MODE
POW
SmartPhone
MP3 Player
AUX Input
3.5mm MiniJack
to RCA adapter
(optional)
Ignition
XMAP-1 UTLIZING INTERNAL AMPLIFER - 4 SPEAKERS

5
8

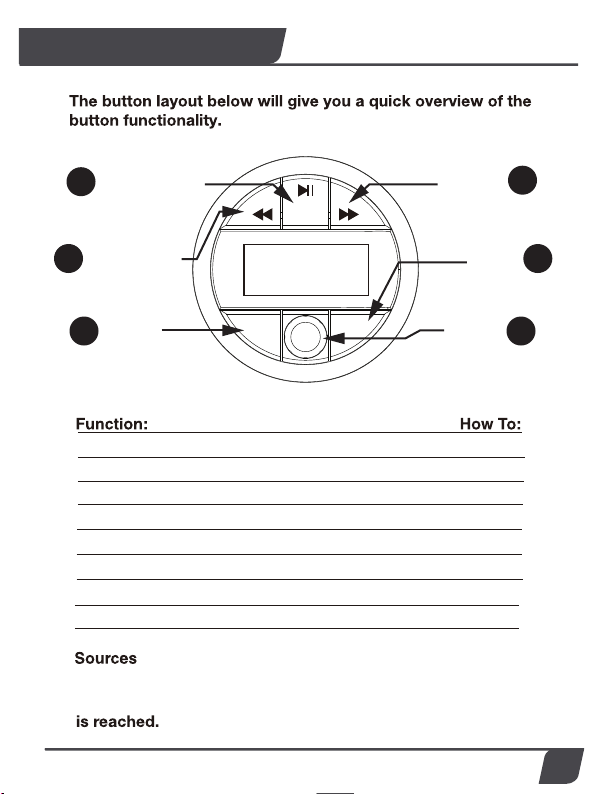

Controls/Operation
**Special Note**
USB-A Port:
The Cerwin Vega Mobile XMAP-1 multimedia gauge-style
Audio Player is fitted with a rear-panel USB-A port attached to
the rear-chassis via a 6" cable and comes with a 40" USB
extension cable. The USB-A port allows you to plug in your
USB mass storage class device (like a USB thumbdrive or
portable digital audio player) for playback of MP3 (up to
320kbps) music files. You USB MSC device must be formatted
in FAT32. The unit offers Play/Pause & Previous/Next Track
control (there is no song/artist info display). If your USB MSC
device can be charged via USB, the unit's USB (5V/1A) port
will charge your device while connected.
Note: The unit's USB port does not support Apple iPod/iPod/
iPad, Android smartphones/tablets, HDDs, or USB hubs.
Aux Input:
The Cerwin Vega Mobile XMAP-1 is equipped with a rear
panel stereo RCA AUX input attached to rear-chassis via a
6" cable. This stereo AUX input allows you to connect an
external audio device with a stereo RCA output. If you have
a source device that has a 3,5mm minijack output, then you
will need a stereo minijack-to-RCA adapter (sold separately).
Operation
Press amd hold mode to enter settings MENU. Press and Release mode
to change MENU item. To adjust setting, use the roaty knob. Adjustable settings
are: BASS , Treble, Balance , Fader , Beep , EQ , Loud and Tuner Region
Volume Up Rotate right (4) rotary knob button
Volume Down Rotate left (4) rotary knob button
Tune Up Hold down Tune Up(3)
Tune Down Hold down Tune Down (2)
the Radio. Continue to press Mode until the desired source
Power On Press the Power (4) button once
Power Off Press the Power (4) button once
Audio/Settings Hold down mode(5)button
MUTE Press the (1) button once
To change any of the sources,press the mode(5)button
on
13
Play/Pause
2Tune Down
Tune Up
4
Power
Mode
5
Band 6
APS
BAND
MODE
POW
5 5

7
6
Operation Operation
FM Source:
Function:
Tune Up:
Hold Tune Up button for 1 second. Then press once.
Tune Dawn:
Hold Tune Down button for 1 second. Then press
once.
Mute:
Press the button once
AM Source:
Function:
Tune Up:
Hold Tune Up button for 1 second. Then press once.
Tune Dawn:
Hold Tune Down button for 1 second. Then press
once.
Mute:
Press the button once
Presets:
Press and Hold button. Programs strongest stations
into FM and AM Presets. Press Tune up and Tune Down
will change preset stations. To set a custom preset,
press Tune Up for desired preset number.
Then use Manual Tune to change to desired station.
Press to Manual searching station function
USB source:
Function:
Next Rack:
Press the Seek Up (3) button once
Previous Track:
Press the Seek Down (2) button once
Fast Forward:
Held Tune Up (3) button
Rewind:
Hold Tune Down (2) button
Pause:
Press the (1) button.
Bluetooth (BT) Source:
Function
Next Track:
Press the Seek Up (3) button once
Previous Track:
Press the Seek Down (2) button once
Pause:
Press the (1) button.
BT Source Pairing Mode:
When BT MUSIC is flashing,the marine audio is in pairing
mode Locate the device name on your phone to pair
33
22
3
1
2
3
2
1
2
3
2
3
3
3
2
3
2
2
3
1
1

7
6
Operation Operation
FM Source:
Function:
Tune Up:
Hold Tune Up button for 1 second. Then press once.
Tune Dawn:
Hold Tune Down button for 1 second. Then press
once.
Mute:
Press the button once
AM Source:
Function:
Tune Up:
Hold Tune Up button for 1 second. Then press once.
Tune Dawn:
Hold Tune Down button for 1 second. Then press
once.
Mute:
Press the button once
Presets:
Press and Hold button. Programs strongest stations
into FM and AM Presets. Press Tune up and Tune Down
will change preset stations. To set a custom preset,
press Tune Up for desired preset number.
Then use Manual Tune to change to desired station.
Press to Manual searching station function
USB source:
Function:
Next Rack:
Press the Seek Up (3) button once
Previous Track:
Press the Seek Down (2) button once
Fast Forward:
Held Tune Up (3) button
Rewind:
Hold Tune Down (2) button
Pause:
Press the (1) button.
Bluetooth (BT) Source:
Function
Next Track:
Press the Seek Up (3) button once
Previous Track:
Press the Seek Down (2) button once
Pause:
Press the (1) button.
BT Source Pairing Mode:
When BT MUSIC is flashing,the marine audio is in pairing
mode Locate the device name on your phone to pair
33
22
3
1
2
3
2
1
2
3
2
3
3
3
2
3
2
2
3
1
1

5
8
Controls/Operation
**Special Note**
USB-A Port:
The Cerwin Vega Mobile XMAP-1 multimedia gauge-style
Audio Player is fitted with a rear-panel USB-A port attached to
the rear-chassis via a 6" cable and comes with a 40" USB
extension cable. The USB-A port allows you to plug in your
USB mass storage class device (like a USB thumbdrive or
portable digital audio player) for playback of MP3 (up to
320kbps) music files. You USB MSC device must be formatted
in FAT32. The unit offers Play/Pause & Previous/Next Track
control (there is no song/artist info display). If your USB MSC
device can be charged via USB, the unit's USB (5V/1A) port
will charge your device while connected.
Note: The unit's USB port does not support Apple iPod/iPod/
iPad, Android smartphones/tablets, HDDs, or USB hubs.
Aux Input:
The Cerwin Vega Mobile XMAP-1 is equipped with a rear
panel stereo RCA AUX input attached to rear-chassis via a
6" cable. This stereo AUX input allows you to connect an
external audio device with a stereo RCA output. If you have
a source device that has a 3,5mm minijack output, then you
will need a stereo minijack-to-RCA adapter (sold separately).
Operation
Press amd hold mode to enter settings MENU. Press and Release mode
to change MENU item. To adjust setting, use the roaty knob. Adjustable settings
are: BASS , Treble, Balance , Fader , Beep , EQ , Loud and Tuner Region
Volume Up Rotate right (4) rotary knob button
Volume Down Rotate left (4) rotary knob button
Tune Up Hold down Tune Up(3)
Tune Down Hold down Tune Down (2)
the Radio. Continue to press Mode until the desired source
Power On Press the Power (4) button once
Power Off Press the Power (4) button once
Audio/Settings Hold down mode(5)button
MUTE Press the (1) button once
To change any of the sources,press the mode(5)button
on
13
Play/Pause
2Tune Down
Tune Up
4
Power
Mode
5
Band 6
APS
BAND
MODE
POW
5 5

9
4
Basic System Design
General Information
XM65W XM65W
XM65W
XM65W
APS
BAN D
MOD E
POW
XM65W
Marine Speakers
Recreation Powersport Marine Source Unit
AM/FM
320 Watts Peak Power
3” Gauge Mount
IP66 Splash Proof LED Display with Clock
Bluetooth Connect
Bluetooth Connection
USB Input
Auxiliary RCA Input
4 Channels x 40 Watts RMS (320 Watts Peak Power)
2.75” / 70mm Total Mounting Depth
3.75” / 95.25mm Cut Out Diameter
AM / FM Section
USA Frequency: FM87.9 – 107.9MHz / AM530-1710kHz
Europe Frequency: FM87.5 – 108MHz / AM522 – 1620kHz
Intermediate Frequency: 10.7MHz
Noise Limit Sensitivity: >5uV
Intermediate Frequency Rejection: 50dB
MP3 Section
Signal to Noise Ratio: >55dB
Frequency Response: 20Hz – 20KHz
A/D Conversion Filter: 16BIT
Audio & Other Section
Power Output: 4 x 40 Watts Maxx
Power: DC +12 Volt Battery
Load Impedance: 4 - 8 Ohms / Channel
+ +
+ +
A
C
C
L
O
C
K
O
F
F
O
N
S
T
A
R
T
APS
BAND
MODE
POW
SmartPhone
MP3 Player
AUX Input
3.5mm MiniJack
to RCA adapter
(optional)
Ignition
XMAP-1 UTLIZING INTERNAL AMPLIFER - 4 SPEAKERS

3
10
Cut Out Diameter: 3.75” / 95.25mm
Controls/Operation
XM65W
RPM104SL
XM65W
XM65W
XM65W
APS
BAN D
MOD E
POW
3.73”/94.9mm
2.75”/70mm
3.72”/94.5mm
4.44”/113mm
Mounting Surface
U Bracket
Mounting
Screws
Break Points
XM65W
Marine Speakers
Advanced System Design
Wiring/Mounting
RCA REAR
APS
BAND
MODE
POW
+ +
+ +
SRPM750.1D
1 to 4 Woofers
(Min Impedance 1 Ohm TOTAL)
A
C
C
L
O
C
K
O
F
F
O
N
S
T
A
R
T
APS
BAND
MODE
POW
REAR RCA outputs
to Sub amplifier
Ignition
XMAP-1 UTLIZING INTERNAL AMPLIFER - PLUS - REAR CHANNEL
RCA’S TO DRIVE A SUBWOOFER AMPLIFER

11
2
Cerwin Vega Mobile Products:
Thank you for purchasing a Cerwin Vega Mobile product for your mobile audio
system. You have chosen Cerwin Vega Mobile because you deserve the best!
Cerwin Vega Mobile products are designed and engineered to the highest quality
standards in the industry to create the ultimate listening experience in your vehicle.
For optimal performance of this product, it is highly recommended that you have it
installed by on authorized Cerwin-Vega Mobile dealer.
Our authorized dealers have the necessary experience and installation equipment to
ensure that your bluetooth controller will deliver maximum performance and explain
all the details pertaining to our warranty coverage as well.
If you decide to install the product by yourself, please thoroughly read through this
manual before getting installed. This manual will help familiarize yourself with this
Bluetooth receiver and guide you through the installation process and procedures.
Please contact your local authorized Cerwin Vega Mobile dealer if you have any
questions regarding the instructions in this manual or the products operational
capabilities. If you require additional assistance, please contact the Cerwin-Vega
Mobile Technical Support Deportment during business hours (PST) at 213-261-4161
ext 3182.
XMAP-1: SUPPLIED HARDWARE PARTS
1 - XMAP-1 Recreational Powersport Marine Bluetooth Audio Player
1 – Adjustable Mounting Bracket
2 – Machine Screws to mount bracket
Thank you for purchasing a Cerwin Vega Mobile product and we hope to provide you
with countless hours of listening enjoyment.
Cerwin Vega Mobile warrants all of our amplifiers and speakers to be free to defects in
materials and workmanship for a period of one (1) year.
This warranty is non-transferable and applied only to the original purchaser from an
authorized Cerwin Vega Mobile dealer. If service is required and necessary under this
warranty due to manufacturing defect or malfunction, then Cerwin Vega Mobile will
repair and/or replace defective product with either new or remanufactured like product
at no charge at our discretion.
Damage to product cause by the following will not be covered under this warranty:
abuse, accident, misuse, neglect, modifications, repairing attempts, seller/installer
misrepresentation.
This warranty does not cover any incidental, consequential, or cosmetic damage due to
accidents or normal wear and tear, nor does it cover the cost of removing or reinstalla-
tion of the product. Warranty is void if the products serial number has been removed,
defaced, and/or tampered with.
Warranty Procedure:
We recomment that you contact your Cerwin Vega Mobile authorized dealer where your
original purchase was made to initiate all warranty claims. Our authorized dealers can
guide you through the warranty procedure to ensure that your claim will be processed in
a timely manner. All warranty returns must be accompanied with a proof of purchase (a
copy of the original sales recipt) and be shipped freight prepaid to our facility with an
RA (Return Authorization) number clearly marked on the outside of the package. Direct
returns from consumers or non-authorized dealers will be refused if shipped without a
valid RA number authorized by Cerwin Vega Mobile beforehand.
INTERNATIONAL
Products purchased outside of the U.S.A. are covered only by that country’s distributor
and not by Cerwin Vega Mobile U.S.A. Please Ship All Warranty ClaimsWith
Pre-Authorized RA Number
To:
CV&DA Holdings, Inc.
ATTN: Customer Service Department
3761 S. Hill St.
Los Angeles, CA 90007 USA
Please Contact Customer Service for Further Warranty Information: U.S.A.
Tel: [phone] / Fax: [phone]

Marine Bluetooth Audio Player
©2018 CVDA Inc. All Rights Reserved. Cerwin Vega Mobile and associated logos are registered
trademarks of CVDA Inc. in the United States and/or other countries. The Bluetooth word and mark
and logos are registered trademarks owned by Bluetooth SIG, Inc. andany use of such marks by
CVDA Inc. is under license. All other trademarks are the property of their respective owners.
Specifications subject to change without notice.
