Ceta 104 User manual

Operating manual
104
Heating circuit controller with burner control and DHW charging control
Version 0933-10
Art. 0450021002
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 1 Dienstag, 8. September 2009 10:20 10

Contents
Scope of delivery ...............................................................................................................1
General ................................................................................................................................1
Intended use .....................................................................................................................1
Safety ..................................................................................................................................1
General key functions ......................................................................................................2
Version display (when starting)......................................................................................2
Basic display ..................................................................................................................... 3
Functions with direct access ..........................................................................................4
Menu level .........................................................................................................................5
Parameter description .....................................................................................................8
Installation ...................................................................................................................... 21
Connection diagram .......................................................................................................22
Fault clearance ................................................................................................................23
Sensor resistance values ..............................................................................................24
Declaration of conformity ..............................................................................................25
Technical data .................................................................................................................26
Liability .............................................................................................................................26
Disposal ...........................................................................................................................26
© Elektronikbau- und Vertriebs GmbH
Heisterner Weg 8 - 12
D-57299 Burbach
This document may not be reproduced nor disclosed to third parties, particularly competitors, in original
or copy form without our prior explicit consent. The document is subject to our proprietary rights and
copyrights.
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 2 Dienstag, 8. September 2009 10:20 10

1
Scope of delivery
General
Systems with unmixed heating circuit are controlled via the heating circuit
controller. Required heating circuit temperature is determined in the flow,
depending on outside temperature.
The burner control adjusts the heat generator temperature via a switching contact
at the boiler immersion sensor.
The DHW control is accessing a DHW charging pump and controls the DHW
requirement in a DHW tank at the tank immersion sensor.
Intended use
The unit is manufactured in accordance with state of the art technology and
approved safety regulations. Nevertheless, using the unit can cause danger to the
user or third persons, or damage to the unit and other assets. The unit must be
used exclusively as heating circuit controller with burner control and DHW
charging control.
Safety
All electrical connections, safety measures and protections have to be carried out
by an authorised professional electrician according to the valid standards and VDE-
guidelines, as well as the local regulations. The electrical connection must be a
fixed connection according to VDE 0100.
Hazard symbols in this operating manual
1. 1x Central unit CETA 104
2. 1x Outside sensor AF200
3. 1x Boiler immersion sensor
KVT 20/2/6
4. 1x Tank immersion sensor
KVT 20/2/6
5. 8x Screw, plate 2.9x19 mm
6. 3x Screw assembly 4x35 mm
7. 3x Plug U6
8. 2 x Cable clamp
Hazard!
This symbol indicates information that warns of possible safety
risks or severe and fatal injuries!
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 1 Dienstag, 8. September 2009 10:20 10

General key functions
2
1. General key functions
Prog
•Change selected submenus
•Change (parameter) setting
•Save value
+ (Plus) or - (Minus)
•Change parameter
•Change menu item
Esc
•Exit setting
•Keep old value
•Select next higher menu level
Esc-Lang
•Return to basic display
2. Version display (when starting)
c 104= Type designation Ceta 104
1.5= Version display (due to update it can
differ from example shown)
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 2 Dienstag, 8. September 2009 10:20 10

3
Basic display
3. Basic display

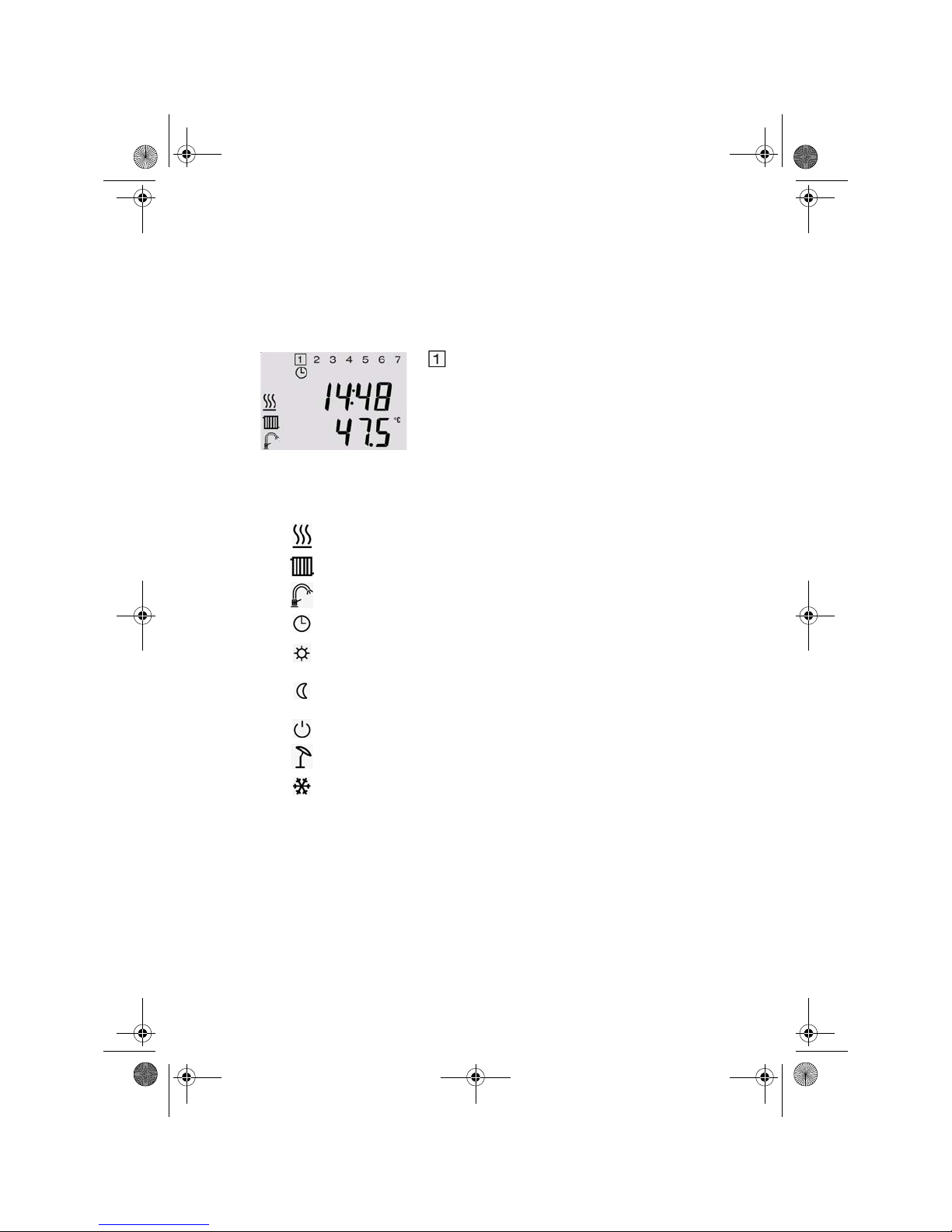

Explanation of symbols
Display weekday
14:48 Display time
47.5°C Temperature F1 heat generator
Display heat generator in operation
Display pump function heating circuit
Display pump function tank loading
Automatic mode heating circuit after timer program I or II
Heating mode heating circuit
(Operating mode AUTOMATIC or HEATING)
Reduced mode heating circuit
(Operating mode AUTOMATIC or RED. HEATING)
Standby heating circuit
Summer switch-off heating circuit
Frost protection heating circuit
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 3 Dienstag, 8. September 2009 10:20 10

Functions with direct access
4
4. Functions with direct access
Manual operation
— Activate by pressing and holding button
— Change heat generator setpoint via buttons
and
— end function by pressing button
Adjustment room setpoint
Press buttons and in the basic display to directly set room day
temperature. Such a variation changes the parameter 06:02 (see parameter
description).
Controller is in manual mode
Function: Manual operation allows manual start-up of the system, e.g. to
perform emission measurement.
The heat generator adjusts the temperature to the set value
— The heating circuit pump runs continuously
— The DHW charging pump runs continuously
Caution!
This function shall only be used by an authorised
professional. Heating circuit temperatures are not monitored
during measurement of emission. Faulty operation or
unsupervised operation of this function may result in
damages to the heating system.
+
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 4 Dienstag, 8. September 2009 10:20 10

5
Menu level

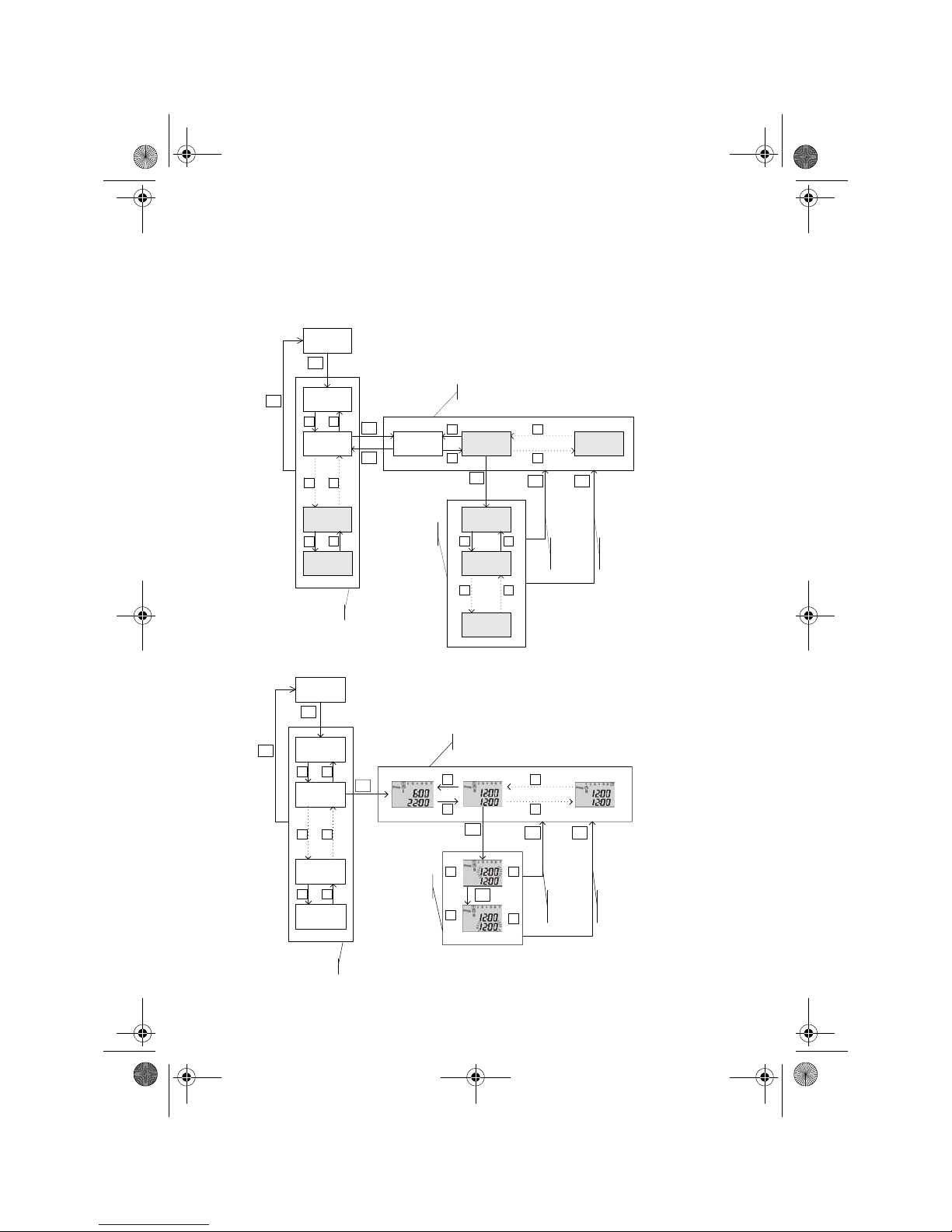

5. Menu level
Basic display
Prog
Esc
01
Menu 01
02
Menu 02
+-
27
Calibration
28
Relay test
02:01
Parameter 01
02:02
Parameter 02
02:nn
Last parameter
+-
+-
+
-
+
-
Prog
Select menu level
Select parameters
Esc
Value 1
Prog
Value 2
+-
Value n
+-
Set parameter value
Prog
Return
without
saving
Return
and save
Esc
General menu structure
Basic display
Prog
Esc
01
Info
02
Prog.
Time programs
+-
27
Sensor
adj.
28
Relay test
+-
+-
+
-
+
-
Prog
Select menu level
Select menu level
Esc
HEZBEGINN
Prog
HEIZENDE
+-
+-
Set
parameter
value
Prog
Return
without
saving
Return
and
save
Prog
Menu structure time programs
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 5 Dienstag, 8. September 2009 10:20 10

Menu level
6
Overview of menu level
Basic display
01
Info
02
Time programs
06
03:01
Outdoor actual
03:02
Outdoor long-term
03:03
Outdoor min
03:04
Outdoor max
04:01
Temperature
heat generator
03:01
Code entry
03:02
AutoSet function
03:04
Building type
06:01 06:02 06:03
03
System
06:0406:05
06:20
06:11 06:13
Room factor
06:1406:15
07 07:01 07:02 07:0307:0407:05
07:14
07:11 07:12
2626:01 26:02
Weekday
27 27:01 27:02 27:04
28 28:01 28:02 28:04
Esc
-
+-
+-
+-
+-
+
+-
+-Prog
Esc
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
03:05
Climate zone
04:01
Function of
heat generator
04:02
Heat generator min.
temperature limit
04:03
Heat generator max.
temperature limit
04:04
04
Heat generator
Esc
+
-
04:05
+-
X3 X3 X3
X3 X3 X3 X3
X5
X3
X3
X3 X3
X4
X3
X4
X3
X4
X3
X3
X3 X3 X3
Prog
Prog
Esc
Esc
Prog
Prog
Prog
Prog
Prog
Prog
Prog
Esc
Esc
Esc
Esc
Esc
05:03
Actual value
modulation depth
X5
05:04
Hydrau.press
X5 05:05
Flue gas
temperature
X5 06:01
Display
heating pump
06:04
Flow setpoint
See menu structure
time programs
See menu structure
time programs
Burner switching
differential
Minimum burner
run time
Heating circuit Function Room day Room night Operating mode Time program
Extended pump
running time
Room
thermostat function
Room frost
protection limit
Heat generator
parallel shift
DHW Function DHW day DHW night Operating mode Time program
Temperature
parallel shift
Extended pump
running time Priority mode
Time setting Time
Sensor calibration Calibration sensor 1 Calibration sensor 2 Calibration sensor 4
Relay test Relay test 1 Relay test 2 Relay test 4
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 6 Dienstag, 8. September 2009 10:20 10

7
Menu level
X2: Function only in bus connection
X3: Are hidden when activating code 03:09
X4: Only when connecting CETA RC
X5: Only in conjunction with heat generator connection via OpenTherm, and when
supported by heat generator
04:02
Setpoint heat
generator
04:03
Display status
heat generator
03:06
Time for
automatic exit
03:07
Anti-blocking
protection
03:09
Code heating
specialist
03:10
Reset
parameter
06:06
Type ofreduced
operation
(ECO/RED)
06:07
Heating
curve/conductance
06:08
Heating system
(exponent)
06:09
System frost
protection
06:10
Summer switch-off
07:06
Legio.prot.(day)
07:07
Legio.protection
(time)
07:08
Legio.protection
(temperature)
07:09
Switching
differential
07:10
Maximum
temperature limit
04:06
Start-up protection
04:07
Start-up protection
switching differential
04:08
Reset counter
X3 X3 X3
X3 X3 X3
X3 X3 X3
X3 X3 X3 X3 X3
05:01
Temperature return
flow sensor
X5 05:02
Setpoint
modulation depth
X5
07:01
Display DHW
charging pump
07:02
DHW actual value
07:03
DHW setpoint
04:04
Starts heat
generator
04:05
Operating hours
heat generator
06:06
Room setpoint
X4
06:05
Room actual
X4
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 7 Dienstag, 8. September 2009 10:20 10

Parameter description
8
6. Parameter description
01 Information level
Display Designation Description
03:01 Outdoor actual Current outside temperature
03:02 Outdoor long-term Average long-term value of outside temperature. Depending on
set building type (03:04), the value is averaged longer or shorter.
03:03 Outdoor min Minimum outside temperature value (0.00 to 24.00 h)
03:04 Outdoor max Maximum outside temperature value (0.00 to 24.00 h)
04:01 Temperature heat
generator
Actual temperature on heat generator sensor
04:02 Setpoint heat
generator
Setpoint temperature for heat generator
04:03 Display status heat
generator
0: Heat generator outlet is switched off
1: Heat generator outlet is switched on
04:04 Starts
Heat generator
Number of heat generator starts
04:05 Operating hours
Heat generator
Number of heat generator operating hours
05:01 Temperature
Return flow sensor
Actual temperature heat generator return X5
05:02 Setpoint
Modulation depth
Setpoint heat generator-modulation depth (only if X5
system contains information)
05:03 Actual value
Modulation depth
Actual value heat generator-modulation depth (only if X5
system contains information)
05:04 Hydrau.press Water pressure in heating system in bar (only if X5
system contains information)
05:05 Flue gas
temperature
Flue gas temperature of heat generator (only if X5
system contains information)
06:01 Display heating
circuit pump
0: Heating circuit pump is switched off
1: Heating circuit pump is switched on
06:04 Flow heating circuit
setpoint
Flow setpoint temperature for heating circuit
06:05 Room actual Actual temperature in room X4
06:06 Room setpoint Room setpoint temperature for heating circuit
07:01 Display DHW
charging pump
0: Pump is switched off
1: Pump is switched on
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 8 Dienstag, 8. September 2009 10:20 10

9
Parameter description
02 Time programs
Note: When switch-on and switch-off time are the same, cycle of operation is
switched off.
07:02 DHW actual value Sensor mode: Actual temperature on DHW sensor
Thermostat mode: 0 = Input open
1 = Input closed
07:03 DHW setpoint Setpoint temperature for DHW tank
Weekday Cycle of
operation
Switch-on
time
Switch-off
time
1 I 06:00 22:00
1II12:0012:00
2 I 06:00 22:00
2II12:0012:00
3 I 06:00 22:00
3II12:0012:00
4 I 06:00 22:00
4II12:0012:00
5 I 06:00 22:00
5II12:0012:00
6 I 06:00 22:00
6II12:0012:00
7 I 06:00 22:00
7II12:0012:00
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 9 Dienstag, 8. September 2009 10:20 10

Parameter description
10
03 Parameter system
Display Designation Description
03:01 Code entry Setting range: 0 … 999
Factory setting: 0
Function:
Show parameters marked with X3.
03:02 Automatic set
function
0=OFF, no automatic sensor detection X3
1=ON, automatic sensor detection
03:04 Building type Setting range: 1: Light construction (mean value over 6 X3
hours)
2: Medium construction
(mean value over 24 hours)
3: Heavy construction
(mean value over 72 hours)
Factory setting: 2
Function:
This parameter considers the building type by adapting the
calculation of the outside temperature mean value according to
its setting.
03:05 Climate zone Setting range: -50 °C … 0 °C X3
Factory setting: -12 °C
Function:
The climate zone is the coldest outside temperature value to be
expected.
03:06 Automatic exit time Setting range: 0.5 ... 10 Min X3
Factory setting: 2 min
Function:
When unit is not operated during the set time, the display
returns to basic display.
03:07 Anti-blocking
protection
Setting range: 0 = OFF X3
1 = ON
Factory setting: OFF
Function:
With this function activated, pump is switched on daily for ca. 20
seconds as protection against blocking during extended switch-
off phases (> 24h).
03:09 Code heating
specialist
Setting range: 0 … 999
Factory setting: 0
Function when setting is greater than 0:
Hide parameters marked with X3.
03:10 Total reset Reset to factory settings
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 10 Dienstag, 8. September 2009 10:20 10

11
Parameter description
04 Parameters heat generator
Display Designation Description
04:01 Function of heat
generator
Setting range: 0 = OFF X3
1 = H-GEN single stage
2 = H-GEN OpenTherm
Factory setting: 1
Function:
0: Control of a single-stage heat generator
via a relay output
1: Control of a heat generator with
standardised OpenTherm interface via
setpoint transfer
Note: only possible if OpenTherm logo
is available on CETA 104
04:02 Minimum
temperature limit H-
GEN*
Setting range: 5 °C … 95 °C X3
Factory setting: 38 °C
Function:
To protect the heat generator against aggressive condensate, the
minimum temperature limit specified by the manufacturer of the
heat generator must be set.
• Forced switch-on of DHW when value drops below limit
• Switch-off DHW at set value + burner switching differential
If there is no demand from heating system or DHW, the boiler
will be switched off. If the temperature in the heat generator
drops below the heat generator frost protection temperature of
+5°C, the burner will be switched on and the heat generator is
heated to the minimum temperature limit.
04:03 Maximum
temperature limit H-
GEN*
Setting range: 5 °C … 100 °C X3
Factory setting: 95 °C
Function:
• Forced switch-off of DHW when value is exceeded
• H-GEN is switched on again at set value – ½SD – 2K
04:04 Burner switching
differential (SD) *
Setting range: 2…30K X3, X5
Factory setting: 6K
Function:
On multiple stage heat generators, the setpoint on heat
generator sensor is controlled by the burner switching
differential.
• Switch-on of heat generator at setpoint temperature – ½ SD
• Switch-off of heat generator at setpoint temperature + ½ SD
*This function shall only be used by an authorised professional.
Incorrect settings can result in system damages.
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 11 Dienstag, 8. September 2009 10:20 10

Parameter description
12
06 Parameter heating circuit
04:05 Minimum burner
run time
Setting range: 0…20 Min X3
Factory setting: 2 min
Function:
After starting the heat generator, at least the set time must
lapse before the heat generator is deactivated again.
Note: The maximum temperature limit takes priority
over this function.
04:06 Start-up protection Setting range: 5…95 °C X3
Factory setting: 36 °C
Function:
Start-up protection of heating circuits helps in preventing
condensate discharge when heating up in cold condition.
• Switch-off of heating circuits (unmixed circuits, mixed circuits,
DHW loading) when heat generator temperature drops below
the value
• Heating circuits are enabled when heat generator
temperature exceeds the value + start-up prot.switching
differential.
04:07 Start-up protection
switching
differential
Setting range: 2…20K X3
Factory setting: 4K
Function:
See description of parameter 04:06.
04:08 Reset counter Reset counter of heat generator starts and operating hours
Display Designation Description
06:01 Function Setting range: 0=OFF
1=Unmixed circuit
Factory setting: 1
06:02 Room day Setting range: 5 … 30 °C
Factory setting: 20 °C
Function:
The set temperature is the room setpoint during active cycles of
operation in AUTOMATIC mode and during HEATING mode.
06:03 Room night Setting range: 5 … 30 °C
Factory setting: 16 °C
Function:
The set temperature is the room setpoint between the cycles of
operation in AUTOMATIC mode and during RED. HEATING mode.
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 12 Dienstag, 8. September 2009 10:20 10

13
Parameter description
06:04 Operating mode Setting range: 1: Automatic
2: Heating
3: Red. heating
4: Standby
Factory setting: 1
Function:
Automatic: Heating circuit operates in Heating or
Red. heating mode according to the time
program assigned under 06:05
Heating: Heating circuit operates continuously
according to set room day temp. (06:02)
Red. heating: Heating circuit operates continuously
according to set room night temperature
(06:03) under consideration of 06:06
Standby: Frost-protected switch-off of heating circuit
06:05 Time program Setting range: 1: Time program 1
2: Time program 2
3: Time program 1 and 2
Factory setting: 1
Function:
Depending on the setting, the heating circuit operates according
to time program 1, 2 or both, as set in menutree 02 (time
programs).
06:06 Type of reduced
operation (ECO/RED)
Setting range: 0: ECO
1: RED
Factory setting: 0
Function:
The settings are effective in Reduced operating mode.
ECO: Frost-protected switch-off mode
RED: Reduced mode
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 13 Dienstag, 8. September 2009 10:20 10

Parameter description
14
06:07 Heating curve/
conductance
Setting range: 0.05 … 3.50
Factory setting: 1.50
Function:
Determines the heating curve for the heating circuit.
06:08 Heating system
(exponent)
Setting range: 1.00…10.00 X3
Factory setting: 1.30
Function:
Curvature of heating circuit's heating curve.
Recommendation: 1.10: Floor or other
panel heating systems
1.30: Radiator heating
2.00: Convector and baseboard heating
>3.00: General ventilator applications with
high start temperatures
06:09 Frost protection Setting range: OFF (----) X3
-50 °C ... +10 °C
Factory setting: 3 °C
Function:
To keep the heating system from freezing in switch-off mode, the
controller is equipped with electronic frost protection.
Caution: Faulty operation can result in damages to building!
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 14 Dienstag, 8. September 2009 10:20 10

15
Parameter description
06:10 Summer switch-off Setting range: OFF (----) X3
10 °C ... 30 °C
Factory setting: 20 °C
Function:
Switch-off of heating operation at outside temperatures above
the desired outside temperature.
06:11 Extended pump
running time
Setting range: 0.0…60.0 Min X3
Factory setting: 5 min
Function:
This function determines extended run time of heating circuit
pump after heating circuit is switched off by time programs.
06:13 Room factor Setting range: 0…500% X3, X4
Factory setting: 100%
Function:
This function determines to what extent a deviation of the room
temperature from the setpoint affects the control of boiler flow
temperature.
Corrected room setpoint = set room setpoint - (deviation x room
factor) / 100
06:14 Room thermostat
function
Setting range: Off (----) X3, X4
0.5 … 5K
Factory setting: Off (---)
Function:
This function determines a room temperature limit; if limit is
exceeded, heating is turned off.
06:15 Room frost
protection limit
Setting range: 5…30 °C X3, X4
Factory setting: 10 °C
Function:
This function determines the room setpoint of the corresponding
heating circuit during switch-off mode with frost protection
activated.
06:20 Heat generator
parallel shift
Setting range: 0…20K X3
Factory setting: 0K
Function:
The demand value of the heating circuit, plus the shift value, is
transmitted to the heat generator.
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 15 Dienstag, 8. September 2009 10:20 10

Parameter description
16
07 DHW parameters
Display Designation Description
07:01 Function Setting range: 0 = OFF
1 = Sensor mode
2 = Thermostat mode
3 = Automatic mode DHW
Factory setting: 1
Function:
Sensor mode: Control via temperature sensor in
domestic hot water tank
Thermostat mode: Alternatively, DHW heating can also be
controlled via a mechanical temperature
controller (thermostat switching contact)
In this case a DHW thermostat
is connected instead of a DHW sensor
and set to the desired DHW
setpoint. If the contact is closed, DHW
loading takes place at the set DHW
maximum temperature until the contact is
opened again.
07:02 DHW day Setting range: 5 … 65 °C
Factory setting: 50 °C
Function:
The set temperature is the DHW setpoint during active cycles of
operation in AUTOMATIC mode and during HEATING mode.
07:03 DHW night Setting range: 5 … 65 °C
Factory setting: 20 °C
Function:
The set temperature is the DHW setpoint between the cycles of
operation in AUTOMATIC mode and during RED. HEATING mode.
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 16 Dienstag, 8. September 2009 10:20 10

17
Parameter description
07:04 Operating mode Setting range: 1: Automatic
2: Heating
3: Red. heating
4: Standby
Factory setting: 1
Function:
Automatic: DHW operates in Heating or
Red. heating mode according to the time
program assigned under 07:05
Heating: DHW operates continuously according to set
DHW day temperature (07:02)
Red. heating: DHW operates continuously according to set
room night temp. (07:03)
Standby: Frost-protected switch-off of DHW
07:05 Time program Setting range: 1: Time program 1
2: Time program 2
3: Time program 1 and 2
Factory setting: 1
Function:
Depending on the setting, DHW operates according to time
program 1, 2 or both, as set in menu tree 02 (time programs).
07:06 Legionella
protection
(day)
Setting range: 0: OFF X3
1 … 7: Monday … Sunday
8: All
Factory setting: 1
Function:
A legionella protection function can be activated to eliminate the
legionella germs in the tank. In order to completely kill all
germs, the Legionella protection temperature should be set at
least at 60-65 °C. The legionella protection function is activated
for 1 hour.
OFF: Function is not active
1 … 7: Function is performed once a week on the set
weekday
All: Function is performed each weekday
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 17 Dienstag, 8. September 2009 10:20 10

Parameter description
18
07:07 Legionella
protection (time)
Setting range: 00:00 … 23:00 o'clock X3
Factory setting: 02:00 o'clock
Function:
This value is used to set the time at which the legionella
protection function is to be started on the set weekday (see
07:06).
07:08 Legionella
Protection
(temperature)
Setting range: 10…65 °C X3
Factory setting: 60 °C
Function:
This value is used to specify setpoint temperature for legionella
protection function (see 07:06).
07:09 Switching
differential
Setting range: 2 … 20K X3
Factory setting: 5K
Function:
To prevent frequent loading of the DHW tank, the DHW setpoint
temperature is adjusted under consideration of a switching
differential.
• Activation of DHW loading at setpoint temperature – ½
switching differential
• Termination of DHW loading at setpoint temperature + ½
switching differential
07:10 Maximum
temperature limit
Setting range: 20 … 80 °C X3
Factory setting: 65 °C
Function:
This function serves as protection of the DHW tank.
Irrespective of parameter settings 07:02, 07:03 and 07:08, at
most the set value will be adjusted.
If exceeded, the charging pump is switched off immediately.
ATTENTION: Observe operating instructions of DHW tank
before making any changes. Excessive maximum temperatures
can result in damages on DHW tank.
07:11 Exceeded load
temperature
Setting range: 0 … 20K X3
Factory setting: 10K
Function:
This function determines the lead value for the tank load
temperature through the heat generator, compared to the set
DHW setpoint.
Heat generator setpoint = DHW setpoint +
Exceeded load temperature
Display Designation Description
BA_CETA104_EbV_EN_0450021002_0933-10.book Seite 18 Dienstag, 8. September 2009 10:20 10
