CF+D VITA Series Operating instructions

VITA | Fireplaces
North American Designed & Manufactured by CF +D | custom replace design
96" See-Thru
Built-In Linear Fireplace with Vapor-Fire Burner
INSTALLATION | OWNER'S MANUAL
Serial #
Read full manual before installation and keep all instruction for future use
CF +D | custom replace design
www.customreplacedesign.com
2/15/19

Table of Contents
APPENDIX A - VITA | Fireplaces Installation
Important Instructions.................................................................................................................Page A
General Information.....................................................................................................................Page B
Installation Requirements............................................................................................................Page C
a) Installation Requirements
b) Required Tools
c) Description
Fireplace Specications................................................................................................................Page D
Airow Diagram............................................................................................................................Page E
Fireplace Installation.....................................................................................................................Page F
Leveling the Fireplace..................................................................................................................Page F
Enclosing the Fireplace into the Wall.......................................................................................Page F
Airow Instructions.....................................................................................................................Page G
Electrical Instructions..................................................................................................................Page G
Instructions for Continuous Plumbed Systems.....................................................................Page G
Vapor-Fire Burner Information..................................................................................................Page H
Media Plate Instructions.............................................................................................................Page H
Initial Fill Instructions..........................................................................................................Pages H & I
Manual Fill Instructions...............................................................................................................Page J

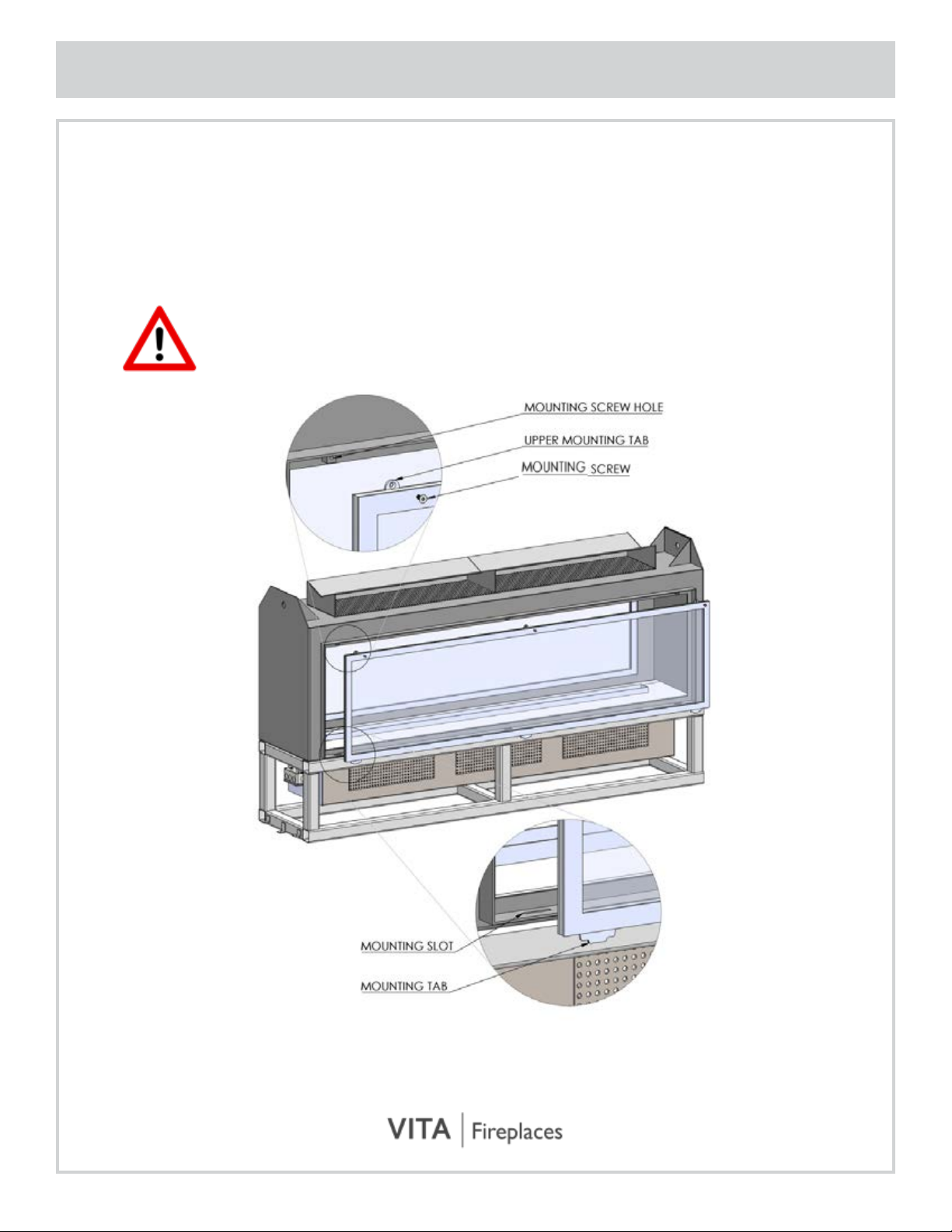

Glass Panel Installation................................................................................................................Page K
Warranty Statement.....................................................................................................................Page L
APPENDIX B - Vapor-Fire Service Manual.......................................................Pages 1 - 15
2/15/19

A Letter from Our President:
Our entire team joins me in thanking you for purchasing the 96" See-Thru Built-In
Linear replace, part of our exclusive line of VITA | Fireplaces featuring Vapor-Fire burner
technology, North American designed and manufactured by CF + D | custom replace
design. We are proud of our quality workmanship, our creativity in designing functional
art pieces and our commitment to technical innovation. We welcome the challenges that
come across our designer’s desks, keeping our creative minds working on developing new
ideas with our clients to build their dream re feature.
Upon receiving this letter yourVITA Fireplace has now been shipped and received.
The installation, technical and service manuals are included in the package and our
Technical Team is available with assistance throughout the installation and start-up of your
new VITA replace.
The Management, Designers and our Metal Craftsman, thank you again for the
opportunity of being a part of your project. We value our clients greatly and are available
for consultation before, during and after the installation of your exclusive VITA replace.
Vince Volpe
President and CEO
CF +D | custom replace design
CF +D | custom replace design
5230 Harvester Rd. Unit #2 Burlington, Ontario Canada
L7L 4X4 t. 1-866-909-3070 t. 905-681-3070
www.customreplacedesign.com
Quality Creativity Innovation
VITA | Fireplaces Installation
2/15/19

APPENDIX A - Important Instructions
- Page A -
1. Not for use outdoors.
2. DO NOT insert or allow foreign objects
to enter any airow openings as this may cause
electric shock.
3. DO NOT block air intakes in any manner.
4. DO NOT use in area where gasoline, paint or
ammable liquids are used or stored.
5. DO NOT burn wood or other materials in this
model.
6. Always USE A CERTIFIED ELECTRICIAN
should new circuits or outlets be required.
7. DISCONNECT THE POWER SUPPLY
BEFORE DOING ANY CLEANING,
MAINTENANCE OR RELOCATION OF
THE MODEL.
8. To disconnect the model, turn the controls off
and disconnect the power at the service panel.
A dedicated 15 Amp, 120V GFCI is
required for electrical.
9. Recommended: 1½" oor drain or condensate
pump for potential leak management.
Vapor-Fire Burner:
This equipment has been tested and found to
comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference.
Construction and electrical outlet wiring must
comply with local building codes and other
applicable regulations to reduce the risk of re,
electric shock and injury to persons.
10. Tethered Bluetooth control boxes are
connected before shipping to ensure proper
operation. Also used to sync the remote control
for remote operated units. Make sure they are all
rmly plugged in for the unit to work properly.
They may have become loose during shipping.
NO NOT REMOVE OR
DISCONNECT THE
TETHERED BLUETOOTH
DEVICE FROM INSIDETHE UNIT. It has
been factory set to ensure proper operation.
A FRESH AIR INTAKE of 100 inches
squared is required for each
40" Vapor-Fire burner for optimum
ame production (see Airow Diagram Page
E).
IMPORTANT: Read all instructions before installation.
Electrical Dedicated Switch Operation
Recommended for all applications in Commercial Projects
Remote Controls are available upon request
2/15/19

- Page B -
2/15/19
General Information
KEEP THIS MANUAL HANDY FOR EASY REFERRAL.
All WARNING and CAUTION SHOULD BE STRICTLY OBSERVED.
Please read this entire manual before you
install and use your VITA | FireplacesVapor-Fire
Feature.
Failure to follow the instructions may result
in property damage, bodily injury or even death.
When this re feature is not properly
installed, a re may result. To reduce the risk of re,
follow the installation instructions.
This service bulletin is to serve as a guide
to the installation and operation of your replace
system. It is not intended to replace skilled trades
and/or expertise that may be required to perform
installations.
All electrical and electronic components
must be installed, inspected and tested by qualied
persons in accordance with local building codes.
Components described herein are intended
as an indication of the components required and/or
supplied and is not an exhaustive item listing.
All standard safety practices as indicated
by local codes, laws, or OSHA standards must be
followed to prevent accident or injury.
Some of the components supplied cannot
be installed by a single person nor should they be
installed from a ladder.
All site safety arrangements are the
responsibility of the Site Supervisor, General
Contractor and/or Fireplace Installers, and not
CF + D.
USING MAKE-SHIFT COMPROMISES
DURING INSTALLATION CAN CAUSE
DAMAGE. Such installation is not covered under
CF + D limited warranty.
DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM!
CF + D specializes in creating one-of-a-
kind, hand-made artistic replaces. While these re
features are generally developed for their aesthetic
presence, they are also a functional appliance. As
such, natural variations in the material forming
processes and patina are part of the sculptural
spirit of the replace, adding to the beauty and
uniqueness of the design.
North American Designed and Manufactured by CF +D | custom replace design

Installation Requirements
- Page C -
INSTALLATION | OWNER'S MANUAL
96" See-Thru Built-In Linear Fireplace with Vapor-Fire Burner
B) Required tools
• Drill
• M8 Allen key
• Level
• Screw drivers
• M12 Allen key
• Scaffolding if necessary
• Ventilation grills/covers not supplied
• 2 persons minimum are required for installation.
NOTE:A 2" framing clearance
is required before positioning the
Built-In Vapor-Fire for ease of
installation before securing the model in
place.
A) Installation Requirements
• Prepare location for the installation of the
replace (See Airow Diagram and Instructions
Pages E & F).
• Electrical 15 AMP Service and 120V GFCI at
installation location ready for placement and the
supplied wiring and junction box connections.
• If the client has chosen the option of continuous
plumbed-in water, a ½” water line for
continuous water ow is required which will
then step down to ¼" to connect with factory
set valve. The water shut off is located at the
plumbing connection (See Instructions Pages G &
H).
• For manual ll operation, two water containers
will be supplied with the unit for manual relling.
(See Instructions Page I)
C) Description
Fireplace Body Weight See-Thru: 600 lbs.
Fireplace Height 39”
Fireplace Length 96”
Fireplace Depth 18”
Vapor-Fire Burner Length 80”
Airow Requirements 200 Square Inches
2/15/19

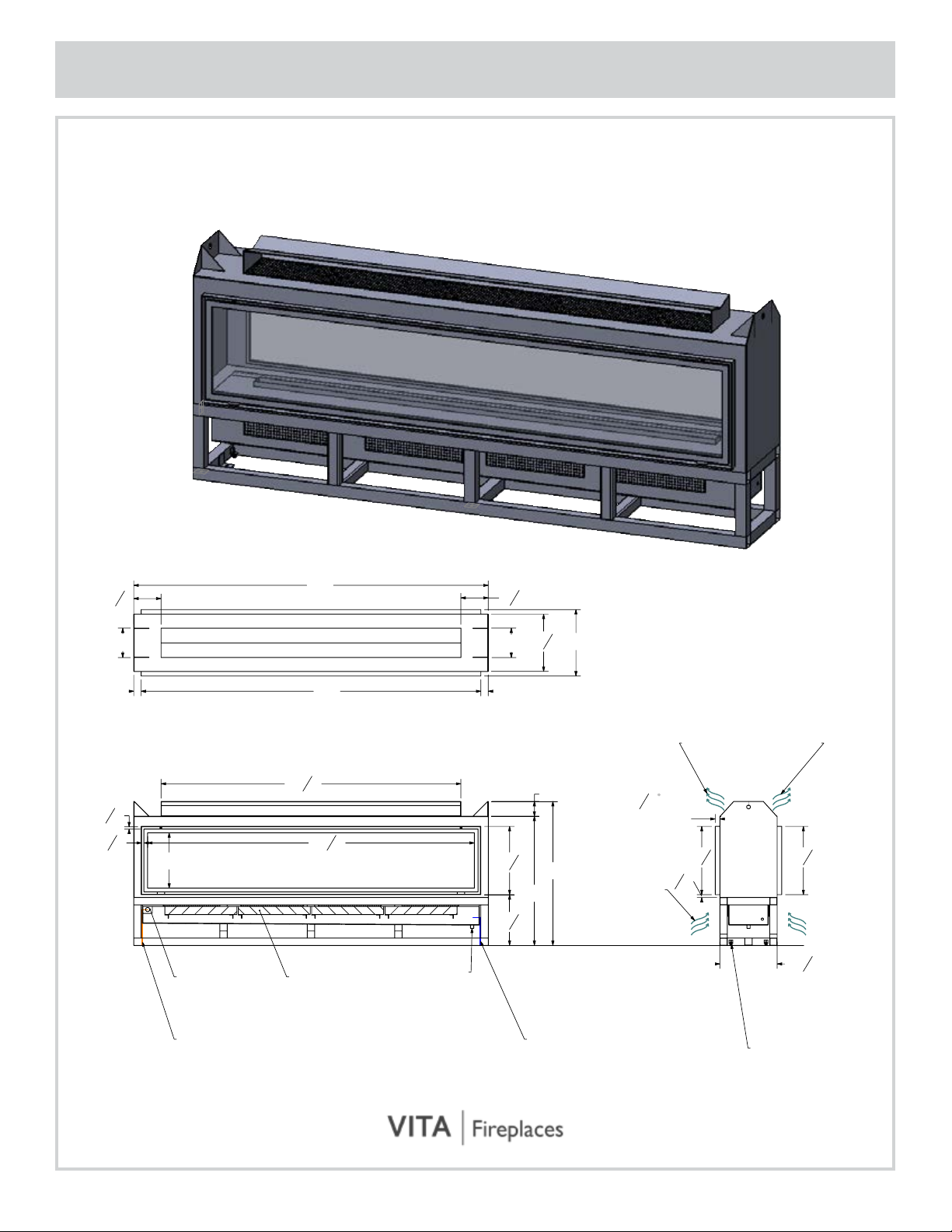

Fireplace Specications
- Page D -
96" See-Thru Built-In Linear
Vapor-Fire Fireplace (Sample)
2/15/19
88
1
2
"
15"
5
8
"
5
8
"
81
1
4
"
18
1
2
"
4"
13
3
4
"
35"
39"
3/4" NPT
DRAIN LINE
1/2" WATER
SUPPLY LINE
FOR CONTINUOUS
WATER FEED
GLASS VIEWING AREA
JUNCTION
BOX
VAPOR-FIRE
BURNER
SWITCHED ELECTRICAL
SUPPLY LINE DEDICATED
120V 15AMP
POWER WITH GFCI
15
1
2
"
92"
7
3
8
"
7
3
8
"
8"
2" 2"
96"
8"
18"
11
4
" ALL
AROUND
BOTH SIDES
18
1
2
"
3
4
"
15
1
2
"
18
1
2
"
MIN 200 SQ. IN. PASSIVE
VENTILATION OUT
FROM WALL REQUIRED
FINISHED
FLOOR
MIN AIR
VENTILATION
OF 200 SQ. IN.
REQUIRED
LEVELING FEET
FOR HEIGHT
ADJUSTMENT
VITA Fireplaces
96" See-Thru Built-In Linear Fireplace with Vapor-Fire Burner
Fireplace Weight 600 lbs. approx.
Burner 2 x CDFI 1000P
Total Burner Length 80" Vapor-Fire Burner
Airflow Requirements 200 Sq. Inches
UNLESS OTHERWISE SPECIFIED:
CHECKED
SIZE
TITLE:
INTERPRET GEOMETRIC
TOLERANCING PER:
Q.A.
MP
FINISH
DWG. NO.
DATE
A
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
0
MATERIAL
NAME
REV
DO NOT SCALE DRAWING
SCALE: NTS
LVF-08
ENG APPR.
MV
DRAWN
MFG APPR.
SHEET 2 OF 3
96" See-Thru
MODEL:
CF + D
CUSTOM FIREPLACE DESIGN INC.
5230 HARVESTER RD. UNIT # 2
BURLINGTON, ONTARIO CANADA L7L 4X4
PHONE: [phone] FAX: [phone]
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CUSTOM FIREPLACE DESIGN INC .
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CUSTOM FIREPLACE DESIGN INC .
IS PROHIBITED.
LAYOUT DRAWING
3/25/2019
3/25/2019

Airow Diagram
- Page E -
2/15/19
B
B
MIN 200 SQ IN
PASSIVE
VENTILATION
OUT FROM
WALL
REQUIRED
WALL
BY OTHERS
WALL
BY OTHERS
SIDE VIEW SECTION
MIN AIR VENTILATION
OF 200 SQ. IN REQUIRED
AIR FLOW IN
AIR FLOW OUT AIR FLOW OUT
AIR FLOW IN
B
B
MIN 200 SQ IN
PASSIVE
VENTILATION
OUT FROM WALL
REQUIRED
WALL
BY OTHERS
WALL
BY OTHERS
SIDE VIEW SECTION
MIN AIR VENTILATION
OF 200 SQ. IN REQUIRED
AIR FLOW OUT
AIR FLOW IN
Vapor-Fire burner technology •
Realistic flame without heat •
No venting requirements •
Safe to the touch •
Fueled by regular tap water •
120 Volt 15 Amp-GFCI •
All fireplaces come in black matte finish •
Custom colors and patina finishes available •
Heat available •
2" framing clearance required for installation •
WATER SOURCE OPTIONS
OPTION 1: Plumbed-In to main source water line, ½”
reduced to ¼” factory set connection.
OPTION 2: Removable 1L container for manual fill
approx. 8-10 hour burn time.
Recommended: 1 ½” floor drain or condensate pump
for potential leak management.
Note: Exact measurements may vary
½”.
VITA Fireplaces
96" See-Thru Built-In Linear Fireplace with Vapor-Fire Burner
Product Information
North American Designed & Manufactured
by
CF + D | custom fireplace design
AIR FLOW OUT
AIR FLOW IN
UNLESS OTHERWISE SPECIFIED:
CHECKED
SIZE
TITLE:
PROPRIETARY AND CONFIDENTIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
Q.A.
MP
FINISH
DWG. NO.
DATE
A
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL
THREE PLACE DECIMAL
0
MATERIAL
NAME
REV
DO NOT SCALE DRAWING
SCALE : NTS
LVF-08
ENG APPR.
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CUSTOM FIREPLACE DESIGN INC .
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CUSTOM FIREPLACE DESIGN INC .
IS PROHIBITED.
MV
DRAWN
3/25/2019
3/25/2019
MFG APPR.
SHEET 3 OF 3
96" See-Thru
MODEL:
AIRFLOW REQUIREMENT
CF + D
CUSTOM FIREPLACE DESIGN INC.
5230 HARVESTER RD. UNIT # 2
BURLINGTON, ONTARIO CANADA L7L 4X4
PHONE: [phone] FAX: [phone]

2/15/19
Fireplace Installation | Leveling | Framing Instructions
- Page F -
Installation Instructions for
Linear Built-In Vapor-Fire
Before positioning and securing the model
into the specied location a prepared framed
opening should be built. When framing the opening
for the built-in model maintain a 2” clearance on
the top and sides for ease of installation.
The electrical and plumbed-in water line (if
selected for continuous burn time) should be prepared
from the main sources and located inside the
framed opening. The junction box is factory set
and ready to be wired. The plumbing connection
(if selected) is also factory set for connection to the
main line.
There is a drain pan and bib built-in under
the unit as a precautionary measure in case of
overow. A small 1 ½” drain on the oor under
the unit is recommended but not required.
Leveling the Fireplace
The replace is equipped with leveler legs
for adjustment should it be necessary to level
and stabilize the replace. Once the unit is level
and straight, secure it in place using lag bolts (not
included in the package).
Enclosing the Linear Vapor-Fire
into The Wall
NOTE: Test the electrical connections
and plumbing line (if installed) making
sure wiring is correct and the plumbing
connection has been leak tested before enclosing
into the wall.
Once all electrical and plumbing (if required)
has been completed the wall structure can be
closed. There are no combustible or clearance
requirements when building the wall around the
Vapor-Fire model. Providing airow from under
the Vapor-Fire Built-In model and allowing air to
move through the cavity to escape at the ceiling
is required (refer to airow diagram Pages D & E).
A decorative wall vent can be used to nish the
airow openings if desired.
Some examples of the location of airow
openings include:
• Air intake at the bottom of the wall and air out
at top of ceiling, or,
• Air intake at the space provided at oor level
baseboards and air out at the ceiling.
• For custom airow requirements follow client
design specications
Important Note: Airow
requirements for this replace are found
on Pages A, C & E with further
information within the “Airow Instructions” on
the next page. This information MUST be used
when closing the wall.

Airow | Electrical | Continuous Plumbed-In Systems Instructions
- Page G -
Airow Instructions
The airow in, and airow out vents have
two functions (Refer to Airow Diagram - Page E):
• To supply fresh air to theVapor-Fire burners.
• To allow airow out of the top of the unit to
maintain optimal vapor ame.
There are a number of options for letting air
in. Some examples include:
• Through the toe kick/baseboards
• Ventilation grate at nished oor
• Other
There are also a number of options for
letting air out. Some examples include:
• Ventilation grate wall/ceiling
• Custom design - reveal at top of wall
• Other
Most importantly, venting must follow
each unit's airow requirements (See Pages A, C &
E).
Consult the project manager for full CF + D
drawings if you are unsure of vent placement.
NOTE: Ensure all vent options have been
addressed before closing the wall.
Electrical Installation
This replace has two CDFI1000P model
burners (40" each) installed.
The replace requires switch power with a
dedicated circuit to control the replace operation
(on/off switch on wall recommended).
NOTE: All electrical to be completed
rst. Do not turn on electrical until
plumbing has been completed.
The electrical and ¼” water line
connection is supplied with the replace. The
electrical connections are to be located at the
oor where the replace will be installed. A
junction box is provided inside the replace for
electrical connection. Found on the left side of the
unit.
A dedicated circuit is required for the
junction box. Connect the power 120V wire, 15
Amp service to the junction box to meet electrical
requirements.
NOTE: Make sure theVapor-Fire
burner power is off before
connecting.
Instructions for Continuous
Plumbed-In Systems
• The plumbing accessory kit is designed for use
with copper piping.
• Ensure that all plumbing connections meet local
plumbing code requirements.
• Ensure that the location of the plumbing
connection allows for easy access for shutoff
during scheduled maintenance.
Normal tap water can be used in theVapor-
Fire as long as the tap water is not considered to
be hard water. In the event your tap water is hard,
softened water is recommended.
2/15/19

Vapor-Fire Burner | Media Plate | Initial Fill Instructions
- Page H -
NOTE: Plumbing connections should
be done by an experienced plumber
familiar with plastic tubing and
connectors.
Downsize the main ½" plumbing line to ¼"
in order to connect to valve which is located in the
front right corner of the burner on the bottom. Test
for water leaks and make sure connections are leak
proof.
Access the Vapor-Fire burner to complete
the initial ll process by lifting the media plate.
Vapor-Fire Burner
Remove media plate to access the burners.
The Vapor-Fire burner is factory set and ready for
the initial ll. Conrm that all electrical and plumbing
have been completed before proceeding to the next
step.
Media Plate Instructions
The media plate has three functions:
• The media plate will be lifted for access to the
Vapor-Fire burner.
• To display the chosen media (rocks, glass, logs,
etc.).
• To direct the airow for optimum Vapor-Fire
effect.
The media plate opens from one side of the
replace in order to access the Vapor-Fire burner.
There is a handle on the media plate for ease of use.
Lift the media plate up to allow enough space to
access the Vapor-Fire burner.
Initial Fill Instructions
There are two ways to complete the initial
ll. Both are acceptable whether you have chosen
the plumbed-in or manual ll options.
Each VITA Fireplace is supplied with an
orange initial ll bottle which is used for priming
the reservoir, and/or on a regular basis (Manual Fill
Option).
Option 1: Fill the reservoir directly
Remove the plumbing ll cap assembly by
gently twisting clockwise and move cap to side
(Images A & B Below). For manual ll VITA Vapor-
Fire, there will not be a plumbing ll cap assembly
present.
A)
B)
2/15/19

Initial Fill Instructions (continued)
- Page I -

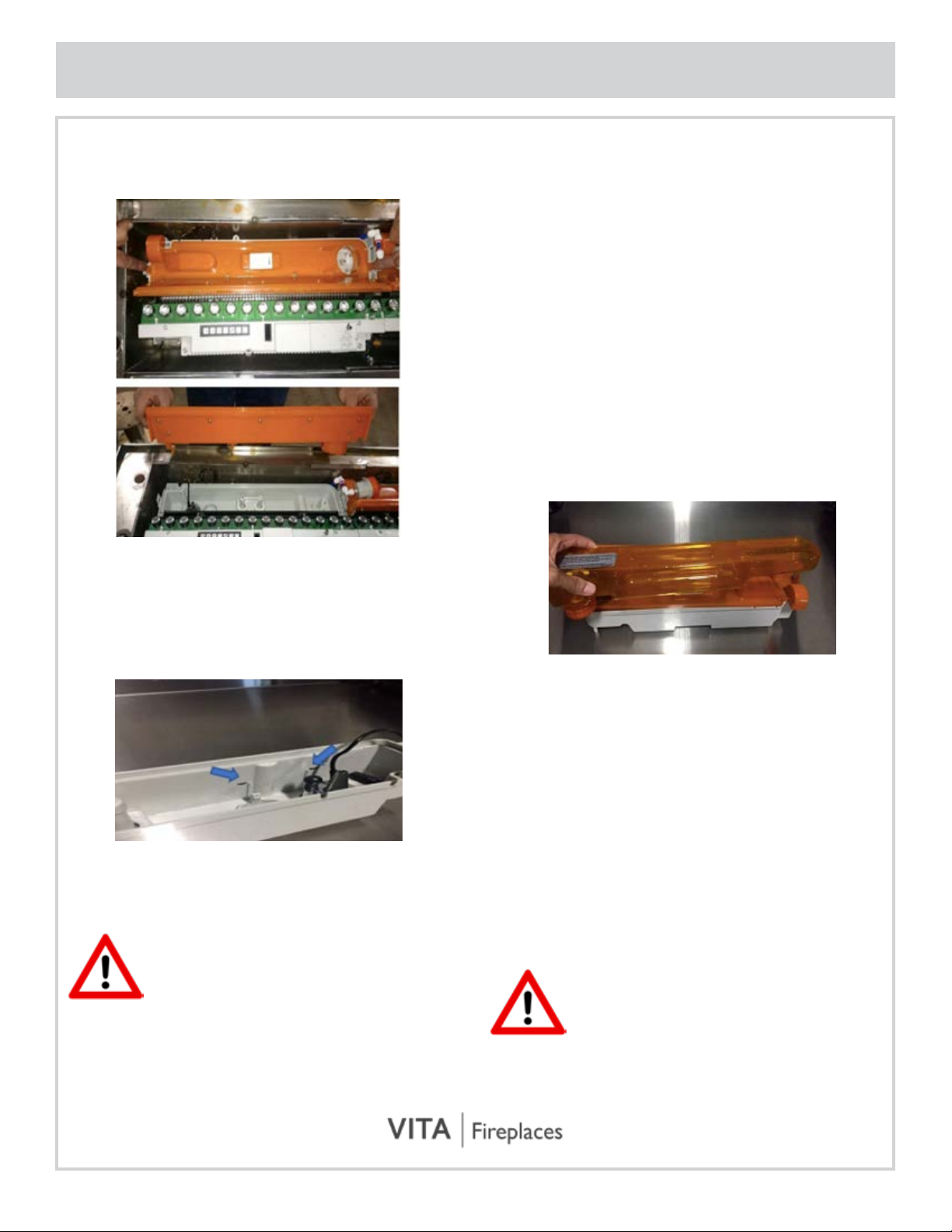

Remove top cover assembly on the burner
by depressing side tabs gently (Images 1 and 2).
1)
2)
It is now time to ll the water reservoir(s)
with 33.5oz (1L) of water. Take note of water level
markers (Image 3 Below). Be sure to ll water level
in between the markers in order for the system to
learn the proper level to maintain during operation.
3)
Replace the assembly making sure that
clips are secure and connect the plumbing ll cap
assembly (if applicable).
NOTE: this method does not use the
orange initial ll bottle.
Option 2: Fill the reservoir using the
initial ll bottle
If you have chosen the plumbed-in option,
remove the plumbing ll cap assembly (as outlined on
Page H). If your VITA | Fireplaces uses the manual ll
option, there is no plumbing ll cap assembly.
Fill the orange initial ll container with
regular tap water and secure the cap without
twisting too tightly. Place the container into the tray
with the valve facing downwards as shown below.
The valve ts gently into the socket used for the
plumbing ll cap assembly (See Image B Page G). No
need to tighten.
Allow the water to drain into the reservoir
through the valve. You will hear a gurgling sound.
Once the water stops draining into the reservoir
below, the sound will stop. This means that the
Vapor-Fire reservoir has lled to the optimal level.
For plumbed-in option replace the
plumbing ll cap assembly and media plate.
For manual ll Vapor-Fire, keep the
initial ll bottle for regular operation (Refer
to Manual Fill Instructions Page J)
DO NOT attempt to test re the
system until all plumbing and electrical
is complete and the correct starting
water level has been established. Failure to follow
this instruction could incorrectly cause overow
during operation.
2/15/19

Manual Fill Instructions
- Page J -
Instructions for Manual Fill
Containers
• Remove the media tray (top tray for rocks, logs
etc.) to access the burners.
• Remove the plastic container.
• Manually ll the supplied container with 1 litre of
water.
• Secure the top without twisting too tightly.
• Place the container back into position, the water
in the container will drain into the reservoir
which will ll to the level required for maximum
operation (See Picture 3).
• After the plastic container is empty or stops
owing into the reservoir, it has now lled to the
level required.
• Rell the container with water and replace into
position. The maximum operating cycle time will
be between 8 to 10 hours.
• Replace the media tray (See Media Plate
Instructions Page H). Ensure that all edges are
ush and snug so that the media plate is at.
Now arrange your chosen media as desired
on top of the media plate. Use caution not to
overlap the Vapor-Fire opening as this can interrupt
the ame affect. Proceed to turn on the Vapor-Fire
replace.
NOTE: The Vapor-Fire burner system
has been factory set for optimum ame
effect (No Adjustments Required).
NOTE: If after the test re stage, the
unit will be turned off to complete
construction, it is recommended to rst
drain all water from the reservoirs and/or rell
containers and dry to protect the transducers from
sitting idle in water for extended periods.
2/15/19

Glass Panel Installation
- Page K -
• Locate and remove the Mounting Screws
• Remove the Glass panel from the shipping packaging.
• Guide the Mounting Tabs into the Mounting Slots located at the bottom of the glass
opening.
• Install the Mounting Screws through the Upper Mounting Tabs into the Mounting Holes.
• Follow these instructions to conduct regular maintenance, and for manual ll option.
NOTE: This operation requires two or more people.
2/15/19

Warranty
- Page L -
Warranty
All CF + D and VITA | Fireplaces models are guaranteed against any defect in design,
construction, or manufacture, and guaranteed to function properly for ve (5) years from
date of receipt of goods. The electrical and electronic components within the replace are
warranted against any defect in design, construction, or manufacture, and guaranteed to
function properly for one (1) year from date of commissioning. Our product guarantees are
applicable only when our Fire Features have been installed with respect to all local building
codes and with strict attention to the technical details outlined in our Plan Study as well as
our installation, maintenance, and user’s manuals. Our guarantee excludes accidental damages
such as those occurring during transport without written notication upon receipt, damages
incurred during installation, and damages resulting from improper use and is limited to the
replacement of the defective part or unit in its entirety at the sole discretion of CF + D the
manufacturer. This warranty does not include the reimbursement of labor cost or related
costs incurred to conduct the replacement of parts or entire unit should it be deemed
necessary.
We thank you for your support and your business!
CF +D | custom replace design
5230 Harvester Rd. #2
Burlington, Ontario L7L 4X4
T: 905-681-3070
Toll Free: 1-866-909-3070
F: 905-681-8697
www.customreplacedesign.com
Quality Creativity Innovation
2/4/19
North American Designed and Manufactured by CF +D | custom replace design

APPENDIX B
Vapor-Fire Service Manual
 
Vapor-Fire
By
CF +D | custom replace design
Service Manual
For Dimplex
Model(s)
CDFI1000-PRO
6909660300
CDFI500-PRO
6909660400
IMPORTANT SAFETY INFORMATION: Always read this manual rst before attempting to service this
cassette. For your safety, always comply with all warnings and safety instructions contained in this manual to
prevent personal injury or property damage.
CF + D | custom replace design Inc. REV PCN DATE
5230 Harvester Rd
Burlington ON. CA L7L 4X4 00 - 21-12-15
1-866-909-3070
www.customreplacedesign.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
7400880000R00

TABLE OF CONTENTS












..




! NOTE:
CAUTION:
WARNING: 

 

 

 

 
