Chamberlain Park-Rite 864CB User manual

Model 864CB PARK-RITE™Parking Ball Guide
Installation Instructions
1. Park vehicle in the garage.
2. Suspend the ball on string from the garage ceiling,
so that it touches the windshield (see Figure 1).
3. Mark the ceiling location and install an eyelet.
Temporarily tie the cord at this eyelet, keeping the
ball in touch with the windshield.
4. Remove the vehicle from the garage and close the
garage door.
5. Measure the distance from the eyelet to the ball.
This distance will be referred to as “X” in charts
1 and 2.
6. Determine your type of garage door (see below),
and follow the remaining steps for the installation
of eyelets 2 and 3.
7. From the appropriate chart, locate your “X” figure
and determine the 2nd eyelet position.
Measure this distance from the header wall, in line
with the first eyelet, and position the second
eyelet.
8. Install the third eyelet on top of the garage door in
line with eyelets one and two. (NOTE: If your door
is made of fiberglass or metal, drill a 1/16" pilot
hole and thread in the eyelet.)
9. Release the temporary tie at the first eyelet.
Thread the cord through the first, second and third
eyelets.
10.To complete the installation, follow the instructions
for your garage door type.
Sectional and 1-Piece Horizontal Track Doors
Pull cord through the third eyelet until the ball reaches
the first eyelet. Tie securely to the third eyelet and cut
off excess cord.
One-Piece Jamb and Pivot Type Doors
Pull cord through the third eyelet until top of ball is 12"
below the first eyelet. Tie securely to the third eyelet
and cut off excess cord.
©1994, The Chamberlain Group, Inc.
114A1841 All Rights Reserved Printed in Mexico

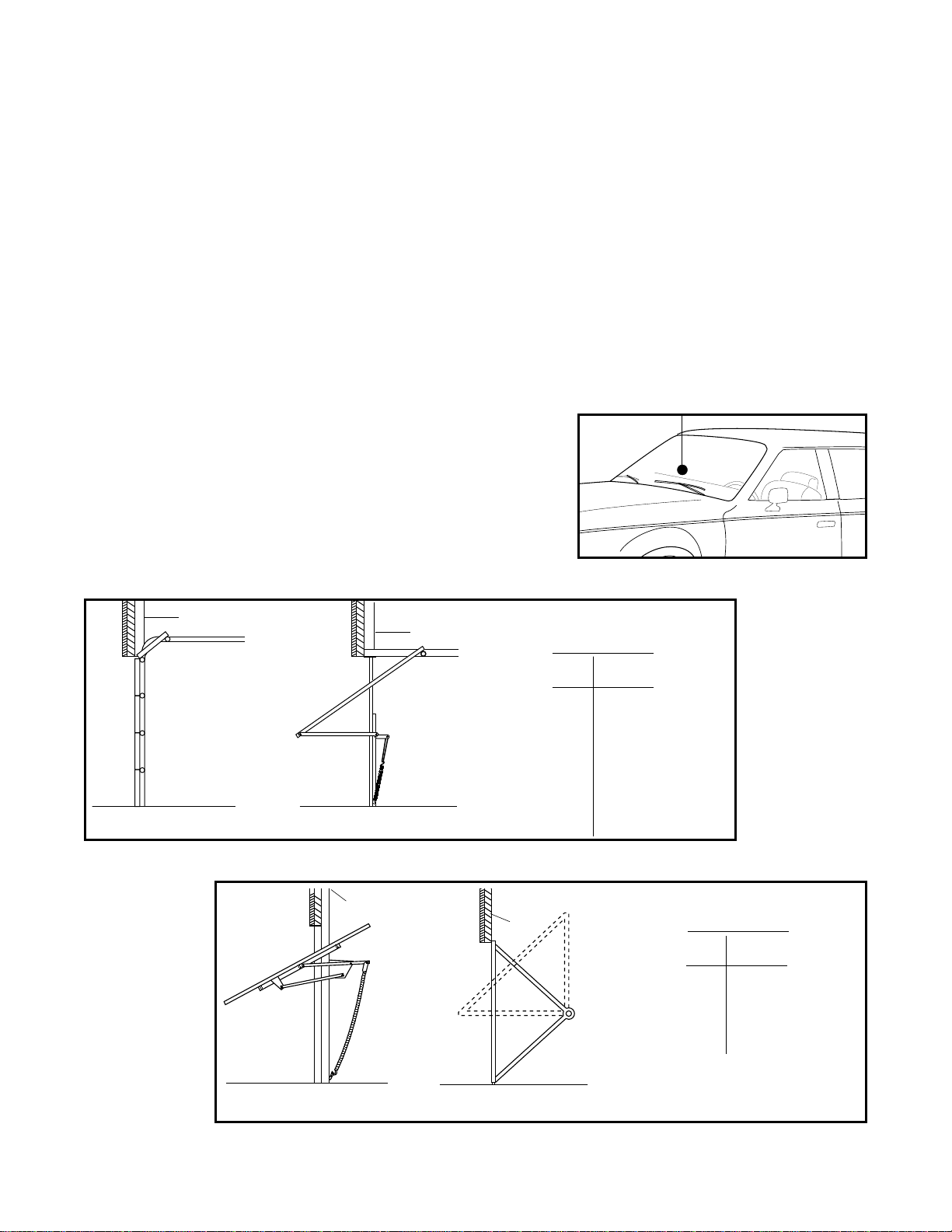

Header
Wall Header
Wall
Header
Wall
Header Wall
Second
X Eyelet
30" 62"
35" 65"
40" 70"
45" 73"
50" 77"
55" 81"
60" 86"
65" 90"
CHART 1: FOR SECTIONAL DOORS
AND 1-PIECE HORIZONTAL TRACK
TYPE DOORS
Second
X Eyelet
30" 36"
35" 39"
40" 43"
45" 46"
50" 50"
CHART 2: FOR 1-PIECE JAMB
AND PIVOT TYPE DOORS
Sectional 1-Piece
Horizontal track
1-Piece without track
Jamb hardware 1-Piece without track
Pivot hardware
FIGURE 1
