Owner's Manual
•Please read this manual and the enclosed safety materials carefully!
•Fasten the manual near the garage door after installation.
•The door WILL NOT CLOSE unless the Protector System ®is connected and
properly aligned.
•Periodic checks of the opener are required to ensure safe operation.
•The model number label is located on the front panel of your opener.

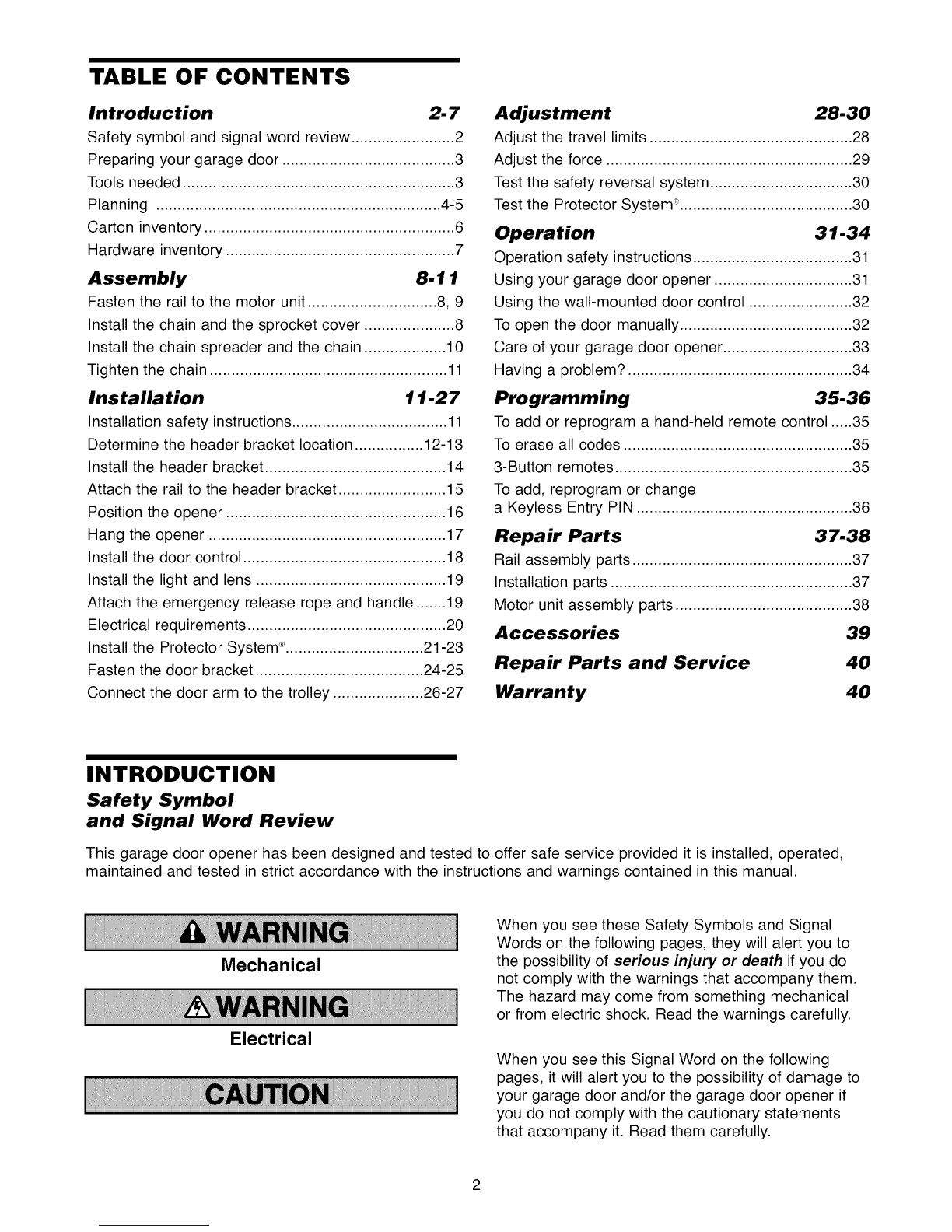

TABLE OF CONTENTS
Introduction 2- 7
Safety symbol and signal word review ........................ 2
Preparing your garage door ........................................ 3
Tools needed ............................................................... 3
Planning .................................................................. 4-5
Carton inventory .......................................................... 6
Hardware inventory ..................................................... 7
Assembly 8-11
Fasten the rail to the motor unit .............................. 8, 9
Install the chain and the sprocket cover ..................... 8
Install the chain spreader and the chain ................... 10
Tighten the chain ....................................................... 11
Installation 11-27
Installation safety instructions .................................... 11
Determine the header bracket location ................ 12-13
Install the header bracket .......................................... 14
Attach the rail to the header bracket ......................... 15
Position the opener ................................................... 16
Hang the opener ....................................................... 17
Install the door control ............................................... 18
Install the light and lens ............................................ 19
Attach the emergency release rope and handle ....... 19
Electrical requirements .............................................. 20
Install the Protector System R_................................ 21-23
Fasten the door bracket ....................................... 24-25
Connect the door arm to the trolley ..................... 26-27
Adjustment 28-30
Adjust the travel limits ............................................... 28
Adjust the force ......................................................... 29
Test the safety reversal system ................................. 30
Test the Protector System R_........................................ 30
Operation 31-34
Operation safety instructions ..................................... 31
Using your garage door opener ................................ 31
Using the wall-mounted door control ........................ 32
To open the door manually ........................................ 32
Care of your garage door opener .............................. 33
Having a problem? .................................................... 34
Programming 35-36
To add or reprogram a hand-held remote control .....35
To erase all codes ..................................................... 35
3-Button remotes ....................................................... 35
To add, reprogram or change
a Keyless Entry PIN .................................................. 36
Repair Parts 3 7-38
Rail assembly parts ................................................... 37
Installation parts ........................................................ 37
Motor unit assembly parts ......................................... 38
Accessories 39
Repair Parts and Service
Warranty
40
40
INTRODUCTION
Safety Symbol
and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal
Words on the following pages, they will alert you to
the possibility of serious injury or death if you do
not comply with the warnings that accompany them.
The hazard may come from something mechanical
or from electric shock. Read the warnings carefully.
When you see this Signal Word on the following
pages, it will alert you to the possibility of damage to
your garage door and/or the garage door opener if
you do not comply with the cautionary statements
that accompany it. Read them carefully.

Preparing your garage door
Before you begin:
•Disable locks.
• Remove any ropes connected to garage door.
• Complete the following test to make sure your
garage door is balanced and is not sticking or
binding:
1. Lift the door about halfway as shown. Release
the door. If balanced, it should stay in place,
supported entirely by its springs.
2. Raise and lower the door to see if there is any
binding or sticking.
If your door binds, sticks, or is out of balance, call a
trained door systems technician.
Toprevent possible SERIOUSINJURYORDEATH:
•ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgaragedoor may not reversewhen
required.
• NEVERtry to loosen, move or adjust garagedoor, door
springs, cables,pulleys, brackets or their hardware,all
of which are under EXTREMEtension.
• DisableALL locks and removeALL ropes connectedto
garagedoor BEFOREinstalling and operating garage
door opener to avoidentanglement.
Toprevent damageto garagedoor and opener:
• ALWAYSdisable locks BEFOREinstalling and operating
the opener.
• ONLYoperategaragedoor opener at 120V,60 Hzto
avoid malfunction and damage.
Sectional Door
One-Piece Door Tools needed
During assembly, installation and adjustment of the
opener, instructions will call for hand tools as
illustrated below.
Stepladder
Level (Optional) Tape Measure
Pencil
Wire Cutters
Drill 3/16", 5/16" and _,,_
5/32" Drill Bits iers
ts Screwdriver
Hack Saw
Claw Hammer
Adjustable End Wrench

Planning
Identify the type and height of your garage door.
Survey your garage area to see if any of the
conditions below apply to your installation. Additional
materials may be required. You may find it helpful to
refer back to this page and the accompanying
illustrations as you proceed with the installation of
your opener.
Depending on your requirements, there are several
installation steps which may call for materials or
hardware not included in the carton.
• Installation Step 1 - Look at the wall or ceiling
above the garage door. The header bracket must
be securely fastened to structural supports.
• Installation Step 5 - Do you have a finished ceiling
in your garage? If so, a support bracket and
additional fastening hardware may be required.
• Installation Step 10 - Depending upon garage
construction, extension brackets or wood blocks
may be needed to install sensors.
• Installation Step 10 -Alternate floor mounting of
the safety reversing sensor will require hardware
not provided.
Do you have an access door in addition to the
garage door? If not, Model 1702 Outside Quick
Release is required. See Accessories page.
Look at the garage door where it meets the floor.
Any gap between the floor and the bottom of the
door must not exceed 1/4" (6 mm). Otherwise, the
safety reversal system may not work properly. See
Adjustment Step 3. Floor or door should be
repaired.
SECTIONAL DOOR INSTALLATIONS
• Do you have a steel, aluminum, fiberglass or glass
panel door? If so, horizontal and vertical reinforce-
ment is required (Installation Step 11)
• The opener should be installed above the center of
the door If there is a torsion spring or center
bearing plate in the way of the header bracket, it
may be installed within 4 feet (122 m) to the left or
right of the door center See Installation Steps 1
and 11
• If your door is more than 7 feet (2,13 m) high, see
rail extension kits listed on Accessories page
SECTIONAL DOOR INSTALLATION
Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 24 for details.
FINISHED CEILING
Support bracket &
fastening hardware
is required.
Slack in chain tension See page 17.
is normal when
garage door is closed
Header Wall
Torsion
j Spring
Extension
OR Spring
Motor unit
Centerline of
Garage Door
Safety Reversing Sensor
Gap between floor
and bottom of door must
not exceed 1/4" (6 mm)
Safety
Reversing
Sensor
Wall-
mounted
Door
Control
Access
Door
O
Header
Bracket Chain Pulley
Bracket
Arm
Door Bracket
yTrolley
Emergency
Release
Rope & Handle

Planning (Continued)

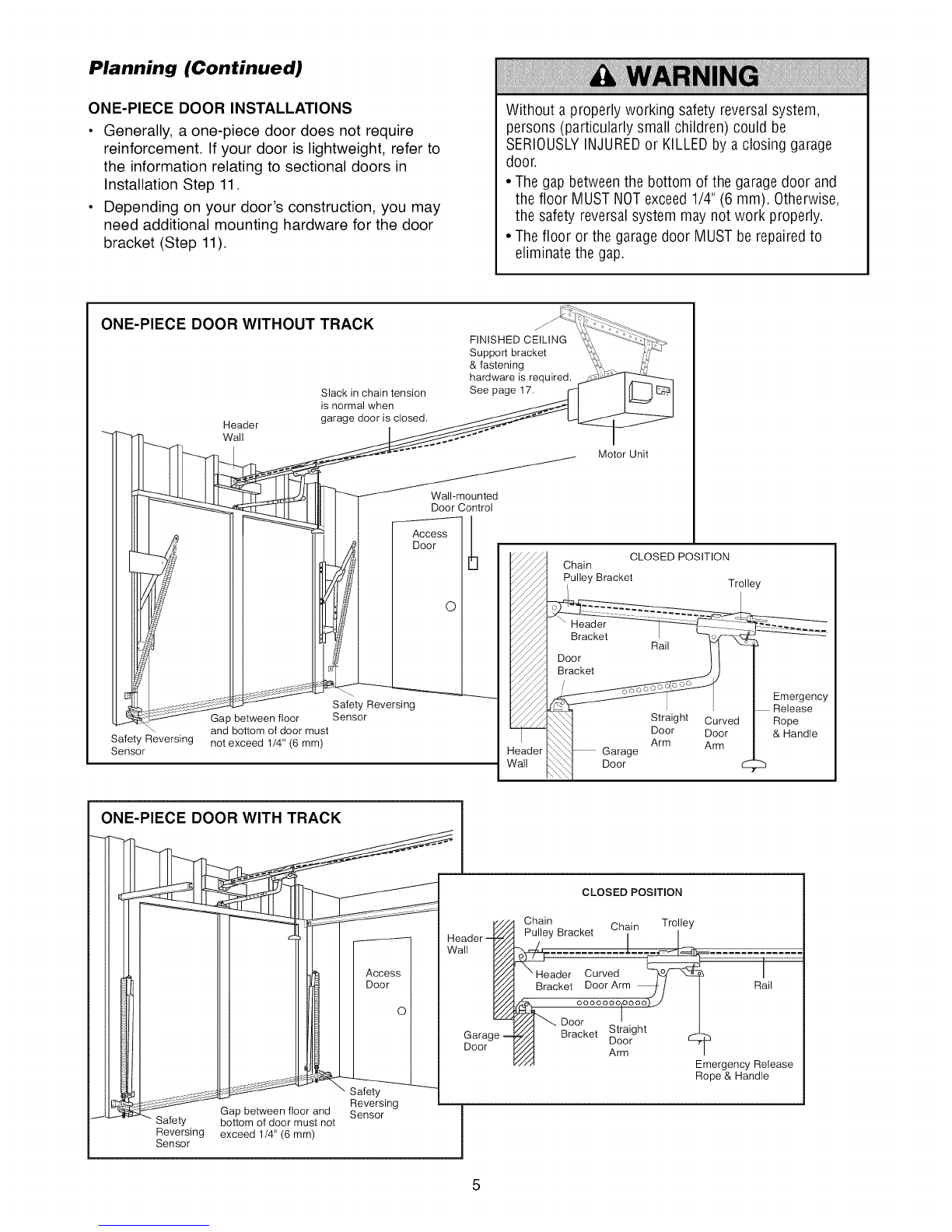

ONE-PIECE DOOR INSTALLATIONS
•Generally, a one-piece door does not require
reinforcement If your door is lightweight, refer to
the information relating to sectional doors in
Installation Step 11
• Depending on your door's construction, you may
need additional mounting hardware for the door
bracket (Step 11)
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLEDby a closing garage
door.
• Thegap betweenthe bottom of the garagedoor and
the floor MUSTNOTexceed1/4" (6 mm). Otherwise,
the safety reversal system may not work properly.
• Thefloor or the garage door MUSTbe repairedto
eliminate the gap.
ONE-PIECE DOOR WITHOUT TRACK
Header
_ _ Gap between floor
and bottom of door must
Safety Reversing not exceed 1/4" (6 mm)
Sensor
Slack in chain tension
is normal when
garage door is closed.
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 17.
O
Safety Reversing
Sensor
Motor Unit
CLOSED POSITION
Chain
Pulley Bracket Trolley
Straight
Door Door
Arm Arm
Garage
Door
Emergency
Rope
& Handle
l
ONE-PIECE DOOR WITH TRACK I
E CLOSED POSiTiON
Chain Trolley
Pulley Bracket Chain ]_
Curv...............
_c k;to c::oo_ A/,!o _: )j_ Rat,
/_// Bracket !!o? ht E/ergency Release
Rope & Handle
/--i_l__ _ -\ Safety.
_ Heverstng --
i__--[ Gap between floor and Sensor
Safety bottom of door must not
Reversing exceed 1/4" (6 mm) I
Sensor j

Carton Inventory
Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Note that accessories will depend on the
model purchased. If anything is missing, carefully
check the packing material. Parts may be stuck in
the foam. Hardware for assembly and installation is
shown on the next page. Save the carton and
packing material until installation and adjustment is
complete.
@
Lighted Door Control Button
w/6ABx 1-1/2" screws
Models 1256R, 1255R,
1246R, & 1245R
Light Lens (1)
SECURITY÷ ®
Single-Button Remote Control (1)
2-Conductor Bell Wire
White & White/Red
All Models except
1256R & 1246R
Sprocket Cover Styrofoam
Remote Control
Transmitter Visor Clip
Chain
\\
\
One-Piece
Rail
Models 1256R & 1246R only
Chain Spreader with
Screws and Washers
Header Bracket
Safety Sensor
Bracket (2)
Chain
Pulley Bracket
Safety Labels
and
Literature
\
Trolley
Door Bracket
Curved Door Arm Section
Straight Door
Arm Section
ersing Sensors
e and 1 Receiving Eye)
tor White & White/Black
Bell Wire attached
@
@
o
@
@
@
o
o
@
@
Q

Hardware Inventory
Separate all hardware and group as shown below for the assembly and installation procedures.
Lag Screw
5/16"-9 xl-5/8" (2)
INSTALLATION HARDWARE
Hex Bolt
5/16"-18x7/8" (4) Lock Washer 5/16" (4) Rail Grease
_h Lag Screw
5/16"-18xl-7/8" (2) Handle Nut 5/16"-18 (4) 0
Ring Fastener (3)
Self-Threading Screw
1/4"-14x5/8" (2) Dry Wall
Anchors (2) Carriage Bolts
1/4"-20x 1/2" (2)
Clevis Pin
5/16"x2-3/4" (1)
Wing Nut
1/4"-20 (2)
oi{
Clevis Pin
5/16"xl" (1)
Staples (30)
Clevis Pin
5/16"x1-1/4" (1)
Rope
J
°U

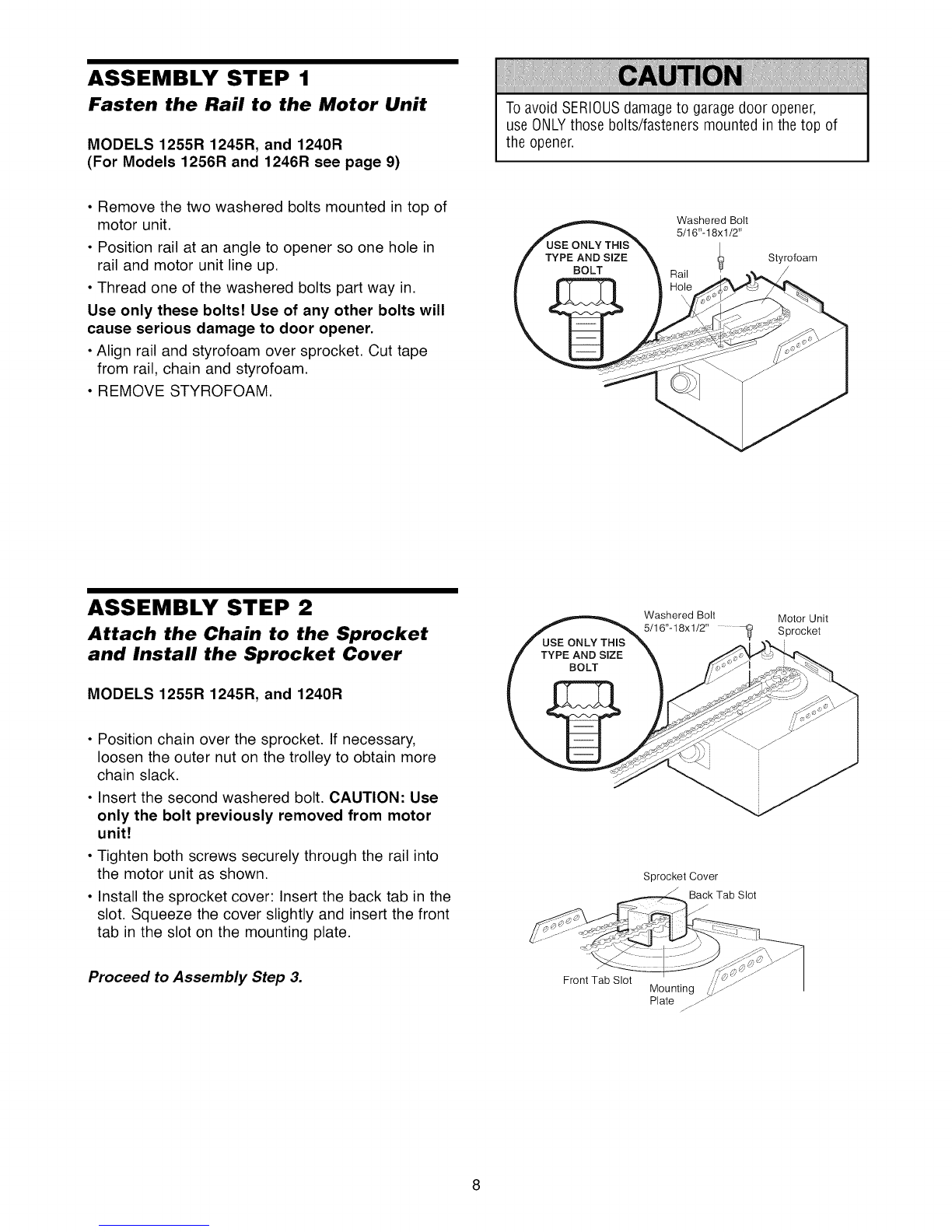

ASSEMBLY STEP 1
Fasten the Rail to the Motor Unit
MODELS 1255R 1245R, and 1240R
(For Models 1256R and 1246R see page 9)
Toavoid SERIOUSdamageto garagedoor opener,
use ONLYthose bolts/fasteners mounted in the top of
the opener.
•Remove the two washered bolts mounted in top of
motor unit.
• Position rail at an angle to opener so one hole in
rail and motor unit line up.
• Thread one of the washered bolts part way in.
Use only these bolts! Use of any other bolts will
cause serious damage to door opener.
• Align rail and styrofoam over sprocket. Cut tape
from rail, chain and styrofoam.
• REMOVE STYROFOAM.
Washered Bolt
5/16"-18xl/2"
Styrofoam
ASSEMBLY STEP 2
Attach the Chain to the Sprocket
and Install the Sprocket Cover
MODELS 1255R 1245R, and 1240R
Washered Bolt Motor Unit
5/16"-18xl/2 ........ _ Sprocket
• Position chain over the sprocket. If necessary,
loosen the outer nut on the trolley to obtain more
chain slack.
• Insert the second washered bolt. CAUTION: Use
only the bolt previously removed from motor
unit!
• Tighten both screws securely through the rail into
the motor unit as shown.
• Install the sprocket cover: Insert the back tab in the
slot. Squeeze the cover slightly and insert the front
tab in the slot on the mounting plate.
Sprocket Cover
Back Tab Slot
J
Proceed to Assembly Step 3. Front Tab Slot Mounting ¢,,_.
Plate zZ
/. j

ASSEMBLY STEP 1
Fasten the Rail to the Motor Unit
MODELS 1256R and 1246R ONLY
Toavoid SERIOUSdamageto garagedoor opener,
use ONLYthose bolts/fasteners mounted in the top of
the opener.
•Remove the two washered bolts mounted in top of
motor unit.
• Align rail and styrofoam over sprocket.
• Cut tape from rail, chain and styrofoam. Remove
styrofoam and pull the chain back (away from the
mounting plate).
• Fasten the rail with the two washered bolts
previously removed. Tighten securely.
Use only these bolts! Use of any other bolts will
cause serious damage to door opener.
Motor
Unit
Sprocket
Washered Bolts
5/16"-18xl/2" Mounting
USE ONLY THIS Plate
TYPE AND SIZE /
BOLT i
Styrofoam
Packaging

ASSEMBLY STEP 2
Attach the Chain Spreader
and Re-install the Chain
MODELS 1256R AND 1246R ONLY
•Line up the holes in the chain spreader with the
holes in the motor unit as shown, The slot in the
chain spreader must fit over the Rail flange
(Figure 1).
• Securely fasten the chain spreader with the
hardware provided.
• Remove the trolley threaded shaft from the trolley
by loosening the inner nut and lock washer
(Figure 2).
• Guide the chain around the selected groove in the
chain spreader (to engage either the 8-tooth
sprocket or the 6-tooth sprocket) as shown
(Figure 3).
• Continue dispensing the chain forward to the
trolley (Figure 4). Reconnect the trolley to the
trolley threaded shaft, Proceed to Assembly
Step 3 for chain tightening instructions.
Toavoid possible SERIOUSINJURYto fingers from
moving garage door opener:
• ALWAYSkeephand clear of sprocket while operating
opener.
• Securely attachsprocket cover BEFOREoperating.
#8xl" _--_
Hex Screw _i
_._ Washers
Chain
Spreader
Slot
I
Figure 1
Rail
Flange
Figure 2
Outer Inner Nut Trolley
Nut and Washer Threaded Shaft
Chain
Spreader 8-Tooth
\Sprocket
Motor Unit
___-- _ing Plate
Chain
Spreader 6-Tooth
Sprocket
-- ,-___ Motor Unit
_if Iv "_ o°_U_ng Plate
Figure 3
_. Install Chain
._ in This Direction
Chain _ P
cket
10

ASSEMBLY STEP 5
Tighten the Chain
ALL MODELS
•Spin the inner nut and lock washer down the
trolley threaded shaft, away from the trolley.
• To tighten the chain, turn outer nut in the direction
shown. AS YOU TURN THE NUT, KEEP THE
CHAIN FROM TWISTING.
• When the chain is approximately 1/2" (13 mm)
above the base of the rail at its midpoint, re-tighten
the inner nut to secure the adjustment.
Sprocket noise can result if chain is either too
loose or too tight.
NOTE: When installation is complete, you may
notice some chain droop with the door closed. This is
normal. If the chain returns to the position shown
when the door is open, do not re-adjust the chain.
NOTE: During future maintenance, ALWAYS pull the
emergency release handle to disconnect trolley
before adjusting chain.
Lock
Outer Nut Washer
Chain
L
I
Base of Rail
1/2" (13 mm)
[i
Mid Length of Rail
You have now finished assembfing your garage
door opener. Please read the following warnings
before proceeding to the installation section.
INSTALLATION
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READAND FOLLOWALL INSTALLATIONWARNINGS
AND INSTRUCTIONS.
2. Install garage door openeronly on properly balanced
and lubricated garage door.An improperly balanced
door may not reversewhen required and could result in
SEVEREINJURYor DEATH.
3. All repairs to cables,spring assembliesand other
hardwareMUSTbe madeby a trained door systems
technician BEFOREinstalling opener.
4. Disableall locks and removeall ropesconnectedto
garage door BEFOREinstalling opener to avoid
entanglement.
5. Install garage door opener7 feet (2.13 m) or more
abovefloor.
6. Mount emergencyreleasehandle6 feet (1.83 m) above
floor.
7. NEVERconnect garagedoor opener to power source
until instructed to do so.
8. NEVERwearwatches, rings or loose clothing while
installing or servicing opener.Theycould be caught in
garage door or opener mechanisms.
9. Install wall-mounted garagedoor control:
• within sight of the garagedoor.
• out of reachof children at minimum height of 5 feet
(1.5 m).
• away from all moving parts of the door.
10. Placeentrapmentwarning label on wall next to garage
door control.
11. Placemanual release/safetyreversetest label in plain
view on inside of garagedoor.
12. Upon completion of installation, test safety reversal
system. Door MUSTreverseon contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on
thefloor.
11

INSTALLATION STEP 1
Determine the Header Bracket
Location
Toprevent possible SERIOUSINJURYor DEATH:
•HeaderbracketMUSTbe RIGIDLYfastened to
structural support on headerwall or ceiling, otherwise
garagedoor might not reversewhen required.DONOT
install header bracketover drywall.
• Concreteanchors MUST be usedif mounting header
bracket or 2x4 into masonry.
• NEVERtry to loosen, move or adjust garagedoor,
springs, cables,pulleys, brackets,or their hardware, all
of which are under EXTREMEtension.
• ALWAYScall a trained door systems technician if
garagedoor binds, sticks, or is out of balance.An
unbalancedgaragedoor might not reversewhen
required.
Finished
Ceiling
2x4 Structural
Supports
Installation procedures vary according to garage door
types, Follow the instructions which apply to your
door.
SECTIONAL DOOR
AND ONE-PIECE DOOR WITH TRACK
1.Close the door and mark the inside vertical
centerline of the garage door.
2. Extend the line onto the header wall above the
door.
You can fasten the header bracket within 4 feet
(1.2 m) of the left or right of the door center
only if atorsion spring or center bearing plate
is in the way; or you can attach it to the ceiling
(see page 10) when clearance is minimal. (It
may be mounted on the wall upside down if
necessary, to gain approximately 1/2" (1 cm).)
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 13.
3. Open your door to the highest point of travel as
shown. Draw an intersecting horizontal line on the
header wall 2" (5 cm) above the high point. This
height will provide travel clearance for the top edge
of the door.
Proceed to Step 2, page 14.
12
Ceiling
Header Wall
:2" (5cm) Track
Highest Point
of Travel
Door
Sectional door
with curved
track
One-piece
door with
horizontal
track
_all
Y

ONE-PIECE DOOR WITHOUT TRACK
1. Close the door and mark the inside vertical
centerline of your garage door. Extend the line
onto the header wall above door, as shown.
If headroom clearance is minimal, you can install
the header bracket on the ceiling. See page 14.
If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports
as shown.
2. Open your door to the highest point of travel as
shown. Measure the distance from the top of the
door to the floor. Subtract the actual height of the
door. Add 8" (20 cm) to the remainder. (See
Example).
3. Close the door and draw an intersecting horizontal
line on the header wall at the determined height.
NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum
height possible, or refer to page 14 for ceiling
installation.
EXAMPLE
Distance from top of door
(at highest point of travel) to floor ..... 92" (234 cm)
Actual height of door .............. -88" (224 cm)
Remainder ......................... 4" (10 cm)
Add ............................. +8" (20 cm)
Bracket height on header wall ......... 12" (30 cm)
(Measure UP from top of CLOSED door.)
Proceed to Step 2, page 14.
Unfinished
Ceiling
Header Wall
2x4
Door 1
Jamb
Hardware
Header Wall
fHighest Point
of Travel
8
ii_5
Floor
One-piece door without track:
jamb hardware
OPTIONAL
CEILING MOUNT
FOR
HEADER BRACKET
Door
Highest Point
of Travel
Header Wall _l- -
,,2" ;;,
118
i
13
One-piece door without track:
pivot hardware

INSTALLATION STEP 2
Install the Header Bracket
You can attach the header bracket either to the wall
above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular
requirements, Do not install the header bracket
over drywall. If installing into masonry, use
concrete anchors (not provided).
WALL HEADER BRACKET INSTALLATION
•Center the bracket on the vertical centerline with
the bottom edge of the bracket on the horizontal
line as shown (with the arrow pointing toward the
ceiling).
• Mark the vertical set of bracket holes (do not use
the holes designated for ceiling mount). Drill 3/16"
pilot holes and fasten the bracket securely to a
structural support with the hardware provided.
HARDWARE SHOWN ACTUAL SIZE
IIIIIIIIII
Lag Screw
5/16"-9 x 1-5/8"
Wall Mounting Holes
Optional
Wall Mounting Holes
Header
- Wall--_J"
2t4uctural_ BH_t_
Support I_\i_ ..... t"
Horizontal _t _I_
Line _" --,,_,,,-_ x, ,_),_
Highest Point of
Garage Door Travel 1"1
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracke
/_"_ Vertical
/ __ Centerline
I/ _ } of Garage Door
I, agScrews
_'_ii__ _< I 5/16"-9xl-5/8"
X__Spring
CEILING HEADER BRACKET INSTALLATION
• Extend the vertical centerline onto the ceiling as
shown.
• Center the bracket on the vertical mark, no more
than 6" (15 cm) from the wall. Make sure the arrow
is pointing toward the wall. The bracket can be
mounted flush against the ceiling when clearance
is minimal.
• Mark the side holes. Drill 3/16" pilot holes and
fasten bracket securely to a structural support with
the hardware provided.
Ceiling Mounting Holes
Door
/"" -- Finished Ceiling --
'' t __ ._ _ Vertical
__ _ -_" _Header Centerline
"Bracket Door
6"(15
Maximum
Lag Screws
5/16"-9xl -5/8"
The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.
Header Wall
14

-- Header Wall
Header Bracket
Chain Pulley Bracket

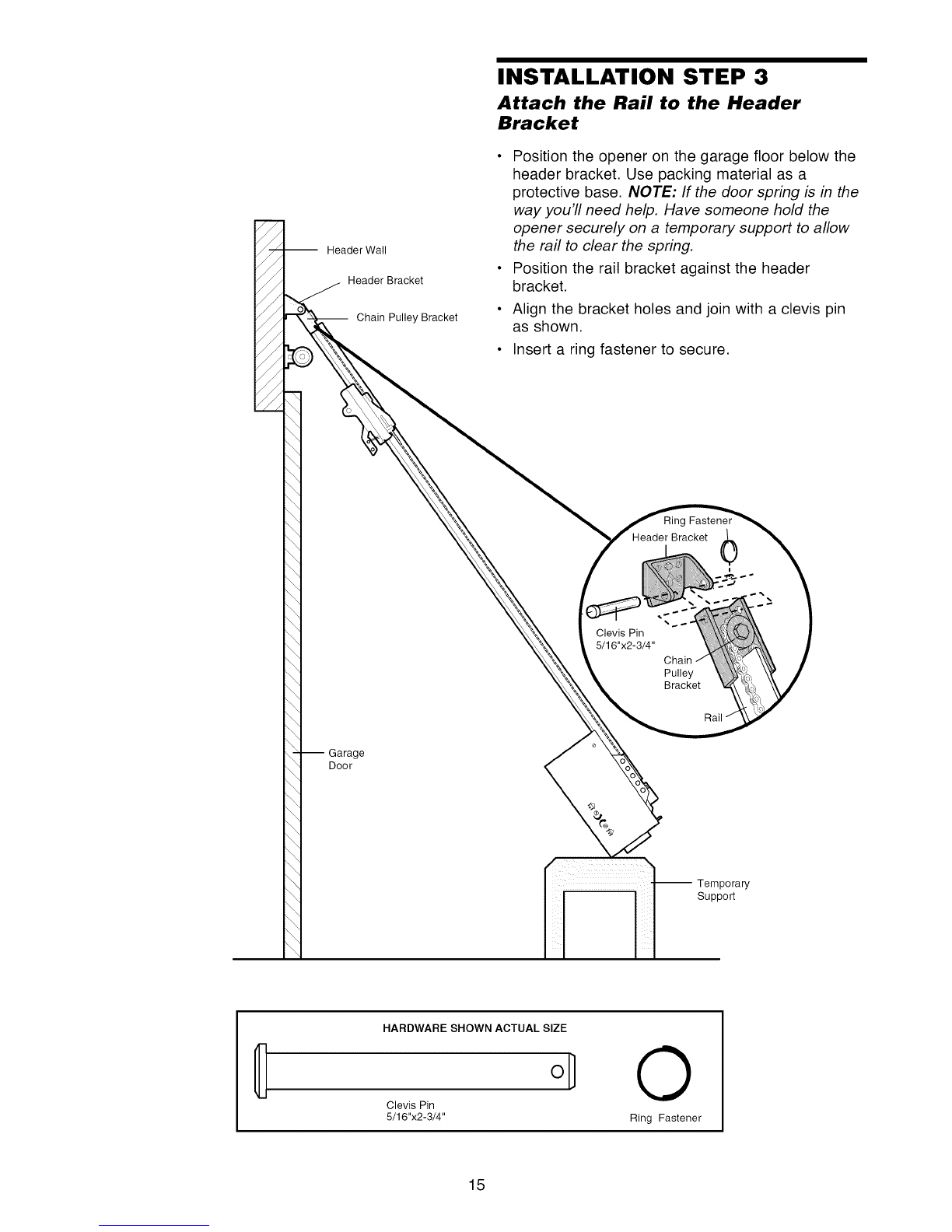

INSTALLATION STEP 3
Attach the Rail to the Header
Bracket
•Position the opener on the garage floor below the
header bracket, Use packing material as a
protective base, NOTE: If the door spring is in the
way you'll need help. Have someone hold the
opener securely on a temporary support to allow
the rail to clear the spring.
• Position the rail bracket against the header
bracket,
• Align the bracket holes and join with a clevis pin
as shown.
• Insert a ring fastener to secure.
Ring Fastener
Header Bracket 0
i
Clevis Pin
,5/16"x2-3/4"
Pulley
Bracket
-- Garage
Door
Temporary
Support
HARDWARE SHOWN ACTUAL SIZE
o)
Clevis Pin
,5/16"x2-3/4" O
Ring Fastener
15

INSTALLATION STEP 4
Position the Opener
Follow instructions which apply to your door type as
illustrated.
SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK
A 2x4 laid flat is convenient for setting an ideal door-
to-rail distance.
• Raise the opener onto a stepladder. You will need
help at this point if the ladder is not tall enough.
• Open the door all the way and place a 2x4 laid flat
on the top section beneath the rail.
• If the top section or panel hits the trolley when you
raise the door, pull down on the trolley release arm
to disconnect inner and outer sections. Slide the
outer trolley toward the motor unit. The trolley can
remain disconnected until Installation Step 12
is completed.
Toprevent damageto garagedoor, rest garagedoor
opener rail on 2x4 placedon top section of door.
2x4
Rail laid flat
Door
ENGAGED RELEASED
ONE-PIECE DOOR WITHOUT TRACK
• With the door fully open and parallel to the floor,
measure the distance from the floor to the top of
the door.
• Using a stepladder as a support, raise the top of
the opener to this height.
• The top of the door should be level with the top of
the motor unit. Do not position the opener more
than 2" (5 cm) above this point.
I
Header
Bracket
Top of door \r_
i
Top of Opener
16

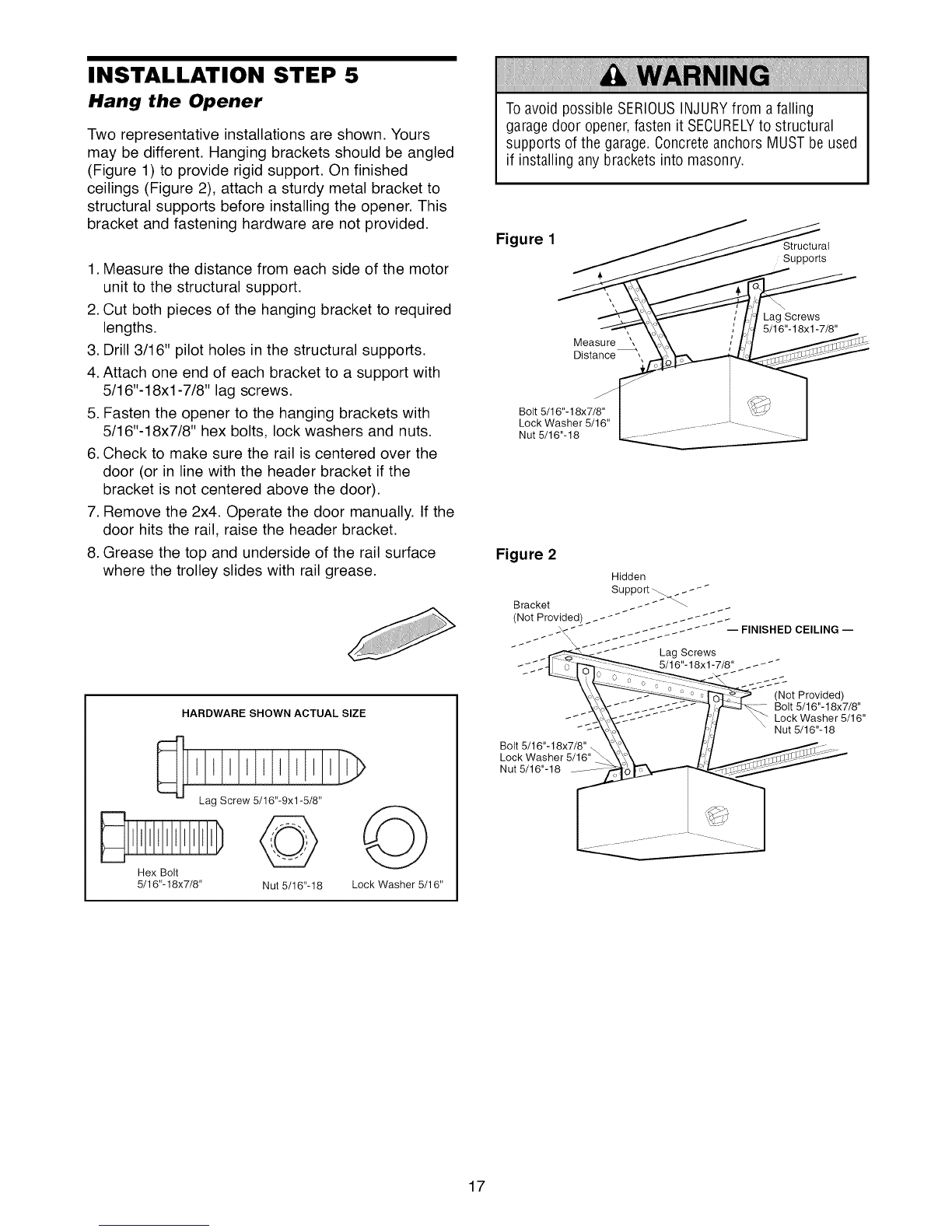

INSTALLATION STEP 5
Hang the Opener
Two representative installations are shown. Yours
may be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. On finished
ceilings (Figure 2), attach a sturdy metal bracket to
structural supports before installing the opener. This
bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor
unit to the structural support.
2. Cut both pieces of the hanging bracket to required
lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with
5/16"-18xl -7/8" lag screws.
5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the
door (or in line with the header bracket if the
bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If the
door hits the rail, raise the header bracket.
8. Grease the top and underside of the rail surface
where the trolley slides with rail grease.
HARDWARE SHOWN ACTUAL SIZE
Hex Bolt
5/16"- 18x7/8" Nut 5/16"- 18 Lock Washer 5/16"
Toavoid possible SERIOUSINJURYfrom afalling
garagedoor opener,fasten it SECURELYto structural
supports of the garage.Concreteanchors MUST be used
if installing any brackets into masonry.
Figure1 __al
/_/ Supports
,"14Lag Screws
--f-""'__,J 5/16"-18xl-7/8" _
Measure",
o,st
Bolt 5/16"-18x7/8" I "N Y I
Lock Washer 5/16" I _ I
Nut 5/16"-18 L I
Figure 2
Hidden
Support_ .-_
Bracket _ __-
(Not Provided) __ _ _" _ _-_-_.
-_--__ - .... ::::: ..... -- FINISHED CEILING --
___-__ Lag Screws
-- (Not Provided)
__-" _ t,fL_-M-'_. Bolt 5/16"-18x7/8"
-_ _ _ "- /_] _" Lock Washer 5/16"
H" Nut 5/16"-18
Bolt 5/16"-18x7/8" _ \'_ /,_"V / -:_--
Lock Wa
17

INSTALLATION STEP 6
Install the Door Control
Locate the door control within sight of the door at a
minimum height of 5 feet (1.5 m) where small
children cannot reach, and away from all moving
parts of the door and door hardware.
1. Strip 1/4" (6 mm) of insulation from one end of the
bell wire. Connect it to the two screw terminals on
the back of the door control by color: white wire to
2 and white/red wire to 1.
2. Fasten the Lighted Door Control Button securely
with 6ABx1-1/2" screws. If installing into drywall,
drill 5/32" holes and use the anchors provided.
3. Run the bell wire up the wall and across the
ceiling to the opener. Use insulated staples to
secure the wire in several places. Do not pierce
wire with a staple, creating a short or open circuit.
4. Receiver terminal screws and the antenna are
located on the back panel of the opener. Position
the antenna wire as shown.
5. Connect the bell wire to the opener terminal
screws: white to 2 and white/red to 1.
6. Use tacks or staples to permanently attach the
entrapment warning label to the wall near the door
control, and the manual release/safety reverse test
in a prominent location on the inside of the garage
door.
NOTE: DO NOT connect the power and operate the
opener at this time. The trolley will travel to the full
open position but will not return to the close position
until the sensor beam is connected and properly
aligned. See Safety Reversing Sensor instructions
beginning on page 21.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Besure power is not connected BEFOREinstalling door
control.
• ConnectONLYto 24 VOLTlow voltage wires.
Toprevent possible SERIOUSINJURYor DEATHfrom a
closing garage door:
• Install door control within sight of garagedoor, out of
reachof children at a minimum height of 5 feet (1.5 m),
and away from all moving parts of door.
• NEVERpermit children to operateor play with door
control push buttons or remote control transmitters.
• Activate door ONLYwhen it can be seenclearly, is
properly adjusted,and there are no obstructions to door
travel.
• ALWAYSkeepgaragedoor in sight until completely
closed. NEVERpermit anyoneto cross pathof closing
garagedoor.
HARDWARE SHOWN ACTUAL SIZE !
Screw 6ABx]-]/2" Insulated
Lighted Door Control Button Drywall Anchors Staples
Bell Wire
_oor
ControlButton
Terminal Screws
Lighted
Door Control Button
Bell Wire ]Opener
Terminal Screws
BACK PANEL
I\
OO
18

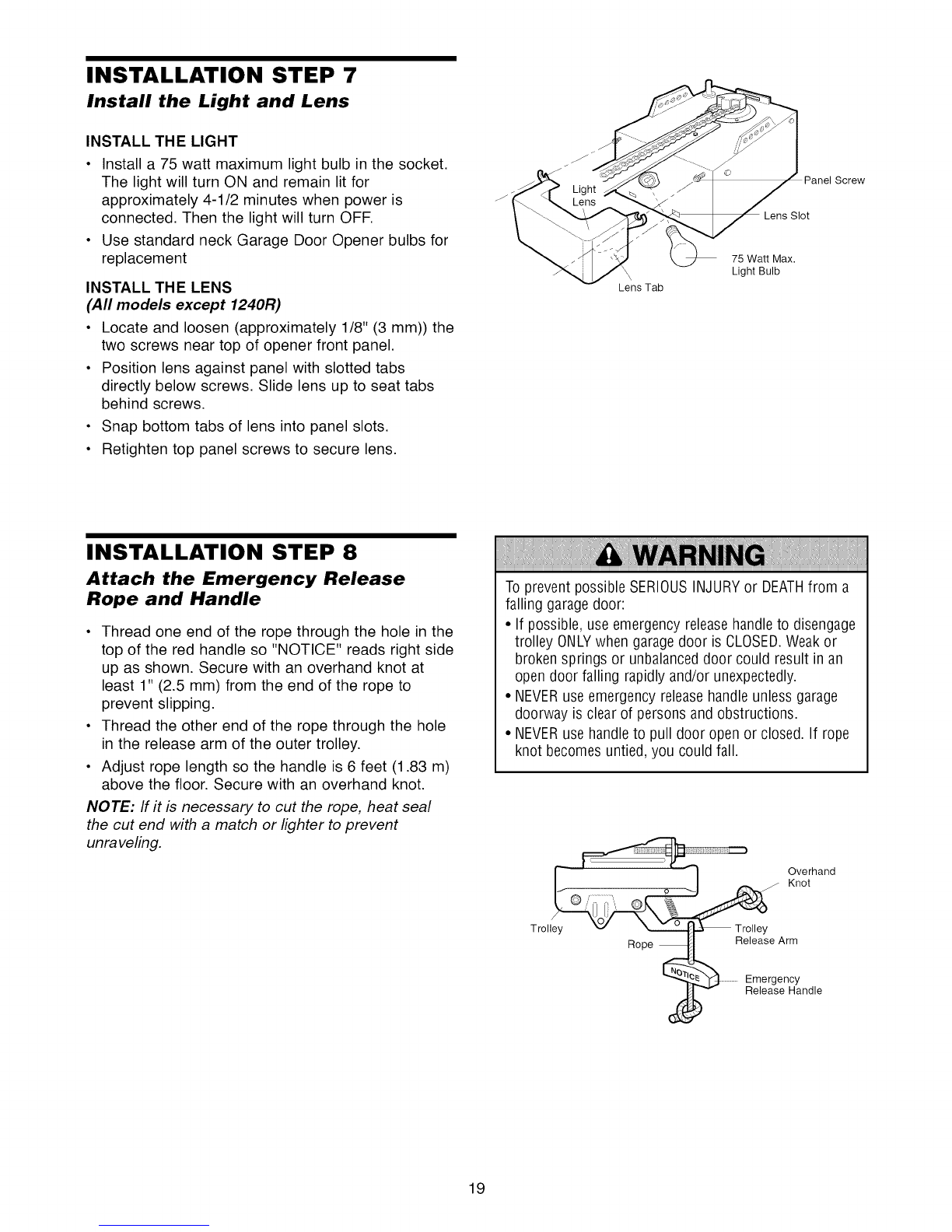

INSTALLATION STEP 7
Install the Light and Lens
INSTALL THE LIGHT
•Install a 75 watt maximum light bulb in the socket.
The light will turn ON and remain lit for
approximately 4-1/2 minutes when power is
connected, Then the light will turn OFF.
• Use standard neck Garage Door Opener bulbs for
replacement
INSTALL THE LENS
(All models except 1240R)
• Locate and loosen (approximately 1/8" (3 mm)) the
two screws near top of opener front panel,
• Position lens against panel with slotted tabs
directly below screws. Slide lens up to seat tabs
behind screws.
• Snap bottom tabs of lens into panel slots,
• Retighten top panel screws to secure lens.
J
\
Lens Tab
Lens Slot
75WattMax.
Light Bulb
Panel Screw
INSTALLATION STEP 8
Attach the Emergency Release
Rope and Handle
• Thread one end of the rope through the hole in the
top of the red handle so "NOTICE" reads right side
up as shown. Secure with an overhand knot at
least 1" (2.5 mm) from the end of the rope to
prevent slipping.
• Thread the other end of the rope through the hole
in the release arm of the outer trolley.
• Adjust rope length so the handle is 6 feet (1.83 m)
above the floor. Secure with an overhand knot.
NOTE: If it is necessary to cut the rope, heat seal
the cut end with a match or lighter to prevent
unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a
falling garage door:
• If possible, use emergencyreleasehandle to disengage
trolley ONLYwhen garage door is CLOSED.Weak or
brokensprings or unbalanceddoor could result in an
open door falling rapidly and/or unexpectedly.
• NEVERuse emergencyreleasehandleunless garage
doorway is clearof persons and obstructions.
• NEVERuse handleto pull door open or closed. If rope
knot becomesuntied, you could fall.
F _ Ove(hand
Trolley v "_---._-._ Trolley
Rope _L Release Arm
_-_,_ _"J Emergency
_v Release Handle
19

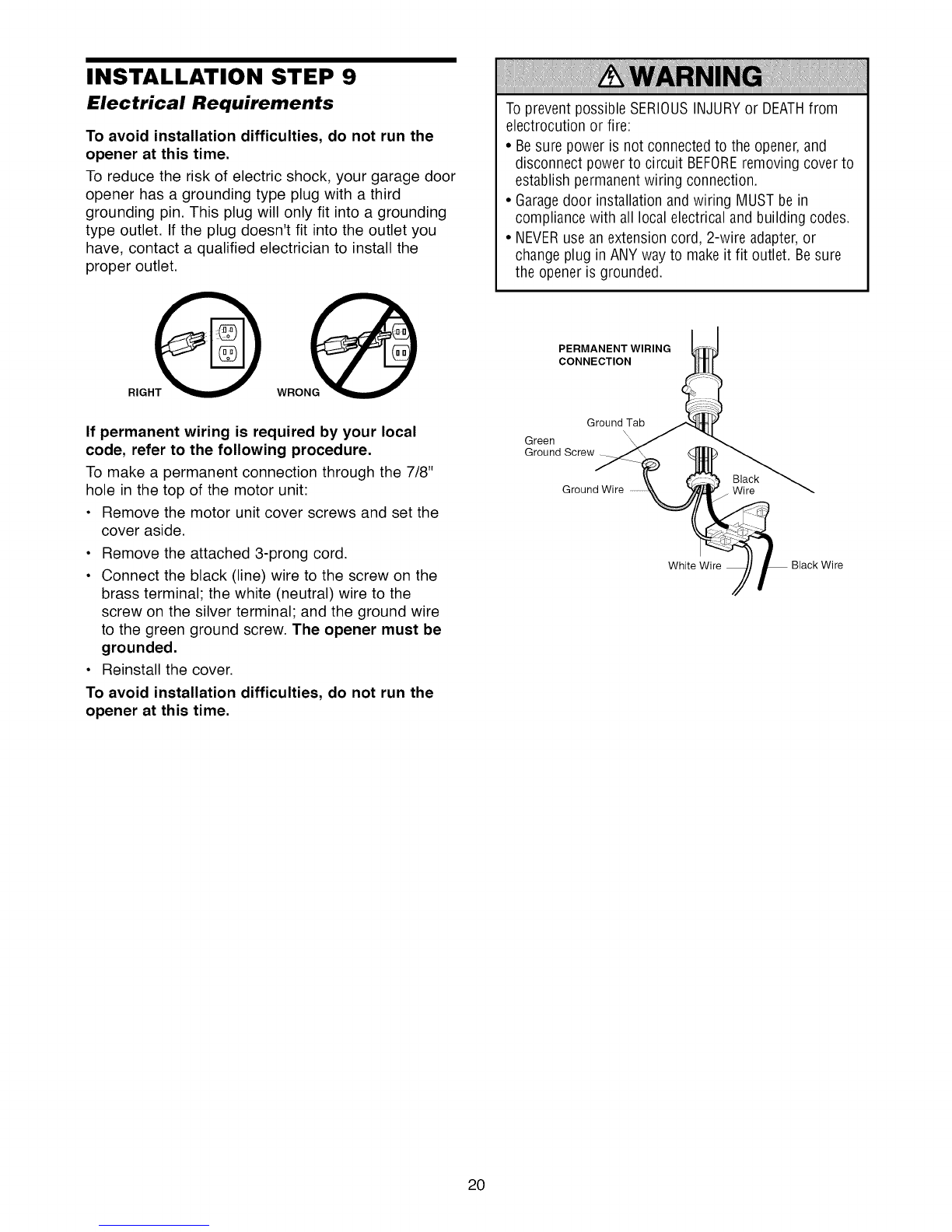

INSTALLATION STEP 9
Electrical Requirements
To avoid installation difficulties, do not run the
opener at this time.
To reduce the risk of electric shock, your garage door
opener has a grounding type plug with a third
grounding pin. This plug will only fit into a grounding
type outlet. If the plug doesn't fit into the outlet you
have, contact a qualified electrician to install the
proper outlet.
RIGHO WRON G
If permanent wiring is required by your local
code, refer to the following procedure.
To make a permanent connection through the 7/8"
hole in the top of the motor unit:
• Remove the motor unit cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutral) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
•Reinstall the cover.
To avoid installation difficulties, do not run the
opener at this time.
Toprevent possible SERIOUSINJURYor DEATHfrom
electrocution or fire:
• Be sure power is not connectedto the opener,and
disconnect powerto circuit BEFOREremoving cover to
establish permanent wiring connection.
• Garagedoor installation and wiring MUSTbe in
compliancewith all local electricaland building codes.
• NEVERusean extension cord, 2-wire adapter,or
changeplug in ANYway to make it fit outlet. Besure
the opener is grounded.
PERMANENT WIRING
CONNECTION
Ground Tab
\
Green
Ground Screw
Black
Ground Wire Wire
White Wire Black Wire
20
