Chamberlain Whisper Drive Security+ 248739 User manual

TheChamberlain Group, inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
www.chambedain.com
CQUS
SECURI'I
GARAGE DOOR OPENER
_)_)Model248739
For Residential Use Only
Owner'sManual
[] Please readthis manual andthe enctosedsafety materials carefully!
[] Fastenthe manual nearthe garage doorafter installation.
[] The doorWILL NOTCLOSEunlessThe ProtectorSystem®is connectedandproperlyaligned.
[] Periodicchecksofthe openerare requiredto ensuresafe operation.
[] The model number label is locatedonthe leftside panel of youropener.

OFCO. NTS
Introduction 2-7
Safety Symbol and Signal Word Review.............. 2
Preparing Your GarageDoor....................... 3
Tools Needed .................................. 3
Planning .................................... 4-5
Carton inventory ................................ 6
Hardware inventory .............................. 7
Assembly 8-11
Assemble the Rai!and Install tile Trolley ............. 8
Fastenthe Rail to the Motor Unit ................... 9
Install the Idter Pulley ............................ 9
Install the Belt and Attach the Belt CapRetainer ....... 10
Set the Tension ................................ 11
Installation 11-27
Installation Safety Instructions 11
Determine the HeaderBracketLocation ............. 12
Instaitthe Header Bracket........................ 13
Attach the Rail to the HeaderBracket ............... 14
Position the Opener ............................ 15
Hangthe Opener............................... 16
Install the Door Control.......................... 17
Install the Battery Backup ........................ 18
Install the Lights ............................... I8
Attach the Emergency ReIeaseRopeand Handle ...... t8
Electrical Requirements ......................... 19
Install The Protector System_' ................. 20-23
Fastenthe Door Bracket ...................... 24-25
Connectthe DoorArm to the Trolley............. 26-27
Adjustment 28-30
Adjust the UP and DOWNTravel Limits ............. 28
Adjust the Force ............................... 29
Test the Safety ReversalSystem ................... 30
Test The Protector System®...................... 30
Operation 31-36
OperationSafety Instructions ..................... 31
UsingYour GarageDoor Opener................... 32
Usingthe WatFMounted Door Control .............. 33
Care of Your Opener............................ 34
Having a Problem? (Troubleshooting) .............. 35
Diagnostic Chart............................... 36
Programming 37-38
To Add or Reprogram aHand-Held Remote Control .... 37
To EraseAII CodesFrom Motor Unit Memory ......... 37
3-Button Remotes.............................. 37
To Add, Reprogram or Changea Keyless Entry PIN .... 38
Repair Parts 3g-40
Rail Assembly Parts ............................ 39
Installation Parts............................... 39
Motor Unit Assembly Parts....................... 40
Accessories 41
Notes 42-43
Repair Partsand Service 44
Warranty 44
INTRODUCTION
Safety Symboland Signal WordReview
This garagedoor openerhas beendesigned and tested to offer safe service provided it is installed, operated, maintained
and tested in strict accordancewith the instructions andwarnings contained in this manual,
Mechanical
Electrical
When you see these Safety Symbols andSignal Words on
thetol!owing pages,they will alert you to the possibility
of serious injury or deathif you do not comply with the
warnings that accompany them, The hazard may come
from something mechanical or from electric shock, Read
thewarnings carefully.
Whenyou see this Signal Word on thefollowing pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not compty
with the cautionary statements thataccompany it. Read
them carefu}ty,
2

Preparing YourGarageDoor
Beforeyou begin:
-Disabtelocks.
• Remove any ropes connected to garage door.
•Completethe following test to make sureyour garage
door is balanced and is not sticking or binding:
t, Lift the door abouthalfway as shown. Releasethe
door. If balanced, it should stay in place, supported
entireIy by its springs.
2. Raiseand lower the door to see if there is any
binding or sticking.
if your door binds, sticks, or is out of balance, calf a
trained door systems technician.
To prevent possible SERIOUS iNJURY or DEATH:
, ALWAYS cait atrained door systems technician if
garage door binds, sticks, or is out of balance.An
unbalanced garagedoor may NOTreversewhen
required.
. NEVERtryto loosen, moveoradjust garage door,
door springs, cables, pulleys, brackets or their
hardware, ALL of which are under EXTREME
tension.
• Disable ALL locks and remove ALL ropesconnected
to garage door BEFOREinstalling andoperating
garagedoor opener to avoid entanglement.
To prevent damage to garagedoor and opener:
• ALWAYS disable locks BEFOREinstalling and
operating the opener,
• ONLYoperategarage door opener at 120V, 60 Hz
to avoid malfunction anddamage.
SECTIONAL DOOB
ONE-PIECEDOOR
Toolsneeded
During assembly, installation and adiustment of
the opener, instructions will call for handtools as
iitustrated below.
Stepladder
Level(optional) TapeMeasore
Drilt
DrilI 3/t 6°, 5tl 6"
i_l and 5t32"
U112",5/8_,7/16", 9/16°
and I/4"
Pencil
WireCutters
Pliers
/,_ HackSaw
Screwdriver
Adjustable EndWrench

Planning
identify the type and height of your garagedoor. Survey
your garageareato seeif any of theconditions below
appty to your installation. Additional materials may be
required. You may find it helpfW to refer backto this page
and the accompanying illustrations as you proceedwith
the installation of your opener_
Dependingon your requirements, there are several
installation stepswhich may calI for materials or hardware
not included in the carton.
, Installation Step 1 - Look at the wait or ceiling above
the garagedoor. The headerbracket must be securely
fastened to structural supports.
• Installation Step 5- Do you havea finished ceiting in
your garage? If so, a support bracket andadditional
fastening hardware may berequired,
• installation Step 10- Depending upon garage
construction, extension brackets or wood blocks may
be neededto instaif sensors.
- Installation Step I0 - Alternate floor mounting of
the safetyreversing sensor will require hardware not
provided.
Doyou havean accessdoor in addition to the garage
door? 1tnot, Modei 7702CB Emergency Key Releaseis
required. SeeAccessories page.
Look atthe garage door where it meets the floor. Any
gap betweenthe floor and the bottom of the door must
not exceed 1/4"(6 ram). Otherwise,the safety reversal
system may not work properly. SeeAdjustment Step 3.
Floor or door should berepaired.
SECTIONALDOORINSTALLATIONS
- Do you haveasteel, aluminum, fibergIass or glass
panel door? if so, horizontal and vertical reinforcement
is required (installation Step 11).
• Theopener should beinstalled above thecenter of the
door. if there is a torsion spring or center bearing pinto
in the way of the headerbracket, it may be installed
within 4 feet(1.2 m) to the left or right of the door
center. See Installation StepsI and tl.
• If your door is more than 7 feet (2.t m) high, see rail
extension kits listed on Accessories page.
SECTIONALDOORINSTALLATION
Horizontal andvertical reinforcement
is neededfor lightweight garage
doors (fiberglass,steel, aluminum,
door withglass panels, etc,),
See page 24 for details.
Header Wail
OR
FINISHEDCEILING
Suppod bracket &
fastening hardware
is required.
See page t6.
pring
WalFmounled
DoorControl
VerticWCenterlin_
Safety Reversing Sensor
Safety
Gap between floor Reversing
and bottomof door Sensor
musl nol exceed 1/4" (6 ram).
Lrage
)or
Header Trolley CLOSEDPOSITION
Bracket StopBolt
Spriag/_( ] _e,t
_l Uoor Curved
' U Bracket DoorArm

Planning(Continued)
ONE-PIECEDOORINSTALLATIONS
°Generally,aone-piece door does not require
reinforcement, [f your door is lightweight, refer tothe
information relating to sectional doors in Installation
Step 11.
° Dependingon your door's construction, you may need
additional mounting hardware for the door bracket
(Step 11).
Without a properly working safety reversal system,
persons (particularly small children) could be
SERIOUSLYINJUREDor KILLED by aclosing garage
door,
• Thegap between the bottom of thegarage door
andthe floor MUST NOTexceed1/4" (6 mm).
Otherwise,the safety reversal system may NOT
work properly,
• Therider or the garage door MUSTberepaired to
eliminate the gap.
-% SafetyReversingSerlsor
/I
__ i allmounted
DoorControl
SafetyReversing
Sensor
Gapbetweenfloor
andbottomofdoor
mustnotexceedt/4" (6 ram).
ONE-PIECE DOOR WITH TRACK
Gapbetweerlrider S_rles_mg
Reversir_g }
Ser_soE
Header
andbottomof door Wall
mustnotexceedII4°(6ram).
5
CLOSEDPOSITION'
top Bolt Deft Trolley
Straight
Door Arm
Garage
Door
Emergency
Release
Rope &
Handle
CLOSEDPOSITION
TrotleyStopBolt Belt Trolley I
Bracket DoorArm_/t._ I:tai_
oooooopoooo/..,'
Door | -- Emergency
Y_///J " Bracket Straight Release
V_._ 6arage Door ROpe&
/./_ Door ,--m Handle

Carton Inventory
Your garage door opener is packaged in one carton which
contains the motor unit and all parts illustrated below.
Accessories will depend on the modet purchased, if
anything is missing, carefully check the packing material
Parts may be stuck in the foam. Hardware for assembly
and installation is shown on the next page. Savethe carton
and packing material until installation and adiustment is
complete.
SECURITY÷®
3-But[on Remote Control (2)
Garage Door Monitor Multi-Function
Door Control Panel
Belt
idler Pu!ley
Troiley O----
2-Conductor Bell Wire
White & White/Red
Motor Unit with 2 Light Lenses
Door Bracket
Rail
Fron! (header) //_._/'
y
Safety Sensor
Bracket (2)
Hanging Brackets
_#rYStne_e nsors
(1 Sending Eyeand I Receiving Eye)
with 2-Conductor White & White/Black
BelI Wire attached
SECURITY÷®
Keyless Entry
Header Bracket
Straight Door
Arm Section
SafetyandLabels !
Literature

HardwareInventory
Separate a}I hardware and group as shown below for the assembly and installation procedures.
ASSEMBLYHARDWARE
Sp_ingiTroiley Nut (t) Lock Nut Lock Washer Nut
1/4"-20 (2) 318° (I) 3t8" (I)
8olt 1/4°-20xt -3/4" (2)
Trolley Threaded Sbalt (I)
i
Master
Link (1) ld_erBolt (1)
INSTALLATIONHARDWARE
Carriage Bolt Wing Nut
1/4"o20xl/2" (2) 1/4"_20 (2)
©
R}ng
Fastener (3)
©
Nut 5/t6"-18 (8)
LagScrew
5/16"-9xl -5/8" (2) Hex Bolt
5/16"-18x7/8" (4) @
Lock Washer 5/t6 _(7) Insulated
Staples (30)
JIlittltlrltl
Lag Screw 5116" 18xl-718" (2) _ tllIlltllllll_l_lIlllIitl_
Screw 6ABx1-1i4" (2) Screw 6-32×1" (2)
_ding Screw
1/4"-14x5/8 °(2) Drywa_IAnchors (2)
ClevisPin
51t6°x1-ti2°(t)
o] Clevis Pin Clevis Pin
5/I 6"xl" (1) 5/16"xt-1/4 °(1)
Rope

ASSEMBLY STEP 1
AssembletheRail and install the Trolley
To avoid installation difficulties, do notrunthe garage
door opener until instructedto do so.
Thefront rail has a cut out "window" at thedoor end
(see illustration). The hole above this window is larger on
the top ef the rail than on thebottom. Asmaller hole
3-1/2" (8,9 cm) away is close to the rail edge. Rotatethe
back rail so it has a similar hole close to the opposite
edge, about 4-3/4" (I2 cm) from the far end.
1. Removethe straight door arm and hanging bracket
packaged inside thefront rail andset aside for
installation S_ep5and 12.NOTE: Toprevent lNJURY
while unpacking the rail carefully remove the straight
door arm stored within the raitsection,
2. Align the raii sections on a fiat surfaceas shown and
slide thetapered ends into thelarger ones. Tabs along
the side will lock into place,
To prevent iNJURYfrom pinching, keephands and
fingers away from the jointswhile assembling the rail,
3. Place the motor unit on packing material to protect
the cover, and rest the backendof therail on top.
For convenience, puta support under the front end of
the rait.
4. As a tempo_-arystop, inserta screwdriver into thehole
10" (25 cm) from tile front endol therail, as shown.
5. Checkto besure thereare 4 plastic wear padsinside
the inner [rolley. if they becameloose during shipping,
check all packing material. Snapthem backinto
position as sl;own.
6. Slidethe trolley assembly aIongthe rail from the back
endto the screwdriver.
Back Rails
(TO MOTORUNIT)
)ered
End
hmer Troiley
Wear Pads

ASSEMBLY STEP 2
FastentheRail totheMotor Unit
• Inserta 1/4"-20xl-3/4" bolt into the cover protection
bolt hole on the backend of the rail as shown. Tighten
securely with a 1/4"-20 lock nut. DO NOTovertighten.
- Removethe two bolts from the top of the motor unit.
• Place the"U" bracket,flat side down, on the motor unit
andalign the bracket holes with the bolt holes. Fasten
with the previously removed bolts.
- Alignthe rail assembly with the top of the motor unit.
Slidethe raftend onto the "U" bracket,all the way to the
stops that protrude on thetop and sides of thebracket.
To avoid SERIOUSdamage to garagedoor opener, use
ONLYthose botts/fasteners mounted in the top of the
opener.
Boils Motor Unit
Sprocket
HARDWARESHOWNACTUAL SIZE
LockNut
1/4"-20
Bolt 1t4_-20x_-3/4"
ASSEMBLY STEP 3
Install theIdler Pulley
•Lay the belt beside the rail, as shown. Graspthe
endwith the hookedtrottey connector and pass
approximately 12" (30 cm) of be_tthrough the window.
Keepthe ribbed side toward the rail, and aitow itto
hang until Assembly Step 5.
.Removethe tapefrom the idler pulley. The inside
center should bepro-greased. If dry, regreaseto ensure
proper operation.
•Place the idler puIley into the window as shown.
•Insert the idler holt from thetop through the rail
andpulley. Tighten with a 3/8" Iockwasher and nut
underneath the rail until the lock washer is compressed.
•Rotatethe pulteyto besure it spins freely.
•Insert a t/4"-20xl-3/4" bolt into thetrolley stop hole in
the front of therail as shown. Tighten securely with a
t/4"-20 lock nut.
Lock
Washer
3/8"
SLIDE RAIL TO STOP:
ONTOP AND SIDES
OFBRACKET
Lock Nut
Bolt
Trolley
StopHole
Grease '_
InsidePulley\
Trolley Id]er _ Nut
Connector Pulley
HARDWARESHOWNACTUALSIZE
Lock Washer 3/8" @
LockNut1/4"-20 Nut 3/8°
Bolt114"-20xt-3/4"

I
ASSEMBLY STEP 4
insta// theBe/tand AttachtheBe/t Cap
Retainer
1, Pullthe bdt around the idler puiiey and toward the
trolley. Theribbed side must contact thepulley.
2. Hook thetrolley connector into the retaining slot on the
trolley as shown.
3, With the trolley againstthe screwdriver, dispense the
remainder of the belt along the rail length toward the
motor unit andaround the belt pulley. The belt pufley
teeth must engage the belt,
4. Checkto make surethe belt is not twisted. Connect
thetrolley threaded shaft with the master link, as
itIustrated:
• Push pins of master link bar through holes in endof
belt andtrolley threaded shaft.
-Push master link cap over pins and past pin
notches,
, Slide clip-on spring over cap and onto pin notches
until both pinsare secureIy locked in place.
5. Insert the trolley threaded shaft through the hole in the
trolley. Besure the belt is not twisted.
6. Hold the belt at the trolley shaft as you thread the
spring nut by hand onto the shaft untiI finger tight
against thetrolley. Donot useany tools,
7. Removethe screwdriver.
8, Position the be_tcap retainer over the motor unit belt
puIleyas shown andfasten to the mounting platewith
8x3/8" hex screws provided.
To avoid possibIe SERIOUSiNJURYto fingers from
moving garagedoor opener:
• ALWAYS keep hand clear of sprocket while
operating opener,
• Securetyattach sprocket cover BEFOREoperating.
HARDWARESHOWNACTUALSIZE
HexScrew8x3/8°Spring/TrolleyNut
Master Link
Clip-On Spring
Master Link Cap
idler PuIIey
Spdng Nut
Trolley
Connector
Notch
Trolley Master
Threaded Link Bar
Shaft
Retaining
Slot _ Hex Screws
Belt Cap_ #8x3t8"
Retainer _l_J_l Motor Unit
,_ Sprocket
10

ASSEMBLY STEP 5
SetlheTension
•Insert a screwdriver tip into one of the nut ring slots
and brace it firmly against the trolley,
•Place a7/t6" open endwrench on the square end.
Rotatethe nut about II4 turn unfit the spring releases
andsnaps thenut ring againstthe lrolley.
This setsthe spring to optimum belt tension.
Youhave nowfinished assembling your garage door
opener. P/ease mad the fO//Owingwarnings bolero
proceeding to theinstallation section.
Square
End
Trolley
NutRing NutRing
INSTALLATION
IMPORTANTINSTALLATIONINSTRUCTIONS
Toreducetheriskof SEVEREINJURYor DEATH
1. READAND FOLLOWALL INSTALLATION
WARNINGSAND INSTRUCTIONS.
2. tnstattgarage door opener ONLYon properly
balancedand lubricated garage door. An improperly
balanceddoor may NOTreversewhen required and
could result in SEVEREINJURYor DEATH.
3. ALL _epairsto cables, spring assemblies and other
hardware MUST be made by a trained door systems
technician BEFOREinstalling opener.
4. Disable ALL locks andremove ALL ropes connected
to garagedoor BEFOREinstalling opener to avoid
entanglement.
5. Install garagedoor opener7 feet (2.13 m) or more
abovefloor,
6. Mount the emergency releasewithin reach, but at
least 6feet (1.8 m) above thefloor andavoiding
contactwith vehicles to avoid accidental release.
7. NEVERconnectgarage door opener to power source
until instructed to do so.
8. NEVERwear watches,rings or loose clothing while
installing or servicing opener.They could becaught
in garagedoor or opener mechanisms.
9. lnstafi waiFmounted garagedoor control:
• within sight of the garagedoor.
* out of reach of children at minimum height
of 5feet (1.5 m).
- away from ALL moving parts of the door.
10. Placeentrapment warning label on wall next to
garage door control.
tl. Placemanual release/safetyreverse test labelin
plainview on inside of garagedoor.
12. Upon completion of installation, test safety reversal
system. Door MUST reverse oncontact with a
1-I/2 '_(3.8 cm) high object (or a 2x4 laid flat) on
the floor.
tl

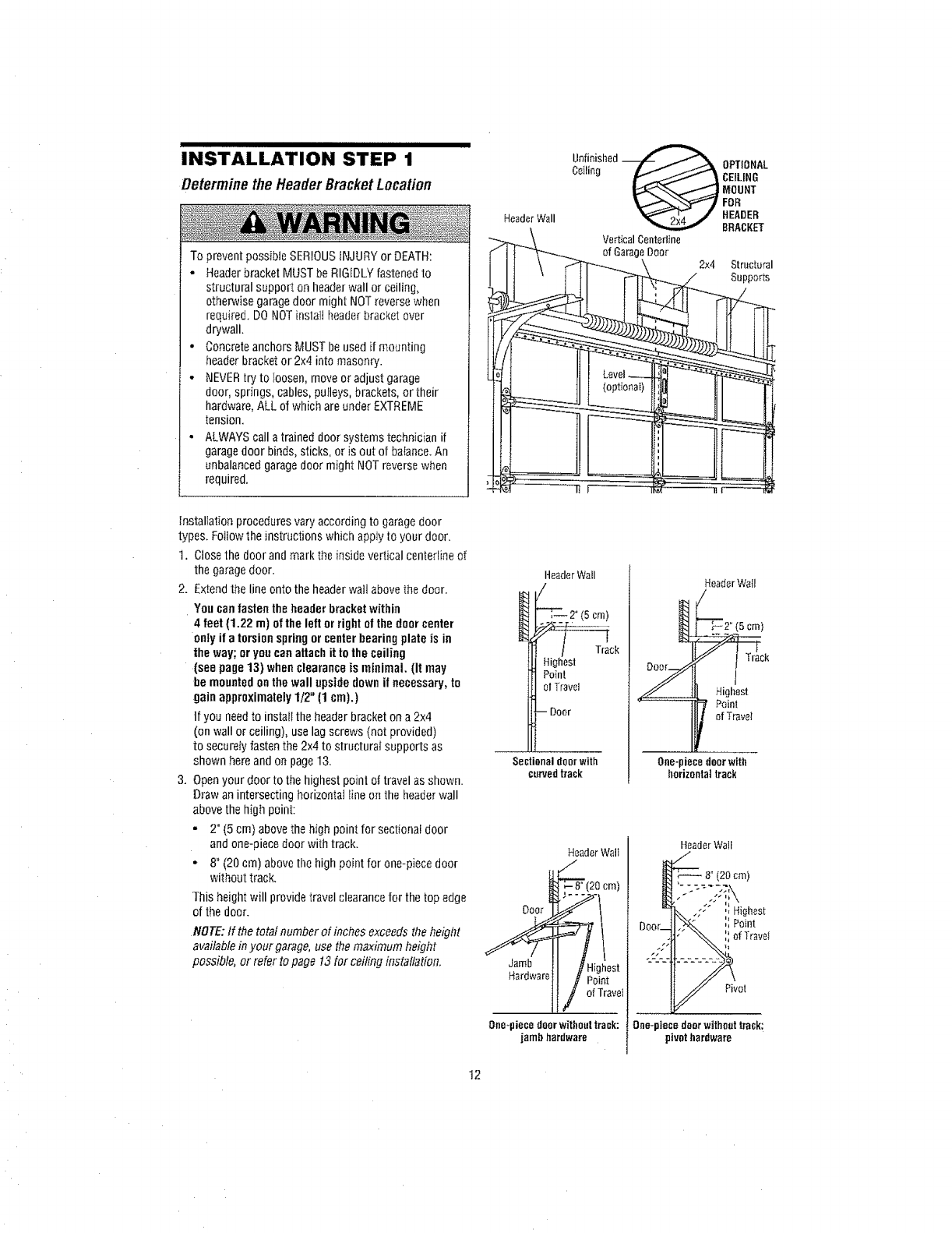

INSTALLATION"'"'S'T'E'P'"'I'"'
Determine theHeaderBracketLocation
To prevent possibie SERIOUSiNJURY or DEATH:
•Headerbracket MUST beRIGIDLYfastened to
structural support on headerwall or ceiling,
othe_ise garagedoor might NOT reverse when
required. DO NOT inslafl header bracket over
drywall.
• Concrete anchors MUST be used if mounting
headerbracket or 2x4 into masonry.
oNEVERtryto Ioosen, move or adjust garage
door, springs, cables,pulleys, brackets, or their
hardware,ALL of which areunder EXTREME
tension.
• ALWAYS call a trained door systems technician if
garagedoor binds,sticks, or is out of batance.An
unbalanced garagedoor might NOTreverse when
required.
Header Wall
Unfinished_ OPTIONAL
Ceiling _J FoRMOuNTCEILING
HEADER
BRACKET
VerticalCenterline
of GarageDoor
2x4 Structural
Supports
installation procedures vary according to garagedoor
types. Followthe instructions which apply to your door.
t. Close the door and markthe inside vertical center[ine of
the garagedoor.
2. Extendthe line ontothe headerwail abovethe door.
Yon canfasten the header bracketwithin
4 feet (1.22 m) of the left orright ofthe door center
only if a torsion springor centerbearing plate isin
the way; or youcan attach it to the ceiling
(see page 13) whenclearance is minimal. (It may
be mountedon the wall upside downif necessary,to
gain approximately1/2" (1 cm).)
tf you needto instali tile header bracket ona 2x4
(on wall or ceiling), use lag screws (not provided)
to securetyfasten the 2x4 to structural supports as
shown hereand on page 13.
3. Openyour door to the highest poinl of travel asshown.
Draw an intersecting horizontal line m] the headerwall
above the high point:
• 2" (5 cm) above the high point for sectional door
and one-piecedoor with track.
* 8" (20 cm) above file high point for one-piece door
without track.
This height will provide travel clearance for the topedge
of the door.
NOTE:If the total number of inches exceeds theheight
available in your garage, use themaximum height
possible, or refer topage 13for ceiling installation.
HeaderWall
/
i _2°(5cm)
Highest
Point
ol Travel
- Door
Sectional door with
curvedtrack
HeaderWail
/
/]' Track
_ Highest
Paint
ofTrave_
One-piecedoorwith
horizontaltrack
HeaderWalt HeaderWail
Dog,AFt" :,Poi.t
.y% !i°f rav ,
II I H;ghest"-'-'--------------
_ar°warel{ _'Point I _ot
One_piecedoorwithouttrack:[One-piecedoorwithouttrack;
jambhardware ] pivothardware
t2

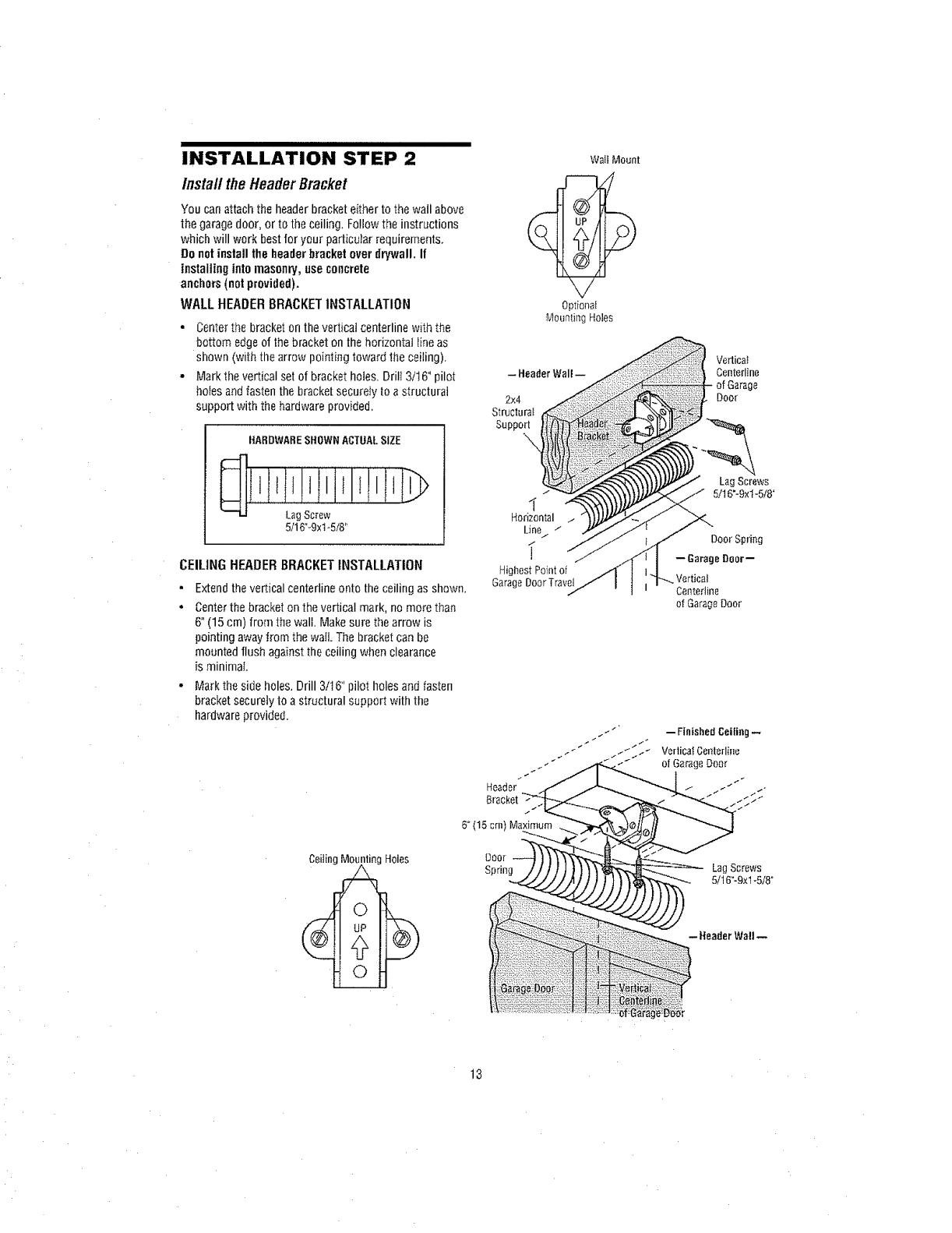

INSTALLATION 2
lnsta// the HeaderBracket
Youcanattachthe headerbracketeithertothewailabove
the garagedoor,or totheceiling.Followtheinstructions
whichwill workbestforyourparticularrequirements,
Donotinstalltheheaderbracketoverdrywall. If
installing intomasonry,useconcrete
anchors(notprovided).
WALLHEADERBRACKETINSTALLATION
•Centerthe bracket on thevertical centerline with the
bottom edgeof the bracket on the horizontal Iine as
shown (with the arrow pointing toward the ceiling).
•Markthe vertical set of bracket holes. Drill 3/t6 °pilot
holesandfasten the bracket securely to astructural
support with the hardware provided.
HARDWARESHOWNACTUALSIZE
Lag Screw
5/16°-9xt-5/8"
CEILINGHEADERBRACKETINSTALLATION
• Extendthe vertical centerline onto the ceiIing as shown.
• Centerthe bracket on thevertical mark, no more than
6°(15 cm) from the walt. Make surethe arrow is
pointing away from the waft.The bracket can be
mounted flush against theceiIing when clearance
is minimal
- Markthe side holes, Drill 3/16" pilot holesand fasten
bracket securelyto astructural support with the
hardware provided,
Wall Mount
Optional
Mounting Holes
2x4
Structura_
Support
I
Horizontal /
Line/ ./
i
HighestPointof
GarageDoorTravel
Header
Bracket
6° (15 cm) M_
DoOr
Spring
Vertica}
Centerline
of Garage
Door
LagScrews
5/16"-9xl-5/8"
Door Spring
-- 6arago Door--
Vertical
Centertine
of GarageDoor
-- FinishedCeiling--
VerticalCenteriine
of GarageDoer
LagScrews
5/16"-9xl -5/8"
- Header Wall --
13

INSTALLATION STEP 3
AttachtheRaft totheHeaderBracket
•Position theopener on the garagefloor below the
headerbracket. Usepacking matedal as a protective
base. NOTE:if the door spn'ng is in the way,you will
needhelp, Havesomeone hold theopener securely on a
temporary support to allow the rail to clear the spring.
•Position the rait bracket against the headerbracket,
•Nigh the bracketholes and join with aclevis pin
5tt 6"xi-I/2" as shown.
• Insert a rino fastener to secure.
//
//
Idler PWIey
q
-- Garage
Doer
\1
\!
\1
\
Mounting
Hole
Opener Carton or
Temporary
Support
HARDWARESHOWNACTUALSIZE
0
CievisPin5/16°xi-1/2" RingFastener
t4

INSTALLATION STEP 4
Positionthe Opener
Follow instructions which apply to your door type as
illustrated,
SECTIONAL DOOR OR ONE-PIECE DOOR
WITH TRACK
A2x4 laid flat isconvenient for setting an idealdoor-to-rail
distance.
• Remove foam packaging.
• Raisethe opener onto a stepladder. You will need help
atthis point if the [adderis not tall enough.
• Openthe door allthe way and place a2x4 [aidflat on
thetop section beneath the rail
• If the top section or panei hits the trolley whenyou
raisethe door, pull down onthe troliey releasearm
to disconnect inner andouter sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is comp}eted.
To prevent damage to garagedoor, rest garagedoor
opener rail on 2x4 placedon top section of door.
Rail i
thecorrectmour_tingheight
fromcoifing.
lley
ReleaseArm-_ I
ENGAGED _.]
RELEASED
ONE-PIECEDOORWITHOUTTRACK
A 2x4 on its side is convenientfor setting an ideal
door-to-rail distance.
• Remove foam packaging.
, Raise theopener onto astepladder. You will need help
at this point if the ladder is not talt enough.
• Open the door ai[ the way and place a 2x4 on its sideon
the top section ofthe door beneath the rail.
• The top of the door should belevel with the top ofthe
motor unit. Do not position the opener more than
4" (10 cm) above this point,
It Header
2x4isusedtodetermine
thecorrectmountingheight
i from ceiling.
15

INSTALLATION sTEP'"'"5'"'''""''""'"""''
Hangthe Opener
Threerepresentative installations are shown. Yours may
be different. Hanging brackets should be angled
(Figure 1) to provide rigid support. Onfinished ceilings
(Figures2 and3), attacha sturdy metal bracket to
structural supports before installing the opener.This
bracket and fastening hardware are not provided.
1. Measure thedistance from each side of the motor unit
to the structural support.
2. Cut both piecesof the hanging bracket to required
lengths,
3. Drill 3/16" pilot holes in thestructural supports.
4. Attach one endof eachbracket to a support with
5/16"-18xl-7/8" lag screws.
5. Fastenthe openerto the hanging brackets with
5/t6"-18x7/8" hex bolts, lock washers and nuts.
6. Checkto makesure the ra[Iis centeredover the door
(or in linewith theheaderbracket if the bracket is not
centered above the door),
7. Remove the 2x4. Operatethe door manually. Ifthe door
hits the rail, raise the headerbracket.
NOTE: DONOTconnectpo,_/erto opener at this time.
HARDWARE SHOWN ACTUAL SIZE
LagScrew5/16"d8xlqi8 °
...........D
HexBolt
5/16"-t8x7/8" LockWasher5/I6" Nut 5/16"-18
To avoid possibfe SERIOUSINJURY from afailing
garagedoor opener, fasten it SECURELYto structural
supports of the garage. Concrete anchors MUST be
used if installing ANY brackets into masonry.
Figure t Structural
)OFIS
Screws
5/t 6'-18xl 4/8"
Lock Washer 5/16"
Nut 5/t6°4 8
Figure 2
Bracket
(NotProvided)
Hidden
Support FINISHEDCEILING
LagScrews
5116"-I8xl q/8 °
Bolt 5/16"q 8x7/8"
Lock Washer 5/t6"
Nut 5/16"-18
[NotProvided)
Bolt 5/16"-t8x7t8"
Lock Washer 5/I6"
Nut 5/t6q 8
Figure 3
Lag Screws
5/16"-t8xl -718"
16
Bolt 5/16"4 Bx7i8"
Lock Washer 5/16"
Nut 5it6"q8
(NotProvided)
Bolt5116"q8x7/8"
LockWasher5/16"
Nut5/16"q8

INSTALLATION STEP 6
InstalltheDoorControl
Locate door control within sight of doer at a minimum
height of 5 feet (t.5 m) where smafichildren cannot
reach, and away from moving parts of door and door
hardware. The installation surface must besmooth and
flat. if installing into drywall (Figure 1), drill 5/32" ho_es
and useanchors provided. For pre-wired installations (as
in new homeconstruction), it may be mounted to a single
gangbox (Figure 2). NOTE:After installation, agreen or
amber indicator light behind thecover will indicate proper
connection. If not lit, the Lockand Light features will not
function (reverse wires to correct).
1. Strip 7/16" (tl ram) of insulation from one end of bell
wire and connect to the two screw terminals on back of
door control by color: white wire to WriT andwhite/red
wire to the RED(Figure 3).
2. Removewhite cover by gently prying on a side
corner nearthe top of thecover with asmall flat head
screwdriver (Figure 4), Fastenwith 6ABx1-ti4"
self-tapping screws (drywall installation) or 6-32xt"
machine screws (into gang box) as fOllOwS:
- Drill and instatl bottom screw, allowing I/8" (3 mm)
to protrude above wall surface.
• Position bottom ot door controI on screw head and
slide down to secure. Adjust screw for snug fit,
•tnstali top screw with care to avoid cracking plastic
housing. Denot overtighten,
-Insert bottom tabs and snap on cover.
NOTE: Thepush bar may stick if thedoor control is not
mounted on a smooth surface, ira click is not heard
when pressing thepush bar, loosen thetwo mounting
screws or relocate thedoor control to a smoother
surfacer
3. (Standard installation only) Run bell wire up wattand
across ceiling to motor unit. Use insulated staplesto
secure wire in several places. Donot pierce wire with a
staple,creating a short or opencircuit.
4. Strip 7/16" (11 ram) of insulation from end of bell wire.
Connectbell wire to the quick-connect terminals as
foflows: white to white andwhite/red to red (Figure5),
NOTE:When connecting multiple door controls tothe
opener, twist samecolor wires together. Insed wires
into quick-connect holes: white to white and red/white
to red.
5, Use tacks or staples to permanentfyattach entrapment
warning labelto wall neardoor control, and manuat
release/safety reverse test labelin a prominent location
on inside of garagedoor,
NOTE: DONOT connect power and operateopener at this
time. Thetrolley will travel to the full open position but wilt
not return to the close position until the sensor beamis
connected and properly aligned.
17
To prevent possible SERIOUSINJURYor DEATHfrom
electrocution:
• Besure power is NOTconnected BEFOREinstalling
door control,
• Connect ONLYto 24 VOLTlow vottage wires.
To prevent possibleSERIOUSiNJURY or DEATHfrom a
closing garagedoor:
• lnstalt door controI within sight of garage door, out
of reach of children at a minimum height of 5 feet
(1.5 m) and awayfrom ALL moving pads of door.
- NEVERpermit children to operate or play with door
control push buttons or remote control transmitters.
° Activatedoor ONLYwhen it can be seen clearly, is
property adjusted and there are no obstructions to
door travel.
• ALWAYS keepgaragedoor in sight until completely
closed. NEVERpermit anyone to cress path of
closing garagedoor.
HARDWARESHOWNACTUALSIZE
_ liiiiTi_ii_iiiiiliiJliiJ_
Screw6ABxlol/4°
(StandardInstallation) InsulatedStaples
D_'wallAnchors
STANDARD PRE-WIRED
Figure 1 INSTALLATION Figure 2 _NSTALLATtON
ToReplace InsertBottom 24Volt2-Conductor
insertBottomTabsFirst TabsFirst BellWirein GangBox
Figure 3 MULTI FUNCTION Figure 4
DOORCONTROL(BACK) REMOVECOVER
TOp Mounting Hole
TerrninatBeli Wire
g Hole
Figure5Door Control To insert or release
Connections wire, push in tab
with screwddver tip
:tWhiteGrey
Stripwire7/t6"(11 turn)

I III III IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
INSTALLATION STEP 7
install theLights
,Pressthe releasetabson both sides of lens_Gently
rotate lens backand downward until the lens hinge is in
the fully open position. Do not remove the tens,
•Insta;l a 100watt maximum light bulb in each SOCket.
Light bulb size should be A19, standard neckonly.
The fights will turn ONand remain lit for approximately
4-1/2 minutes when power is connected, Then the
lights will turn OFF.
•Reversethe procedure to close the fens,
•Use At9, standard neck garagedoor opener bulbs for
replacement.
NOTE: Use only standard light butbs. Theuse of short neck
or speciality light bulbs may overheat the endpanelor light
socket.
To prevent possible OVERHEATINGof the endpanelor
light socket:
- DO NOTuse short neckor specialty light bulbs.
o DO NOTuse hatogen bulbs. Use ONLY
incandescent.
To prevent damageto the opener:
• DONOTuse buIbs largerthan IOOW.
• ONLYuseA19 size bulbs.
(Max)
100WattLightButb__.,,)
Standard
ReleaseTab /
z
i
/_ Ler_s
Hinge
t00Watt(Max)
StandardLightBulb
INSTALLATION STEP 8
Attachthe Emergency ReleaseRope
and Handle
• Thread one endof the rope through the hole in the top
o[ the red handleso "NOTICE" reads right side upas
shown. Securewith an overhand knot at least
1" (2.5 cm) from the end o1the rope to prevent
slipping.
• Thread the other end of the rope through the hole in the
releasearm of the outer trolley.
o Adjust rope length so the handle is 6 feet (I.8 m) above
the floor. Ensurethat the rope and handleclear thetops
of all vehicles to avoid entanglement. Secure with an
overhand knot.
NOTE:tf it is necessary to cut the rope, heatsealthe cut
end with a match or lighter to prevent unraveling.
To prevent possible SERIOUSINJURYor DEATHfrom a
failing garagedoor:
o if possible, use emergencyrelease handleto
disengage trolley ONLYwhen garage door is
CLOSED.Weakor broken springs or unbalanced
door could result inan opendoor falling rapidly and/
or unexpectedly.
•NEVERuse emergency releasehandte unless garage
doorway is clear of personsand obstructions.
• NEVERuse handle to pull door open or closed. If
rope knot becomes untied, you could fall.
Trolley
_and
!8

I I I IIIIIII IIIIIIII IIIIIIIIIIIIIIII
INSTALLATION STEP 9
ElectricalRequirements
To avoid installation difficulties, do notrun the opener
at thistime.
To reducethe risk of electric shock, your garagedoor
opener has a grounding type plug with a third grounding
pin. This plug wilt only fit into a grounding type outlet.
it the plug doesn't fit into the outlet you have,contact a
qualified electrician to install the proper outlet.
If permanentwiring isrequired by yourlocal code, refer
to the following procedure.
To make a permanent connection through the 7/8" (2 cm)
hole in the top of the motor unit:
• Removethe motor unit cover screws and set thecover
aside.
-Removethe attached 3-prong cord.
,Connectthe black (line) wire to the screw on the brass
terminal; thewhite (neutral) wire to the screw on
the silver terminal; andthe ground wire to the green
ground screw.The opener mustbegrounded.
•Reinstallthe cover,
To avoid installation difficulties, do not run the opener
at this time.
To prevent possibte SERIOUSINJURY or DEATHfrom
electrocution or fire:
•Besure power is NOTconnected to the opener,
anddisconnect power to circuit BEFOREremoving
cover to establish permanent wiring connection.
• Garagedoor installation andwiring MUSTbe in
compliance with ALL Iocai electrical and building
codes.
•NEVERuse anextension cord, 2-wire adapteror
changeplug in ANY way to make it tit outlet. Be
surethe opener is grounded.
PERMANENTWIRING
CONNECTION
Ground Tab
Green
Ground
Screw
Ground Wire
White Wire
WhiteWire 7 i_iarCek
!9

INSTALLATION STEP'"'I'O""''""'"""""'
Install TheProtectorSystem_
The safetyreversingsensormustbe connectedand
aligned correctlybefore the garage door openerwill
move inthe downdirection.
IMPORTANTINFORMATIONABOUTTHESAFETY
REVERSING SENSOR
When properly connected andaligned, the sensor will
detect an obstacfe in the path of its electronic beam. The
sending eye(with an amber indicator light) transmits an
invisible tight beam to the receiving eye (with a green
indicator fight). Ifan obstruction breaks the light beam
while the door is closing, the door will stop andreverse to
full openposition, and the opener lights wilt flash 10 times.
The units must be installed inside thegarageso that the
sending and receiving eyes face each other across the
door, no more than 6" (15 cm) abovethe floor. Either can
beinstalled on the teftor right of the door as long as the
sun never shines directly into the receiving eyelens.
The mounting brackets are designed to clip onto the track
of sectiona4garagedoors without additional hardware,
Besure power isNOTconnected to the garagedoor
openerBEFOREinstalling the safety reversingsensor.
To prevent SERIOUSiNJURYor DEATHfrom a closing
garagedoor:
• Correctly connect and align the safety reversing
sensor. This required safety device MUSTNOT
be disabled.
•{nstall the safety reversing sensor so beamis
NO HIGHERthan 6" (15 cm) abovegarage floor_
if it is necessaryto mount the units on thewall, the
brackets must be securely fastened to asolid surtace such
as thewall framing. Extension brackets (seeAccessories)
areavailable if needed, tf installing in masonry
construction, adda pieceof wood at each location to
avoiddriIling extra holes in masonry if repositioning is
necessary,
Theinvisible light beam path must beunobstructed. No
part of the garagedoor (or door tracks, springs, hinges,
rollers or other hardware) may interrupt the beamwhile
thedoor is closing.
!
SafelyReversingSensor InvisibleLighlBeam
6"(15cm)max. ProtectionArea
abovefloor
Safety Reversing Sensor
6" (15 crn) max,
above floor
FACINGTHE DOORFROM INSIDETHE GARAGE,
2O
