CHAMELEON CEMS User manual

PATENTED BY MICHAEL AND BART BELLON

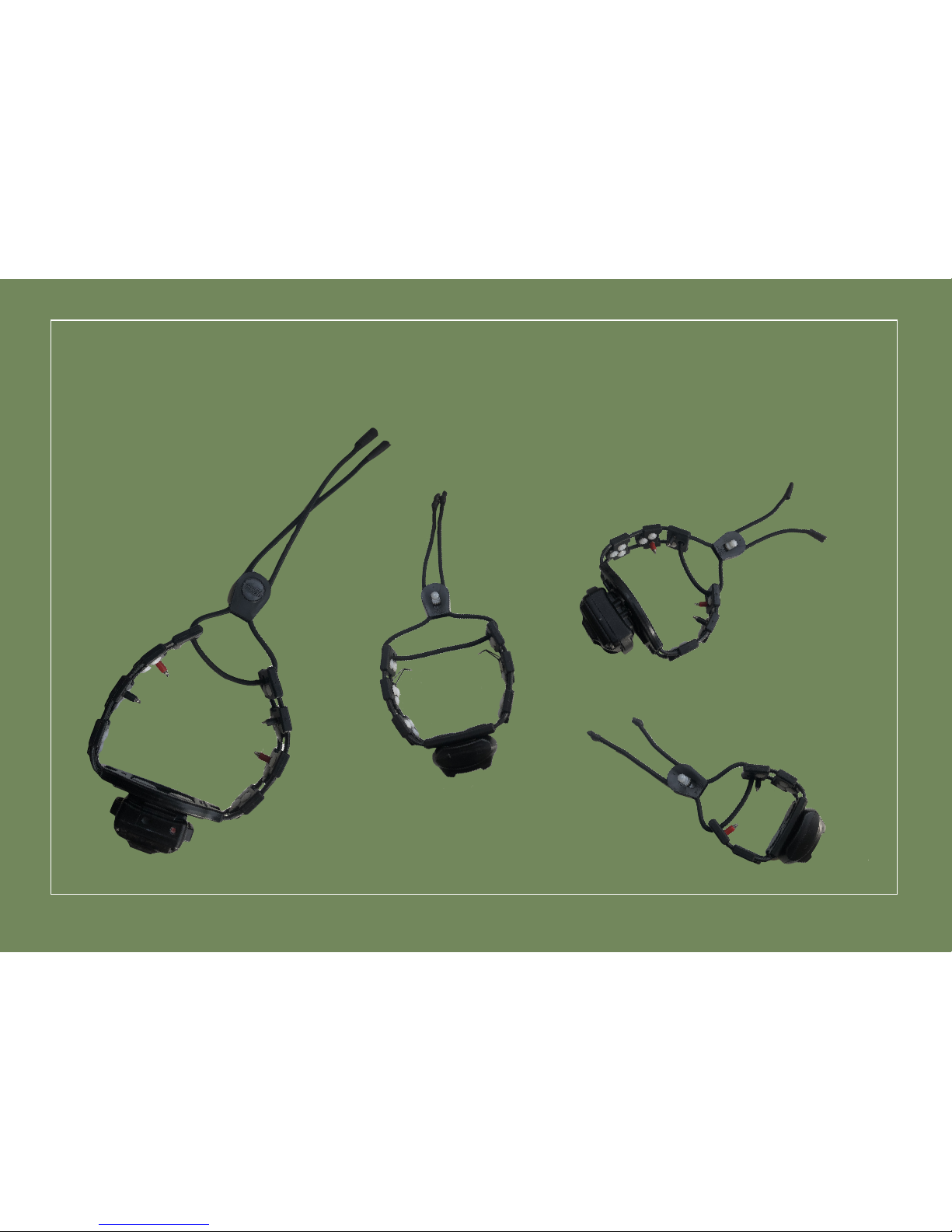

The Chameleon® Extender

The Chameleon® Extender has been patented
(US Patent 8,783,212 B2 and EP pending) and
designed by Michael and Bart Bellon. By
affixing your ecollar brick to the Chameleon®
Extender, you will be able to benefit from the
Chameleon® collar design while being able to
use your existing brand (limited to Martin
System, Dogtra, Dog Trace, E-Collar
Technologies, Garmin, Sit Means Sit, and Sport
Dog brands).
With the Chameleon® Extender, you can have
one brick collar and have the utility of two
bricks. You can have more than one positive
and negative contact point. Additionally, with
the Chameleon® Extender, you can move your
contacts and change the number of contacts to
have optimal contact and best sensitivity for
your dog. You can move the contact points as
frequently as necessary to eliminate possibility
of necrosis. Additionally, you can use the
Chameleon® Feather Contacts which are
compatible with the Chameleon® Extenders
(and all Chameleon® collars) and give the best
contact with flexible comfort.

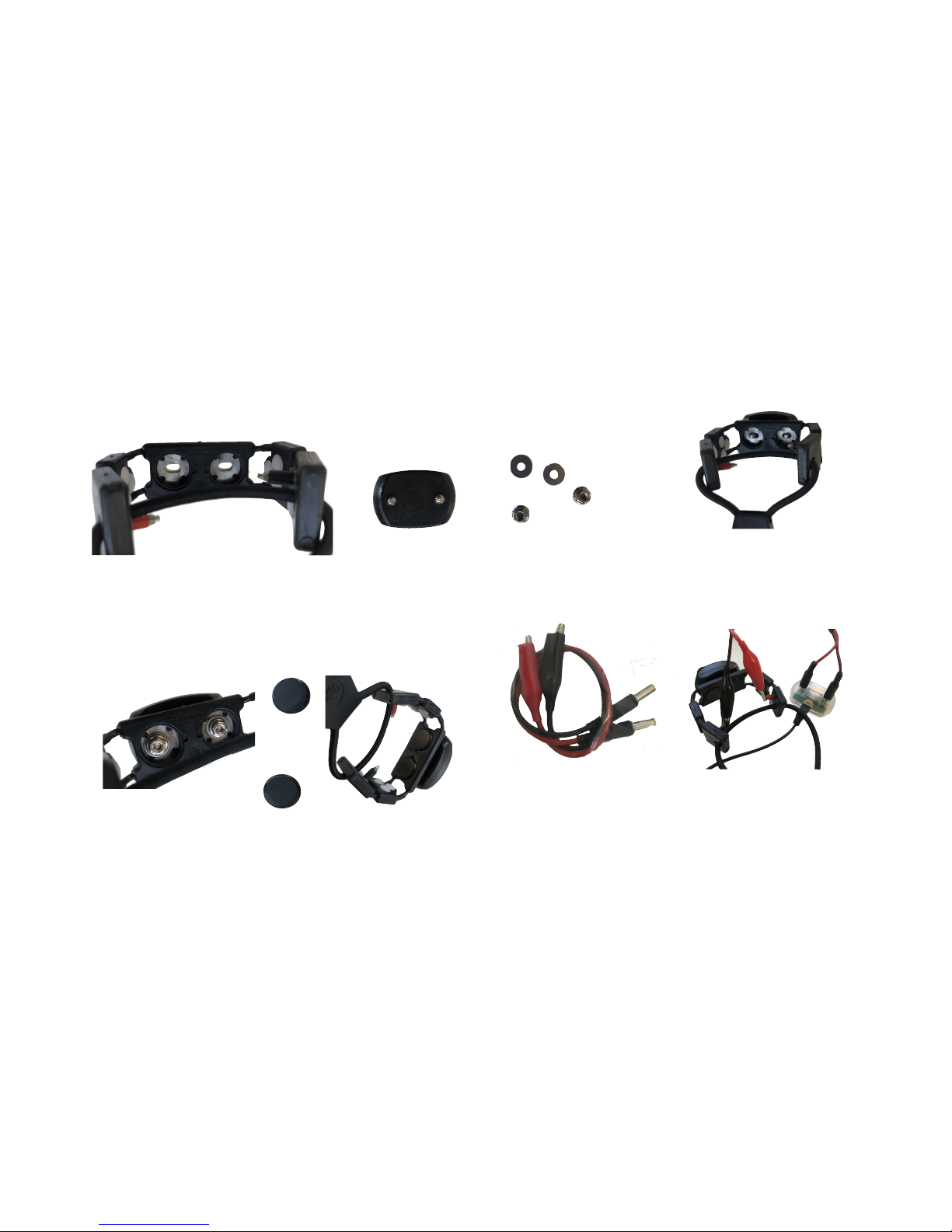

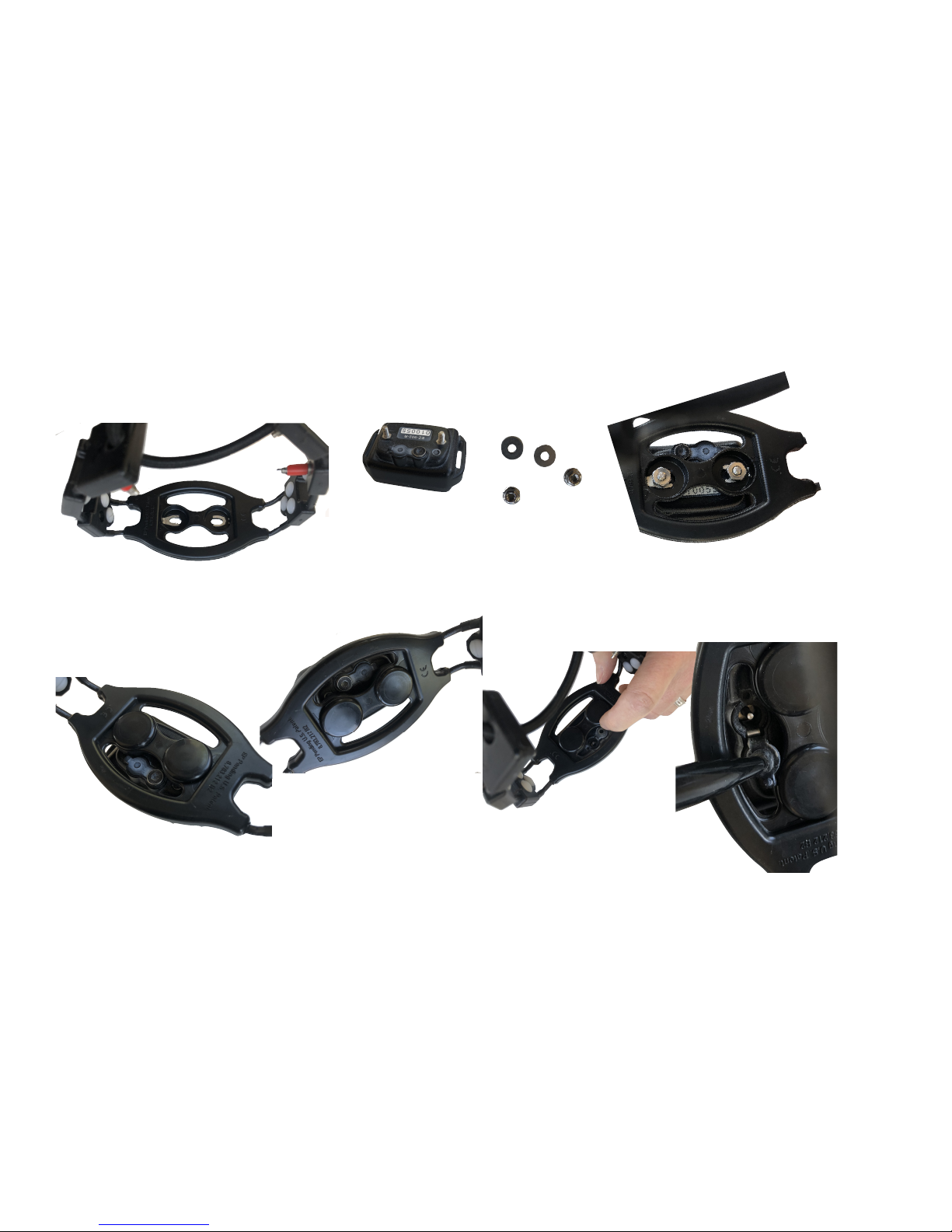

To affix the brick to the Chameleon® Extender,
you unscrew your contact points and then place
your brick on the Chameleon® Extender and
then screw your bolts (or your screws) back on
the brick. Whether you use bolts or screws
when attaching the brick is specific to each
brand. After tightening the screws/bolts well
with a special wrench (delivered in the package
with your Extender), then you cover the holes at
the inside of your Chameleon® Extender with
the two delivered plastic covers. The plastic
covers need only to be pushed on.
You can purchase the feathers as an option to
ensure optimal contact.
THE CHAMELEON® EXTENDER

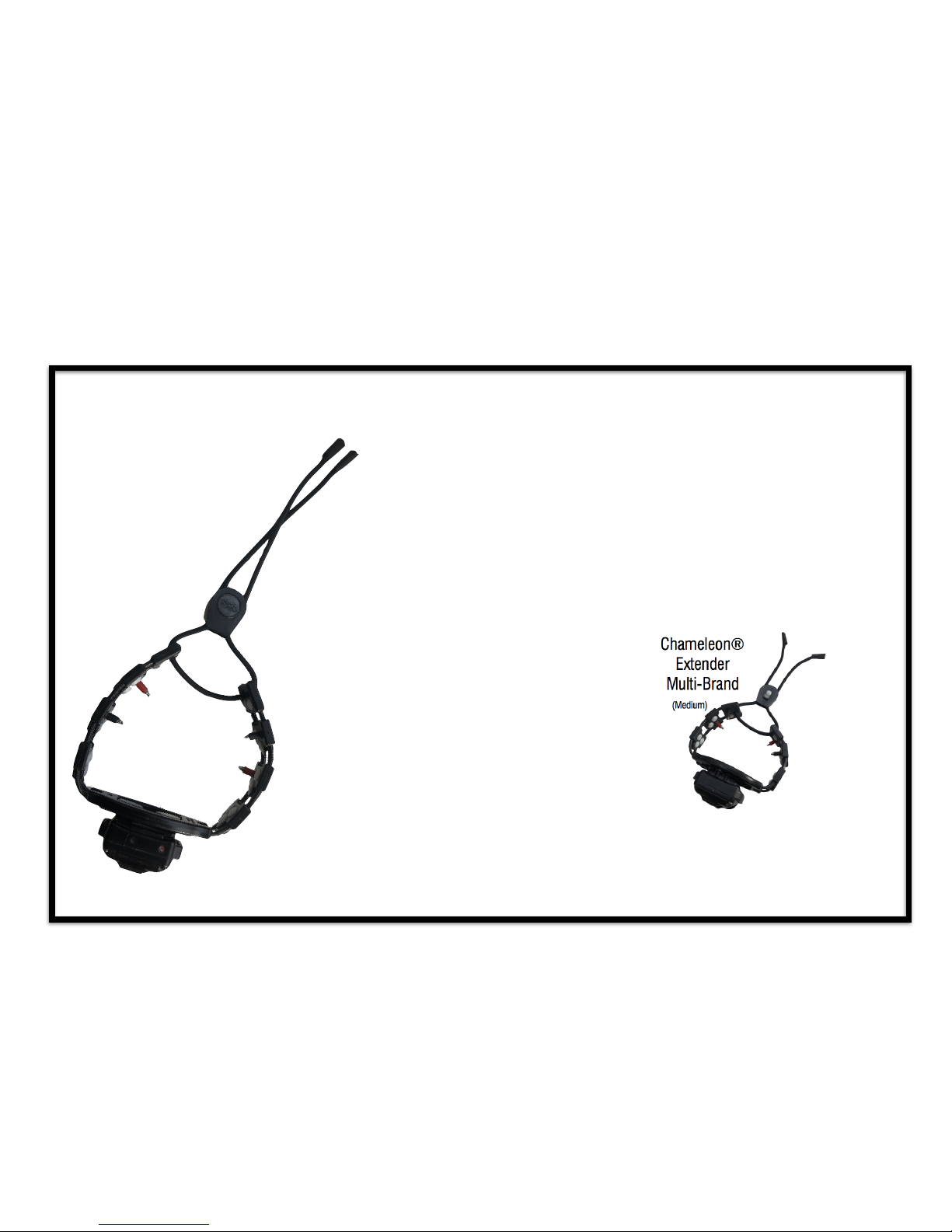

The Chameleon® Extender Multi Brand Compatible (CEMB®) is available in
Medium size (26,5 cm) and Large size (31,1 cm). Measurements do not include
any part of the elastic or the Perfect Fit Closure.
•The medium size (26,5 cm) has one central island in the center and 2 islands on either
size, each of which can accommodate up to 3 contact points/plastic screws, and the
end island that can support 2 contact points/plastic screws .
•The large size (31,1 cm) has one central island in the center and 3 islands on either
size, each of which can accommodate up to 3 contact
points/plastic screws, and the end island that can
support 2 contact points/plastic screws .
For the CEMB®, it is compatible with:
• Martin System
• Dogtra
• Dog Trace
• E-Collar Technologies
• Garmin
• Sit Means Sit
• Sport Dog
The Sport Dog and the Sit Means Sit bricks cannot be recharged on the multi-brand
compatible extender. They must be removed from the extender for charging.
DIFFERENCES BETWEEN THE CHAMELEON® EXTENDER MULTI -
BRAND COMPATIBLE (CEMB®) AND THE CHAMELEON®
EXTENDER MARTIN SYSTEMS COMPATIBLE
The Chameleon®
Extender Multi
Brand
Compatible
CEMB®
Size
Large
For the dog to feel something
there must be at least one
contact point in a negative
island and one contact in a
positive island. Islands that
are mirror images of each
other or adjacent to each
other make up a positive and
a negative island.

THE CHAMELEON® EXTENDER MARTIN
SYSTEMS COMPATIBLE (CEMS®) WILL BE
DELIVERED IN THREE SIZES:
•SMALL SIZE IS 22,5 CM LONG WITH TWO ISLANDS ON
EACH SIDE (ONE OF WHICH CAN ACCOMMODATE UP TO
3 CONTACT POINTS/PLASTIC SCREWS, AND THE END
ISLAND THAT CAN SUPPORT 2 CONTACT POINTS/PLASTIC
SCREWS)
•MEDIUM SIZE IS 26 CM LONG WITH THREE ISLANDS ON
EACH SIDE (TWO OF WHICH CAN ACCOMMODATE UP TO
3 CONTACT POINTS/PLASTIC SCREWS, AND THE END
ISLAND THAT CAN SUPPORT 2 CONTACT POINTS/PLASTIC
SCREWS)
•LARGE SIZE IS 31 CM LONG WITH FOUR ISLANDS ON
EACH SIDE (THREE OF WHICH CAN ACCOMMODATE UP
TO 3 CONTACT POINTS/PLASTIC SCREWS, AND THE END
ISLAND THAT CAN SUPPORT 2 CONTACT POINTS/PLASTIC
SCREWS)
For the dog to feel something there must be at least one contact
point in a negative island and one contact in a positive island.
Islands that are mirror images of each other or adjacent to each
other make up a positive and a negative island.

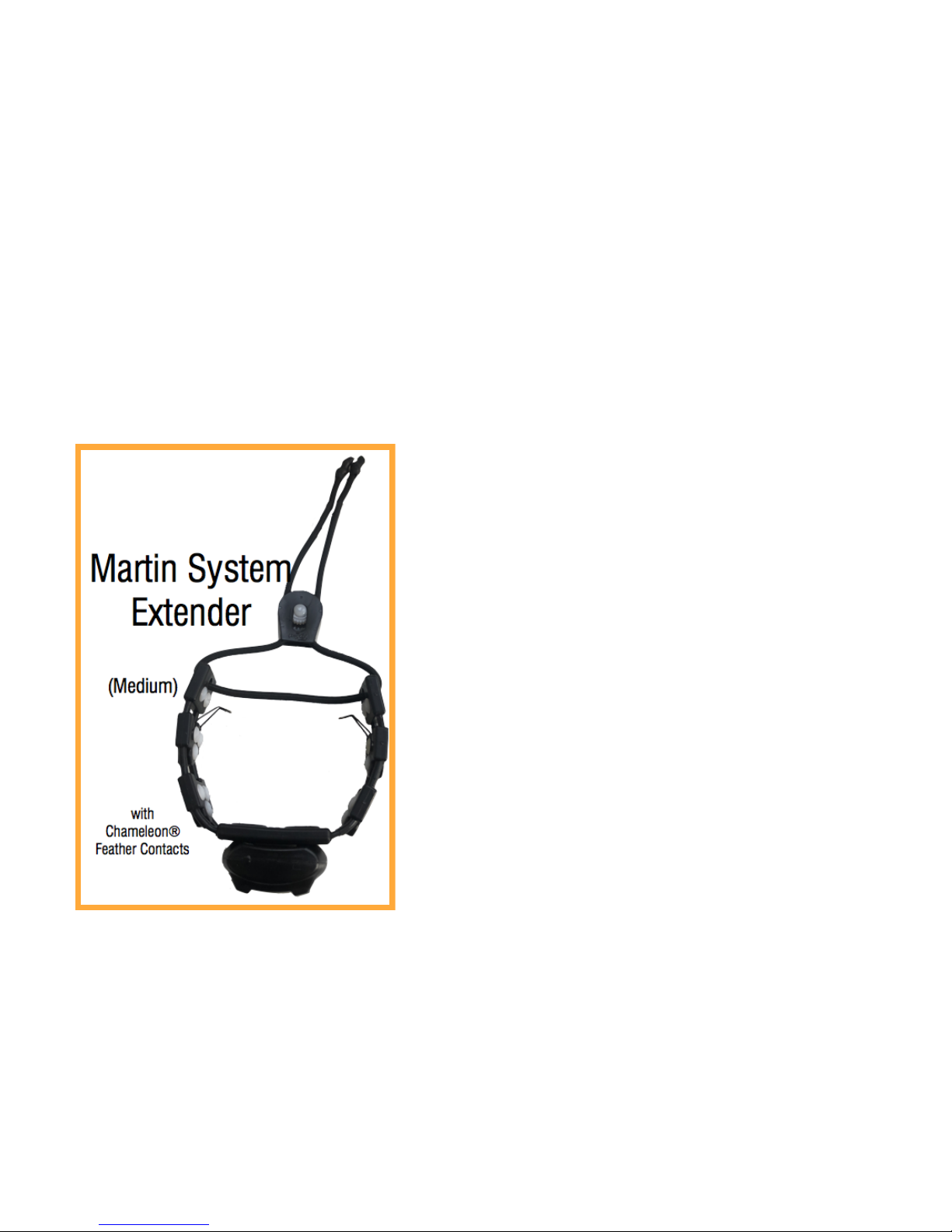

The Chameleon®
Extender Martin System
Compatible (CEMS®)

The CEMS®: The Martin
System micro collar can be
switched on/off and be
recharged while staying
affixed on the Extender. The
Martin System Tiny Trainer
collar can be switched on/off
while staying affixed and you
can change the battery of
the Tiny Trainer while the Tiny
Trainer is affixed on the
Extender.
While the Chameleon®
Extender Martin System
Compatible (CEMS®) is
designed specifically for the
Martin System collar
receivers, other brands can
be put on the Chameleon®
Extender Martin Systems
Compatible (CEMS), but:
a. The on/off button from
brands other than Martin
System can be hard or not
possible to reach if the on/off
is with a press button.
b. The recharging for brands
other than Martin System can
only be done if the brick
collar is removed from the
extender.
The Chameleon®!Extenders
are delivered with: two sets of
four identical contact points,
15 and 20 mm; a special
wrench; and two plastic
covers.
Using the Chameleon®
Extenders, either the CEMB®
or the CEMS®, you can:
•Train with your preferred brand.
•Move your contact points to the
most advantageous position, to
minimise or maximise
sensitivity.
•Eliminate necrosis by changing
the position of the contact
points.
•Take advantage of the contacts
being off the brick stone that
always falls to the lowest spot
on the dog’s neck.
•Try Chameleon®!feather
contacts if you wish. Enjoy the
benefits of double bricks with
only one.
•Enjoy your training.
THE CHAMELEON®
line of products
The Science of Design
