Champion Global Power Equipment 100402 User manual

OPERATOR'S MANUAL
MODEL #100402
2000W Dual Fuel Inverter Generator
REV 20211217Champion Power Equipment, Inc., Santa Fe Springs, CA USA
or visit championpowerequipment.com
READANDSAVE THIS MANUAL. This manual contains important safety precautions which should be read and understood before operating the product.
Failure to do so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
Covered by one or more of the following U.S. Patent Numbers: 10,641,187 and other U.S. and foreign patents pending.
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com

100402 - 2000W DUAL FUEL INVERTER GENERATOR TABLE OF CONTENTS
2
TABLE OF CONTENTS
Introduction................................................ 3
Safety Definitions ....................................... 3
Important Safety Instructions.................... 4
Fuel Safety ...................................................... 6
Safety Symbols.................................................. 7
Operation Symbols .............................................. 8
Quickstart Label Symbols....................................... 9
Safety Labels...................................................10
Controls and Features ...............................11
Generator .......................................................11
Power Panel ....................................................12
Outlet Panel ....................................................13
FCC Statement .................................................14
Parts Included ..................................................14
Assembly...................................................15
Unpacking ......................................................15
Add Engine Oil..................................................15
Add Fuel: Gasoline .............................................16
Add Fuel: Propane (LPG) .......................................17
Grounding ......................................................17
Neutral Floating* .............................................17
Operation...................................................18
Generator Location.............................................18
Surge Protection ...............................................19
Starting the Engine: Gasoline..................................19
Starting the Engine: Propane (LPG) ...........................20
Connecting Electrical Loads ...................................21
Do Not Overload Generator ....................................21
Eco (Economy) Mode...........................................22
12V DC Automotive Style Outlet ...............................22
Parallel Operation ..............................................22
Stopping the Engine............................................23
Maintenance............................................. 23
Cleaning the Generator ........................................23
Changing the Engine Oil .......................................24
Cleaning and Adjusting the Spark Plug(s) .....................24
Cleaning the Air Filter ..........................................24
Cleaning the Spark Arrestor ...................................25
Replacing Fuel Light Batteries.................................25
Adjusting the Governor.........................................26
Maintenance Schedule.........................................26
Storage ..................................................... 26
Short Term Storage (up to 1 year) .............................26
Long Term Storage (more than 1 year)........................27
Removing from Storage........................................27
Specifications........................................... 28
Generator Specifications.......................................28
Engine Specifications ..........................................28
Oil Specifications...............................................28
Fuel Specifications .............................................28
Spark Plug Specifications......................................28
Valve Specifications............................................28
Temperature Specifications....................................28
Troubleshooting........................................ 29
Warranty* ................................................. 30
Warranty Qualifications ........................................30
Repair/Replacement Warranty.................................30
Do Not Return The Unit To The Place Of Purchase ...........30
Warranty Exclusions ...........................................30
Other Exclusions ...............................................30
Limits of Implied Warranty and Consequential Damage......30
Contact Information ............................................30

100402 - 2000W DUAL FUEL INVERTER GENERATOR INTRODUCTION
3
INTRODUCTION
Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.
Since CPE highly values how our products are designed,
manufactured, operated and are serviced, and also highly
value your safety and the safety of others, we would like you to
take the time to review this product manual and other product
materials thoroughly and be fully aware and knowledgeable
of the assembly, operation, dangers and maintenance of the
product before use. Fully familiarize yourself, and make sure
others who plan on operating the product fully familiarize
themselves too, with the proper safety and operation
procedures before each use. Please always exercise common
sense and always err on the side of caution when operating
the product to ensure no accident, property damage, or injury
occurs. We want you to continue to use and be satisfied with
your CPE product for years to come.
When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100402
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which,if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to physical
injury.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
4
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poison gas. Breathing carbon monoxide will cause
nausea, dizziness, fainting or death. If you start to feel dizzy
or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.
DANGER
Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
WARNING
Operation of this equipment may create sparks that can
start fires around dry vegetation.
A spark arrestor may be required. The operator should
contact local fire agencies for laws or regulations relating to
fire prevention requirements.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or
frayed. Use Champion electrical cords only for proper
application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator
Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes.
WARNING
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
5
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the starter cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then
turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
–Electrical output is lost
–Equipment sparks, smokes or emits flames
–Equipment vibrates excessively
WARNING
Medical and life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
NEVER use this product to power medical devices or
medical appliances.
Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
6
Fuel Safety
DANGER
GASOLINE, GASOLINE VAPORS AND PROPANE (LPG) ARE
HIGHLY FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
–Gasoline is highly flammable and explosive.
–Gasoline can cause a fire or explosion if ignited.
–Gasoline is a liquid fuel but it’s vapors can ignite.
–Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
–Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of
fuel is not turned OFF, then an explosion hazard could be
created.
–Gasoline expands or contracts with ambient temperatures.
Never fill the gasoline tank to full capacity, as gasoline
needs room to expand if temperatures rise.
LPG:
–LPG is highly flammable and explosive.
–LPG is under pressure and can cause a fire or explosion if
ignited.
–LPG is heavier than air and can settle in low places while
dissipating.
–LPG has a distinctive odor added to help detect potential
leaks quickly.
–In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve is turned OFF. This
is because if a fire is extinguished and a supply of fuel is not
turned OFF, then an explosion hazard could be created.
–When exchanging LPG cylinders, check that the cylinder
valve is of the same type.
–Always keep the LPG cylinder in an upright position.
–LPG will burn skin if it comes in contact with it. Keep any
and all LPG away from skin at all times.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the generator off and let cool for at least two minutes
before removing the gasoline cap. Always loosen the cap slowly
to relieve pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved container to transfer the fuel to
the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
Always be certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
For LPG compatible models, check that the LPG cylinder is
disconnected and stored securely away from the generator.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.
Do not store generator, gasoline or LPG cylinders near furnaces,
water heaters, or any other appliances that produce heat or
have automatic ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, LPG connector
hose, LPG cylinder or any other fuel item that is broken, cut,
torn or damaged.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
7
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Clearance. Keep all objects at least 5 feet from this machine. Heat from the muffler and exhaust
gas can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can
cause severe burns or death. Operation of this equipment may create sparks that can start fires
around dry vegetation. A spark arrestor may be required. The operator should contact local fire
agencies for laws or regulations relating to fire prevention requirements.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp locations.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
8
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
SYMBOL MEANING
Engine START
Engine RUN
Engine STOP
Run out of fuel. Stopping the
generator.
Gasoline fuel selection / Fuel Level
Propane fuel selection / Propane
fuel port
Power Output. Percentage of
available power from generator being
used.
Remaining Fuel Time
Overload Reset Switch
ECO
Economy Mode Switch
Maintenance Required Indicator
SYMBOL MEANING
Low Oil Level Indicator
Receptacle Status
Circuit Breaker Reset: Push
Ground Terminal
Neutral Floating. Neutral circuit IS
NOT electrically connected to the
frame/ground of the generator.
Parallel Connection(s)

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
9
Quickstart Label Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.
Starting the Engine
DANGER
Move generator outside and far away from windows,
doors and intake ventilation covers.
1. Check oil level.
Recommended oil is 10W-30.
2. Add fuel.
2a. If operating on gasoline, check gasoline level.
When adding gasoline, use a minimum octane rating of
87 and an ethanol content of 10% or less by volume.
2b. If operating on propane, connect propane tank.
Open valve on propane tank.
3. Fuel Selector
3a. Turn EZ Start dial to the right for “gasoline” operation.
Then turn the fuel vent lever to the “ON” position.
3b. Turn EZ Start dial to the left for “LPG” operation.
4. Move EZ Start dial to “CHOKE” position.
5. Pull the recoil cord.
6. Move the EZ Start dial to “RUN” position.
7. Plug in desired device.
3485- L-OP-A
7
12A
2B
2A
2B
3B
3A 45613
10W-30

b
c

+
+

LPN 3485-L-OP
Rev A
Size 256 x 48 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white t o be
prin ted shown in 5 0% process m agenta
Revision Changes
---
This ar twork belongs to C hampion Power Equi pment. The conte nts are confiden tial and privileg ed and shall not be dis closed to or used by or f or
outside p arties withou t the explicit conse nt of Champion Power E quipment.
KCG1 376 152 186
W
Colors
Stopping the Engine
1. Turn off and unplug all connected electrical loads.
2. Fuel Valve
2a. If operating on gasoline, turn the fuel vent lever to
the “OFF” position.
2b. If operating on LPG, close the valve on the LPG tank.
3. Turn the EZ Start dial to the “STOP” position.

100402 - 2000W DUAL FUEL INVERTER GENERATOR IMPORTANT SAFETY INSTRUCTIONS
10
Top
A
C
Safety Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
Muffler Side
D
LABEL DESCRIPTION
A
El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El escape del generador contiene monóxido de
carbono. Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las
puertas y ventanas están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
PELIGRO
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
1308-L-SF-C
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L’échappement du générateur contient du
monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir. Ne l’utilisez JAMAIS dans la maison ou le
garage MÊME SI les portes et les fenêtres sont ouvertes. Utilisez-le UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
DANGER
K485 --- --- ---
ColorsLPN 1308-L-SF
Rev C
Size 204x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process magenta
Revision Changes
B: Updated size match DF generator
C: Nee d add the text height
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
CO Danger
B
1161-L-SF-A
K485 2945 109 ---
ColorsLPN 1161 -L- SF
Rev A
Size 121 x 4 0 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white t o be
print ed shown in 50% p rocess mag enta
Revision Changes
---
This art work belongs to Cha mpion Power Equipmen t. The contents ar e confidential and p rivileged and shall n ot be disclosed to or us ed by or for
outside p arties withou t the explicit conse nt of Champion Power E quipment.
Safety Icons
C
UNLEADED FUEL ONLY. Minimum octane rating
of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 87. Maximum 10 % d'éthanol.
1032-L-OP-B
K109 --- --- ---
ColorsLPN 1032-L-OP
Rev B
Size 78 x 20 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
B: -Changed Octane rating from 85 to 87 (20200421)
This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Fuel
D
1310-L-SF-A
WARNING DO NOT TOUCH! Exhaust gases, muffler
and engine components are extremely HOT
and cause burns.
Operation of this equipment may create sparks that can start fires
around dry vegetation. A spark arrestor may be required. The
operator should contact local fire agencies for laws and regulations
relating to fire prevention requirements. If installed, clean every 100
hours or every season.
ADVERTENCIA ¡NO TOCAR! Los gases de escape, el silenciador y los compnonentes
del motor están extremadamente CALIENTES y causan quemaduras.
La operación de este equipo puede producir chispas que pueden
provocar incendios alrededor de la vegetación seca. Un supresor de chispas puede que sea necesario. El
operador debe comunicarse con las agencias locales de bomberos para las leyes y reglamentos relativos
a los requisitos de prevención de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
AVERTISSEMENT NE PAS TOUCHER! Les gaz d’échappement, le silencieux et les
pièces du moteur sont extrêmement CHAUDS et peuvent causer
des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans la végétation sèche. Un
pare-étincelles peut être requis. L’opérateur doit communiquer avec le service d’incendie local pour
connaître les lois et les règlements en matière de prévention des incendies. Si elle est installée,
nettoyez toutes les 100 heures ou chaque saison.
K152 --- --- ---
ColorsLPN 1310-L-SF
Rev A
Size 88 x 56 mm
Artwork Notes
3mm corner radius; 2mm safe margin; white to be
printed shown in 50% process magenta
Revision Changes
---
This ar twork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for
outside parties without the explicit consent of Champion Power Equipment.
Hot Surface
B

100402 - 2000W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
11
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

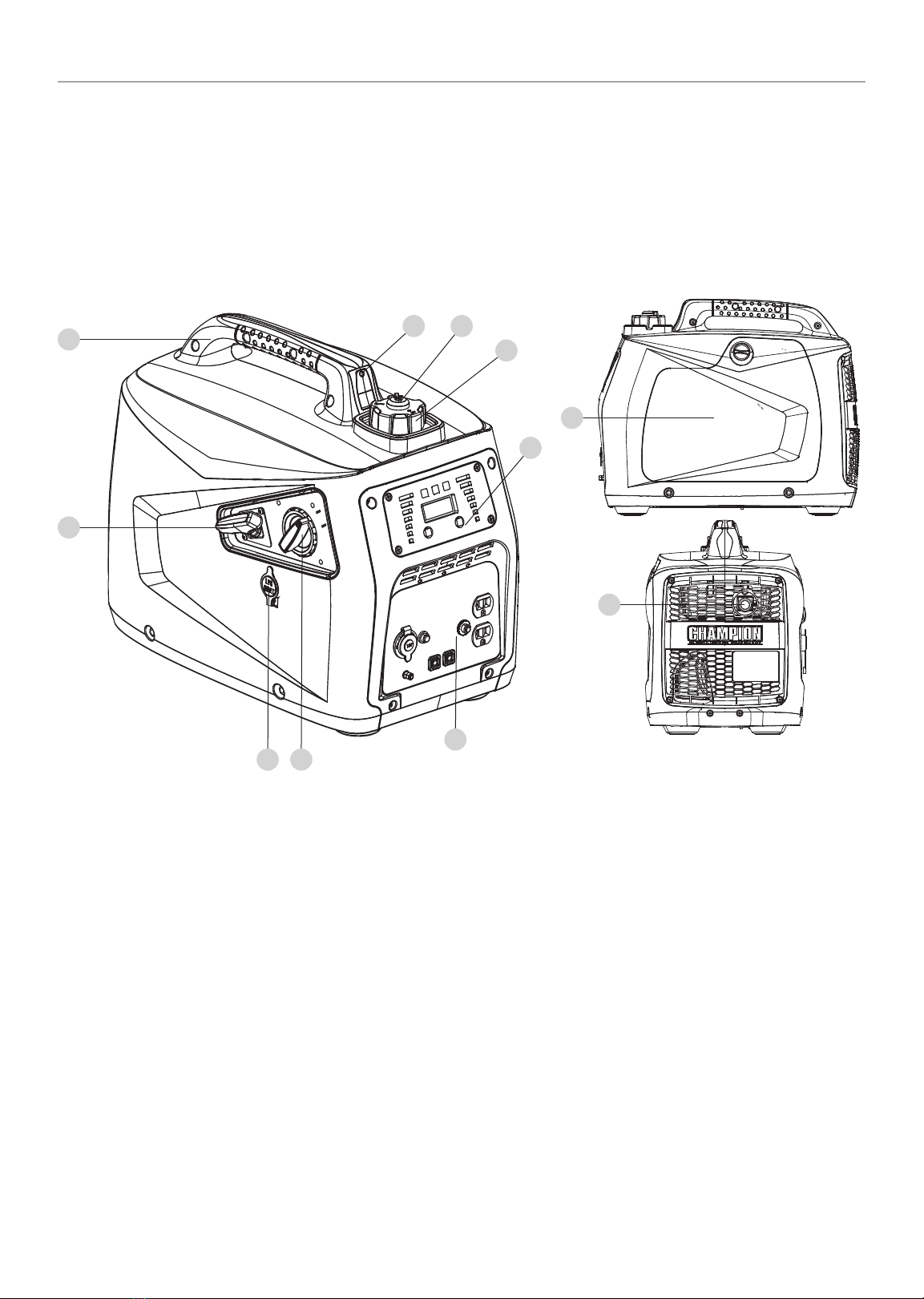

Generator
1. Carrying Handle –Used to lift or carry the unit.
2. Recoil Starter – Used to manually start the engine.
3. LPG Inlet – Used to connect LPG fuel source to generator.
4. EZ Start Dial – Used to start and stop the generator. When
operating by propane, this switch will NOT stop the engine.
5. Outlet Panel – See “Outlet Panel” section.
6. Power Panel – See “Power Panel” section.
7. Fuel Cap – Remove to add fuel.
8. Fuel Lever Vent – Turn this valve to the “ON” position to
supply air to the tank.
9. Fuel Fill Assist LED – Push-button LED used to illuminate
the gasoline fill area
10. Maintenance Cover
11. Muffler
1
10
11
2
6
7
89
43
5

100402 - 2000W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
12

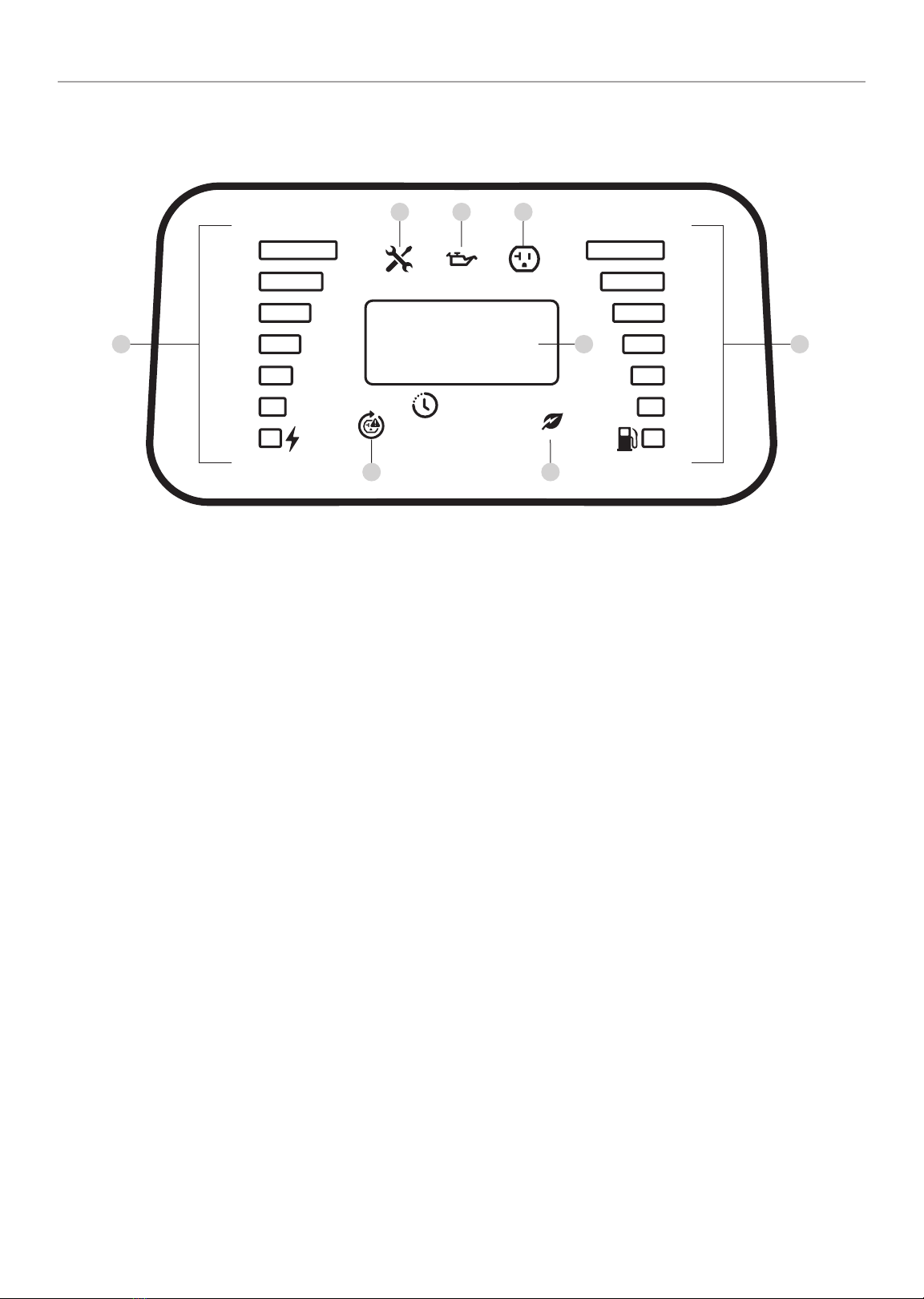

Power Panel
1. Power Output – Percentage of available power from
generator being used.
2. Maintenance Indicator
2a. Off – No service required.
2b. Yellow – Service required per Maintenance Schedule.
3. Low Oil Level Indicator
3a. Off – Oil level OK.
3b. Yellow – Oil level low. Unit will shut down or not start
until oil is at required level.
4. Receptacle Status
4a. Green – All systems OK.
4b. Red – Nearing overload but receptacle still has power.
4c. Flashing Red – Overload fault and receptacle has no
power.
5. LED Display
5a. Flashing Blue – Total run time (first 5 seconds after
unit started).
5b. Amber – Remaining fuel run time or “LPG” in LPG
mode.
6. AC Overload Reset Button – Used to re-energize
receptacles after overload fault and reset maintenance
schedule.
6a. OFF – Systems normal.
6b. Yellow – Maintenance required.
6c. Blinking Red – Overload fault.
7. Economy Mode Switch – Enables/disables automatic idle
control.
7a. OFF – Economy mode OFF.
7b. Green – Economy mode ON.
8. Fuel Level Indicator – Amount of fuel remaining.
F
E
100%
0%
50%
REMAINING
ECO
00:00
2
5
6 7
3 4
1 8

100402 - 2000W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
13
Outlet Panel
1
A
B
2
3
RECEPTACLES
Az
12V DC, 8A (Regulated Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical
loads.
BA
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single
phase, 60 Hz electrical loads.
1. Ground Terminal – Consult an electrician for local
grounding regulations.
2. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.
3. Parallel Outlets – Used for parallel operation (parallel kit
sold separately).
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious
injury or death.

100402 - 2000W DUAL FUEL INVERTER GENERATOR CONTROLS AND FEATURES
14

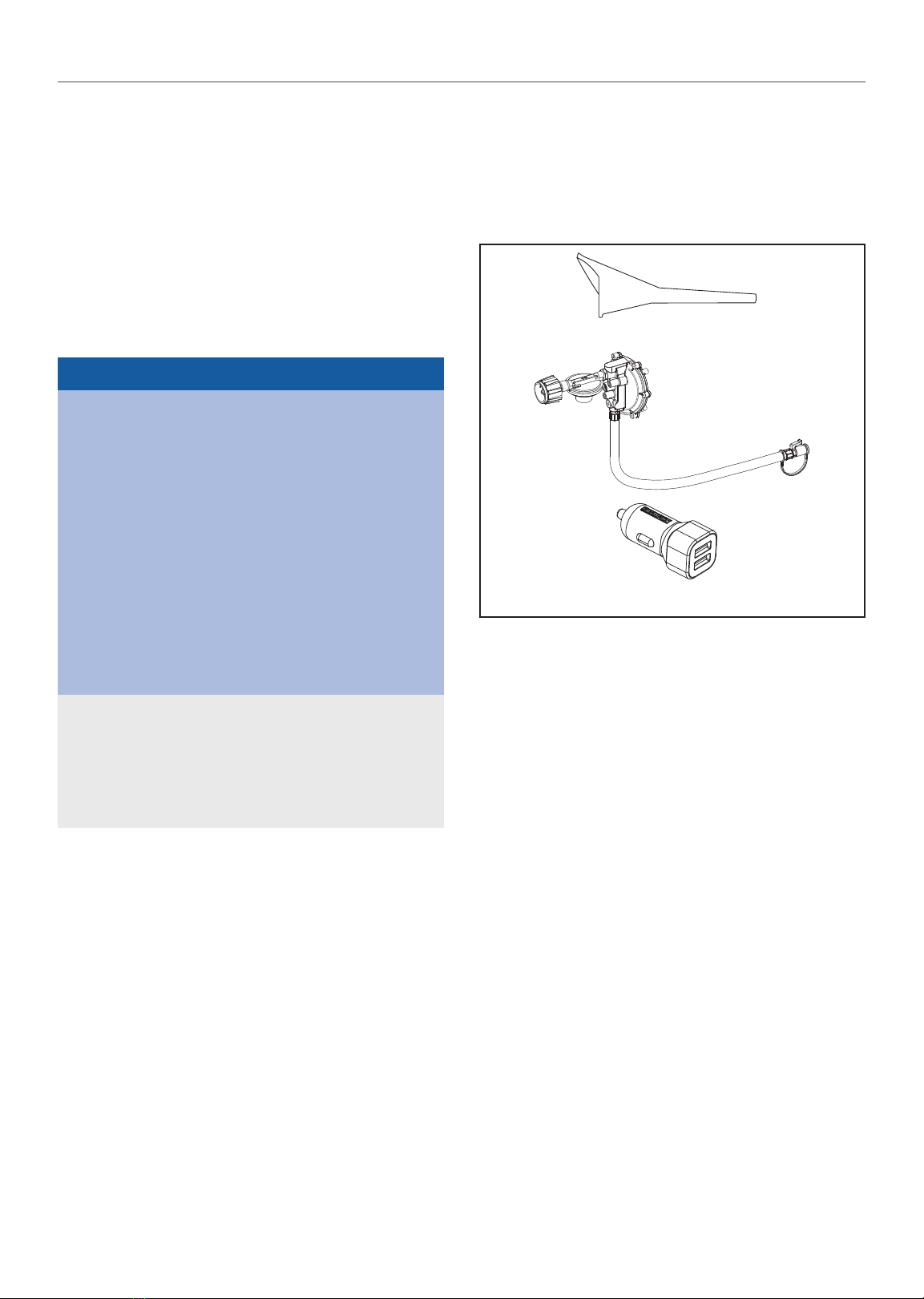

Parts Included
Accessories
Oil Funnel..............................................................................1
2.3 ft. (0.7 m) LPG Hose with Regulator................................. 1
Dual 2.4A Port USB Adapter ..................................................1
FCC Statement
1. This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1a. This device may not cause harmful interference.
1b. This device must accept any interference received,
including interference that may cause undesired
operation.
2. Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
–Reorient or relocate the receiving antenna.
–Increase the separation between the equipment and
receiver.
–Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult dealer or an experienced radio/TV technician for help.

100402 - 2000W DUAL FUEL INVERTER GENERATOR ASSEMBLY
15
ASSEMBLY
This unit ships from our factory without oil. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Using the carrying handles of the unit, carefully remove
the generator from the box (two people lifting is
recommended).
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failing to follow
these instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 10W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-
in run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 020 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C -17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30

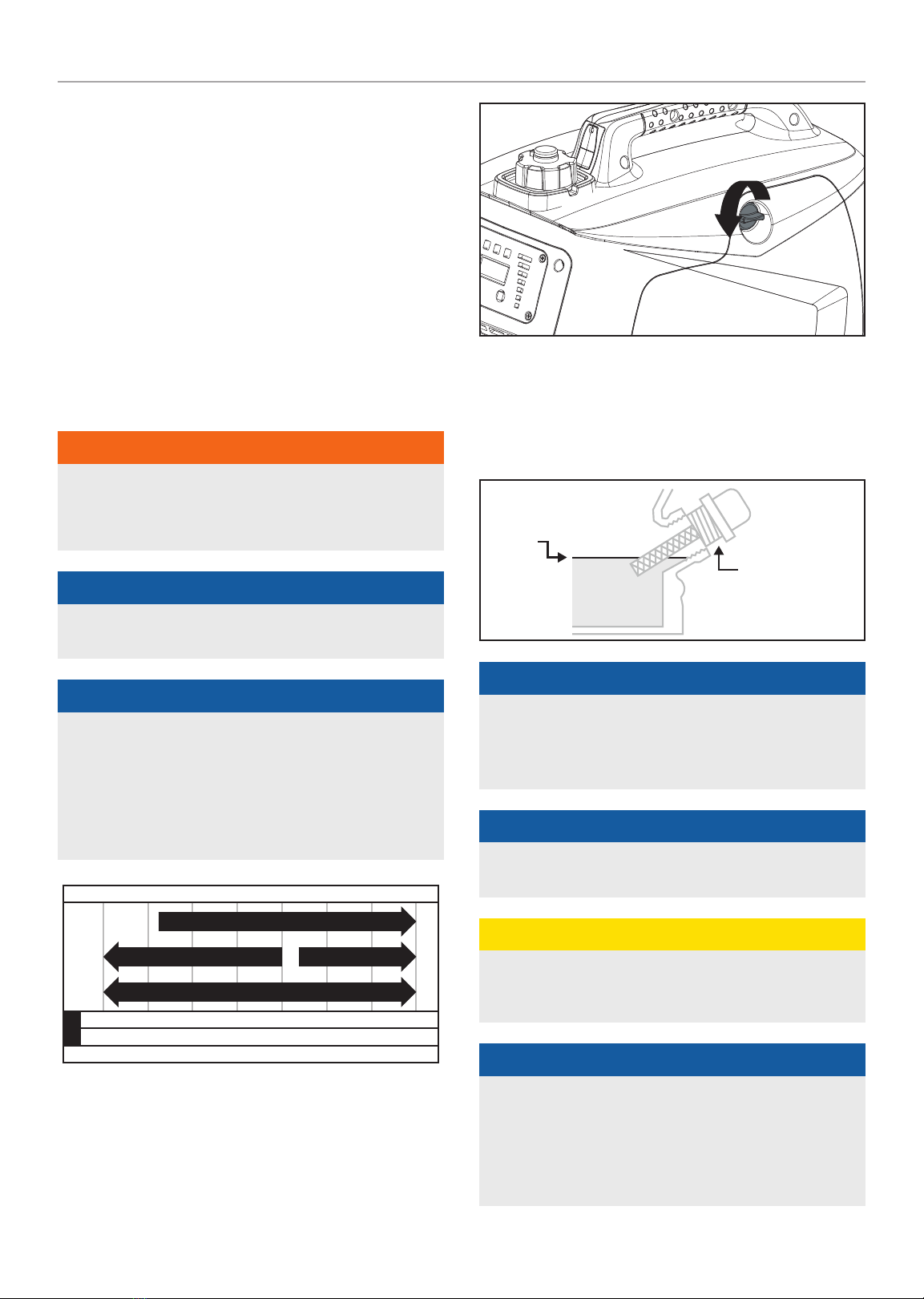

1. Place the generator on a flat, level surface.
2. Remove the maintenance cover.
3. Remove oil fill cap/dipstick to add oil.
4. Using a funnel, add up to 13.5 fl. oz. (0.4 qt) of oil (not
included) and replace oil fill cap/dipstick. DO NOT
OVERFILL.
5. Check engine oil level daily and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw in the
dipstick while checking.
NOTICE
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
The engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary and help seat piston rings. After
the 5 hour break-in period, change the oil.

100402 - 2000W DUAL FUEL INVERTER GENERATOR ASSEMBLY
16
NOTICE
Weather will affect engine oil and engine performance.
Change the type of engine oil used based on weather
conditions to suit the engine needs.
NOTICE
Synthetic oil may be used after the 5 hour initial break-
in period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W-30 oil
will aid in starting in cold ambient <5º C (41º F).
Add Fuel: Gasoline
DANGER
Gasoline vapors are highly flammable and extremely
explosive.
DO NOT light or smoke cigarettes. Fire or explosion can
cause severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any other
fuel item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away
from sparks, open flames, pilot lights, heat and other
sources of ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.

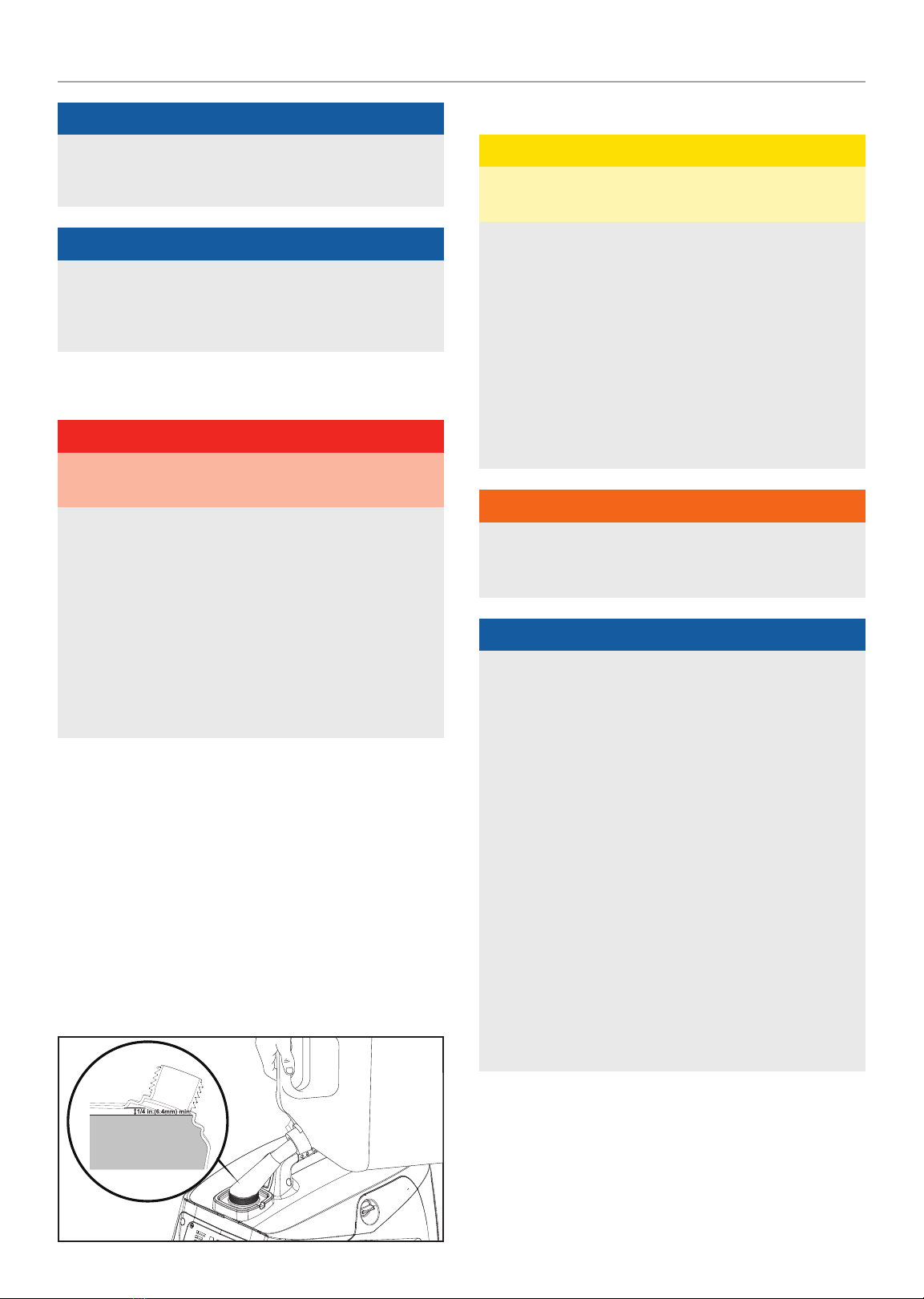

1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. Tank is full when gasoline
reaches red circle on screen. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended.
Gasoline can be forced out of the tank as a result of
expansion if overfilled, and can affect the stable running
condition of the generator.
3. Screw on the gasoline cap and wipe away any spilled fuel.
CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the
pump. Use an approved fuel container to transfer the
gasoline to the generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
–Ethanol-gasoline blends can absorb more water than
gasoline alone.
–These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn
into the carburetor and cause damage to the engine
and/or create potential hazards.
–If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
–Any damages or hazards caused by using ethanol
blended gasoline higher than 10% by volume, improperly
stored gasoline, and/or improperly formulated
stabilizers, are not covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.

100402 - 2000W DUAL FUEL INVERTER GENERATOR ASSEMBLY
17
Add Fuel: Propane (LPG)
1. Confirm the EZ Start dial is in the OFF position.
2. If using a new propane cylinder, remove the plastic cap
from the cylinder valve.
3. Attach the LPG hose assembly (included) to the propane
cylinder valve and hand tighten.
4. Remove the rubber boot covering the propane connection
port on the inverter.
5. Align the plastic finger on the male hose fitting on the
LPG hose assembly with the slot below the female quick
connect coupling on the inverter.
6. Insert the hose fitting into the quick connect coupling and
push in until you hear a “click” and the outside collar of the
quick connect coupling moves forward.
7. Check all connections for leaks by wetting the fittings with
a solution of soap and water. Bubbles which appear or
bubbles which grow indicate that a leak exists. If a leak
exists at a fitting then turn off the valve on the cylinder
and tighten the fitting. Turn the valve back on and recheck
the fitting with the soap and water solution. If the leak
continues or if the leak is not at a fitting then do not use
the generator and contact customer service.
NOTICE
–The LPG hose included with this unit works with
standard 20 and 30 pound LPG tanks.
–Verify the requalification date on the cylinder has not
expired.
–All new cylinders must be purged of air and moisture
prior to filling. Used cylinders that have not been plugged
or kept closed must also be purged.
–The purging process should be done by an LPG supplier.
(cylinders from an exchange supplier should have been
purged and filled properly already).
–Always position the cylinder so the connection between
the cylinder valve and generator inlet won’t cause sharp
bends or kinks in the LPG hose.
CAUTION
Do not allow children to tamper or play with the LPG cylinder
or hose connections.
CAUTION
Use approved LPG cylinders equipped with an OPD
(overfilling prevention device) valve. Always keep the
cylinder in a vertical position with the valve on top and
installed at ground level on a flat surface. Cylinders must
not be installed near any heat source and should not be
exposed to sun, rain, and dust. When transporting and
storing, turn off the cylinder valve and generator LPG valve,
and disconnect the cylinder. Plug the outlet, usually by a
plastic protective cap, if one is available. Keep cylinders
away from heat and ventilated when in a vehicle.
WARNING
If there is a strong smell of LPG: Close valve on the cylinder.
Check all connections for leaks by wetting the fittings
with a solution of soap and water. Bubbles which appear
or bubbles which grow indicate that a leak exists. Do not
smoke or light a cigarette, or check for leaks using a match,
open flame source or lighter. Contact a qualified technician
to inspect and repair an LPG system if a leak is found,
before using the generator.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in
electric shock.
A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.
Neutral Floating*
–Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
–The generator (stator winding) is isolated from the frame
and from the AC receptacle ground pin.

100402 - 2000W DUAL FUEL INVERTER GENERATOR OPERATION
18
–Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is
not functional.
Neutral Bonded to Frame*
–Neutral circuit IS electrically connected to the frame/ground
of the generator.
–The generator system ground connects lower frame
cross-member below the alternator. The system ground is
connected to the AC neutral wire.
* See your model’s control panel for specified type of grounding.
OPERATION
Generator Location
WARNING
NEVER operate the generator inside any building, garage,
basement, crawlspace, shed, enclosure or compartment,
including a generator compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an
SUV, camper, trailer, truck bed (regular sides, flat or other
configuration), under staircases, stairwells, next to walls
or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of
the exhaust flow from the muffler system.
DO NOT operate or store the generator in wet weather
conditions such as rain or snow. Using a generator in wet
conditions could result in serious injury or death due to
electrocution.
In some state’s generators may be required to be registered
with the local utility company when used at construction
sites and may be subject to additional rules and regulations,
consult your local municipal authority.
Generators should always be operated on a flat, level
surface at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.

100402 - 2000W DUAL FUEL INVERTER GENERATOR OPERATION
19
WARNING
Do not expose to rain or use in damp locations.
Keep all objects a minimum of 5 feet (1.5m) away from the
generator at all times. Heat from the muffler surface and
exhaust gas stream can ignite combustible materials.
WARNING
If you must operate in rain or damp locations, DO NOT operate
without proper protection of the electrical components.
Use of a safety canopy that is fire retardant and will provide
proper air ventilation for the engine exhaust gas stream may be
used.
Visit championpowerequipment.com or call to find your Storm
Shield cover.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.
–Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-
duration voltage fluctuations.

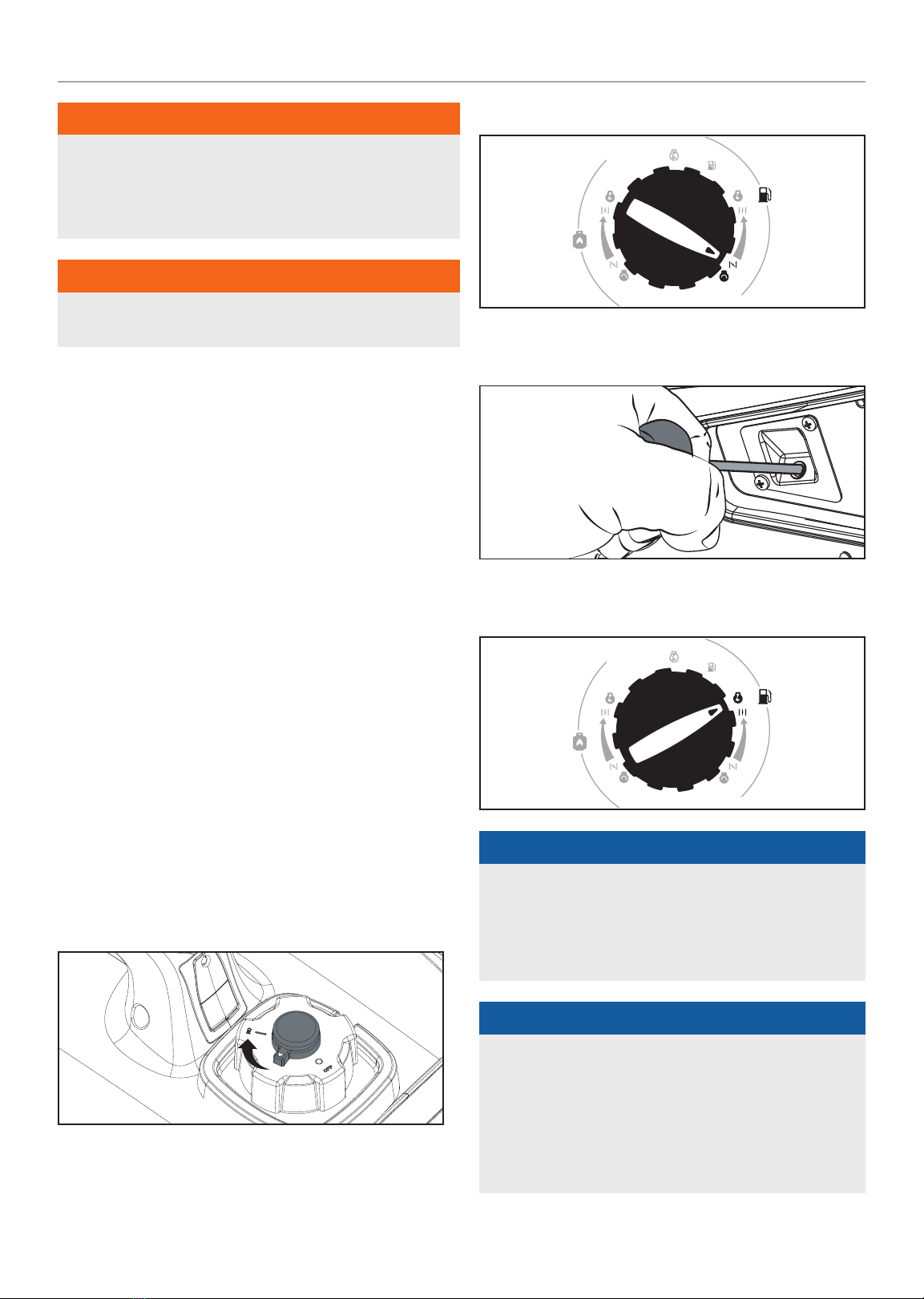

Starting the Engine: Gasoline
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.
3. Turn the fuel cap vent lever to the “ON” position.
4. Turn EZ Start dial clockwise to the full “CHOKE” position.
+
-
+
-
5. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
6. As the engine warms up, move the EZ Start dial to the
“RUN” position.
+
-
+
-
NOTICE
Keep EZ Start dial in “CHOKE” position for only 1 pull of
the recoil starter. If generator does not start after first pull,
rotate the EZ Start dial to the RUN position for the next
three pulls. Too much choke leads do spark plug fouling and
engine flooding. This will cause the engine not to start.
NOTICE
For gasoline restarts with hot engine in hot ambient
> 30°C (86°F): Rotate the EZ Start dial to 75% of the
full choke position for only one pull of the recoil starter. If
generator does not start after first pull, rotate the dial to the
RUN position for the next three pulls. Too much choke leads
do spark plug fouling and engine flooding. This will cause
the engine not to start.

100402 - 2000W DUAL FUEL INVERTER GENERATOR OPERATION
20
NOTICE
For gas starting in cold ambient <15°C (59°F): The
choke must be in 100% of the “CHOKE” position for recoil
start procedures. Do not over-choke. As soon as the engine
starts, turn the EZ Start dial to the RUN position.
NOTICE
If the engine starts but does not continue to run make
certain that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will prevent the
engine from running when the oil level falls below a critical
threshold.

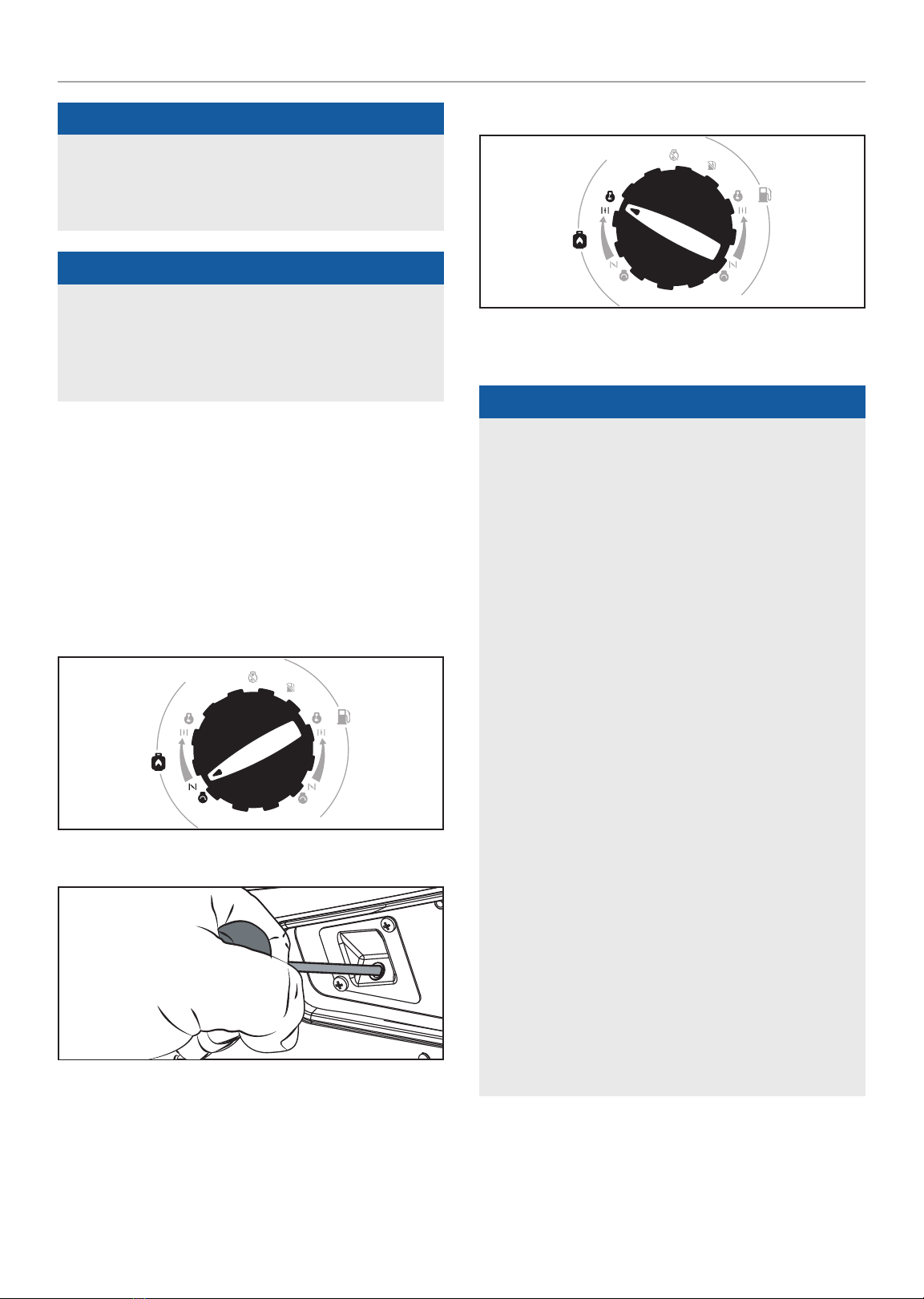

Starting the Engine: Propane (LPG)
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.
3. Open the fuel valve on the propane cylinder.
4. Turn EZ Start dial counterclockwise to the full “CHOKE”
position.
+
-
+
-
5. Slowly pull the starter cord 2-4 times to prime the engine.
6. Move the EZ Start dial to the “RUN” position.
+
-
+
-
7. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
NOTICE
Accumulation of frost on LPG cylinder and regulators is
common during operation and normally is not an indication
of a problem. As LPG vaporizes and travels from the cylinder
to the generator engine it expands. The amount of frost
that forms can be affected by the size of the cylinder, the
amount of LPG being used, the humidity of the air and other
operating conditions.
In unusual situations this frost may eventually restrict
the flow of LPG to the generator resulting in deteriorating
performance. For example, if the cylinder temperature is
reduced to a very low level then the rate at which the LPG
vaporizes is also reduced and may not provide sufficient
flow to the engine. This is not an indication of a problem
with the generator but only a problem with the flow of LPG
from the cylinder. If generator performance seems to be
deteriorating at the same time that ice formation is observed
on tank valve, hose or regulator then some actions may be
taken to eliminate this symptom.
In these rare situations it can be helpful to reduce or
eliminate the cold fuel system effects by doing one of the
following:
–Exchanging fuel cylinders to allow the first cylinder to
warm up, repeating as necessary.
–Placing the cylinder at the end of the generator near
the handle, where engine fan air flows out from the
generator. This air is slightly heated by flowing over the
engine. The cylinder should not be placed in the path of
the muffler outlet.
–The cylinder can be temporarily warmed by pouring
warm water over the top of the cylinder.
