OWNER’S MANUAL & OPERATING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Important safety instructions
are included in this manual. REV 500110-N-20210111
9375 Starting Watts / 7500 Running Watts
PORTABLE GENERATOR
Electric Start
500110-N
MODEL NUMBER

Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
Parts Ordering:
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free :
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.

500110-N
TABLE OF CONTENTS
Introduction ............................ 1
Introduction .......................... 1
Manual Conventions....................... 2
Safety Rules ............................ 3

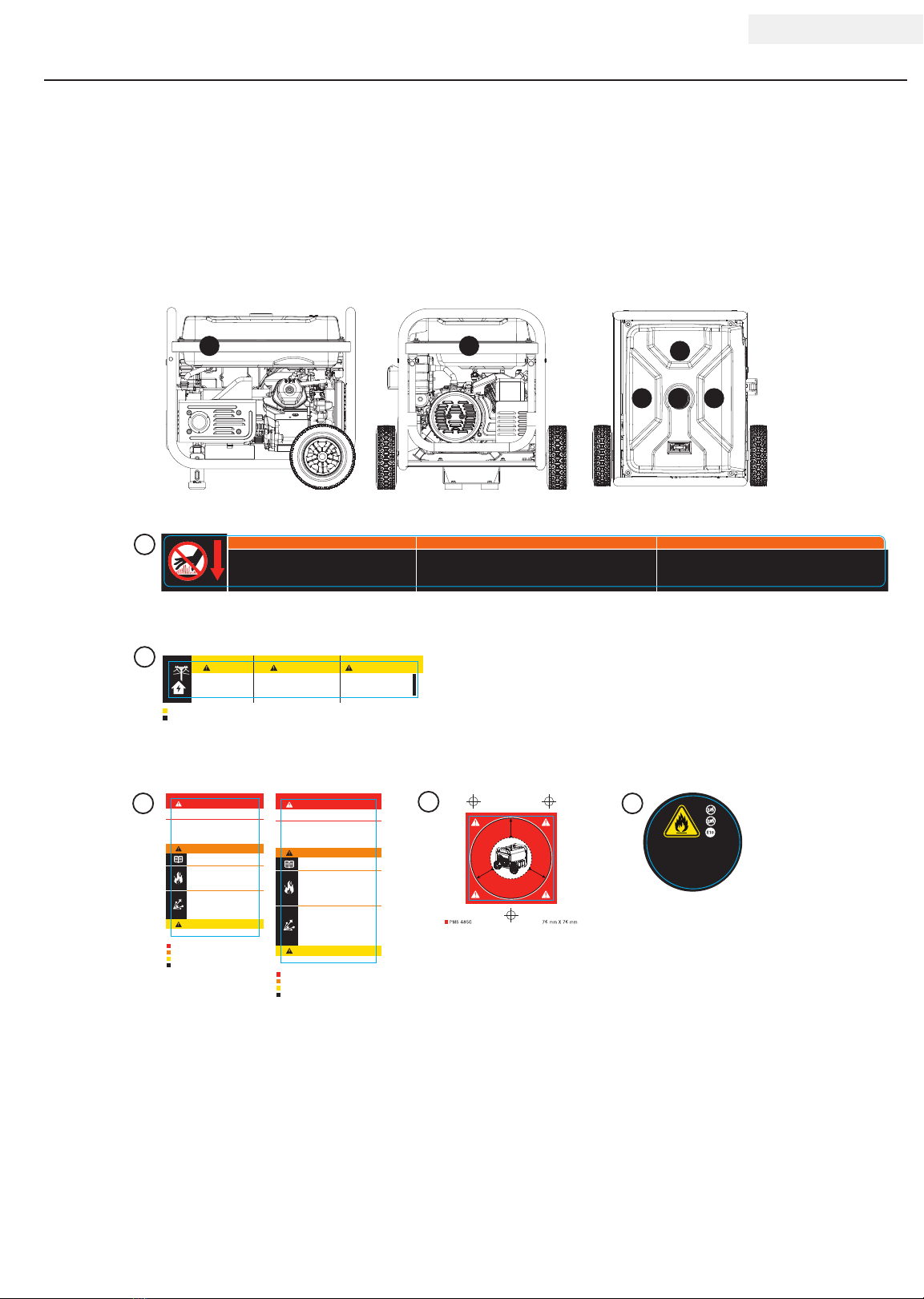

Safety Label Locations................... 5
Controls and Features ..................... 6
Generator............................ 6

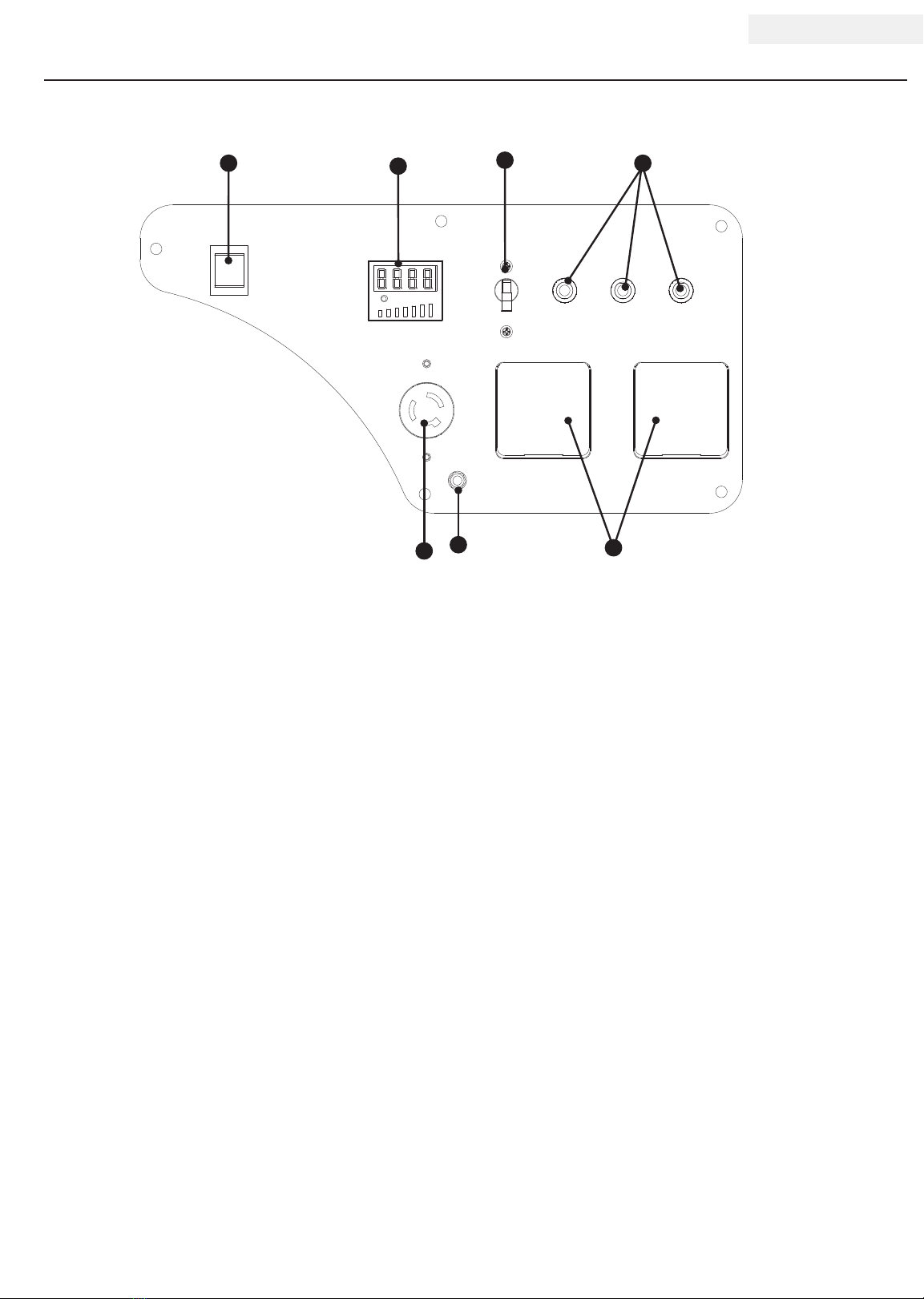

Power Panel .......................... 7
Parts Included ........................ 8
Wheel Kit.......................... 8
Other ............................ 8
Assembly .............................. 9
Remove the Generator from the Shipping Carton . 9
Install the Wheel Kit .................... 9
Install the Support Leg .................. 9
Connect the Battery .................... 9
Add Engine Oil ....................... 10

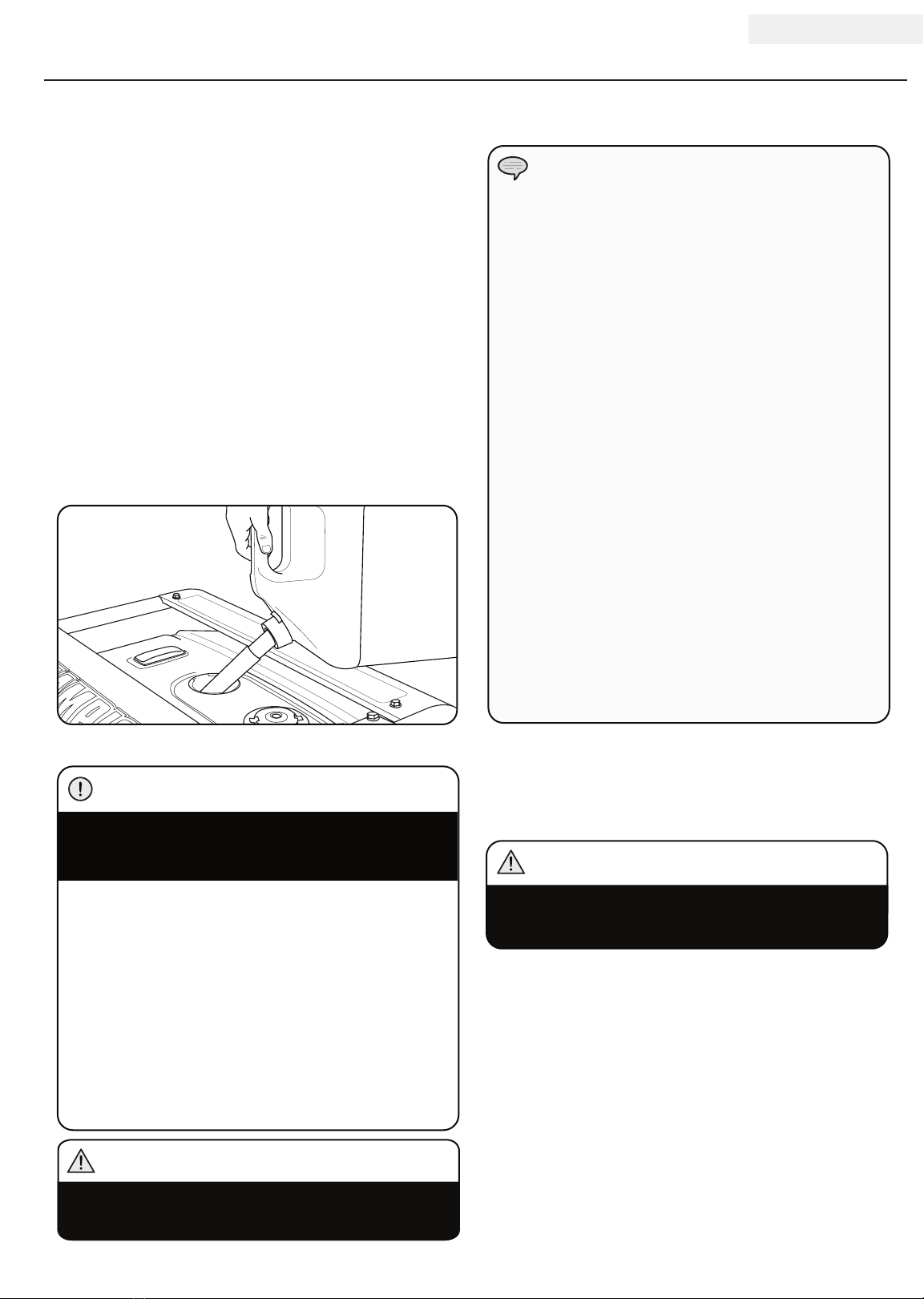

Add Fuel ........................... 11
Grounding .......................... 11
Operation ............................. 12
Generator Location .................... 12
Grounding .......................... 12
Surge Protection ...................... 12
Starting the Engine .................... 12
Connecting Electrical Loads .............. 13
Stopping the Engine ................... 13
Do Not Overload Generator ............... 14
Capacity ......................... 14
Power Management .................. 14
Operation at High Altitude ............... 14
Maintenance and Storage .................. 15
Engine Maintenance ................... 15
Oil ............................. 15

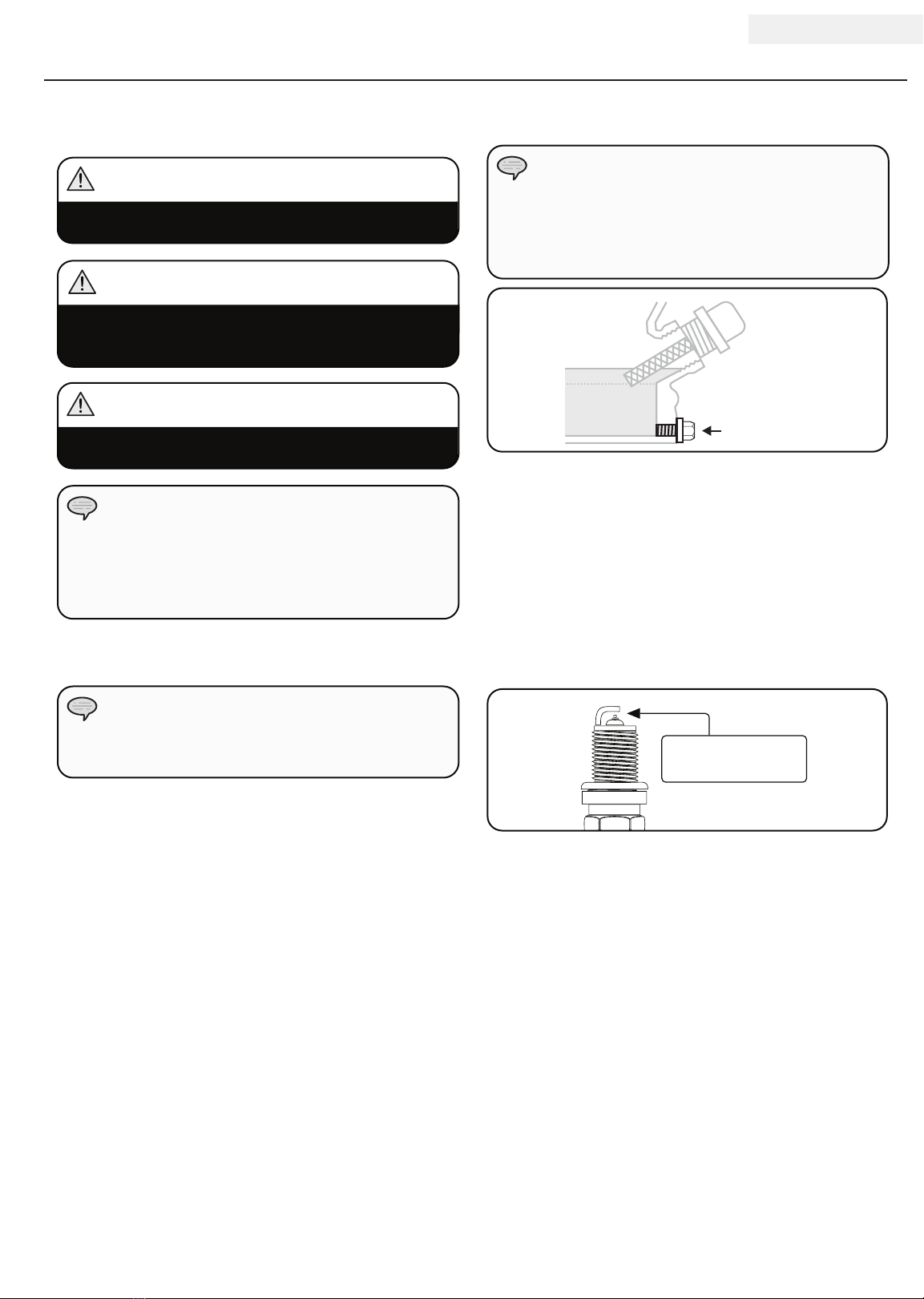

Spark Plugs ....................... 15
Air Filter ......................... 15

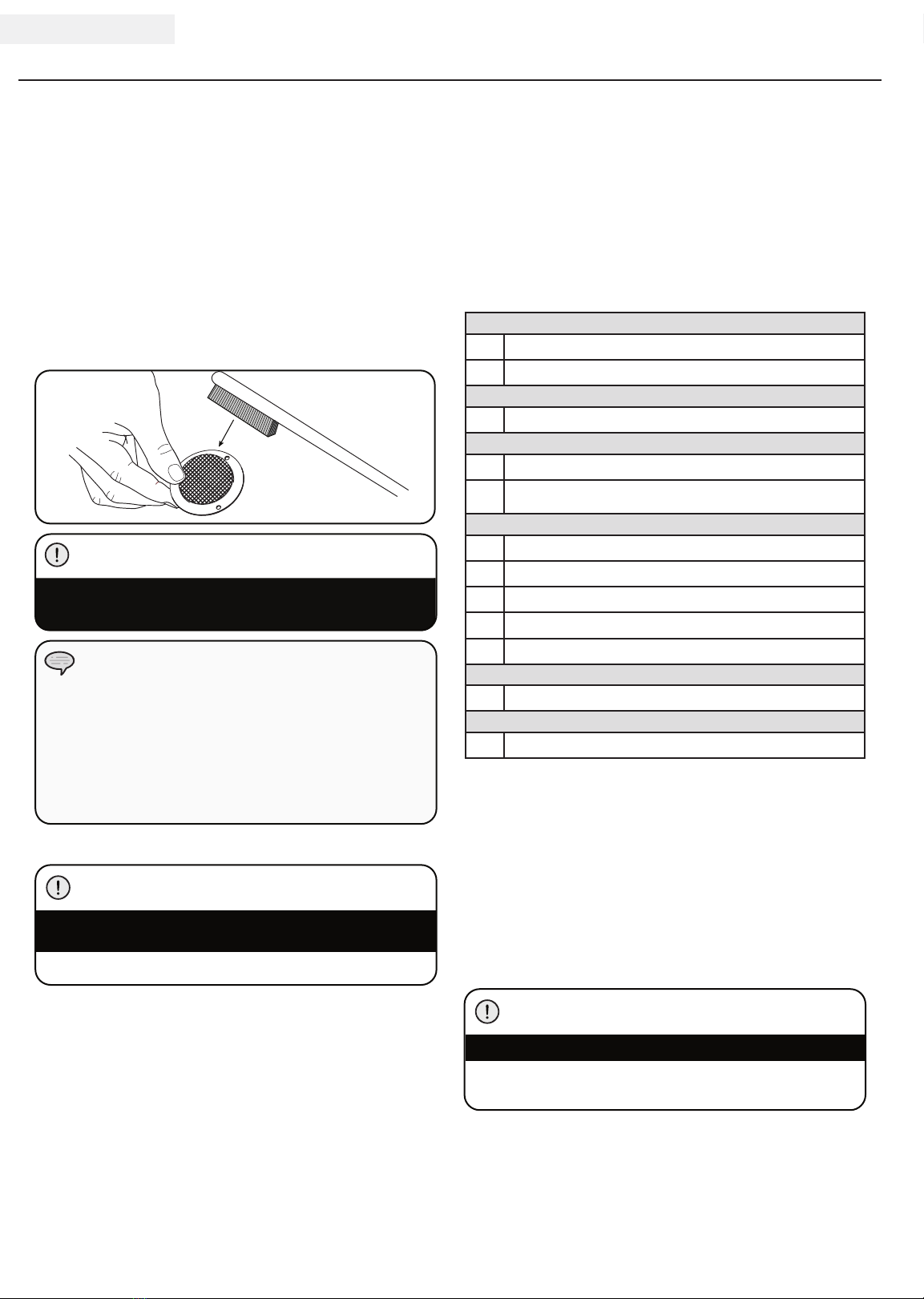

Spark Arrester ..................... 16
Cleaning ......................... 16
Adjustments ....................... 16
Maintenance Schedule................ 16
Generator Maintenance ................. 16
Storage ............................ 17
Generator Storage ................... 17
Battery .......................... 17
Charge the Battery .................. 17
Disconnect the Battery ............... 17
Specifications .......................... 18
Engine Specifications .................. 18
Generator Specifications ................ 18
Fuel .............................. 18
Oil ............................... 18
Spark Plugs ......................... 18
Maintenance Valve Clearance ............. 18
An Important Message About Temperature .... 18
Wiring Diagram ....................... 19
Parts Diagram........................ 20
Parts List ........................... 21
Engine Parts Diagram .................. 22
Engine Parts List ..................... 23
Troubleshooting......................... 25
Electric Start
PORTABLE GENERATOR
9375 Starting Watts / 7500 Running Watts

1
ENGLISH 500110-N
INTRODUCTION
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
500110-N
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
Introduction
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and
Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines.
With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying
service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we
reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also
highly value your safety and the safety of others, we would like you to take the time to review this product manual
and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please
always exercise common sense and always error on the side of caution when operating the product to ensure no
accidents, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE/CET
product for years to come.

2
500110-N ENGLISH MANUAL CONVENTIONS
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your generator, we can
help. Please call our help line at
NOTE

3
ENGLISH 500110-N
SAFETY RULES
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
Operate generator outdoors only in a well ventilated
area.
DO NOT operate the generator inside any building,
including garages, basements, crawlspaces and
sheds, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE: using a generator
indoors CAN KILL YOU IN MINUTES.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged
or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such
as metal decking.
Use approved transfer equipment to isolate generator
from your electric utility and Notify your utility
company before connecting your generator to your
power system.
DANGER
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can
occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all
sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from
combustible materials.
WARNING
Medical and Life Support Uses.
In case of emergency, call 111 immediately.
NEVER use this product to power life support
devices or life support appliances.
NEVER use this product to power medical devices
or medical appliances.
Inform your electricity provider immediately if you
or anyone in your household depends on electrical
equipment to live.
Inform your electrical provider immediately if a
loss of power would cause you or anyone in your
household to experience a medical emergency.
WARNING
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result
in serious injury or death.
WARNING
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
WARNING

4
500110-N ENGLISH SAFETY RULES
Improper treatment or use of the generator can
damage it, shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
WARNING
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it.
DO NOT overload the generator.
Start the generator and allow the engine to stabilize
before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off before stopping the
generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel:
Turn the generator off and let it cool for at least two
minutes before removing the fuel cap. Loosen the
cap slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the generator at the
gas station. Use an approved container to transfer
the fuel to the generator.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark plug,
fuel lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly on
level ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
DANGER

5
ENGLISH 500110-N
SAFETY RULES
A B
EC C
D
Safety Label Locations
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Champion Power Equipment’s customer service department for
possible replacement.
B
CD
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operador debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans la
végétation sèche. Un pare-étincelles peut être requis. L’utilisateur doit
communiquer avec le service d’incendie local pour connaître les lois et
les règlements en matière de prévention des incendies. Si elle est
installée, nettoyez la génératrice toutes les 100 heures ou chaque saison.
1035-L-SF-C
ColorsLPN 1035-L-SF
Rev C
Size 369 x 26 mm
Artwork Notes
3mm corner radius; 2mm safe margin
Revision Changes
C: updated some FR translation words.
This ar twork bel ongs to Champ ion Power Equi pment. The c ontents ar e confiden tial and pri vileged and sh all not be discl osed to or use d by or for
outsid e parties w ithout the ex plicit consent of C hampion Power Equipm ent.
K485 152 --- ---
A
E
UNLEADED FUEL ONLY. Minimum octane
rating of 91. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 91 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 91.
Maximum 10 % d'éthanol.
K109 --- --- ---
ColorsLPN
Rev
Size 46 x 46 mm
Artwork Notes
3mm corner radius; 2mm safe margin; whit e to be
prin ted sho wn in 50% p roces s magen ta
Revision Changes
-Cha nged Oc tane r ating from 85 t o 87 (202 004 07)
This ar twork bel ongs to Champion Power Equipment. Th e content s are confid ential and privileged and shall not be di sclosed to o r used by or for
outsid e parties w ithout the explici t consent of Champi on Power Equipment.
CAUTION
A transfer switch MUST be used
when connecting generator to a
building’s electrical system.
See Owner’s Manual.
PRECAUCIÓN
Es OBLIGATORIO usar un interruptor de
transferencia cuando se conecte el generador
al sistema eléctrico de un inmueble. Vea el
manual del propietario
MISE EN GARDE
Le commutateur de transfert DOIT être
utilisé pour connecter la génératrice
au système électrique d’un immeuble.
Consulter le manuel du propriétaire.
GN -SF -T-0 02.1
109
BLACK
158 x 23 mm
WHEN STORING GASOLINE, PROPANE (LPG) OR
EQUIPMENT WITH FUEL IN IT: Store away from
furnaces, stoves, water heaters or other appliances that
have a pilot light or other ignition source because they
can ignite the fuel.
FOR USE IN A WE ATHER-PROTECTED AREA ONLY.
DO NOT EXPOSE TO RAIN.
Operating of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrester may be required.
The operator should contact local fire
agencies for laws or regulations relating to fire
prevention requirements.
Read and follow all operating instructions
before running engine.
Gasoline and propane (LPG) are extrememely
flammable. Check for spilled fuel or fuel
leaks. If one is found, shut off fuel supply and
stop engine immediately. Allow to cool at
least 2 minutes before refueling.
FOR ELECTRICAL EQUIPMENT ONLY.
DANGER
WARNING
CAUTION
GN-SF-E-005.1
485
152
109
BLACK
63 x 99 mm
CUANDO ALMACENE GASOLINA, GAS PROPANO
(GLP) O EQUIPO CON COMBUSTIBLE ADENTRO:
Almacene fuera de hornos, estufas, calentones de agua,
o otros aparatos que tengan luz piloto o otra fuente de
encendido por que pueden encender el combustible.
PARA USO EN AREAS DESPEJADAS SOLAMENTE.
NO EXPONGA A LA LLUVIA.
La operación de este equipo puede originar
chispas que pueden crear incendios cerca de
la vegetación seca. Es posible que se requiera
un parachispas. El operador deberá
comunicarse con los organismos locales
encargados de combatir incendios para
conocer las leyes o reglamentos relacionados
con los requisitos para prevenir incendios.
Lea y acate todas las instrucciones de
operación antes de encender el motor.
La gasolina y el gas propano (GL P) son
extremadamente inflamables. Verifique si
hay combustible derramado o fugas de
combustible. Si una es encontrada, apague
el suministro y pare el motor inmediata-
mente. Permita que se enfrié por los menos
2 minutos antes de reabastecerlo.
PARA EQUIPOS ELÉCTRICOS SOLAMENTE.
PELIGRO
ADVERTENCIA
PRECAUCIÓN
GN-SF-S-005B.1
485
152
109
BLACK
63 x 110 mm
M
I
N
I
M
U
M
C
L
E
A
R
A
N
C
E
5
F
T
.
E
S
P
A
C
I
O
M
Í
N
I
M
O
1
,
5
M
M
I
N
I
M
U
M
D
'
E
S
P
A
C
E
1
,
5
M

6
500110-N ENGLISH
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
(1) Fuel Tank – 7.7 gal. (29 L) capacity fuel tank.
(2) Choke – Used to start the engine.
(3) Fuel Valve – Used to turn fuel supply on and off to
engine.
(4) Air Cleaner – Protects the engine by filtering dust
and debris from the intake air.
(5) Recoil Starter – Used to manually start the engine.
(6) Oil Filler Cap – Check and fill engine oil level.
(7) Battery – Used to start the engine. Provides 12V
DC to the electric starter and receiver control
module.
(8) Power Panel – See “Power Panel” section.
Generator
CONTROLS AND FEATURES
1
5
3
2
4
7
6
8

7
ENGLISH 500110-N
Power Panel
CONTROLS AND FEATURES
1
5
46
(1) Ignition Switch – Used to start or stop the
generator.
(2) Intelligauge with Power Meter – Five mode digital
meter for displaying running hours, total time,
voltage, hertz and wattage output.
(3) Circuit Breakers – Protects the generator against
electrical overloads.
(4) 230 Volt AC, 30 Amp
May be used to supply electrical power for the
operation of 230 Volt AC, single phase 50 Hz
electrical loads.
(5) Ground Terminal – Consult an electrician for local
grounding regulations.
(6) 230 Volt AC, 16 Amp (2)
May be used to supply electrical power for the
operation of 230 Volt AC, single phase 50 Hz
electrical loads.
233

8
500110-N ENGLISH
Parts Included
CONTROLS AND FEATURES
Your 500110-N gasoline generator ships with the
following parts:
Wheel Kit
– 9.5 in. (24.1 cm) Wheel...................2
– Pin Roll Ø16 x Ø10 x 107 (for Wheel)..........2
– “R” Shape Pin Ø2 x 33 ...................2
– Support Leg w/Vibration Mounts .............1
– Flange Bolt (M8x16 for Support Leg) ..........2
– Flange Lock Nut (M8) ....................2
Other
– Oil ........................ 1.2 qt. (1.1 L)
– Oil Funnel ............................1
– Screw/Washer (M5x10 for Battery) ...........2
– Flange Lock Nut (M5) ....................2
(Battery Bolts)

9
ENGLISH 500110-N
ASSEMBLY
Your generator requires some assembly. This unit ships
from our factory without oil and fuel. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our help line at . Please have your serial
number and model number available.
Remove the Generator from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the
generator.
3. Carefully cut each corner of the box from top to
bottom. Fold each side flat on the ground to provide a
surface area to install the wheel kit and support leg.
Install the Wheel Kit
Install the Support Leg
1. Attach the support leg to the generator frame with
flange bolts (M8x16) and flange lock nuts (M8).
2. Tip the generator slowly so that it rests on the
wheels and support leg.
The wheel kit is not intended for over-the-road use.
CAUTION
Connect the Battery
1. Remove the protective cover from the red (+) lead on
the battery.
2. Attach the red (+)lead to the red (+) terminal on the
battery with the screw/washer (M5x10) and secure
with the flange lock nut (M5).
3. Repeat steps 1-2 for the black (–) battery lead.
1. Before adding fuel and oil, tip the generator on it’s side.
2. Slide the wheel pin roll through the wheel from
the outside.
3. Slide the wheel pin roll through the mount point on
the frame.
4. Secure with the R-Pin Ø2 x 33.
5. Repeat steps 2-4 to attach the second wheel.

10
500110-N ENGLISH
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add up to 1.2 qt. (1.1 L) of oil (included) and replace
oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level daily and add as needed.
The recommended oil type is 10W-30 automotive oil.
NOTE
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
Add Engine Oil
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the generator as
a result of failure to follow these instructions will
void your warranty.
CAUTION
ASSEMBLY
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated ball
bearing that requires no additional lubrication for
the life of the bearing.
NOTE
Add Engine Oil Cont’d.
Synthetic oil may be used after the 5 hour initial
break-in period. Using synthetic oil does not
increase the recommended oil change interval.
Full synthetic 5W-30 oil will aid in starting in cold
ambient <5ºC (41ºF)
NOTE
We consider the first 5 hours of run time to be
the break-in period for the unit. During the break
in period stay at or below 50% of the running
watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the
load will also cause engine speed to vary and help
seat piston rings. After the 5 hour break-in period,
change the oil.
NOTE
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
MAX
OIL DIP STICK
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Full Synthetic 5W-30
Degrees Celsiusº (Outside)
(Outside)
Degrees Fahrenheitº

11
ENGLISH 500110-N
ASSEMBLY
Add Fuel Cont’d.
Grounding
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
A ground terminal connected to the frame of the generator
has been provided on the power panel. For remote
grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator
ground terminal and a copper rod driven into the ground.
We strongly recommend that you consult with a qualified
electrician to ensure compliance with local electrical codes.
Failure to properly ground the generator can result
in electric shock.
WARNING
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE
Add Fuel
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 91 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL. Fuel
can expand after filling. A minimum of ¼ in. (6.4 mm)
of space left in the tank is required for fuel expansion,
more than ¼ in. (6.4 mm) is recommended. Fuel
can be forced out of the tank as a result of expansion
if it is overfilled, and can affect the stable running
condition of the product. When filling the tank, it is
recommended to leave enough space for the fuel to
expand.
6. Screw on the fuel cap and wipe away any spilled fuel.
Use regular unleaded gasoline with a minimum
octane rating of 91.
Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the generator at the
gas station. Use an approved container to transfer
the fuel to the generator.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while filling.
WARNING

12
500110-N ENGLISH OPERATION
Generator Location
NEVER operate the generator inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the generator
compartment of a recreational vehicle. Please consult
your local authority. In some areas, generators must
be registered with the local utility. Generators used at
construction sites may be subject to additional rules and
regulations. Generators should be on a flat, level surface
at all times. (Even while not in operation) Generators
must have at least 5 ft. (1.5 m) of clearance from all
combustible material. In addition to clearance from
all combustible material, generators must also have
at least 3 ft. (91.4 cm) of clearance on all sides to
allow for adequate cooling, maintenance and servicing.
Generators should never be started or operated in the
back of a SUV, camper, trailer, in the bed of a truck
(regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that
will not allow for adequate cooling of the generator
and/or the muffler. DO NOT contain generators during
operation. Allow generators to properly cool before
transport or storage.
Place the generator in a well-ventilated area. DO NOT
place the generator near vents or intakes where exhaust
fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
Do not operate or store the generator in rain, snow,
or wet weather.
Using a generator or electrical appliance in wet
conditions, such as rain or snow, or near a pool or
sprinkler system, or when your hands are wet, could
result in electrocution.
WARNING
WARNING
During operation the muffler and exhaust fumes
produced will become hot. If adequate cooling and
breathing space are not supplied, or if the generator
is blocked or contained, temperatures can become
extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are
designed to operate within a narrow voltage range and
may be affected by momentary voltage fluctuations.
While there is no way to prevent voltage fluctuations, you
can take steps to protect sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in surge suppressors
on the outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet
styles. They’re designed to protect against virtually
all short-duration voltage fluctuations.
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
CAUTION
Starting the Engine
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Turn the fuel valve to the “ON” position.
4. Move the choke lever to the “CHOKE” position.
5. Flip the ignition switch to the “ON” position.
6. ELECTRIC START: Press and hold the ignition switch
to the “START” position. Release as the engine
begins to roll over. If the engine fails to start within
five seconds, release the switch and wait at least ten
seconds before attempting to start the engine again.
7. RECOIL START: Pull the starter cord slowly until
resistance is felt and then pull rapidly
8. Do not over-choke. As soon as engine starts, move the
choke lever to the “RUN” position.
Grounding
The generator system ground connects the frame to the
ground terminals on the power panel. The system ground is
connected to the AC neutral wire.

13
ENGLISH 500110-N
Connecting Electrical Loads
1. Let the engine stabilize and warm up for a few
minutes after starting
2. Plug in and turn on the desired 230 Volt AC single
phase, 50 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT connect 60 Hz loads to the generator.
– DO NOT overload the generator.
Connecting a generator to your electric utility
company’s power lines or to another power source
may be against the law. In addition this action,
if done incorrectly, could damage your generator
and appliances and could cause serious injury or
even death to you or a utility worker who may be
working on nearby power lines. If you plan to run a
portable electric generator during an outage, please
notify your electric utility company immediately
and remember to plug your appliances directly
into the generator. Do not plug the generator into
any electric outlet in your home. Doing so could
create a connection to the utility company power
lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the
electric utility power lines.
If the generator will be connected to a building
electrical system, consult your local utility company
or a qualified electrician. Connections must isolate
generator power from utility power and must comply
with all applicable laws and codes.
NOTE
OPERATION
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start
or stop the generator with electrical devices plugged
in or turned on.
2. Let the generator run at no-load for several minutes
to stabilize internal temperatures of the engine and
generator.
3. Turn the fuel valve to the “OFF” position.
4. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
5. Press the ignition switch to the “OFF” position.
Important: Always ensure that the fuel valve and the
ignition switch are in the “OFF” position when the engine
is not in use.
If the engine will not be used for a period of two (2)
weeks or longer, please see the Storage section for
proper engine and fuel storage.
NOTE
If the engine starts but does not run make certain
that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE
Keep choke lever in “Choke” position for only 1
pull of the recoil starter. After first pull, move choke
lever to the “Run” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
sparkplug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
The supplied 12V 15AH battery does re-charge
while the engine is running, but it is also
recommended that the battery be fully charged at
least once per month.
NOTE
Starting the Engine Cont’d. Connecting Electrical Loads Cont’d.

14
500110-N ENGLISH
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and
starting watts necessary for your purposes.
1. Select the electrical devices you plan on running at
the same time.
2. Total the running watts of these items. This is
the amount of power you need to keep your items
running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Surge wattage is the extra
burst of power needed to start some electric driven
equipment. Following the steps listed under “Power
Management” will guarantee that only one device will
be starting at a time.
Power Management
Use the following formula to convert voltage and
amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach
the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Never exceed the specified capacity when adding
loads to the generator.
NOTE
OPERATION
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and air-
fuel ratio decrease. Engine power and generator output
will be reduced approximately 3½% for every 1000
feet of elevation above sea level. This is a natural trend
and cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Carburetor
Code Main Jet Part Number Altitude
P29-2-H
Standard 48.131017.01.H
5500 Feet
(1676 Meters)
Altitude 48.131017.01.01.H
P29-2-T
Standard 48.131017.01.T
Altitude 48.131017.01.01.T
P29-2-F
Standard 48.131017.01.F
Altitude 48.131017.01.01.F

15
ENGLISH 500110-N
MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
Never operate a damaged or defective generator.
Tampering with the factory set governor will void
your warranty.
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 15 mm socket and
extension. (not included)
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add up to 1.2 qt. (1.1 L) of oil and replace oil fill
cap/dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste
management facility.
Air Filter
1. Remove the snap-on cover holding the air filter to
the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all
excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in place.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket tool (not included), or a
13/16 in. or 21mm socket (not included) to remove
the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use the spark plug socket (not included) to firmly
install the plug.
8. Attach the spark plug wire to the plug.
For service or parts assistance, contact our help
line at
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
WARNING
Improper maintenance will void your warranty.
WARNING
Oil Cont’d.
0.7 - 0.8 mm
0.028 - 0.031 in.
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
DRAIN BOLT

16
500110-N ENGLISH
Adjustments
The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. CPE
recommends that you contact our service line at
for all other service and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating
in adverse conditions.
Contact our helpline at to locate the nearest Champion
Power Equipment certified service dealer for your
generator or engine maintenance needs.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.
Spark Arrester
1. Allow the engine to cool completely before servicing
the spark arrester.
2. Remove the three screws holding the cover plate
which retains the end of the spark arrester to the
muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and attach
with the three screws.
Failure to clean the spark arrester will result in degraded
engine performance.
CAUTION
Federal and local laws and administrative requirements
indicate when and where spark arresters are required.
When ordered, spark arresters are required for operation
of this generator in National Forest lands. In California,
this generator must not be used on any forest- covered
land, brush-covered land, or grass- covered land unless
the engine is equipped with a spark arrester.
NOTE
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
MAINTENANCE AND STORAGE
Generator Maintenance
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Use a damp cloth to clean exterior surfaces of the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
CAUTION
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance*
Clean spark arrester
Clean fuel tank and filter*
Every 250 hours
Clean combustion chamber*
Every 3 years
Replace fuel line

17
ENGLISH 500110-N
MAINTENANCE AND STORAGE
Storage
The generator should be started at least once every
14 days and allowed to run for at least 20 minutes. For
longer term storage, please follow these guidelines.
Generator Storage
1. Add a properly formulated fuel stabilizer to the tank.
2. Be sure all appliances are disconnected from the
generator.
3. Run the generator for a few minutes so the treated
fuel cycles through the fuel system and carburetor.
4. Turn the fuel valve to the “Off” position.
5. Let the generator run until fuel starvation has
stopped the engine. This usually takes a few minutes.
6. The generator needs to cool acompletely before
cleaning and storage.
7. Clean the generator according to the maintenance
section.
8. Change the oil.
9. Remove the spark plug and pour about 1⁄2 ounce
(14.8 mL) of oil into the cylinder. Crank the engine
slowly to distribute the oil and lubricate the cylinder.
10. Reattach the spark plug.
11. Store the unit in a clean, dry place out of direct
sunlight.
Battery
This product is equipped with an automatic battery
charging circuit. The battery will receive charging
voltage when the engine is running. The battery will
maintain a proper charge if the unit is used on a regular
basis (about once every two weeks). If it is used less
frequently, the battery should be connected to a trickle
charger or battery maintainer to keep the battery
properly charged. If the battery is not able to start the
engine, it can be started by manually pulling the engine
recoil cord. If the battery voltage is extremely low,
the charging circuit may not be able to re-charge the
battery. In this case, the battery must be connected
to a standard automotive style battery charger for re-
charging before it can be used.
Disconnect the Battery
1. Remove the protective cover from the black/negative
battery lead.
2. Disconnect the black/negative lead from the black/
negative terminal on the battery and store the screw/
washer (M5x10) and flange lock nut (M5).
3. Repeat steps 1-2 for the red/positive battery lead.
4. Store the battery in a cool, dry place.
A Float Charger will maintain the battery condition
over long storage periods.
NOTE
Charge the Battery
For a generator equipped with batteries for electric
starting, proper battery maintenance and storage should
be followed. An automatic battery charger (not included)
with automatic trickle charging capability should be used
to charge the battery. Maximum charging rate should not
exceed 1.5 amps. Follow the instructions included with
the battery charger. The battery should be fully charged
at least once per month.
Generator exhaust contains odorless and colorless
carbon monoxide gas.
To avoid accidental or unintended ignition of your
electric start generator during periods of storage,
the following precautions should be followed:
– When storing the generator for short periods of
time make sure that the Ignition Switch and the
Fuel Valve are set in the OFF position.
– When storing the generator for extended periods
of time make sure that the Ignition Switch and
the Fuel Valve are set in the OFF position and
the battery leads have been disconnected from
the battery.
DANGER
